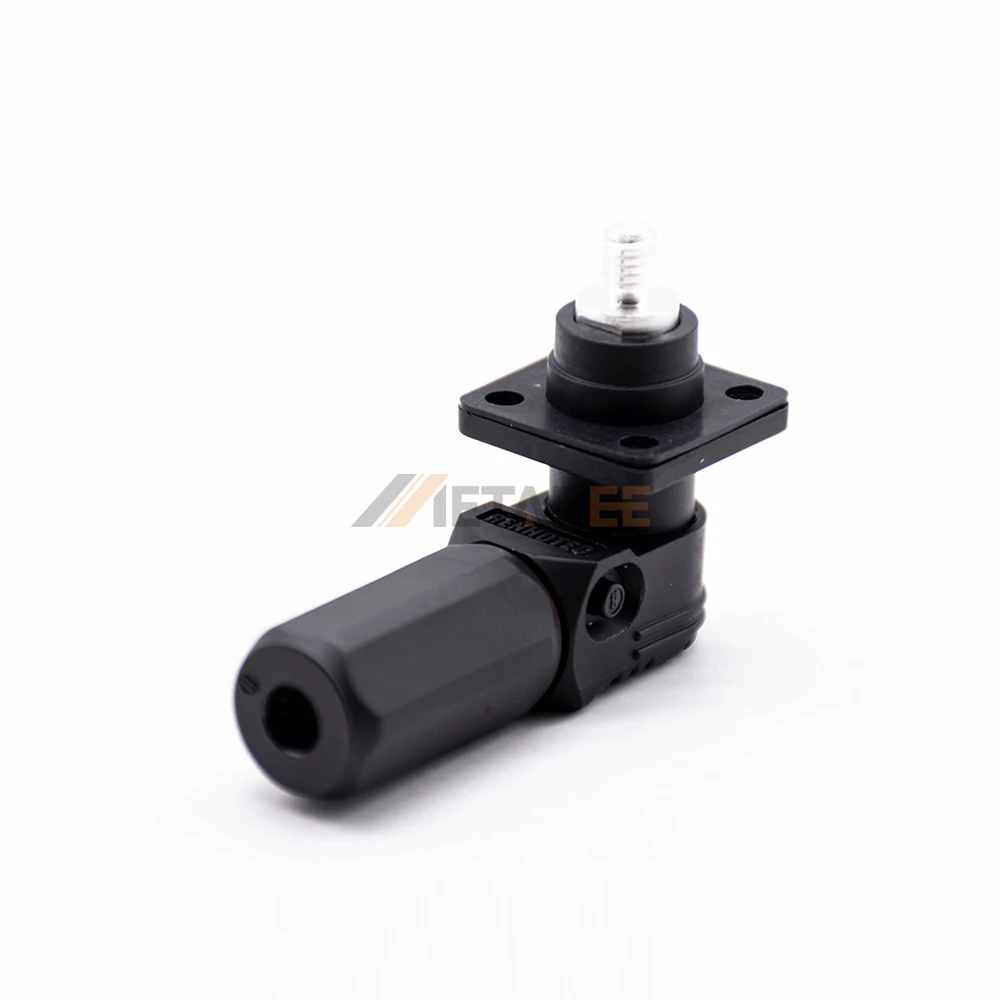

Energy Storage Battery Connector 200A 200 Apm
- Category: >>>
- Supplier: Yuanchuang Shidai (Chengdu) Technology Co. Ltd.
Share on (1600896034603):
Product Overview
Description
180+ Countries
30,000+ Project Cases
Products Description
Connector for Energy Storage Systems
1. Ensuring Safety in Energy Storage Systems
2. Professional Design Meeting Technical Requirements
3. Flexibility to Meet Specific Application Needs
4. 360-Degree Rotation for Optimal Cable Arrangement
5. Convenient Drawer-Style Slide-In Connection
2. Professional Design Meeting Technical Requirements
3. Flexibility to Meet Specific Application Needs
4. 360-Degree Rotation for Optimal Cable Arrangement
5. Convenient Drawer-Style Slide-In Connection

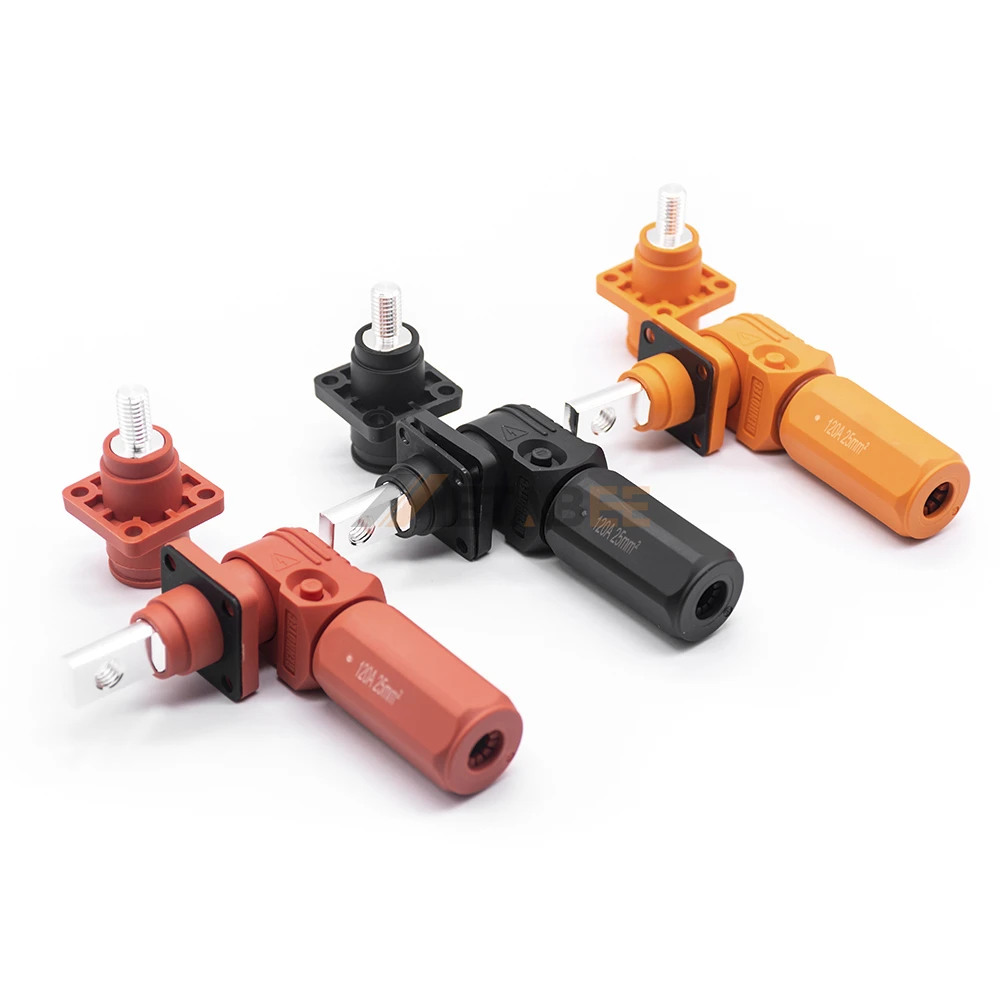

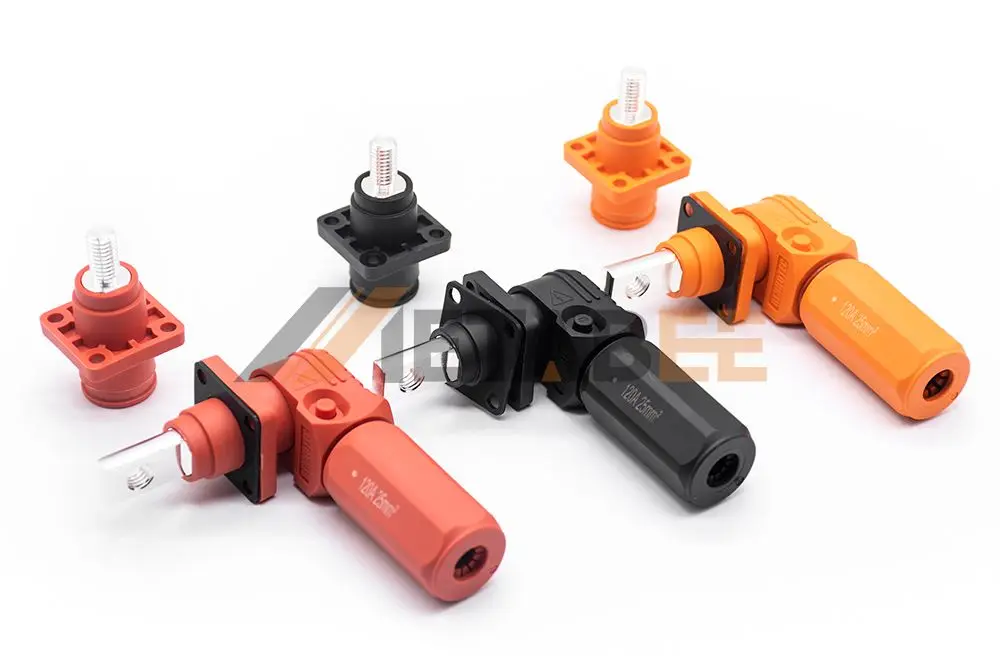

Suitable for Installation Environment , Three Colors Available
To adapt to various installation scenarios, energy storage connector plugs are typically curved. However, we can also provide straight plugs upon request.

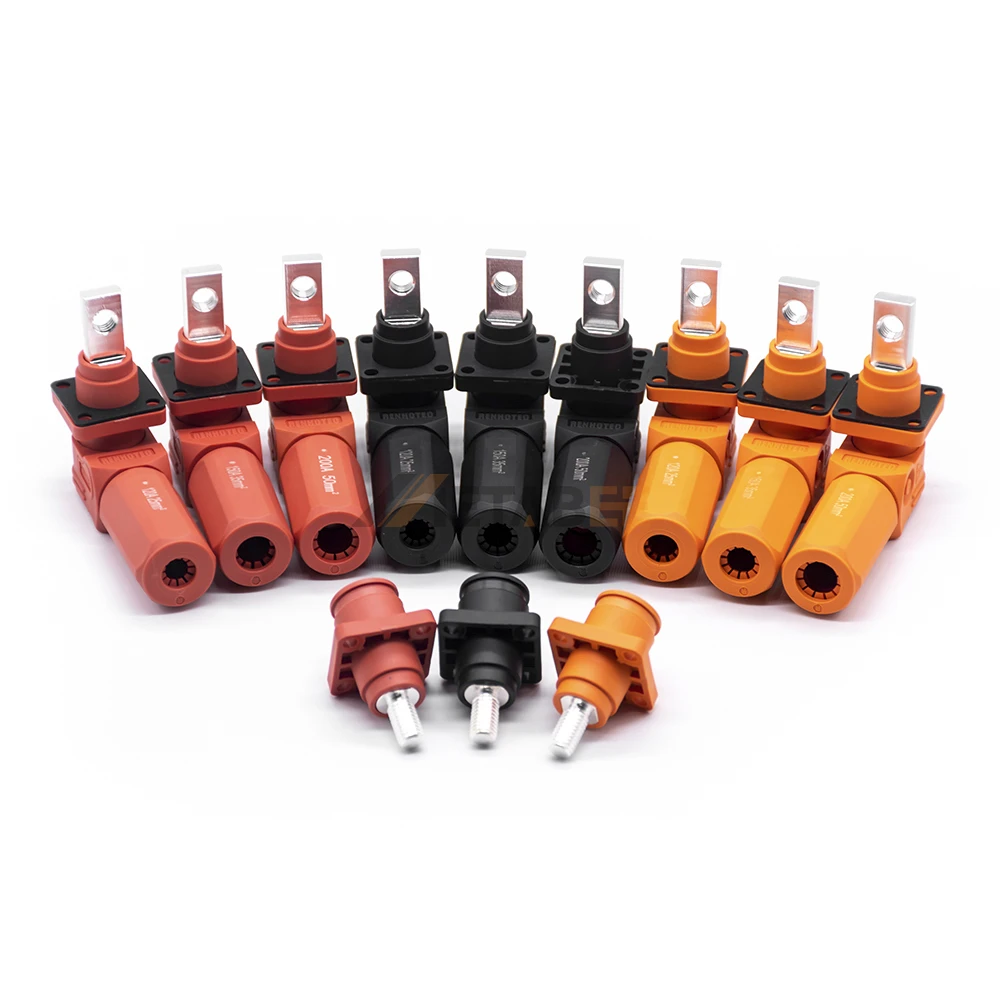

Our connectors are available in orange, red, and black.

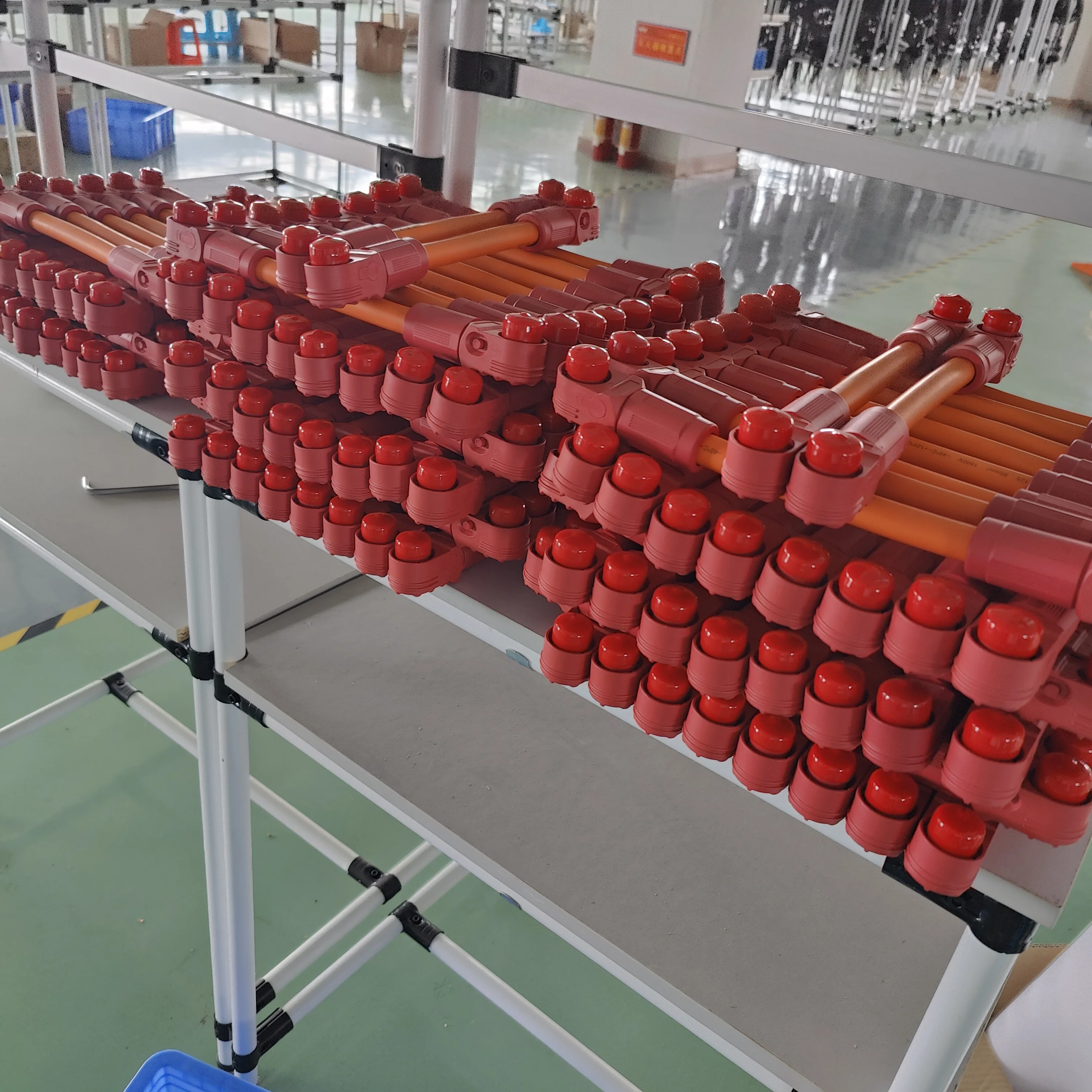

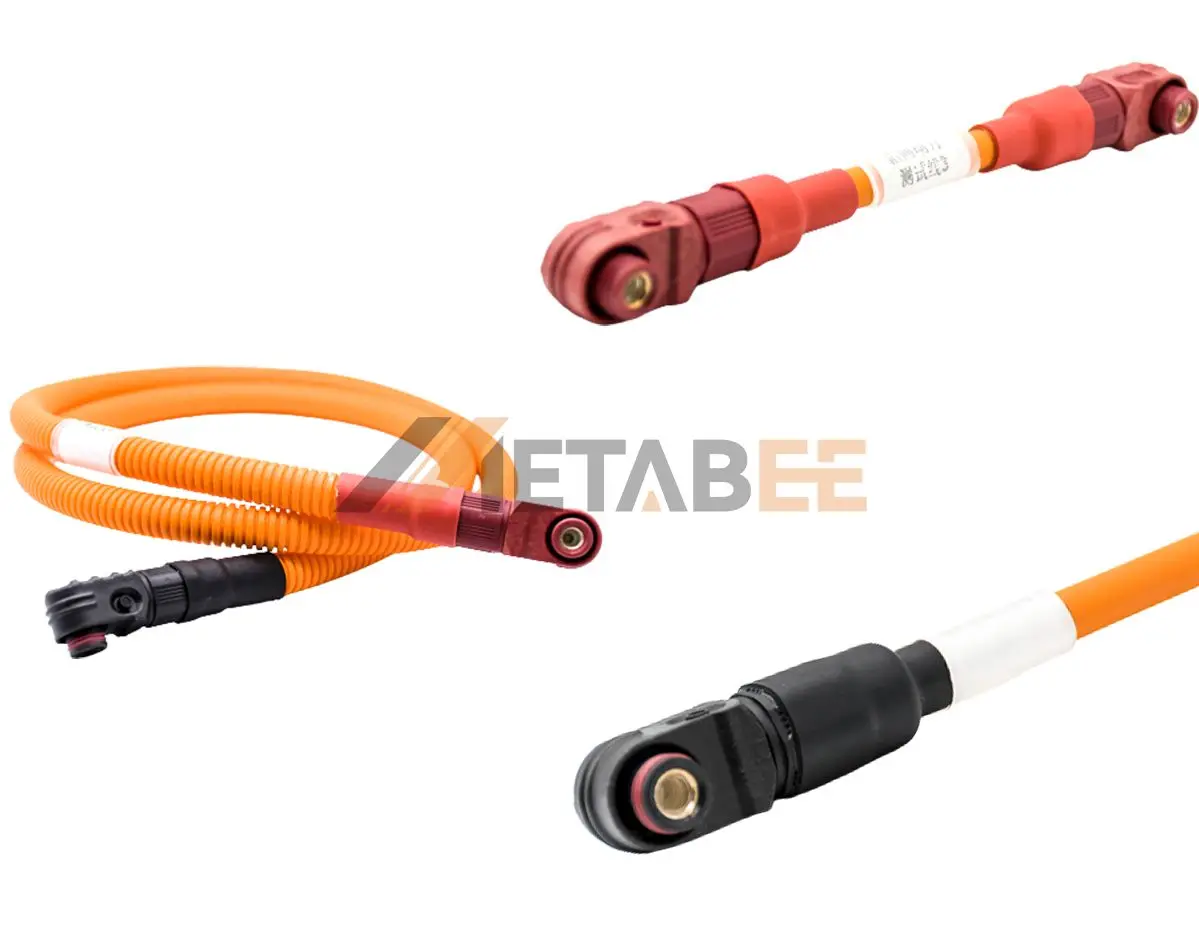

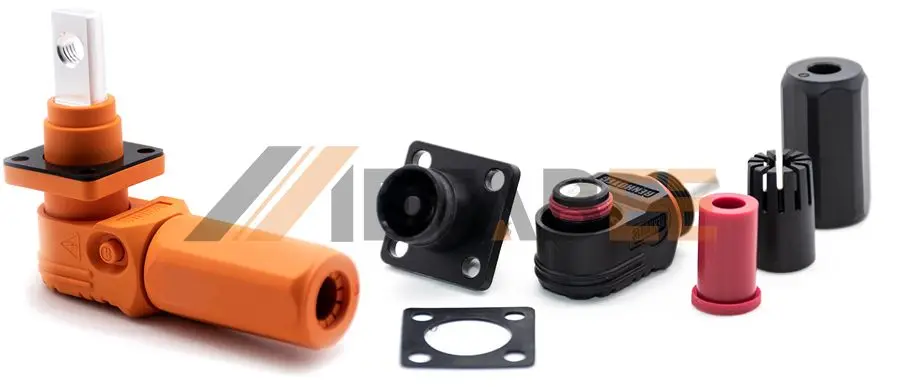

Custom Wire Harnesses
We provide customizable energy storage connector harnesses ranging from 60A to 350A rated current and 10mm² to 95mm² wire sizes.

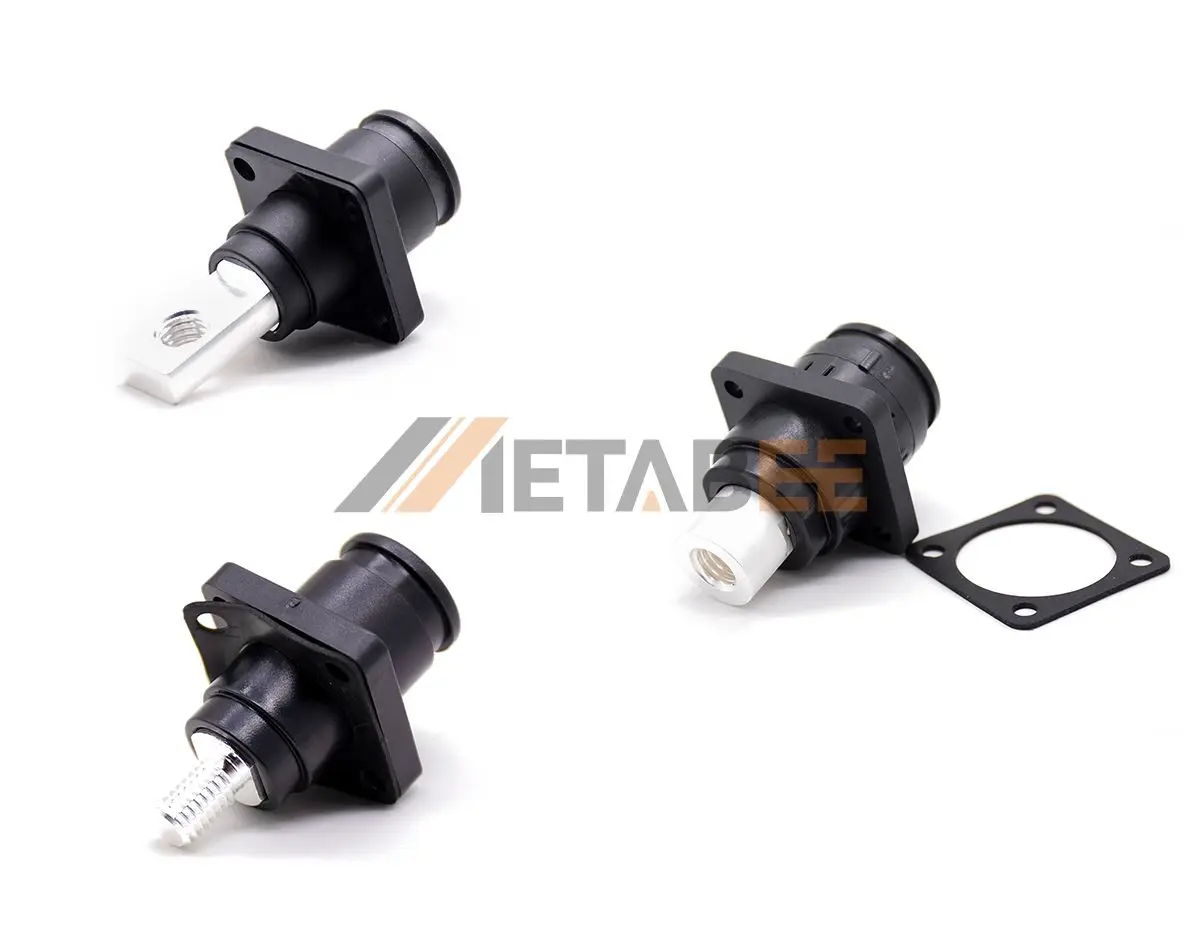

Three Types of Terminals are Available

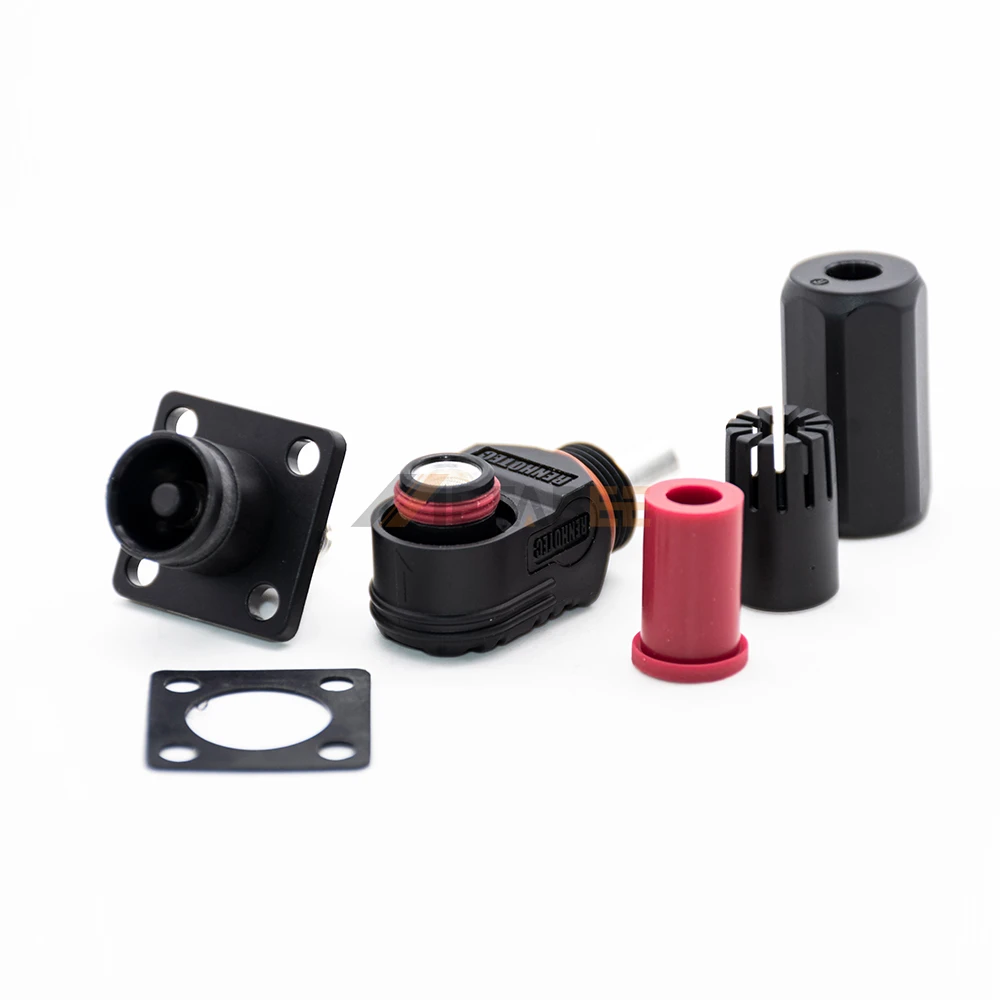

Energy storage connector receptacles are available with three terminal types: copper plate thread, female thread, and male thread.
Choose the socket with the appropriate terminal block based on your specific installation environment.

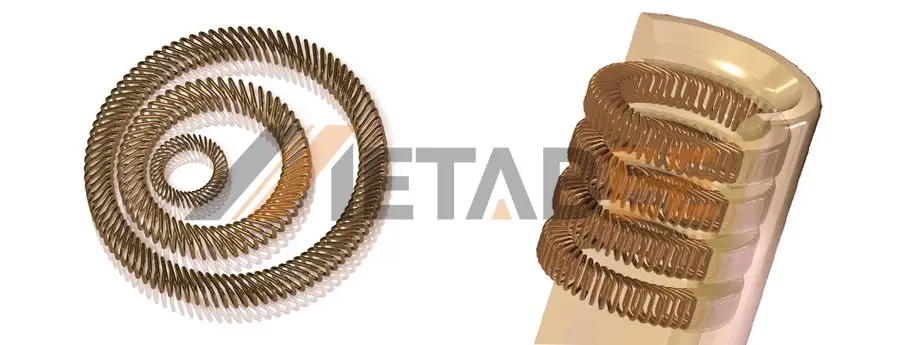

Unique Contact Piece Design
Our connectors use the Flexcoils finger technology, small size, high current carrying capacity, compared to the same size of the terminal, can have more current.
Anti-mistake Touch & 360°Rotation & Slide-in Connection
When the plug is inserted into the socket, you will hear a 'click'. Press the button to pull out the plug.
MeManufacturer | |
Type | Plug / Socket |
Orientation | Straight / Right Angled |
Contact Size | 6mm / 8mm / 12mm / 14mm |
Rated Current | 60A - 350A (MAX) |
Insulation Resistance | ≥1000MΩ |
Rated Voltage | 1000V DC |
Withstand Voltage | 2500V AC |
Shielding | Shielded / Unshielded |
Contact Finish | Silver |
Protection Rating | IP54 / IP67 |
Color | Orange / Red / Black |
Contact Material | Cooper Alloy , Silver Plating |
Temperature Range | -40°C~ +105°C |

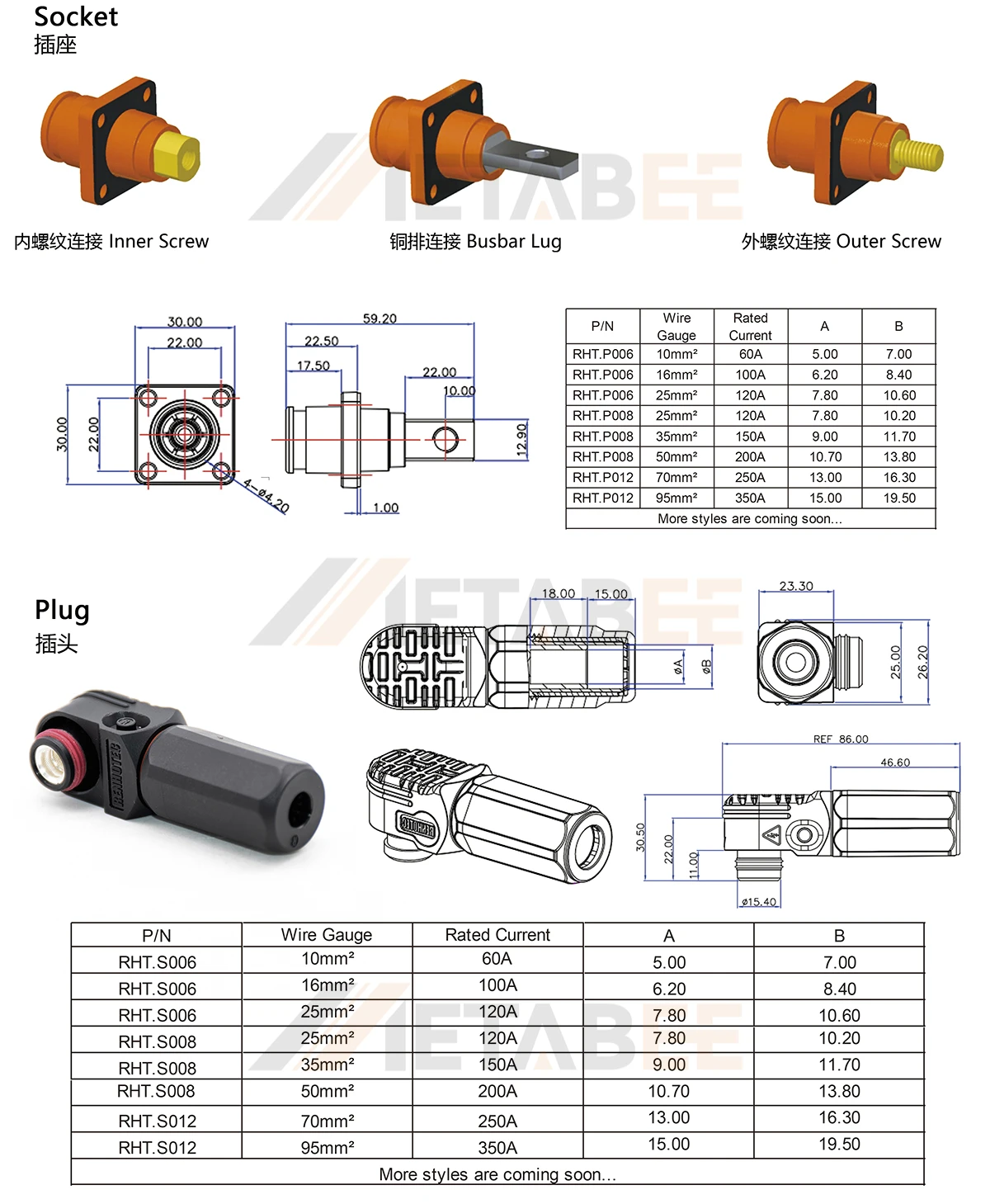

Battery Storage Connector Dimensions

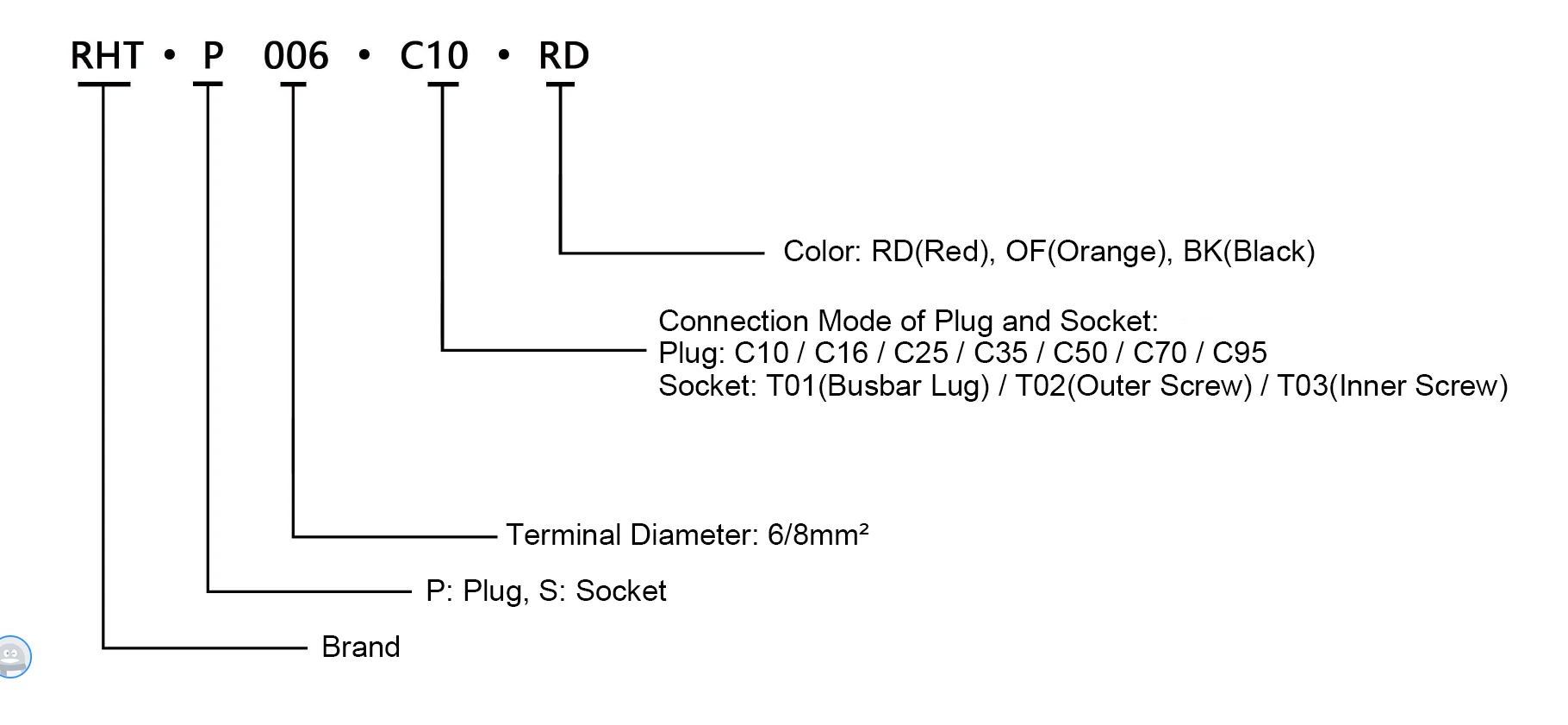

How to Order

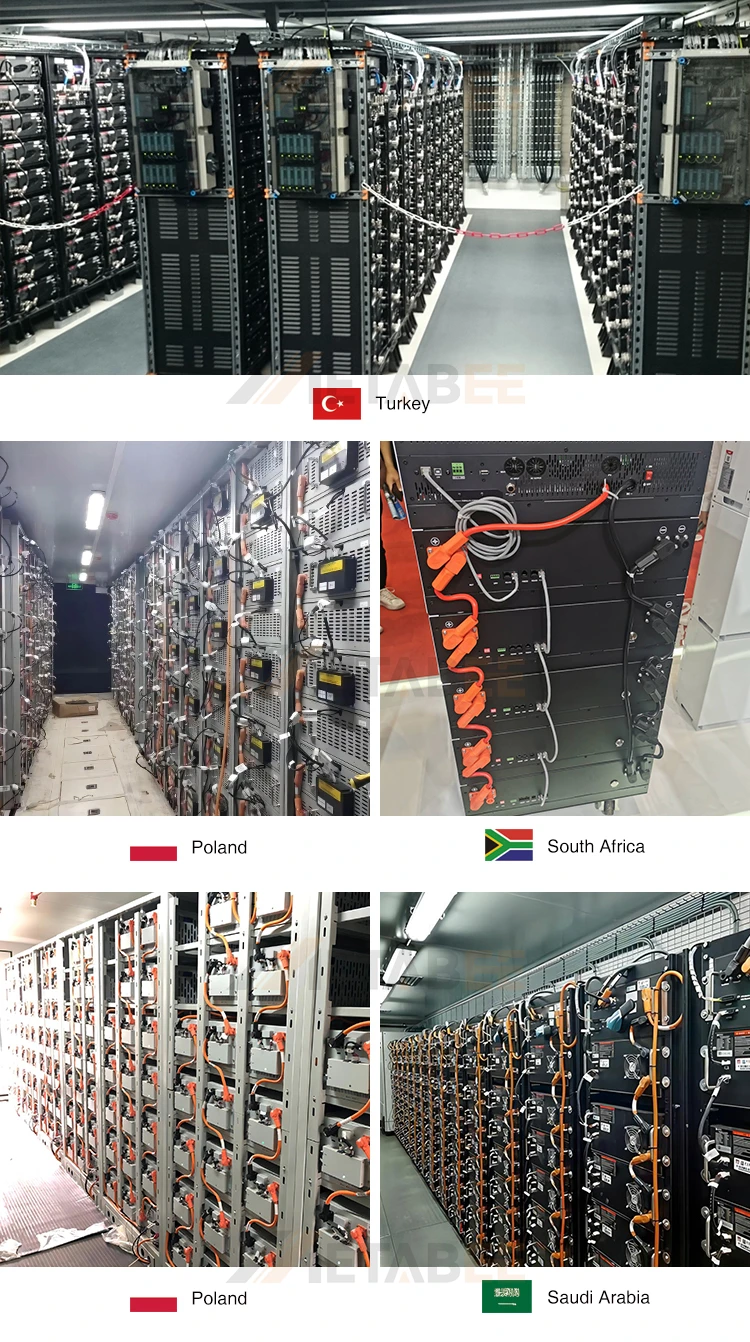

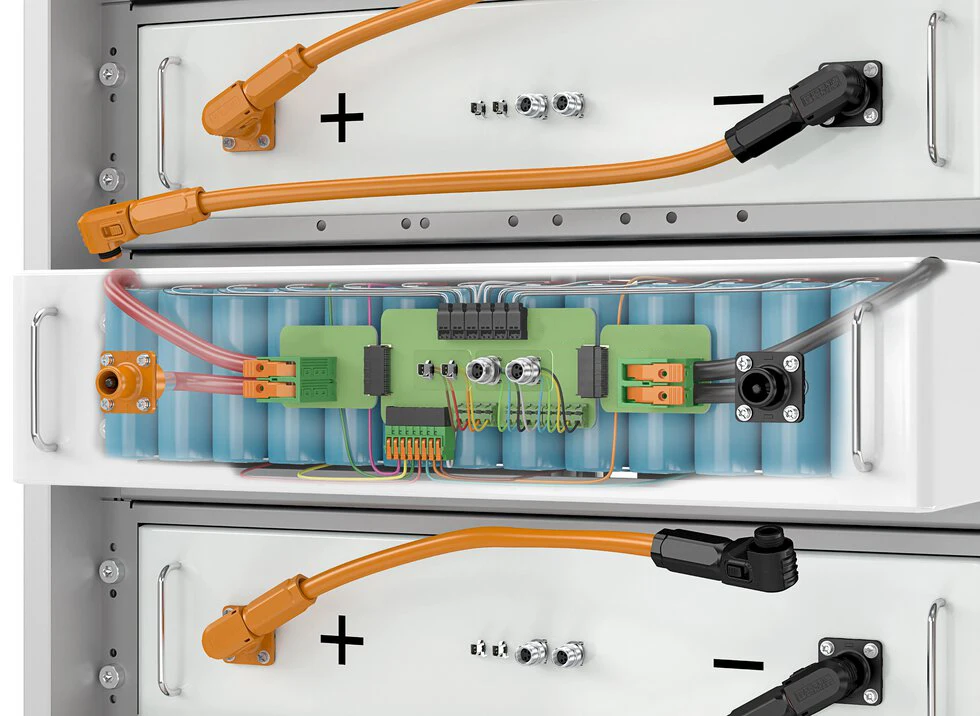

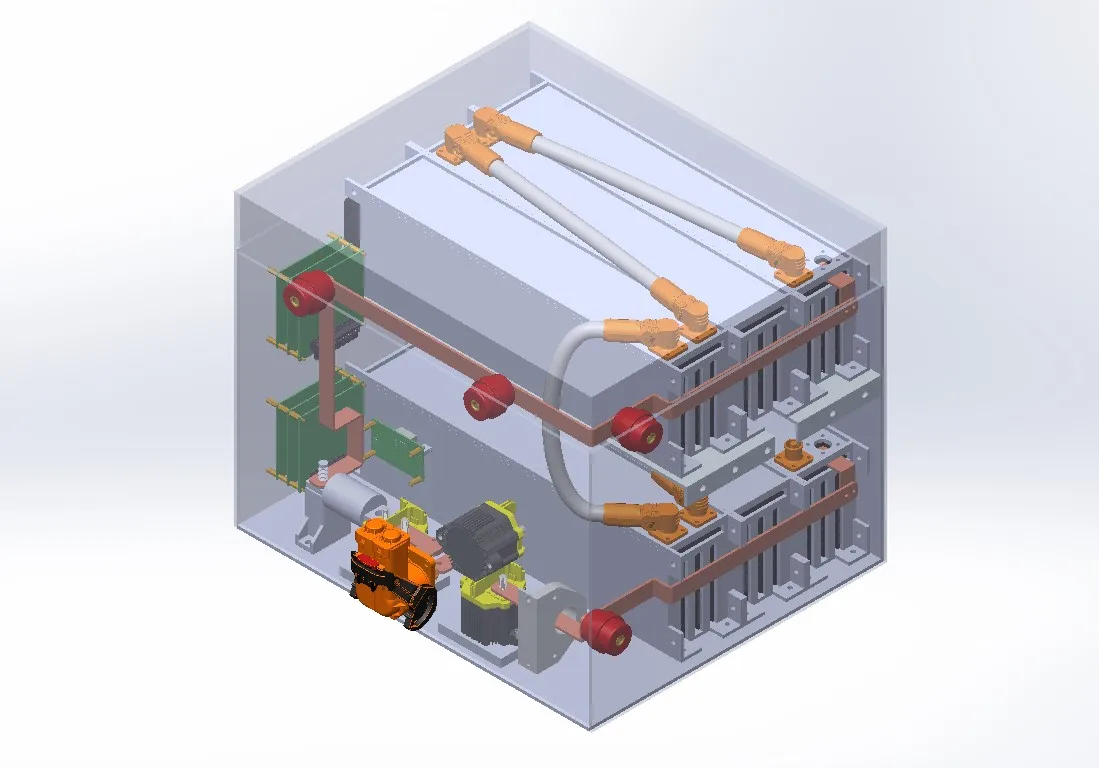

Application
EV / HEV - Rail Mass Transit - BMS / Energy Storage - Process Control / Automation - Medical Industry - Heavy Equipment
