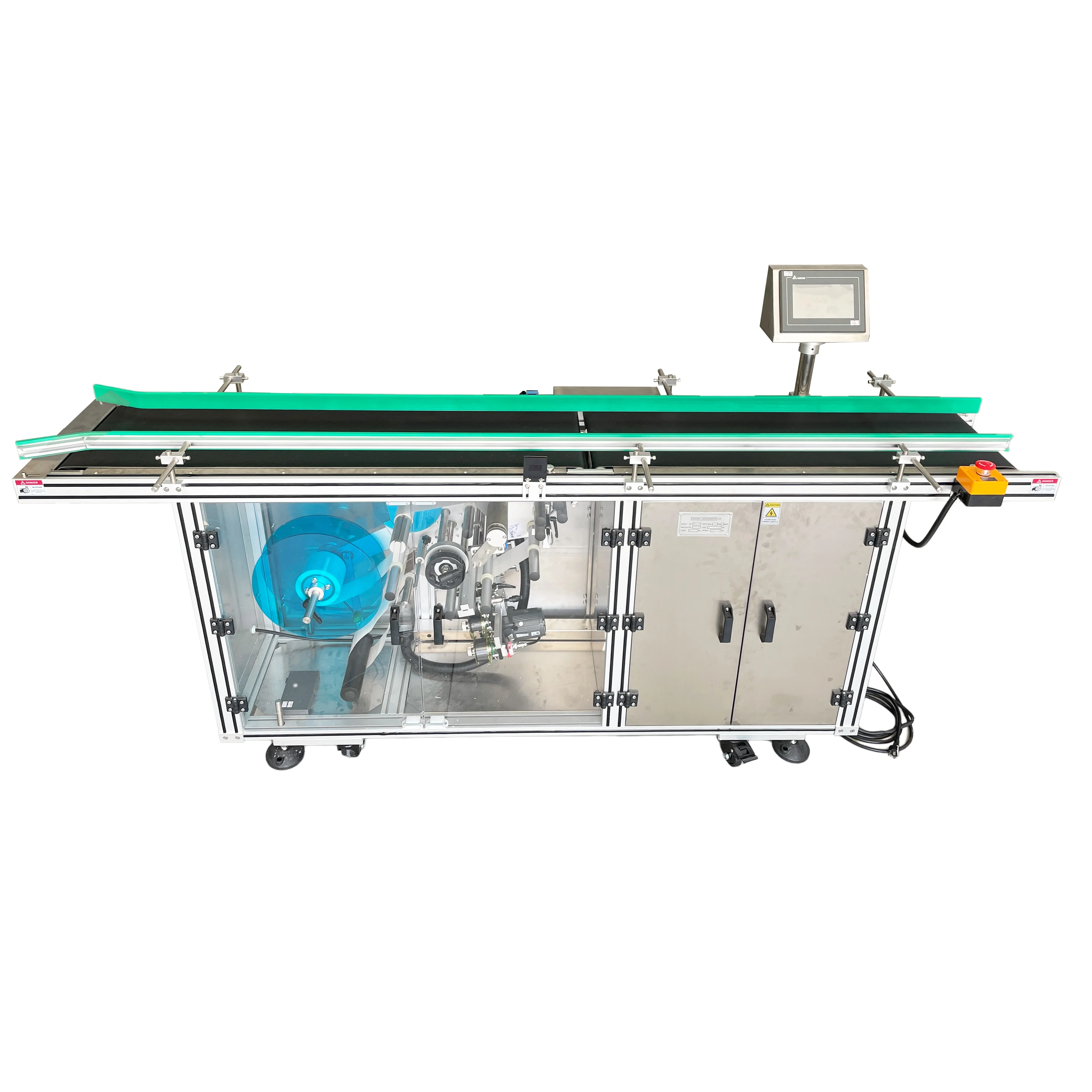

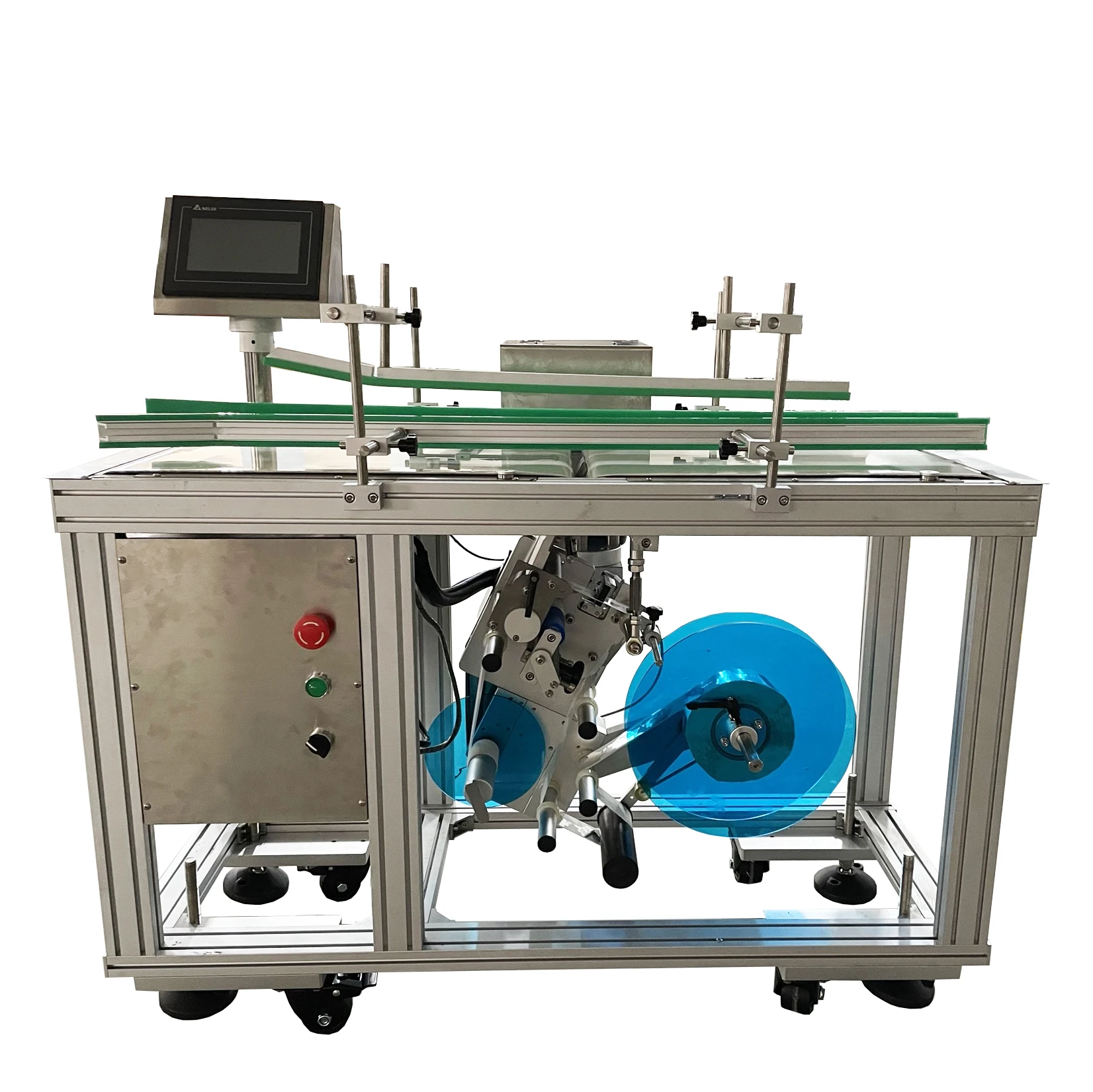

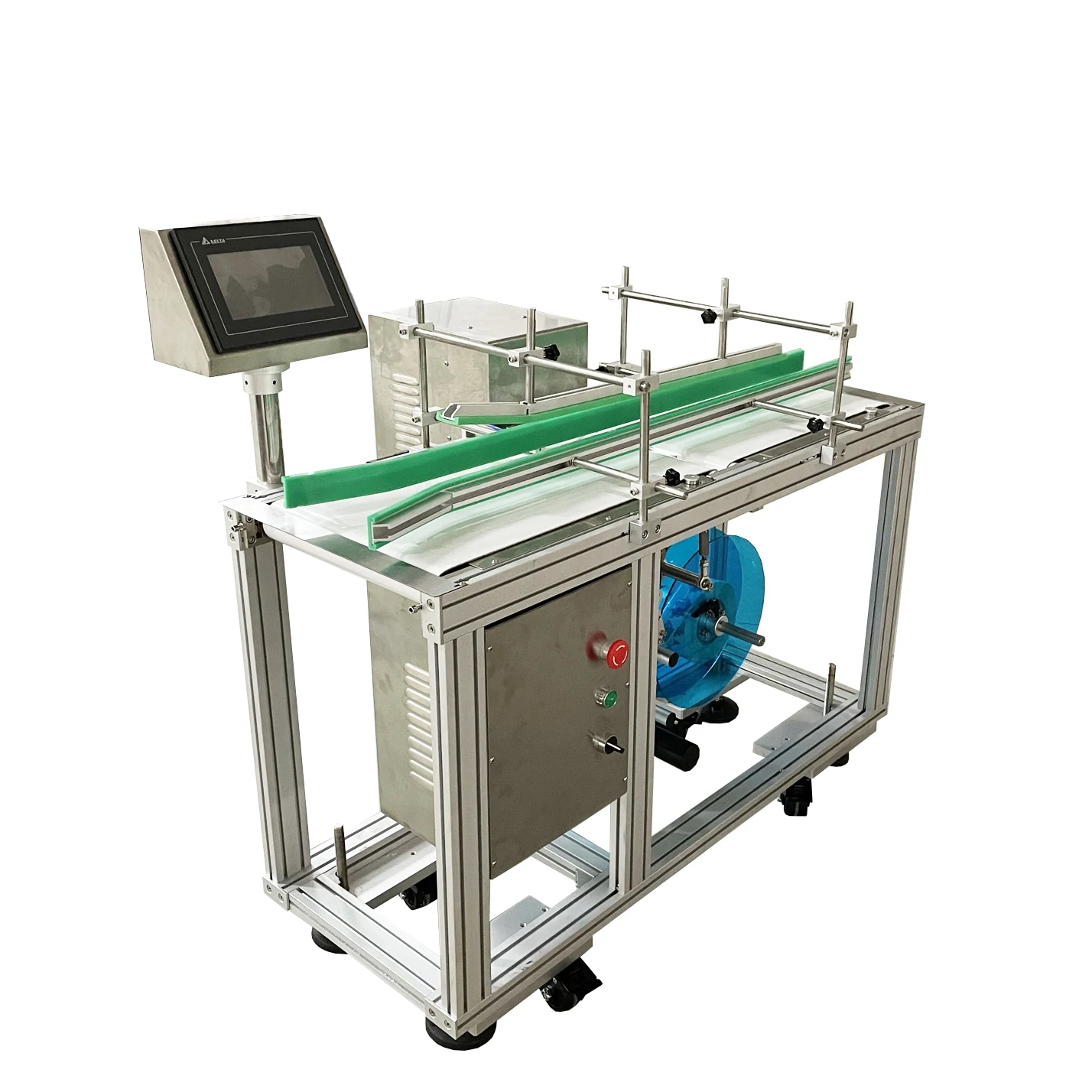

▶ Different Cofigurations For NY-819 Bottom Labeler Series:

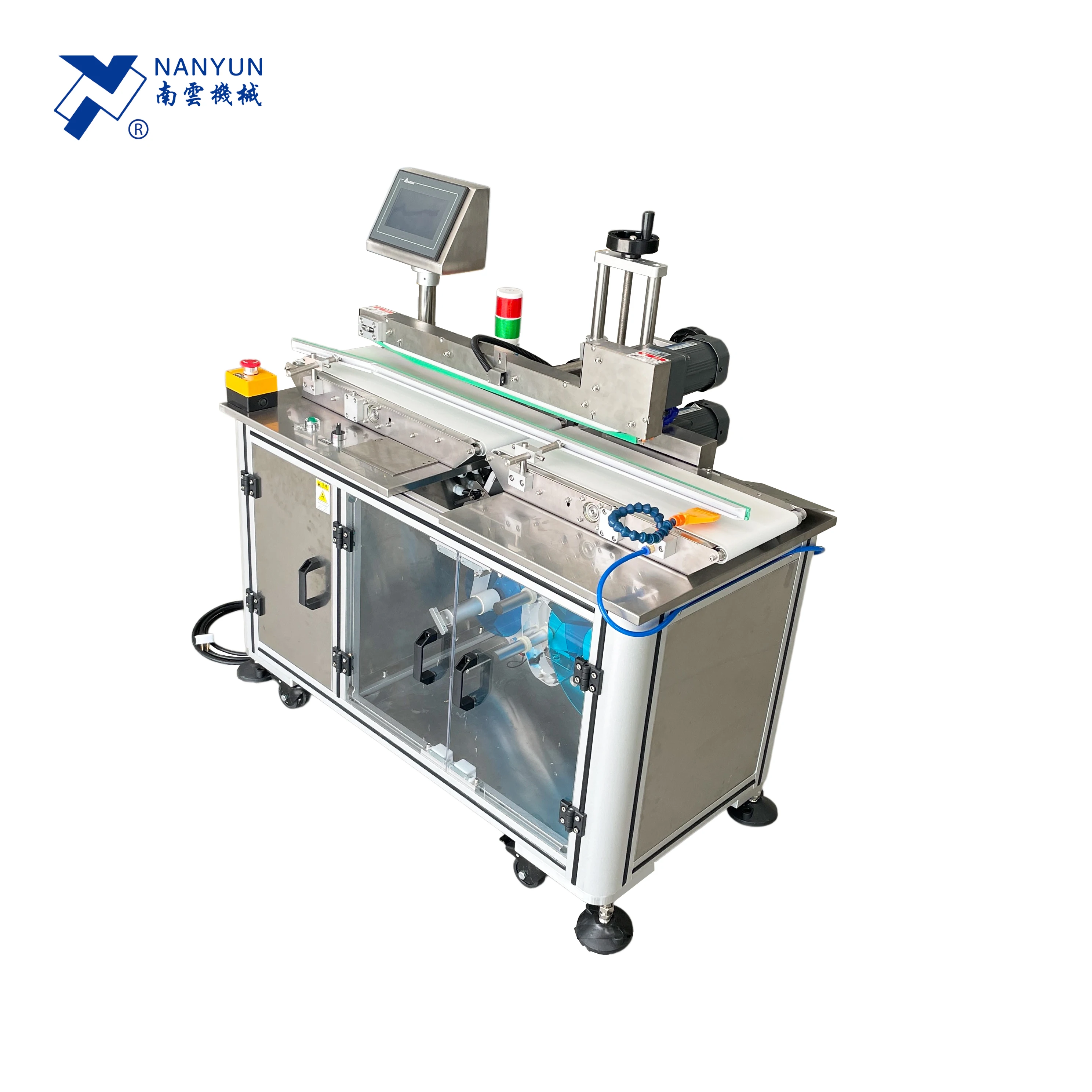

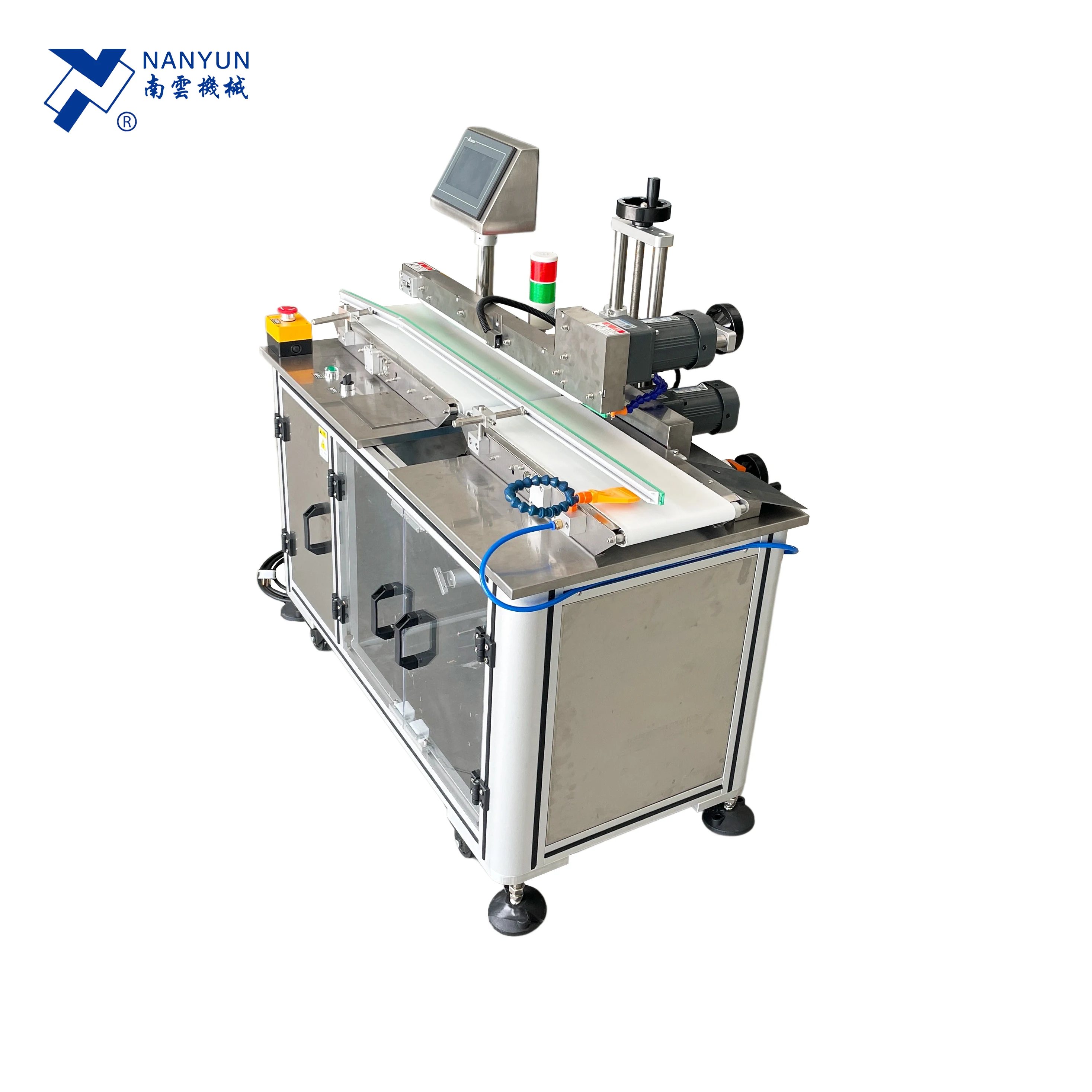

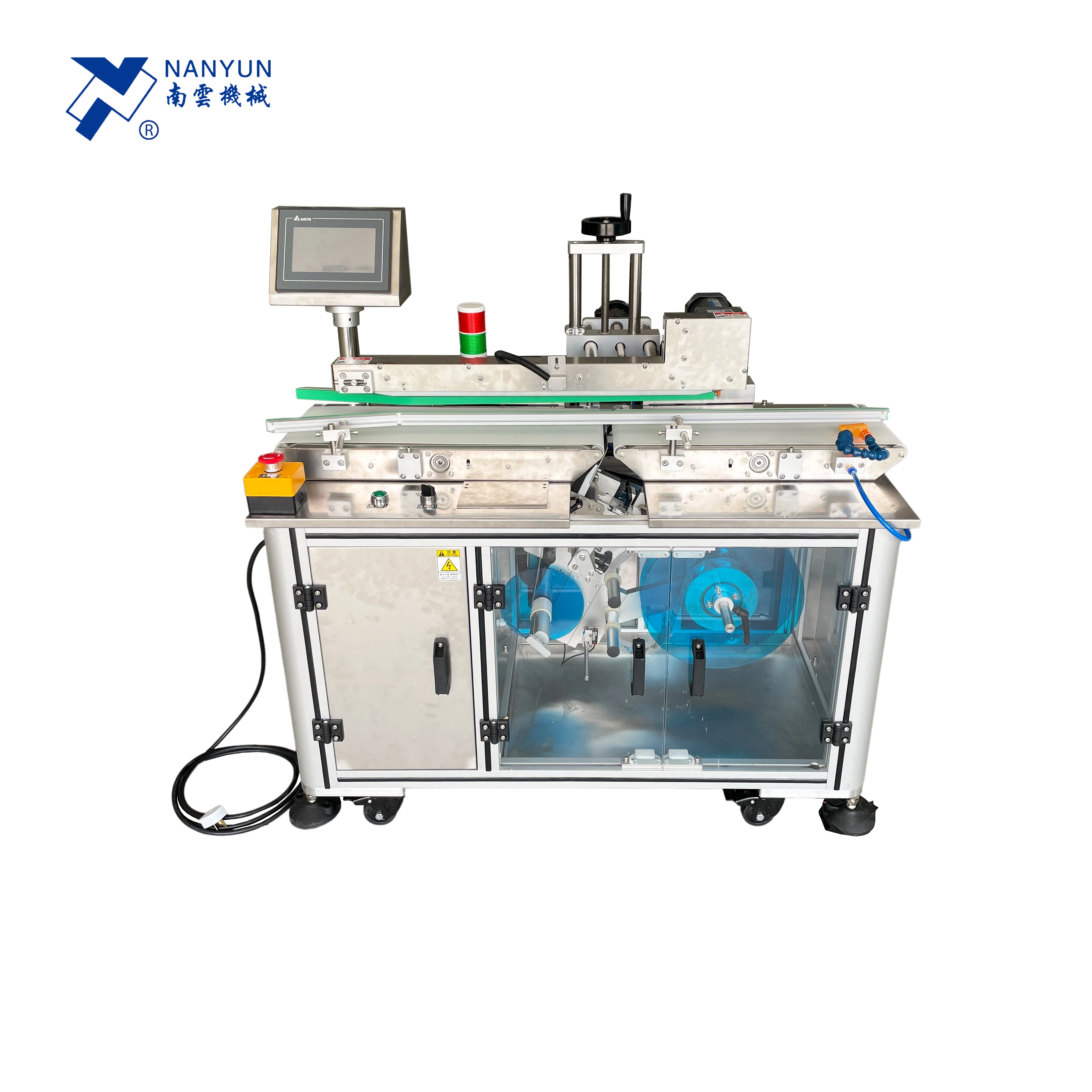

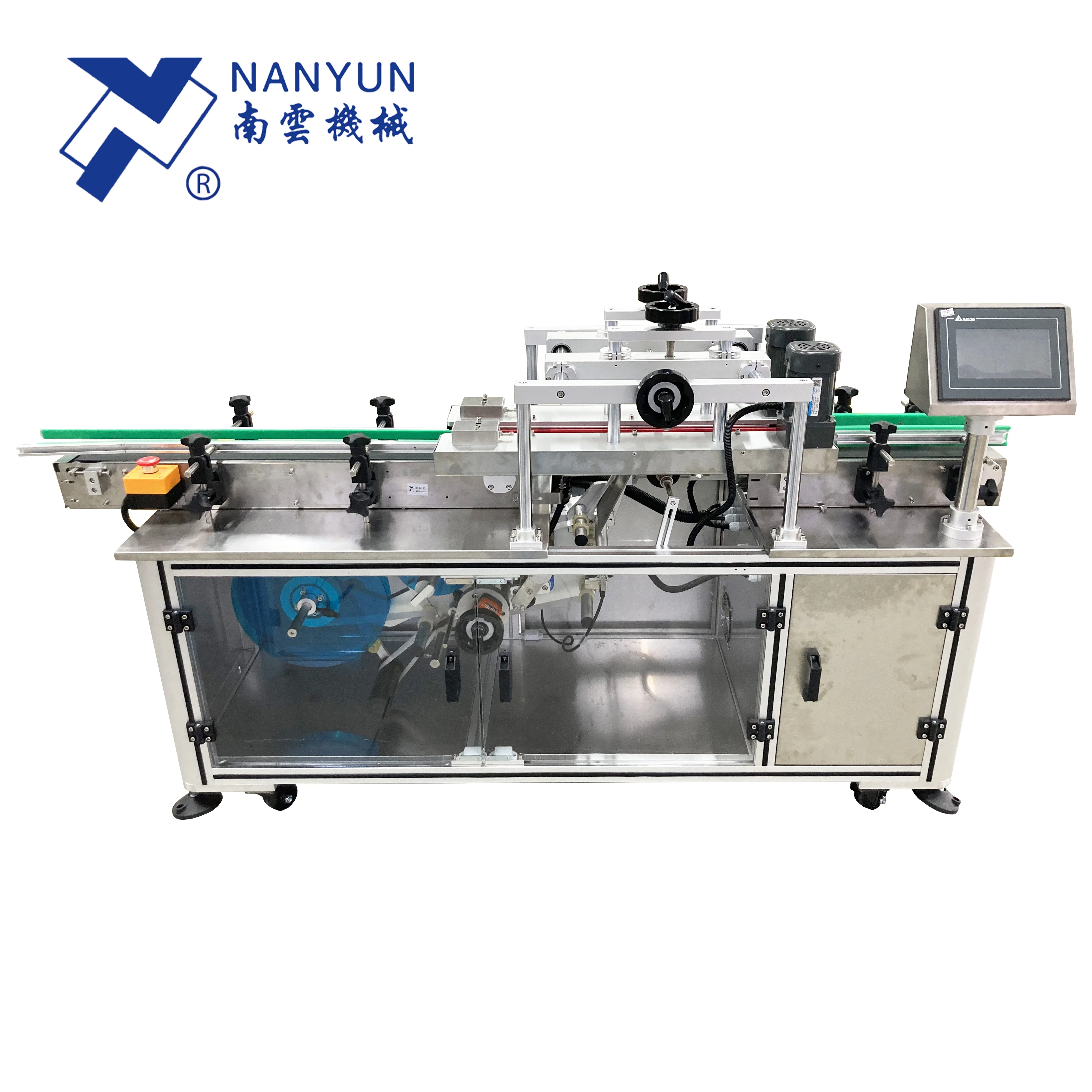

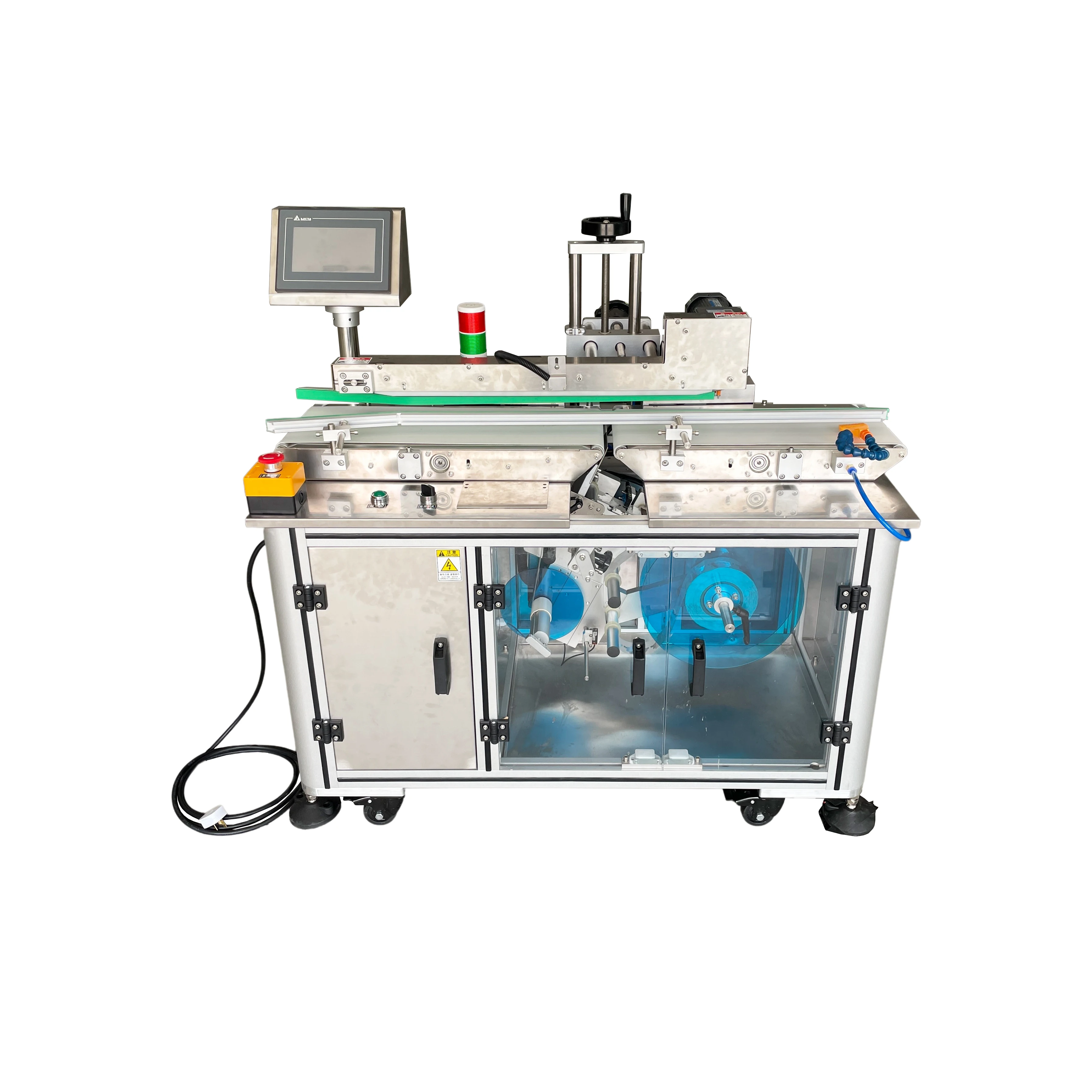

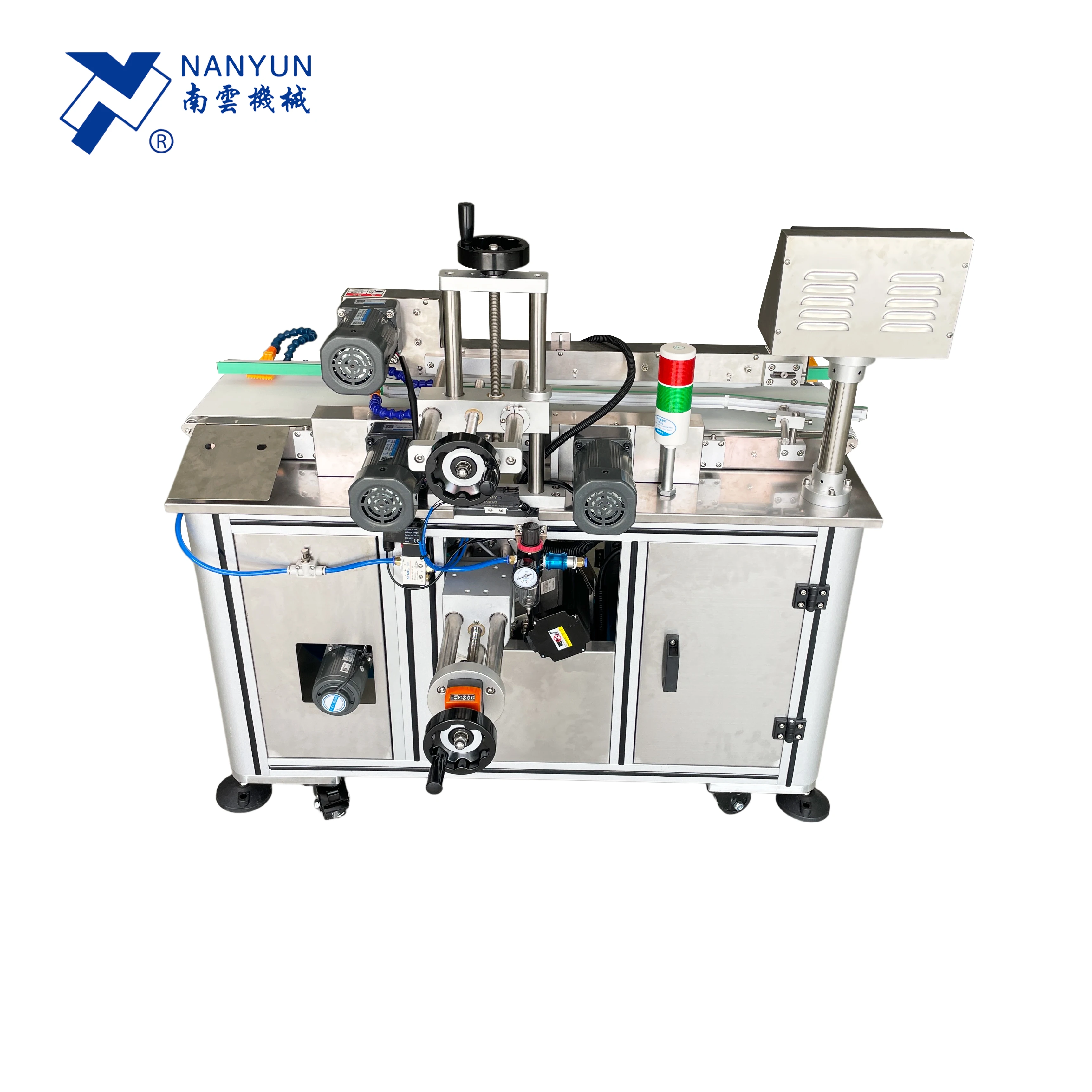

NY-819 Bottom Labeler Machine
▶ Description
The NY-819 bottom labeler is an industrial labeling machine to apply self-adhesive labels on the bottom side of flat products and indented containers such as trays, boxes, bottles, bags, jar, etc. With wide range of use for the nutraceutical, food, cosmetic, personal care, medicine, beverage, chemicals and consumer electronic industries, this machine can run independently or be integrated into an automated packaging line.
▶ Application
▪ Bottom labeling on its own or in combination with top labeling
▪ Special transport system/conveyor configuration available
▪ Infeed and Outfeed Conveyor Extensions
The NY-819 bottom labeler is an industrial labeling machine to apply self-adhesive labels on the bottom side of flat products and indented containers such as trays, boxes, bottles, bags, jar, etc. With wide range of use for the nutraceutical, food, cosmetic, personal care, medicine, beverage, chemicals and consumer electronic industries, this machine can run independently or be integrated into an automated packaging line.
▶ Application
▪ Bottom labeling on its own or in combination with top labeling
▪ Special transport system/conveyor configuration available
▪ Infeed and Outfeed Conveyor Extensions

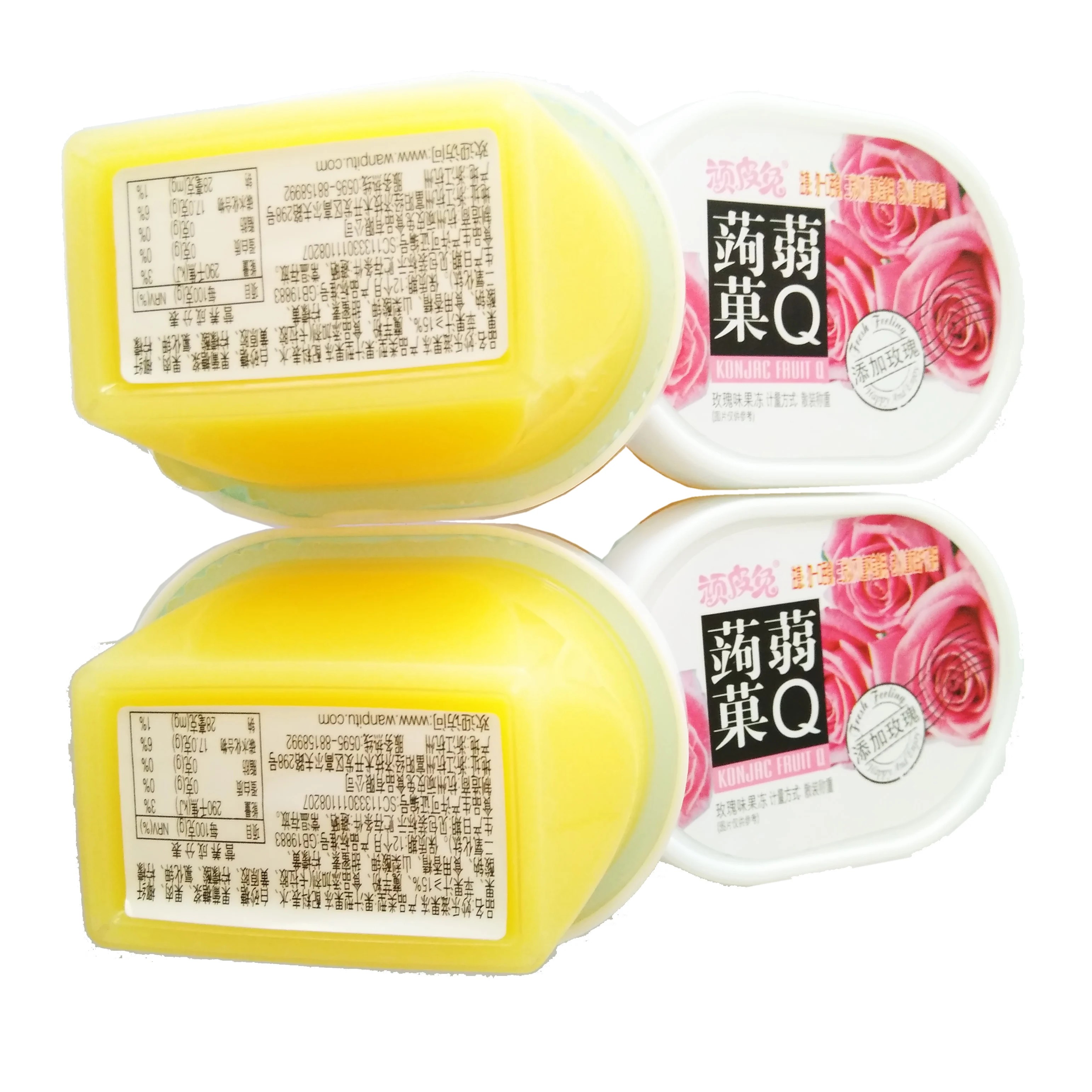

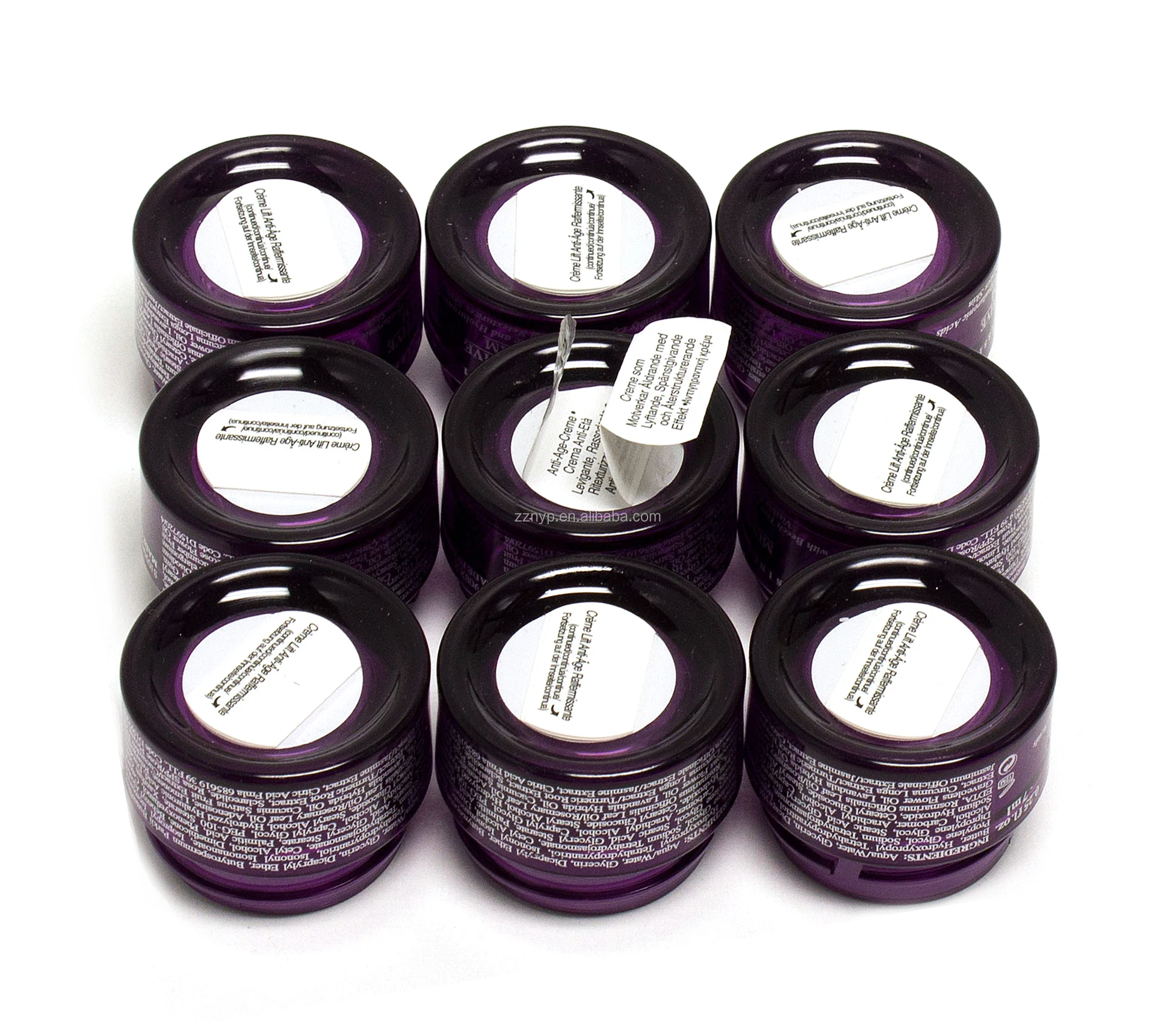

♦ Example/Samples: Food Boxes/Electrical Components
▶ Specifications:
Technical Data | NY-819 | |||||||
Label Accuracy | ±1mm (excluding product and label error) | |||||||
Label Speed | 0-150 pcs/min (related to product and label size). | |||||||

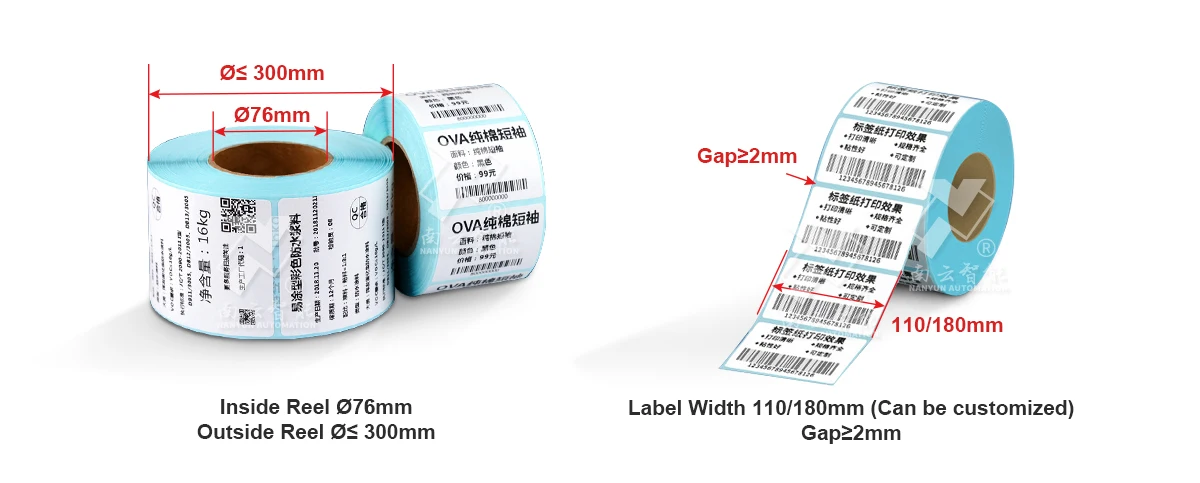

Label Width | 10 mm to 110/150/180 mm | |||||||
Product Size (L x W x H) | (40-400)x(40-200)x(50-300)mm (can customize) | |||||||
Inside reel Ø | 76mm | |||||||
Outside reel Ø | ≤ 300 mm | |||||||
Conveyor Width | 250mm | |||||||
Conveyor Length | 1.5 meters | |||||||
Working Height | 850 mm (+/-30 mm) | |||||||
Power Supply | 220V, 50/60 Hz, Single Phase, 0.75kw | |||||||
Machine Size (L x W x H) | 1500 x 650x 1200mm | |||||||
Weight | Approx 330kgs | |||||||
Compressed Air | 0.5~0.7Mpa, 0.28CBM/min (optional) | |||||||
Note: If machine are customized, the above data may vary. | ||||||||
PLC+HMI Touch screen control system with job memory.
Changing to different labeling applications for various product sizes and types can be done simply and quickly.
Famous brand photo eye sensors for label gap/product detection.
Germany SICK, Japan PANASONIC, Korea Autonics, Germany LEUZE (For transparent sticker) etc.

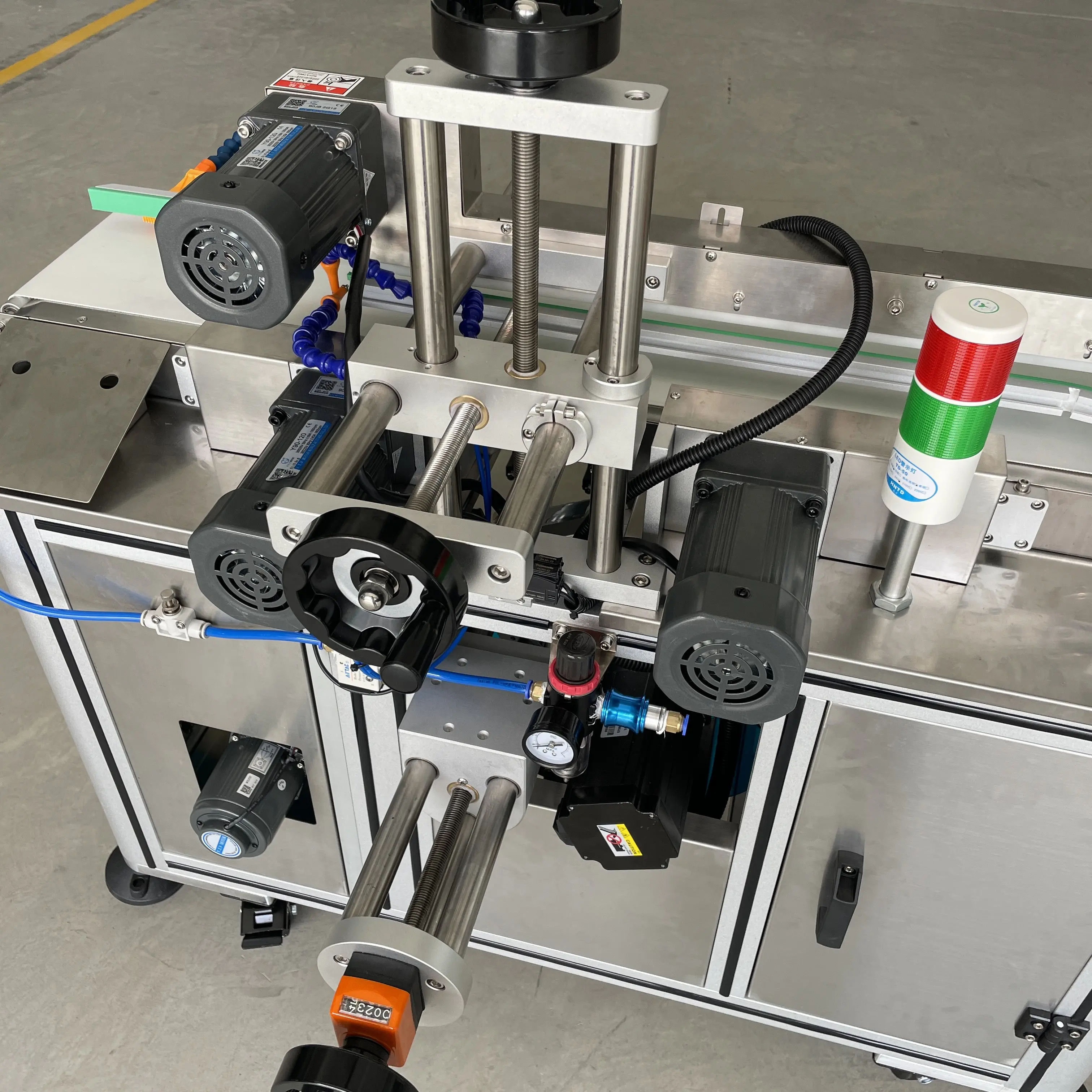

Labeling height angle are adjustable by X-Y axis and numeric hand wheel.
Hand wheels with digital position indicators provide simple adjustments, enable quick set-up and easy changeover.
Print units optional (hot stamp, thermal transfer, CIJ ink jet, laser)
Integrated with hot foil printer controls, which simplifies label customization and the hot-foil printer to work in sync with the labeler to ensure accurate code placement.
In line automatic applications or semi-automatic use, easy to integrate into any kind of production line.
Can be combined with in-feed & out-feed bottle accumulating table, weight checker, metal detector, filling machine, capping machine, induction foil sealing machine, box packing machine, case sealers, vision system etc. to build an automatic production line.
Labeling machines come in a range of shapes and designs, can flexibly apply labels on the top, bottom, sides, and corners of the product.
Professional R&D team with 20+ years industry experience, you can find any labeling solution from us for your unique products.
