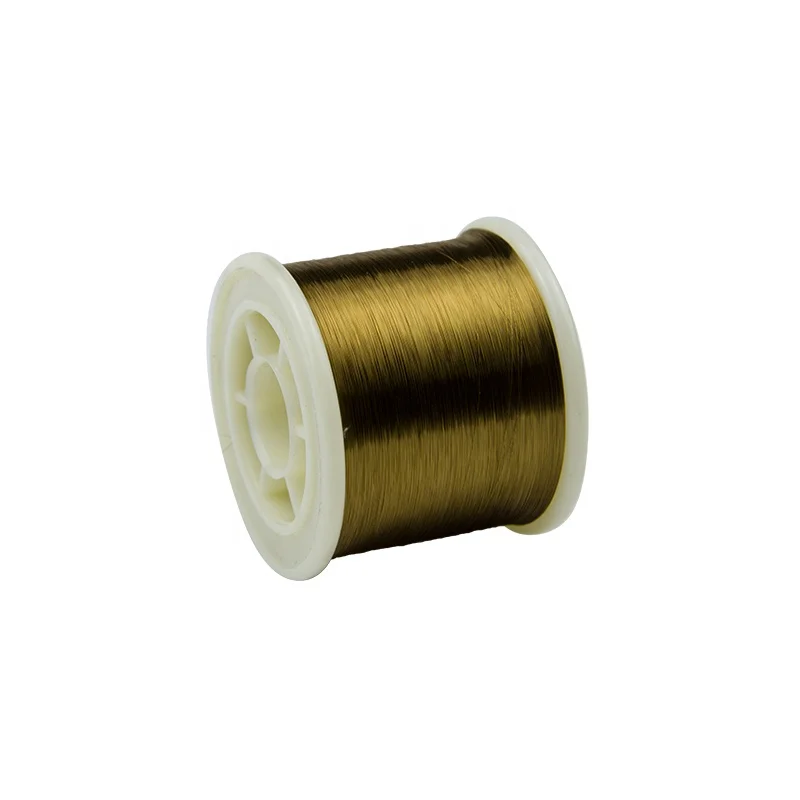

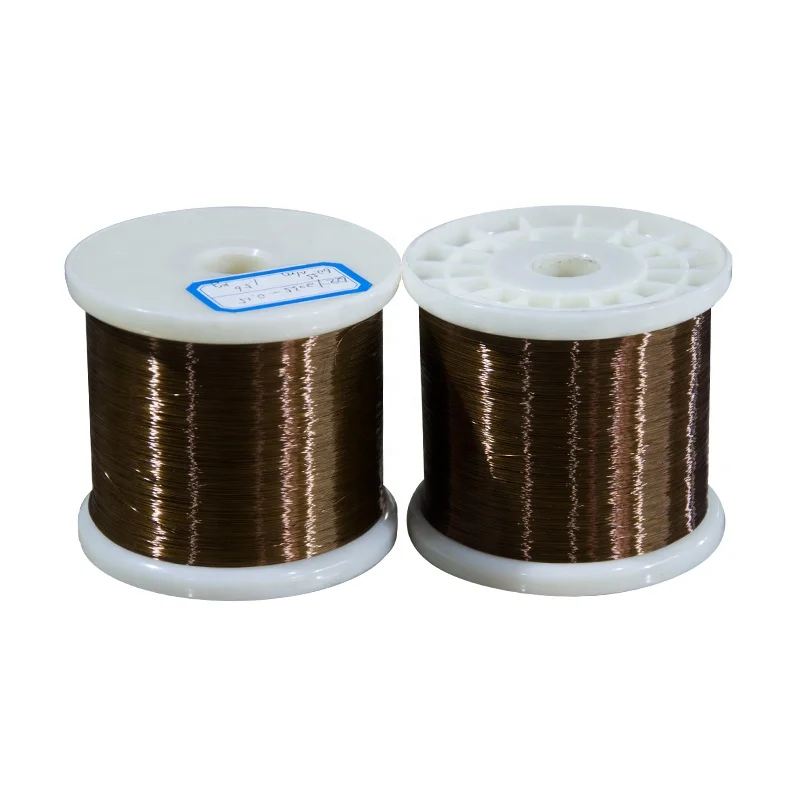

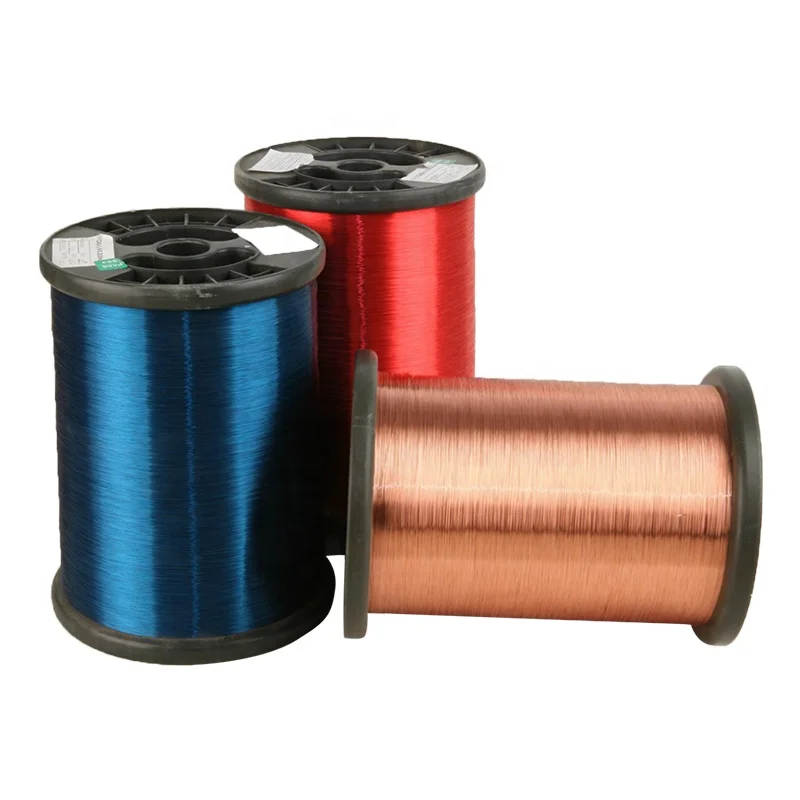

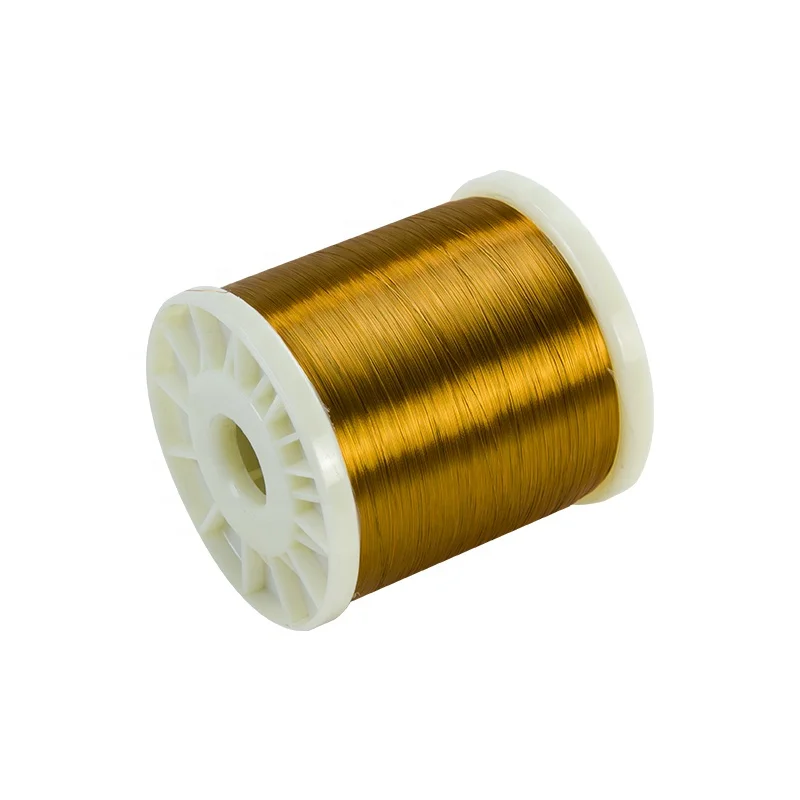

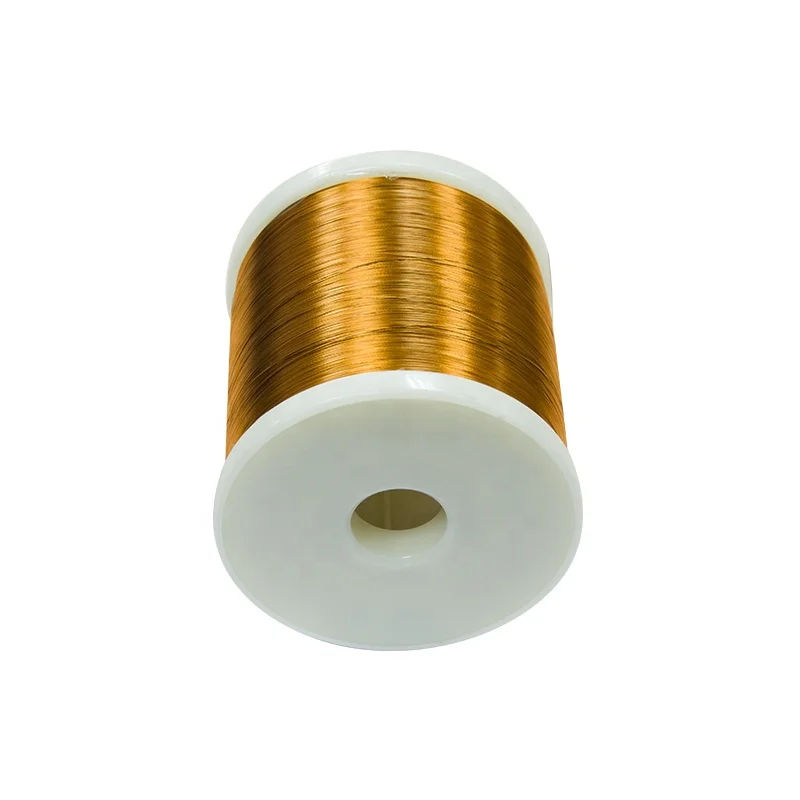

TANKII Factory Price Enameled 6J13 Manganin 43 Green Yellow Red Color Resistance heater Vanish Wire

Product Overview

Description

Enameled 6J13 Manganin Green Yellow Red Color Wire Vanish Wire

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
-	10.5-12.5	-	-	Bal	-	ND	ND	ND	ND



Mechanical Properties

Max Continuous Service Temp	0-100℃
Resisivity at 20℃	0.49±0.03ohm mm2/m
Density	8. g/cm3
Temp Coefficient of Resistance at 20 ºC	-80~+80α×10-6/ºC
Melting Point	1450℃
Tensile Strength(Hard)	635 Mpa(min)
Tensile Strength,N/mm2     Annealed,Soft	340~535
Elongation	15%(min)
EMF vs Cu, μV/ºC (0~100ºC)	2
Micrographic Structure	austenite
Magnetic Property	non
Micrographic Structure	Ferrite
Magnetic Property	Magnetic



Application of Manganin

Manganin strip and wire is used in the manufacture of resistor, Particularly ammeter shunt, because of its virtually zero temperature coefficient of resistance value and long term stability.

2. Packing detail

1). Coil (plastic spool) + compressed ply-wooden case + pallet

2). Coil (plastic spool) + carton + pallet
