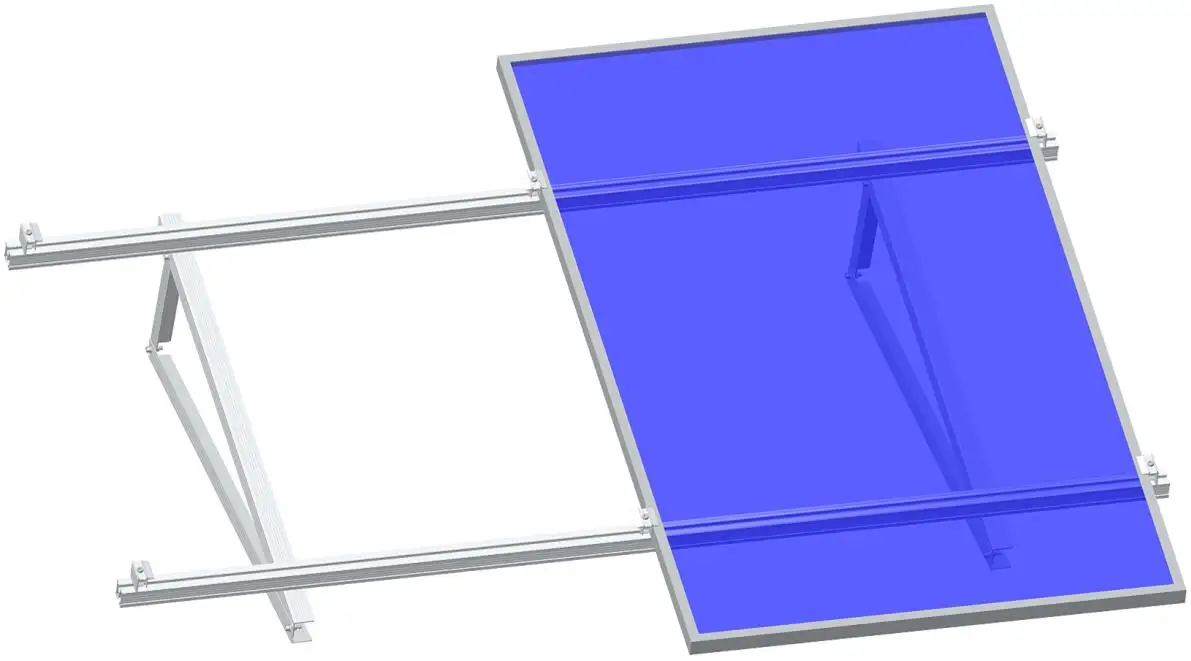

Solar Panel Photovoltaic Mounting Bracket Structure Rail T Bolt Extruded Aluminum Profile
- Category: >>>
- Supplier: Xiamen Art Sign Co. Ltd.
Share on (1600896136771):
Product Overview
Description
Product Description
Solar Panel Photovoltaic Mounting Bracket Structure Rail T Bolt Extruded Aluminum Profile
Item name | Photovoltaic solar panels roof rack pv systems cost for home tile rooftop | ||||||
Installation site | Roman Tile roof, concrete tile | ||||||
Material | Stainless steel 304 | ||||||
Tilt degree | Parallel to the roof | ||||||
Panel layout | Portrait and landscape | ||||||
Certificate | Australia AS/NZS1170.2, | ||||||
OEM&ODM | Acceptable | ||||||
Design feature
Design Features:
1.Quick and easy to install;
2.Rail length can be customized per your installation requirements.
2.Rail length can be customized per your installation requirements.
3.We can produce natural or black rails.

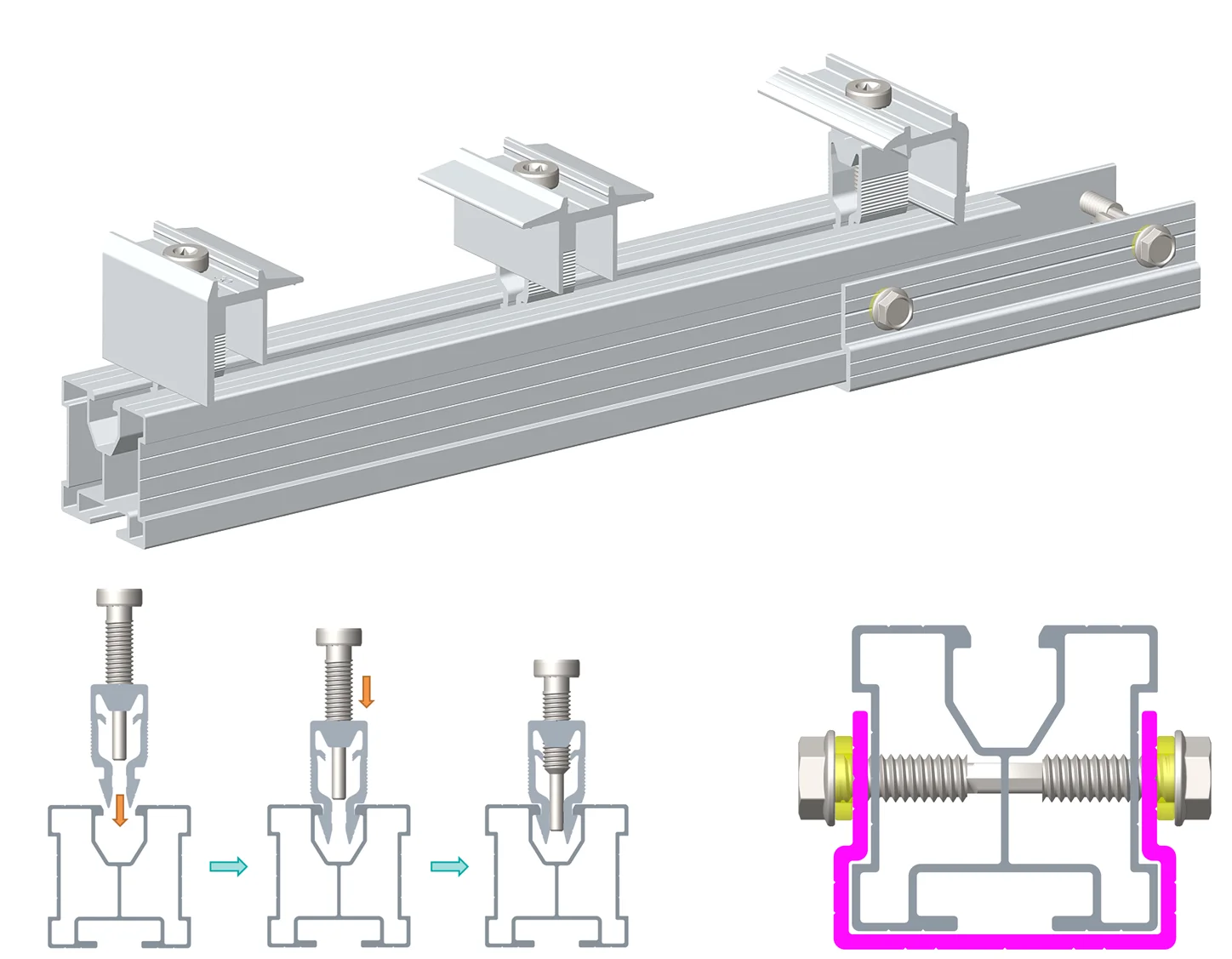

■ SR aluminum rails components
AS-SR-01S
Rail SR01/02 rail splice
AS-A-EC-SR30

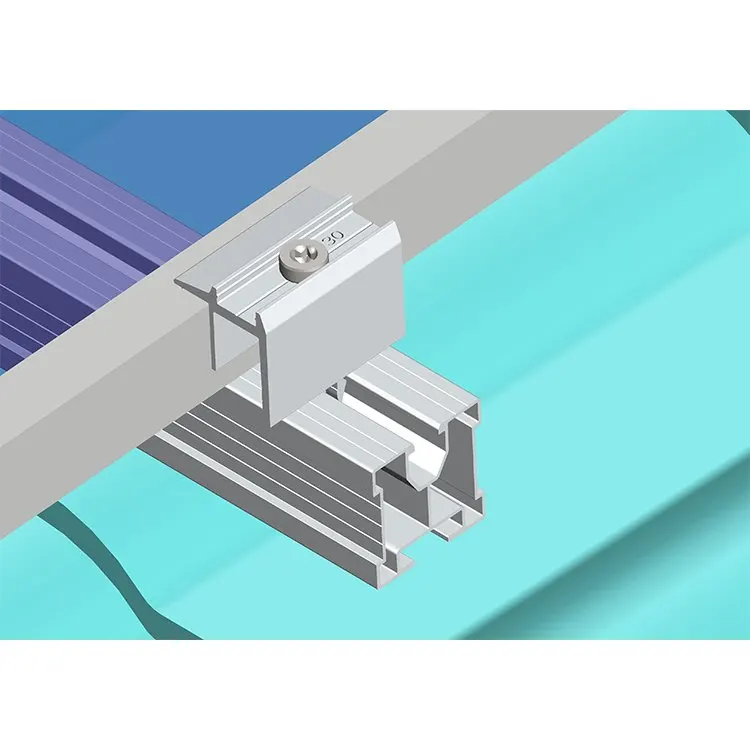

Adjustable end clamp
AS-A-MC-SR30-40
Adjustable mid clamp

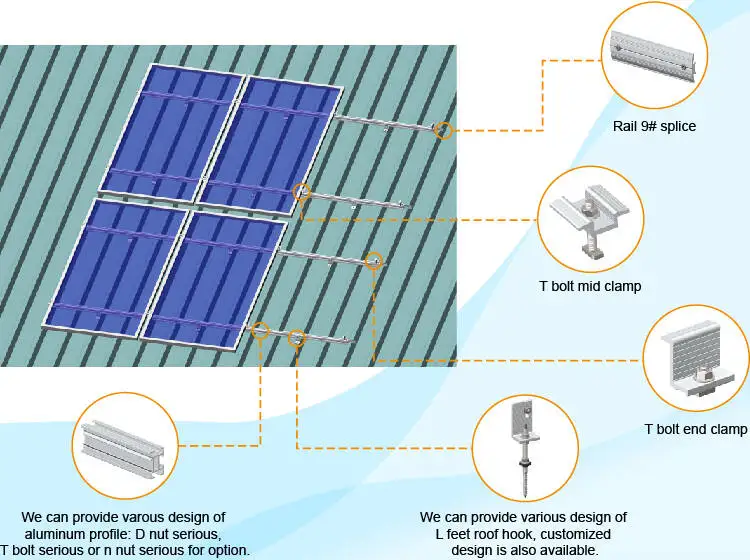

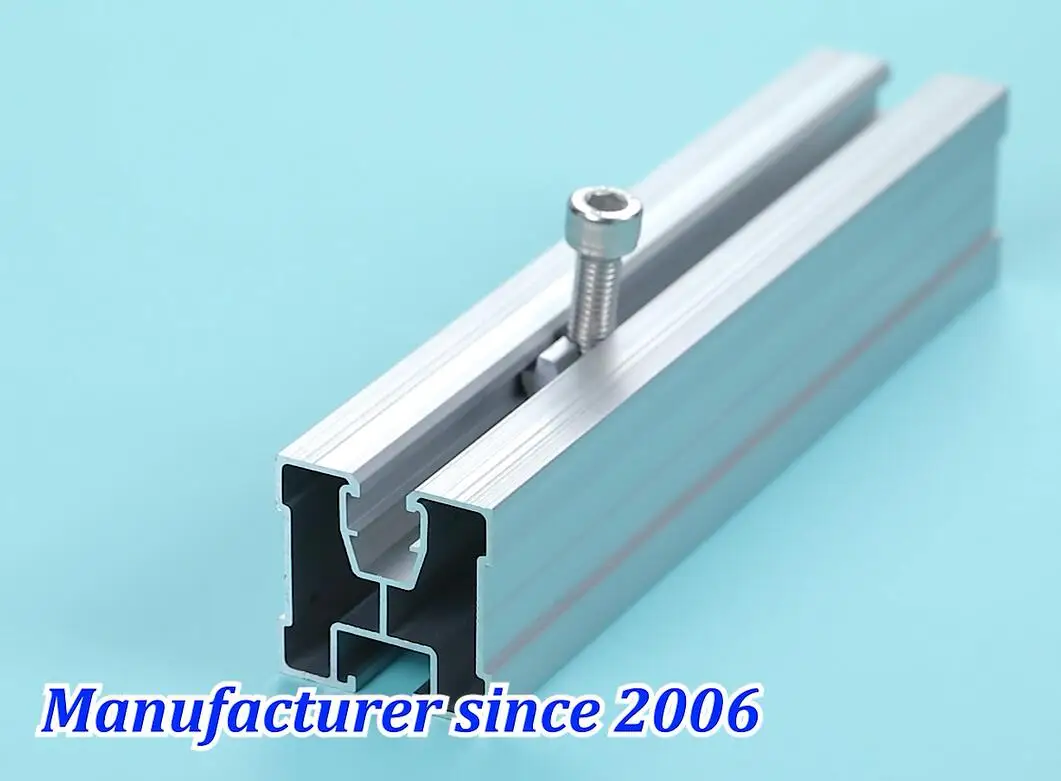

Aluminum profile - T bolt series

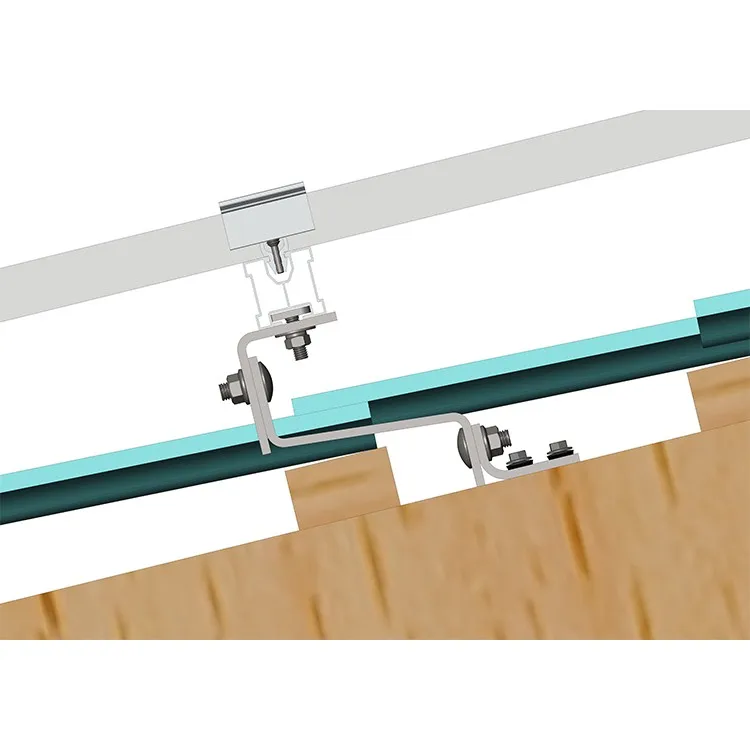

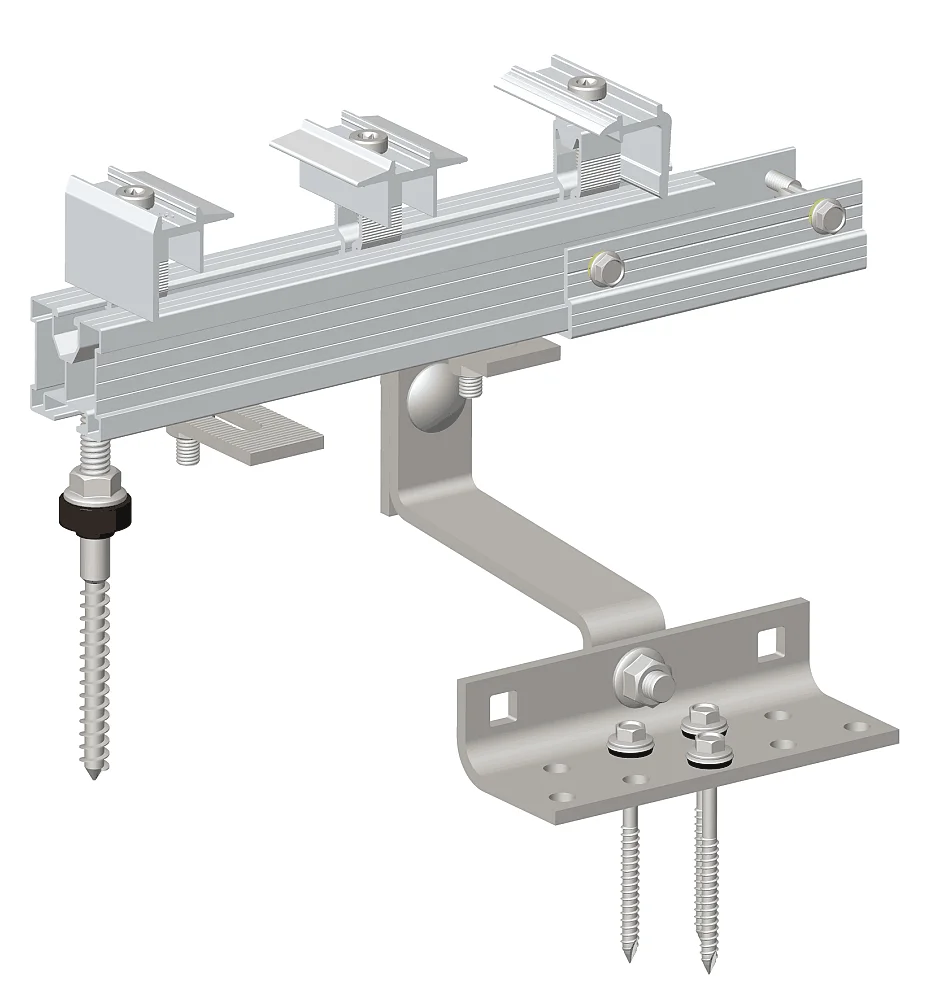

■ solar panel profile + stainless steel hook

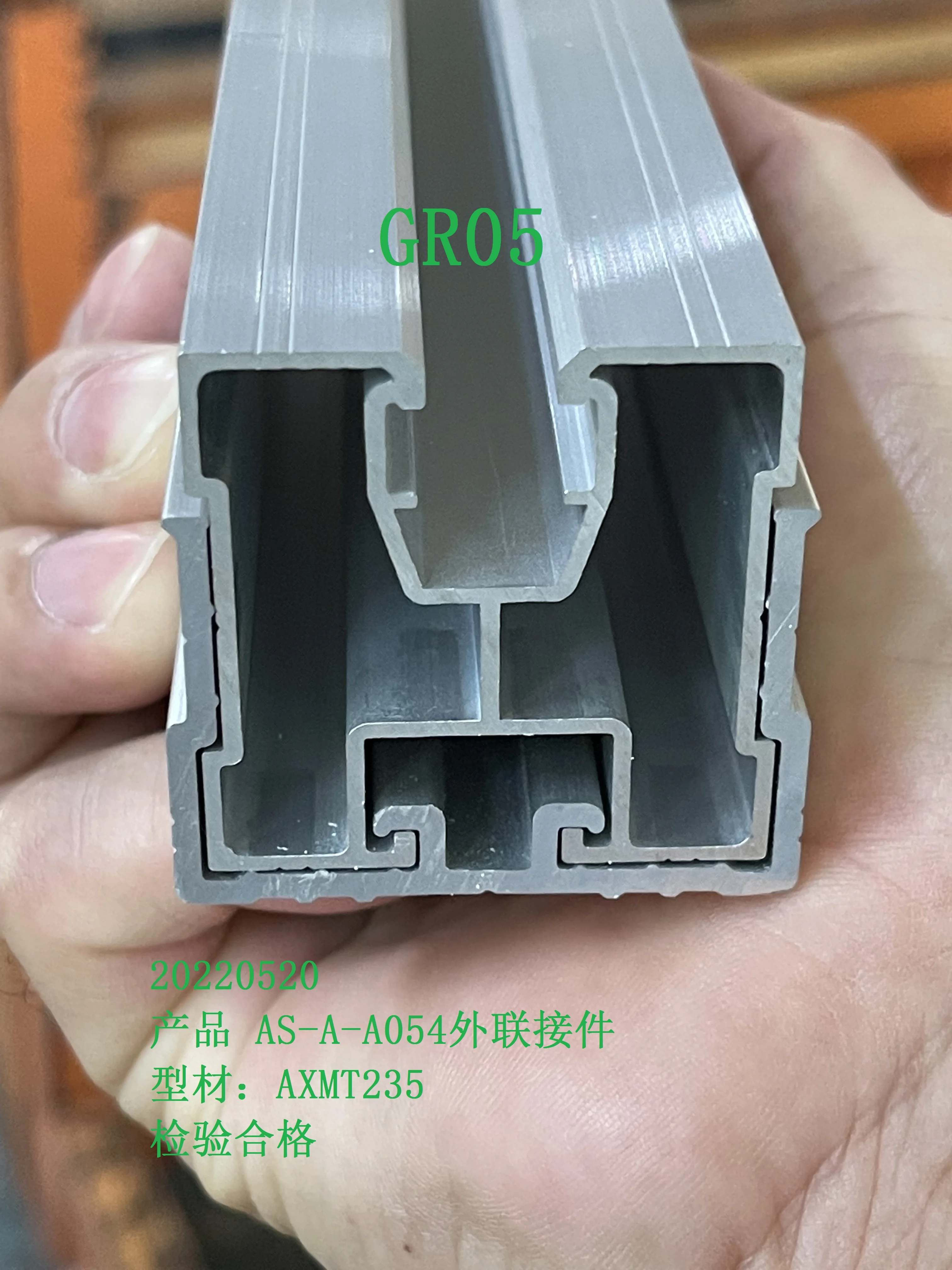

■ Hot selling aluminum solar rails
AS-R-09H
Rail 9#
W30.68*H46.1mm
W30.68*H46.1mm

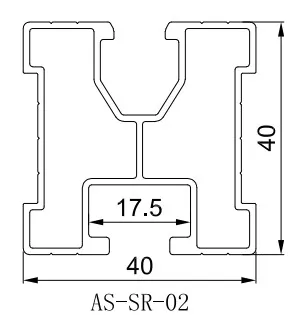

AS-SR-02
Rail SR02#
W40*H40mm
W40*H40mm
AS-DR-01B
D rail 01B#
W32.10*H53.75mm
W32.10*H53.75mm
AS-CR-01
Rail CR#
W36.5*H50mm
W36.5*H50mm
AS-DR-01A
D rail 01A#
W32.30*H59.45mm
W32.30*H59.45mm
AS-DR-01B
D rail 01B#
W32.10*H53.75mm
W32.10*H53.75mm

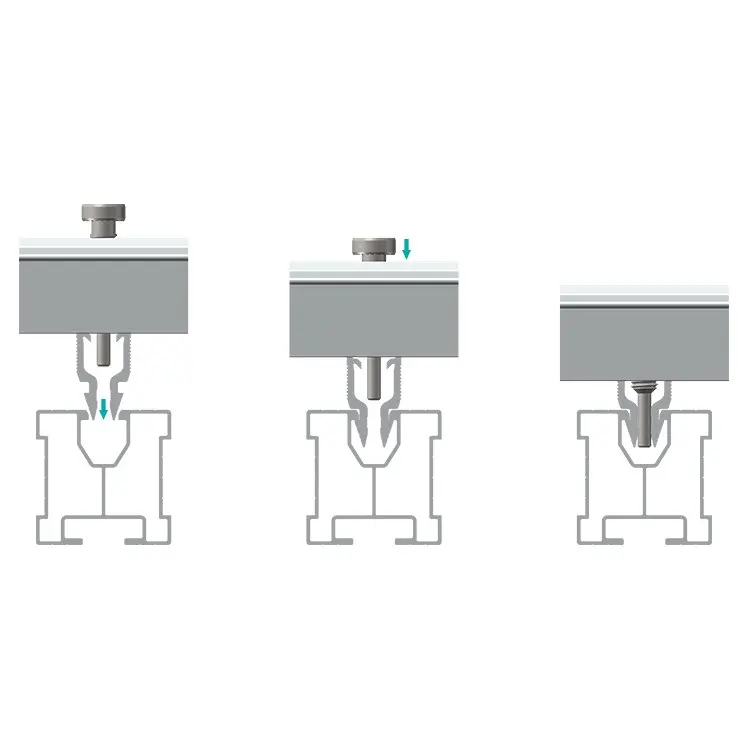

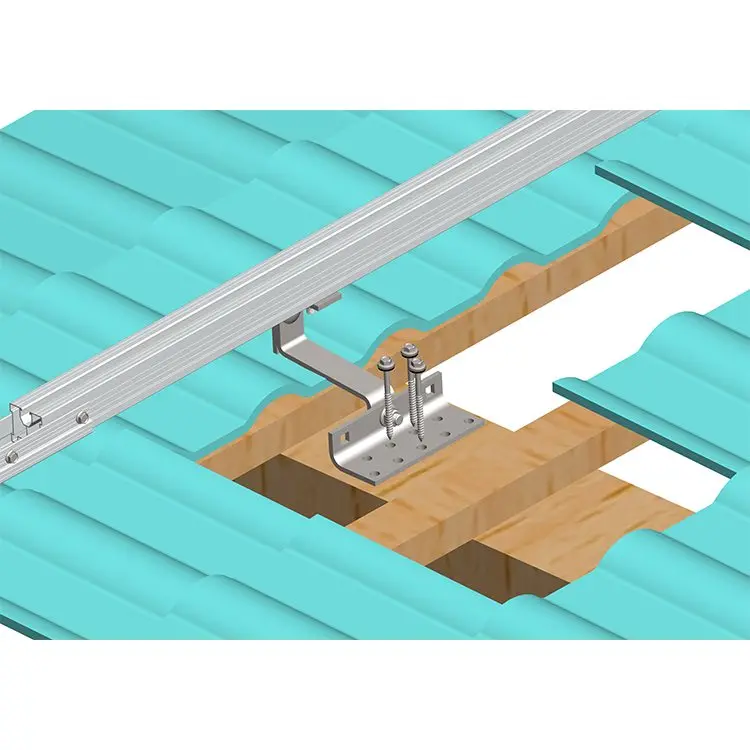

Installation Instructions
Gallery
Solar panel mounting feet
South Africa/2015
tile roof solar panel mount system
Romania/2020
pv aluminium mounting kit triangle
Spain/2019
Mini rail solution
Kenya/2019
pv aluminium mounting kit triangle
Demark/2022
32MW solar mount ground
Installation site: Japan/2020
Product packaging
Exhibition
Certifications
