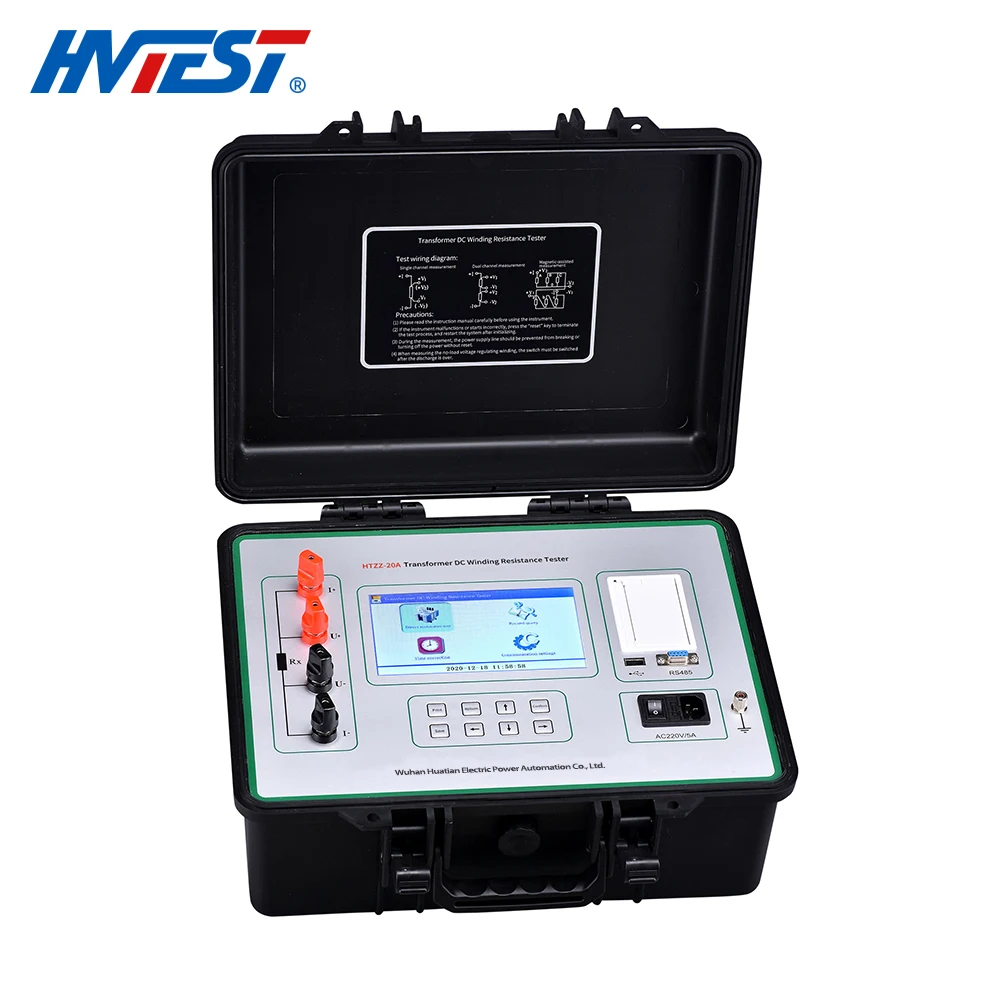

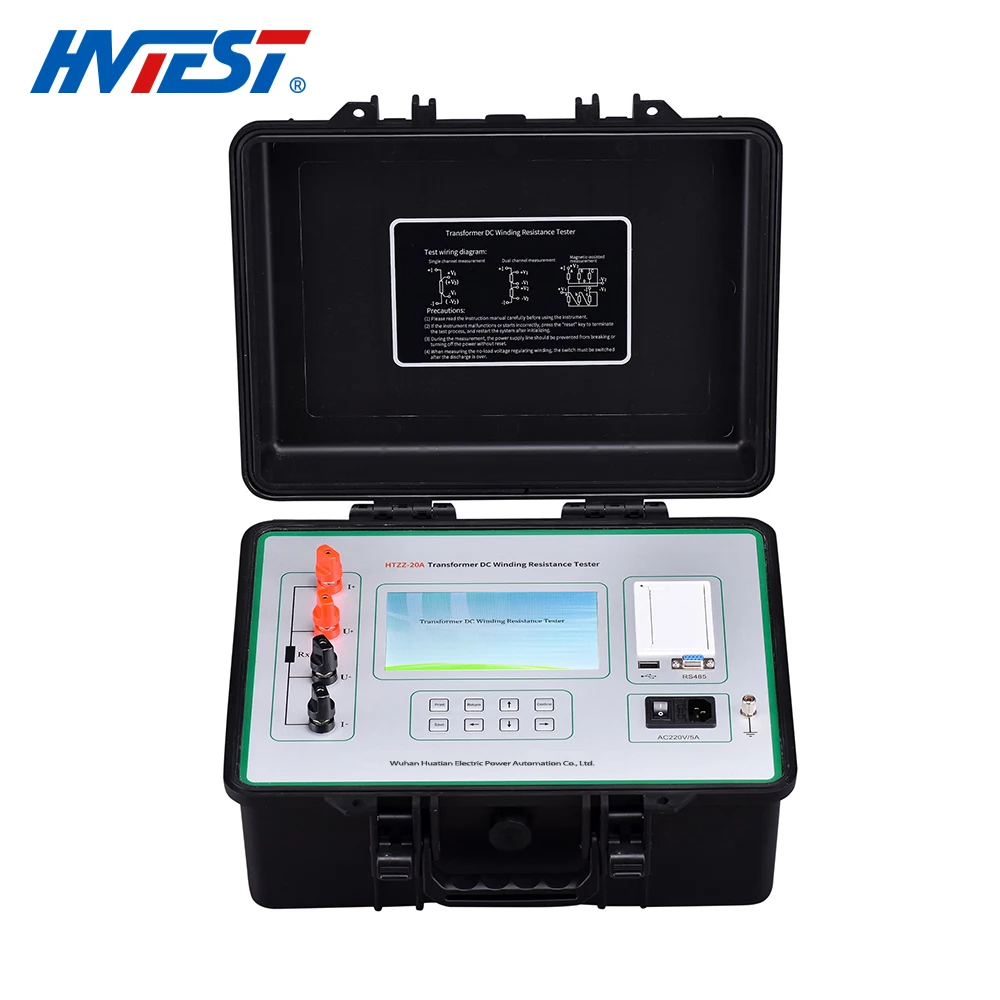

B HTZZ 20A Transformer Winding Resistance Tester AC Manufacturer Directly Supply Full automatic Dc Resistance Tester
- Category: >>>
- Supplier: Wuhan Huatian Electric Power Automation Co. Ltd.
Share on (1600896165474):
Product Overview
Description
Product Paramenters
Output current | 20A、10A、5A、2A、100mA、<5mA six speed test |
quantity cheng | 20A： 100μΩ～1Ω |
10A：500μΩ～2Ω | |
5A：1mΩ～4Ω | |
2A：5mΩ～10Ω | |
100mA：100mΩ～200Ω | |
<5mA：200Ω～100kΩ | |
Resolution | 0.1μΩ |
accuracy | 0.2%±2μΩ |
Working Temprature | 0～40℃ |
Ambient humidity | ≤90%RH，Dew free |
Working power supply | AC220V±10%，50Hz±1Hz |

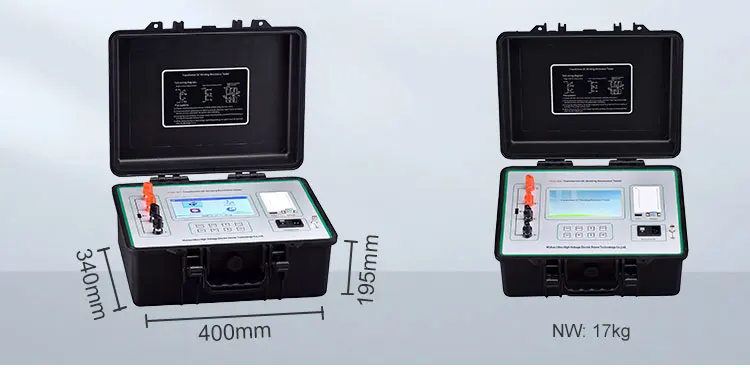

Overall dimension | 400mm*340mm*195mm |
Instrument weight | 8.6kg |
Function&Characteristics
1. The instrument provides 6 output current options, maximum current: 20A, minimum current: < 5mA, suitable for DC resistance measurement of more types of transformers and transformers.
2.The instrument has a wide measuring range from 100μΩ to 100 kω.
3. The response speed is faster, the on-load tap-changer can be directly converted in the measurement state, and the instrument automatically refreshes the data.
4. The instrument has a sound discharge alarm function, clear discharge indication, reduce misoperation.
5. The protection function is perfect, can reliably protect the impact of the counter potential on the instrument, and the performance is more reliable.

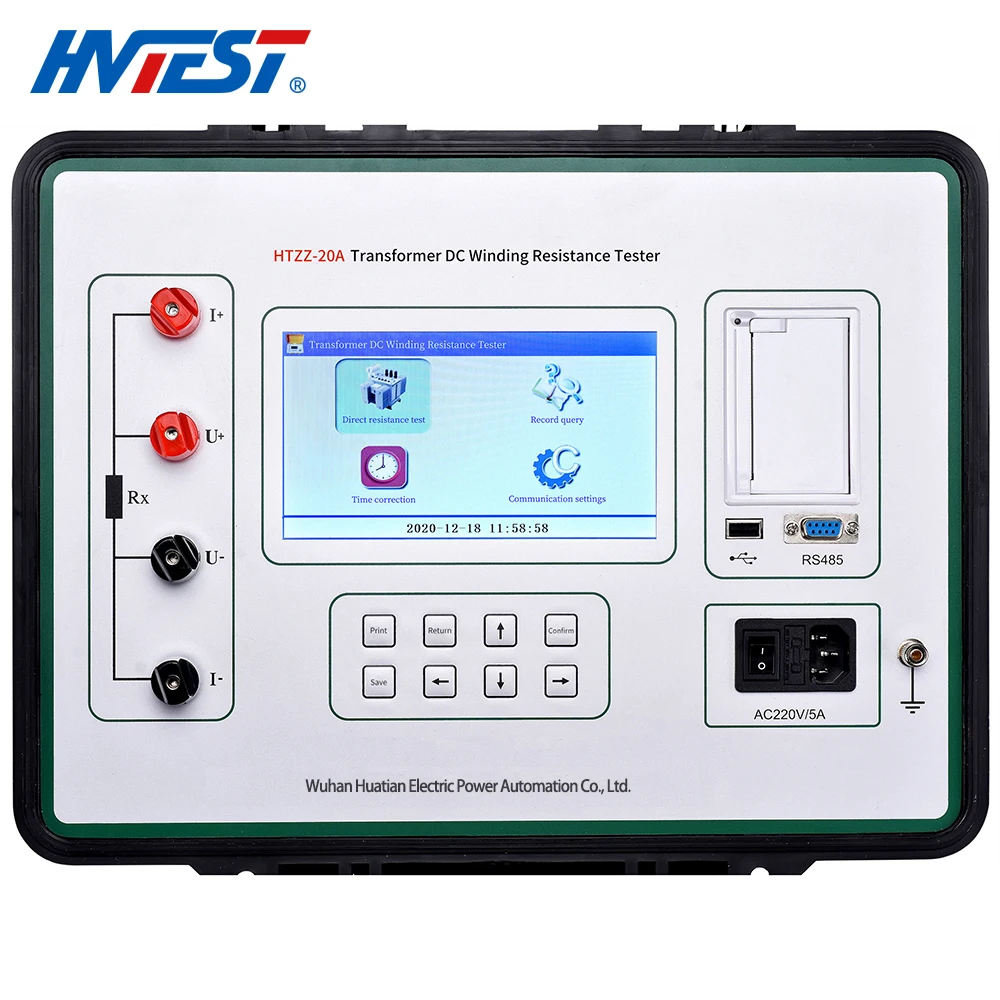

6. The instrument adopts 7 inch color LCD screen, the interface display is clear and beautiful. And can print out the results in real time.
7. Built-in Chinese and English versions of the operation interface, can be freely switched according to customer needs.
8. With RS485 communication interface, the test data can be transmitted to the background.
9. The local storage capacity is large, up to 500 test records can be stored.
10. With USB interface, the test data can be transferred to the U disk.
11. The parameter setting is more perfect, you can set the transformer test winding, tap position, test phase, test temperature, converted temperature value, etc.

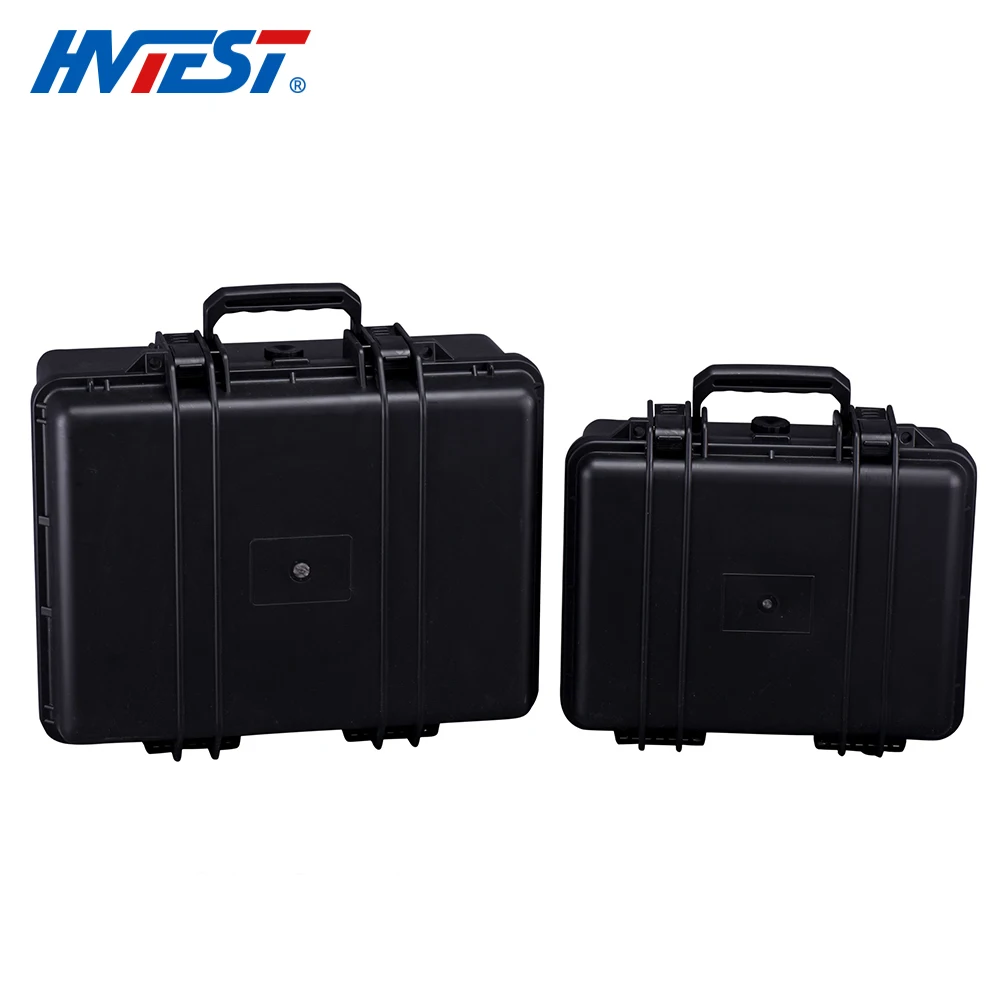

12. The instrument adopts industrial plastic case chassis, which is easy to carry and long service life.
.
2.The instrument has a wide measuring range from 100μΩ to 100 kω.
3. The response speed is faster, the on-load tap-changer can be directly converted in the measurement state, and the instrument automatically refreshes the data.
4. The instrument has a sound discharge alarm function, clear discharge indication, reduce misoperation.
5. The protection function is perfect, can reliably protect the impact of the counter potential on the instrument, and the performance is more reliable.
6. The instrument adopts 7 inch color LCD screen, the interface display is clear and beautiful. And can print out the results in real time.
7. Built-in Chinese and English versions of the operation interface, can be freely switched according to customer needs.
8. With RS485 communication interface, the test data can be transmitted to the background.
9. The local storage capacity is large, up to 500 test records can be stored.
10. With USB interface, the test data can be transferred to the U disk.
11. The parameter setting is more perfect, you can set the transformer test winding, tap position, test phase, test temperature, converted temperature value, etc.
12. The instrument adopts industrial plastic case chassis, which is easy to carry and long service life.
.
Company Profile
Wuhan Huatian Electric Power Automation CO., LTD.
Wuhan Huatian Electric Power Automation CO., LTD. established in 2004, located in Wuhan Optical Valley East Lake High-Tech Development Zone. We are a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems. Including AC Series Resonant Test System, AC/DC/VLF Hipot Test Set, Transformer Tester, Secondary Injection Relay Tester, Cable/Line Tester, Insulation Oil Tester, Circuit Breaker/Switch Tester & SF6 Test Equipment etc. Widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project.
We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always provide you the best solution. Looking forward to building a thrust-worthy and long term relationship with you.
We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always provide you the best solution. Looking forward to building a thrust-worthy and long term relationship with you.
Recommend Products
Our Delivery
FAQ
1. Is your company a sales company or a manufacturer?
Wuhan Huatian Electric Power Automation CO.,Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.
2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
4. What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
Wuhan Huatian Electric Power Automation CO.,Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.
2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
4. What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
