HUGEROCK B81 Rug Android Tablet PC administration election tablets integrated lock middle scanner finger code handle reader
- Category: >>>
- Supplier: Shenzhen Soten Technology Company Limited
Share on (1600896174698):
Product Overview
Description
Hardware | ||||||||
CPU | ARM Cortex A73 Octa-core (2.0GHz) | |||||||
GPU | ARM Mali-G72 MP3 | |||||||
RAM | 8G | |||||||
Internal Memory | 128G | |||||||
External Memory | Micro SD card ( T-FLASH card), max 256GB | |||||||
Main Camera | 13.0MP(AF) with flash led | |||||||
Sub Camera | 5.0MP | |||||||
Battery | 10000mAh | |||||||
Display | 8 inch IPS/AFFS FHD 1200*1920 industrial 1000nit Sunlight -Readable | |||||||
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen | |||||||
IO/Sensor/Navigation | ||||||||

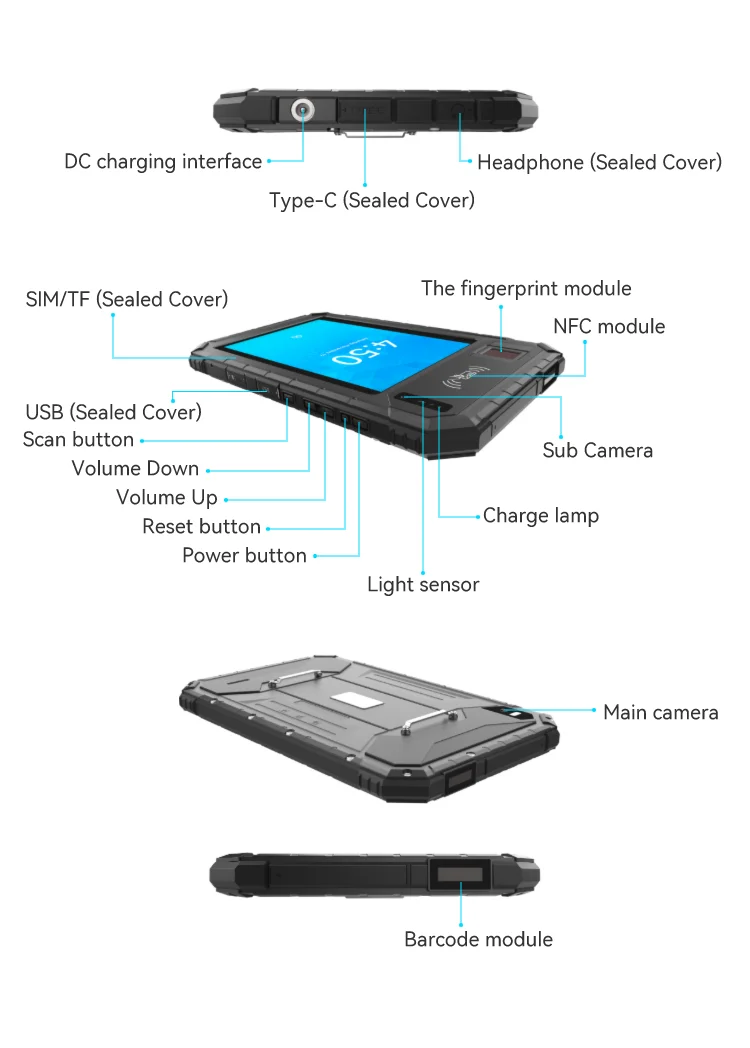

SIM Card | Nano sim card*2 | |||||||
TF Card | Micro SD card (T-FLASH card); max 256GB | |||||||
Headphone | 3.5mm (CTIA） | |||||||
DC Charging interface | DC5521 5.0V 2A-10W | |||||||
Data interface | USB Type-A(Host)*1, Type-C*1 | |||||||
Direction Sensor | support | |||||||
Gravity sensor | support | |||||||
Magnetic Field Sensor | support | |||||||
Motion sensor | support | |||||||
Rotation Vector | support | |||||||
Light-sensor | support | |||||||
Acceleration sensor | support | |||||||
Charger | 5.0V 2A-10W | |||||||
Navigation | GPS+Beidou+Glonass+AGPS+SBAS （EPO 2.5m） | |||||||
Appearance | ||||||||

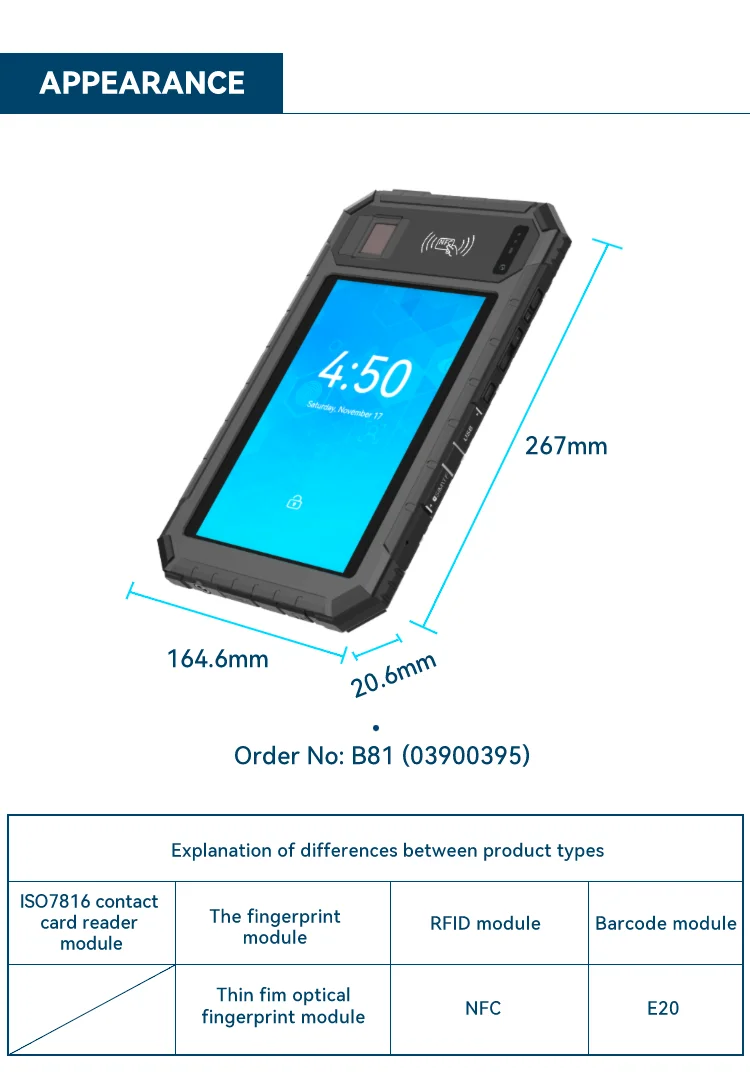

Size | 267*164.6*20.6mm (L×W×H) | |||||||
Weight | 850g | |||||||
Color & Material | Black (PC+ABS) | |||||||
Communications & Networking | ||||||||
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE | |||||||
2G | GSM/CDMA 1X/EDGE/GPRS/WAP | |||||||
2G Band | GSM（B2/3/5/8） | |||||||
3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO | |||||||
3G Band | WCDMA B1/2/5/8 ,Evdo: BC0/BC1 CDMA: BC0/BC1 | |||||||
4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink | |||||||
4G Band | TD-LTE B38/39/40/41 FDD LTE B1/2/3/4/5/7/8/12/17/20/28) | |||||||
WI-FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |||||||
BT | 5.0 Low Energy (LE) | |||||||
Industrial & Reliability Design | ||||||||
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |||||||
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |||||||
Waterproof | Class 7 (IEC 60529) | |||||||
Dustproof | Class 6 (IEC 60529) | |||||||
Operating temperature | -20°C to 55°C | |||||||
Storage Temperature | -40°C to 80°C | |||||||
Reliability | MTBF>5000h；MTTR<0.5h | |||||||
RH | 5% to 95% | |||||||
Operating Altitude | Max: 4,500m（15,000 feet） | |||||||
OS/Software | ||||||||
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian,Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc | |||||||
OS | Android 11/13 (Continuous Update) | |||||||
Package/Warranty terms | ||||||||
Warranty | 24 months | |||||||

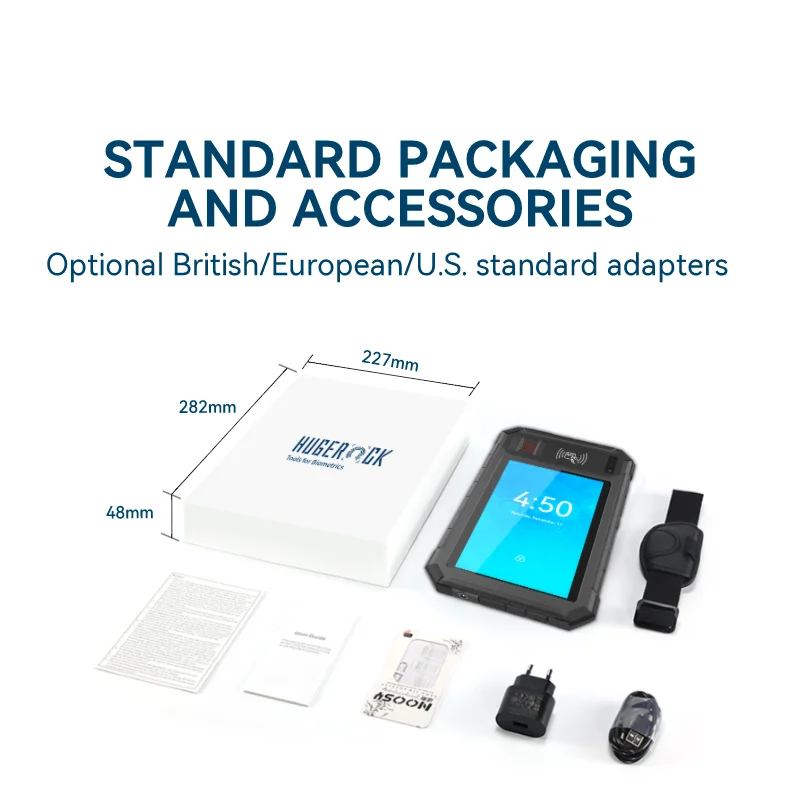

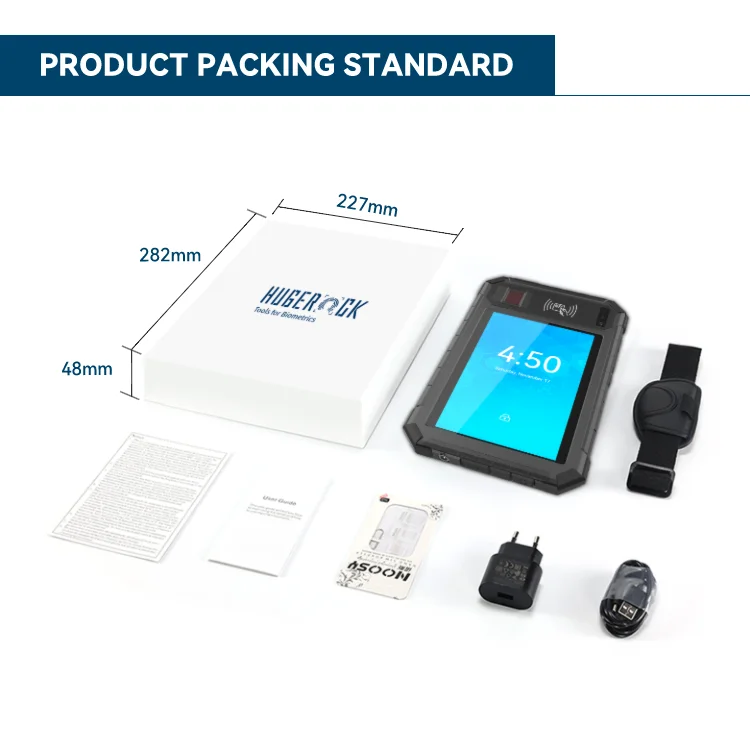

Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/Aircraft box/Toolkit (optional)/SIM Card Ejector | |||||||

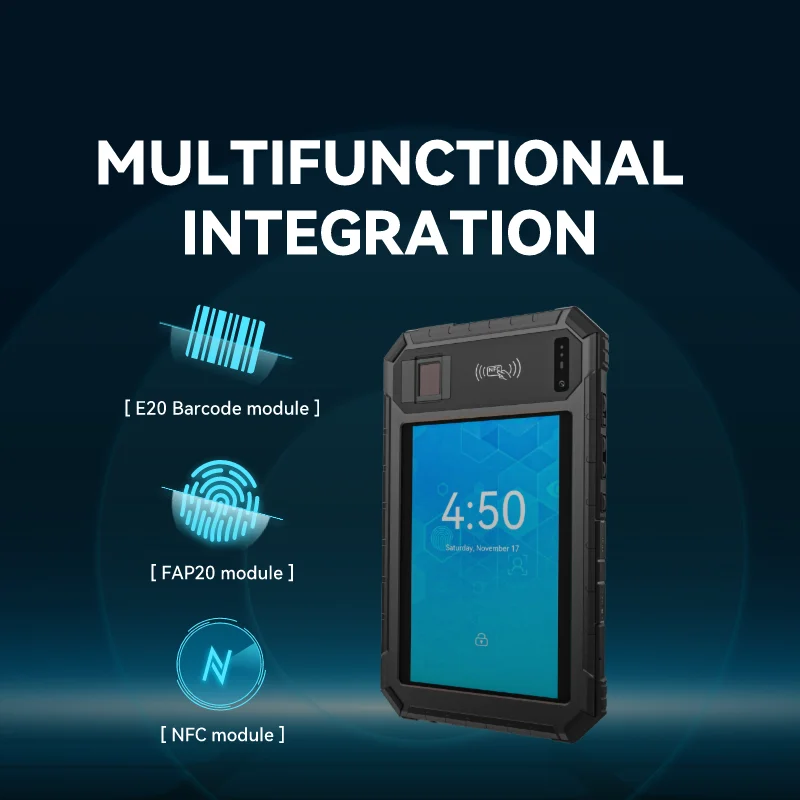

Function modules
NFC | ||
Frequency | 13.56MHz | |
Protocol standard | ISO14443A/B,ISO15693，NFC | |
Label standard | M1(S50、S70)、CPU、NFC | |
Read-write distance | 2-5cm | |
Data Collection | ||
Scanning engine | E20 Barcode Module | |
2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | |
1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | |
The data collection | ||
Thin film optical fingerprint module | SM-92M Sensor Type: Optical CMOS Live Detection: support Image Resolution: 500DPI Image size: 300X400 pixel (W*H) Image grayscale leve: 256 Compliant with ISO 19749: 2021 certification standard FBI-PIV&FAP20 standard | |
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
