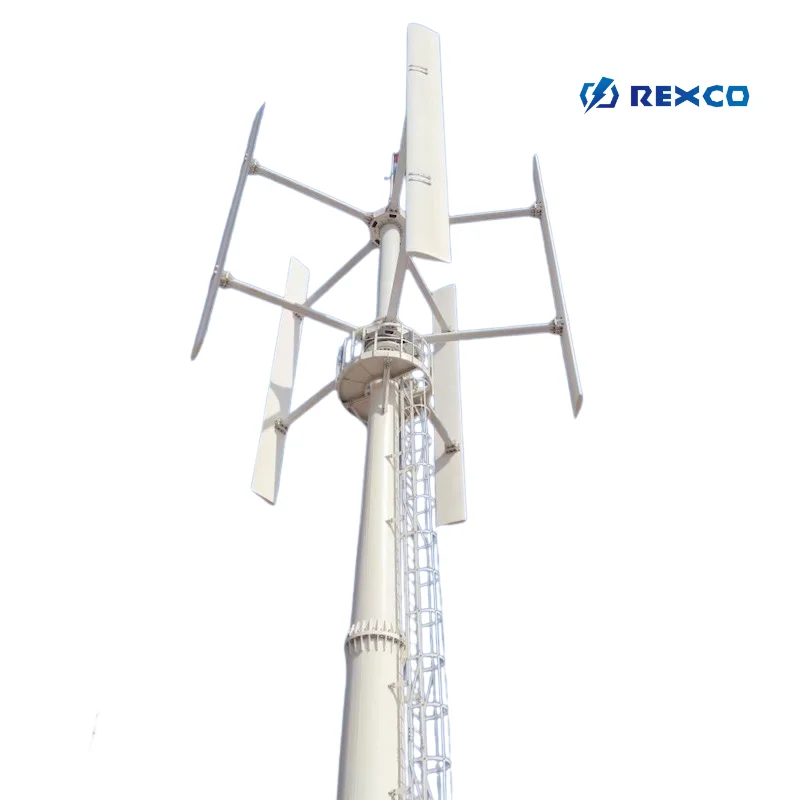

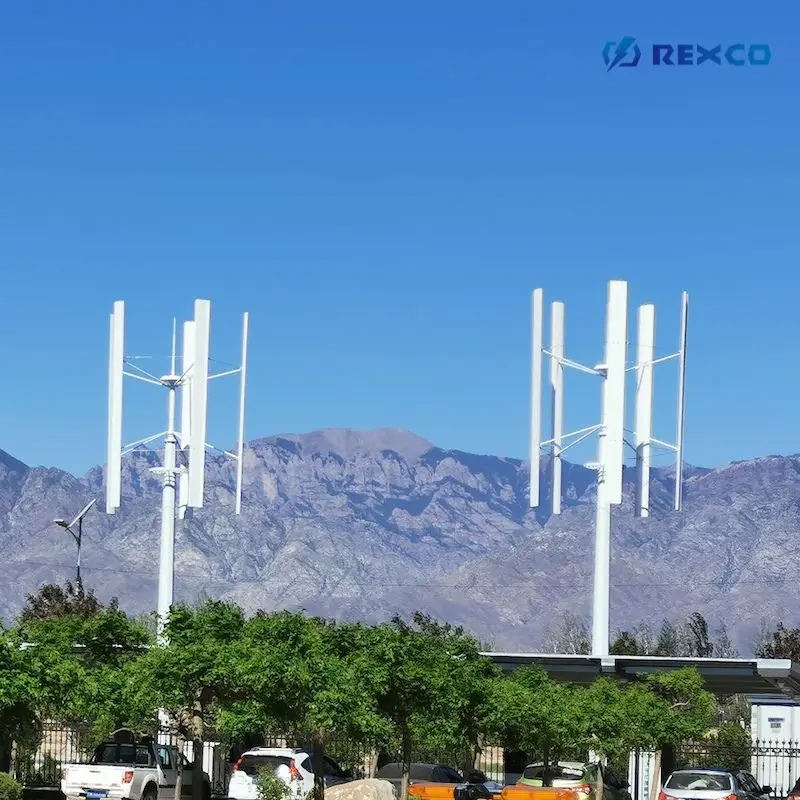

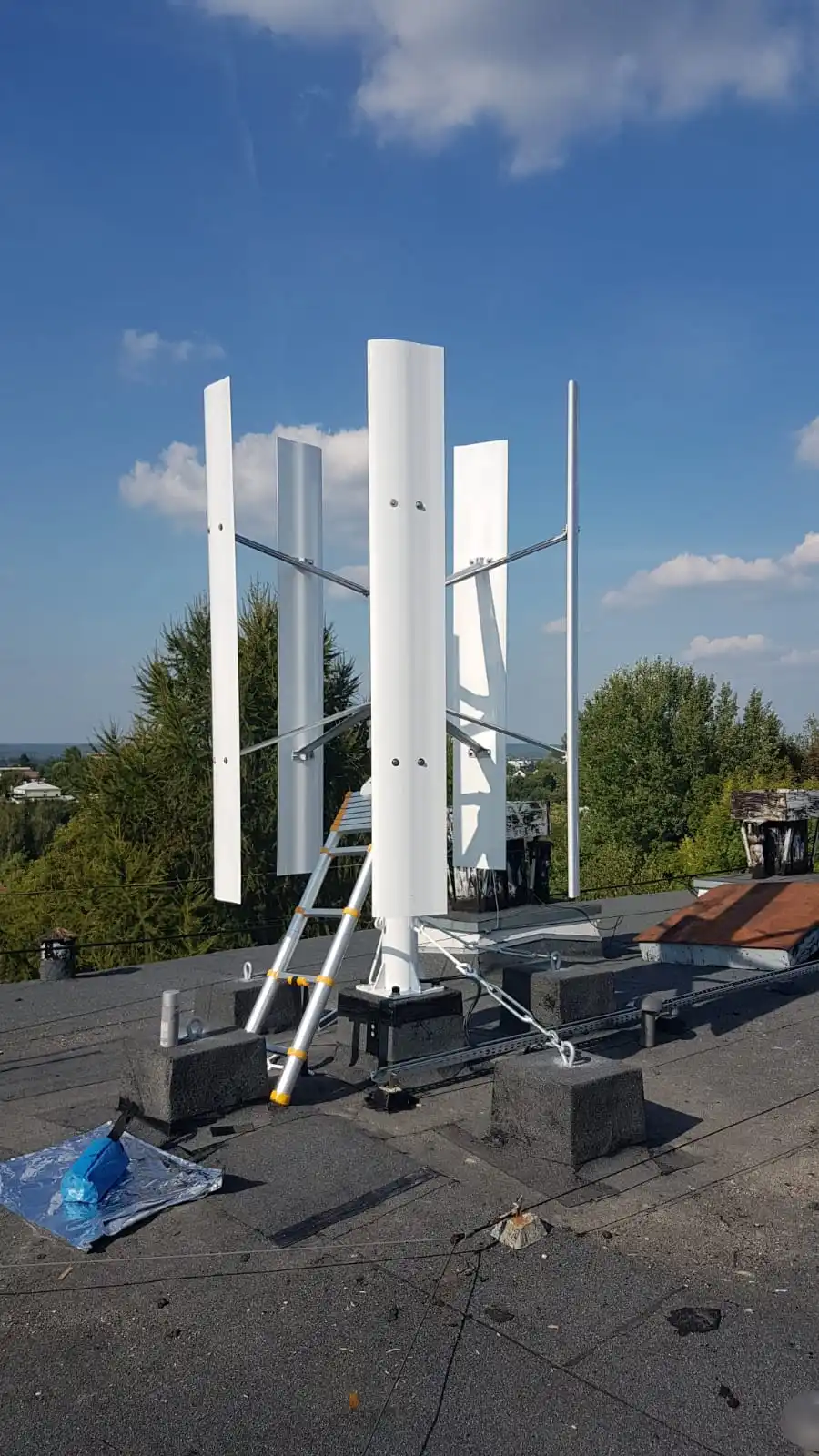

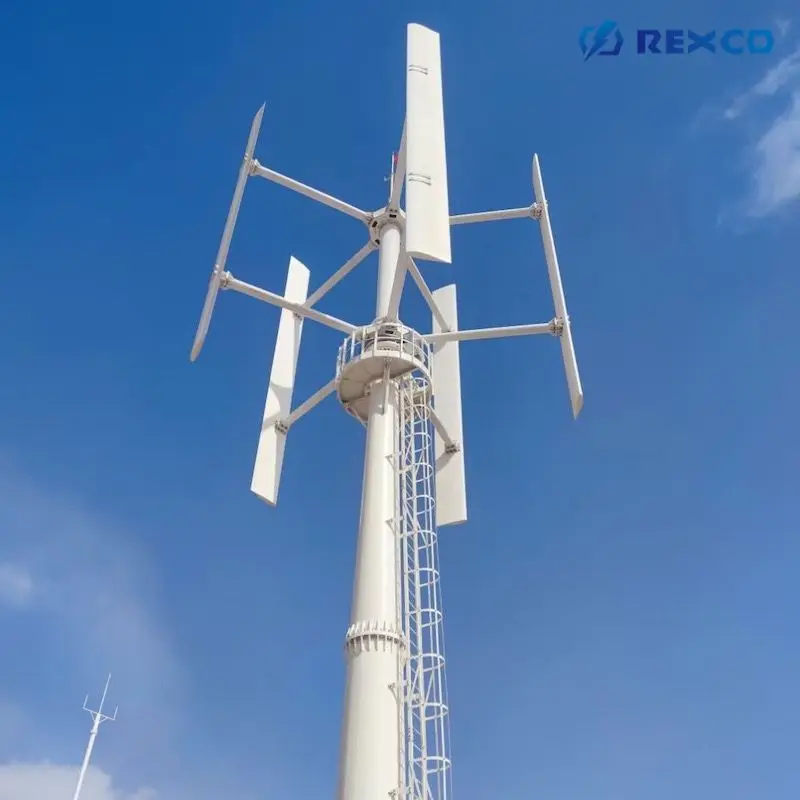

COMMERCIAL! home wind turbine 5kw for sales, with wind generator controller Grid tie inverter 220v 380v

Model

RC-5000H-A

Rated Output

5000W

Peak Output

5050W

Rated Voltage

48V/96V/120V/220V/380V AC

Start-up Wind Speed

2.5 m/s

Cut-in Wind Speed

3.5m/s

Rated Wind speed

12m/s

Survival Max. wind

45m/s

Number of Blades

5

Rotor Diameter

2m

Rotor height

3m

Blade Material

Casting aluminum alloy

Generator Type

3-phase Maglev with high performance Neodymium Magnets

Generator case

Casting aluminum alloy

Controller Type

PWM

Tower Connector

Flange

Tower Type *

Guy Cable Tower

Working Temp. range

from -40°C to 60°C

Product Life

15 years

Warranty

1 years

Applications

on/off-grid solar & wind hybrid system etc.
