Product Overview
Description

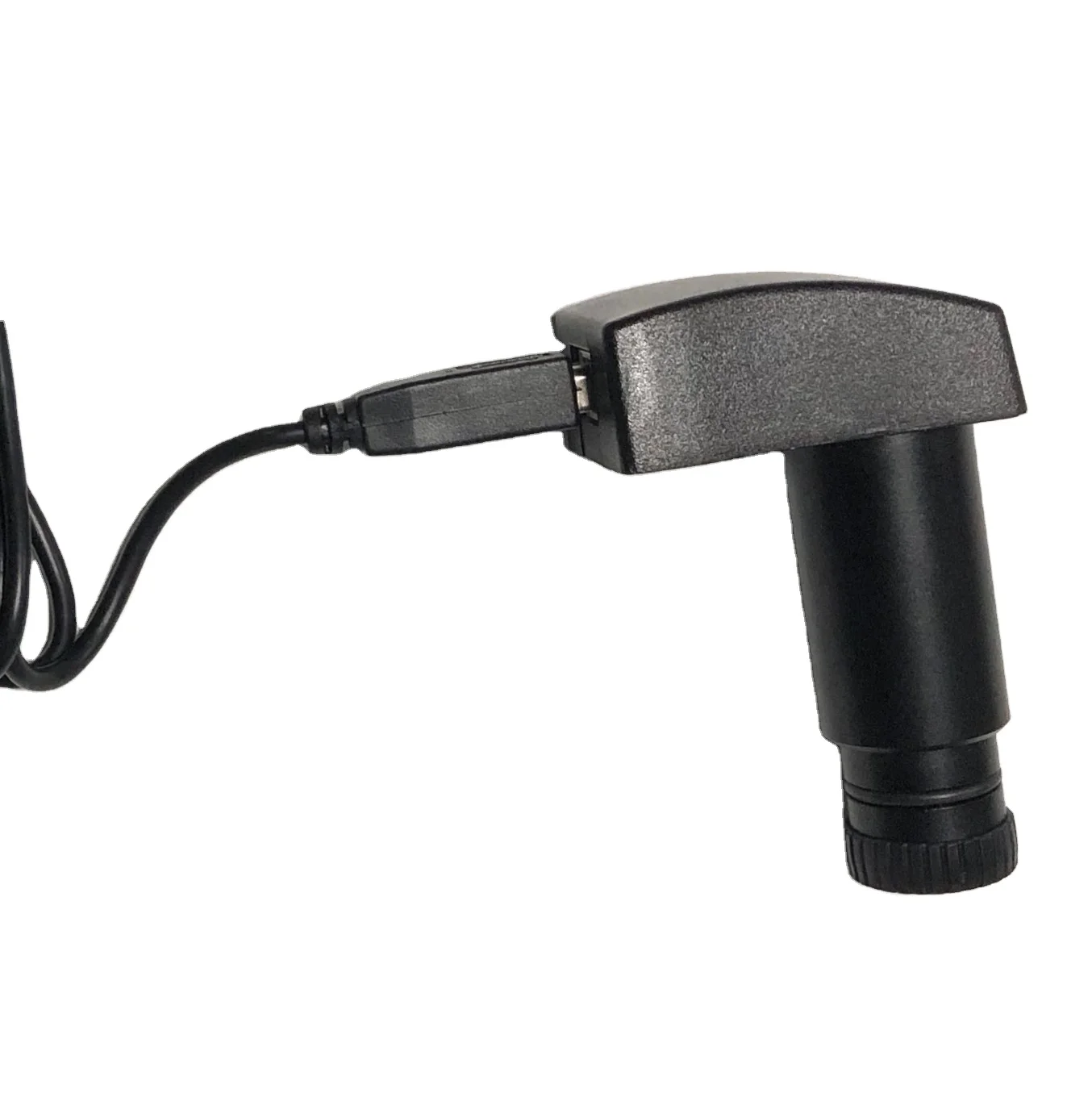

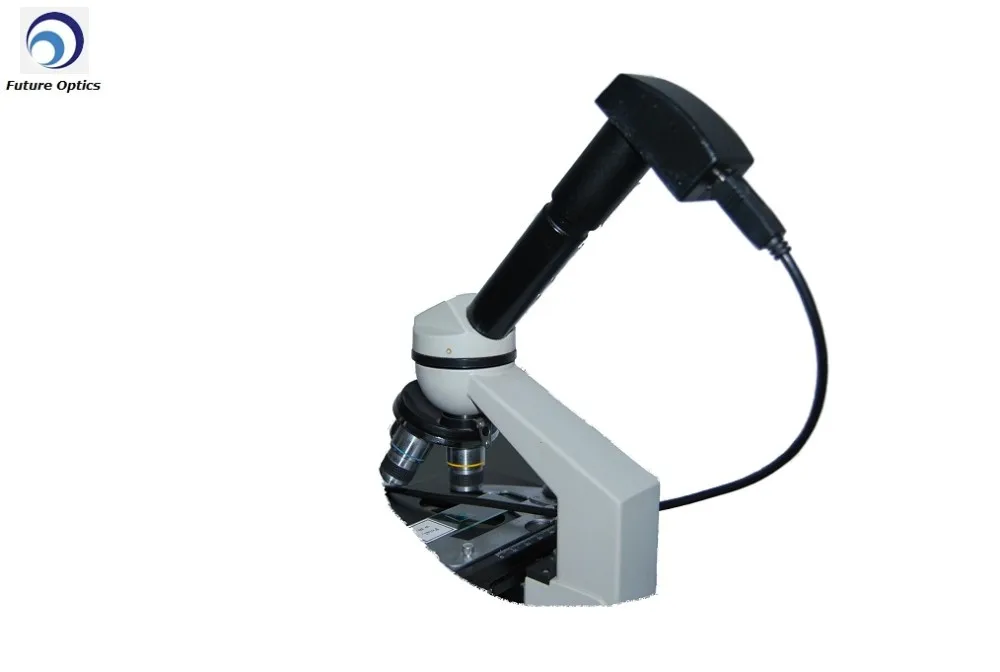

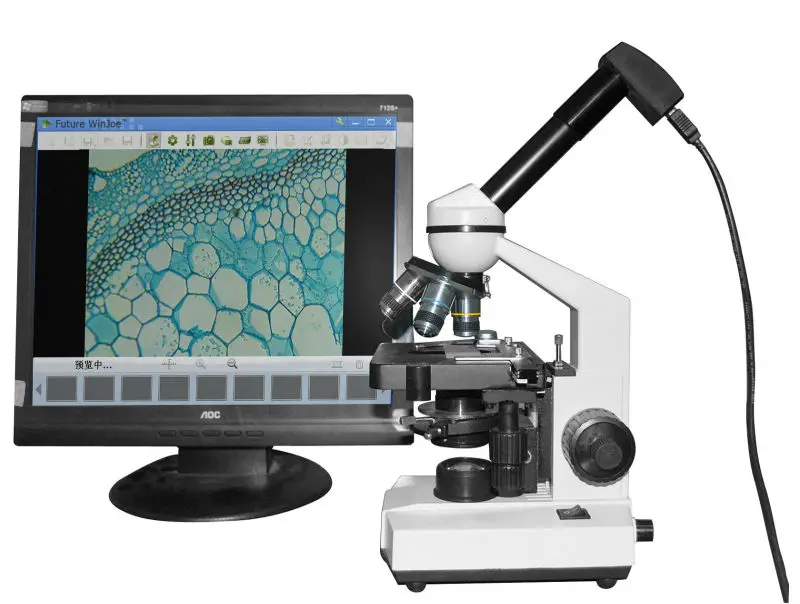

MSR350 is an affordable microscope digital camera, widely to be used to update any elementary biological microscope into digital microscope for study of teacher and student by connecting with eyepiece tube both binocular microscope and monocular microscope.

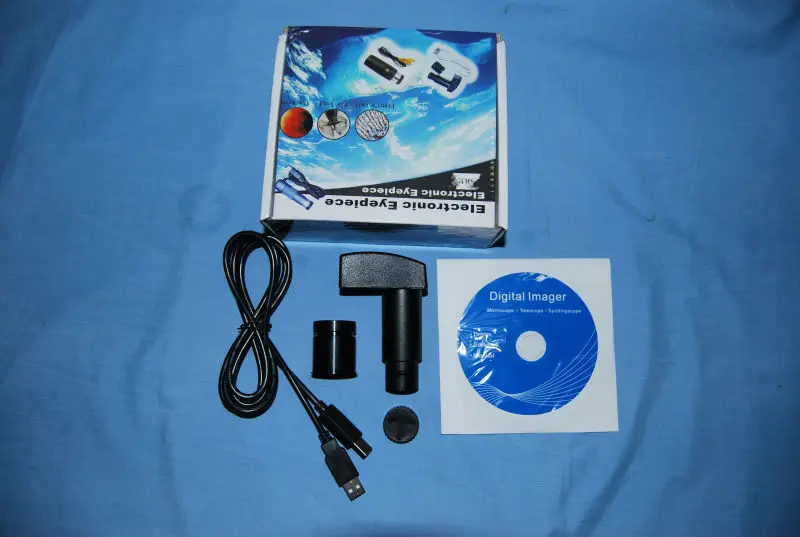

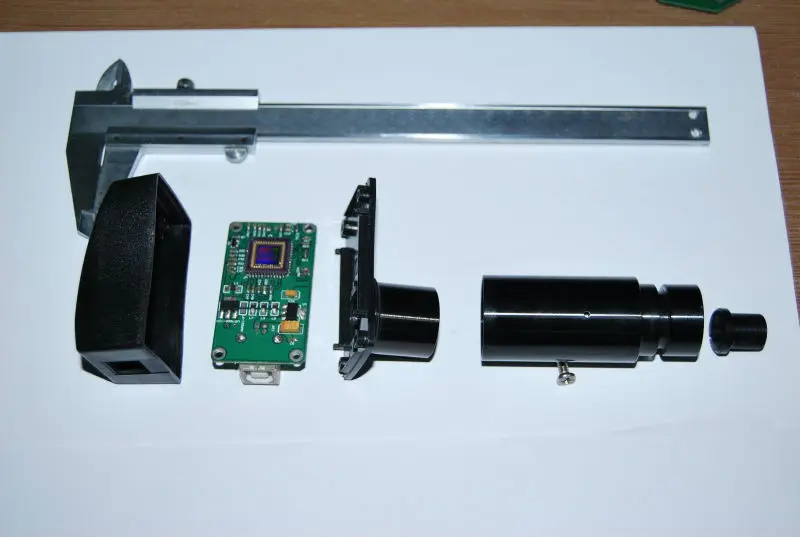

Composition:
1. Digital imaging module: high sensitivity VGA color CMOS imaging module.
2. Imaging software: Copyright soft of Future Win Joe microscopic imaging program.
3. Optical matching device: Built-in relay lens and field lens for sharper and wider view field.
4. Adapter barrel: 23.2mm and 30.0mm and 30.5mm eyepiece tube connector.
Specifications:
Sensor Parameter | 1/4” 0.35MP |
Max. Resolution | 640*480 |
Pixel Size | 5.6µm*5.6µm |
Responsivity | 1.9V/lux-sec |
Dynamic Range | 60dB |
S/N Ratio | 45dB |
Spectral Range | 400-650nm (with IR-filter) |
Frame Rate | 30fps@640*480 |
Proview Model | 640x480, 352x288, 320x240 |
Exposure | ERS or Manual |
Power Consumption. | 70mW |
White Balance | Auto and manual |
Out Interface | USB port |
Order information:
When consulting the features and specifications and plan to place orders to us, please take these extra items below into consideration.
1. Length of USB cable or video cable:
Our standard length is 1.5 meter, and the extra of 4.0, 8.0 or 10.0 meter are all available to book. Minimum quantity to be ordered: 200 PCS.
2. Diameter of tube of digital & video eyepiece:
Our standard diameter: 23.2 mm, 30.00 mm for microscope; 24.5 mm,31.75 mm for telescope; 44.00 mm for spotting-scope, and we accept orders with special design in diameter.
3. Our design digital eyepiece for spotting scope based on the specifications of spotting-scope: aperture: 80 mm, focal length: 480 mm; eyepiece focal length: 8-24 mm; exit pupil distance:15-18 mm. When you place order of eyepiece for spotting scope to us, please inform us the specification of your spotting scope, we ll select and adjust the matching lens system located before the sensor chip to have the images full fill the surface of chip when zooming your spotting scope.
4. Models of TV system and power adapter should be confirmed according to its destination.
Certifications
ISO 9001 2015
CE, RoHS
Recently authorized invention patent:
Free-space WDM invention patent Transceiver assembly invention patent
production line1
Company Information
Welcome to Future Optics
Future Optics was established in 2007, its headquarters and production base located in Hangzhou Economic Development Zone, a research and development center in China Jiliang University, a sales and technical service center in Fremont CA.
Future Optics is a qualified member of the supply chain of global communications giants and a certified supplier of global head instrument corporations, focusing on design and production of miniaturized and easily integrated optical products, and having authorized core invention patents in the fields concerned.
With established design and manufacturing platforms for transceiver optical assembly, passive devices, industrial cameras, optical coherence tomography (OCT) engines and 3D illumination devices, Future Optics provides customers with one-stop solutions
Equipped with the capacity of optical structure design, optical performance simulation, thermal & mechanical stress analyze based on Zemax, Tracepro, Matlab, Ansys, and combining with fine manufacture, Future Optics are building the future of optics.
Future Optics are seeking cooperation partners home and abroad in design, marketing and service for win to win.
Progress
- 2007 Founded in the national university science park Hangzhou China
- 2008 Set up production line of industry digital camera for ocular instruments
- 2009 Won the bronze award for industrial design of compact digital microscope
- 2011 Qualified as National High-tech Enterprises, updated in 2014/ 2017/2020
- 2012 Certificated ISO9001-2008 and updated to ISO9001-2015 in 2018/2021
- 2013 Studied compact WDM for 40G/ 100G Transceivers with Broadray, Inc
- 2014 Set up production line of ultra-compact WDM (CWDM\\LAN-WDM\\DWDM)
- 2015 Ultra-compact WDM production line qualified by Accelink
- 2016 Developed LAN-WDM optical sub-assemblies for transceiver (Z-BLOCK)
- 2017 Worked with OptiWorks, Inc. to set up second line of free-space WDM
- 2018 Developed 3D illumination device for robot guiding system
- 2019 Developed mini diffraction gratings for OCT used in micro probe
FAQ
Questions & Answers
Q1: Are you a manufacturer or a trader company?
A1: We are a manufacturer focusing on production of optical transmission products and machine vision instrument products. We accept on-site audit of production line by customer or the third party
Q2: What are your main products?
A2: Micro WDM products with full intellectual property rights: Z-block for TOSA\\ ROSA of transceivers, UC-CWDM\\UC-DWDM\\UC-LWDM based on free space technology; Digital microscope\\telescope\\spottingscope; Laser distance finder, OCT engine, Open field laser transmitting and receiving instruments.
Q3: What is your warranty policy?
A3: We offer a 2-year free warranty covering all of our products, and it starts from the delivery date of the original order, by providing free repair or replacement.
Q4: What is your OEM terms?
A4: We are providing not only labeling and packaging service, but also customized services, including free design of optical structure, mechanical structure, PCB and software functions.
Q5: How about your support and service?
Q5: We provide online free & tailored support and services for your businesses pre-sales and after-sales, providing intermediate test data if necessary.
