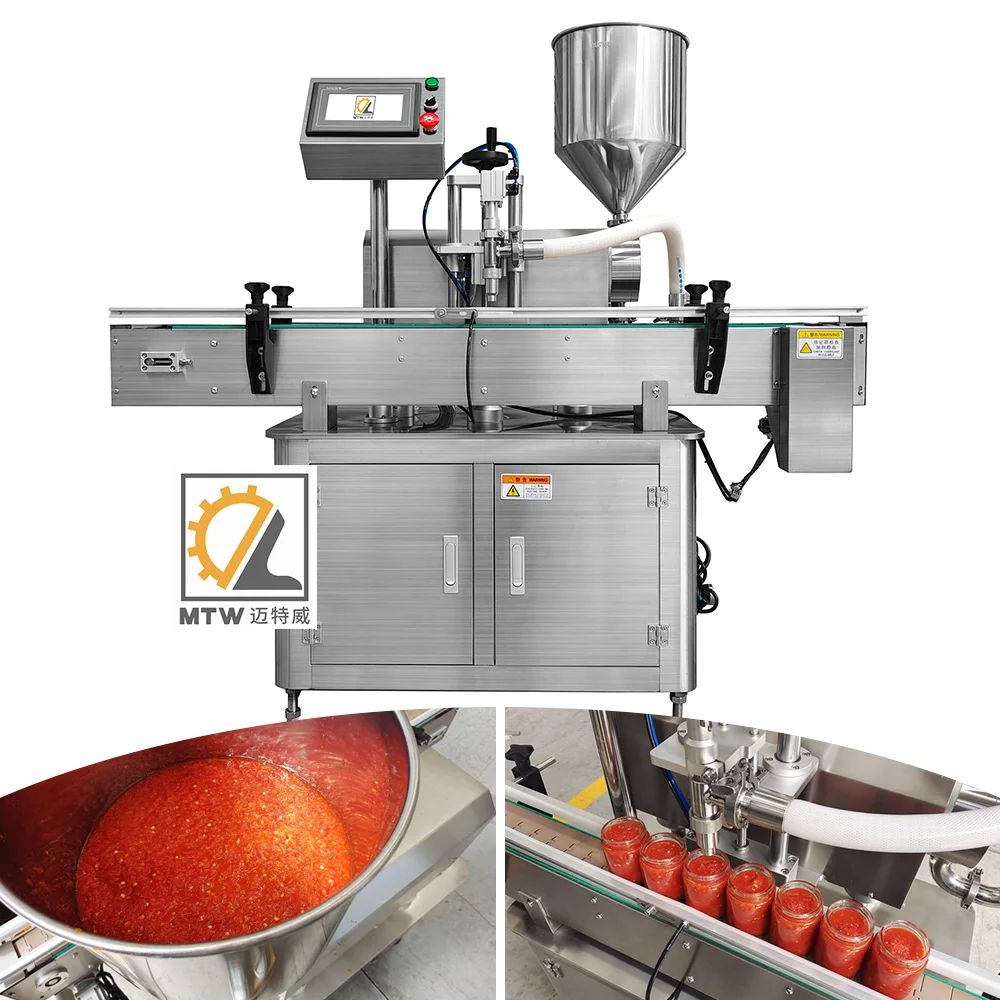

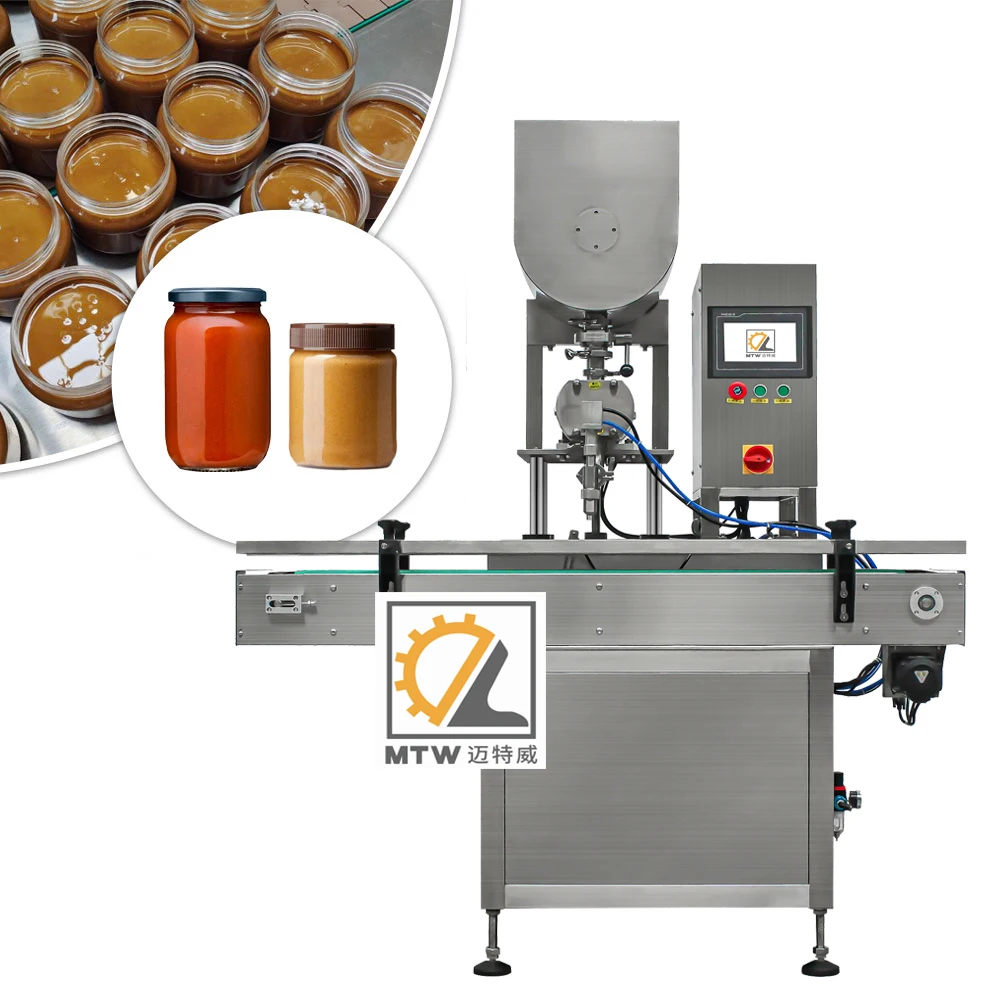

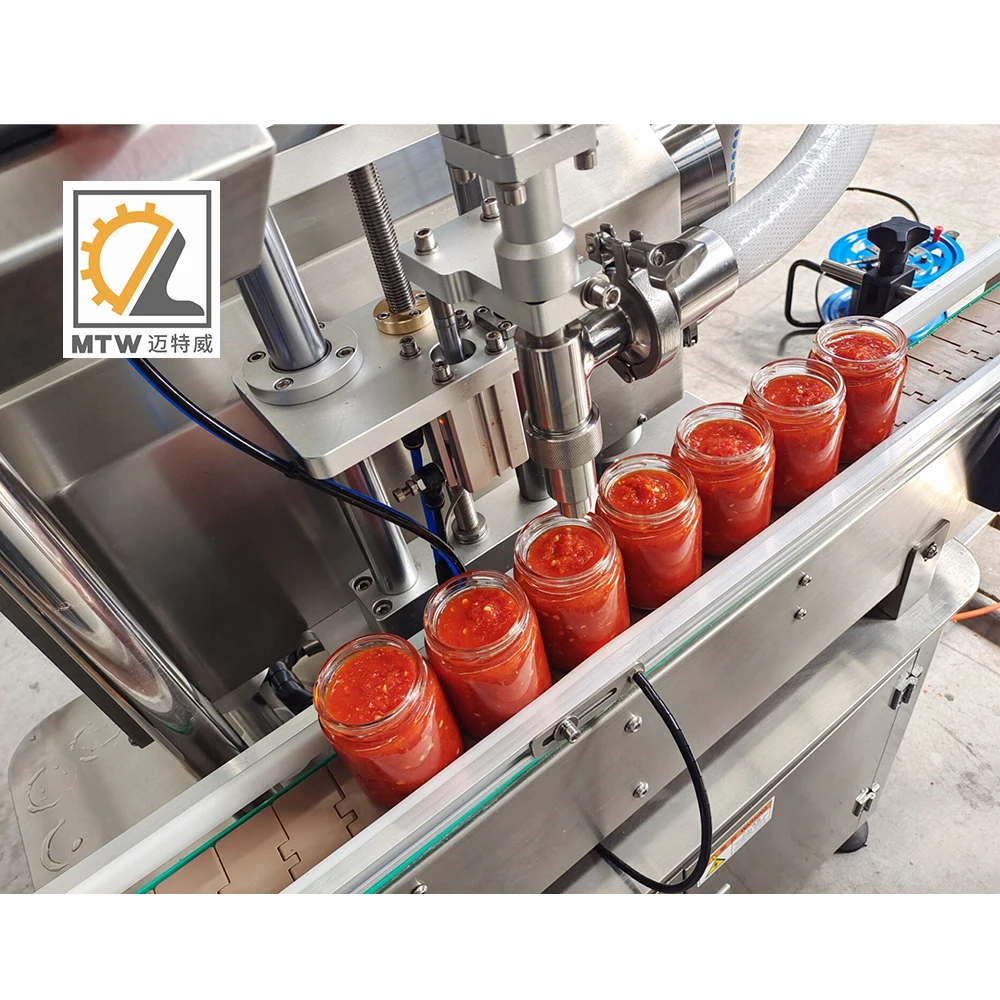

MTW automatic rotor pump cream puree tomato ketchup filling machine
- Category: >>>
- Supplier: Tianjin Maitewei Machinery Manufacturing Co. Ltd.
Share on (1600896204553):
Product Overview
Description
Our Advantages
Product Description

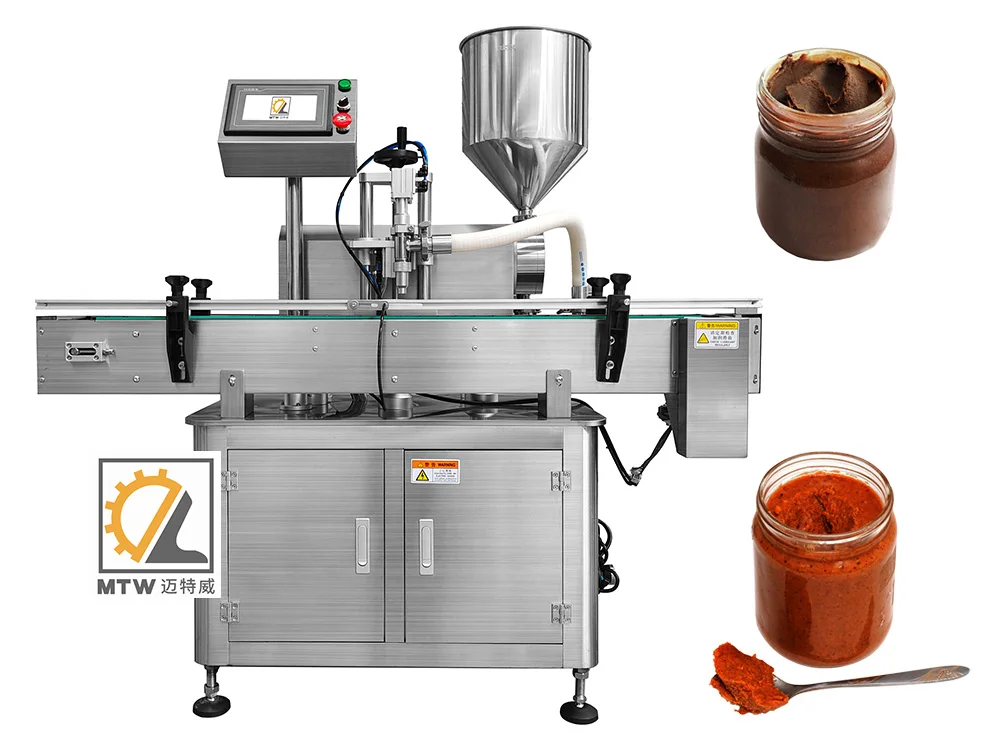

Introduction :
This single head rotor pump filling machine is used to liquid or paste like cream, essential oil, lotion, perfume, honey, tomato paste, sauce etc in food, cosmetics, chemical and other industries. It also has good performance for filling very thick & sticky paste, like peanut butter & grease etc. Also can fill liquid or paste with particle inside.
Filling machine can also be equipped with feeder to feed liquid or paste into hopper automatically.
Filling machine can also be equipped with feeder to feed liquid or paste into hopper automatically.
Product Paramenters
Material | SUS304 & SUS316L | ||||||||
Filling range | 30-300ml/ 50-500ml | 100-1000ml | 250-2500ml | 300-3000ml | 500-5000ml | ||||

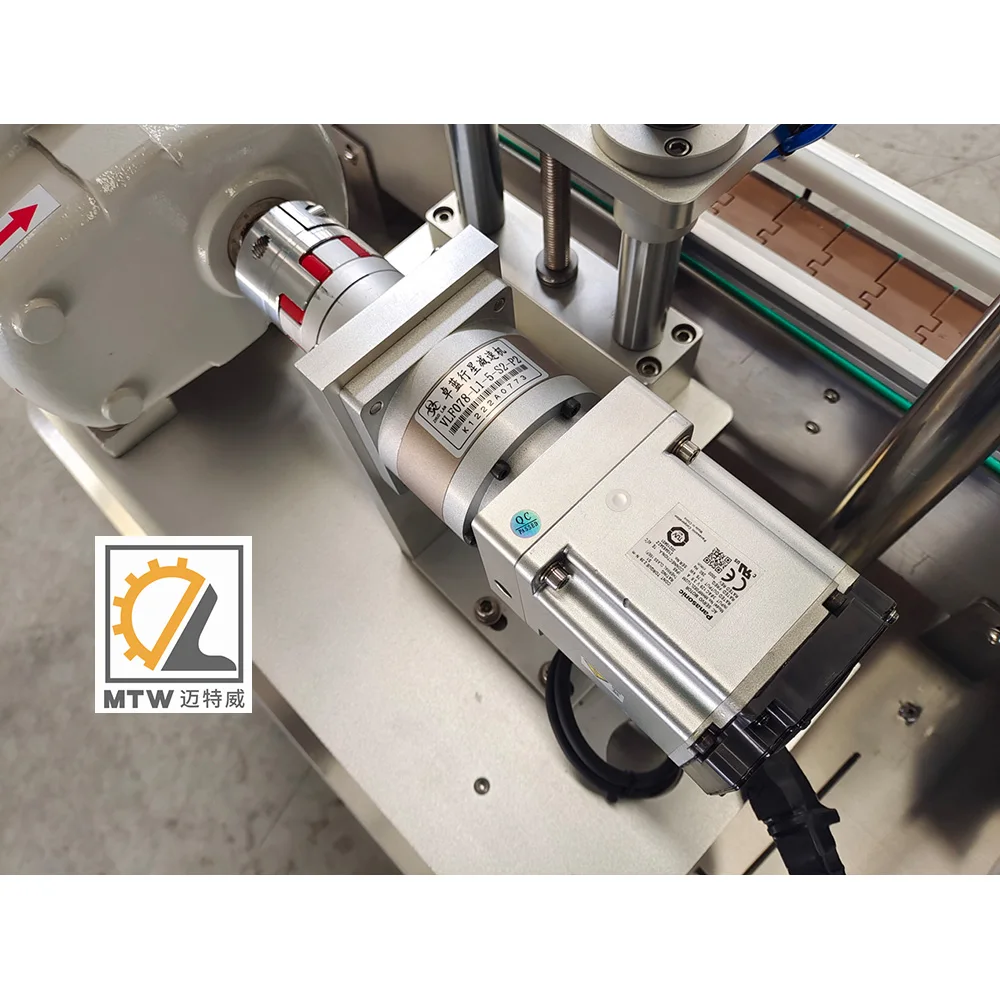

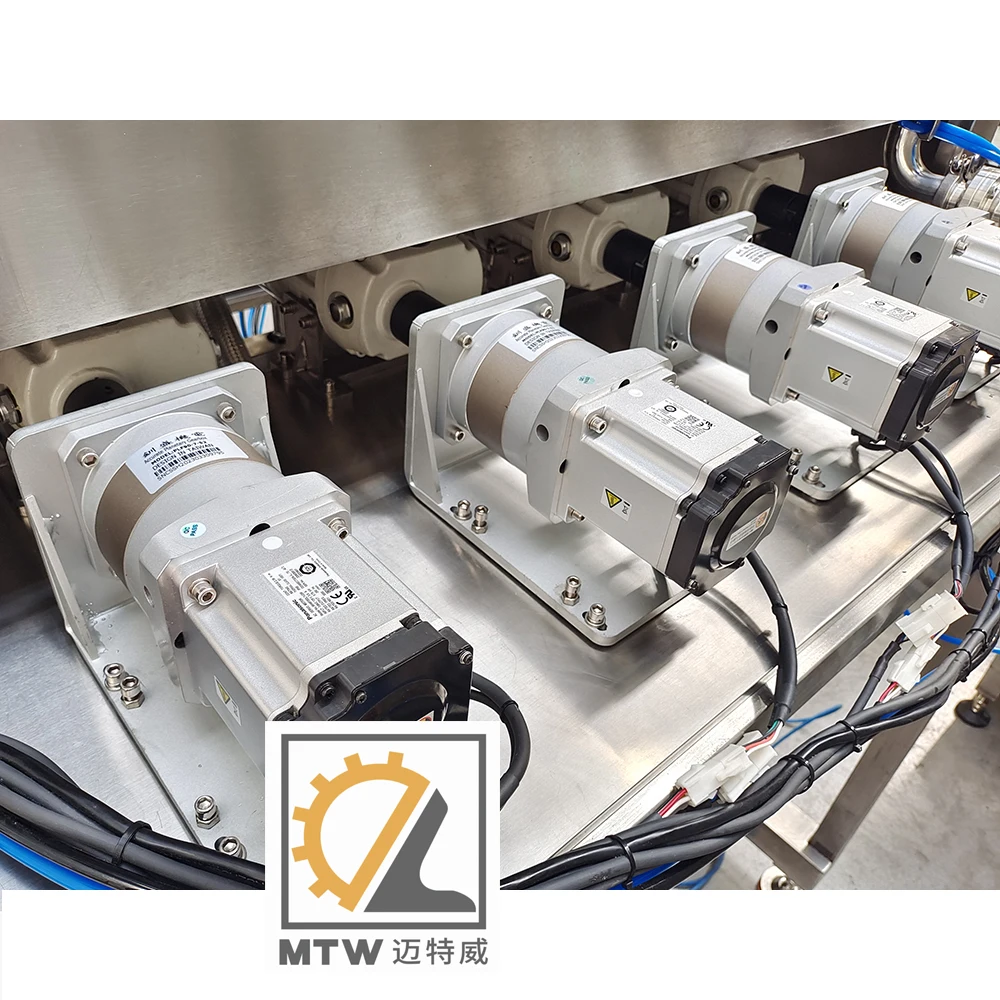

Drive | Panasonic servo motor or HCFA servo motor, China brand (Can choose) | ||||||||
Filling heads | 1 head | ||||||||
Hopper size | Standard 40L (Can tailor-made bigger hopper) | ||||||||
Power | 220V 50/60Hz 0.5Kw (Can be tailor-made to suit different countries) | ||||||||
Air pressure | 0.4MPA-0.8MPA | ||||||||
Filling type | Servo motor+ Rotor pump | ||||||||
Filling speed | 1200-1500 bottles/hour (Based on 500ml) | ||||||||
(bottles/ hour) | |||||||||
Filling accuracy | +/-0.5% (Panasonic servo motor ) +/-1% (HCFA servo motor, China brand ) | ||||||||
Conveying method | Conveyor belt (frequency control & speed adjustable) | ||||||||
Weight | 200Kg | 200Kg | 220Kg | 250Kg | 280Kg | ||||
Machine size | L2000*W1000*H1600mm | ||||||||
Suitable for filling liquids, especially high-viscosity liquids, with an accuracy of 99.9%

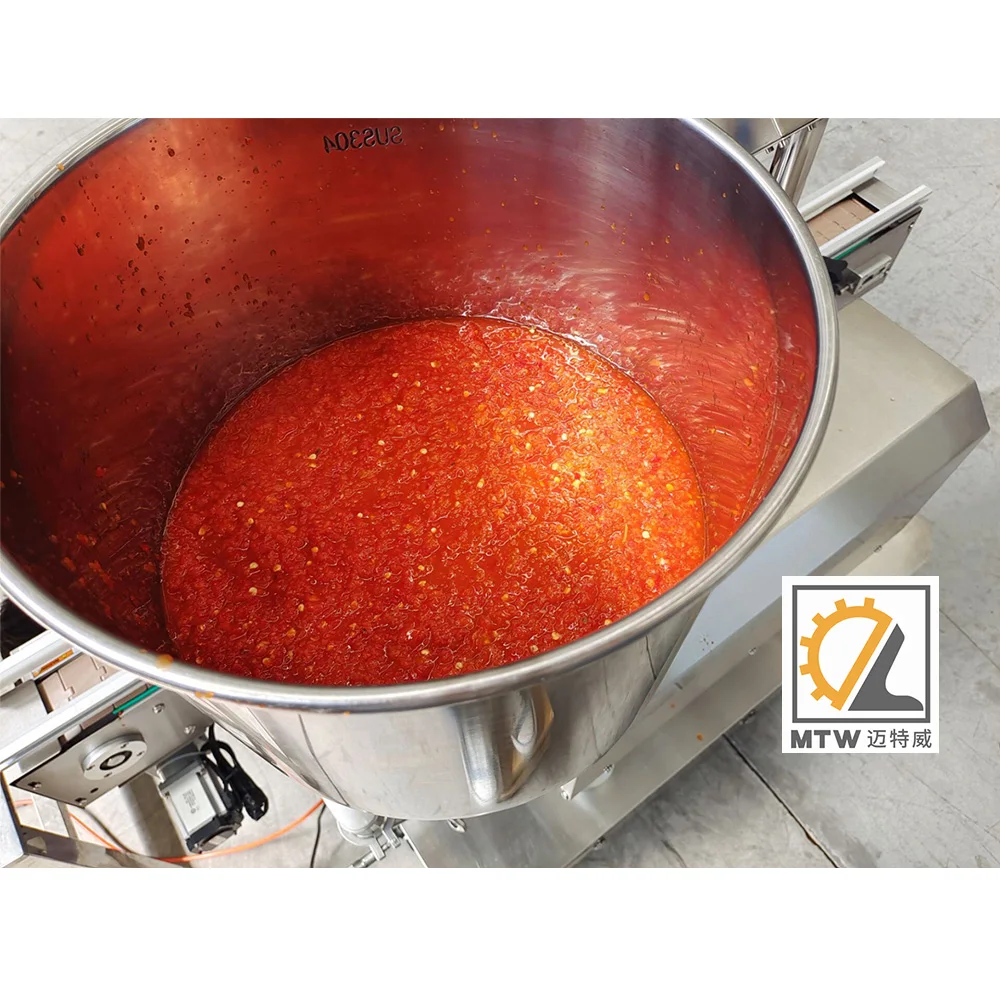

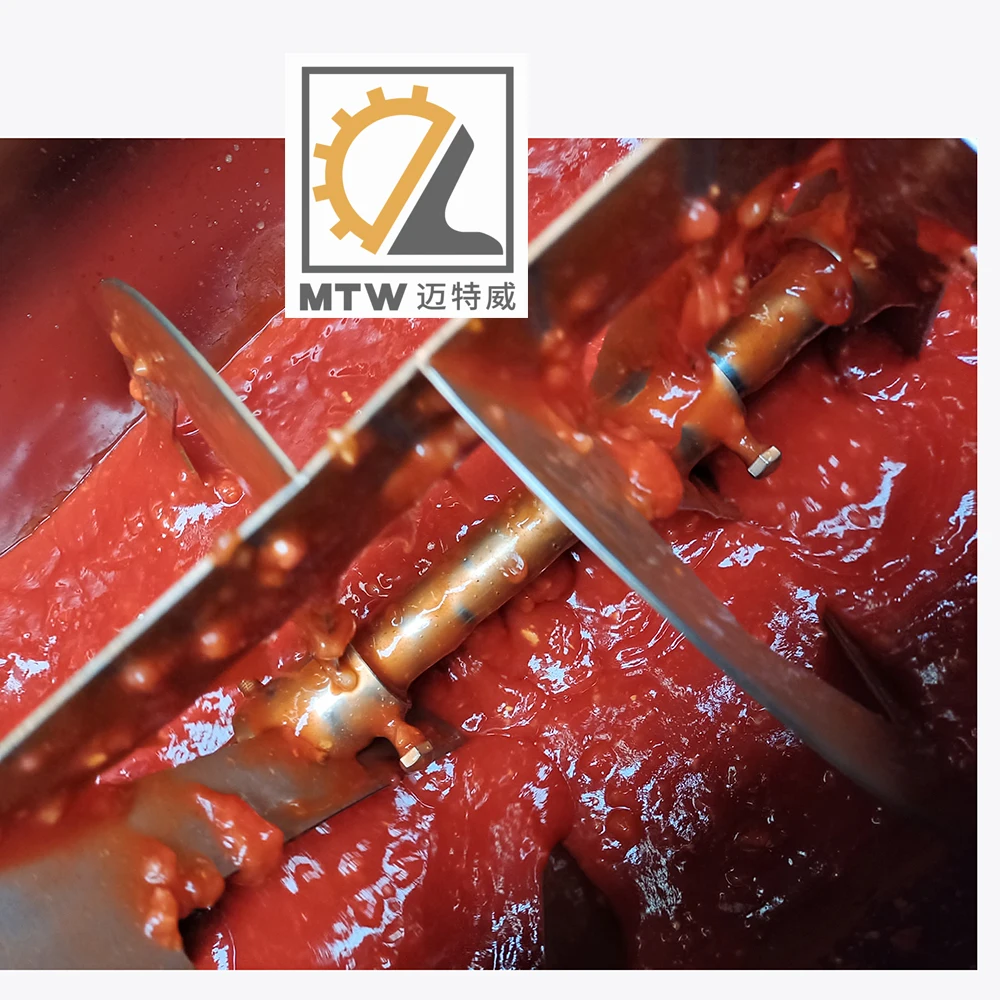

Hopper, can be equipped with stirring and heating devices as required
The machine material is made with SUS304 & SUS316L, which is clean and hygienic, easy to disassemble and wash.

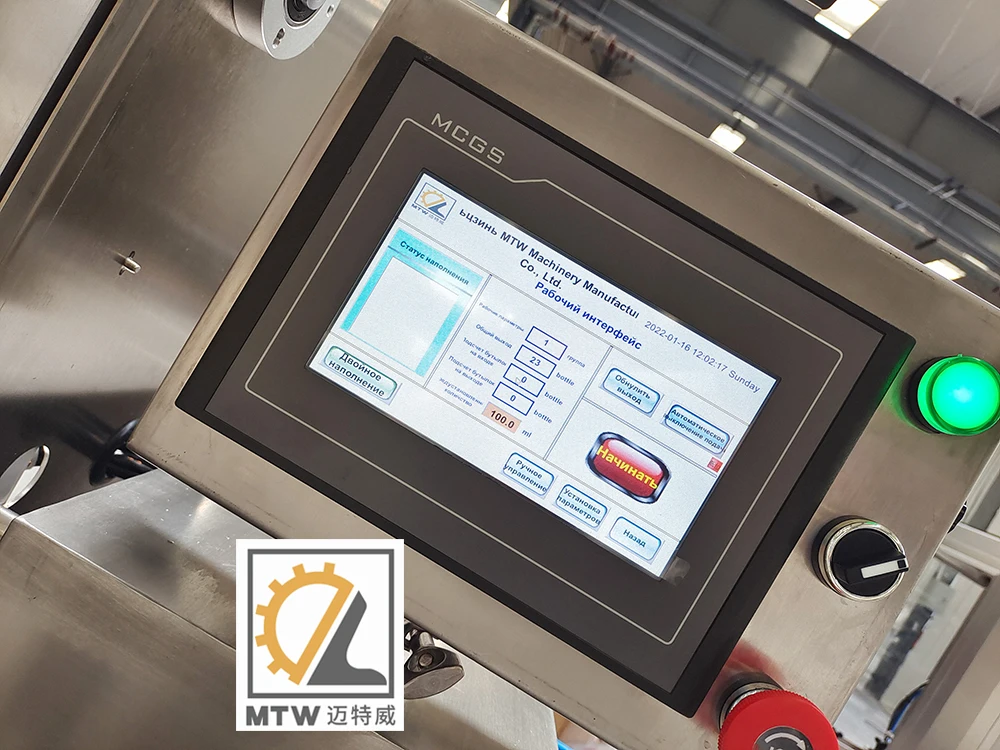

Set parameters on the touch screen to control and adjust the machine
Transaction process
Why Choose Us

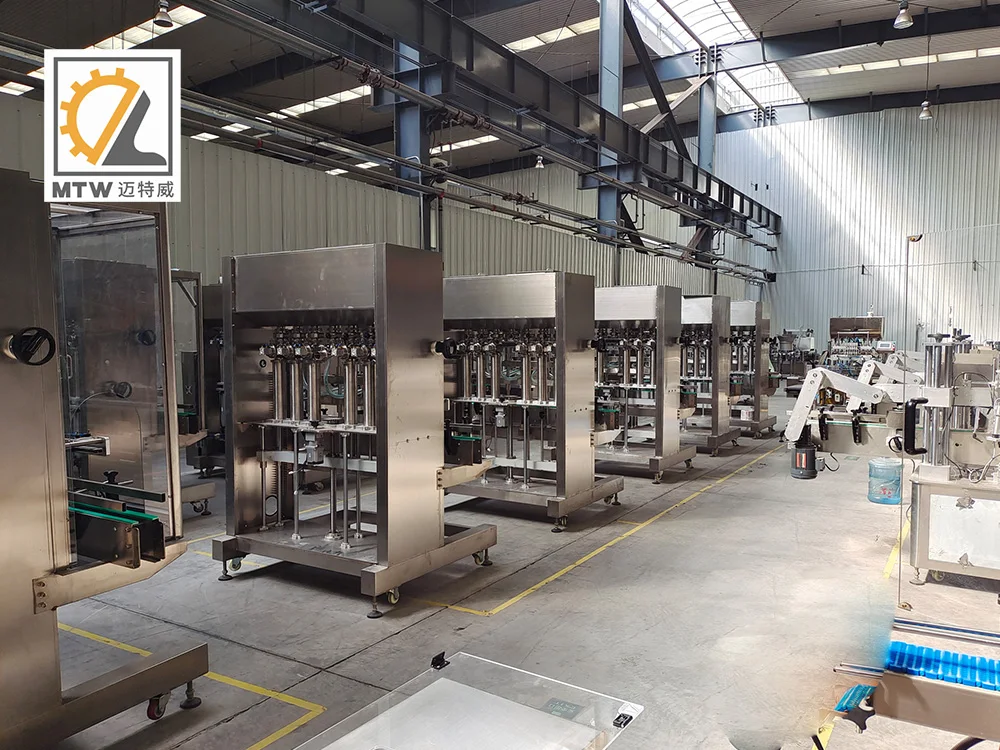

Company profile
Our company is a professional manufacturer of all kinds of packing machines, including: filling machines, sealing machines, capping machines, labelling machines etc. We have more than 10 years experience in manufacturing and designing all kinds of packing machines.
We supply all kinds of bottle packing machines for food industry, chemical industry etc.
We are good at designing and tailor-making products. Maitewei(MTW) pack makes more perfect packing, and more efficient production!
We supply all kinds of bottle packing machines for food industry, chemical industry etc.
We are good at designing and tailor-making products. Maitewei(MTW) pack makes more perfect packing, and more efficient production!

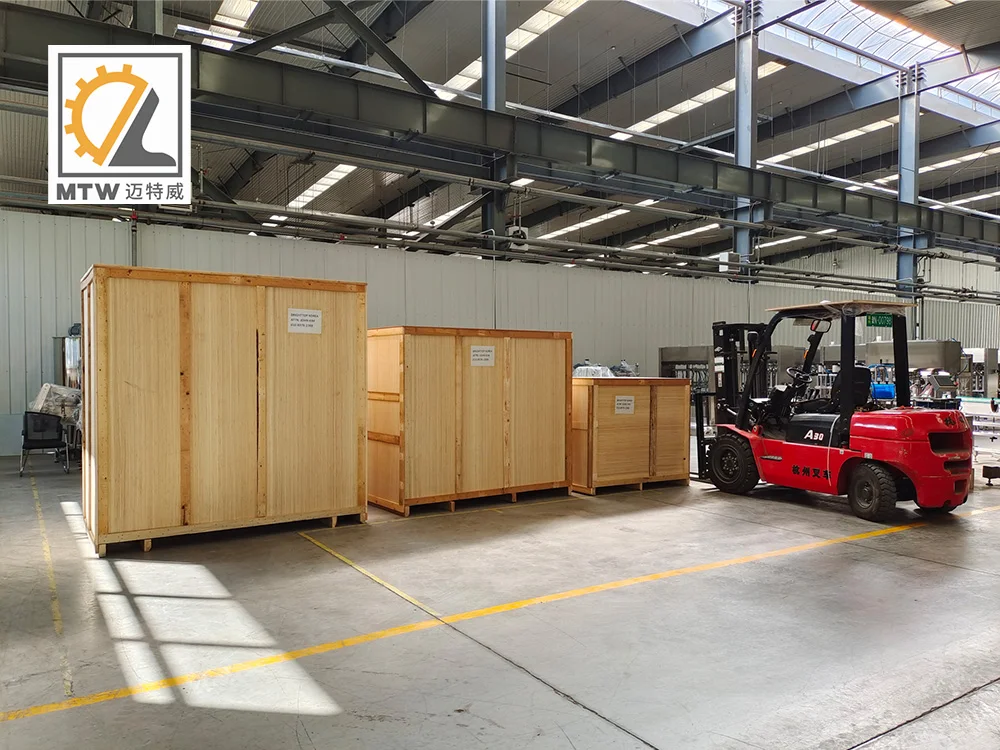

Our logistics
FAQ
1.Can I visit your factory?
A:Sure, Our factory address :Plant No 6, No.77 Fuyuan Road, Wuqing Development Area, Tianjin City, China.
2. If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical staff can help to analysis, design and test the new products you offered.
3.What can you buy from us?
Filling Machine,Capping Machine,Labeling Machine
4. How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
A:Sure, Our factory address :Plant No 6, No.77 Fuyuan Road, Wuqing Development Area, Tianjin City, China.
2. If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical staff can help to analysis, design and test the new products you offered.
3.What can you buy from us?
Filling Machine,Capping Machine,Labeling Machine
4. How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
