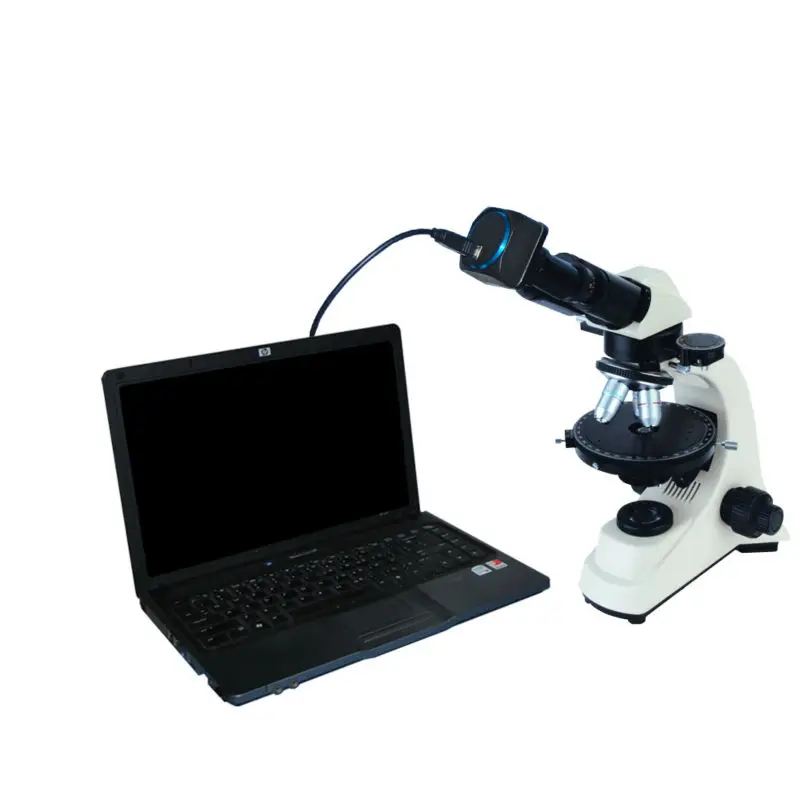

DBMVV5000CL 500P 5MP 2K HD 600X USB digital Polarizing Microscope for Studying Anisotropic Materials
- Category: >>>
- Supplier: Hangzhou Future Optics Sci & Tech Co. Ltd.
Share on (1600896282912):
Product Overview
Description
♦Applications:
A polarizing microscope uses polarized light to study anisotropic materials such as identifying crystals or fibers suspended in liquid, identifying minerals in core samples and detecting defects in semiconductors or finding stress points in metal, glass and other materials.
♦Functions:

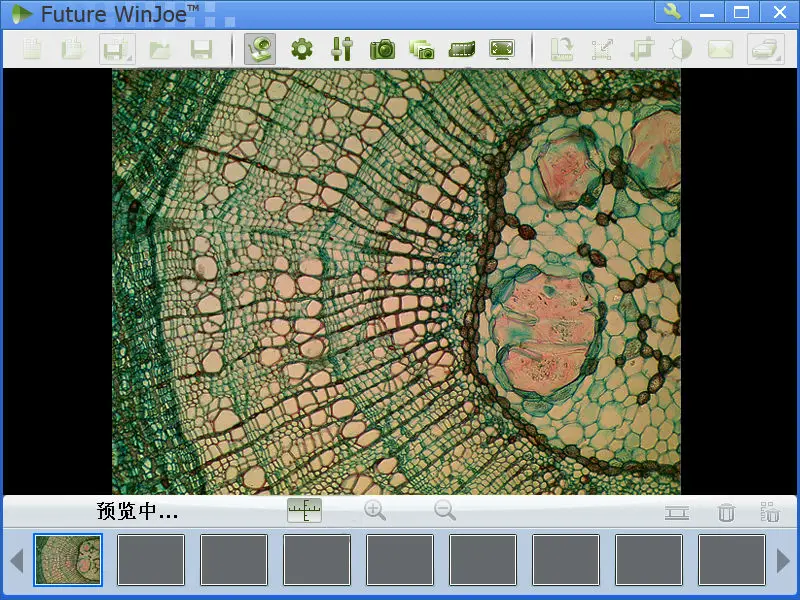

1. To capture images for living show, for shoot and for video recording;

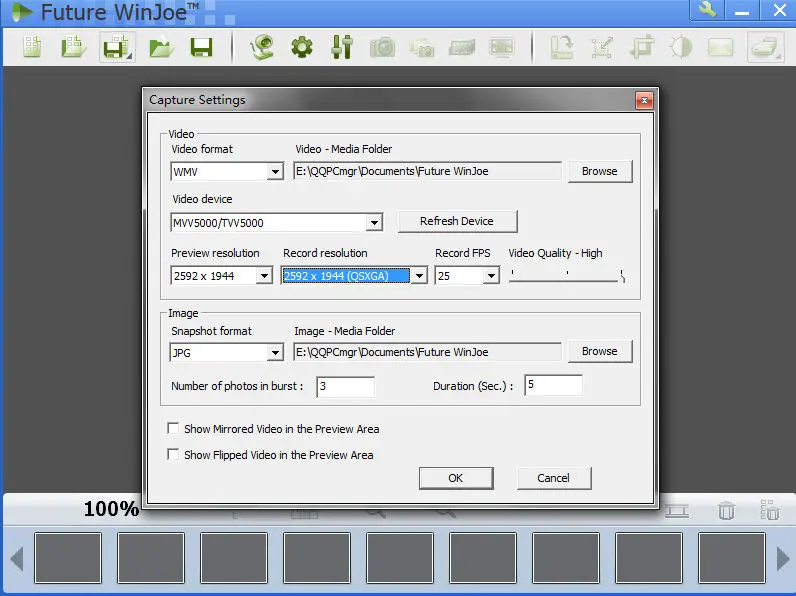

2. To improve image quality by adjusting the gain, resolution, WB, contras, exposure time, RGB color and Gamma setting;
3. To measure and to compare
♦Benefits:
1. Easy installation, convenient operation;
2. Wide field and bright image;
3. Compatibilitywith Win/MAC;
4. High resolution image of 2592*1944 for preview, picture shoot and video recording;
5. High frame rate .
♦Quality control:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
Copyright software of Future Win Joe V1.0 Registration Code:2009SR035346
ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M
♦Main specifications:

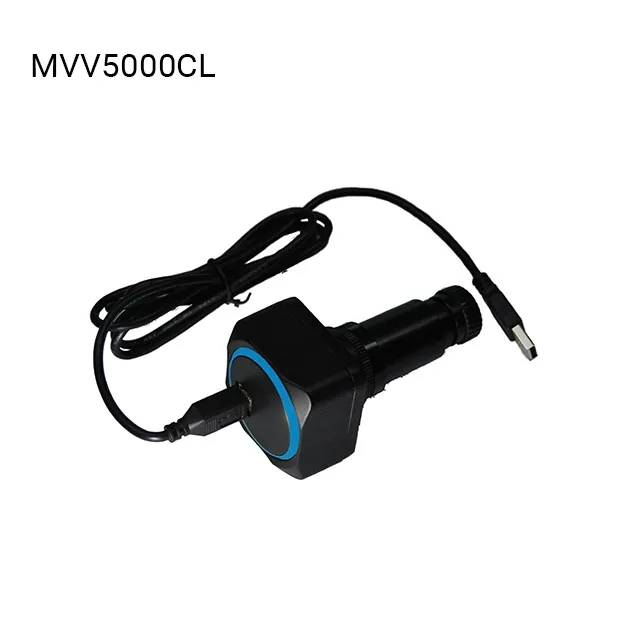

Digital eyepiece | 5.0 MP USB digital camera equipped with built-in relay lens |
Active resolution of sensor | 2592*1944 |
Sensitivity | 1.4V/ lux-sec |
Dynamic rage | 70.1 dB |
Frame rate | 10fps@2592*1944 |
Total magnification (optical eyepiece loaded ) | 40X, 200X, 400X, 600X |
Equivalent magnification of digital eyepiece | 28X (17” LCD screen display pixel size: 0.2625mm ) |
Total magnification (digital eyepiece loaded ) | 112X, 560X, 1120X, 1680X |
Optical eyepiece | Plan eyepiece: 10X-18mm and 10X-20mm; 10X -18mm and 10X-20mm with reticle(0.1mm) |
Achromatic objective (DIN45mm) | Infinite strain free achromatic objective:4X/0.1,10X/0.25,20X/0.4, 40X/0.65 (spring loaded tip), 60X/0.8(spring loaded tip) |
Condenser | N.A> 1.25 Abbe condenser with Iris diaphragm and filter holder |
Analyzer | Rotatable analyzer with lock device |
Bertrand lens | Built-in center adjustable Bertrand lens |
Viewing head | Binocular head 30 rotatable |
Nosepiece | Quadruple nosepiece with positive click stopper |
Optical compensator | λ lip , 1 /4 λ lip, Quartz wedge |
Revolving round stage | Center adjustable and rotatable , diameter 156 mm with 1 division and 6’increments |
Polarizing device | Rotatable polarizer with scale |
Illumination | Adjustable halogen bulb 6V / 20W |
CD of software | Future Win Joe imaging software with movable reticle |
Reticle slide | Calibration micro ruler 10mm / 0.01mm |
Packing | Carton size: 54.5cm X 39.5cm X 43.5cm |
