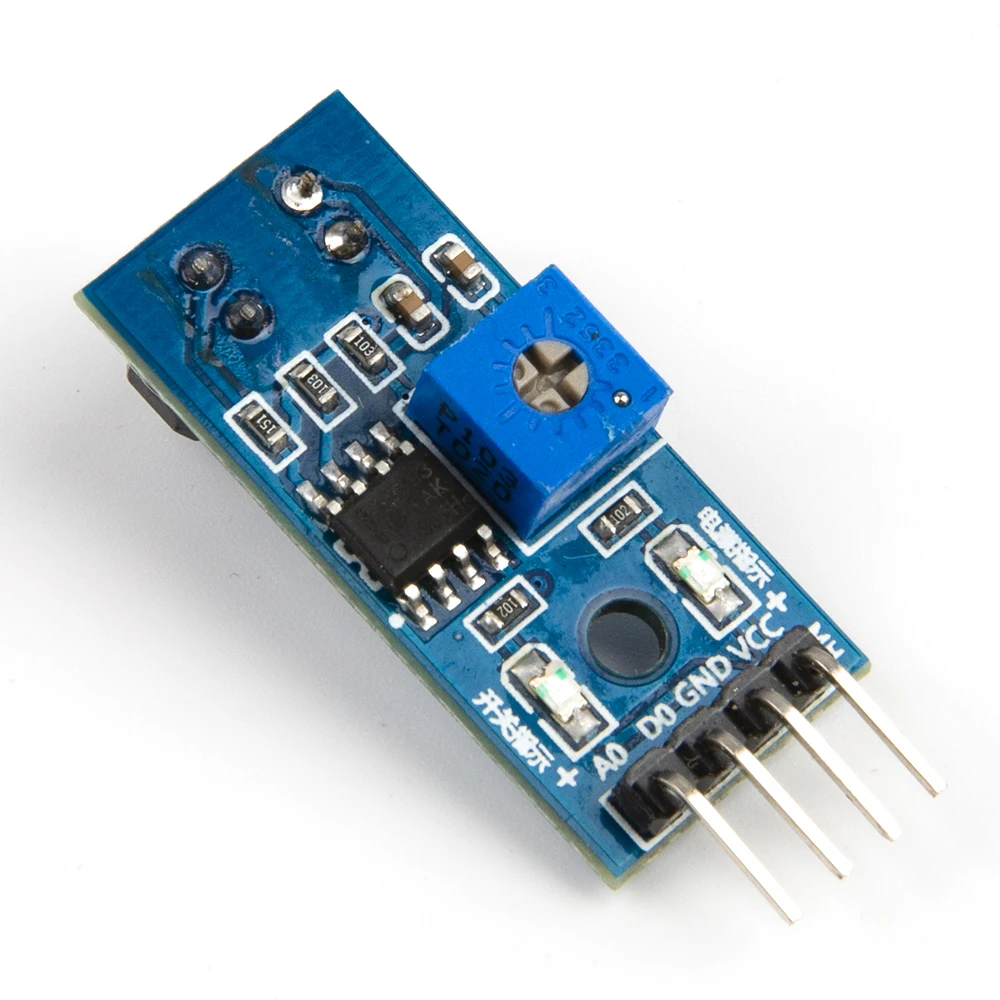

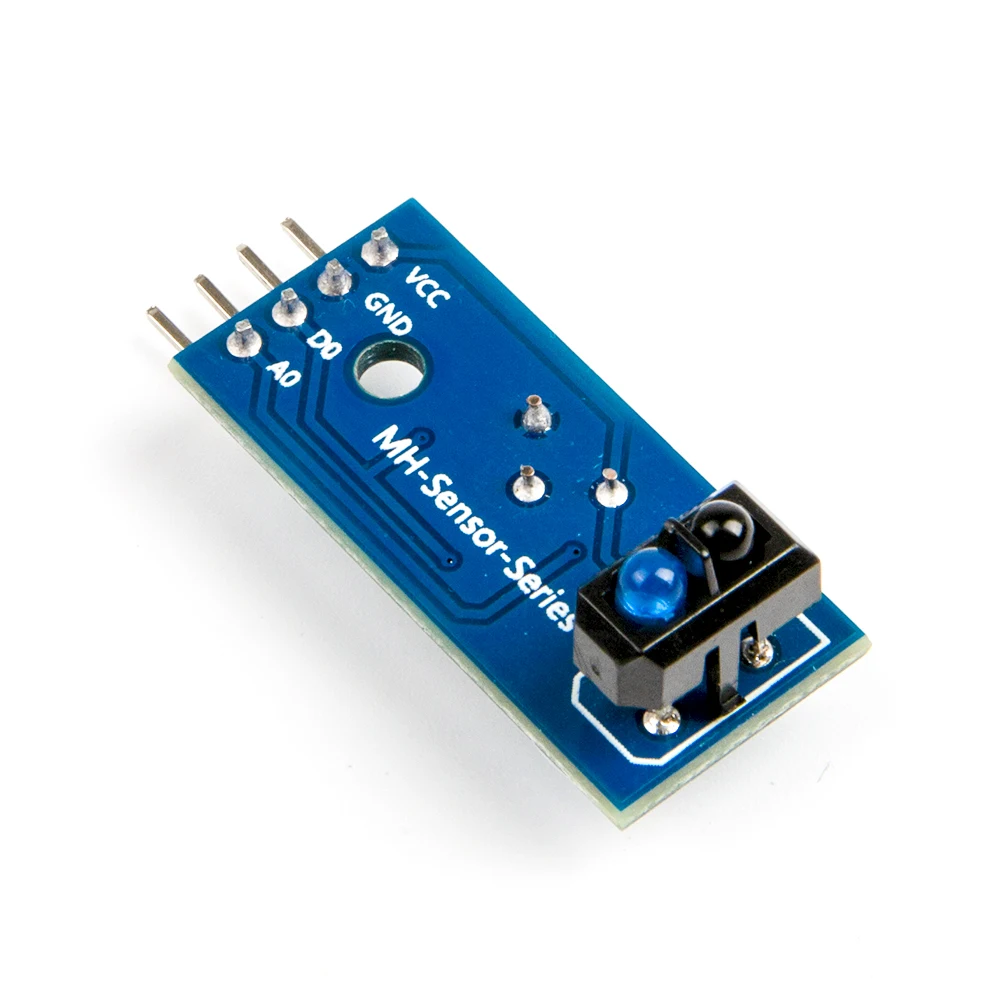

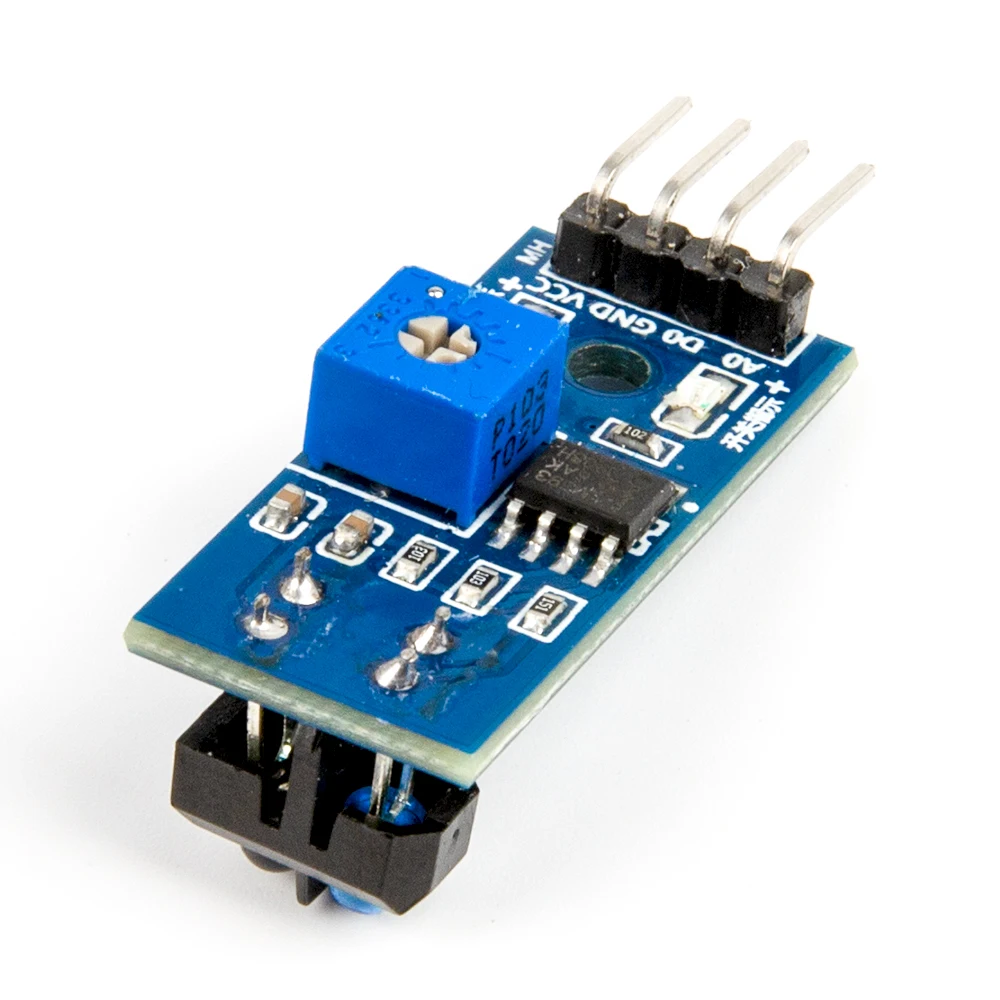

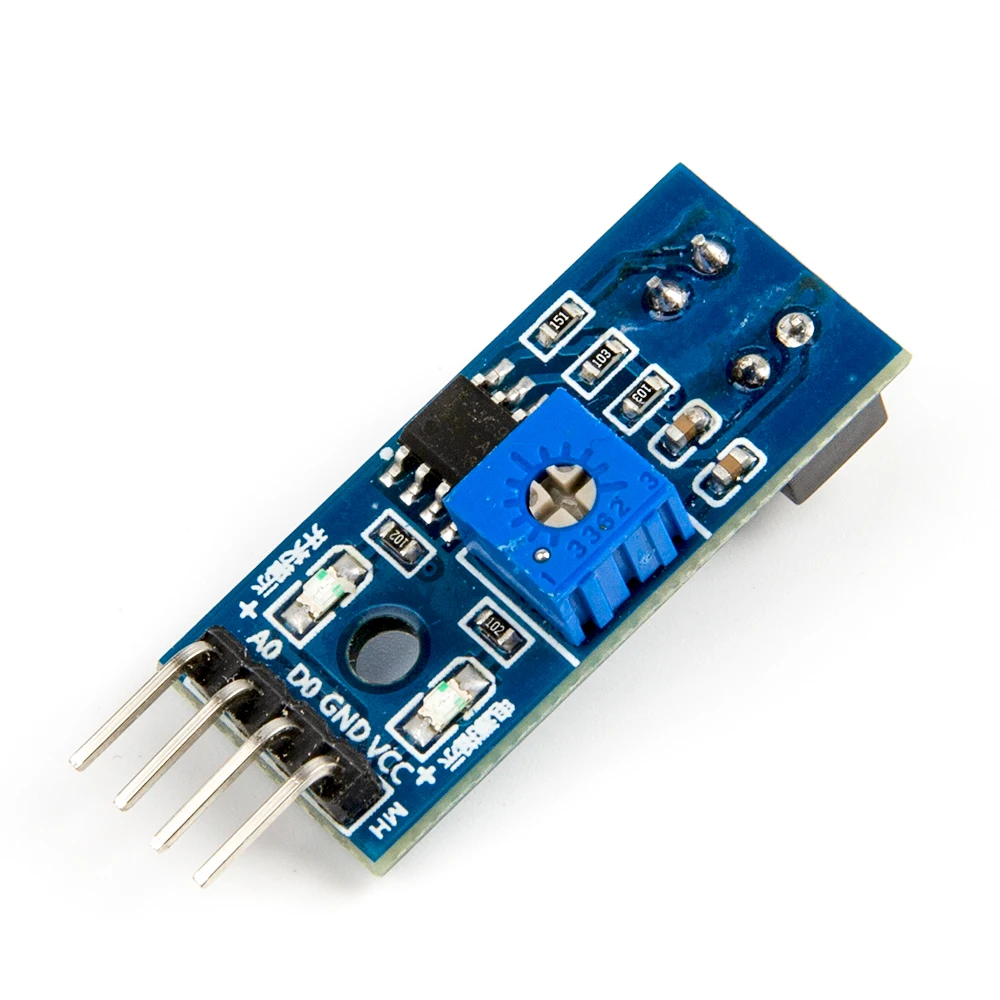

Tracking Sensor Module Obstacle Avoidance Module Infrared Reflection Sensor TCRT5000
- Category: >>>
- Supplier: Shenzhen Kuongshun Electronic Business Department
Share on (1600896286224):
Product Overview
Description
Product Description
Tracking Sensor Module Obstacle Avoidance Module Infrared Reflection Sensor TCRT5000
Product Usage:
1, the meter pulse data sampling
2, fax machine shredder paper detection
3, obstacle detection
4, black and white line detection
1, the meter pulse data sampling
2, fax machine shredder paper detection
3, obstacle detection
4, black and white line detection
Product description:
1, using TCRT5000 infrared reflection sensor
2. Detection reflection distance: 1mm~25mm
3, the comparator output, the signal is clean, the waveform is good, the driving ability is strong, more than 15mA.
4, with potentiometer adjustment sensitivity
5, working voltage 3.3V-5V
6, output form: digital switch output (0 and 1)
7, with fixed bolt holes for easy installation
8, small board PCB size: 3.2cm x 1.4cm
9, using a wide voltage LM393 comparator
1, using TCRT5000 infrared reflection sensor
2. Detection reflection distance: 1mm~25mm
3, the comparator output, the signal is clean, the waveform is good, the driving ability is strong, more than 15mA.
4, with potentiometer adjustment sensitivity
5, working voltage 3.3V-5V
6, output form: digital switch output (0 and 1)
7, with fixed bolt holes for easy installation
8, small board PCB size: 3.2cm x 1.4cm
9, using a wide voltage LM393 comparator
Features:
The infrared emitting diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or reflected back but the intensity is not large enough, the infrared receiving tube is always in the off state, and the output end of the module is at a high level, indicating The diode is always off; when the detected object appears in the detection range, the infrared light is reflected back and the intensity is large enough, and the infrared receiving tube is saturated. At this time, the output end of the module is low, indicating that the diode is illuminated.
The infrared emitting diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or reflected back but the intensity is not large enough, the infrared receiving tube is always in the off state, and the output end of the module is at a high level, indicating The diode is always off; when the detected object appears in the detection range, the infrared light is reflected back and the intensity is large enough, and the infrared receiving tube is saturated. At this time, the output end of the module is low, indicating that the diode is illuminated.

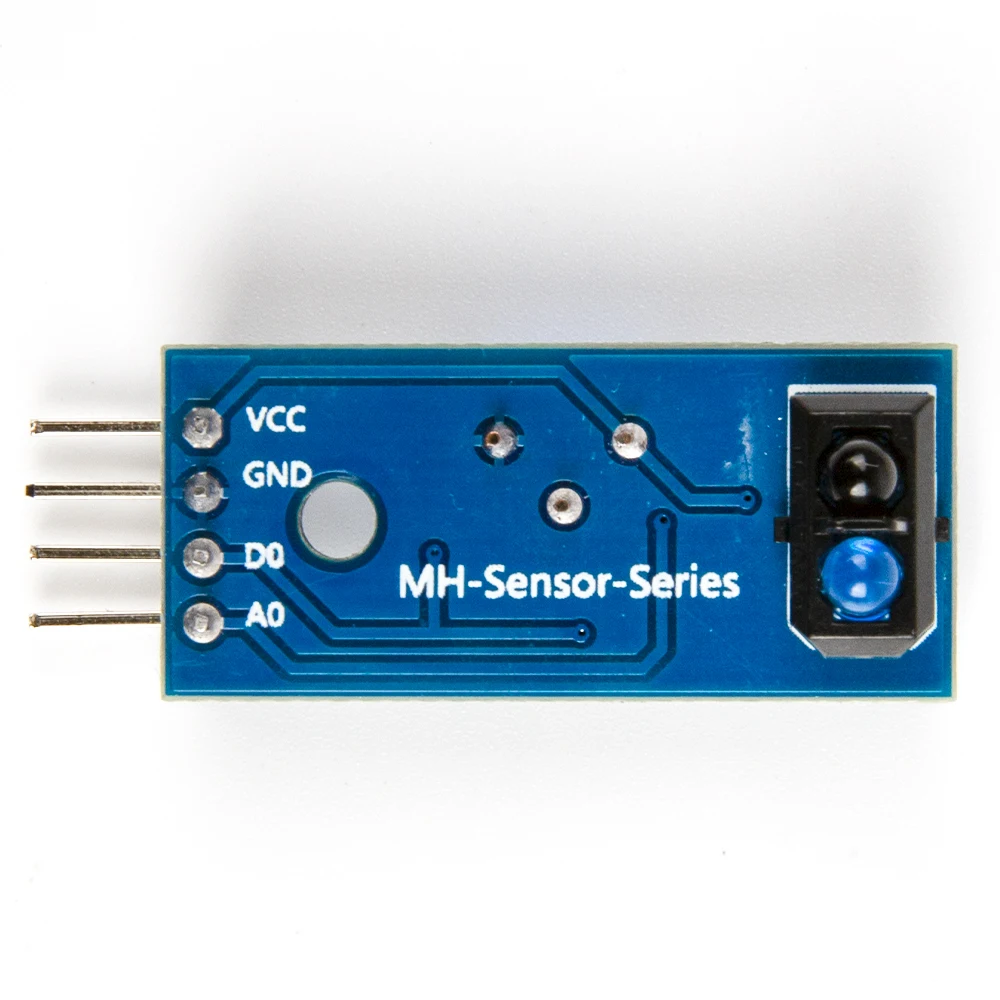

Wiring:
1. VCC: Connect the positive pole of the power supply (3-5V)
2, GND: connected to the negative power supply
3, DO: TTL switch signal output
4, AO: analog signal output (different distance output different voltage, this foot can generally not be connected)
1. VCC: Connect the positive pole of the power supply (3-5V)
2, GND: connected to the negative power supply
3, DO: TTL switch signal output
4, AO: analog signal output (different distance output different voltage, this foot can generally not be connected)
Shipping list:
Tracing module 1
Tracing module 1
1. Industry market conditions and original factory prices fluctuate frequently, please confirm with the business for specific prices
2. The original package is packaged, the specific price involves unpacking and repacking according to the required quantity, please confirm with the business for the specific price
2. The original package is packaged, the specific price involves unpacking and repacking according to the required quantity, please confirm with the business for the specific price
