1.3MP digital microscope epuipped with USB digital microscope for educational
- Category: >>>
- Supplier: Hangzhou Future Optics Sci & Tech Co. Ltd.
Share on (1600896358669):
Product Overview
Description

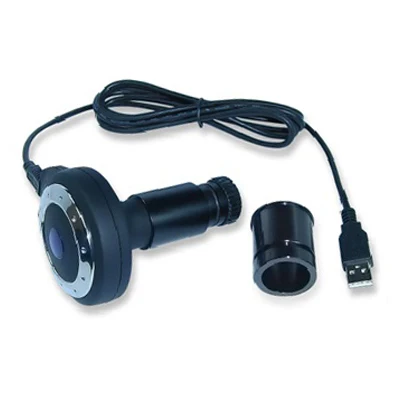

1.3MP Microscope Digital Eyepiece with CE Proved is composed of matching optics system, image sensor and processing system, driver and application software. Special design in structure makes it compact in space and light in weight, and it is easy to connect with all kinds of microscope through the ocular tube.

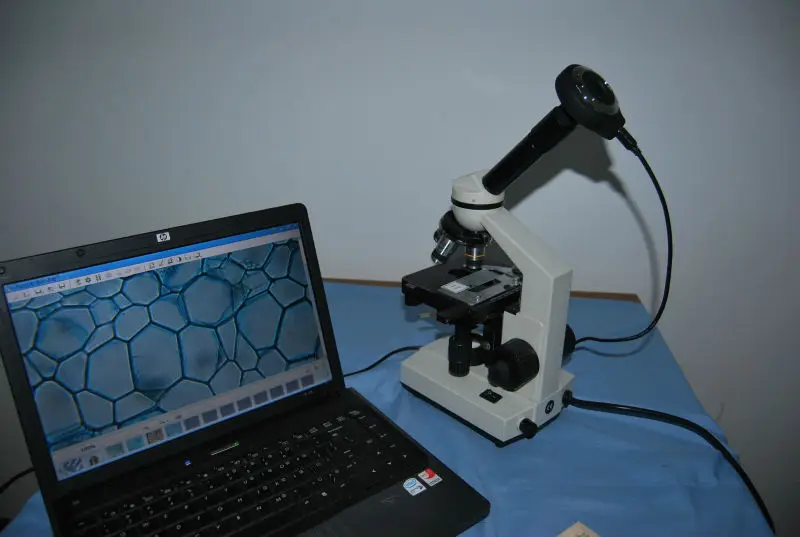

Once the digital eyepiece is linked with PC, many excellent jobs will be done including images live showing, capturing, making movie and editing under the control of application software. Digital eyepiece is a great device to upgrade traditional microscope into digital microscope and is of wide application in education for its low cost and convenient operation.
Advantage:
1. Quality: To be of low power consumed, secure emission, innocuous environment relation.
2. Compatibility: To be suitable with all kinds of microscope.
3.Powerful softwareTo support display, capture, video in top resolution of chip.
4.To be compatible with Windows and Vista.
5.To equip reticle software for measurement.
6. kinds of language version of software for choice.
Quality control:
OEM/ ODM:
Available for both hardware and software to be designed and made on clients' specification.
Including:
Logo package printing;
Optical system design;
PCB imaging module design;
Shell design ;
Software amendment.
Detail Specifications:
Capture Mode | Picture and Video |
Active pixels | 1280*1024 |
Responsivity | 1.0V/ lux-sec |
Dynamic Range | 71dB |
S/N Ratio | 44dB |
Spectral Range | 400-650nm(with IR-filter) |
Frame Rate | 17fps@1280*1024 |
Preview Model | 1280x1024,1280x800,1024x768,800x600, 640x480, 352x288,320x240640x480,352x288,320x240 |
Exposure | ERS or Manual |
Power Consumption | 190mW |
White Balance | Auto and manual |
Eyepiece Adapter Size | 23.2mm, 30.0mm |
Power Supply | USB Powered |
Device Weight | 0.09kg |
Device Size | Φ74.00mm*97.00mm |
Cable length | 1.5m |

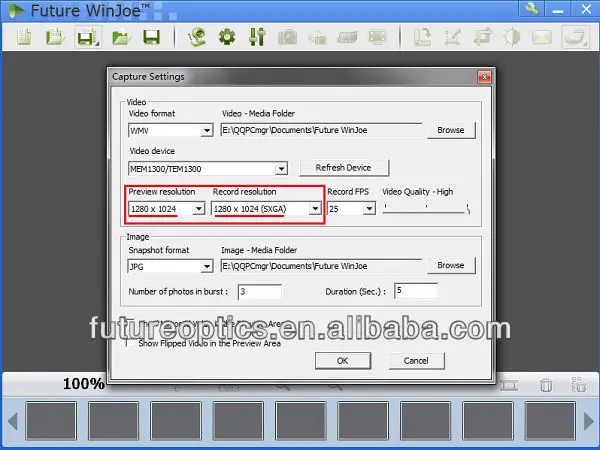

Function of Software | Image & video Capture, Edit and Management |
System Compatibility | 32bit and 64bit XP, Vista, Win7,Win8,MAC,Linux |
Language of software | English, French, German, Spanish, Japanese, Chinese, Russian |
PC Requirements | CPU: Inter Core2, 2.8GHz or Higher; Memory: 2GBor More; USB Port:USB2.0 High-speed Port |
