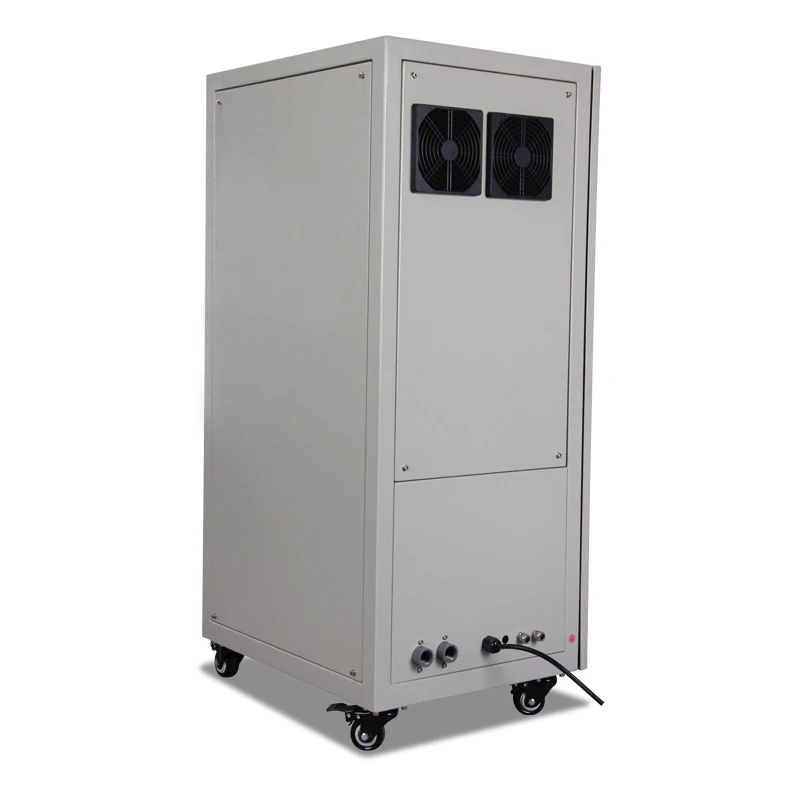

300g/h Ozone water sterilization medical waste water treatment
- Category: >>>
- Supplier: Guangzhou Chuanghuan Ozone Electric Appliance Co. Ltd.
Share on (1600896388367):
Product Overview
Description

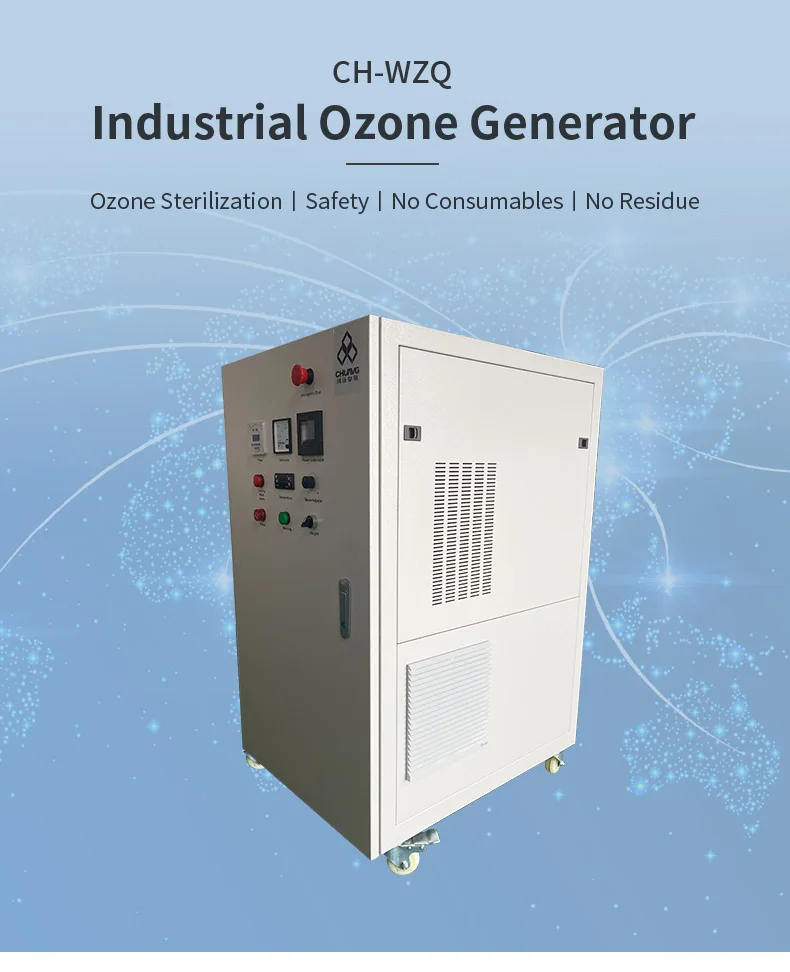

Water cooling enamel Ozone generator water treatment equipment 300G/h
Applications:
1. Aquactulture,Aquarium,Fish farming Water treatment.
2. Cooling towers water treatment.
3. Swimming pools Water treatment.
4. Sewage water treatment.
5. Water Disinfection& sterilization.

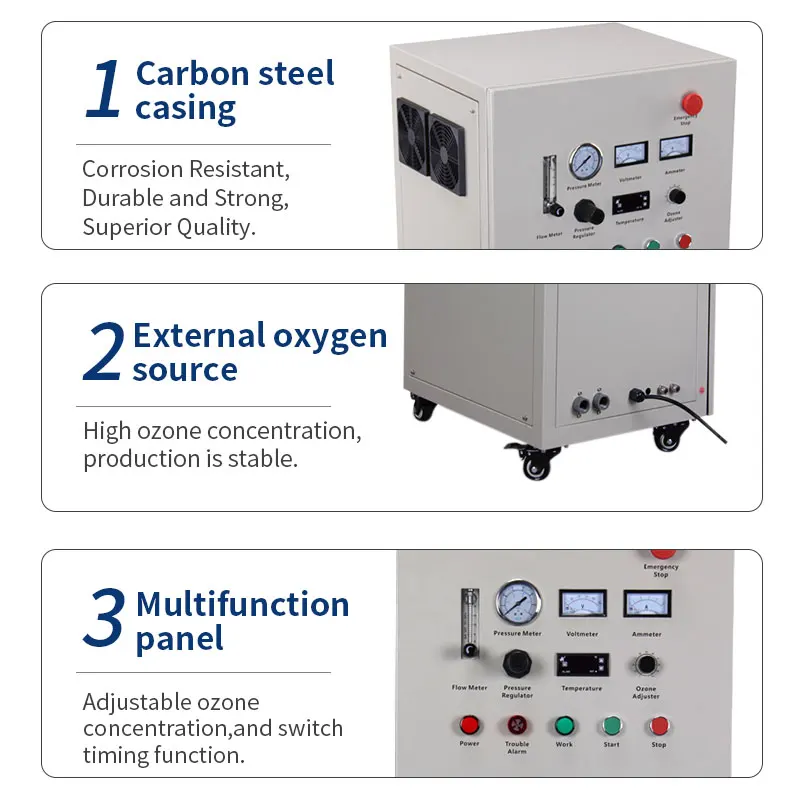

Features:
1. Carbon steel sprayed with plastic housing.
2. It must connect with outside oxygen generator or oxygen tank.
3. With built-in water cooling enamel ozone tube, high frequency electric board,with stable ozone capacity, long life time.
4. Small in size, adjustable ozone range: 20%--100%.
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety

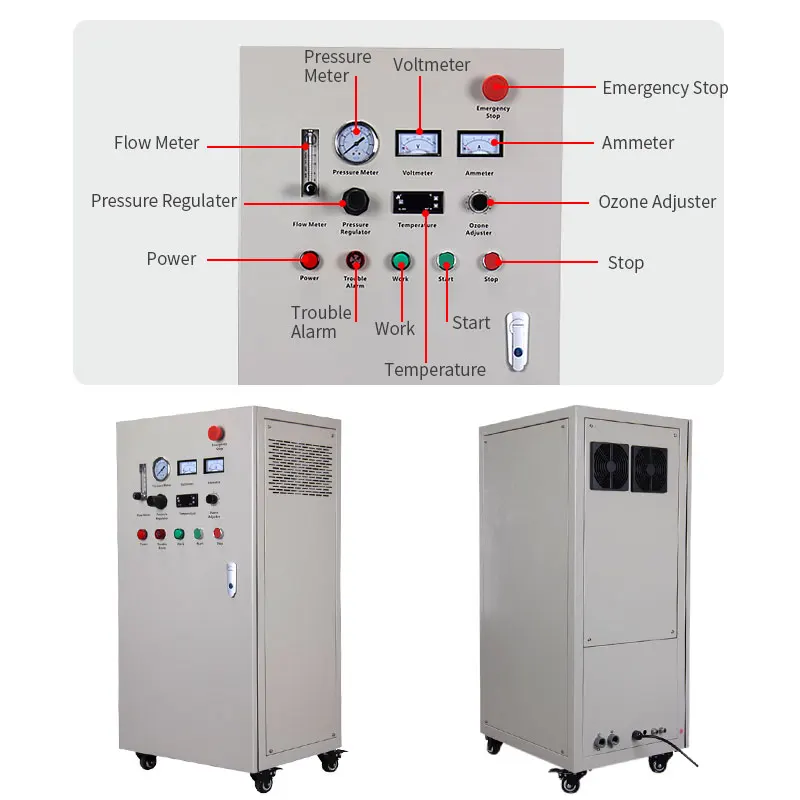

Control panel:
Ozone output adjuster, Flow meter, Pressure regulator, Voltmeter, Ampmeter, Switch, Emergency stop, Working light, Power light, Alarm.
1. Aquactulture,Aquarium,Fish farming Water treatment.
2. Cooling towers water treatment.
3. Swimming pools Water treatment.
4. Sewage water treatment.
5. Water Disinfection& sterilization.
Features:
1. Carbon steel sprayed with plastic housing.
2. It must connect with outside oxygen generator or oxygen tank.
3. With built-in water cooling enamel ozone tube, high frequency electric board,with stable ozone capacity, long life time.
4. Small in size, adjustable ozone range: 20%--100%.
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Control panel:
Ozone output adjuster, Flow meter, Pressure regulator, Voltmeter, Ampmeter, Switch, Emergency stop, Working light, Power light, Alarm.

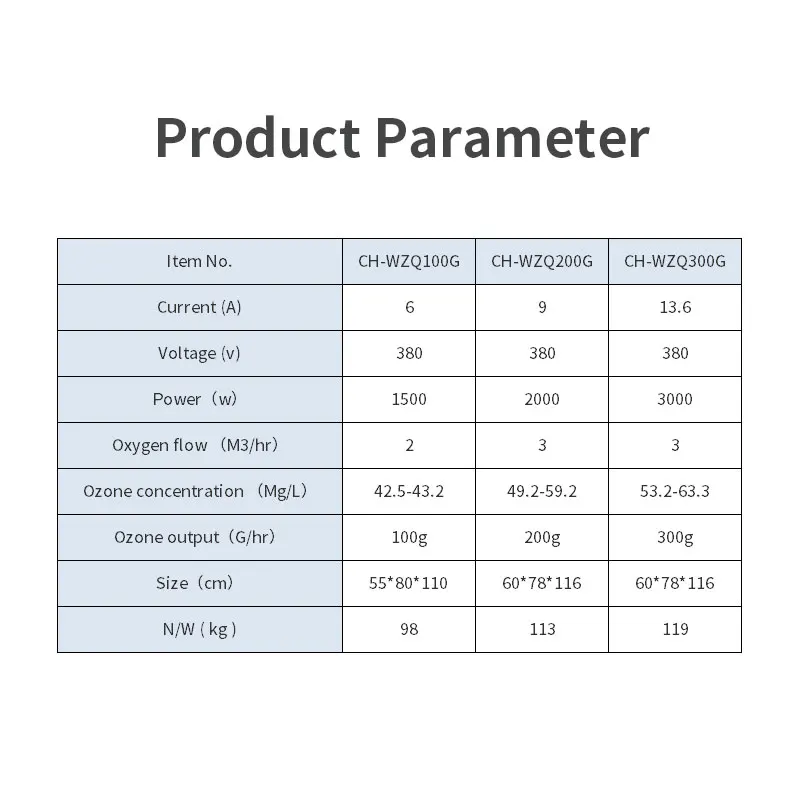

Item No. | CH-WZQ100G | CH-WZQ200G | CH-WZQ300G |
Current (A) | 6 | 9 | 13.6 |
Voltage (v) | 380 | 380 | 380 |
Power（w） | 1500 | 2000 | 3000 |
Oxygen flow （M3/hr） | 2 | 3 | 3 |
Ozone concentration （Mg/L） | 42.5-43.2 | 49.2-59.2 | 53.2-63.3 |
Ozone output（G/hr） | 100g | 200g | 300g |
Size（cm） | 55*80*110 | 60*78*116 | 60*78*116 |
N/W ( kg ) | 98 | 113 | 119 |
Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on Ozone generator, Oxygen machine , Ozone tube, accessories production, development and application of products.
With the development for several years, the company has been in 16 aspects of
the ozone generator. Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe,North and South America, Southeast Asia, Middle East, Africa and dozens of countries.
the ozone generator. Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe,North and South America, Southeast Asia, Middle East, Africa and dozens of countries.
Our Services & Strength
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
2,Our company with rich experience about ozone generator and oxygen machine use for air purification and water treatment, gets ISO certification every year.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material，the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material，the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
Q1: Are you trading company or manufacturer ?
Re:We are a company integrating factory and trade
Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C
Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C
Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
