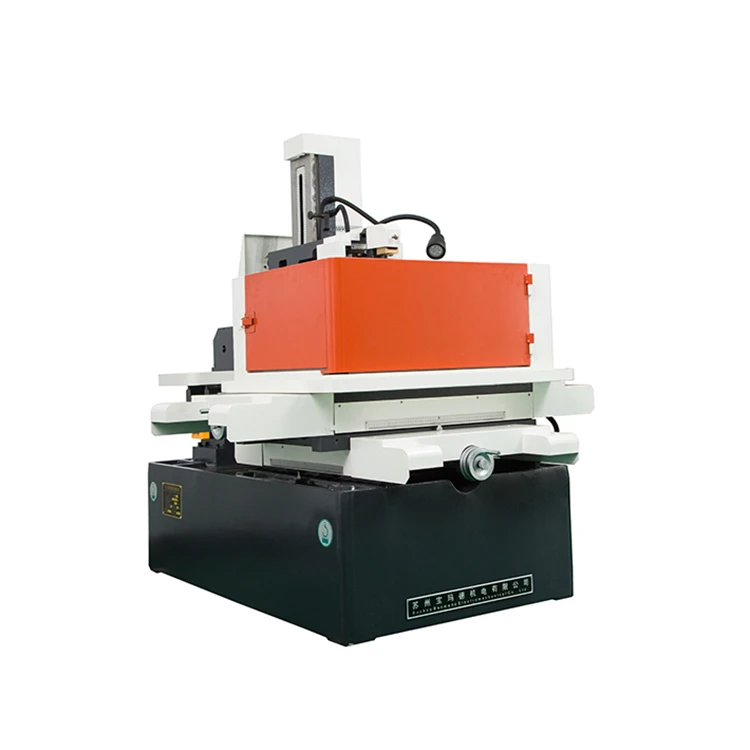

DK77 series fast cutting cnc edm wire cutting machines DK7735 with Taiwan High precision linear guide
- Category: >>>
- Supplier: Suzhou Baomade Electromechanical Co. Ltd.
Share on (1600896690928):
Product Overview
Description
Product Display
Product Description

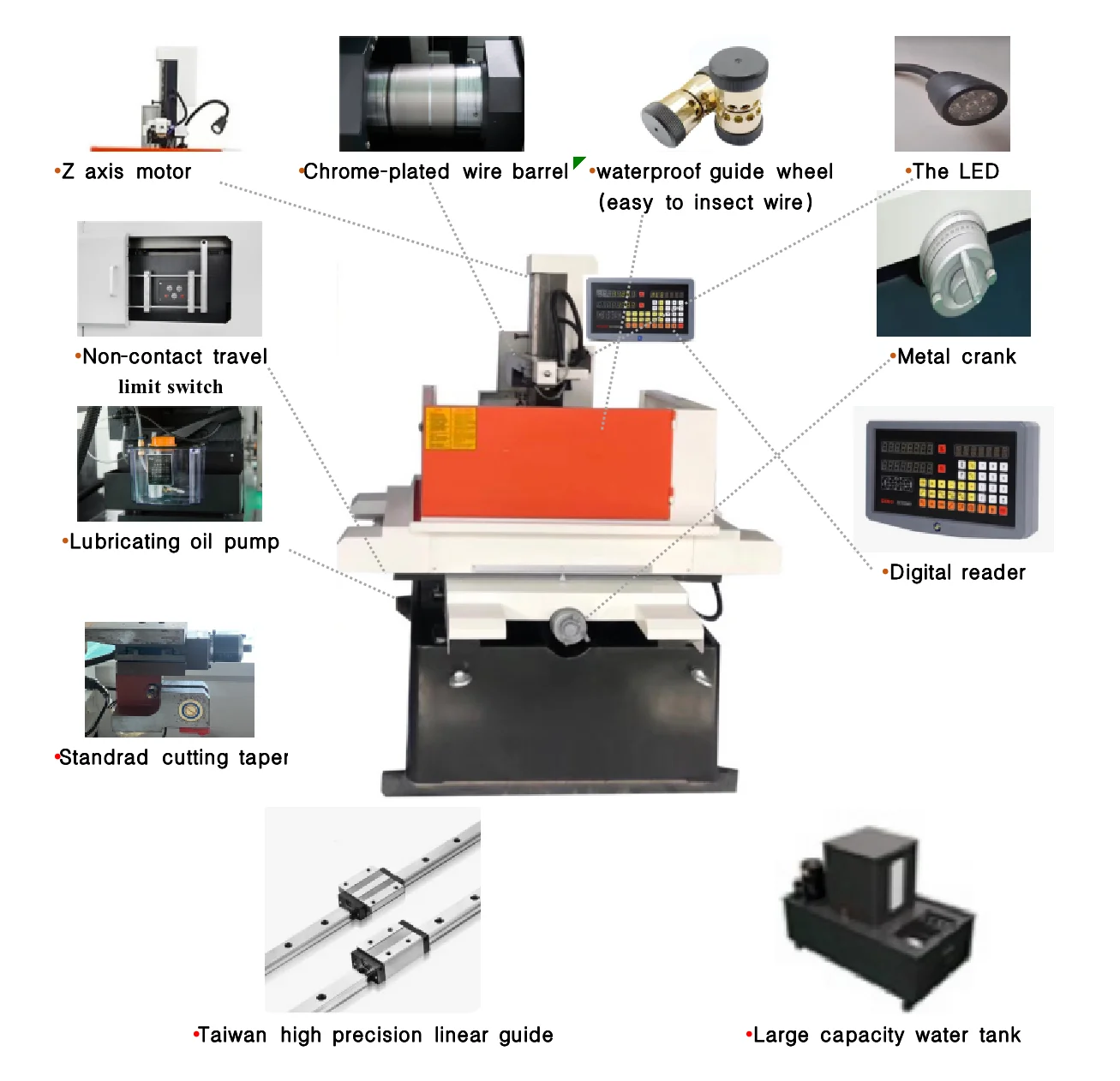

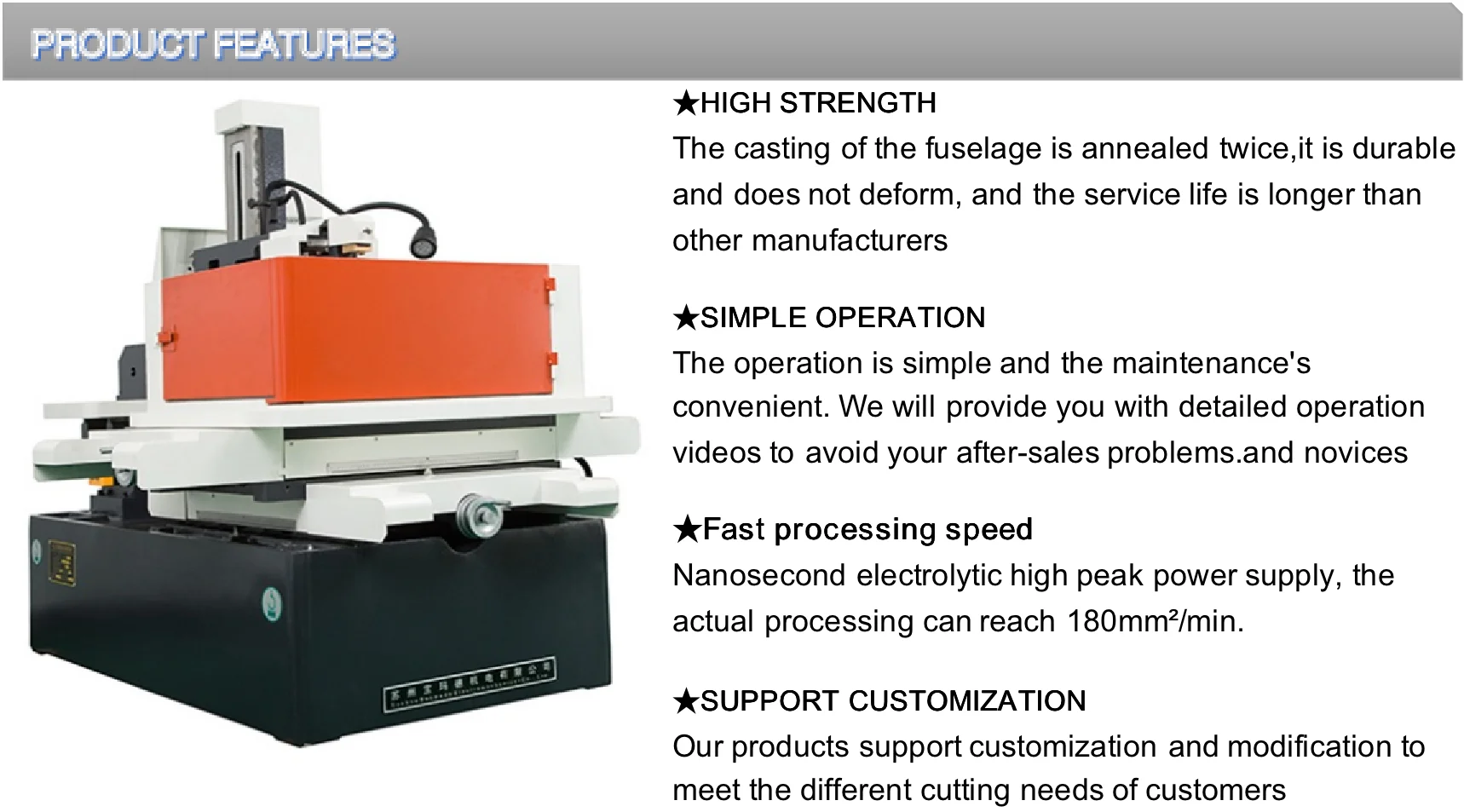

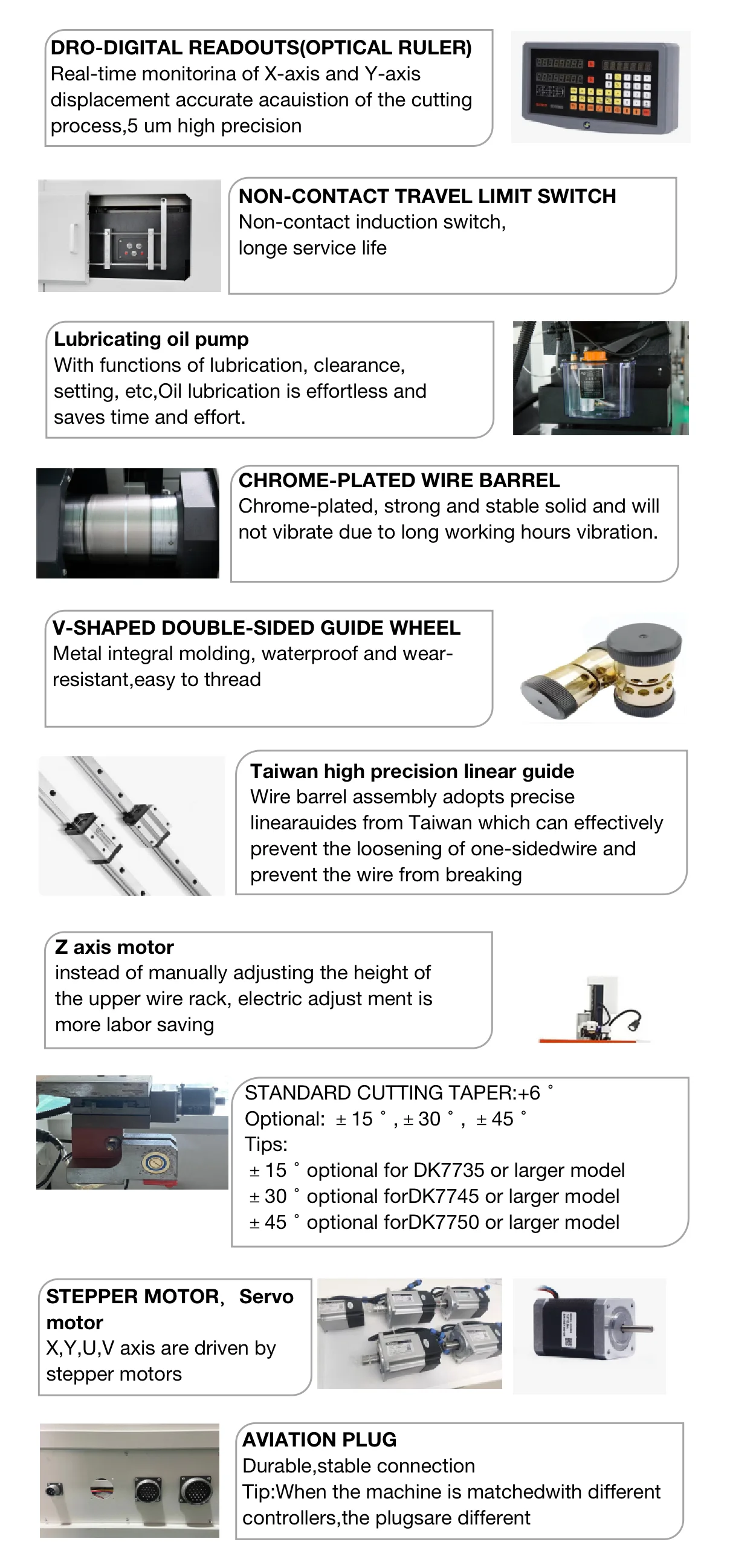

Product Features

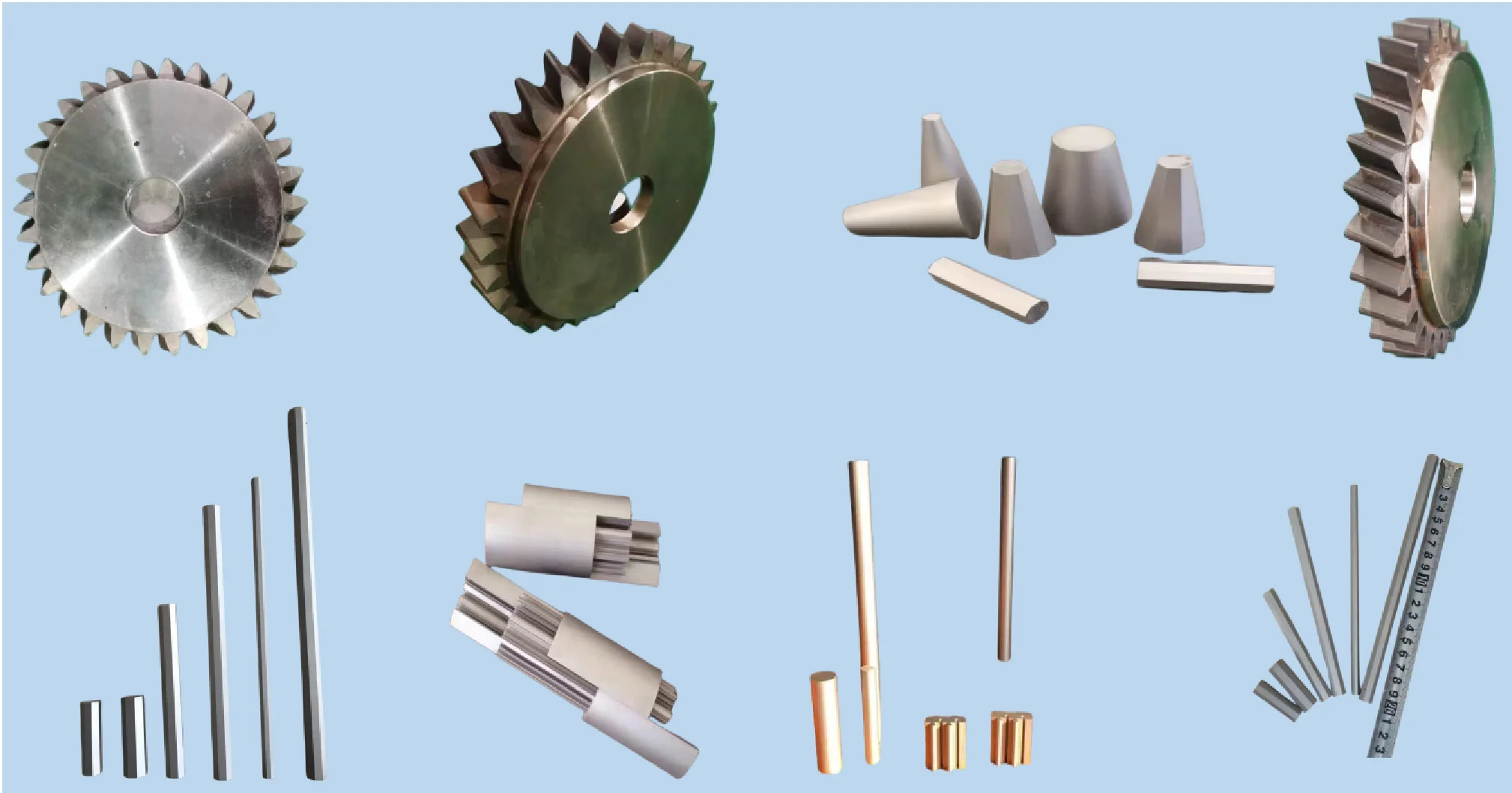

The Sample
Product Informations
机床型号 | Model | DK7735 | DK7745 | DK7750 | DK7763 | DK7780 | DK77100 | DK77120 | ||||||
工作台尺寸(mm) | Worktable Size(mm) | 635×415 | 785×500 | 900×600 | 1100×660 | 1400×820 | 1600×1090 | 2500×1400 | ||||||
工作台行程(mm) | Worktable(mm) | 450×350 | 550×450 | 630×500 | 800×630 | 1000×800 | 1200×1000 | 1600×1200 | ||||||
最大加工厚度(可调)(mm) | Max. Workpiece Thickness(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | ||||||
最大加工件重量(kg) | Max. Workpiece Weight(kg) | 300 | 500 | 800 | 1000 | 1500 | 2000 | 2500 | ||||||
最大生产率(mm/min) | Max.Peoductivity (mm/min) | ≥180mm²/min | ||||||||||||
最佳表面粗糙度(Ra) | Best Surface Roughness(Ra) | Ra<1.2μm | ||||||||||||
电极丝直径(mm) | Wire Diameter(mm) | 0.1-0.25mm | ||||||||||||
普通锥度 | Taper Angle | 6°/80mm-12°/80mm | ||||||||||||
精密大锥度 | Precision Large Taper Angle | 30°-60°(DK-Z Series)90mm-100mm | ||||||||||||
加工精度(mm) | Accuracy(mm) | ≦±0.006mm | ||||||||||||
标准供电电源 | Power Supply | 380V/50HZ 220V/50HZ | ||||||||||||
最大消耗功率(kw) | Power Consumption（kw） | <3KVA | ||||||||||||
