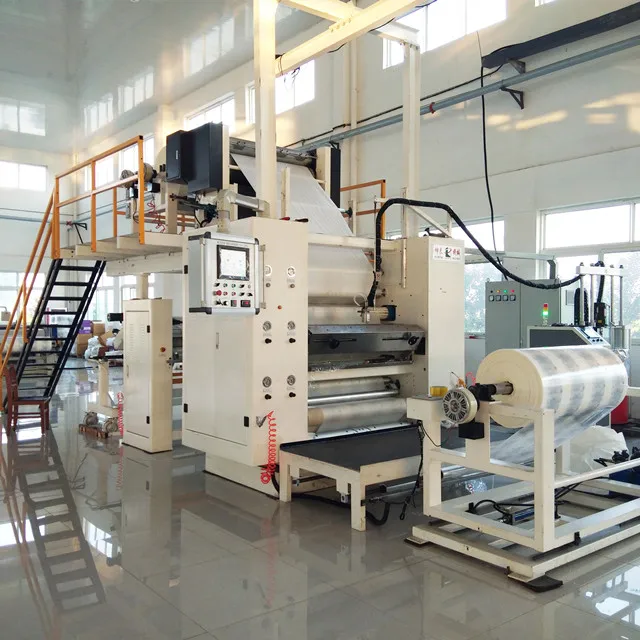

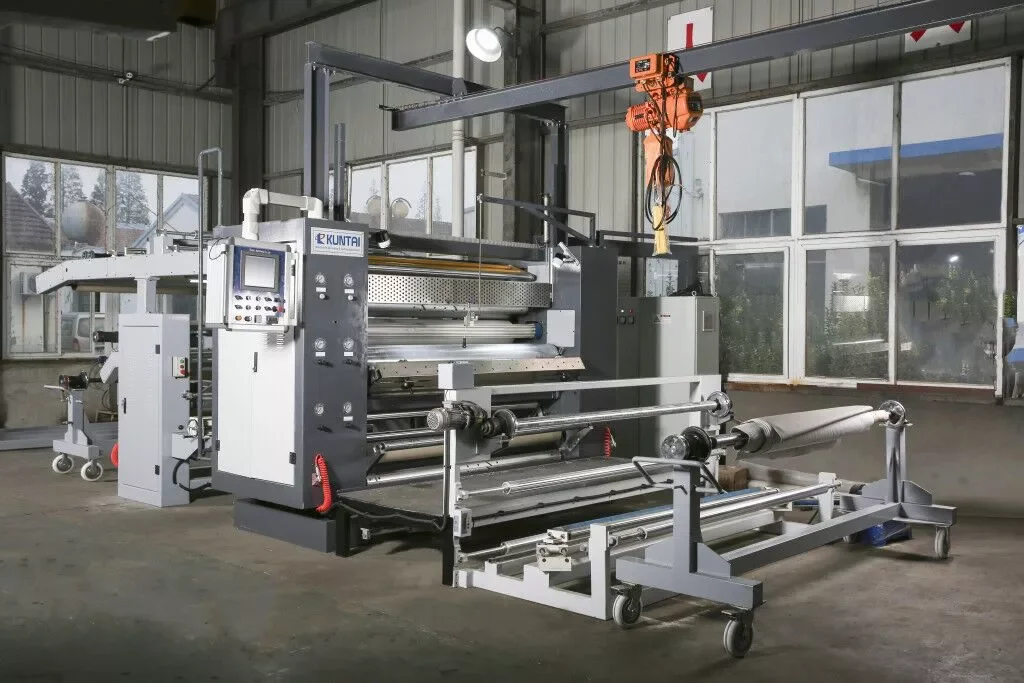

KT PUR 1800 PUR Hot Melt Glue Laminating Machine for Bed Mattress Protector
- Category: >>>
- Supplier: Jiangsu Kuntai Machinery Co. Ltd.
Share on (1600896756158):
Product Overview
Description
Hot melt PUR nonwoven laminating machine for film with nonwoven lamination
Hot Melt Glue Laminating Machine/Fabric Laminating Machine

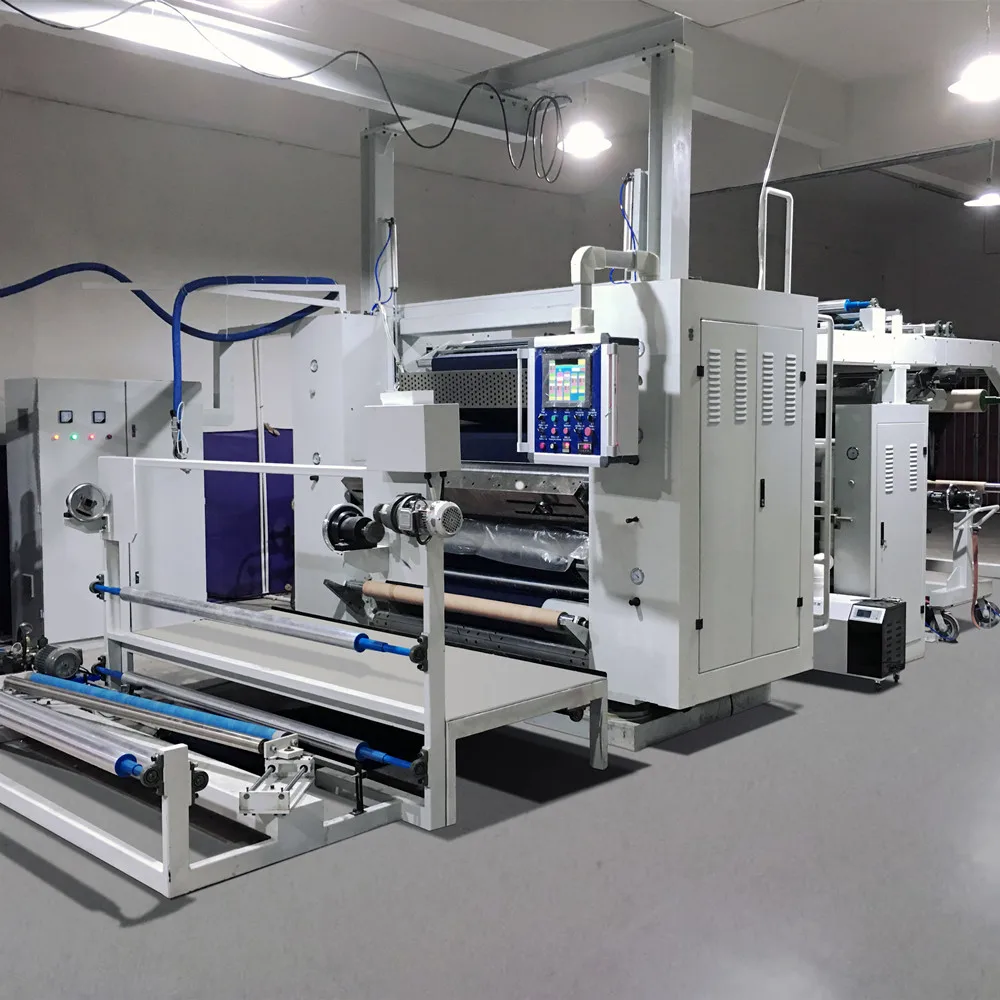

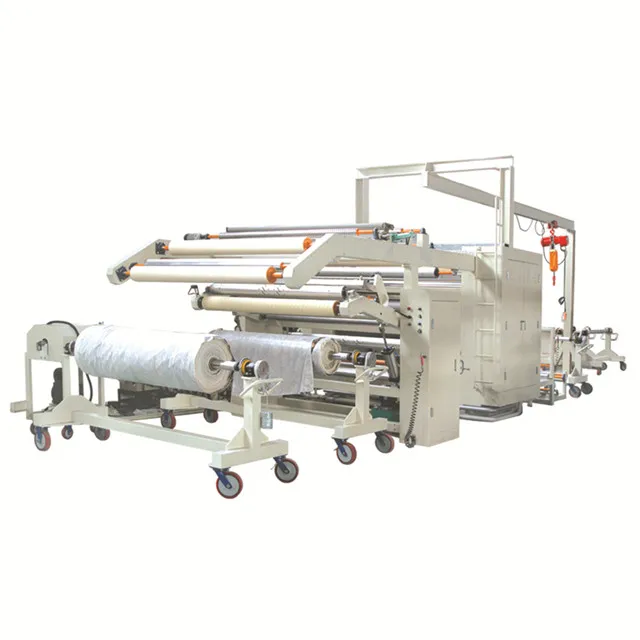

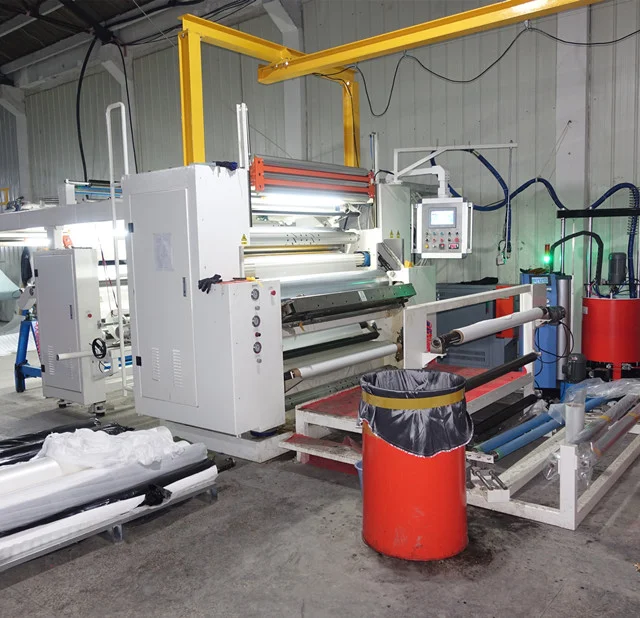

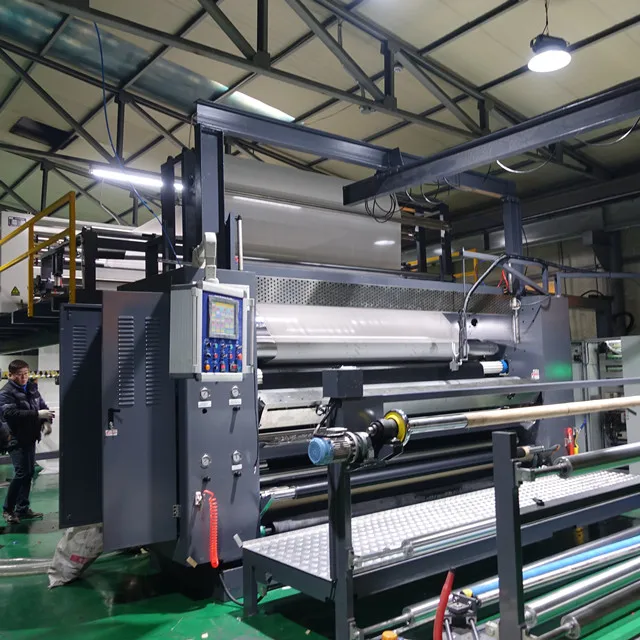

KT-PUR-1800 PUR Hot Melt Glue Laminating Machine for Bed Mattress Protector
APPLICATION:
Product Description

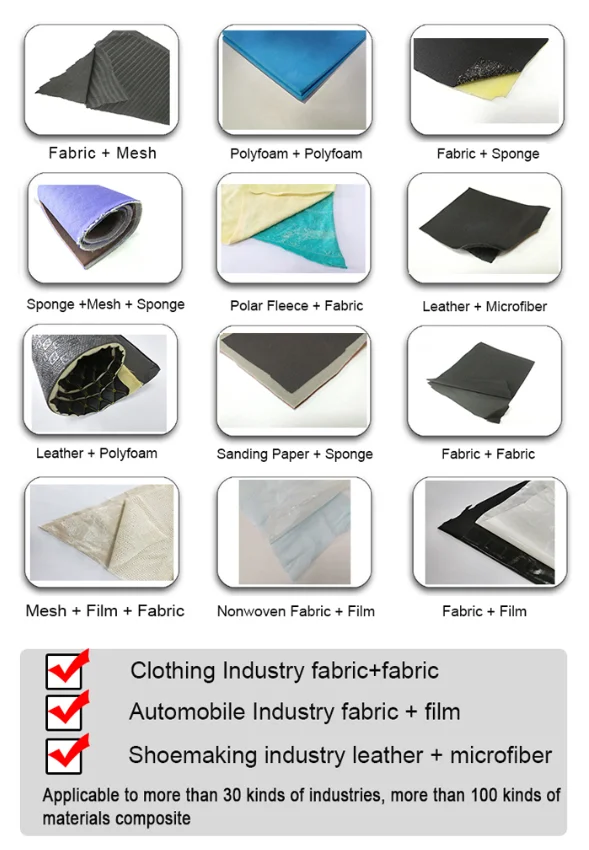

Hot Melt Glue Laminating Coating Machine for :
1. EVA + PVC, PU or Artificial Leather
2. EVA + Fabric (for shoe materials, etc)
3. Neoprene + Fabric (for diving suit, etc)
4. PU Foam + Fabric (for bra, vehicle cushion, etc)
5. TPU Film + Fabric. (for climbing clothing, camouflage uniform, mattress protector, packaging materials, etc)
6. Fabric + Fabric. (for clothing, medical supplies, sofa fabric, etc)
Hot Melt Adhesive:
In industrial use, hot melt adhesives provide several advantages over solventbased adhesives. Volatile
organic compounds are reduced or eliminated, and the drying or curing step is eliminated. Hot melt ad
-hesives have long shelf life and usually can be disposed of without special precautions.
The most advanced hot melt adhesive, moisture reactive hot melt glue (PUR & TPU), is highly adhesive
and environmentally friendly. It can be used for lamination of 99.9% textiles. The laminated material is
soft and high temperature resistant. After moisture reaction, the material will not be easily affected by the
temperature. Besides, with lasting elasticity, the laminated material is wear resistant, oil resistant and ag
-ing resistant. Especially, mist performance, neutral color and other various features of PUR makes medi
-cal industry application possible.

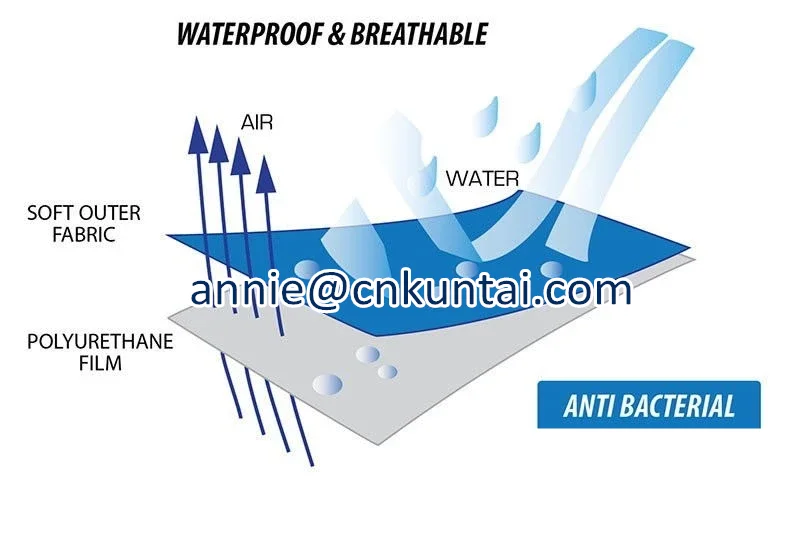

When PTFE, PE, TPU and other functional waterproof and breathable films are used in laminating, water
-proof and heat preserving, waterproof and protective, oil & water & gas filteration and many other different
new materials will be created. The demands of garment industry, motor manufacturing, medical industry,
environment protection industry will be met.

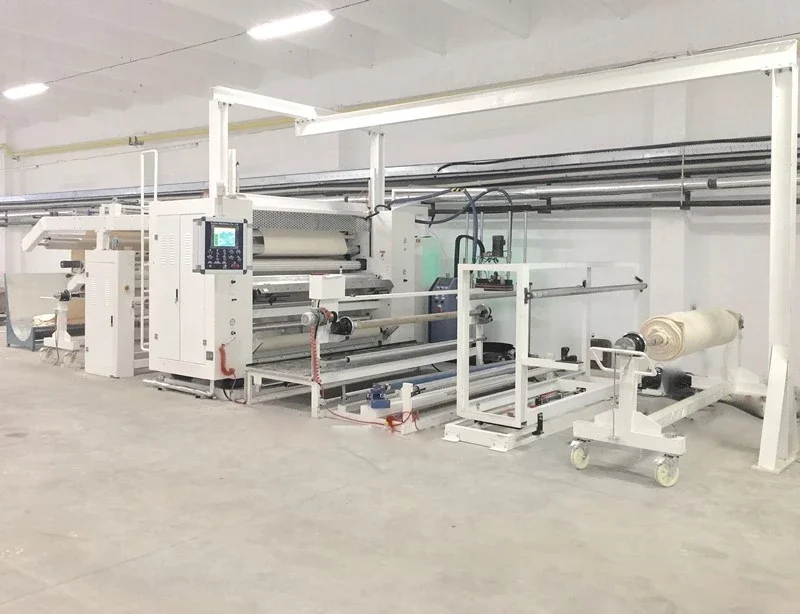

Our hot melt laminating machine is mainly consisted of fabric rewinding and unwinding units, fabric and film
transmission systems and tension controller, film unwinding and lining or film carrier rewinding device, hot
melt glue melting unit (optional), pump (optional), conduction oil source system (optional), glue dot transfer
unit, laminating device, cooling device, PLC and other devices. It is compact, highly automatic and easy to
maintain.
OPTION:
1. Accumulators for foam, textile, backlining, etc
2. Edge cutting device
3. Inspection machine
4. Swaying device to sway the final laminated materials into piles
5. Cutting machine
Standard Technical Parameters (Customizable):
| Model: | KT-PUR-1800 |
| Maximum Material Width: | 1600mm |
| Machine Roller Width: | 1800mm |
| Gluing Amount: | 5-80g/m2 |
| Machine Speed: | 10-50 m/min |
| Power: | 55.0 KW |
| Electric Current and Voltage: | Customizable |
| Estimated Net Weight: | 11500 KGS |
| Estimated Dimension: | 11800 x 3400 x 3800 mm |
Key Features:
- Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.
- With this type of laminating machine, materials are firmly bonded and products are soft, comfortable, washable and breathable.
- Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.
- Famous brand motors and inverters can be installed for stable machine performance.
- Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.
- Fabric and film openers also makes materials feed smoothly and flatly.
- For 4-way strechable fabrics, special fabric transmission/conveyor system can be installed on the laminating machine.
- Parallel centering unit makes sure the materials feed in order.
- Specially designed gluing system well controls the adhesive amount and guarantees precision.
- For the hot melt adhesive melter, temperature control is accurate and stable.
- Final laminated materials can be rewinded into small rolls or large rolls.
- Low maintenance cost and less running noise.
- Advanced technology, secure quality control and satisfactory aftersales service make our lamination machines the first choice for customers both domestically and internationally.

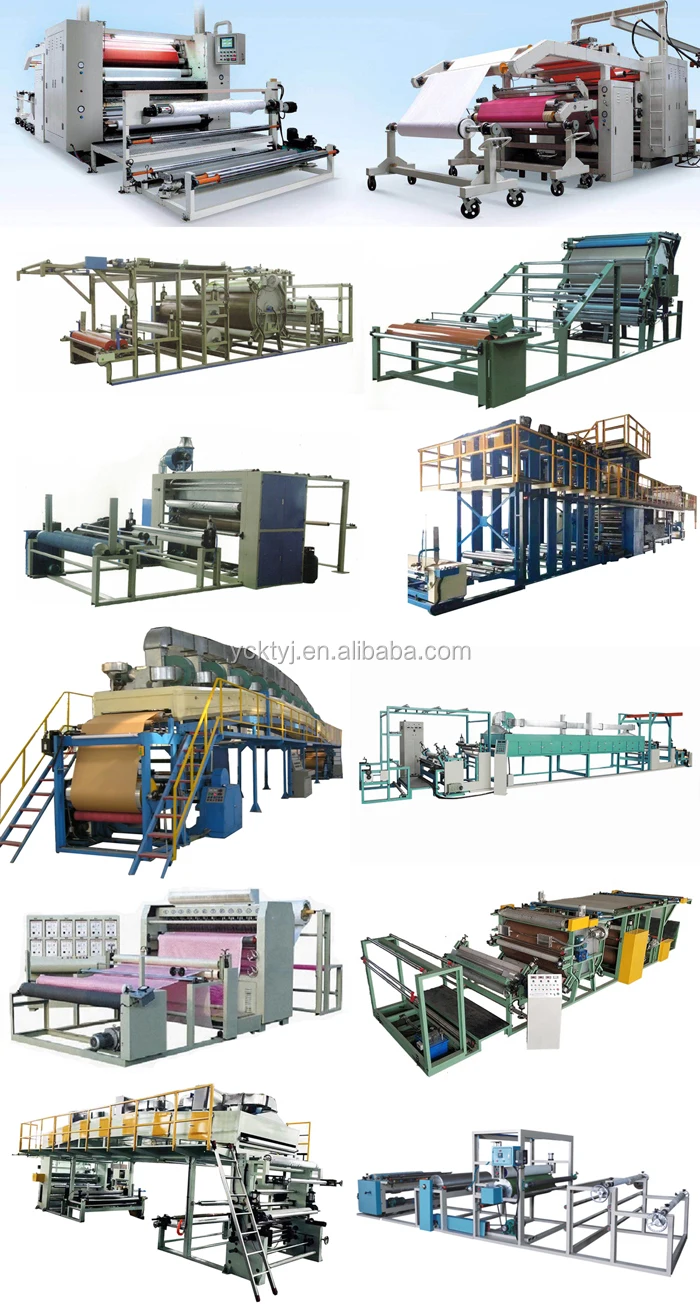

More machines from Kuntai:
FAQ
1. Are you a trading company or a manufacturer?
We are a manufacturer with more than 30 years of manufacturing and R&D experience.
2. Where is your factory?
We are located in Yancheng, three and a half hours drive from Shanghai, China. It only takes about 2hours by fast train.
3. Do you have a personal R & D department?
Yes we have. We have established our Kuntai R&D center with famous university Padova,Italy in Europe. Kuntai Machinery Co., Ltd as a professional manufacturer with more than 38 years experience in various Laminating Machine&Cutting Machine and other finishing machines. We always believe in technology- and market-oriented research. Every year, we develop a series of solutions to actual field application problems and develop new machines for our customers such as Tesla, Toyota, BMW of Germany, KIA of South Korea, 3M company and so on.
We also can provide customized machine services according to the actual needs of customers.
Our goal is to solve every field problem with customers, achieve better material finishing / processing results, and become
customers' think tank.If you have any new ideas for our machines, please feel free to contact us!
4. How do I trust your quality?
We have a strict and scientific quality control management system, and have passed the strict CE and ISO international certifications inspections. We have professional quality control personnel. For each step of our machine production, a set of quality control teams will be responsible for checking. The following steps can not be performed before the item passes all inspections. At the end of the machine assembly, a series of tests will be performed. We will not deliver it until the machine passes all tests. We provide a one-year warranty for our machines. Generally, our customers have used our machines for at least 5 years, 8 years or even 10 years. Throughout the life of our machines, spare parts will be replaced at cost.
5. How to operate the machine?
We have never used such a machine before. We just want to expand our business and start a new business. Do not worry! When buying our first machine, almost the majority of overseas customers were in the same situation. We have skilled and experienced follow-up service staff who have developed a complete solution to meet the needs of customers like you. In addition, we have a team of professional engineers with rich experience in installation and commissioning, which can perform installation, testing and operation guidance of overseas machines.
