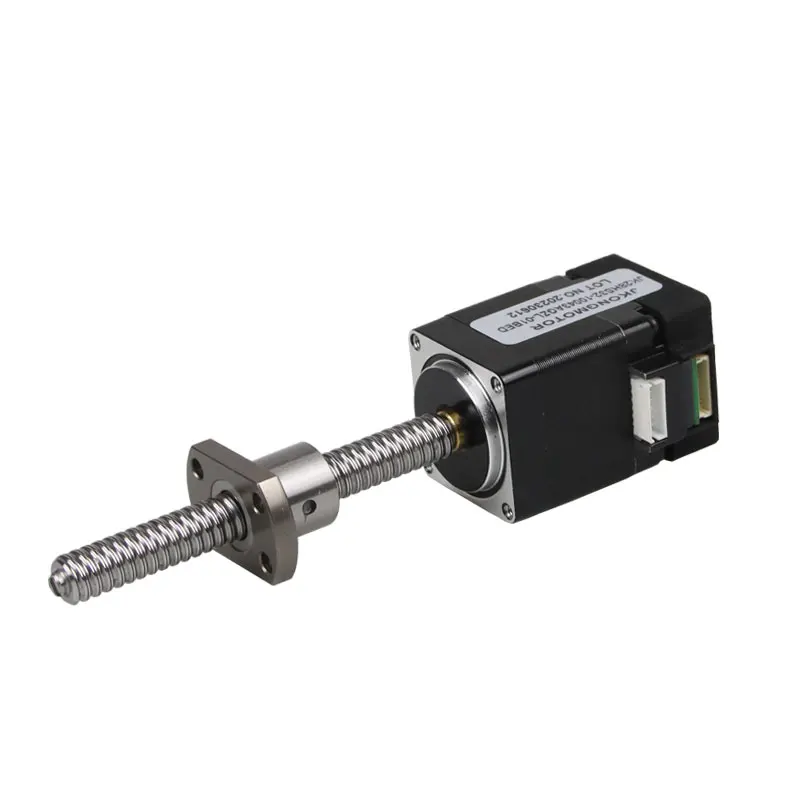

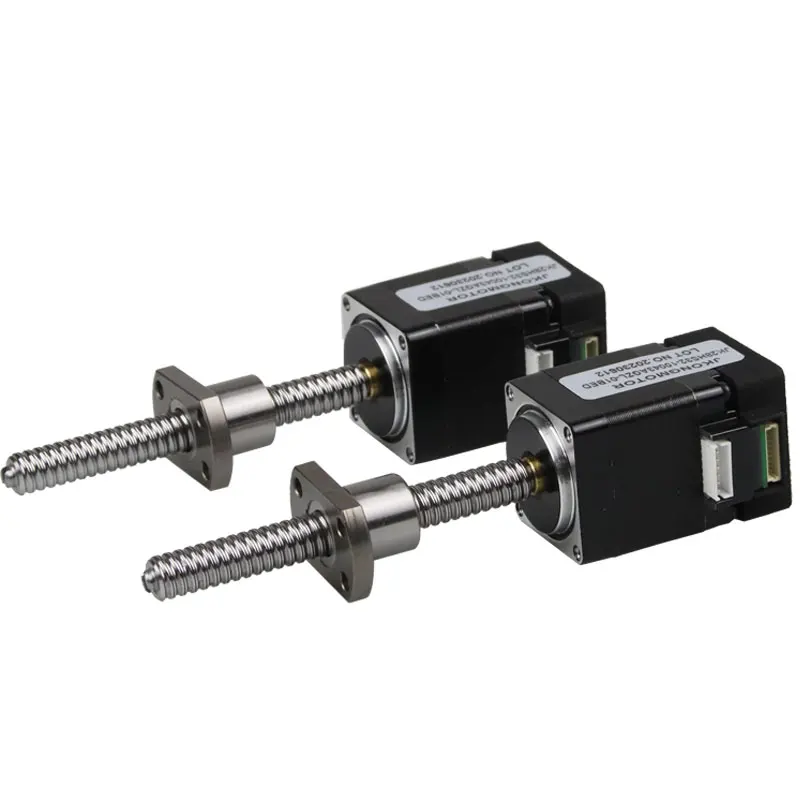

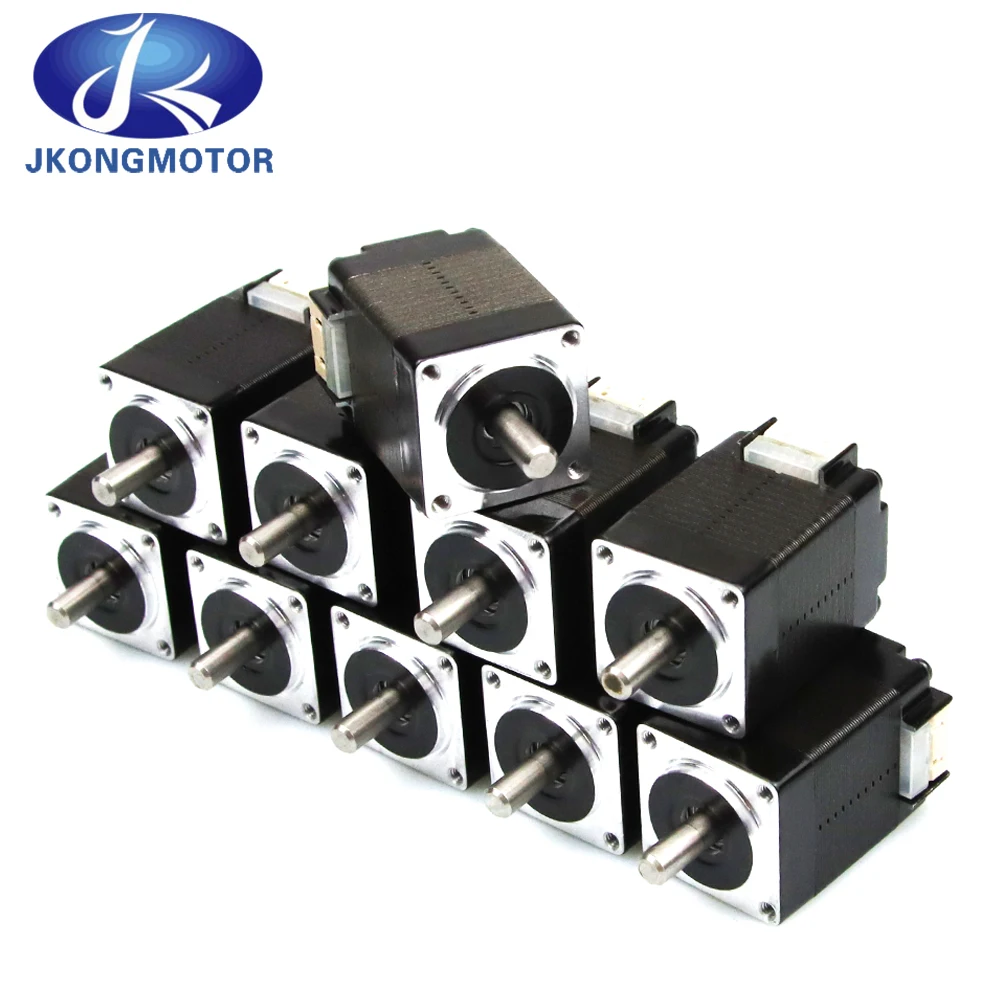

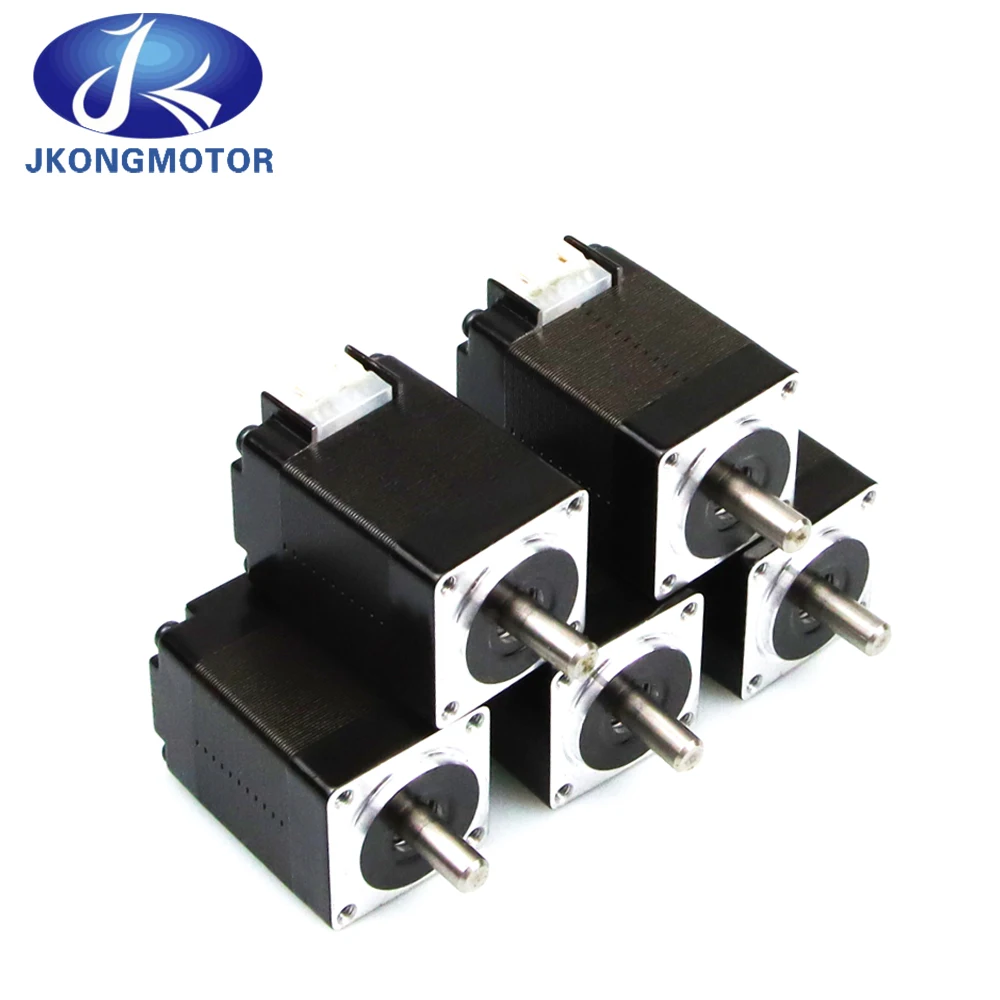

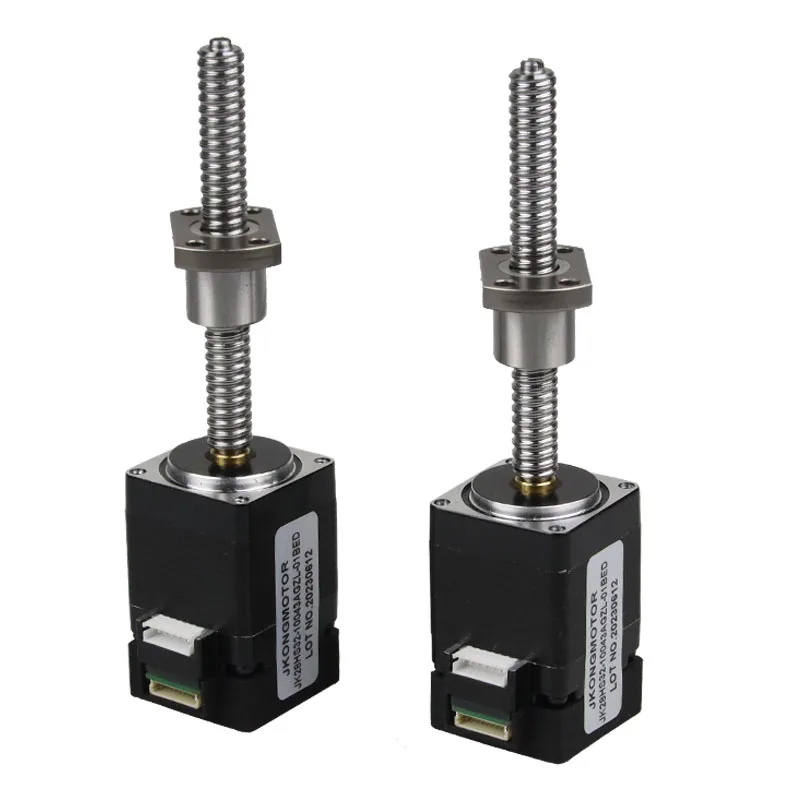

Jkongmotor 2 phase hybrid Micro Nema8 Stepping Motors 20mm Small Nema 8 Stepper Motor
- Category: >>>
- Supplier: Changzhou Jkongmotor Co. Ltd.
Share on (1600896763503):
Product Overview
Description
Product Description
20mm (NEMA 8) 2phase 1.8degree hybrid stepper motor JK20HS30-0604 | ||||||||
项目(Item) | 性能(Specifications) |
步距角(Step Angle) | 1.8° |
温 升(Temperature Rise) | 80℃max |
环境温度（Ambient Temperature） | -20℃~+50℃ |
绝缘电阻(Insulation Resistance) | 100 MΩ Min. ,500VDC |
电气强度(Dielectric Strength): | 500VAC for 1minute |
径向间隙(Shaft Radial Play) | 0.02Max. (450g-load) |
轴向间隙(Shaft Axial Play) | 0.08Max. (450g-load) |
最大径向压力(Max. radial force) | 28N (20mm from the flange) |
最大轴向压力(Max. axial force) | 10N |
Specification
型号 Model No. | 步距角 Step Angle | 长度 Motor Length | 电流 Current /Phase | 电阻 Resistance /Phase | 电感 Inductance /Phase | 静转矩 Holding Torque | 引线数 # of Leads | 重量 Motor Weight |
( °) | (L)mm | A | Ω | mH | g.cm | No. | Kg | |
JK20HS30-0604 | 1.8 | 30 | 0.2 | 18 | 3.2 | 180 | 4 | 0.06 |
JK20HS33-0604 | 1.8 | 33 | 0.6 | 6.5 | 1.7 | 200 | 4 | 0.07 |
JK20HS38-0604 | 1.8 | 38 | 0.6 | 10 | 5.5 | 300 | 4 | 0.08 |
JK20HS42-0804 | 1.8 | 42 | 0.8 | 5.4 | 1.5 | 400 | 4 | 0.09 |
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(26.00%),Western Europe(20.00%),North
America(20.00%),Northern Europe(10.00%),Eastern Europe(7.00%),Africa(5.00%),Southeast Asia(5.00%),Mid East(5.00%),South America(2.00%). There are total about 51-100 people in our office.
America(20.00%),Northern Europe(10.00%),Eastern Europe(7.00%),Africa(5.00%),Southeast Asia(5.00%),Mid East(5.00%),South America(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(26.00%),Western Europe(20.00%),North
America(20.00%),Northern Europe(10.00%),Eastern Europe(7.00%),Africa(5.00%),Southeast Asia(5.00%),Mid East(5.00%),South America(2.00%). There are total about 51-100 people in our office.
America(20.00%),Northern Europe(10.00%),Eastern Europe(7.00%),Africa(5.00%),Southeast Asia(5.00%),Mid East(5.00%),South America(2.00%). There are total about 51-100 people in our office.
3.what can you buy from us?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always final Inspection before shipment;
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
