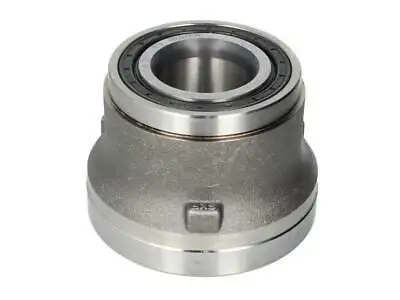

Customized Wheel Bearing VKBA5411 BTF0074A Truck Hub Unit Bearing 201082
- Category: >>>
- Supplier: Kenworth Machinery Equipment (Shandong) Co. Ltd.
Share on (1600896788985):
Product Overview
Description
Product Description
Automotive wheel bearings
The main role of wheel bearings is to bear the weight and provide precise guidance for the rotation of the wheel, which is subject to both axial and radial loads.
Wheel bearing unit is developed on the basis of standard angular contact ball bearing and tapered roller bearing, it will make two sets of bearings as one, with good assembly performance, can omit clearance adjustment, light weight, compact structure, large load capacity, for sealed bearings can be loaded with grease in advance, omit the external hub seal and free from maintenance, etc., has been widely used in cars, in the load car also has gradually expanded the application of trend.
Installation and Use
1. To ensure maximum safety and reliability, it is recommended that you check the wheel bearings frequently regardless of the age of the vehicle - watch for early warning signs of bearing wear: including any frictional noise when turning or abnormal deceleration of the suspension combination wheels during cornering. For rear-wheel drive vehicles it is recommended that the front wheel bearings should be lubricated when the vehicle reaches 38,000 km. When replacing the brake system, check the bearings and replace the oil seal.
2. If you hear a noise from the wheel bearing area, first, it is important to find the location where the noise is occurring. There are many moving parts that may produce the noise, and it is also possible that some rotating parts are in contact with non-rotating parts. If the noise is confirmed to be in the bearing, the bearing may have been damaged and needs to be replaced.
3. Because the front hub causes both sides of the bearing to fail under similar working conditions, so even if only one bearing is broken, it is recommended to replace it in pairs.
4. Wheel bearings are sensitive, and in any case need to use the correct method and the right tools. In the process of storage and installation, the parts of the bearing should not be damaged. Some bearings need larger pressure pressed in, so special tools are needed. Be sure to refer to the car manufacturing instructions.
5. The bearing should be installed in a clean and tidy environment, fine particles into the bearing will also shorten the life of the bearing. It is very important to maintain a clean environment when replacing bearings. It is not allowed to hit the bearing with a hammer, and be careful not to drop the bearing on the ground (or similar mishandling). The condition of the shaft and housing should also be checked before installation. Even minor wear can lead to poor fit and thus cause early failure of the bearing.
6. For wheel bearing units, do not attempt to disassemble the wheel bearing or adjust the seal of the wheel unit, otherwise the seal will be damaged leading to the entry of water or dust. Even the seal and the raceway of the inner ring are damaged, resulting in permanent failure of the bearing.
2. If you hear a noise from the wheel bearing area, first, it is important to find the location where the noise is occurring. There are many moving parts that may produce the noise, and it is also possible that some rotating parts are in contact with non-rotating parts. If the noise is confirmed to be in the bearing, the bearing may have been damaged and needs to be replaced.
3. Because the front hub causes both sides of the bearing to fail under similar working conditions, so even if only one bearing is broken, it is recommended to replace it in pairs.
4. Wheel bearings are sensitive, and in any case need to use the correct method and the right tools. In the process of storage and installation, the parts of the bearing should not be damaged. Some bearings need larger pressure pressed in, so special tools are needed. Be sure to refer to the car manufacturing instructions.
5. The bearing should be installed in a clean and tidy environment, fine particles into the bearing will also shorten the life of the bearing. It is very important to maintain a clean environment when replacing bearings. It is not allowed to hit the bearing with a hammer, and be careful not to drop the bearing on the ground (or similar mishandling). The condition of the shaft and housing should also be checked before installation. Even minor wear can lead to poor fit and thus cause early failure of the bearing.
6. For wheel bearing units, do not attempt to disassemble the wheel bearing or adjust the seal of the wheel unit, otherwise the seal will be damaged leading to the entry of water or dust. Even the seal and the raceway of the inner ring are damaged, resulting in permanent failure of the bearing.
Product Show
Bearing Number
NO. | OEM NO. | SKF NO. | FAG NO. | Dimensions(mm) | Wheel | Application | ||||
d | D | B | ||||||||
1 | 1075408 20792439 20792440 20967828 21036050 3988774 7420792439 | VKBA5423 | 566425.H195 800792 | 93.8 | 148 | 135 | Rear | VOLVO:FE/ FH/ FH 12/ FH 16/ FM/ FM 7/ FM 9/ FM 12/ FL6/ FL7/ FL10/ FL12/ NH12/ 7700/ 8500/ 8700/ 9700/ 9900/ B6 RENAULT:TRUCKS PREMIUM 2/ MAGNUM/ KERAX DAF:XF 105 | ||
2 | 20967831 21021391 7420518637 7421021391 | 566426.H195 581079 | 68 | 125 | 115 | Front | VOLVO:FE/ FH/ FH 12/ FH 16/ FM/ FM 7/ FM 9/ FM 12/ NH12/ 7700/ 8500/ 8700/ 9700/ 9900 RENAULT:TRUCKS PREMIUM 2/ MAGNUM/ KERAX | |||
3 | 20518617 20967830 7420518617 7421021381 | VKBA5424 | 566427.H195 805165A | 58 | 110 | 115 | Front | VOLVO:FE/ FH/ FH 12/ FH 16/ FM/ FM 9/ FM 12 RENAULT:TRUCKS PREMIUM 2/ MAGNUM | ||
4 | 1801595 | 566834.H195 | 70 | 124.7 | 110.03 | Front | DAF:CF65/ CF75/ CF85/ LF55/ XF95/ XF105 | |||
5 | 1801592 | 566074.H195 | 70 | 125 | 114 | Front | DAF:CF65/ CF75/ CF85/ LF55/ XF95/ XF105 | |||
6 | 1801593 | 566193.H195 | 80 | 138 | 130 | Front | DAF:CF75/ CF85/ XF95/ XF105 | |||
7 | 3434301200 4200101602 | 803904 | 120 | 175 | 123 | Rear | SAF:SKRS 11019 K/ SKRZ 9019 K/ SK 1000 ET0/ SKRZ 9042/20 10 HOLES 1995 AFTER MODEL | |||
8 | 3307303000 3307303001 3434301800 | 569868.H195 | 82 | 138 | 110 | Rear | SAF:SKRLB 9019/ SKRLB 9022 10 HOLES WITH BRAKE DISC | |||
9 | 503126457 36934200009 81934200320 81934200342 81934200376 81934206097 | VKBA5408 BT20130A | 803750B | 105 | 160 | 140 | Rear | MAN:TGA/ TGM/ TGS/ TGX/ M2000/ NL/ NG/ NU/ SL/ UL/ LION STAR/ LION COACH/ LION CITY/ HOCL MERCEDES:CITARO/ CONECTO NEOPLAN:CITYLINER/ EUROLINER/ STARLINE VOLVO:7700/ 8500/ 8700 BOVA:FUTURA/ LEXIO/ MAGIG/ SINERGY | ||
10 | - | 566864.H195 | 70 | 124.7 | 122 | Front | DAF:XF 95 After 2006 MODELS | |||
11 | 3307304300 3434301900 3434302000 | 570530.H195 808918 | 88 | 138 | 120 | - | SAF | |||
12 | 1801594 | 566283.H195 805008 | 100 | 148 | 135 | Rear | DAF: CF65/ CF75/ CF85/ LF55/ XF95/ XF105 | |||
13 | 81934200346 81934200377 | VKBA5416 | 804162A | 110 | 170 | 140 | Rear | MAN:TGA/ TGM/ TGS/ TGX/ F2000 | ||
14 | 1413785 1439070 1443078 1476945 1724482 1868087 | VKBA5314 BTH0018A BTH0018B | 571762.H195 201037 | 68/68.2 | 127/ 132 | 115 | Front | SCANIA:SERIES P, G, R, T / SERIES 2, 3, 4 FORD:FOCUS II (DA), FOCUS II STATION WAGON (DA) DAF:F 1500 MAN:L 2000 MERCEDES:SK | ||
15 | 81934200344 81934200354 149815105 149819305 149819905 179815005 | BTH0022 BTH0055 VKBA5412 VKBA5552 | 80503A.H195 | 82 | 140 | 115 | Rear | MAN:TGL/ TGM/ FOCL MERCEDES:ACTROS/ ACTROS MP2 MP3/ AXOR/ AXOR 2 | ||
16 | 833211 7184079 7184080 2994058 85103258 | BTH0054 | 805011C | 82 | 140 | 110 | - | IVECO:EUROCARGO | ||
17 | 1408086 1400291 1905487 2996882 7179751 7183074 7183075 7189050 7189648 | VKBA5397 BTH0025 BTH0053 | 805012.06.H195 201059 | 90 | 160 | 125 | Rear | IVECO:EUROTECH MT MP MH/ EURPSTAR/ EUROCARGO/ STRALIS IRISBUS:EURORIDER DAF:LF55 | ||
18 | 0159811905 | 201050 | 60 | 108 | 75 | Front | VOLVO:FL6 MERCEDES:ACTROS MP2 MP3/ ATEGO/ ATEGO2/ AXOR 2 | |||
19 | 0139812205 0139812305 0139819805 | 803194A | 78 | 130 | 90 | Rear | MERCEDES:ATEGO/ ATEGO2/ TOURINO (O 510) | |||
20 | 81934206083 81934200336 85103257 | VKBA5415 | 805092C | 78 | 130 | 90.5 | Rear | IVECO:EuroCargo VOLVO:FL6 MAN:TGL/ TGM/ L2000 | ||
21 | 93810034 | VKBA3553 | 577822 713690850 | 45 | 120 | 85 | Front | IVECO:DAILY I FLATBED/ CHASSIS, BOX BODY/ ESTATE, DUMPTRUCK | ||
22 | 42541578 5006207845 81934200288 81934200330 81934200349 | BTF0110 BTF0021 VKBA5377 | 801974AE.H195 201012 | 70 | 196 | 139.5 | - | IVECO:CITYCLASS/ EUROPOLIS MAN:TGA/ TGM/ TGX/ TGS/ NL/ NG/ NU/ UL/ LION S STAR/ LION S COACH/ E 2000/ F 2000/ M 2000 L/ M 2000 M | ||
23 | 03434365000 3200200151 4200200100 4200200101 100167600 100167601 1002689 | VKBA5549 | 564734.H195 | 82 | 196 | 113.8 | Rear | SAF:INTEGRAL/ SKRB 9022H 9022K01/ SKRLB 9019K 9019KI 9019W 9022H 9022K 9022K01 9022W | ||
24 | 5010308616 | VKBA5407 | F-805531 | 60 | 168 | 102 | Front | RENAULT:TRUCKS MIDLUM | ||
25 | 5010566154 5010566154A | 201042 | 50 | 140 | 95 | Front | RENAULT:TRUCKS MIDLUM | |||
26 | 81934200337 | VKBA5411 BTF0074A | 201082 | 55 | 145 | 100 | - | MAN:TGL/ TGM/ FOCL/ L2000/ M2000L | ||
27 | 20764313 5010439770 | VKBA5316 BTF0045 | 201043 | 70 | 194 | 112 | Front | RENAULT:TRUCKS PREMIUM/ MAGNUM/ KERAX/ MIDLUM | ||
28 | 5010216920 7420879770 | VKBA5308 BTF0034 | 201044 | 65 | 194 | 113 | Front | RENAULT:TRUCKS PREMIUM/ MAGNUM/ KERAX/ MAXTER/ MAJOR | ||
