MC3 3000 3 axis CNC machining center/Hisena CNC
- Category: >>>
- Supplier: Jinan Haijinna CNC Machinery Co. Ltd.
Share on (1600896789553):
Product Overview
Description
Product Image
Products Description

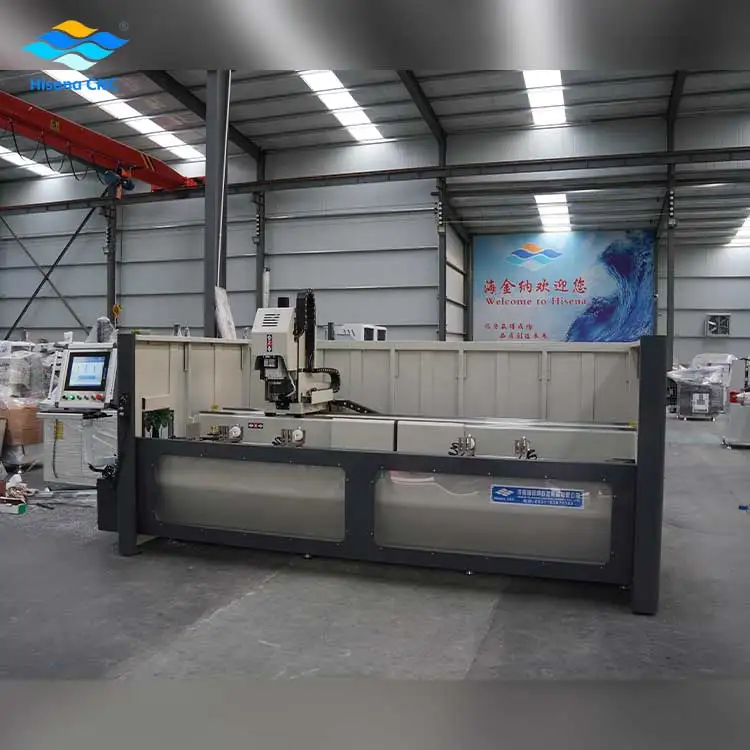

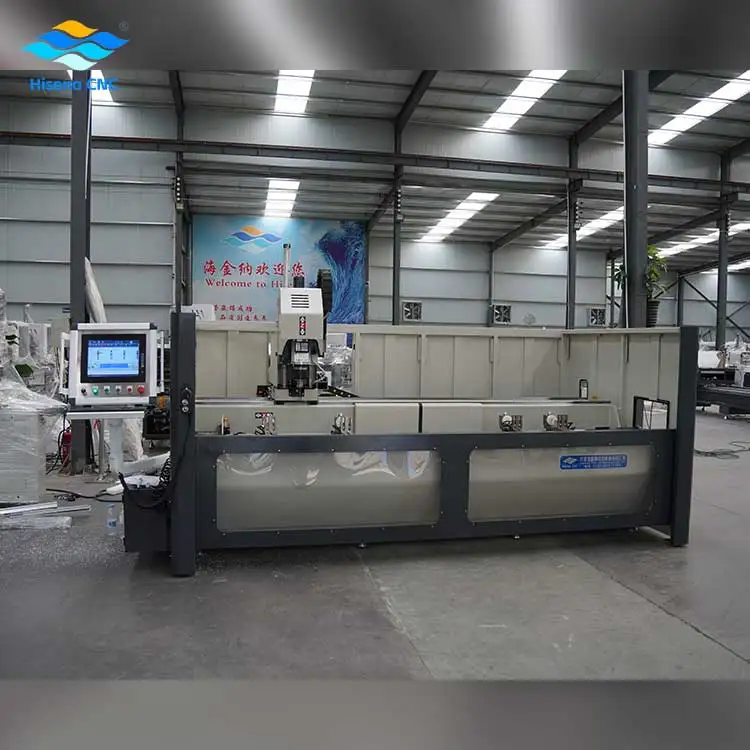

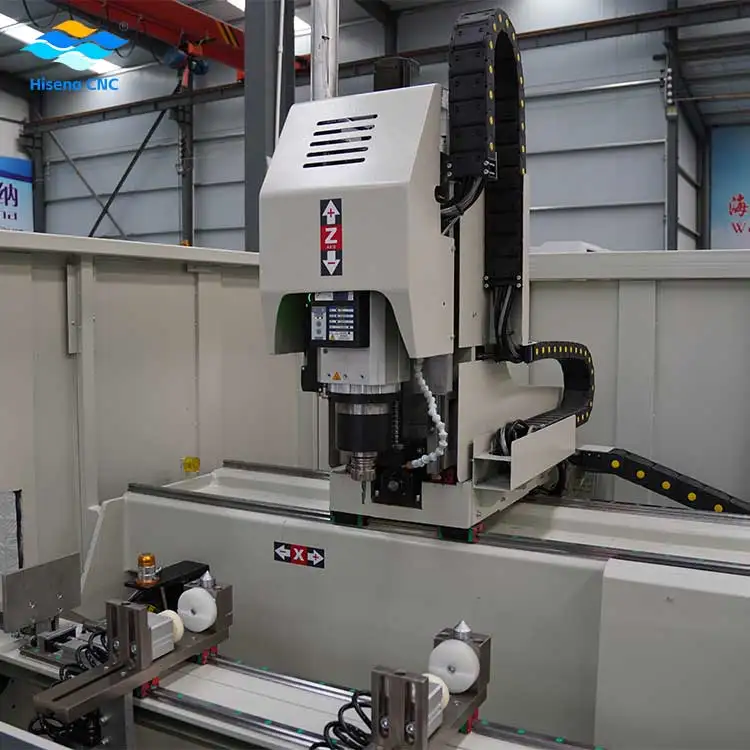

3 axis CNC machining center
• Applicable material:aluminum,pvc and wood,steel tube is optional.

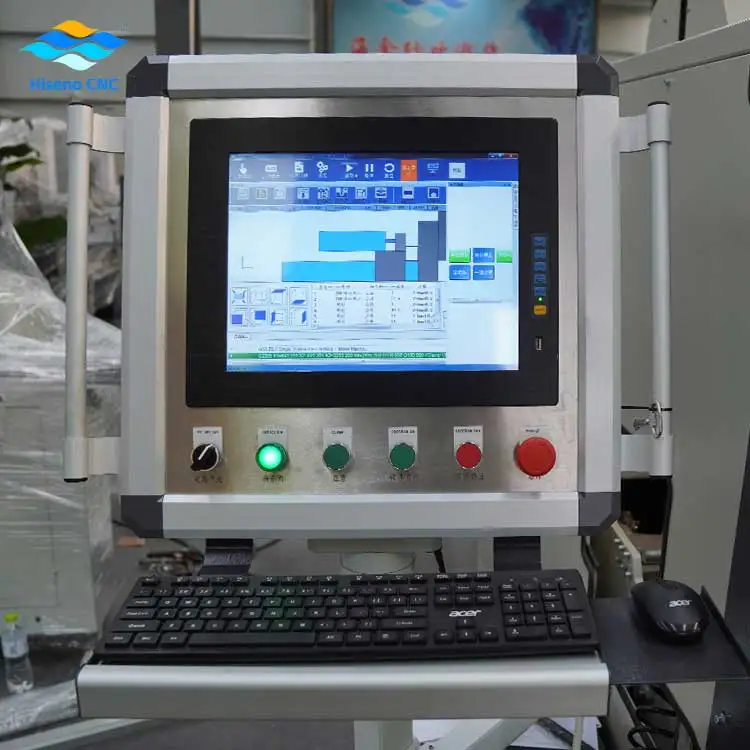

• Equipped with CNC numerical control system and CAM software which can read the.DXF drawing.
• Simple programming, the software comes with a graphics library containing a variety of machining hole patterns.
• Equipped with hand-operated pulse generator.
• Equipped with tools magazine,automatic tool change.
• Equipped with automatic tool setting guage.
• The position of the clamps can be scanned and adjusted automatically without manual intervention.
• The zero-point stop can be automatically turned over which is friendly for the processing at or near the end face.
• The worktable can be turned over on three sides at 0 degrees, 90 degrees and -90 degrees which is friendly for 3 sides processing.
• Automatic coolant spraying.
• Automatic lubrication.
• Self-lifting safety guard.
• Equipped with CNC numerical control system and CAM software which can read the.DXF drawing.
• Simple programming, the software comes with a graphics library containing a variety of machining hole patterns.
• Equipped with hand-operated pulse generator.
• Equipped with tools magazine,automatic tool change.
• Equipped with automatic tool setting guage.
• The position of the clamps can be scanned and adjusted automatically without manual intervention.
• The zero-point stop can be automatically turned over which is friendly for the processing at or near the end face.
• The worktable can be turned over on three sides at 0 degrees, 90 degrees and -90 degrees which is friendly for 3 sides processing.
• Automatic coolant spraying.
• Automatic lubrication.
• Self-lifting safety guard.
Specification | ||||||||
Model | MC3-3000 | |||||||
Power supply | 380v/50hz | |||||||
Electrospindle power | 8kw | |||||||
Rated speed | 12000rpm | |||||||
Max.speed | 24000rpm | |||||||
X-axis stroke | 3000mm | |||||||
Y-axis stroke | 320mm | |||||||
Z-axis stroke | 300mm | |||||||
Air pressure | 0.6-0.8Mpa | |||||||
Air consumption | 100L/min | |||||||
Magazine | 6 tools | |||||||
Tool holder | ISO30 | |||||||
Collet | ER32 | |||||||
Dimension | 4200*2000*2350mm | |||||||
Weight | 1800kg | |||||||
The equipment and process required for aluminum window door making
Hisena CNC，since 2008
Our Team
Our Customers
FAQ
• Are you factory or trading company?
We are a factory with more than 10 years experience in manufacturing door and window equipmen
• What kind of payment methods do you have?
We support T/T and L/C payment.
• Do you have customized service?
Yes, we can do customized order.
• How about shipping time and method?
The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
• How long is the service life and warranty?
The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
• How to install and use the machine after arrival?
Our equipment has been debugged before leaving factory to meet production standard requirements.
We can provide engineers on-site installation training, remote videophone installation guidance, installationand commissioning videos, user manuals and variety methods.
• How to do the maintenance for machine?
Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
