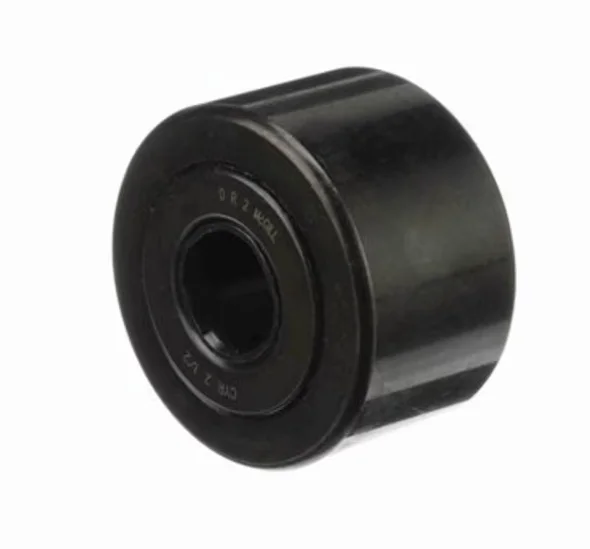

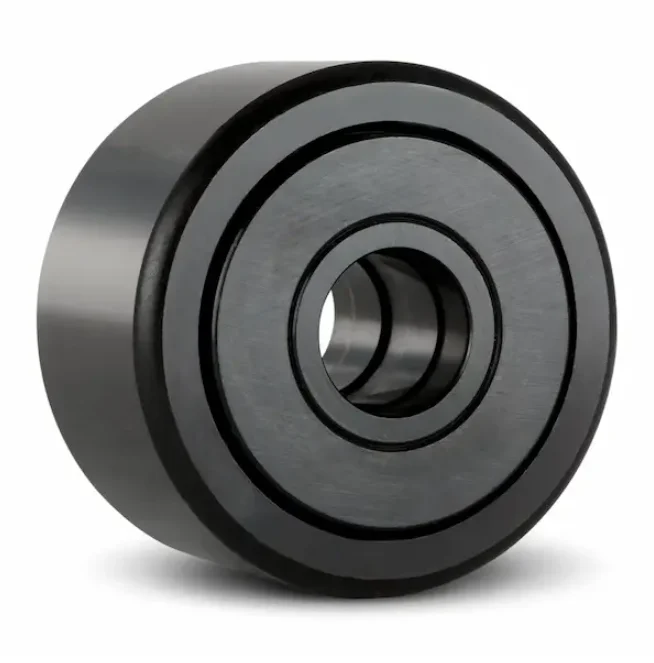

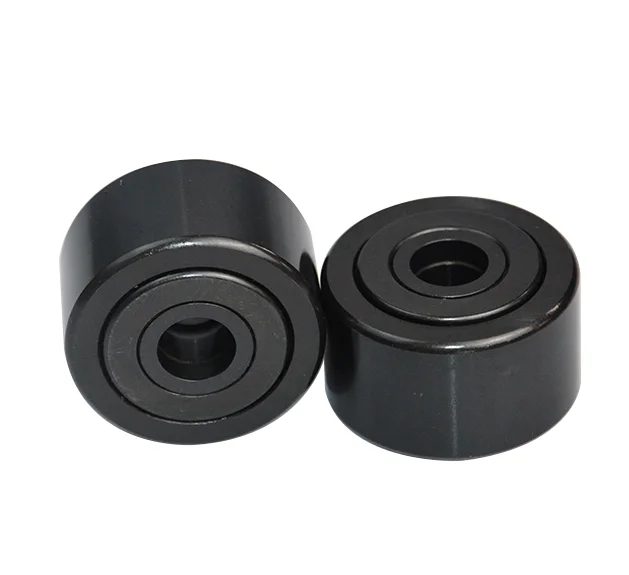

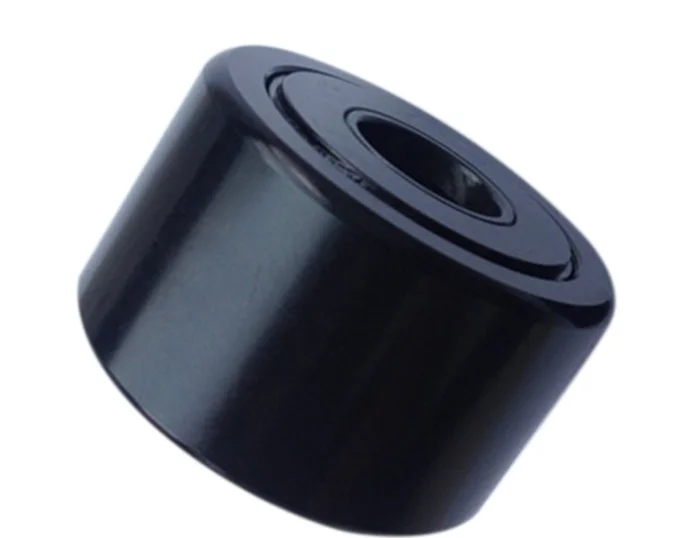

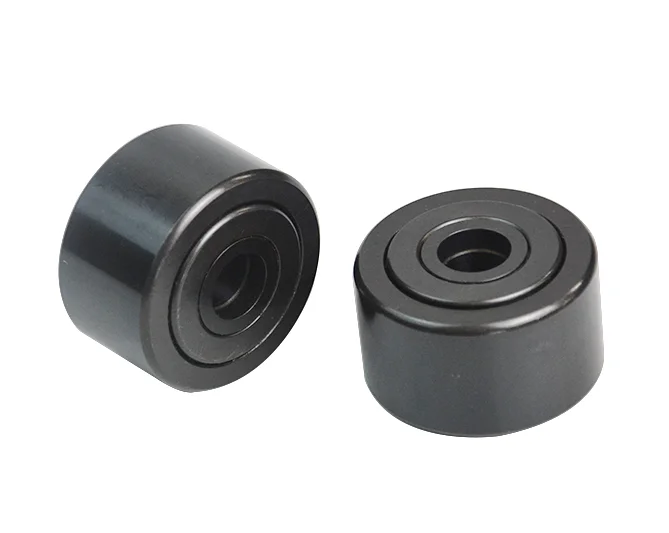

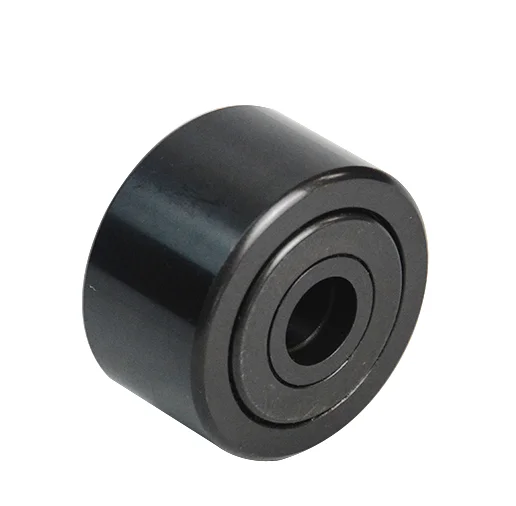

McGill CYR2 1/4 Cam Yoke Roller, Sealed, Steel, McGill CYR series yoke type cam follower bearing

Product Overview

Description









This McGill CYR series yoke-type cam follower bearing with lip seals supports high static and dynamic loads in cam-type applications.

This precision cam roller has a thick-walled outer ring that helps minimize deformation under heavy radial and shock loads. It has a yoke-type design for use with heavier loads or where clevis or shaft mounting is preferred.



This cam follower is made of bearing steel treated with black oxide for corrosion resistance. The working surfaces of the inner raceway and flange are zone-hardened to support contact stresses from the rolling elements, and the inner ring is ductile to help absorb shock loads.

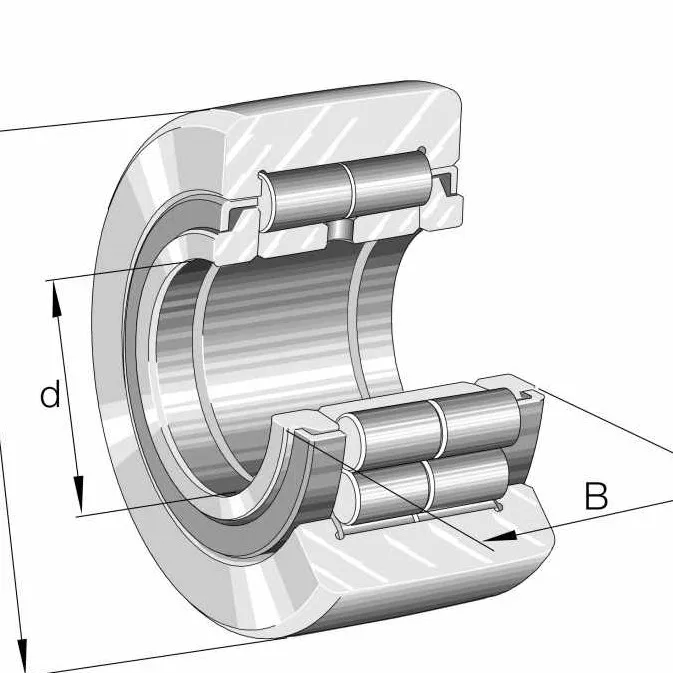

The bearing holds a full complement of needle rollers for a higher radial load-carrying capacity than caged rollers. Seals at each end retain lubricant and protect against contaminants.

This cam follower is suitable for use in a broad range of linear and motion translation applications including process transfer lines, ram support rollers, conveyors, machine tools, and indexing equipment.Track runner bearings, also called track roller bearings, are rolling element bearings with a thick-walled outer ring that rotates directly on cam and track surfaces.



The thick outer ring helps minimize deformation under load stress and enables the bearing to handle heavy rolling and shock loads.

Track runner bearings have either a stud-type or yoke-type mounting design. Stud-type track rollers, such as cam followers, have a built-in threaded rod, instead of an inner ring, for either threaded mounting or through-hole mounting onto machine components. Through-hole mounting uses a hexagonal nut on the threaded end to secure the bearing into place.

Yoke-type track rollers, such as roller followers, are mounted in a yoke-style housing on a press-fitted or push-fitted shaft or pin.

Available in a variety of materials and mounting configurations, track runner bearings are used in a broad range of cam-controlled and linear motion applications including agricultural machinery, conveying equipment, cam drives, material handling equipment, robotics, and automotive equipment, among others.



C&H cam followers are also popular for defense and aircraft applications, where maintainability and system reliability are

important design considerations.



To smoothly and evenly distribute the loads, cam followers usually are designed with a full complement of rolling elements.

However, there is more than one type of configuration for cam followers, but the most distinctive characteristic is how the cam follower is mounted to its counterpart.

A Stud Type Cam Follower is usually has a standard sized stud, but heavier studs are available to handle increased static loads.

This is as opposed to “Yoke type” cam follower which has a hole through the middle and is usually used in applications where minimal deflection is necessary.

They come in the following series with and without seals, also in inch and metric dimensions:
