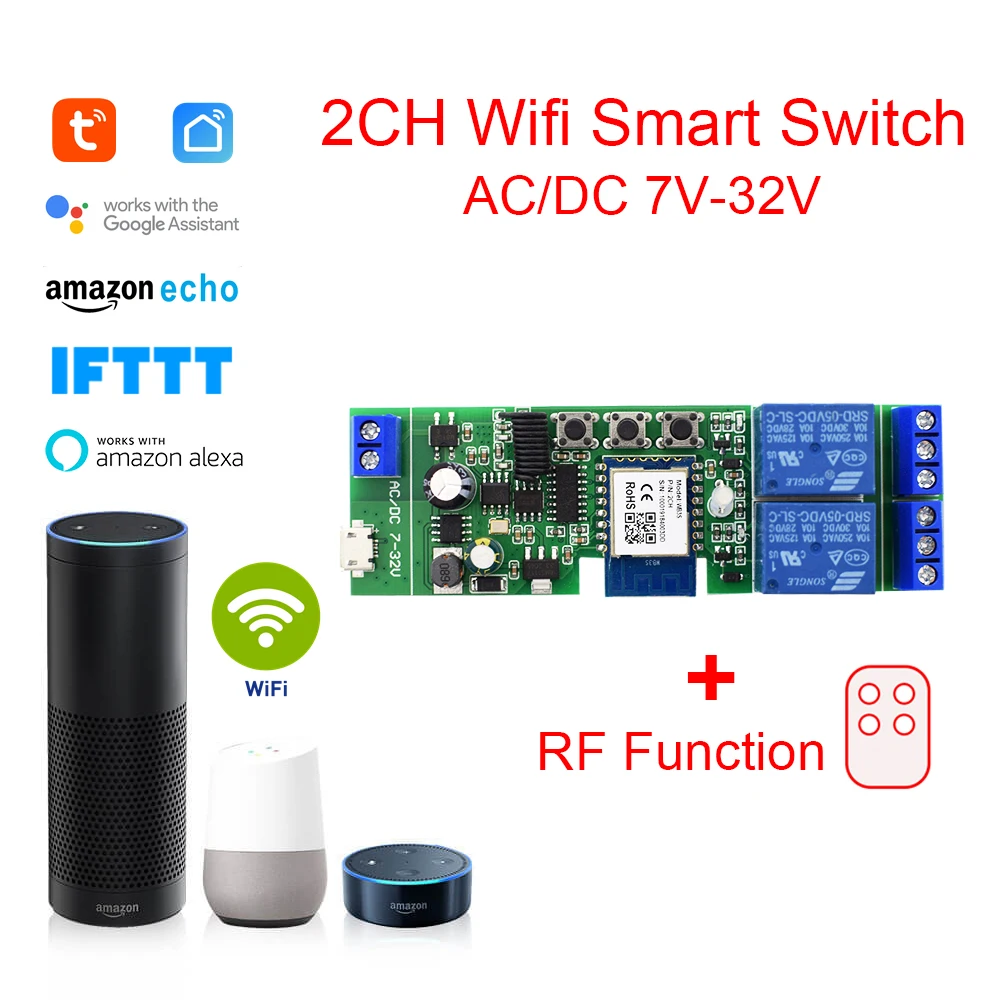

2CH Tuya Smart Remote Control Wireless Wifi Switch Module AC DC7 32V RF Receiver 10A Wifi Relay DIY
- Category: >>>
- Supplier: Shenzhen Mixiyou Technology Co. Ltd.
Share on (1600896877948):
Product Overview
Description
Product Description
Use for
1.Remotely give a pulse signal to turn on/off Lights,Lamps and other home appliance. 2.Remotely give a pulse signal to turn on/off
Garage Door,Door Access,Slide Door 3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and reverse(Only 2
Channel Relay support)
Three Working Mode
1.Inching mode : Switch on one channel,the channel will be automatically closed after 0.5 seconds .Other channel is same as the
channel.
The default inching time in inching mode is 0.5 seconds.
2.Self-locking : each channel could be switched on/off seperately.You can turn on/turn off all channel at the same time.
3.Interlocking mode : Switch on any channel , other channels will be switched off automatically .
If you need to change the mode,you need to press the mode button
How to Change the Inching Time
If you need to change the inching time of 1 channel module, you only can enable the inching time in APP. If you need to change the
inching time of 2 channel module.You need to press the mode button to enter into self-locking mode or interlocking mode,so you can
change the inching time on the APP. The inching time only available in the self-locking or interlocking mode) The time range is
0.5-3600 seconds.
Features:

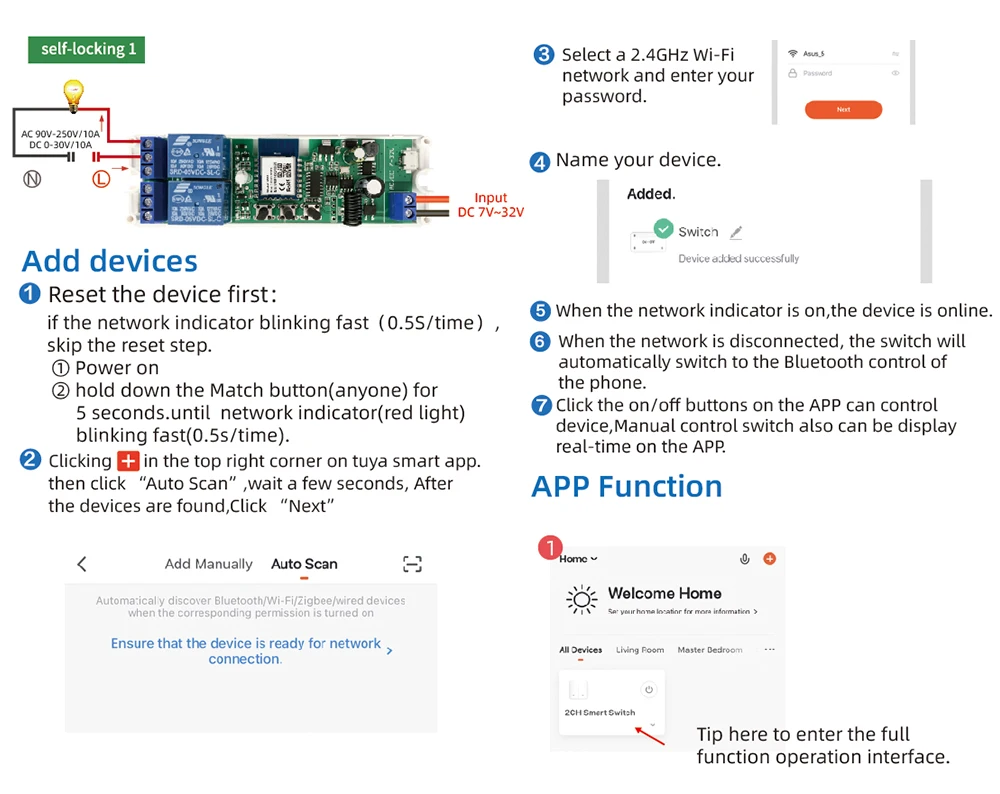

【Two Input Ports】 You could choose USB 5V port or the screw terminal port to supply power in the input to make the pcb board board
work. 【Dry Contact/Passive Output】 No matter the power you supply in the input, the output don't have any voltage If you do not
supply power in output port, the connectted home appliance can't work, you also need to supply power in output. 【Timer】 The
connectted home appliances can be automatically turned on/off according to the time schedule. Each channel can set different time
schedule.
Different Ways to Control the WIFI Module
【APP Remote Control】 You can control the connectted home appliance in Tuya or smart life APP anywhere and anytime.Such as light,

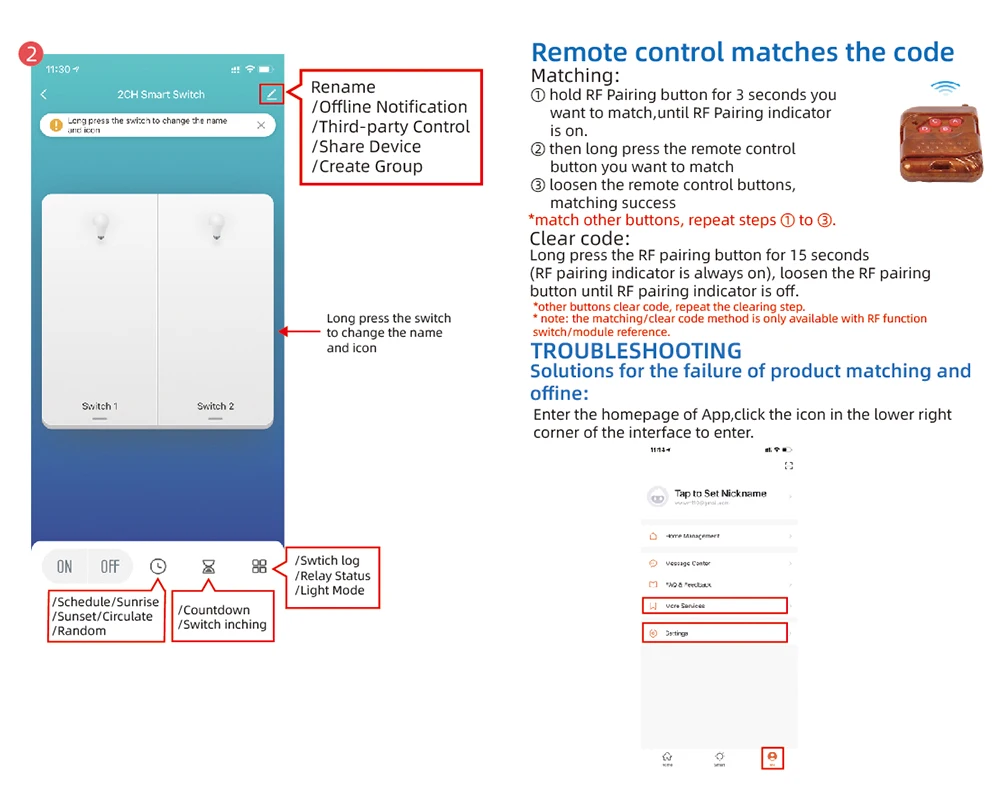

electric kettle, electric rice cooker, electric curtain, etc. 【RF433 Control】 The WIFI Module support RF433 Frequency,and you can
control the WIFI module by RF433mhz remote controller. 【Mobile Phone Control】 When you go outside or at home,you could control the
device in your smart phone by 2G/3G/4G Mobile Network or WIFI (Note:The router need to online and the WIFI module need to keep a
close distance with the router) 【Voice Control 】 Compatible with Alexa and Google Assistant, you can use the voice control to turn
it on/off the connectted home appliances . 【Share Control】 One device can control by Multiple phones,you can share the wifi module
with your fam 【Group Control】 one phone can control Multiple smart device.You can add the wifi module and other smart device in a
group,and then turn on/off all smart device in the same time.
Specification:
Cutover current≤ 10A Input 1： DC/AC 7-32V Screw Terminal Port Input 2: Micro USB 5V port Output: Passive output ( Dry contact
switch) Working Temperature: -20 to 70 celus degree Working Humidity: 40% to 80% RH WIFI Standard:2.4GHZ, 802.11 b/g/n(don't
support 5G) Size:120*38*25mm APP:Tuya/Smart Life
Specification
item | value |
Certification | CE |
Network | wifi |
Customized support | Software reengineering |
Whether the smart | Yes |
Place of Origin | China |
Guangdong | |
Brand Name | SMG |
Model Number | Tuya 2ch 7-32V RF |
Operating Temperature | -20 degrees to +70 degrees |
Max. Current | Max 10A |
Max. Voltage | USB 5V,AC/DC 7V-32V |
Name | Wifi Relay Switch |
Customized support | NO |
Certification | CE |
Working mode | inching /self-locking /Interlocking |
Input voltage | USB 5V,AC/DC 7V-32V |
Channel | 2 |
Operating Humidity | 40% ~ 80% RH |
Feature 1 | Work with Alexa |
Feature 2 | Work with Google home |
Feature3 | RF /Voice /APP Control |
