H158 Bus Ticket Validator Bus Validator with QR Code Reader NFC Bus Ticketing Machine Pos
- Category: >>>
- Supplier: Shenzhen Huarui Electronic Technology Co. Limited
Share on (1600896900762):
Product Overview
Description
H158 Bus Ticket Validator Bus Validator with QR Code Reader NFC Bus Ticketing Machine Pos
Product Description
Key Features
1. EMV NFC card payment.
2. support WeChat, Alipay and other third-party QR code scan code payment.
3. support 4G, WIFI, Bluetooth and other communication methods, can also be customized to support GPS positioning function.
4. Android 10 system, support secondary development docking.
5. 7 inch Landscape / 5 inch Portrait optional , configure a rich external interface.
Specifications
H158 Android Smart Bus Validator | ||||||
CPU | Qualcomm MSM450 A53 8 Core Processor,1.8Ghz | |||||
Operation System | Android 10 | |||||
RAM | 2GB DDR | |||||
ROM | 16GB EMMC | |||||
LCD | Landscape: 7 inch RGB 1024*600 Portrait: 5 inch RGB 480*800 | |||||
Driver Dispaly | 8 bits LED Digital Display | |||||
QR Code Scanner Module | 1D: UPCA、UPCE0、Code 11、Codabar、Matrix2of5、Industrial25、 RSS14、RSSLimited、RSSExpanded、MSIPlessey、UPCE1、EAN13、EAN8、CODE39、CODE 93、CODE 128、SBN13、INTERLEAVED 2 of 5； 2D: PDF417 DATAMATRIX QRCode | |||||
Face AI Recognization Camera(Optional) | Binnocular RGB+IR More than 2 Million Pixel Camera,Living Biometric Identification | |||||
EMV3.0/3.1 ISO/IEC 14443 TypeA Protocol for High-speed Transmission of 06kbit/s 212kbit/s424kbit/s、848kbit/s ISO/IEC 14443 TypeB and CCITT Protocol P2P Passive initiator of ISO/IEC 18092 Felica Card 212K and 424K ISO/IEC 15693 SIGIN/SIGOUT | ||||||
Audio Amplifier | Efficient DSP Processing, SD Sound 3W Mono Output | |||||
Physical Button | Confirmation key, Up Flip key, Down Flip key, Clear key | |||||
4G/LTE-FDD B1/B2/B3/B4/B5/B7/B8/B20/B28 4G/LTE-TDD B38/B39/B40/B41 3G/WCDMA B1/B8 3G/TD-SCDMA B34/B39 3G/EVDO/CDMA BC0 2G/GSM 900/1800MHz WiFi 802.11b/g/n/AC 2402-2482MHz/5180-5825MHZ BT4.1/4.2 LE 2402-2480MHz GNSS GPS/GLONASS/BEIDOU GPS: 1575.42MHZ ±1.023MHZ GLONASS: 1597.5-1605.8MHZ BEIDOU: 1561.098-2.046MHZ | ||||||
1* USB interface OTG 1* Serial port(RS232 by default,can do RS485) 1* GPS antenna socket 1* DC Socket(DC IN) 3* SIM Card 1* PSAM Card(5*PSAM Max) | ||||||
Packing | ||||||
Packaging | Carton Box,Industrial Level | |||||
Charger and Cigarette lighter | Input 10-40V 2.5A | |||||
Battery (Optional) | 3.7V 2600mAh Polymer battery, Barcode Scanning Time >12h when no transmission | |||||

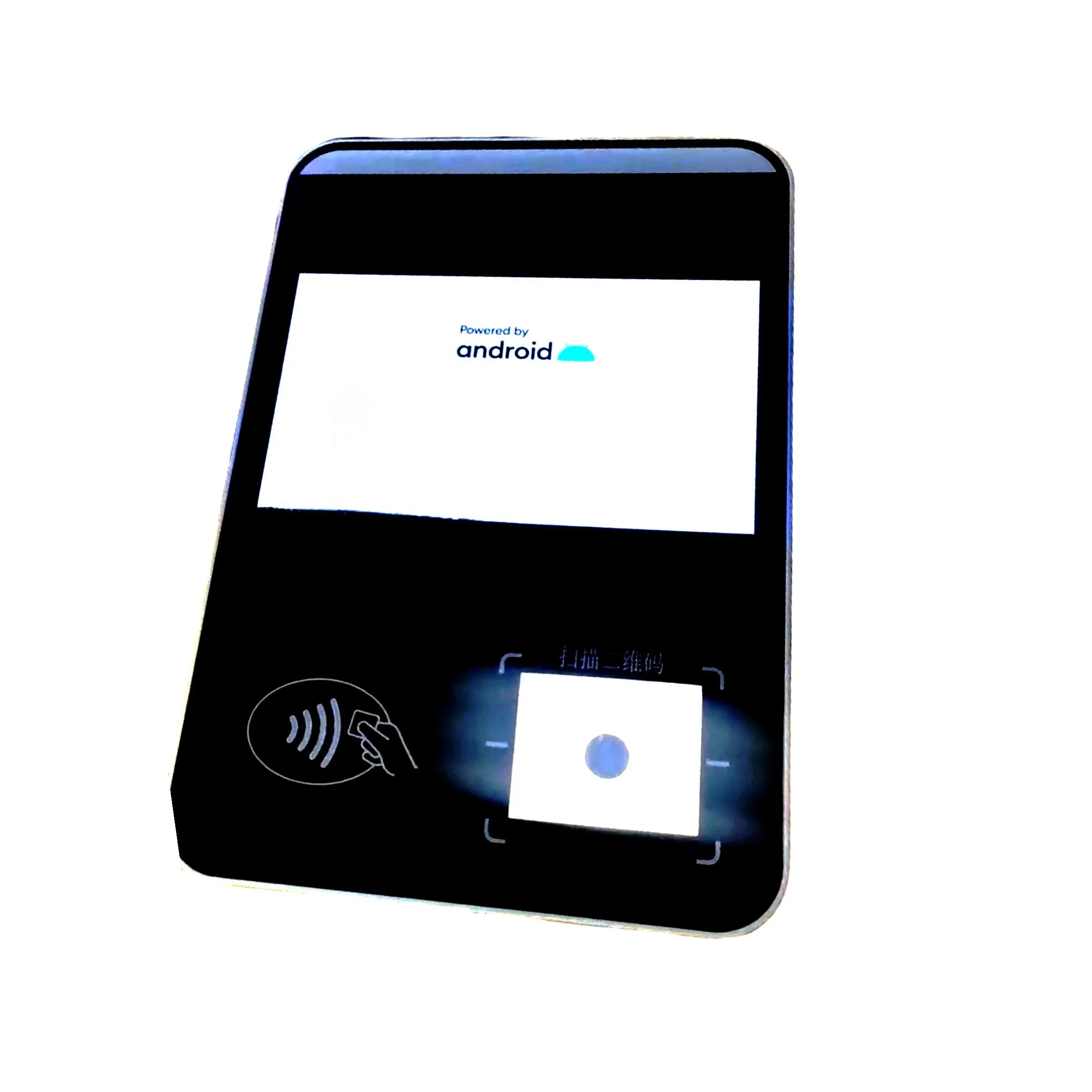

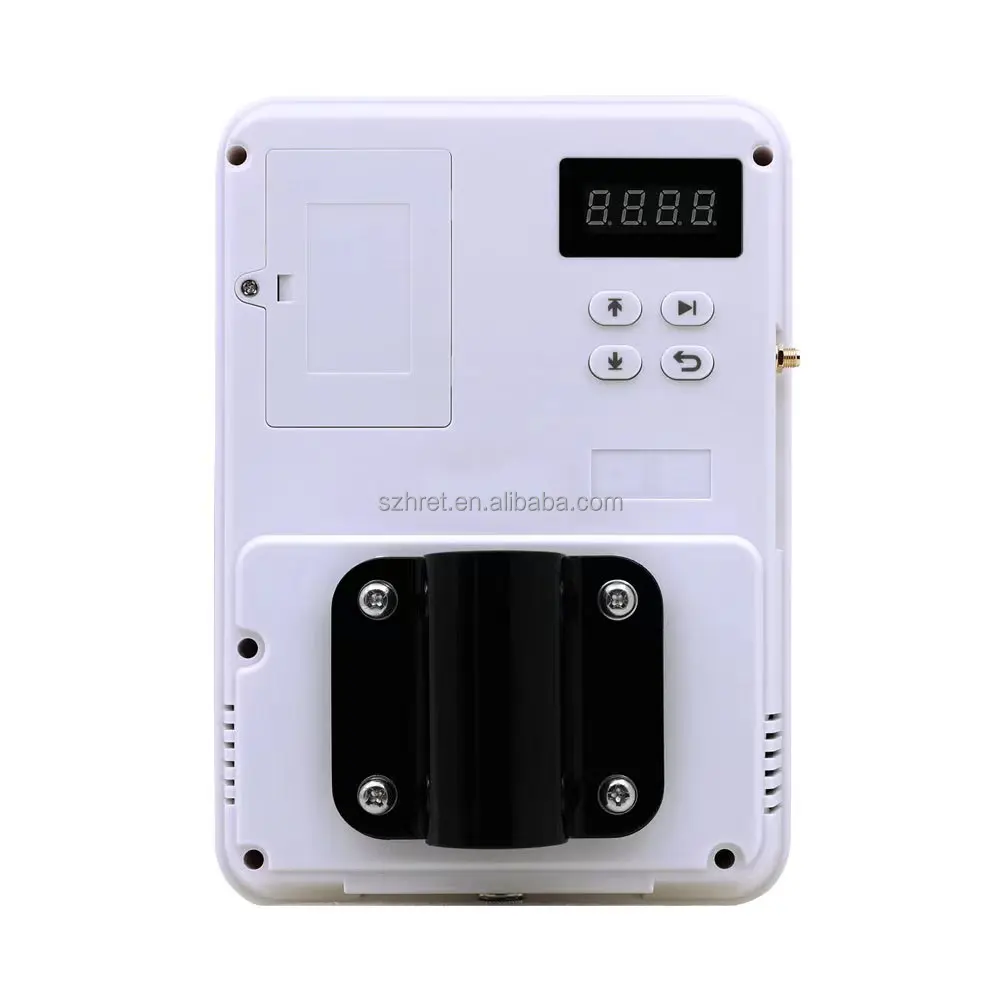

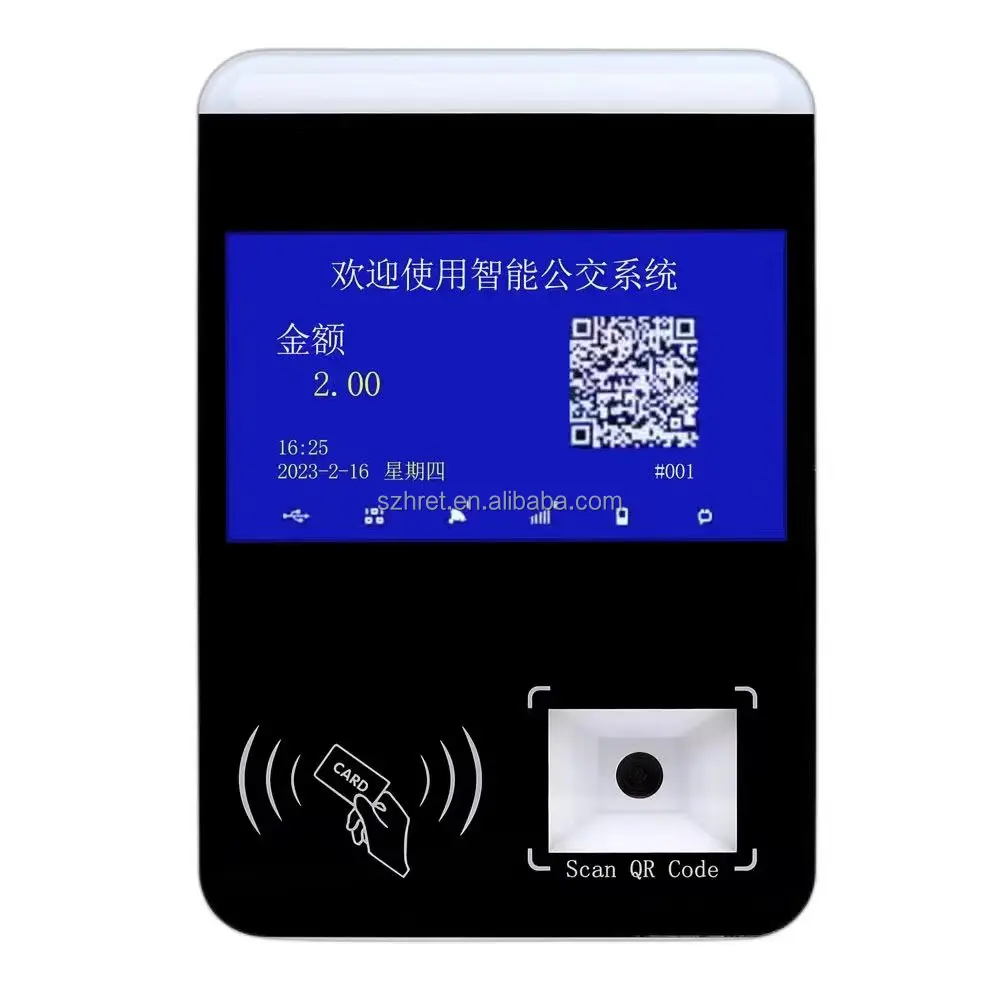

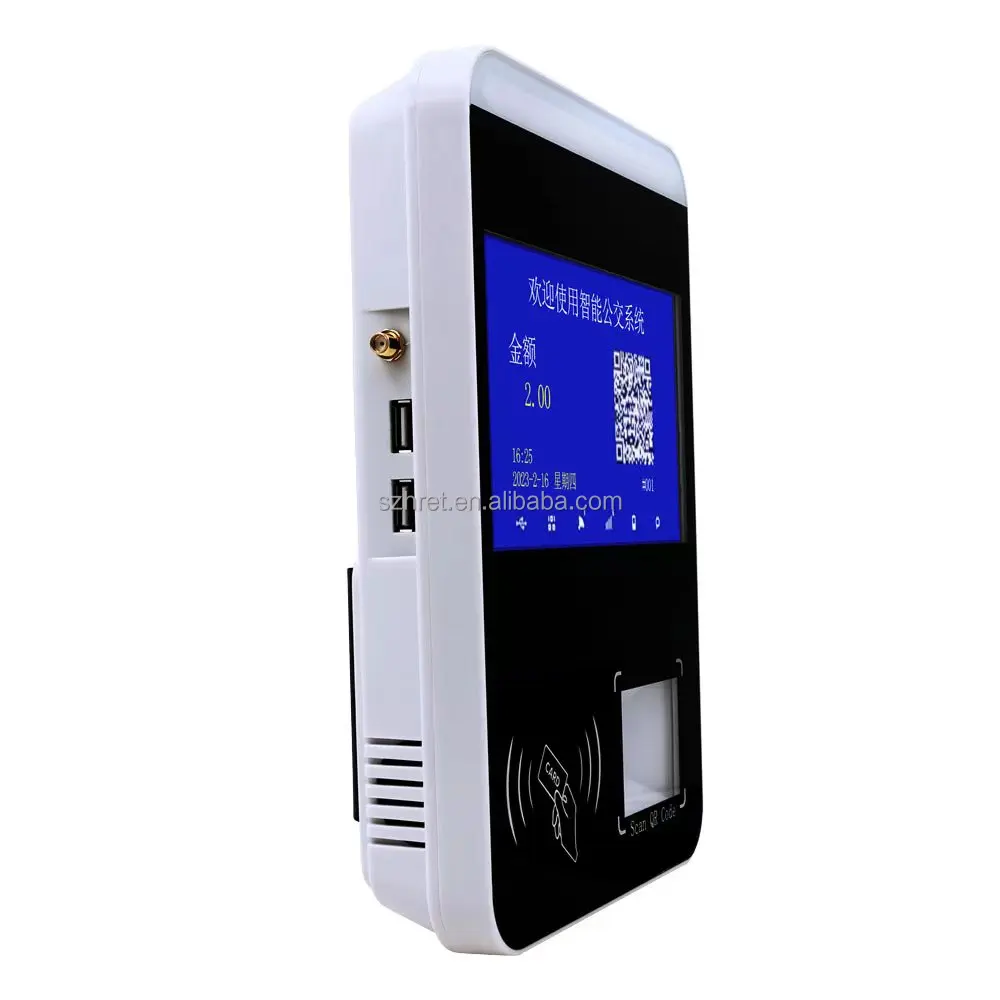

Detailed Images
Applications
Our Company
We, Shenzhen Hua Rui Electronic Technology Co., Ltd established in 2009, headquarters located in Shenzhen City, one of the leading supplier for Commercial Terminal. We got the certificates of "Shenzhen High-Tech Enterprises" and "Chinese High-Tech Enterprises”.Qualified with more than 160 patents and 42 product certifications.
With the continuous technology innovation and business expanding, in order to enhance our customer experience & satisfaction simultaneously, we set OEM Business Unit, ODM Business Unit and SKD Business Unit from 2018, set Huizhou office Branch and Wuhan Branch, total workshop more than 15000 square meter.
ODM Business Unit produce and sell all type POS machines. Such as Handheld Pos, Desktop Pos, Cash Register Pos, both Android/Windows System. Products are widely used in scenarios such as Payment, Retail, E-Ticket, Lottery, Online
Ordering,QueueSystem and so on. Till now, HRET has deployed worldwide 2.5M+ Pos Terminals, exported to 120+ countries, 600+ big projects,served 5000+ customers and build 15 service centre overseas.
OEM Business Unit mainly produce Self-Service Payment Kiosk Machine(Wall mounted and Floor Standing), All in one Touch Machine and related commercial use terminals. OEM Business Unit has 30 engineers in R&D, 4 production line, production capacity is 20K pieces per month. Our customers are KFC, MacDonald’s, Walmart and Banks.
SKD Business Unit produce Industrial Level Android Development Main Board PCBA. Boards equipped with RK3128,
RK3288,RK3399,RK3566,RK3568, RK3588 CPU and Qualcomm 450, 660, Snapdragon 845 etc. Use for Pos Machine, Kiosk Machine, Digital Signage,Advertising Media Player, Vending Machine, AI Weighting Machine, Health Medical Machine and so on. 25 engineers in R&D,Production capacity 70K pieces per month.
With the mission of creating a colorful future, HRET sticks to technology-driven and market demand-oriented and solidly stands in the AIOT industry forefront, welcome to realise this together with us.
With the continuous technology innovation and business expanding, in order to enhance our customer experience & satisfaction simultaneously, we set OEM Business Unit, ODM Business Unit and SKD Business Unit from 2018, set Huizhou office Branch and Wuhan Branch, total workshop more than 15000 square meter.
ODM Business Unit produce and sell all type POS machines. Such as Handheld Pos, Desktop Pos, Cash Register Pos, both Android/Windows System. Products are widely used in scenarios such as Payment, Retail, E-Ticket, Lottery, Online
Ordering,QueueSystem and so on. Till now, HRET has deployed worldwide 2.5M+ Pos Terminals, exported to 120+ countries, 600+ big projects,served 5000+ customers and build 15 service centre overseas.
OEM Business Unit mainly produce Self-Service Payment Kiosk Machine(Wall mounted and Floor Standing), All in one Touch Machine and related commercial use terminals. OEM Business Unit has 30 engineers in R&D, 4 production line, production capacity is 20K pieces per month. Our customers are KFC, MacDonald’s, Walmart and Banks.
SKD Business Unit produce Industrial Level Android Development Main Board PCBA. Boards equipped with RK3128,
RK3288,RK3399,RK3566,RK3568, RK3588 CPU and Qualcomm 450, 660, Snapdragon 845 etc. Use for Pos Machine, Kiosk Machine, Digital Signage,Advertising Media Player, Vending Machine, AI Weighting Machine, Health Medical Machine and so on. 25 engineers in R&D,Production capacity 70K pieces per month.
With the mission of creating a colorful future, HRET sticks to technology-driven and market demand-oriented and solidly stands in the AIOT industry forefront, welcome to realise this together with us.
Our Service
1.Product Customization
Our standard products can be branded according to your needs. The color tones, finishing, logo
silkscreen can all be customized to give the products in line with your company image and style.
2.Custom Design
Our product design team can help you design your customized product with different form factors,
custom features and functionalities. From electronics, industrial design, artwork design, tooling and
packaging, our experienced electronic, mechanical and industrial design team can offer a tailor-made solution and deliver a unique product for your company.
3.Software Development Kit
Our devices have the best coverage of different models running on different platforms. An easy-to-use SDK is available for
integration into your own App. The SDK comes with an integration guide and a sample project example. This is your best choice for a customized payment application.
4.Custom App
l Our application team can help you design your application on different platforms. Our expertise on both app development and the payment industry can help us provide best service on the design of payment applications.
5.Warranty
We provide one year warranty for main device as well as 24 hours online service to help you out.
Company Certificate
FAQ
1. Can you accept OEM ?
Yes, we can develop POS frames as you request.
2. How can I get the touch POS terminal sample to check quality?
After price confirmation, you can order POS samples to check quality.
3. How long is your Lead Time ?
We have stock in black for each style. Sample is 1 days.
Bulk production is 3-15 days according to quantity and color request.
4. Is there cheap shipping cost to import to our country?
For small order, express will be best. And for bulk order, sea ship way is best but taking much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
5. How long is the warranty period?
Touch screen POS terminal warranty is 6 months.CPU ,main-board is 1 years.
6. Do you offer other relevant items?
Yes, we do. We are offering barcode scanner, thermal receipt printer, magnetic card reader, data collector and POS system.
7. If the goods are damaged badly, who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport, and we can exchange the new goods for you.
8. How do I know that you have sent the products out?
Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times.
