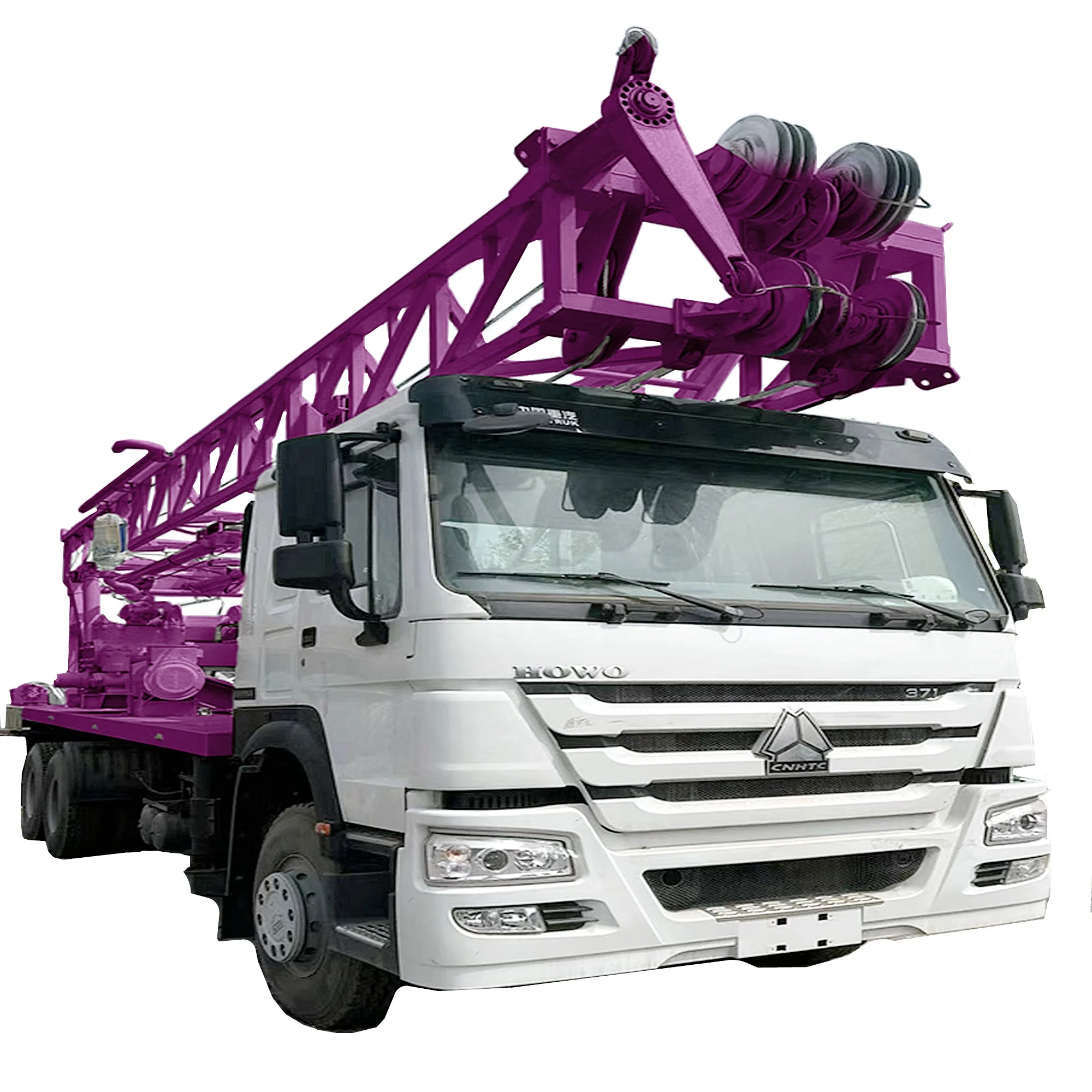

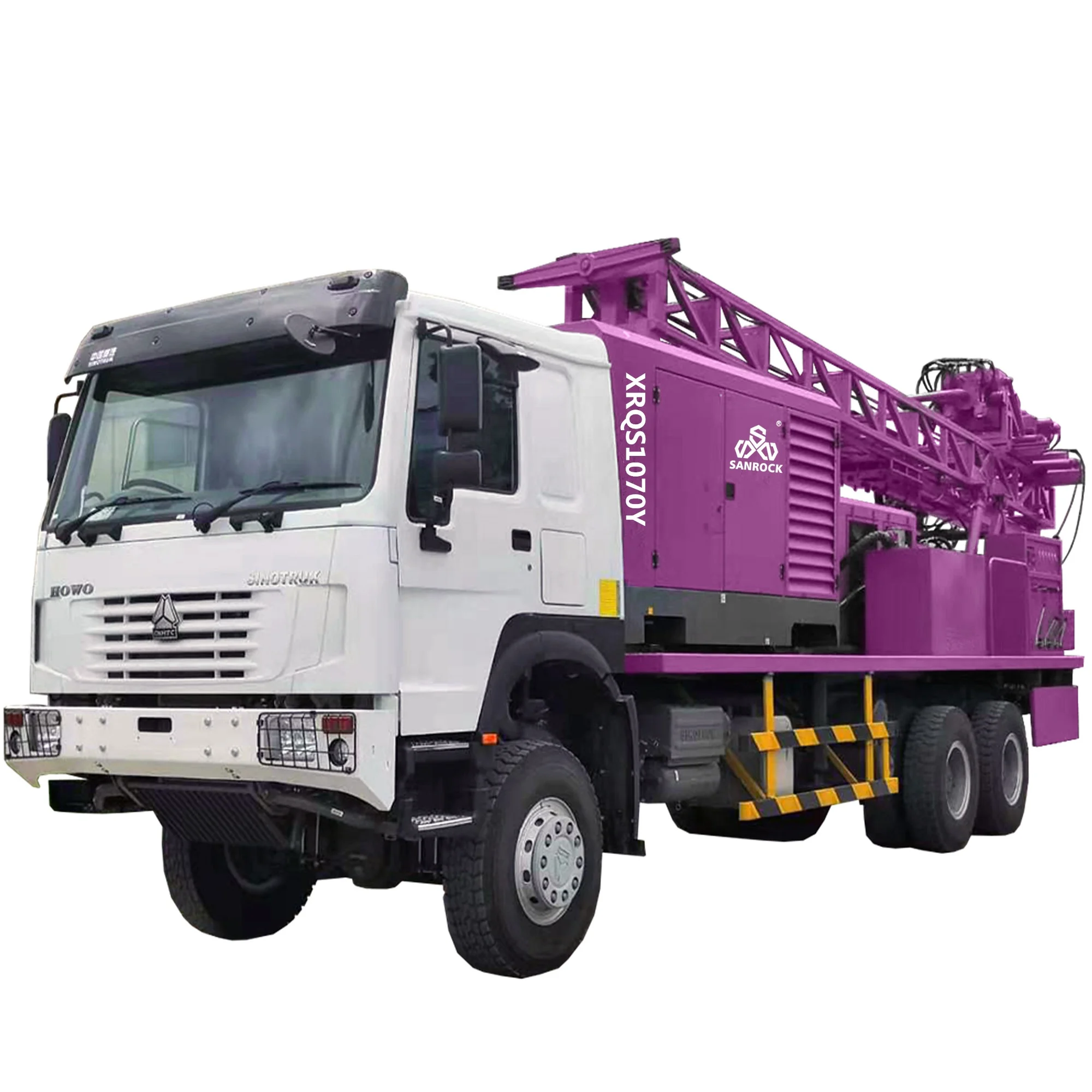

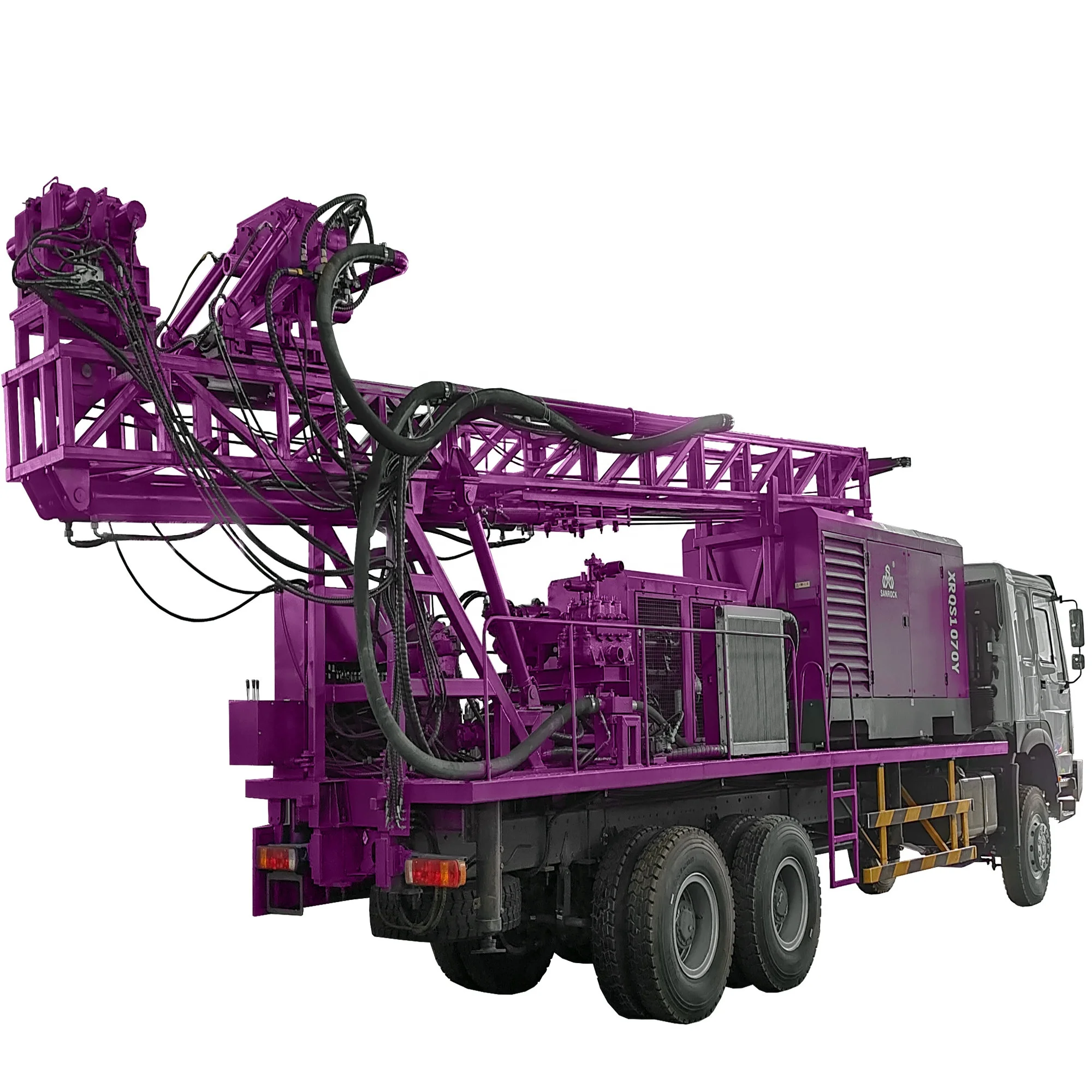

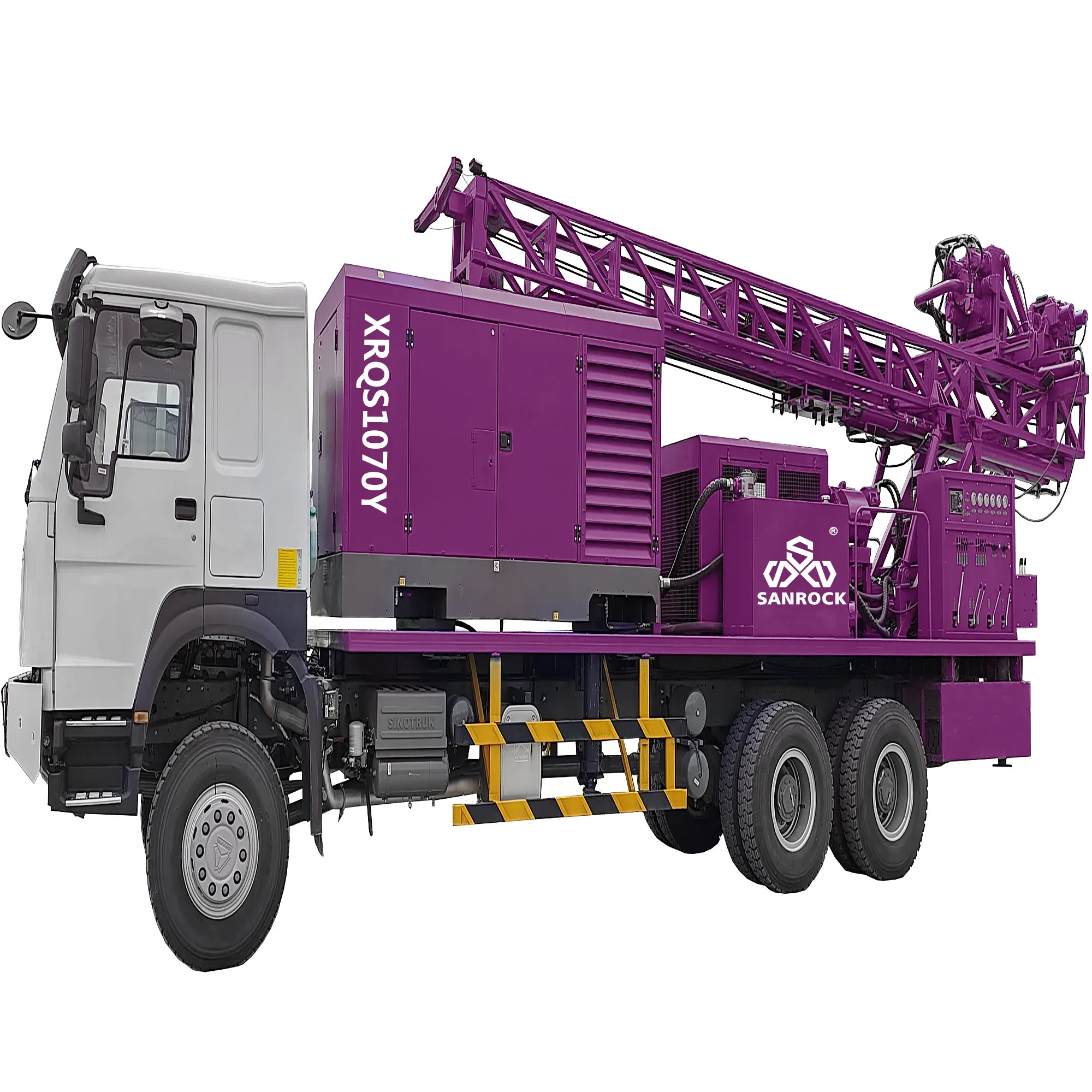

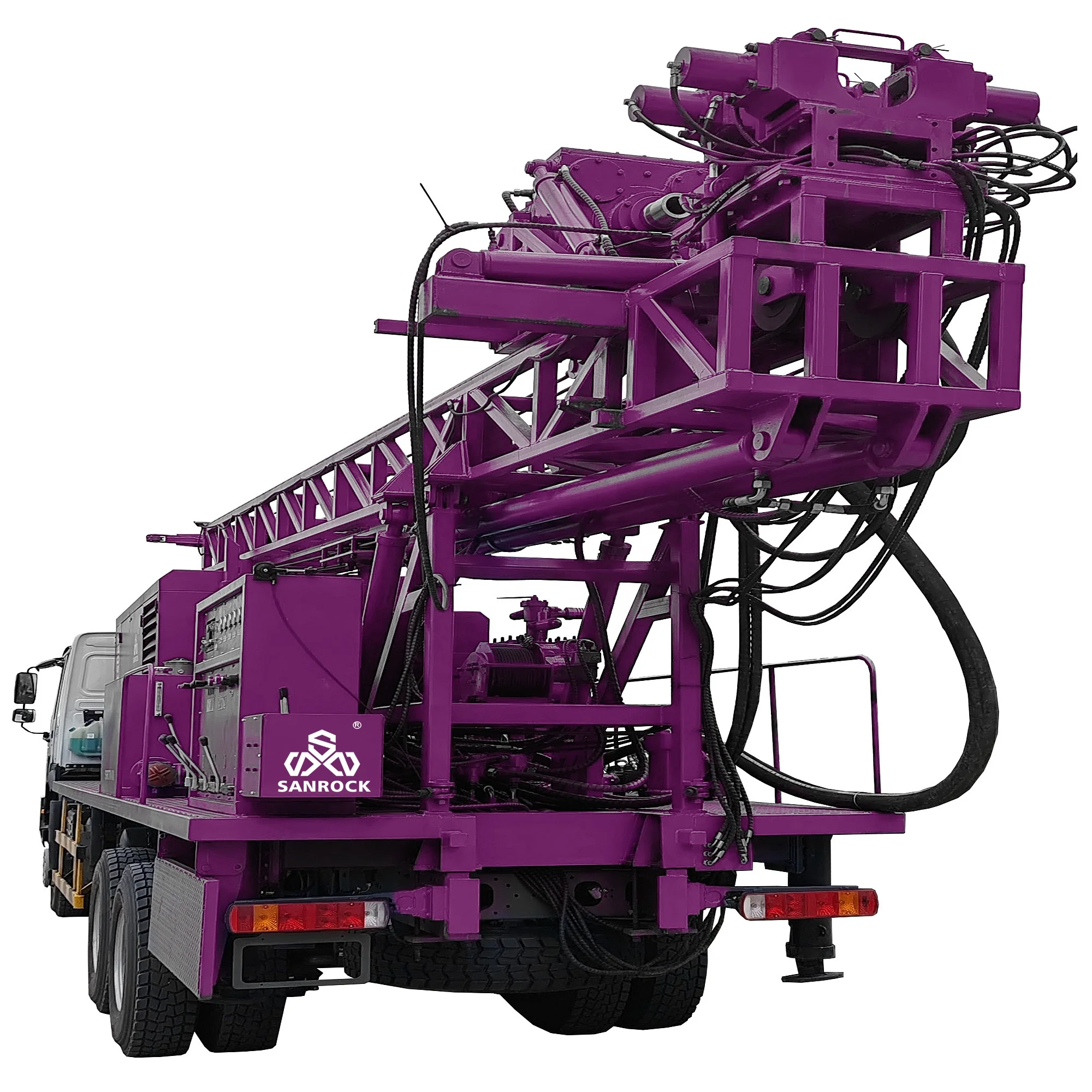

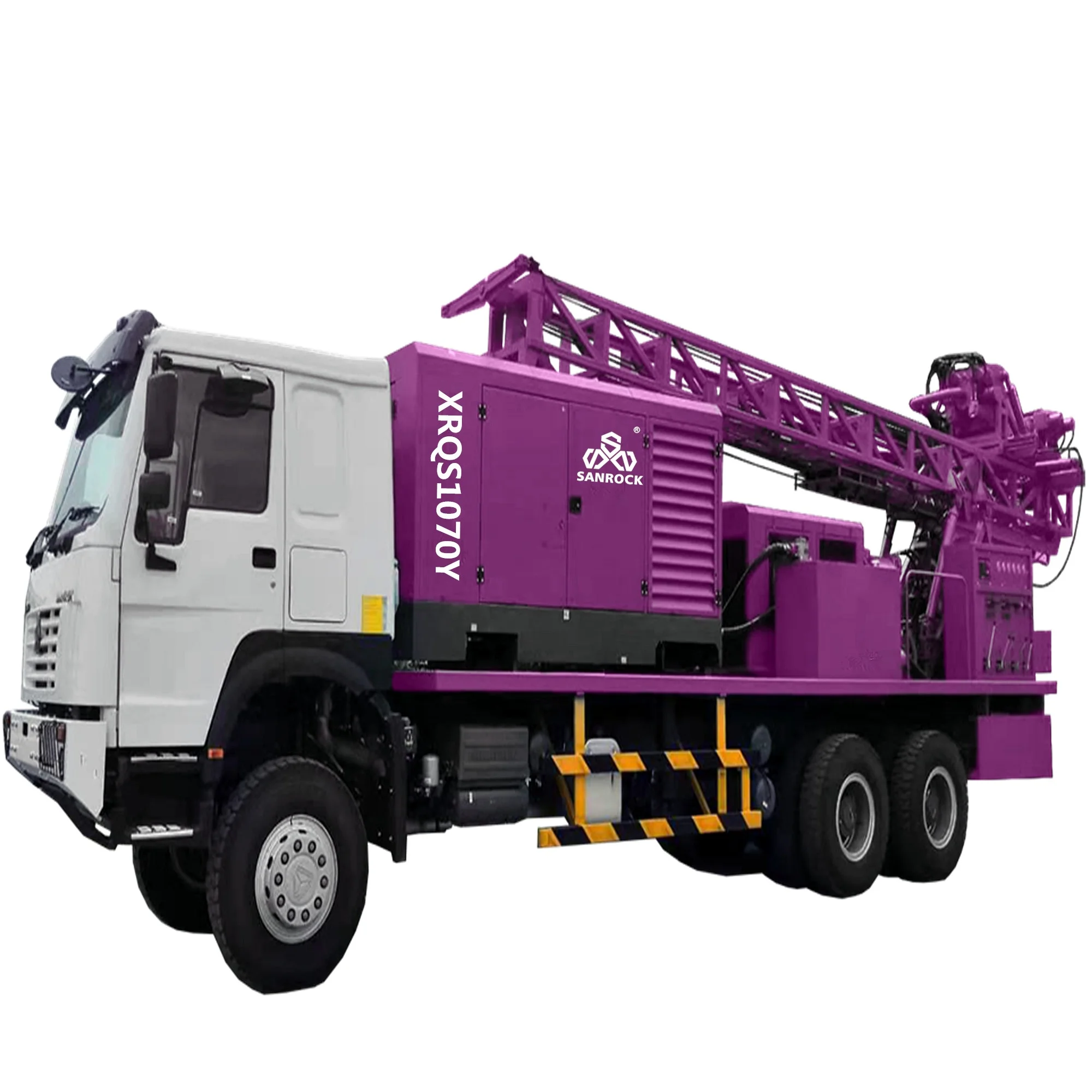

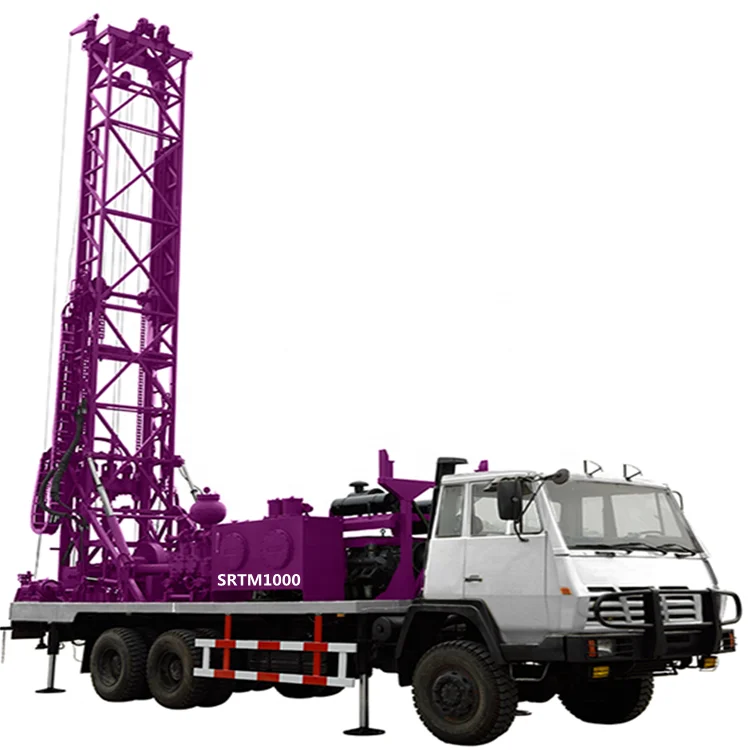

Truck Mounted Water Well Drilling Machine Hydraulic Deep Water Well Drilling Rig With Mud Pump
- Category: >>>
- Supplier: Quzhou Sanrock Heavy Industry Machinery Co. Ltd.
Share on (1600896901029):
Product Overview
Description
VR
SANROCK truck mounted versatile well drilling rig is a new, efficient and multifunctional hydraulic rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project. The rig equips with powerful hydraulic motor, heavy hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.
Features:
1.The drilling rig can use air DTH Hammer drilling and mud drilling.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The truck chassis adopts the 6X6 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The power of drilling rig comes from a diesel engine, CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
7.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
7.The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
8.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
9.Competitive in price, low cost of maintain.
1.The drilling rig can use air DTH Hammer drilling and mud drilling.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The truck chassis adopts the 6X6 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The power of drilling rig comes from a diesel engine, CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
7.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
7.The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
8.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
9.Competitive in price, low cost of maintain.
Truck Mounted Water Well Drilling Machine Hydraulic Deep Water Well Drilling Rig With Mud Pump
Products Description
SANROCK TRUCK-MOUNTED DRILLING RIG SRTM600 COMPREHENSIVE OVERVIEW | ||||||
DEPTH | 600M | 600M | 600M | |||
DRILLING DIAMETER | 268MM | 350MM | 505MM | |||
DIMENSIONS | 7500*2500*3200MM | 10500*2500*3400MM | 11500*2500*3800MM | |||
TOTAL WEIGHT | 19000KG | 25000KG | 29000KG | |||
TRUCK CHASSIS | ||||||
BRAND | SINO TRUCK/ DONGFENG | |||||
DRILLING TOWER,SECOND FLOOR CHASSIS | ||||||
DRILLING TOWER | RETRACTABLE | RETRACTABLE | FIXED PIPE RACK TYPE | |||
DRILL TOWER LOAD | 20T | 35T | 50T | |||
DRILL TOWER HEIGHT | 6M | 8M | 8M | |||
PULL DOWN | 7T | 15T | 15T | |||
PULL UP | 20T | 30T | 35T | |||
DRILLING RIG POWER | ||||||
RATED POWER | 132KW | 132KW | 165KW | |||
HOIST SINGLE ROPE PULL UP | 1T | 2T | 3T | |||
HYDRAULIC POWER HEAD | ||||||
TORQUE | 8500N.M | 11500NM | 15500N.M | |||
REVOLUTIONS | 0-90RPM | 0-90RPM | 0-90RPM | |||
OTHER PARTS AND COMPONENTS | ||||||
FOAM PUMP | B-36EX1 | |||||
FLOW | 42L/ MIN | |||||
PRESSURE | 4MPA | |||||
REVOLUTIONS | 660R/ MIN | |||||
MUD PUMP | BW450/50 | BW900/60 | BW1200/80 | |||
FLOW | 450L/ MIN | 900L/ MIN | 1200L/ MIN | |||
PRESSURE | 5MPA | 6MPA | 8MPA | |||
1. What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig，Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
5.Do you have any certificate of authorization? A: Our machinery is CE certified.
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig，Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
5.Do you have any certificate of authorization? A: Our machinery is CE certified.
