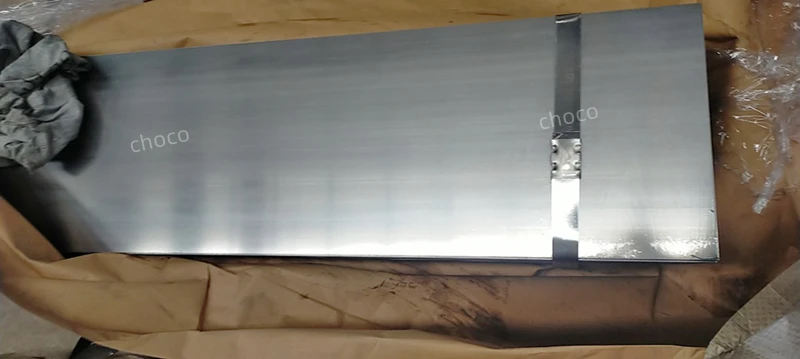

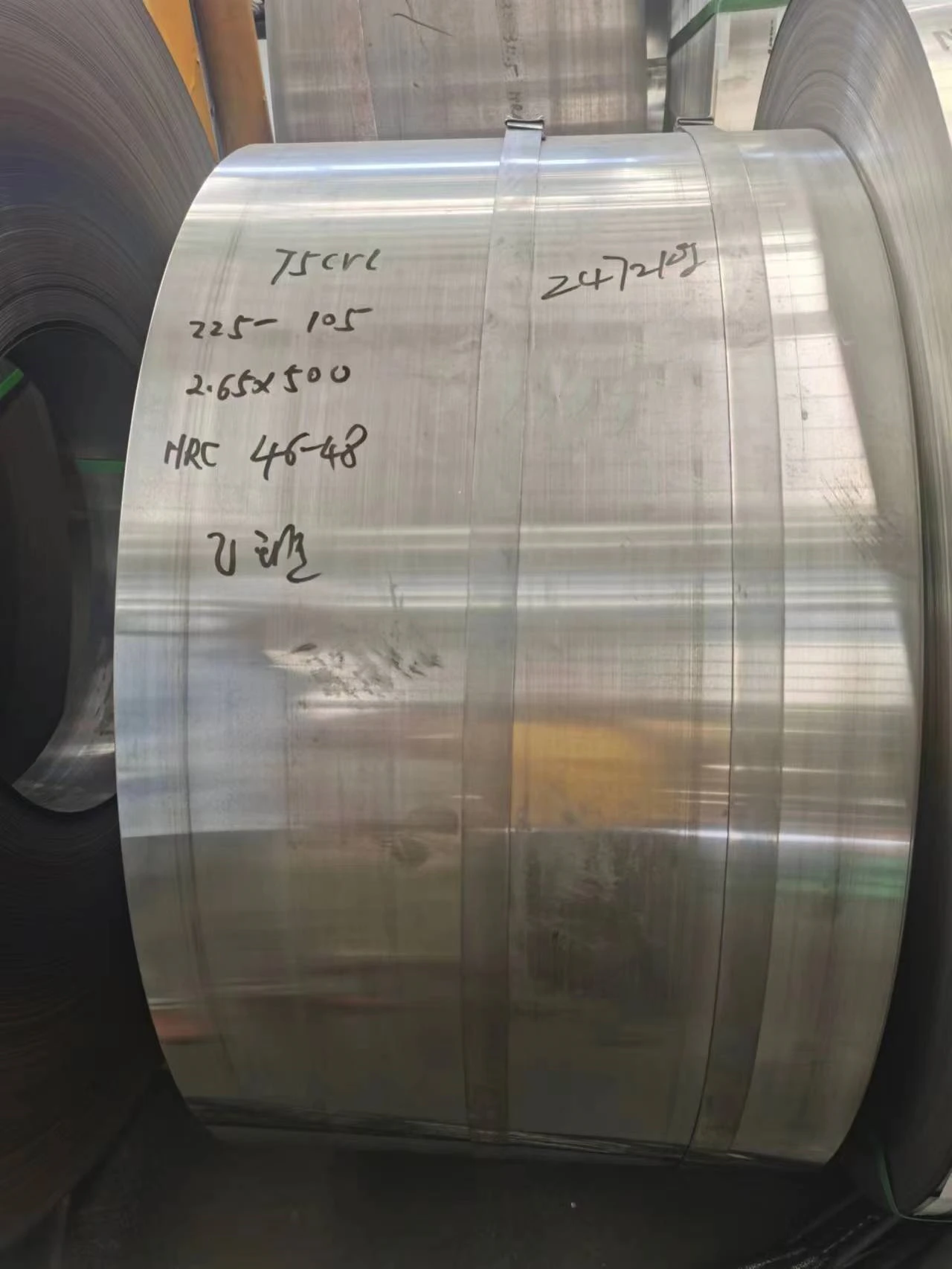

Стальная ленточная пружинная стальная полоса SK51 Высокоуглеродистая сталь для дисковой пилы
- Category: Alloy Steel >>>
- Supplier: Guangzhou Cgoodsteel Co. Ltd.
Share on (1600896904366):
Product Overview
Description
Products Description
GUANGZHOU CGOODSTEEL CO.,LTD produces cold rolled steel strip hardened tempered and cold rolled steel strip annealed with material grade CK45 CK50 CK55 CK60 CK67 CK70 CK75 CK85 CK95 50CrV4 51CrV4 60Si2Mn 75CR1 75NI8 D6A X32 B318 SK5 SK85 AISI420 etc. with the following specification,

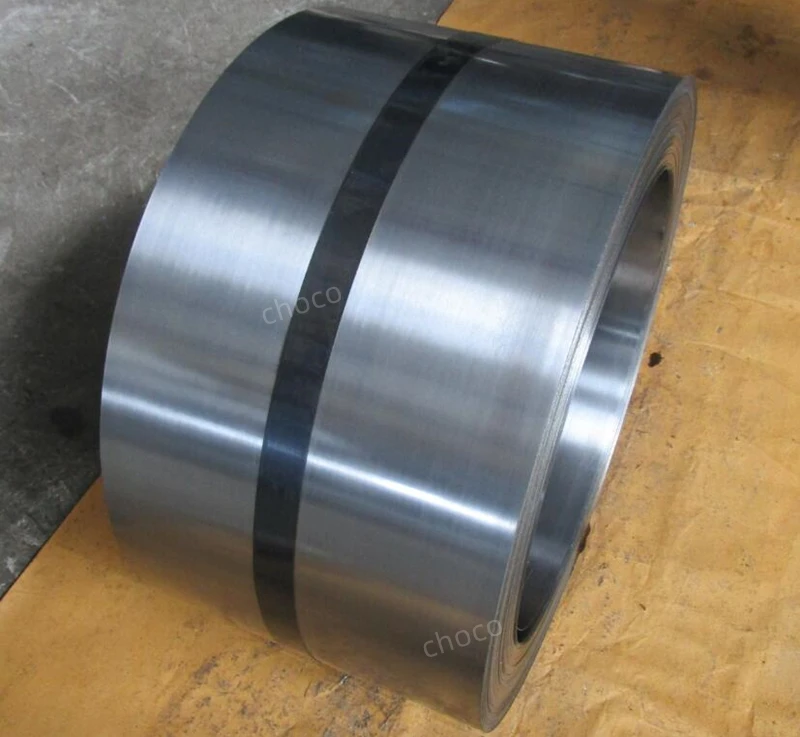

Cold rolled steel strips hardened and tempered, hardened and tempered steel strips
Thickness: 0.15mm-5.0mm
Width: 2mm-510mm
Hardness: 29-55HRC
Surface: blue, white, gold, polished etc.
Cold rolled steel strips hardened and tempered, hardened and tempered steel strips

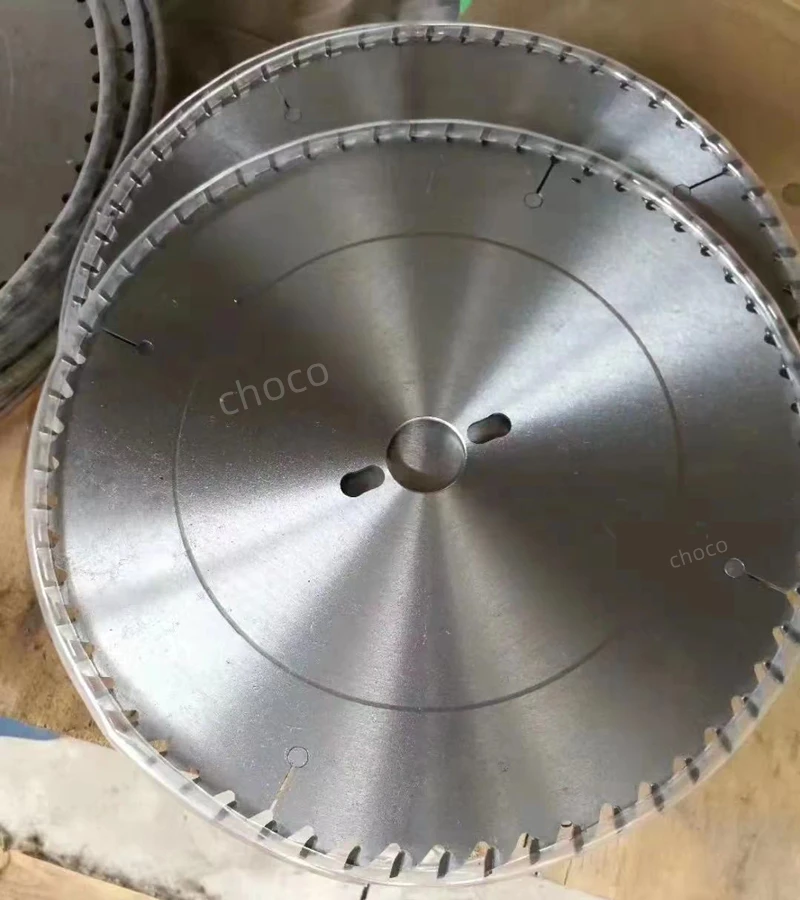

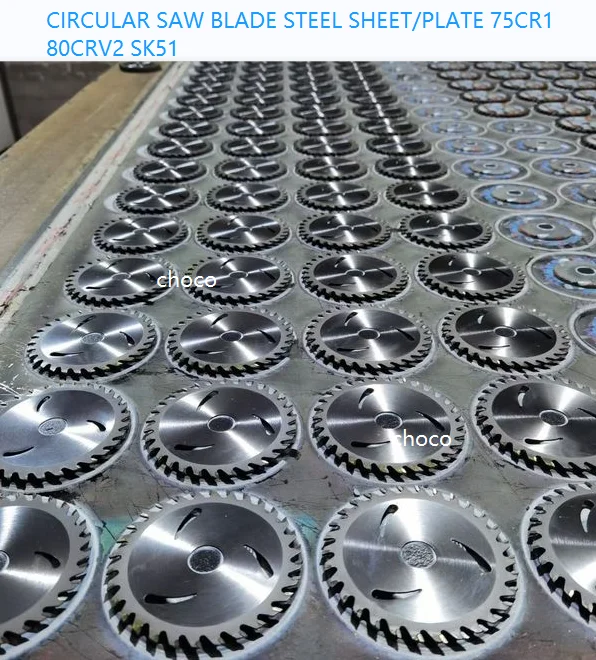

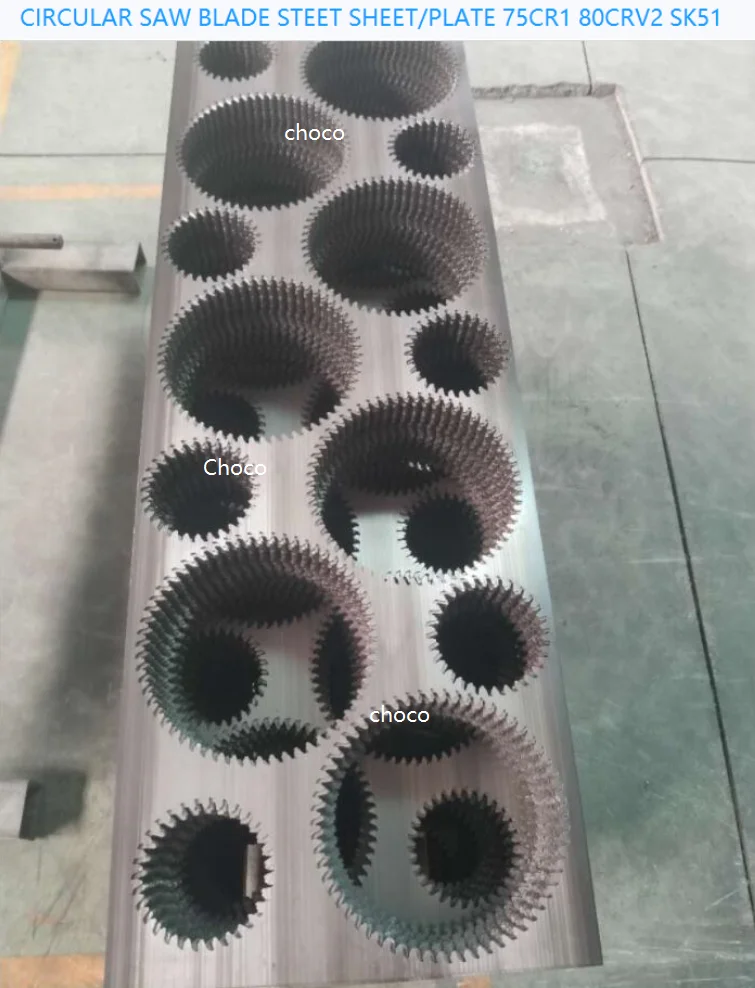

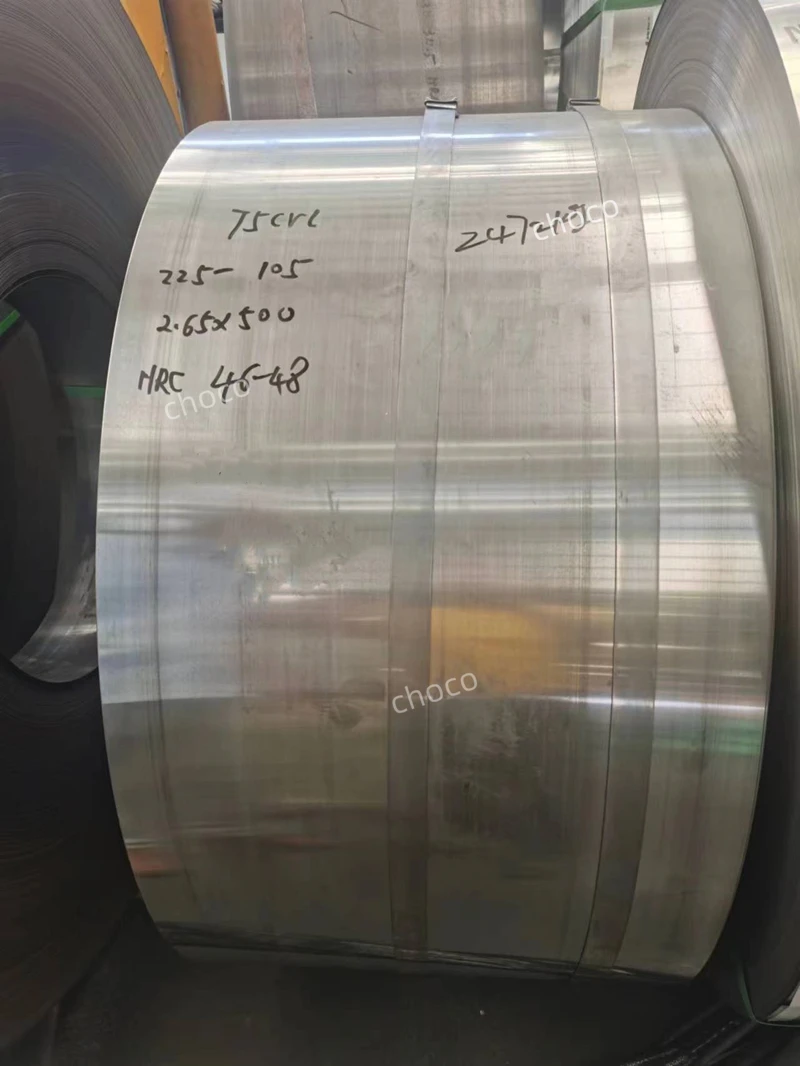

hardened and tempered 75Cr1 metal alloy steel sheet 80CrV2 steel plate for making circular saw blades
Material steel grade:
Material steel grade:
C45S C50S C55S C60S C62S C67S C70S C75S C80S C95 51CrV4 60Si2Mn 75CR1 80CRV2 75NI8 D6A X32 B318 AISI420
SAE1050 SAE1055 SAE1060 SAE1070 SAE1075 SAE1080 SAE1095
SAE1050 SAE1055 SAE1060 SAE1070 SAE1075 SAE1080 SAE1095
CK50 CKK55 CK60 CK67 CK70 CK75 CK95 65G
B318 Alloy carbon steel strip
X32 Alloy carbon steel strip
D6A Alloy carbon steel strip
HSS M42+D6A Bimetal steel strip
HSS M42+X32 Bimetal steel strip
HSS M51+X32 Bimetal steel strip
HSS M51+D6A Bimetal steel strip
X32 Alloy carbon steel strip
D6A Alloy carbon steel strip
HSS M42+D6A Bimetal steel strip
HSS M42+X32 Bimetal steel strip
HSS M51+X32 Bimetal steel strip
HSS M51+D6A Bimetal steel strip
Thickness: 0.15mm-5.0mm
Width: 2mm-510mm
Hardness: 29-55HRC
Surface: blue, white, gold, polished etc.
Edge: slit, rounded, square
Applications: these strips are widely used for making all kinds of saw blade(wood band saw blade, circular saw blade, gang saw blade, jig saw blade etc.), steel springs, metal parts, clips, hand tools, construction tools, auto spare parts, coil springs, steel for masonary tools which do not require severe bending or forming
Applications: these strips are widely used for making all kinds of saw blade(wood band saw blade, circular saw blade, gang saw blade, jig saw blade etc.), steel springs, metal parts, clips, hand tools, construction tools, auto spare parts, coil springs, steel for masonary tools which do not require severe bending or forming
Hardened And Tempered Steel Sheet For Making Circular Saw Blades | ||||||||
Steel Strip Product Name | hardened and tempered 75Cr1 metal alloy steel sheet 80CrV2 steel plate for making circular saw blades | |||||||
Hardened And Tempered Steel Strip | Hardening and Tempering is a thermal process that strengthens steel strips through a controlled heating and cooling process. The hardening process involves heating the steel strip to above the critical transformation temperature for the given grade and then rapidly cooling. The steel strip in this condition is extremely brittle and requires further treatment in the tempering. Then strips are reheated to a lower temperature and holding it at the given temperature for a given period of time. This process is done in an inert atmosphere to avoid oxidation. This type of steel strip has high degree of toughness and has excellent spring properties. | |||||||
Spring Steel Strip Material Grade | C45S C50S C55S C60S C62S C67S C70S C75S C80S C95 51CrV4 60Si2Mn 75CR1 80CRV2 75NI8 D6A X32 B318 AISI420 SAE1050 SAE1055 SAE1060 SAE1070 SAE1075 SAE1080 SAE1095 CK50 CKK55 CK60 CK67 CK70 CK75 CK95 65G Hardened and tempered steel sheet 75Cr1 80CrV2 for making circular saw blades B318 Alloy carbon steel strip X32 Alloy carbon steel strip D6A Alloy carbon steel strip HSS M42+D6A Bimetal steel strip HSS M42+X32 Bimetal steel strip HSS M51+X32 Bimetal steel strip HSS M51+D6A Bimetal steel strip | |||||||
Spring Steel Strip Thickness | 0.15mm-5.0mm | |||||||
Spring Steel Strip Width | 2mm - 510mm | |||||||
Spring Steel Strip Surface | Blue, white, gold, polished etc. | |||||||
Spring Steel Strip Application for | 1. spring steel strip for band saw blade 2. carbon steel sheet for circular saw blade 3. alloy steel sheet for gang saw blade 4. hardened and tempered steel strip for trowel 5. puertas enrollables | |||||||
Standard | DIN 172222 | |||||||
Sample and Price | Ms. Choco (whatsAPP/Mob: +86-13828430544 band saw blade factory) | |||||||

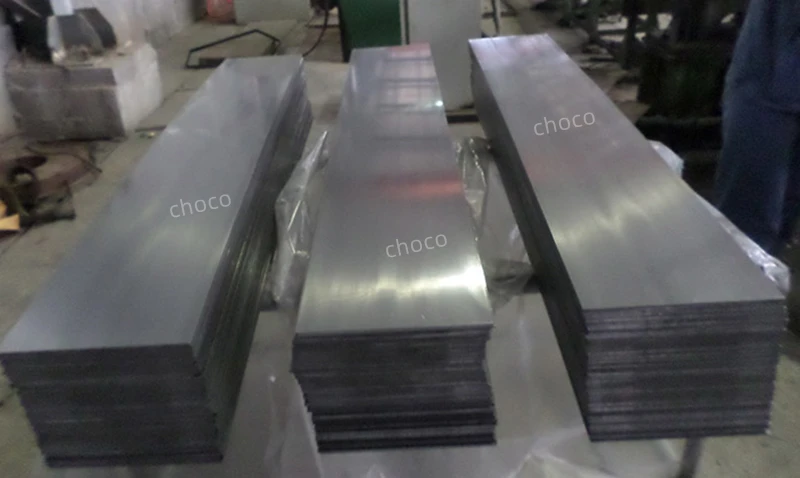

DIMENTIONS(MM) FOR CIRCULAR SAW BLADE'S APPLICATION(CUSTOMIZED) | ||||||||
2.25*310*1240 | 2.45*260*1050 | 2.65*210*1020 | 2.55*360*1080 | 2.25*510*1000 | ||||
1.65*500*1090 | 2.45*505*1010 | 2.84*465*1840 | 3.24*505*1505 | 2.84*455*1805 | ||||
2.54*355*1405 | 1.8*510*1530 | 3.25*560*1120 | 2.55*410*440 | 2.45*510*1000 | ||||
2.65*510*1000 | 3.2*505*1505 | |||||||
Strictly Quality Test Before Delivery
---Cgood steel well know the most import features of the hardened and tempered steel strip material, so we will test
1)hardness test
2)flatness test
3)straightness test
4)thickness test

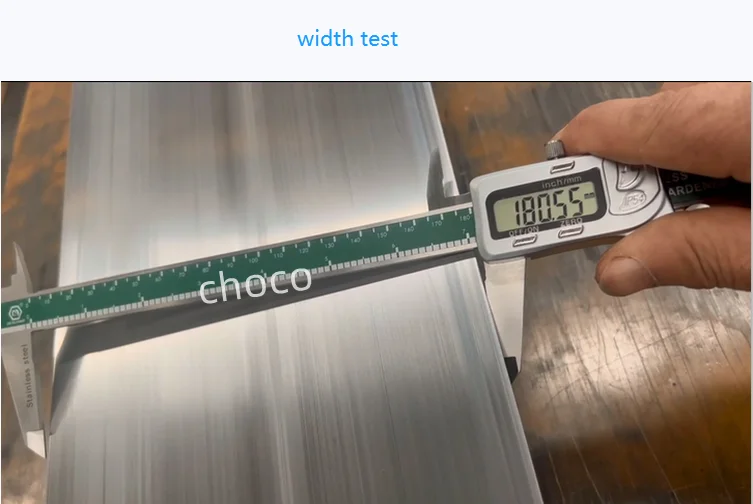

5)width test
6)microstructure test
during and after the production, so that we can make sure our material suitable for customer's requirements.
during and after the production, so that we can make sure our material suitable for customer's requirements.

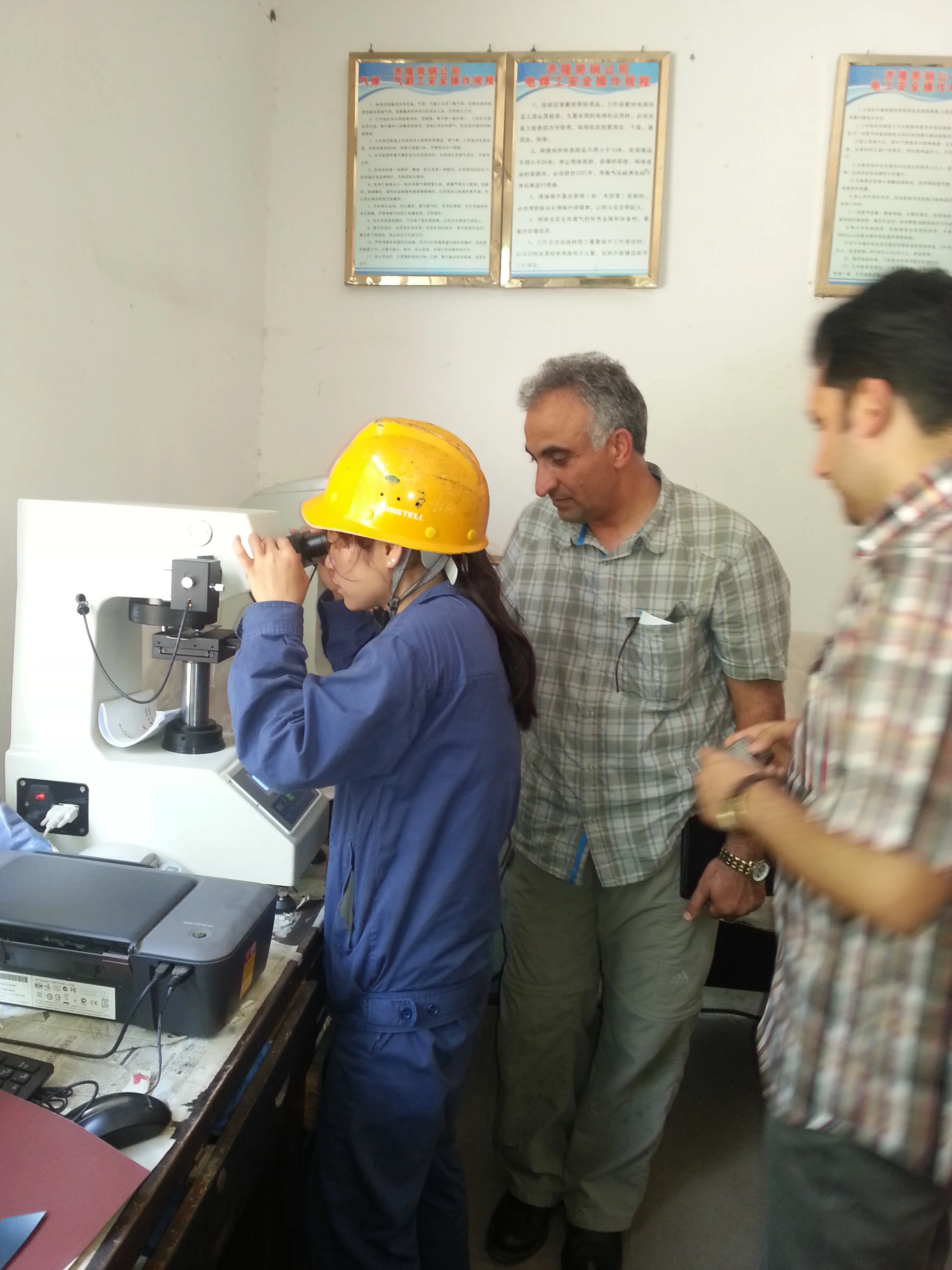

Hardness test for hardened and tempered steel strip
Cgood steel will make the hardness test during the production, so that we can keep uniform of the hardness of all materials that we produce, we will strictly control on our quality. All materials shall be measured on customer's requirement scale.

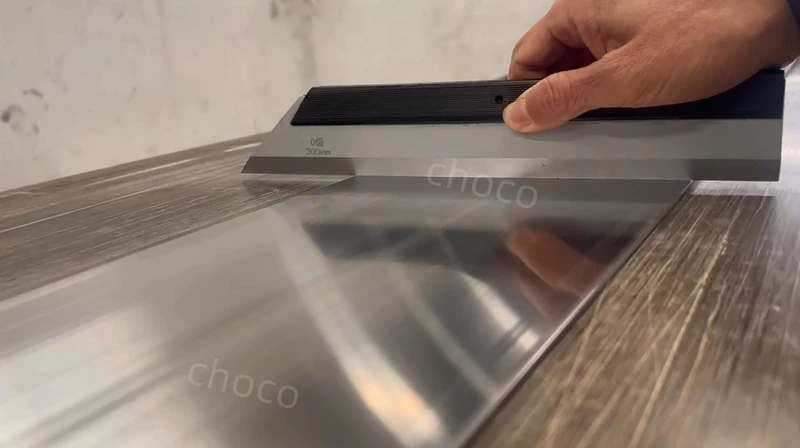

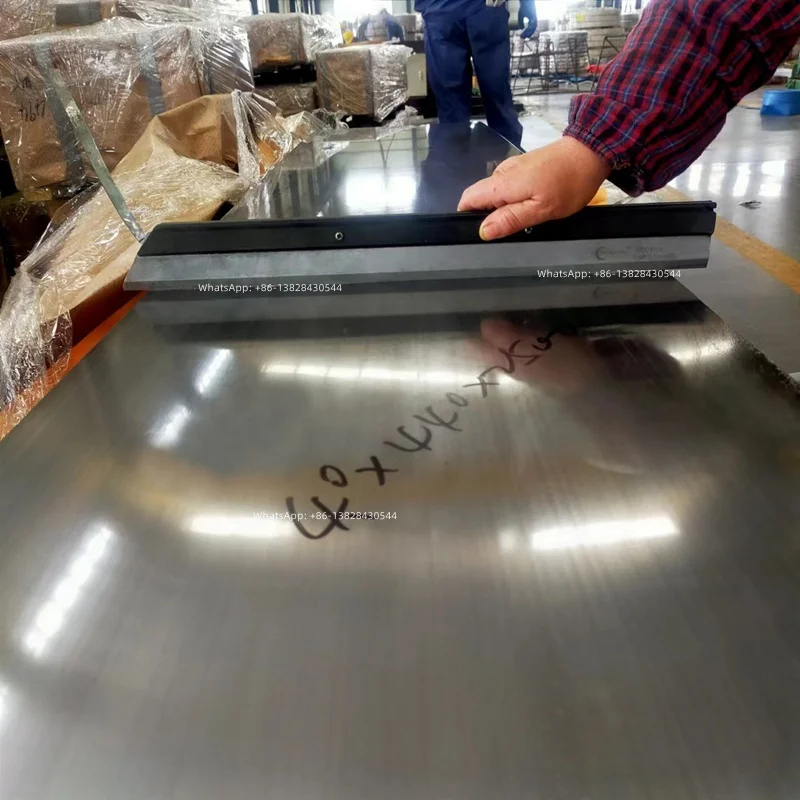

Flatness test for hardened and tempered steel strip
The unflatness across the strip (also called cross camber and cross bow) is expressed as a percentage of the strip width. The unflatness along the strip, sometimes called coil-set, is also expressed as a percentage. Unless otherwise agreed upon the measuring length = the strip width for flatness measurements along and across the strip. Influence of possible residual stresses from slitting shall be excluded.
Tolerance Maximum permitted deviation class
P1 0.4mm
P2 0.3mm
P3 0.2mm
P4 0.1mm

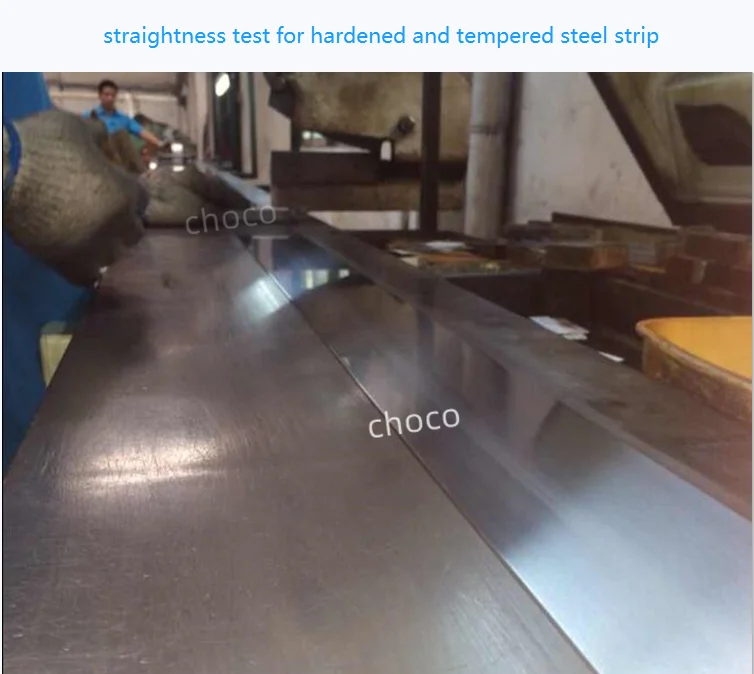

Straightness test for hardened and tempered steel strip

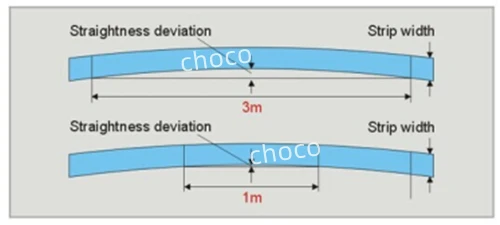

Straightness deviation is specified in millimeters and defined as lateral deviation of the edge from a straight line as shown in the graphic. The straightness deviation is stated as edge camber(bow) and measured over a strip length of 1 or 3 meters. Straightness tolerance depends on the strip width and is given as one of five straightness classification groups (R).
Tolerance class | Strip Width | ||||||||||||||
8 - (20) mm | 20 - (50) mm | 50 - (125) mm | 125mm~ | ||||||||||||
Measuring length | |||||||||||||||
1m | 3m | 1m | 3m | 1m | 3m | 1m | 3m | ||||||||
Maximum allowed straightness deviation (mm) | |||||||||||||||
R1 | 5 | 45 | 3.5 | 31.5 | 2.5 | 22.5 | 2 | 18 | |||||||
R2 | 2 | 18 | 1.5 | 13.5 | 1.25 | 11.3 | 1 | 9 | |||||||
R3 | 1.5 | 13.5 | 1 | 9 | 0.8 | 7.2 | 0.5 | 4.5 | |||||||
R4 | 1 | 9 | 0.7 | 6.3 | 0.5 | 4.5 | 0.3 | 2.7 | |||||||
R9 | As per customer`s special requirement | ||||||||||||||

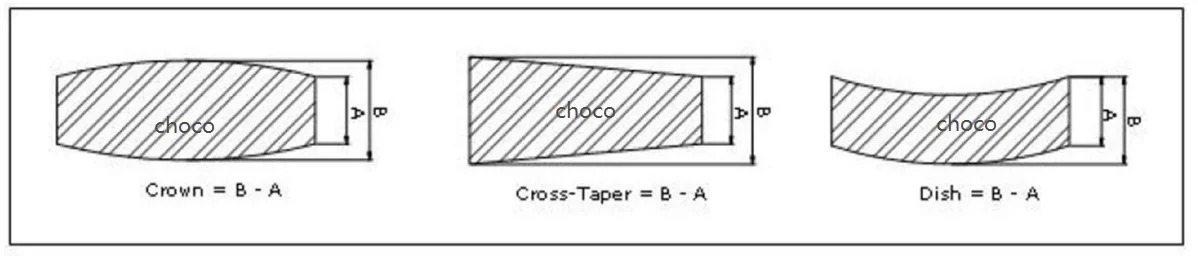

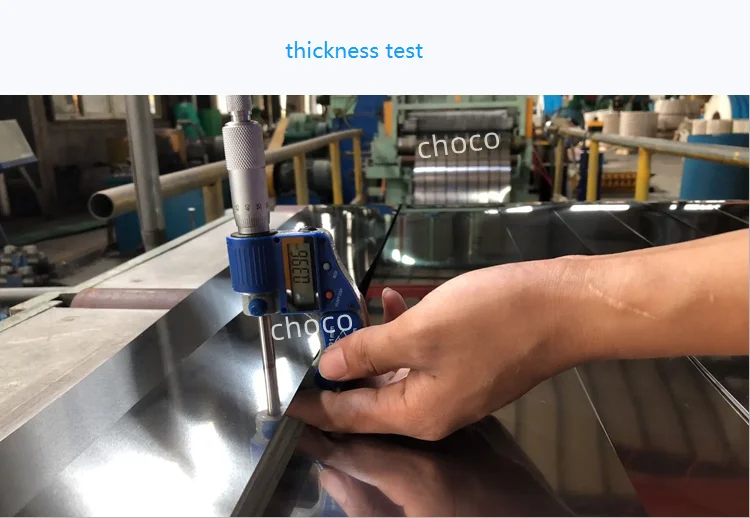

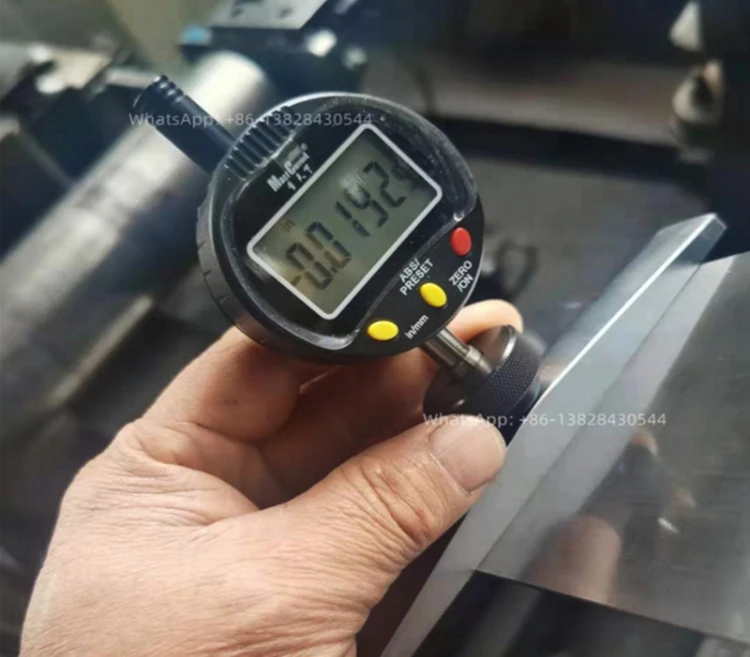

Thickness test for hardened and tempered steel strip
According to our standard tolerance on thickness for +/- 0.015-+/-0.07mm for different thickness requirement
Thickness tolerance | ||||||||
Thickness mm | Standard tolerance +/- mm | |||||||
<0.25 | +/-0.015 | |||||||
0.25-0.40 | +/-0.020 | |||||||
0.40-0.60 | +/-0.025 | |||||||
0.60-0.90 | +/-0.030 | |||||||
0.90-120 | +/-0.040 | |||||||
1.20-1.60 | +/-0.050 | |||||||
1.60-2.10 | +/-0.055 | |||||||
2.1.0-2.60 | +/-0.060 | |||||||
2.60-3.20 | +/-0.065 | |||||||
3.20-5.00 | +/-0.070 | |||||||
Thickness mm | Width tolerance +/- mm | Width tolerance +/- mm | |||||
Thickness mm | <50 | 50-100 | 100-200 | 200-500 | |||
<0.30 | +/-0.30 | +/-0.35 | - | - | |||
0.30-0.60 | +/-0.20 | +/-0.30 | +/-0.50 | +/-0.80 | |||
0.60-1.20 | +/-0.20 | +/-0.25 | +/-0.50 | +/-0.80 | |||
1.20-1.60 | +/-0.20 | +/-0.25 | +/-0.50 | +/-0.80 | |||
1.60-3.20 | +/-0.20 | +/-0.25 | +/-0.50 | +/-0.80 | |||

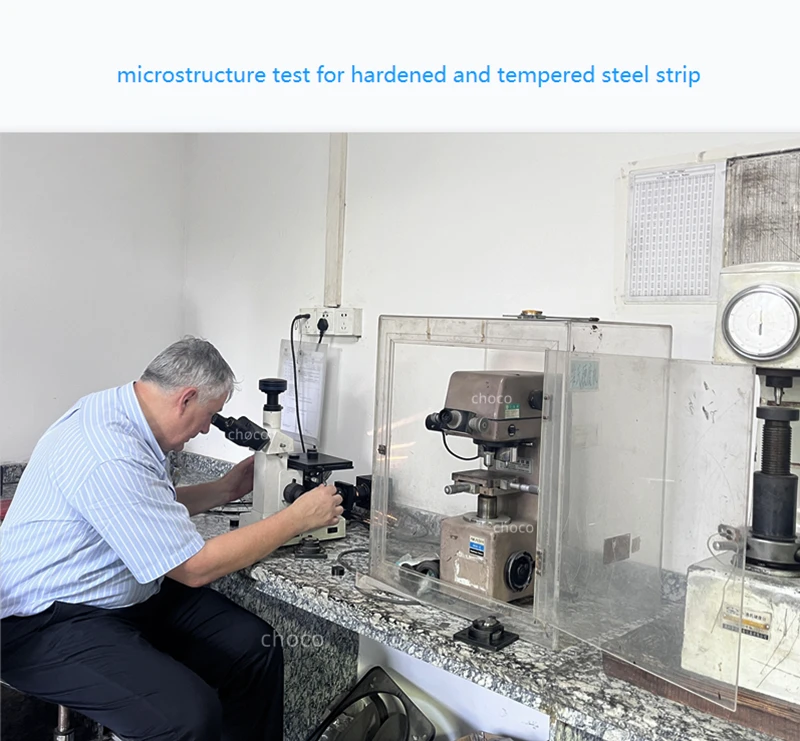

Microstructure test for hardened and tempered steel strip
Cgood hardened and tempered steel strip shall be fully hardened and tempered with non-dissolved carbides uniformly distributed in a tempered martensitic matrix.

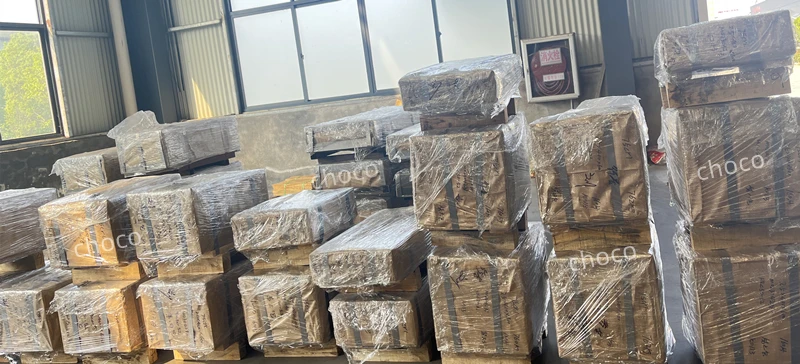

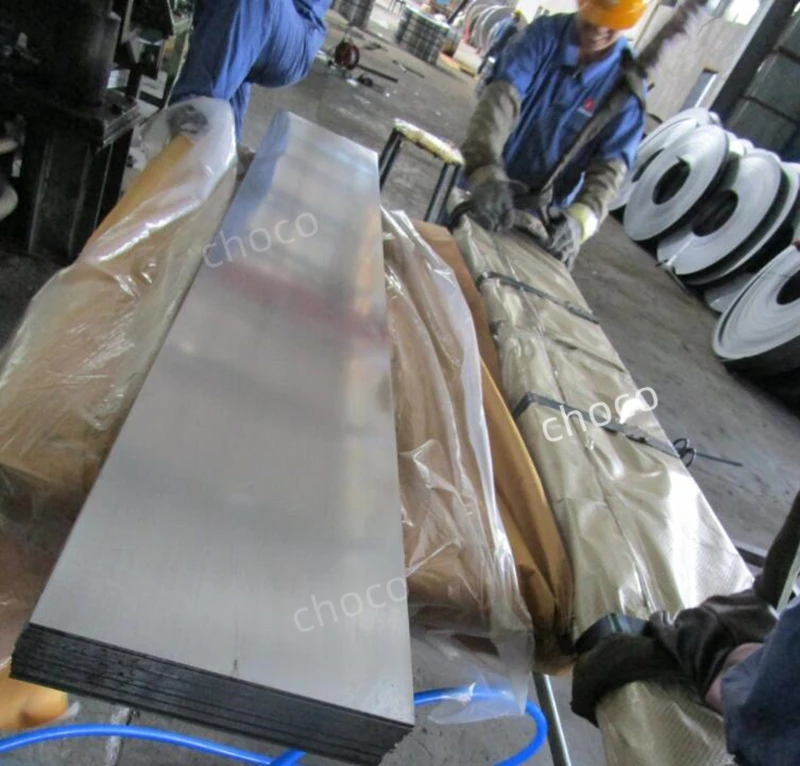

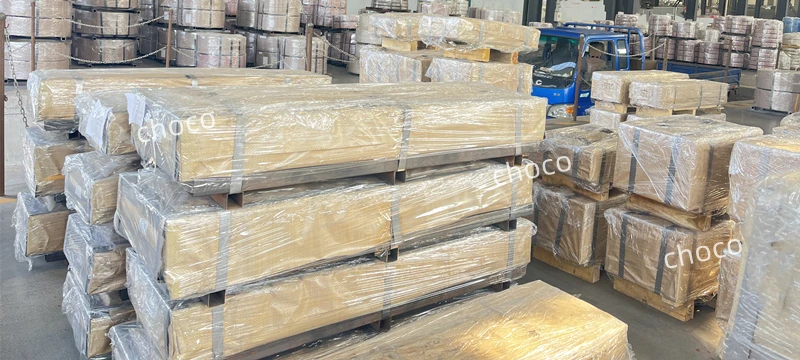

Packing & Delivery
Company Profile
High Precision Band Saw Blade Steel Strip With ISO Certificate
We have different material grades of raw material for wood cutting, meat cutting, metal cutting steel blade, etc.
Carbon Steel: C67, C75, C85, C95, C100S
Alloy Steel: SK4, SK5, 75Cr1, 75Ni8, SK85
Stainless Steel: 304, 420J2
Bi-metal: M42, M51, D6A, X32, B318
Please contact Ms Choco for more details
Email: chocoliang@cgoodsaws.com
Mob/whatsAPP/wechat: +86-138 284 30544
Carbon Steel: C67, C75, C85, C95, C100S
Alloy Steel: SK4, SK5, 75Cr1, 75Ni8, SK85
Stainless Steel: 304, 420J2
Bi-metal: M42, M51, D6A, X32, B318
Please contact Ms Choco for more details
Email: chocoliang@cgoodsaws.com
Mob/whatsAPP/wechat: +86-138 284 30544
We also produce high precision steel strip production and specialized in the manufacture excellent quality of band saw blade, cold rolled heat treating steel strips(hardened and tempered steel strip as well as cold rolled annealed steel strips) with material grades DIN standard
ck50,ck55,ck60,ck67,ck70,ck75, c80,ck95, 60Si2Mn, 50CrV4, 51CrV4, SK5,SK85, SK51, etc, (SAE standard: 1050, 1055, 1060, 1065,1070,1075, 1095, 6150), and Europe standard C45, C50, C55, C60, C65, C70,C75, C80, C85, C95 etc. We have highly competent,experienced and enthusiastic engineers in factory who understand and learn the customers which will continuously improve our products and our business.Our core value is SAFETY FIRST, QUALITY SUPPERIO. Combined with their experience and technology, dependent upon the advanced reliable equipment and efficient management system, our team are enable to fulfills the customer’s expectation of providing theg ood quality material and good service.
Each process from the crude material till the end product is accordance with national and international standard including
chemical compositions,mechanical properties: hardness, tensile strength, elongation, yield, flatness, tolerance, edge, polish and tempering color are always controlled strictly, guaranteed all the steel products designed to meet the most exacting requirements.
Located in the Chinese mainland Town of manganese in Jiangxi Province, our factory covers over an area of 2 acres 5000 Square meters workshop,110 employees including professional technical Engineers with an monthly output of high-quality more than 1500 tons of heating treating steel. 70% for exporting over sea market , the customers Whom as importer ,trader ,broker, end users come from South America, Europe, Middle East , Far East Countries, The Arabian Peninsula , South Africa & the others.
ck50,ck55,ck60,ck67,ck70,ck75, c80,ck95, 60Si2Mn, 50CrV4, 51CrV4, SK5,SK85, SK51, etc, (SAE standard: 1050, 1055, 1060, 1065,1070,1075, 1095, 6150), and Europe standard C45, C50, C55, C60, C65, C70,C75, C80, C85, C95 etc. We have highly competent,experienced and enthusiastic engineers in factory who understand and learn the customers which will continuously improve our products and our business.Our core value is SAFETY FIRST, QUALITY SUPPERIO. Combined with their experience and technology, dependent upon the advanced reliable equipment and efficient management system, our team are enable to fulfills the customer’s expectation of providing theg ood quality material and good service.
Each process from the crude material till the end product is accordance with national and international standard including
chemical compositions,mechanical properties: hardness, tensile strength, elongation, yield, flatness, tolerance, edge, polish and tempering color are always controlled strictly, guaranteed all the steel products designed to meet the most exacting requirements.
Located in the Chinese mainland Town of manganese in Jiangxi Province, our factory covers over an area of 2 acres 5000 Square meters workshop,110 employees including professional technical Engineers with an monthly output of high-quality more than 1500 tons of heating treating steel. 70% for exporting over sea market , the customers Whom as importer ,trader ,broker, end users come from South America, Europe, Middle East , Far East Countries, The Arabian Peninsula , South Africa & the others.
