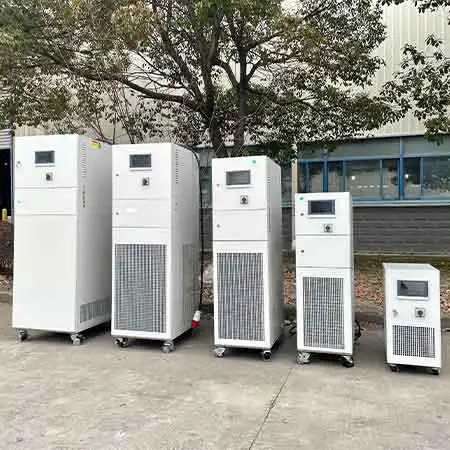

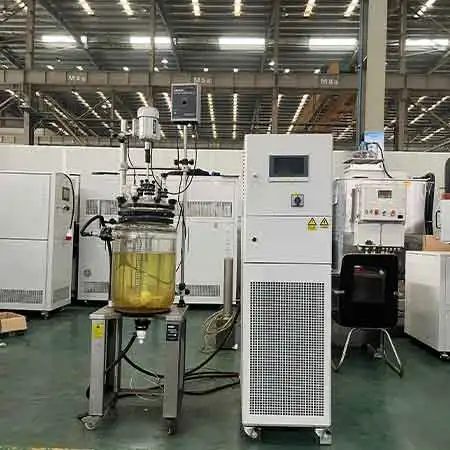

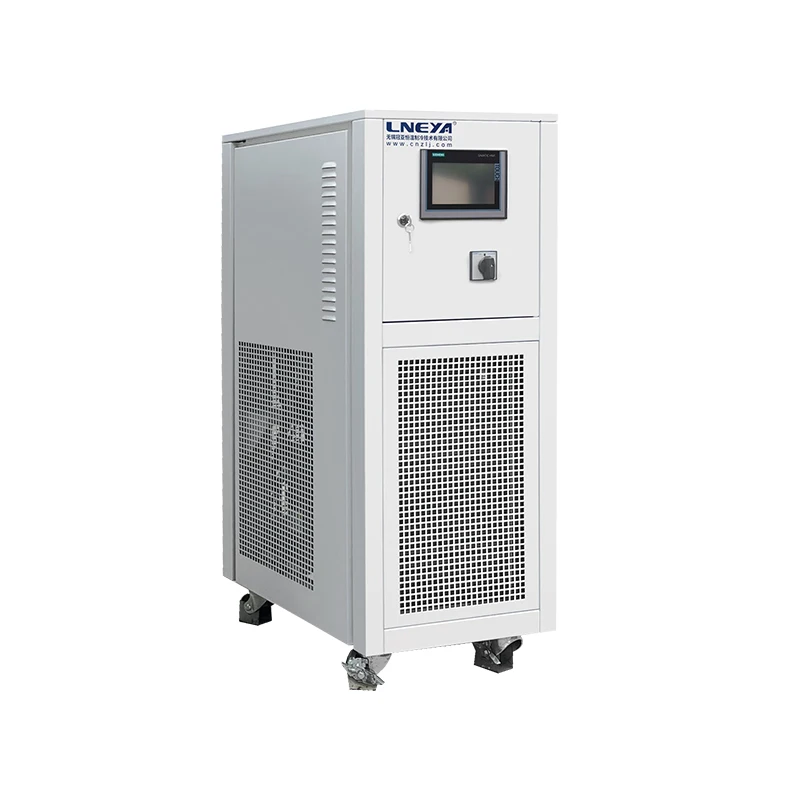

Temperature Control Heating Chiller For Reactors






Products Description






Advantages of industrial cooling and heating chiller
When the temperature is high, there is no evaporation of heat conducting medium, and the continuous temperature control of -90 ~ 195℃，-70 ~ 220℃，-55 ~ 250℃ and -25 ~ 300℃ can be realized without pressure.
Our industrial chiller adopt the design of fully closed pipeline, reduce the demand of heat-transfer fluid, improve the heat utilization rate of the system, and achieve rapid temperature rise and fall. The heat conducting medium in the expansion vessel does not participate in the circulation, which can reduce the risk of moisture absorption during the operation of the heat conducting medium.


Features of cooling and heating system:

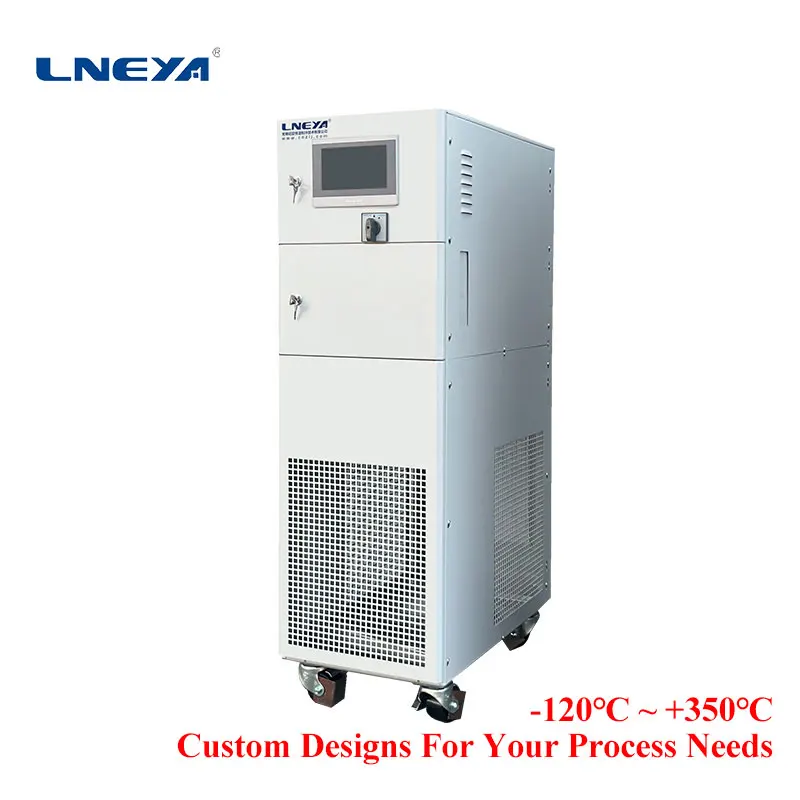

* Temperature range of LNEYA temperature control system: - 120 ~ + 350 ℃
* Superior performance, high precision and intelligent temperature control
* Produce super stable and repeatable results
* Plate heat exchanger and pipe heater are used to improve the heating and cooling rate
* Refrigerating power: 0.5 ~ 1200kW
* There is no need to replace the liquid medium
* LNEYA chiller adopts fully closed system to prolong the service life of heat conducting liquid
* Graphic display of 7-inch and 10 inch color FTF touch screen
* Multi-functional alarm system and safety device
* Ultra high temperature cooling technology, direct cooling from 300 ℃
* The magnetic drive pump is adopted, and there is no problem of shaft seal leakage






Product Paramenters


Model - 1
SUNDI-
225(W)
SUNDI-
235(W)
SUNDI-
255(W)
SUNDI-
275(W)
SUNDI-2A10(W)
SUNDI-
2A15(W)
Temp range
-25 ~ 200°C (optional: -120 ~ 350℃)
Heating power (KW)
2.5
3.5
5.5
7.5
10
15
Cooling capacity (KW) AT
200℃
2.5
3.5
5.5
7.5
10
15
100℃
2.5
3.5
5.5
7.5
10
15
50℃
2.5
3.5
5.5
7.5
10
15
20℃
2.5
3.5
5.5
7.5
10
15
-5℃
2
3
4.5
6.6
8
12
-20℃
1
1.8
2.8
3.8
4.6
7
Circulation pump max L/min
bar
20
35
35
50
50
110
Circulation pump max L/min bar
2
2
2
2
2.5
2.5
Refrigerant
R-404A/R507C
Connection size
G1/2
G3/4
G3/4
G1
G1
G1
Dimension cm
45*65*120
50*85*130
50*85*130
55*100*175
70*100*175
70*100*175
Weight kg
115
165
185
230
280
300
Power max
380V 50HZ
AC220V 4KW
6KW
8KW
11KW
14KW
21KW


Model - 2

SUNDI-
2A25
SUNDI-
2A38W
SUNDI-
2A60W
SUNDI-
2A95W
SUNDI-2A130W
SUNDI-
2A200W
Temp range
-25 ~ 200°C (optional: -120 ~ 350℃)
Heating power (KW)
25
38
60
95
130
200
Cooling capacity (KW) AT
200℃
25
38
60
95
130
200
100℃
25
38
60
95
130
200
50℃
25
38
60
95
130
200
20℃
25
38
60
95
130
200
-5℃
19
30
46
70
80
125
-20℃
12
16
22
32
43
65
Circulation pump max L/min
bar
150
200
250
400
400
600
Circulation pump max L/min bar
2.5
2.5
2.5
2.5
2.5
2.5
Refrigerant
R-404A/R507C
Connection size
DN32
DN40
DN50
DN65


Dimension cm
80*120*185
80*120*185
205*145*205
205*145*205
245*145*225
275*160*225
Weight kg
550
750
1000
1250
1580
2150
Power max
380V 50HZ
34KW
52KW
79KW
123KW
165KW
260KW


Main accessories
Temp. control
Process temp. control and jacket temp. control model
Communication Portocol
MODBUS RTU Protocol, RS485 interface
Medium temp. acccuracy
±0.5℃
Compressor
Emerson copeland vortex flexible、Dorin seni-closed compressor
Expansion valve
Emerson thermal expansion valve/danfoss thermal expansion valve.
Evaporator
DANFOSS/KAORI Plate heat exchanger
Operation Panel
7-inch touch screen，show temp curve\\EXCEL data output








Why Choose Us




LNEYA has several high-quality designers with rich experience in ultra-low temperature and high-low temperature development. At present, the company is at the advanced level of its peers in the R & D of refrigeration technology, at the international advanced level in the research of high and low temperature rapid temperature rise and fall technology, and at the advanced level in the research of single medium temperature control of reactor.






Company Profile




Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products ensureprecise temperature control throughout the whole world in the semiconductor industry, chemical/pharmaceutical industry, biotechnology industry, research/lab/university, food/medical/hospital(health)and laptop/Mobile Phone. Our products offer temperature control solutions for applications from -152 to +350℃.




Exhibition




LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.


Certifications


So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.


FAQ


After sale service
Quality assurance
Guarantee that the goods are sold to be conform to the provisions of the contract and qualified new products by factory
inspection, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract.

Installation and debugging
After the arrival of the goods, my company or my company agent is responsible for installation and debugging of equipment need on-site installation and debugging.

Inspection and acceptance
After installation and debugging, acceptance by the customer to confirm the goods to be conform to the provisions of the contract and qualified new products, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract, and after the confirmation of a full set of technical documents, sign the installation acceptance report and confirm acceptance.

Training
At the same time of installation and debugging of equipment, my company’s after-sales service engineer is responsible for
technical training for user until user can be skilled of operation. In the process of using equipment by customer, customer can consult relevant technical issues to after-sales service personal of our company at any time, according to the situation, my company will arrange training on site or remote.

After sale service commitment
A full free one year warranty since the date of acceptance, during the warranty period, all repairs and spare parts are free of charge(instrukent malfunction caused bu human factors will be charged of cost price of spare parts); After the warranty period, we will be responsible for maintenance of equipment for lifetime, according to the actual maintenance fees, appropriate fee will be charged.
(PS:There will have extra charge if the customer need on-site service. And customers need to describe the issue first and then send some failed pics or videos in advance, then Lneya judge if it is possible to go for after-Sales on site. )
