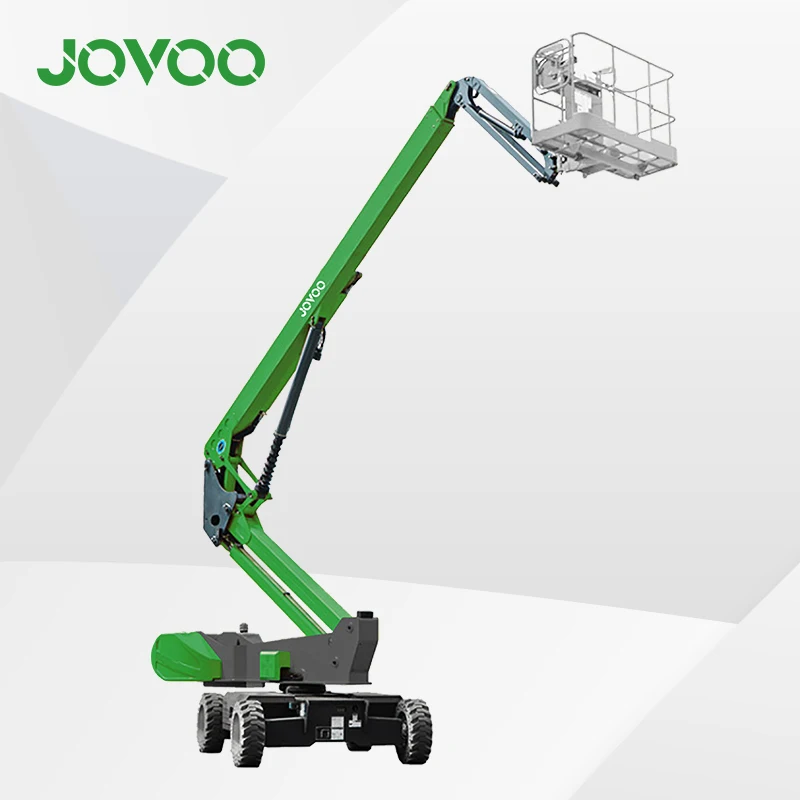

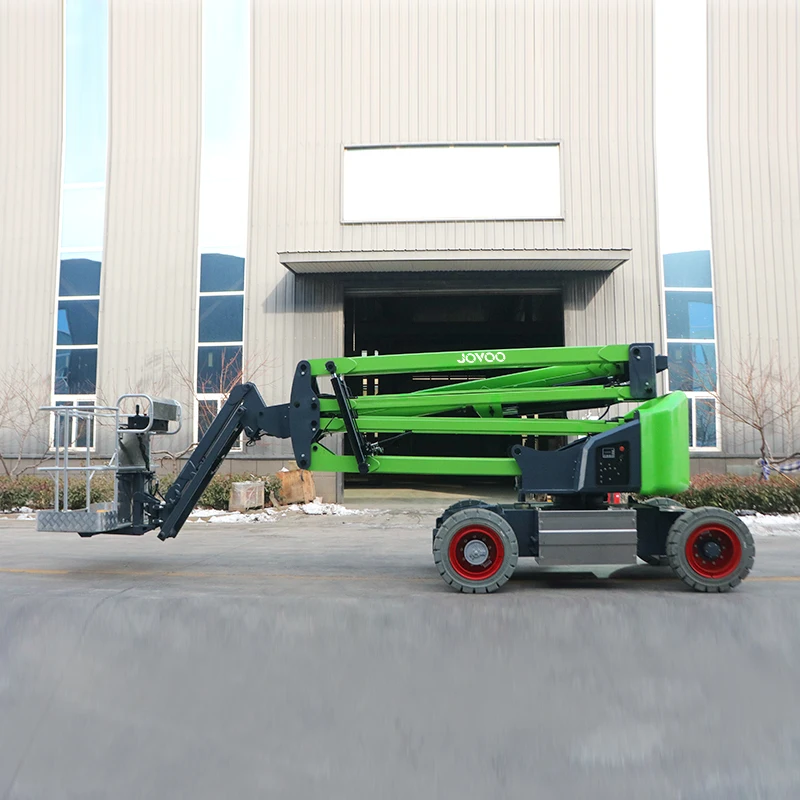

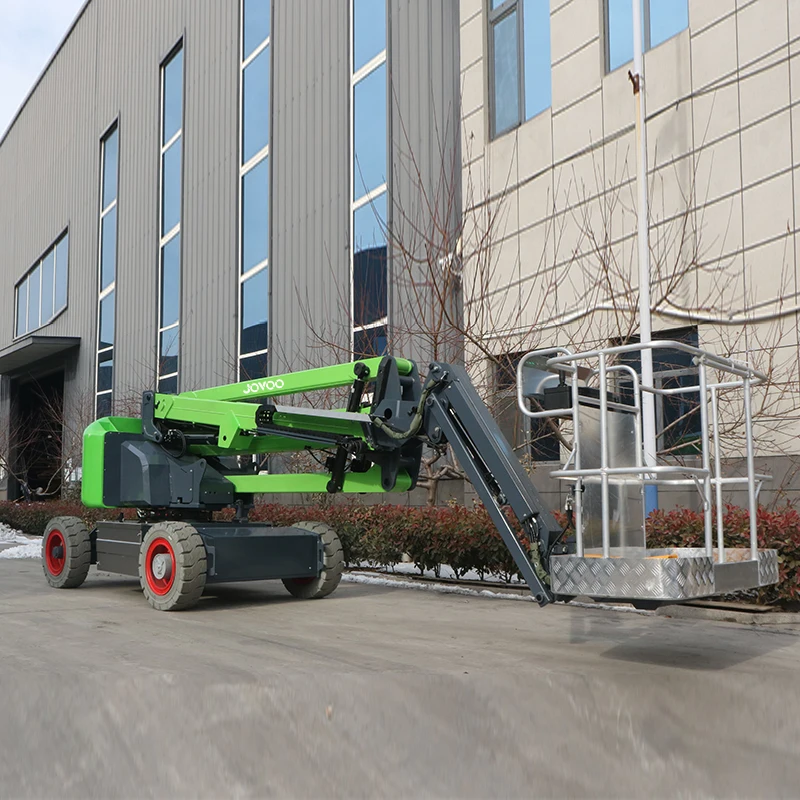

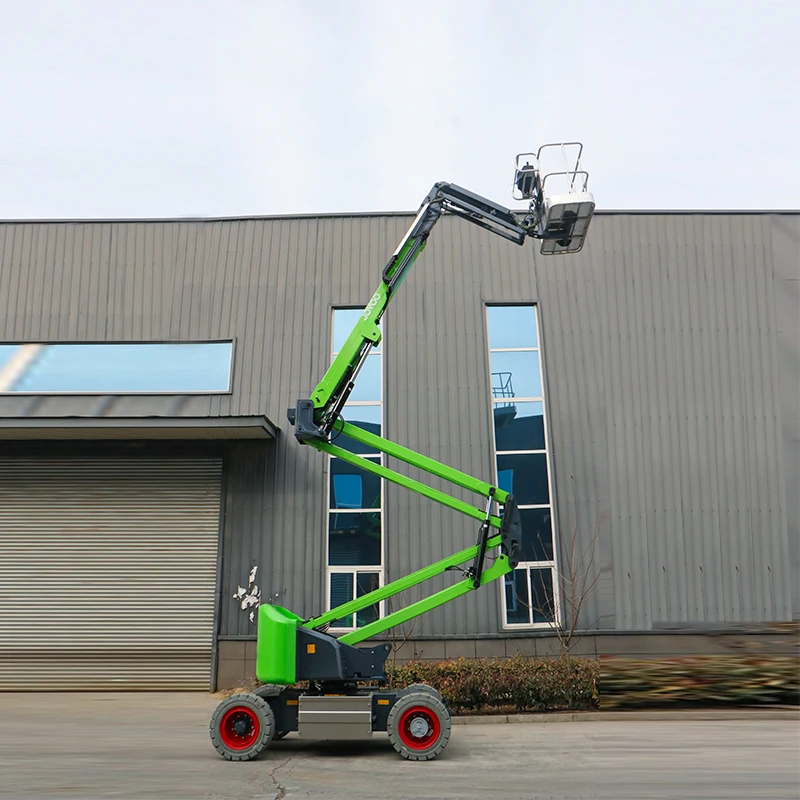

Genie JLG skylift electric diesel boom lift arm articulated platform lift self propelled electric telescopic boom lift
- Category: >>>
- Supplier: Jinan Morn Technology Co. Ltd
Share on (1600896972198):
Product Overview
Description
Products Introduction
Product Parameters
Model | V09 | V11 | V14 | V16 | V18 | V20 |
Max. Working height | 11.5m | 12.52m | 16m | 18m | 20.7m | 22m |
Max. Platform height | 9.5m | 10.52m | 14m | 16m | 18.7m | 20m |
Max. up and over clearance | 4.1m | 4.65m | 7.0m | 7.2m | 8.0m | 9.4m |
Max. Working radius | 6.5m | 6.78m | 8.05m | 8.6m | 11.98m | 12.23m |
Platform Size | 1.4*0.7m | 1.4*0.7m | 1.4*0.76m | 1.4*0.76m | 1.8*0.76m | 1.8*0.76m |
Dimensions | 3.8*1.27*2m | 4.3*1.5*2m | 5.72*1.76*2m | 6.8*1.9*2m | 8.49*2.49*2.38m | 8.99*2.49*2.38m |
Wheelbase | 1.65m | 1.95m | 2.0m | 2.01m | 2.5m | 2.5m |
Ground clearance-center | 0.2m | 0.14m | 0.2m | 0.2m | 0.3m | 0.3m |
Max. Lift capacity | 130kg | 130kg | 230kg | 230kg | 256/350kg | 256/350kg |
Turntable rotation | 355° | 355° | 355° | 355° | 355° | 355° |
Drive speed-stowed | 4.8km/h | 4.8km/h | 5.1km/h | 5.0km/h | 4.8km/h | 4.5km/h |
Weight | 5410kg | 4800kg | 5960kg | 6630kg | 9100kg | 10000kg |
Battery | 48V/420Ah | 48V/420Ah | 48V/420Ah | 48V/420Ah | 48V/420Ah | 48V/420Ah |
Pump motor | 4kw | 4kw | 4kw | 4kw | 12kw | 12kw |
Drive motor | 3.3kw | 3.3kw | 3.3kw | 3.3kw | 3.3kw | 3.3kw |
Control voltage | 24V | 24V | 24V | 24V | 24V | 24V |
Product Details

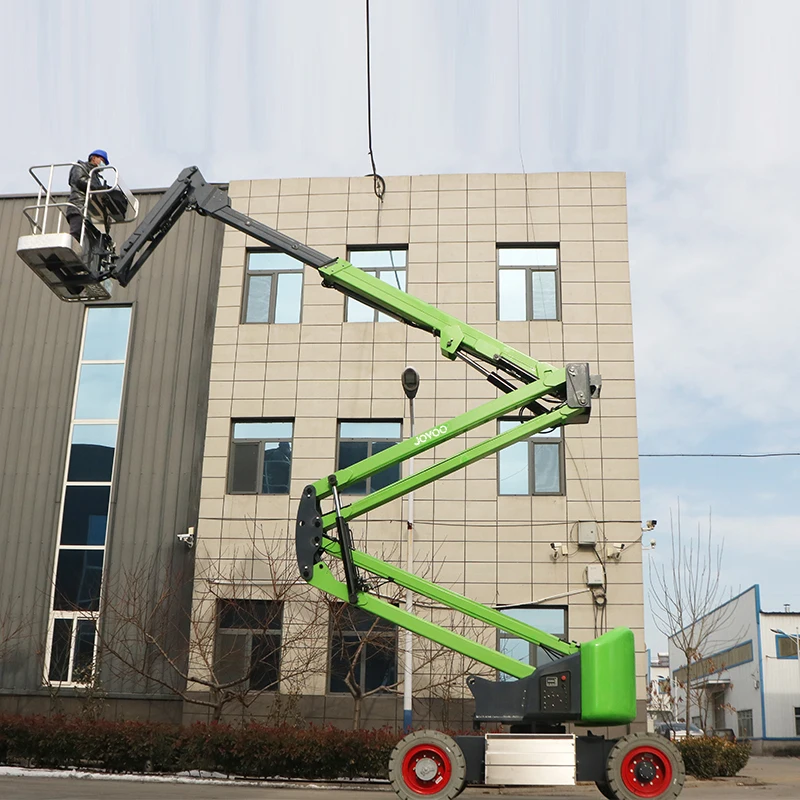

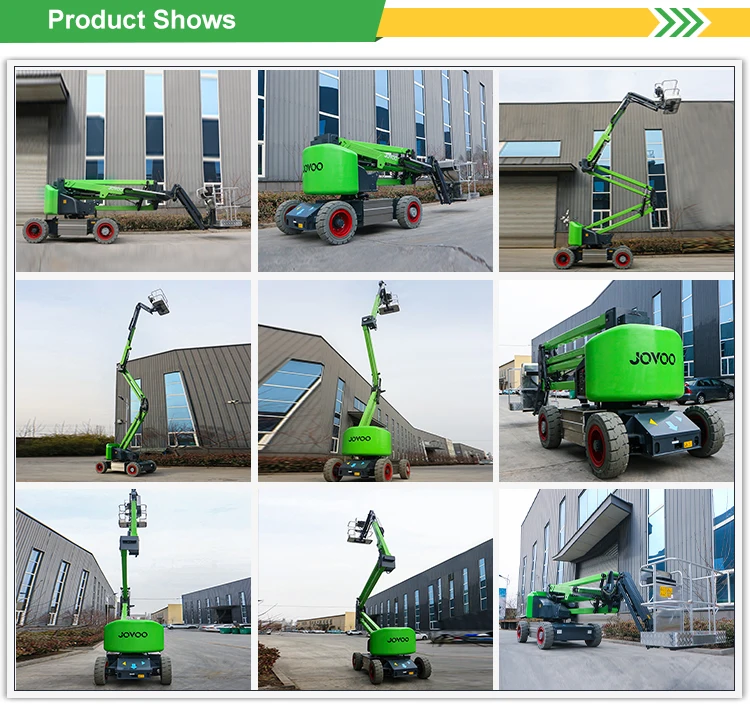

Product Shows

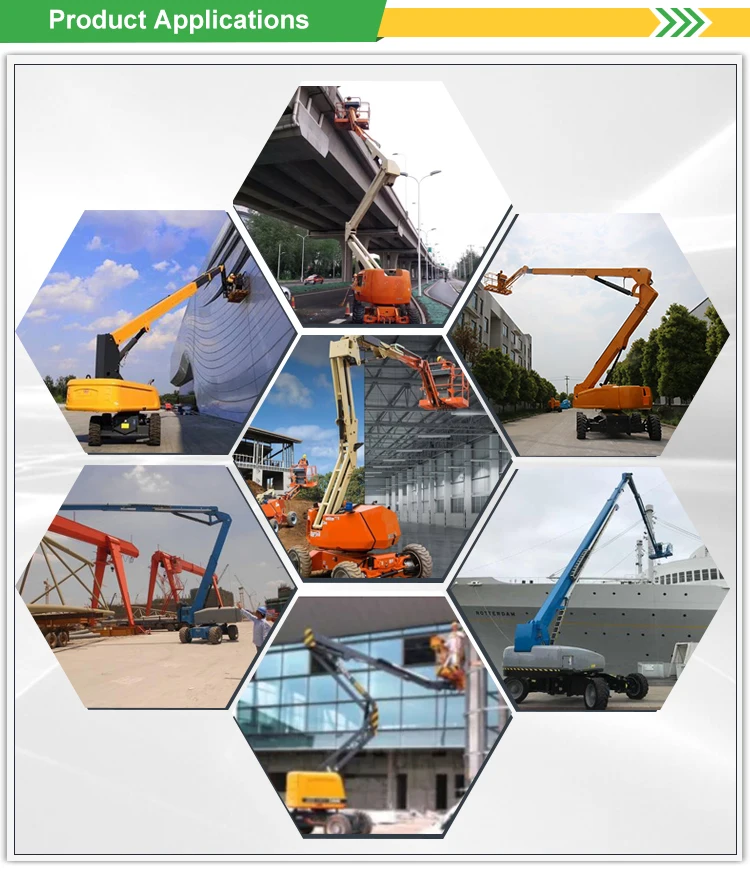

Application & Packaging

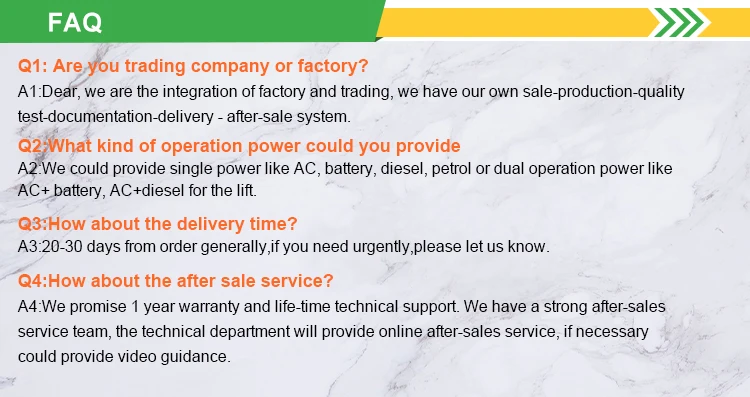

FAQ
