Portable mini USB GNSS receiver GPS mapping tracking antenna gps GNSS GPS data logger navigator chip
- Category: >>>
- Supplier: Shenzhen Huaying Industrial Co. Ltd.
Share on (1600896973423):
Product Overview
Description
Protable multi-constellation usb GNSS receiver GPS mapping tracking gps GNSS data logger navigator gps chip
Description

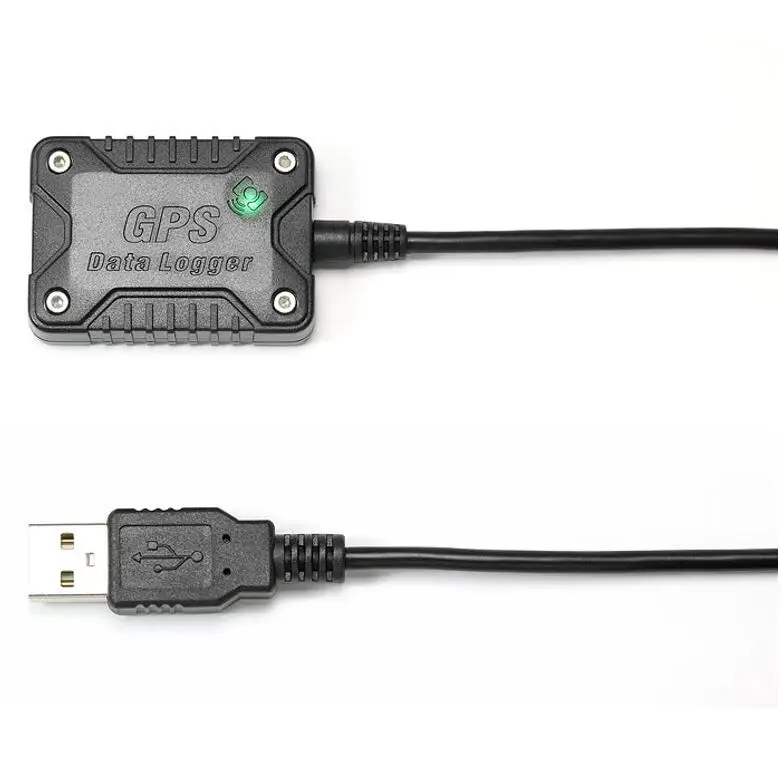

V-800 MarkIII is a professional and cost-effective GNSS Receiver,

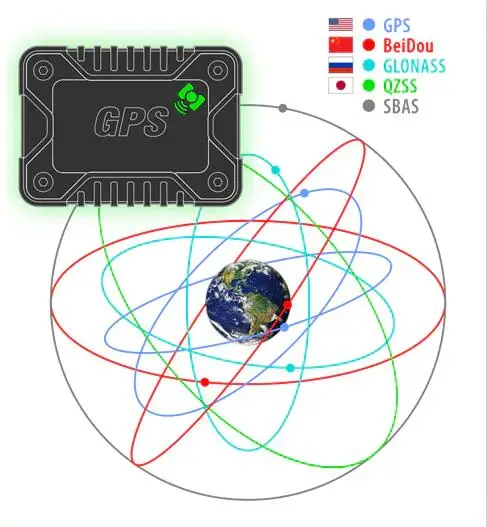

Added with multi-constellation systems: GPS, GLONASS and Beidou, ensuring fast speed positioning ability in any area.
Designed to be rugged and durable with low power consumption, it is suitable for navigation, time service, network optimization, fleet management, driving record, surveying and mapping, etc.
Features and Advantages
..Built in high sensitivity chipset, supports multi-constellation of GPS, GLONASS and BeiDou, at the same time to ensure fast positioning in any area.

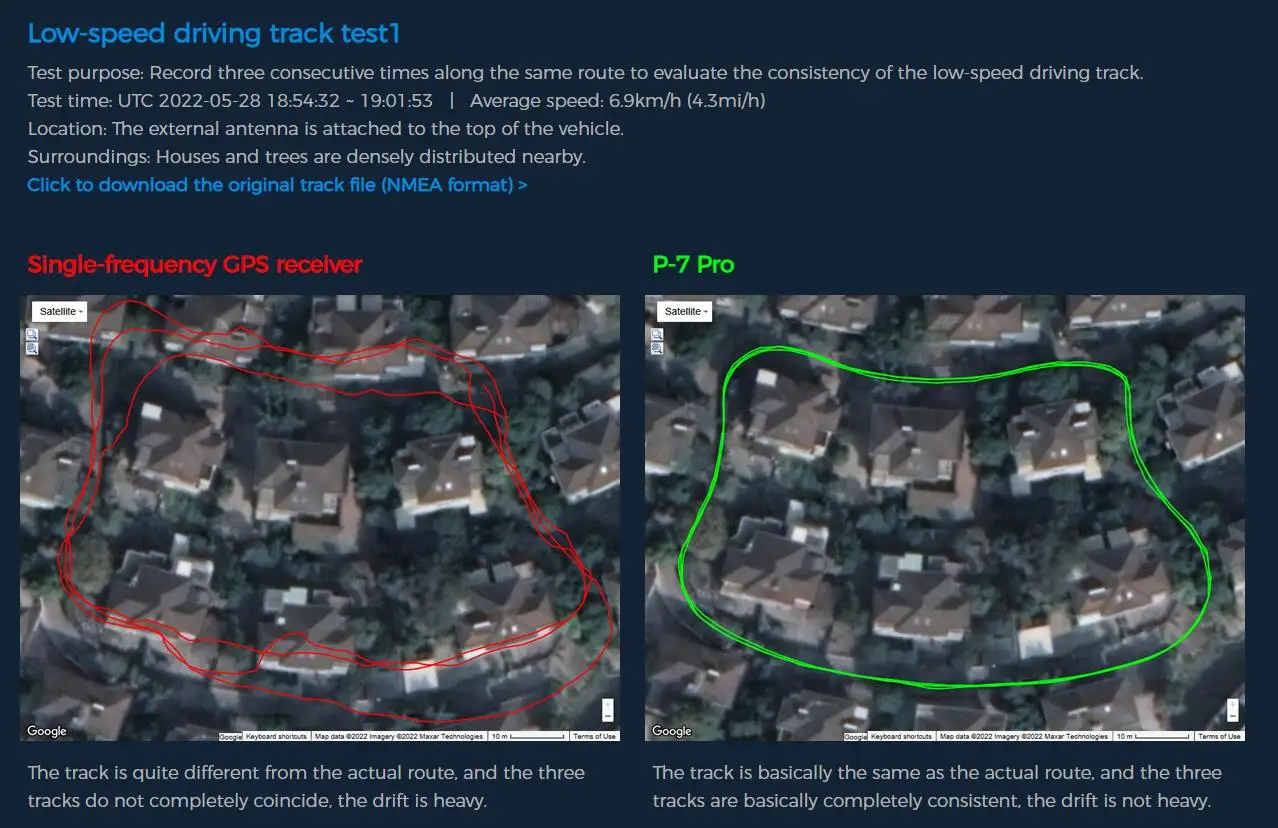

..Built in advanced EPS 4th Technology, positioning accuracy up to 2.0m*, and improve the drift.
..Support up to 10Hz update rate, standard NMEA-0183 data protocol.
..User-definable parameters: GNSS system, baud rate, NMEA sentences and update rate, etc.
..With the Prolific PL2302 USB interface, it is easy to operate and plug and play.
..The LED indicator displays the GNSS status.

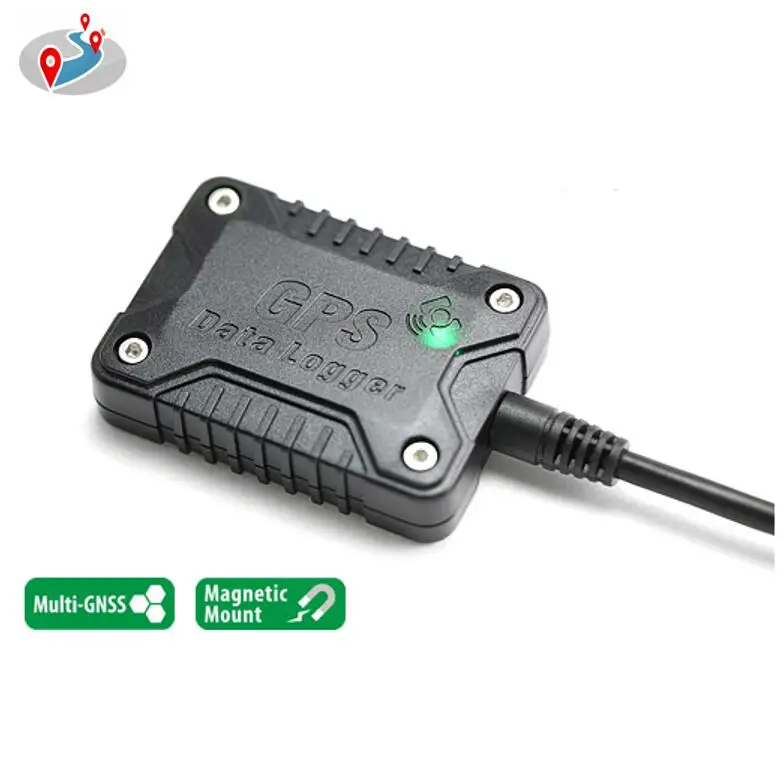

..Compact design, high durability, super-cohesive magnetic for mounting on the car.
..Built-in backup battery to reserve system data for rapid satellite acquisition.
..For navigation, time service, network optimization, fleet management, surveying and mobile device application.
* Proprietary EPS4 (Enhanced Positioning System 4th Gen) Technology, which can achieve an accuracy of up to 2.0 meters (CEP50%). Minimize the drift in the static state, while improving the dynamic tracking.
Specification
...
Technical Spec Interface: USB 2.0 (PL2303 USB-to-Serial Bridge Controller) Operating Temperature: -10°C to 50°C / 14°F to 122°F GNSS Performance: 1575.42Mhz (L1, C/A code) GPS (L1), GLONASS(L1), BeiDou(B1) , QZSS (L1), SBAS Built-in active antenna
Dynamic Condition: Acceleration Limit: 4G max Minimal Data Resolution Latitude: 0.0000001 degree Longitude: 0.0000001 degree Altitude: -1,000 ~ 18,000 meters / -3280 ~ 59000 ft (0.1 meters / 0.3ft) Speed: 0 ~ 1,850 km/h; 0~1180 mi/h (0.1km / 0.1mi) Heading: 0 ~ 359 (0.1 degree)
Positioning Ability*: Cold start: 35 seconds Warm start: 34 seconds Hot start : 1 seconds Horizontal position accuracy: 2.0m/CEP (50%), 8.0m/CEP (95%) * Support "EPS 4" technology. 1Hz mode. Data from testing in ideal open environments.
Protocol: NMEA protocol: NMEA-0183 V4.1 Geodesics: WGS84 Update rate:1Hz (default) , 2Hz, 5Hz, 10Hz (selectable) Baud rate:38,400bps (default), 115,200bps (max) Data bit:8 Parity:N Stop bit:1 NMEA sentences (default):GNGGA, GNGSA, GPGSV, BDGSV, GLGSV, GNRMC, GNVTG System Requirements: Windows xp / vista / 7 / 8 / 8.1 / 10 / 11 MacOS X 10.9 - 10.15 Linux: 2.6.12 or later Power Consumption: 5V, 50mA, 250mW Certificates: FCC, CE RoHS |
Contact
Customer Service Online 24/7
E_mail: shaunliu @ audioinno.com
What.s.App,WeeChat,Line: +86 137 6037 0722
For more details and pricing, pls send us inquiry now.
