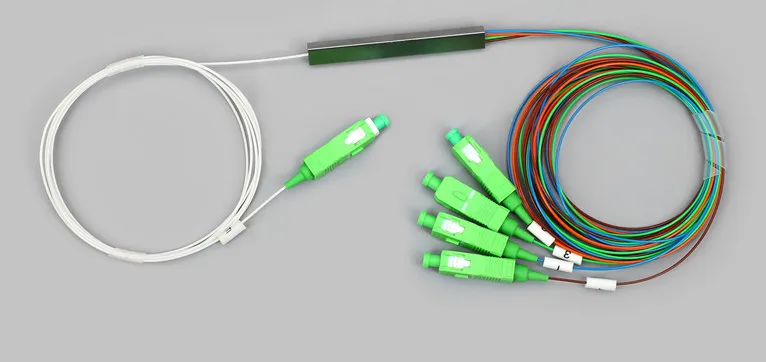

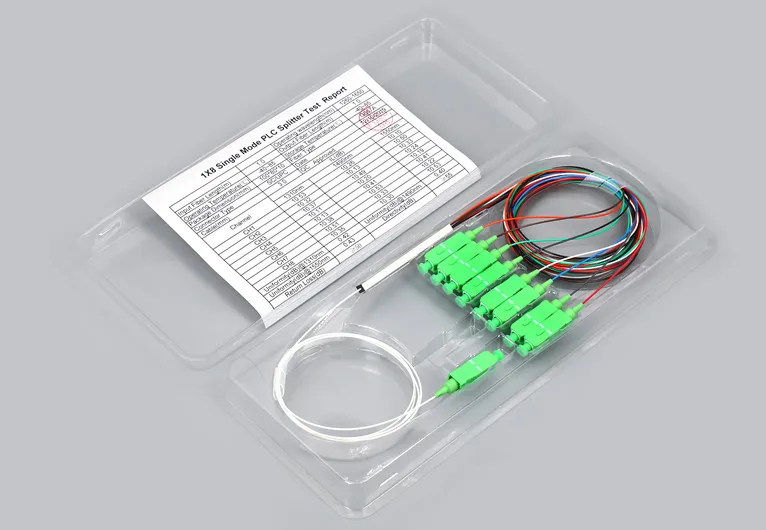

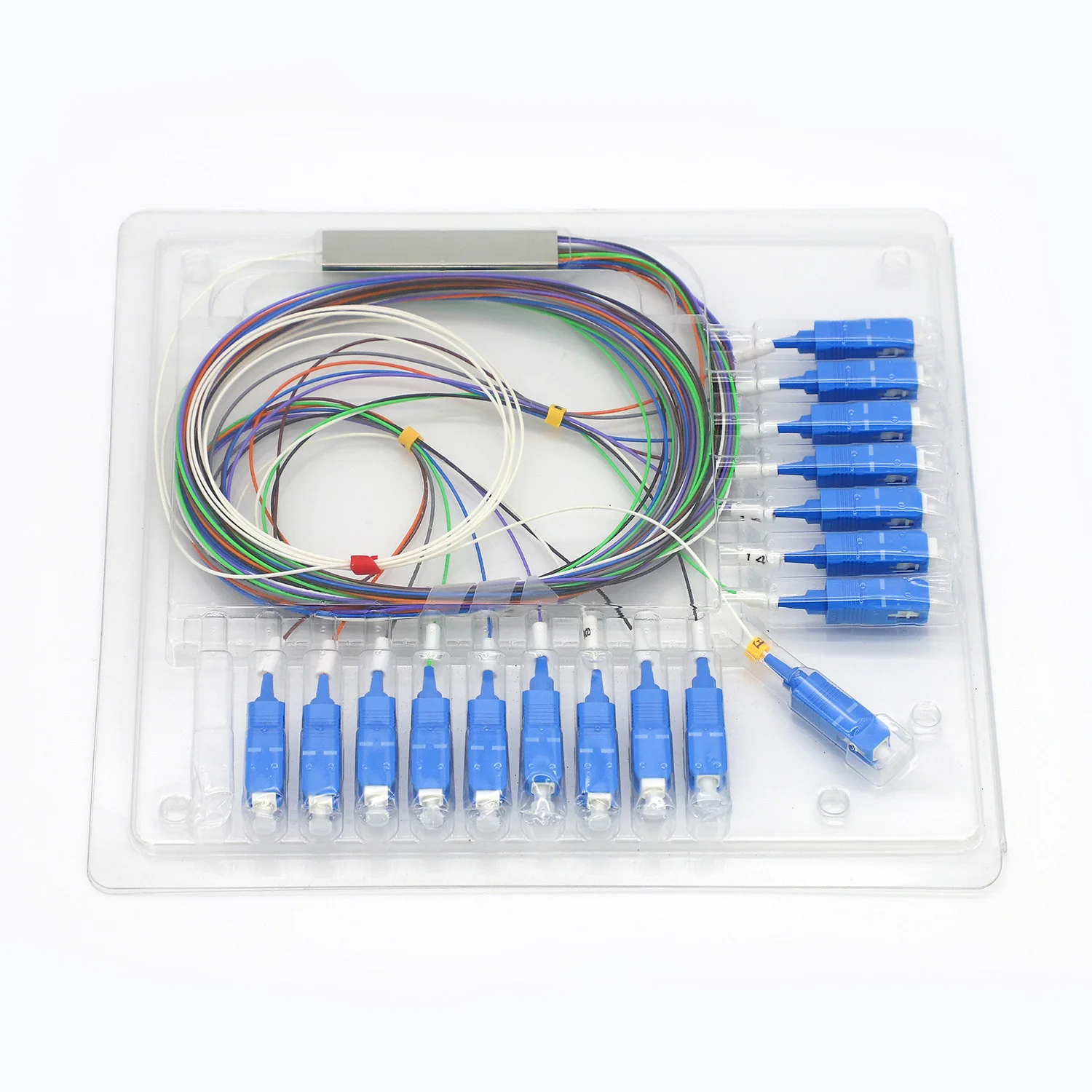

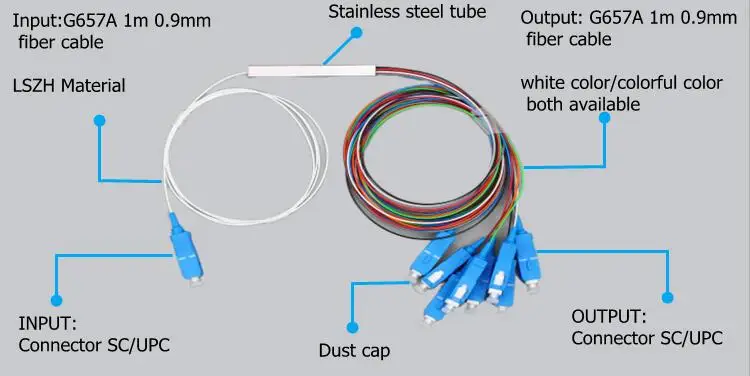

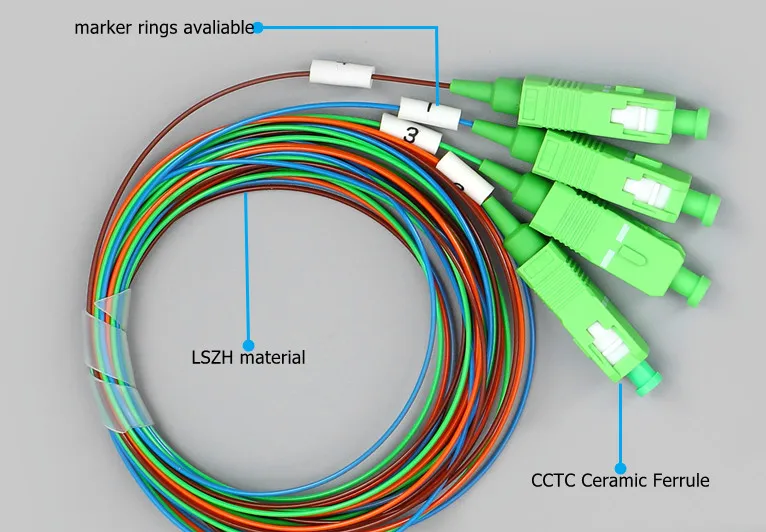

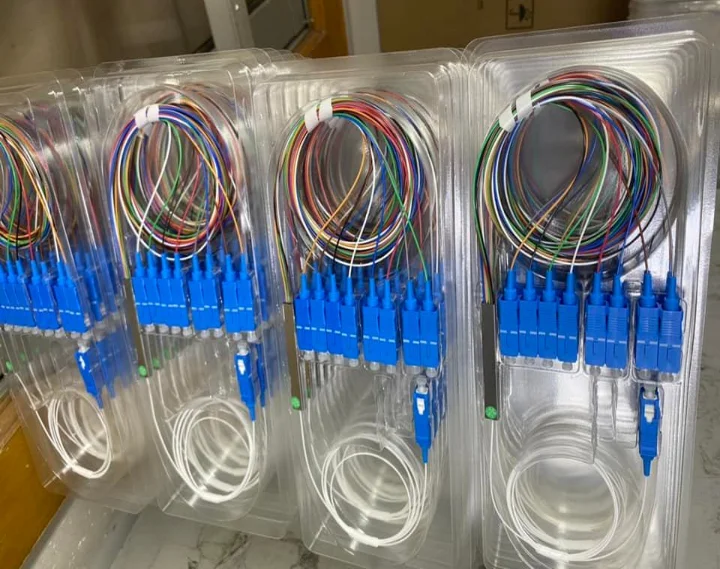

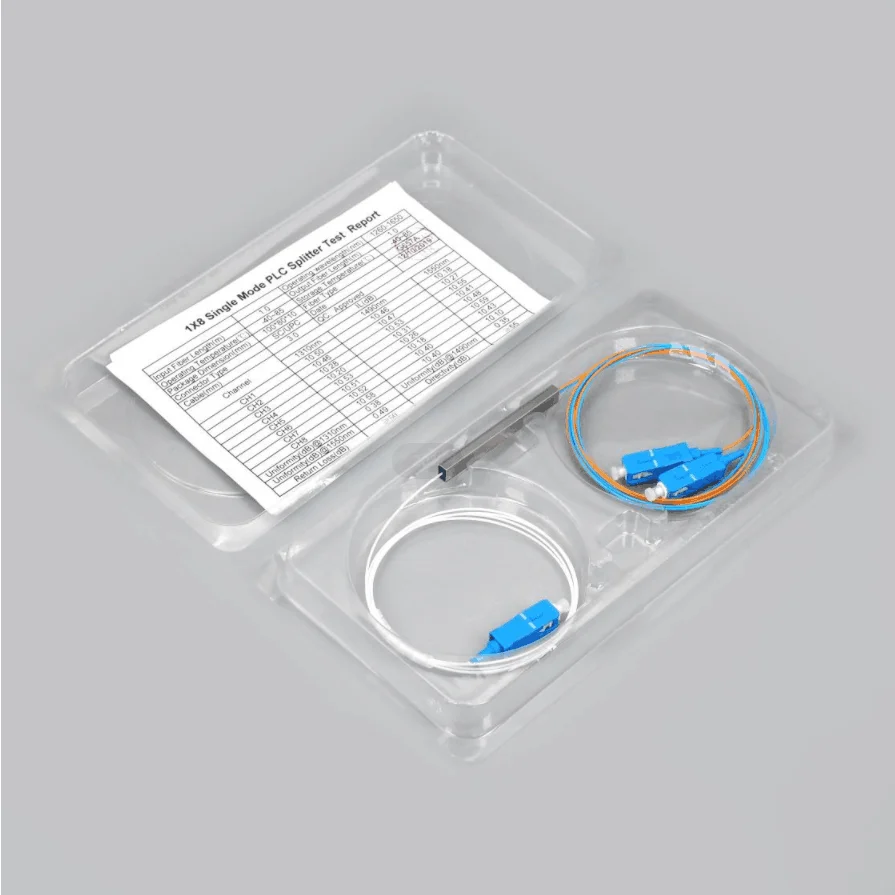

Chinese Factory Price SC UPC PLC 1/161/8 UPC APC Fiber Optic Splitter With High Quality
- Category: >>>
- Supplier: Qingdao Sunet Technologies Co. Ltd.
Share on (1600897002665):
Product Overview
Description
| Port Configration | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | ||
| Operating Wavelength (nm) | 1260 ~ 1650 | |||||||
| Insertion Loss (dB) | Typical | 3.5 | 6.8 | 10.2 | 13.1 | 16.2 | 20.2 | S |
| Max | 4 | 7.4 | 10.5 | 13.5 | 16.9 | 21 | ||
| Channel Uniformity (dB) | 0.5 | 0.7 | 1 | 1.4 | 1.8 | 2 | ||
| PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | ≤0.7 | |
| WDL (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 | ≤4.0 | |
| TDL (-40ºC ~ 85ºC )(dB) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | ≤5.0/3.0 | |
| Dimensions for Fan-out (mm) | 60(L)X7(W)X4(H) | 60X12X4 | 80(L)X20(W)X6(H) | ≤6.3/2.4 | ||||
| RL (dB) | > 55dB | ≤8.1/1.7 | ||||||
| Directivity (dB) | > 55dB | ≤11.6 | ||||||
| /1.2 | ||||||||
| Fiber Type | G652D | ≤15.0 | ||||||
| /1.0 | ||||||||
| Operating Temperature Range | -40ºC ~ 85ºC | |||||||
