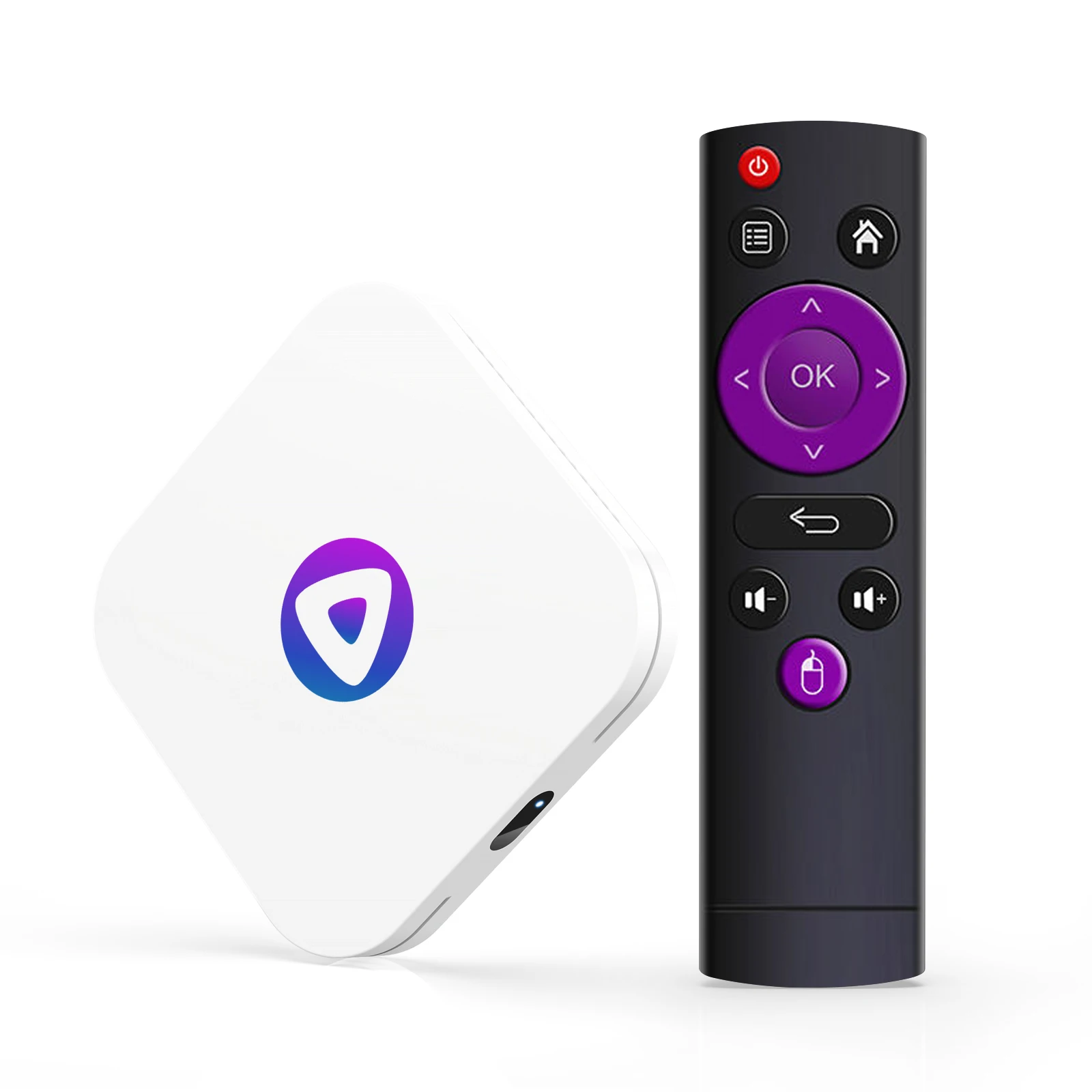

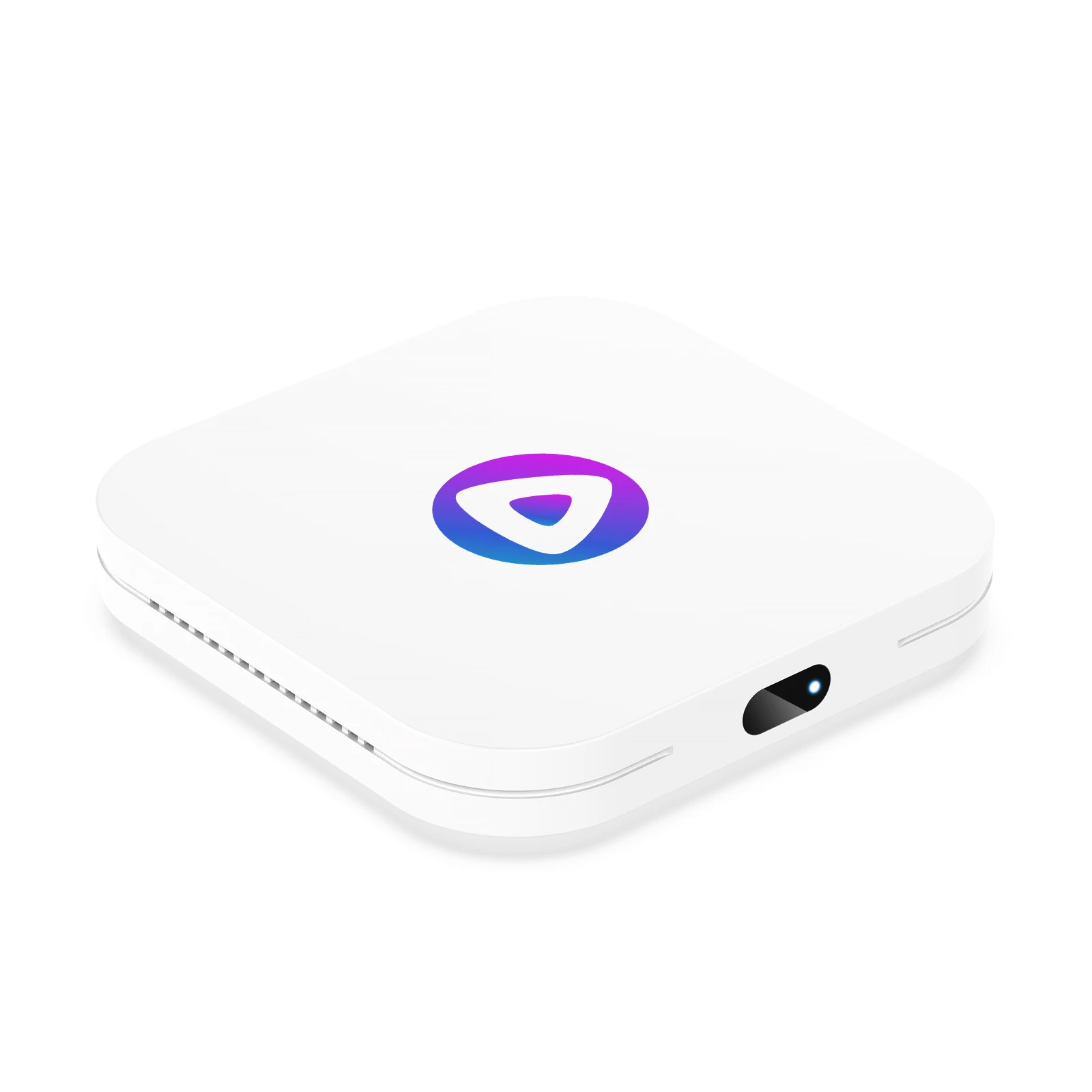

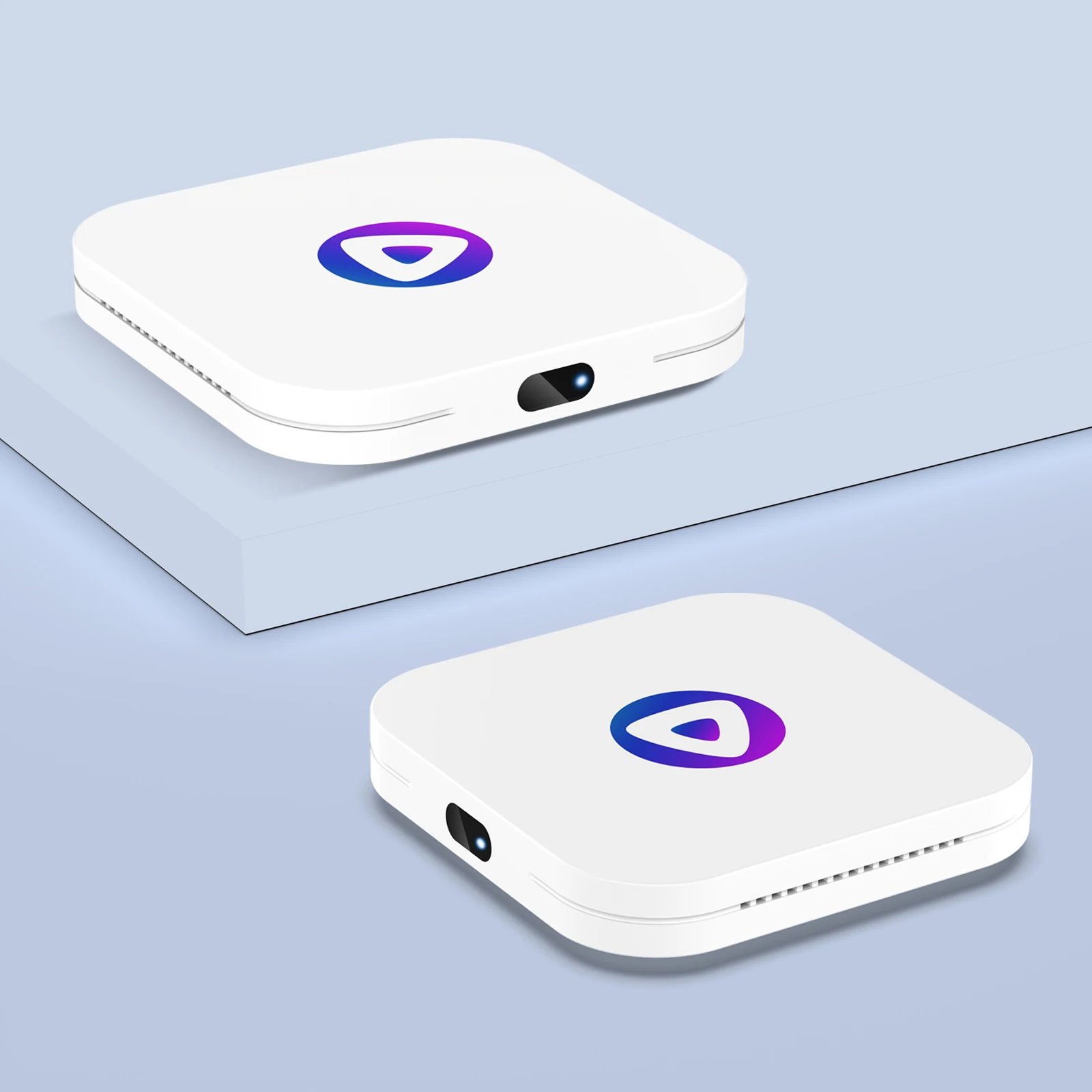

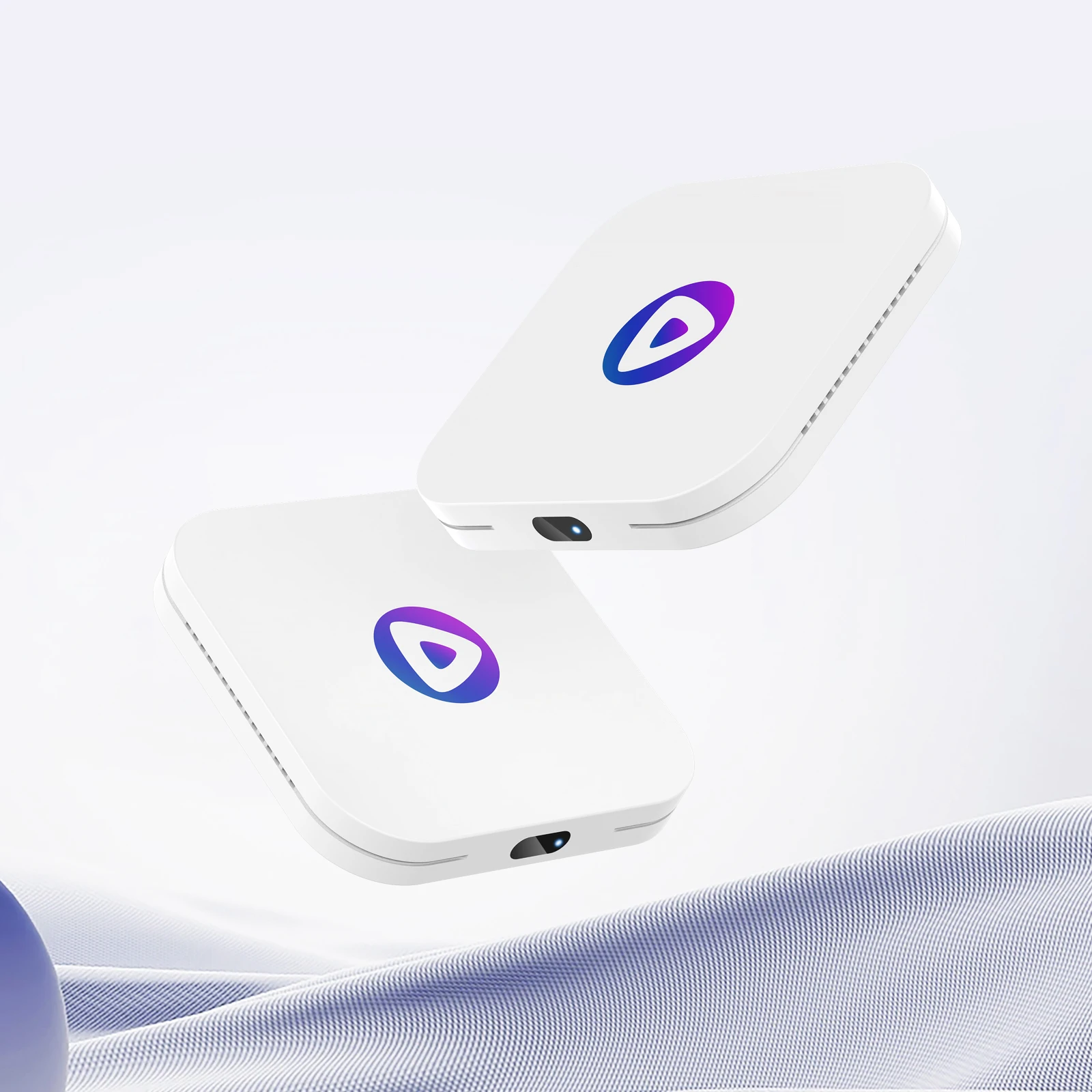

Wholesale Factory Price New Chip Rockchip RK3528 quad core H96 Max M1 android 13 TV Box

CPU

Quad Core ARM Cortex-A53

GPU

Mali-450

Memory

2GB/4GB

Flash

16GB/32GB/ 64GB

WiFi

WLAN 802.11a/b/g/n/ac

Bluetooth

BT 4.0

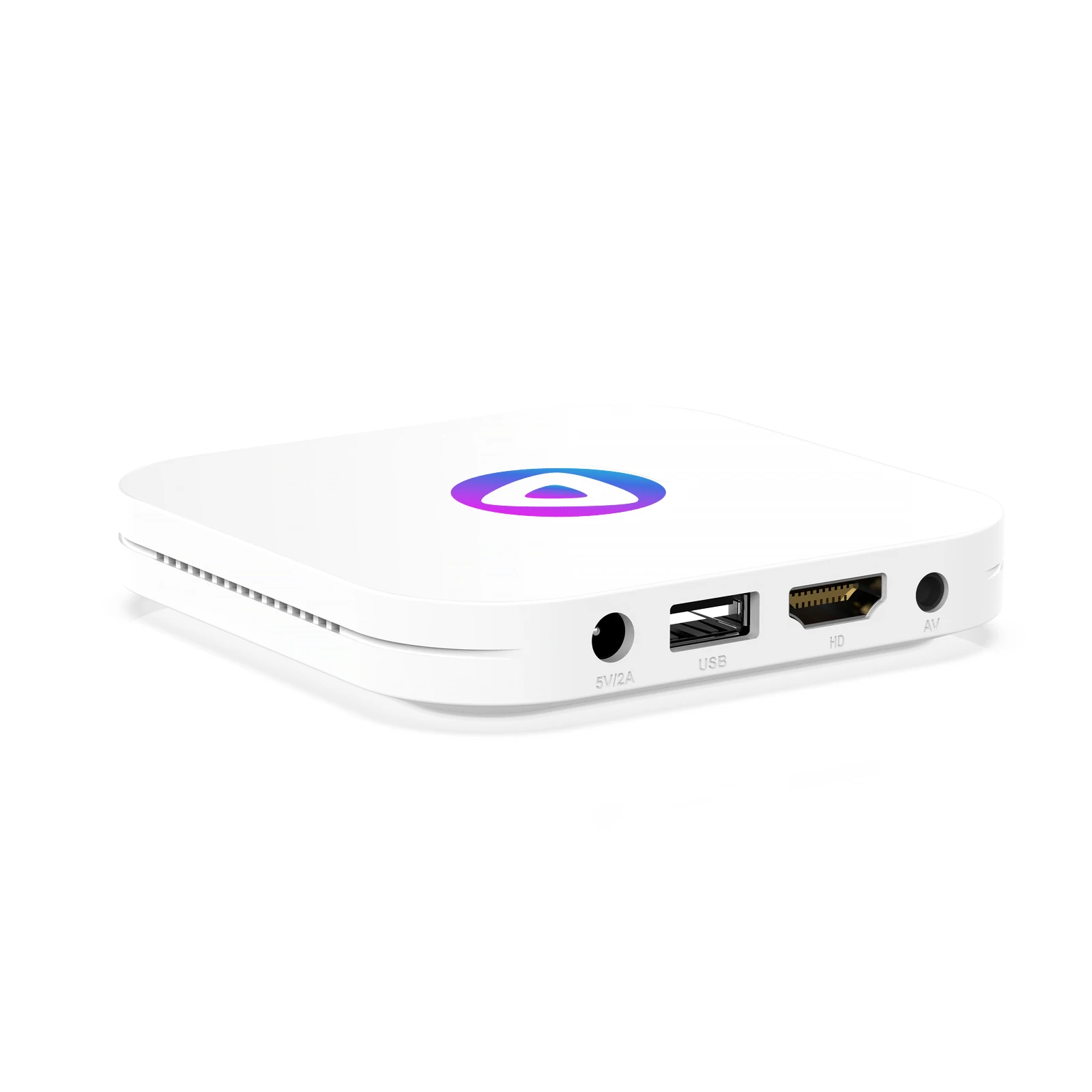

I/O

1*HD

4K*2K UHD Output

1*USB

1*USB 2.0

1*IR Reciver

Remote Reciver Connect

1*DC

5V/2A

1*AV

480i/576i for CVBS

Software

OS

Android 13.0

Video

·Video Decoder

·Real-time video decoder of

     MPEG-1, MPEG-2, MPEG-4

     H.263, H.264/AVC, H.265/HEVC, MVC

     VC-1

     AVS, AVS+,AVS2

·MMU Embedded

·Supports frame timeout interrupt, frame finish interrupt and bit stream error interrupt

·Error detection and concealment support for all video formats

·Output data format YUV420 semi-planar, YUV400(monochrome), YUV422 is

  supported by H.264

·H.264/AVC BP/MP/HP profile & level 5.1; H.264/AVC MVC; up to 4Kx2K & 60fps

·H.265/HEVC Main/Main10 profile & level 5.1 High-tier; up to 4Kx2K & 60fps

·AVS2 4KX2K &60fps

·MPEG-1, Main profile, up to 1080P & 60fps

·MPEG-2, SP&ML, MP&HL, up to 1080P & 60fps

·MPEG-4, ASP profile & level 5, up to 1080P & 60fps

·AVS, Jizhun profile & level 6.0; up to 1080P & 60fps

·AVS-P16 (AVS+), up to 1080P & 60fps

·H.263, up to 576P & 60fps

·VC-1, SP&ML, MP&HL, AP&L0-3, up to 1080P & 60fps

·Video Encoder

·Support video encoder for H.264, HP&level4.2

·H.264 maximum frame rate is up to 1920x1080 &60fps

·Capable of encoding HEVC Main Profile & L4.1 High-tier

·H.265 resolution and frame rate are up to 1920x1080 &60fps

·JPEG encoder included

·JPEG decoder

·Input JPEG file : YCbCr 4:0:0, 4:2:0, 4:2:2, 4:4:0, 4:1:1 and 4:4:4 sampling formats

·Output raw image : YCbCr 4:0:0, 4:2:0, 4:2:2, 4:4:0, 4:1:1 and 4:4:4 semi-planar

·Decoder size is from 48x48 to 8176x8176(66.8Mpixels)

·Support JPEG ROI(region of image) decode

·Maximum data rate is up to 76million pixels per second

·Video OUT

·Display Interface

  ·Support HD 2.0b output up to 4K 10bit &60Hz

  ·TV interface: TV encoder 10bit out for DAC

  ·HD interface:

        24 bit (RGB888 YCbCr444), 30 bit(RGB101010,YCbCr 420, YCbCr 444)

        Max output resolution 4K for HD, 480i/576i for CVBS

·HD

·Compliant HD 2.0b

·Support YUV420 4k x 2k & 60fps

·Support for 4k x 2k and 3D video formats

·Support for up to 10.2bps bandwidth

·Compliance HD compliance Test specification 1.4 and 2.x

Audio

Supports MP3, AAC, WMA, RM, FLAC


HD JPEG,BMP,GIF,PNG,TIF

Language

Multi-Language

Appliactions

Online

Browse all video websites,support Netflix,Hulu,Youtube, etc.

Apps

Apps download freely form Google Play,Apkpure store etc.

Medium

Local Media playback,Support HDD, U Disck

Talk online

Support  SKYPE ,MSN , facebook ,twitter ,QQ  etc

Others

Support Email,office suit etc.

Support DLNA function

Support 2.4G wireless mouse/keyboard

Packing

Product dimension: 96*96*16.8mm

Unit products (G.W.): 122g

Unit packing: 175*103*53mm

Unit packing (G.W.): 356.5g

Export carton (WxHxL): 364*279*233mm

Export carton (G.W.): 7600g

Qty per export carton: 20PCS

Accessories

HD cable *1

IR Remote *1

User Manual *1

Package box *1

Power adapter *1
