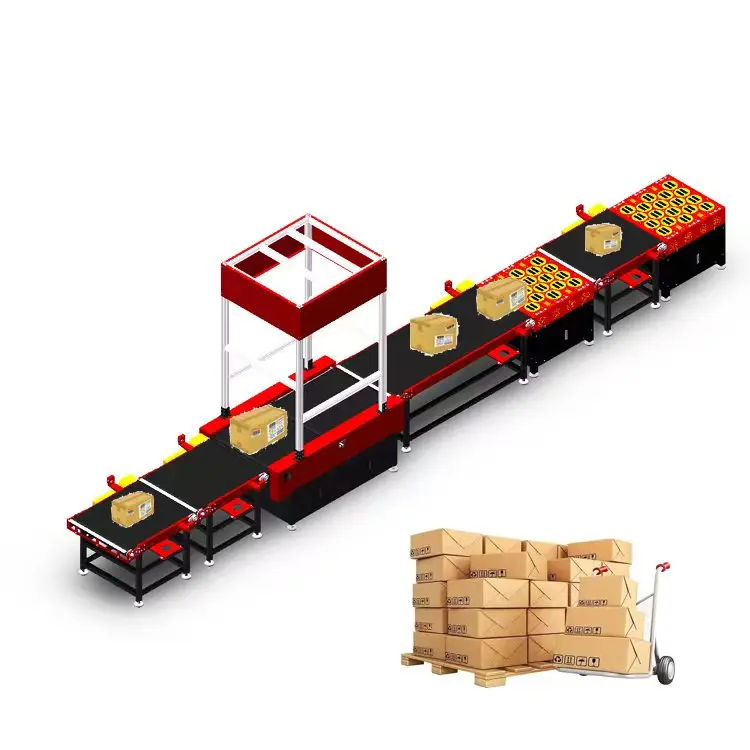

Warehouses Six Sides Box Sorted Dws System Dimensioning Weighing Scanning Automatic Sorting Weight System
- Category: >>>
- Supplier: Senad Robot(Shanghai) Co. Ltd.
Share on (1600897038469):
Product Overview
Description
Product Description
The intelligent sorting solution is a professional solution to meet the needs of customers for sorting goods in different application scenarios. It is an important branch of the material handling system. Help companies improve sorting efficiency and achieve the development goal of reducing costs and increasing speed. Mainly used in goods sorting part in many industries such as express delivery, e-commerce, airports, pharmaceutical distribution, automobiles, and etc.
Main Features:
● High speed and accuracyThe system adopts fully automatic measurement and code reading technology, which can be used with high-speed conveying system to ensure accurate measurement of weight, volume and barcode information at a belt speed of 60m/min.
● First-class dynamic measurement technology
The weight, volume and barcode are all measured dynamically, realizing online real-time measurement with a throughput of more than 5000 pieces/hour.
● Flexible modular design
The system adopts a modular design concept, which can meet the multifaceted needs of customers and provide a variety of application methods for easy integration into existing assembly lines.
● Rich software interface
Mature interface technology can seamlessly connect data to customer's existing management system.
Application sites:
It is used mainly in batch-picking processes and cross-docking systems, and as a shipping sorter, for example,County Express stations、Warehouse distribution center、E-commerce warehouse、3DPL
Product Parameters
Parts 部件 | Configuration 配置 | ||||||
Industrial computer 工业计算机 | Intel I5 英特尔 I5 | ||||||
Display 显示 | 19.5inches LCD 19.5英寸液晶显示器 | ||||||

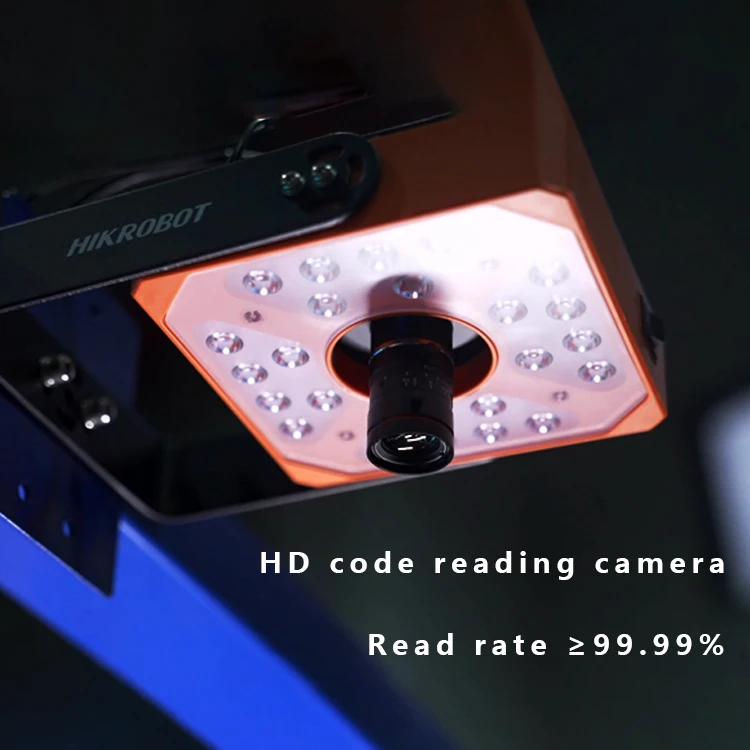

Camera 照相机 | Hikvision 20 million pixel Intelligent camera 海康威视2000万像素工业相机 | ||||||
Keyboard/mouse 键盘/鼠标 | Logitech 罗技 | ||||||
Load cell 称重传感器 | 100kg 100公斤 | ||||||
Bracket 托架 | Senad customized 塞纳德定制 | ||||||
Index 指数 | Parameter 参数 | ||||||
Weighing range 称量范围 | 15g~60kg 15克~60公斤 | ||||||
Dimensioning range 尺寸范围 | 50*50*5~800*800*800mm 50 * 50 * 5~800 * 800 *800毫米 | ||||||
Capacity 能力 | 5000~7000pcs/hour 5000~7000个/小时 | ||||||
Recognition rate(Normal package) 识别率（普通包装） | 99% | ||||||
Dimensioning accuracy 尺寸测量精度 | ±5~15mm ±5~15毫米 | ||||||
Weighing accuracy 称量精度 | ±10g ±10克 | ||||||
Scanning accuracy 扫描精度 | 99% | ||||||
Software Interface 软件接口 | HTTP, TCP, 485 HTTP， TCP， 485 | ||||||
Weighing mode 称重模式 | Dynamic weighing 动态称重 | ||||||
Remote diagnosis 远程诊断 | yes | ||||||

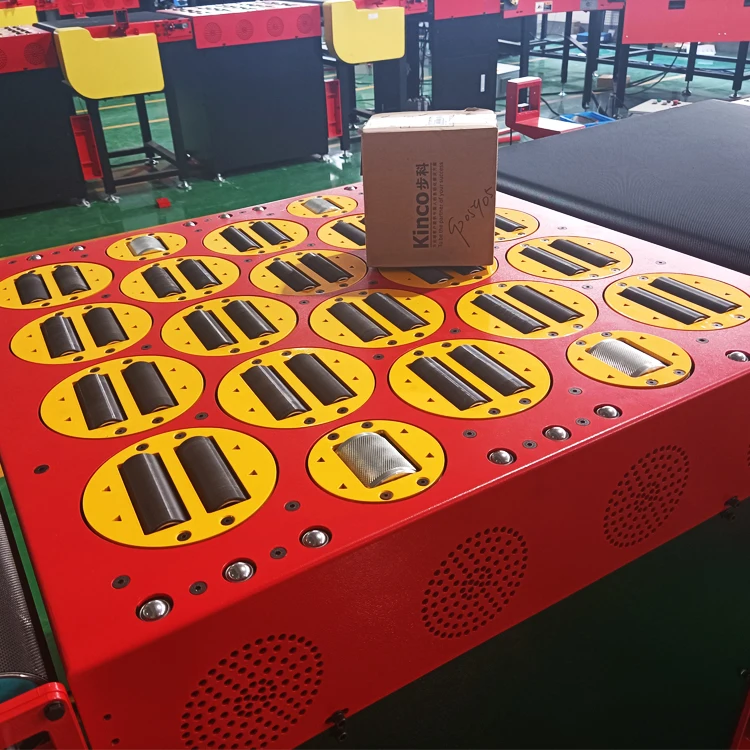

Product Details
__________
__________
__________
__________
The operation interface displays the size, weight and bar code information, the language can be customized, docking with the customer system, and automatically outputting the form information

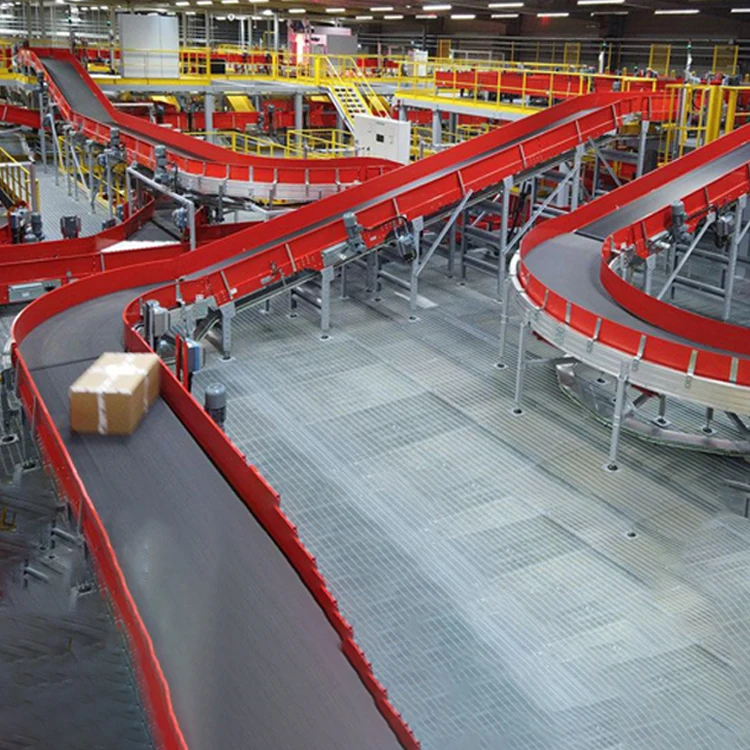

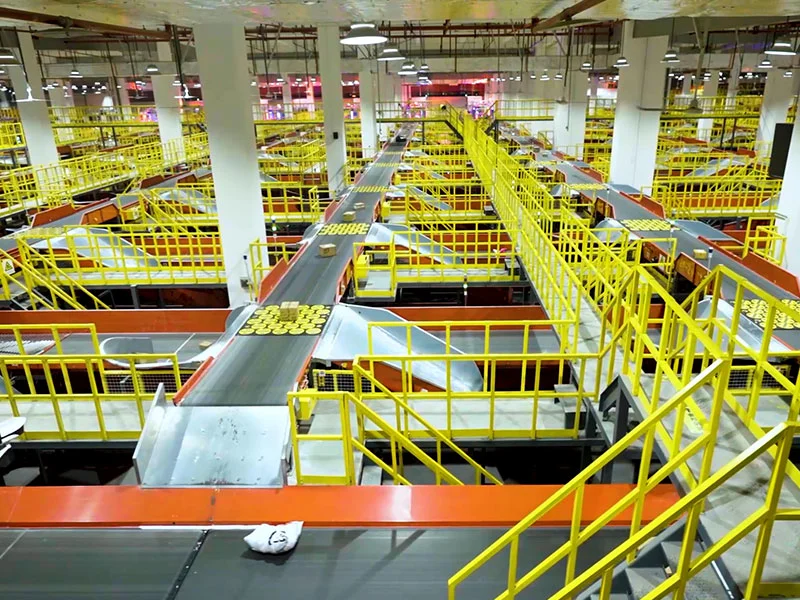

Application
Recommend Products
OUR Service
Our services
__________
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
Why Choose Senad
◆ High-tech manufacturer with research anddesign capacity
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production

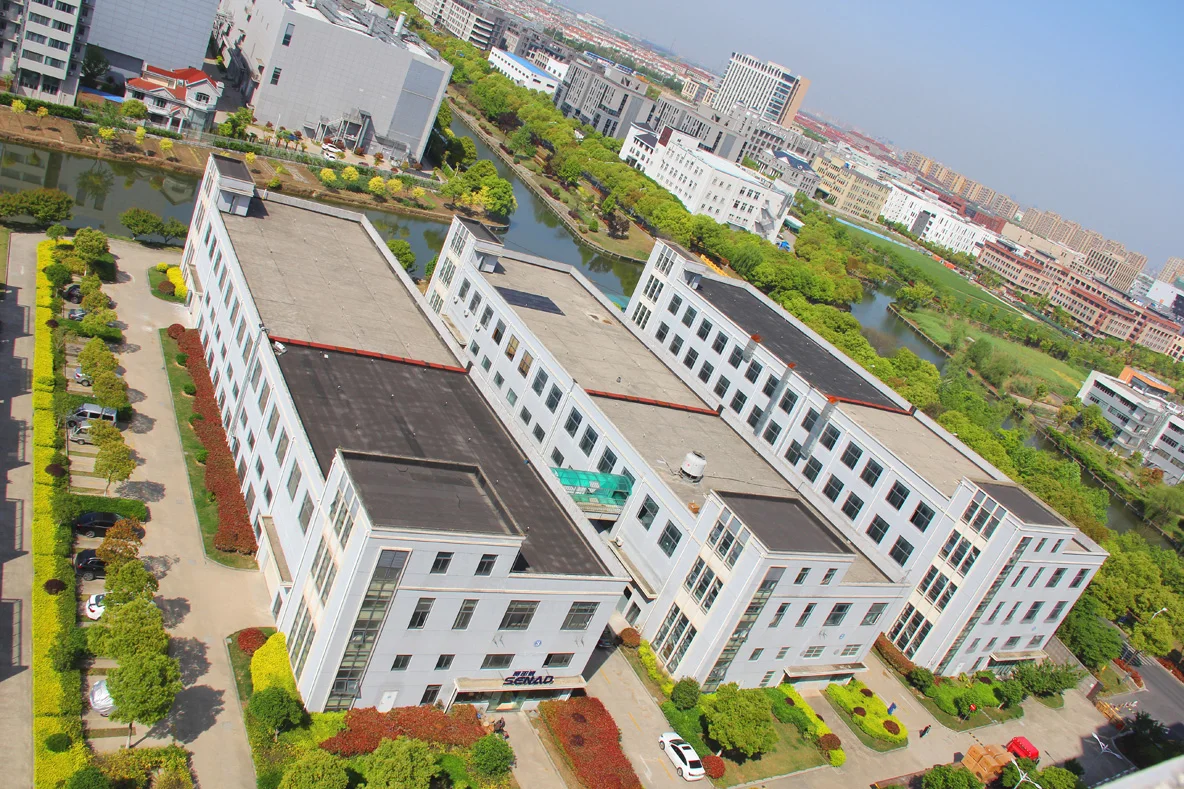

About Us
Welcome to visit us!
Senad Robot(Shanghai)Co.,LTD.
Founded in 2012,Senad is a high-tech enterprise concentrated on research & development and production of high-end warehouse automation equipments. There are not only standard equipments but also customizable ones to realize different functions,such as high speed barcode scanning, weighing, volume dimensions measuring, conveying and sorting, singulating, as well as dimension weigh scan and sorting integrated line system,etc. These equipments take machine vision deep learning algorithm and robot motion control as the core, and adopt image processing algorithm, artificial intelligence, pattern recognition, video analysis algorithm, ARM|FPGA|DSP embedded software and hardware development, industrial machine vision positioning, vision tracking, vision detection, multi-sensor information fusion and other technical methods to achieve the goal of "replacing manual labor with robot". These devices are designed to enable companies to get rid of labor problems, disputes and losses caused by human errors and achieve high efficiency. Technology makes production easier. We pursue a win-win situation. Our mission is to make work easier and more efficient for our partners. We will continue to contribute to upgrading and developing the practical application of new technologies, providing our partners with high quality equipment and professional consulting services.Our Factory
Development history
Our Certifications
Partners
Exhibition
Packaging & Delivery
FAQ
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise,has its own software development team with complete,fast and efficient R&D capabilities .
Q3. What is the services?
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise,has its own software development team with complete,fast and efficient R&D capabilities .
We support OEM and ODM services.
Device color support customization.
Q3. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
