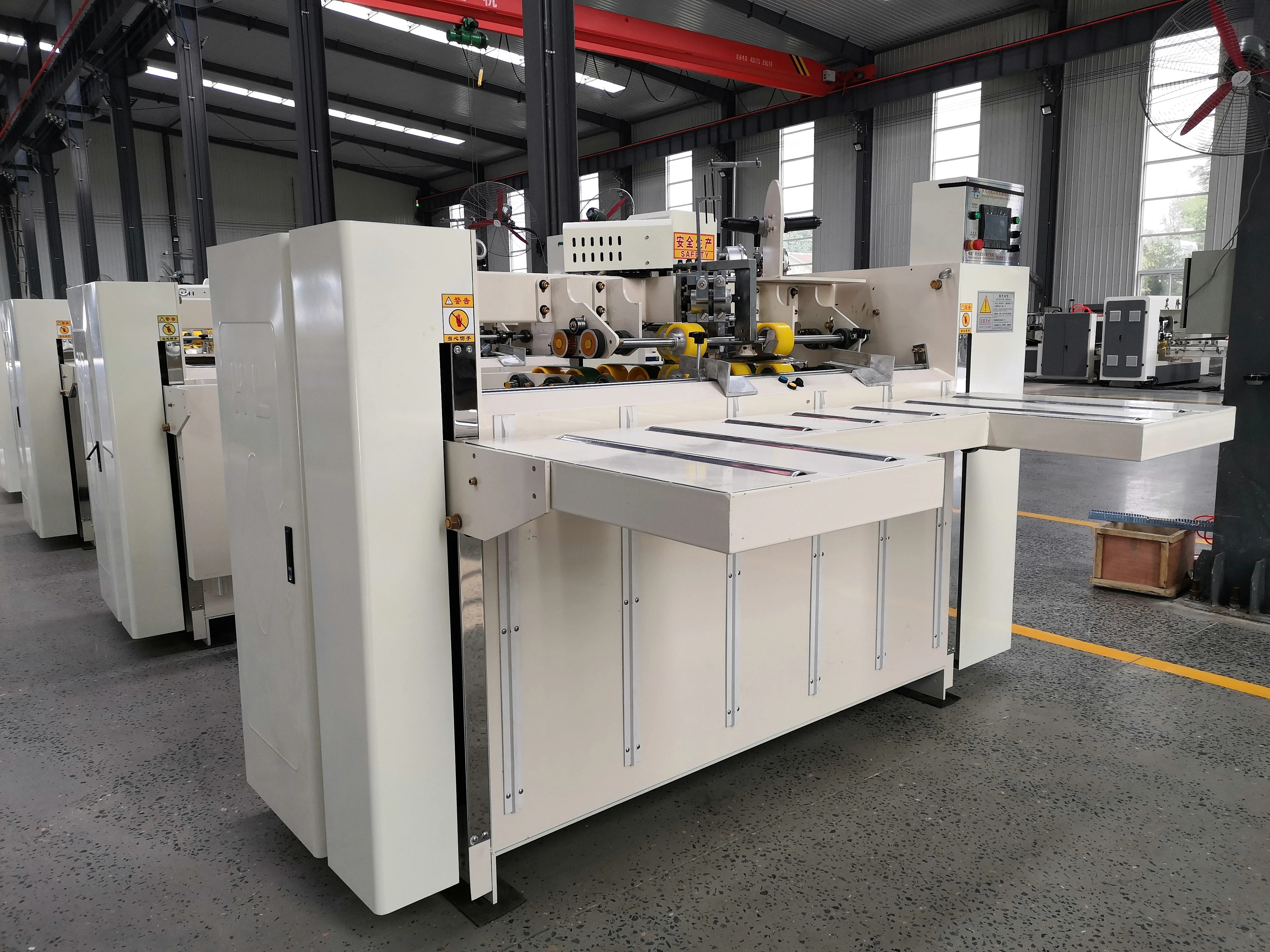

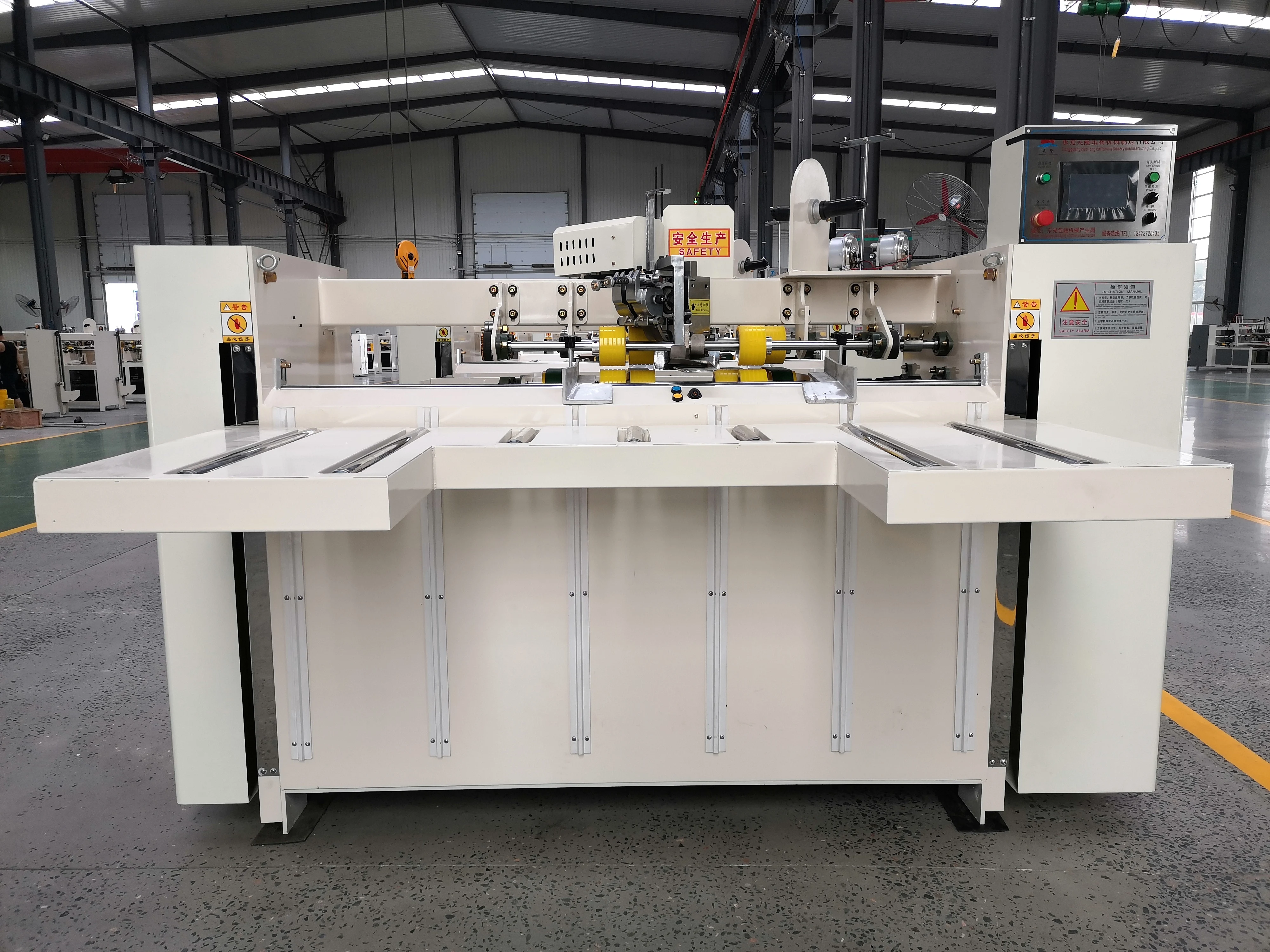

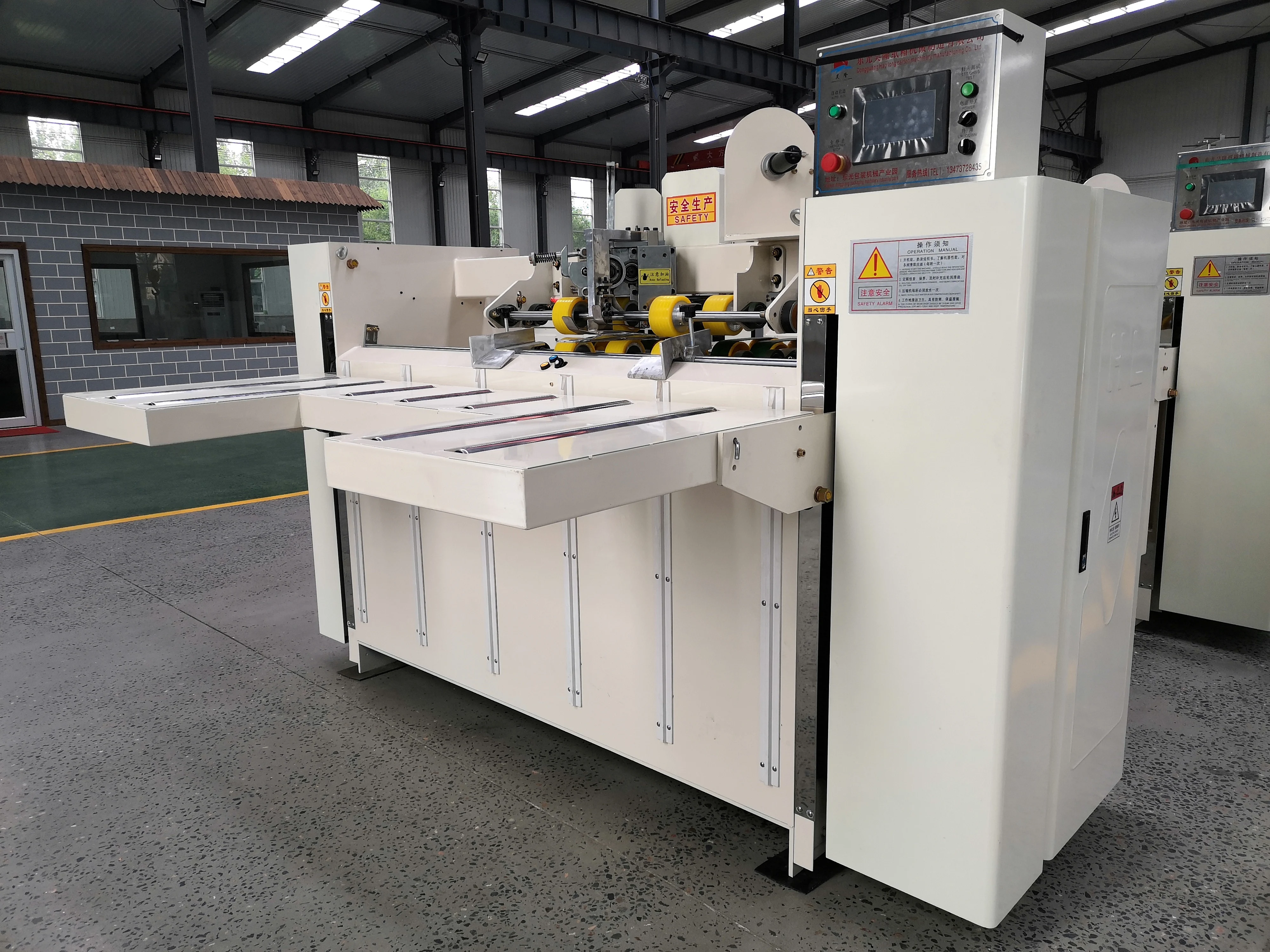

Wholesale Price Carton Making Machine Corrugated Carton Box Stitching Semi Automatic Stitcher Machine
- Category: >>>
- Supplier: Cangzhou Ouguan Packing Machinery Co. Ltd.
Share on (1600897092320):
Product Overview
Description
Product Description
1:Imported Japan 4 servo driving,high precise,with few mechanical driving part to reduce machine damage.
2:The whole control system adopt Omron PLC control system
3: The contactor in the control box adopt Siemens brand
4:Display and circuit breaker adopt schneider ,photo-electric switch and proximity switch adopt Omron branch
2:The whole control system adopt Omron PLC control system
3: The contactor in the control box adopt Siemens brand
4:Display and circuit breaker adopt schneider ,photo-electric switch and proximity switch adopt Omron branch
5:Bottom mould and blade adopt Japan Tungsten steel
6.Suitable for 3-ply 5-ply 7-ply(when use it on 7-ply,customer should order in advance).Adopt 4 servo motor(2 head motor,2 control stitch distance motor)

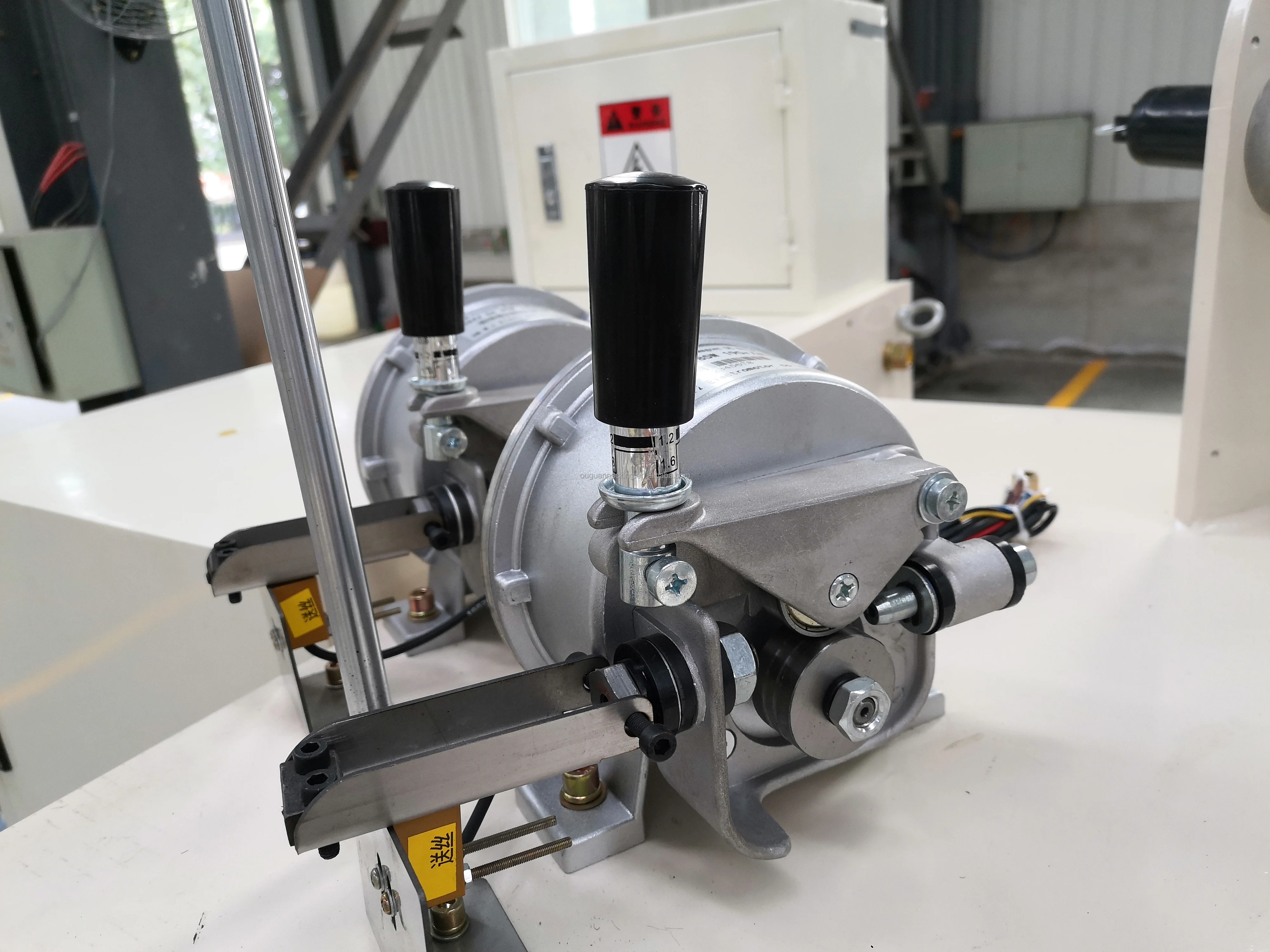

7.Automatic wire feed system, no alarm, 20 kg grail flat wire, to save time
8.The whole machine electrical isolation transformer protection device.
8.The whole machine electrical isolation transformer protection device.

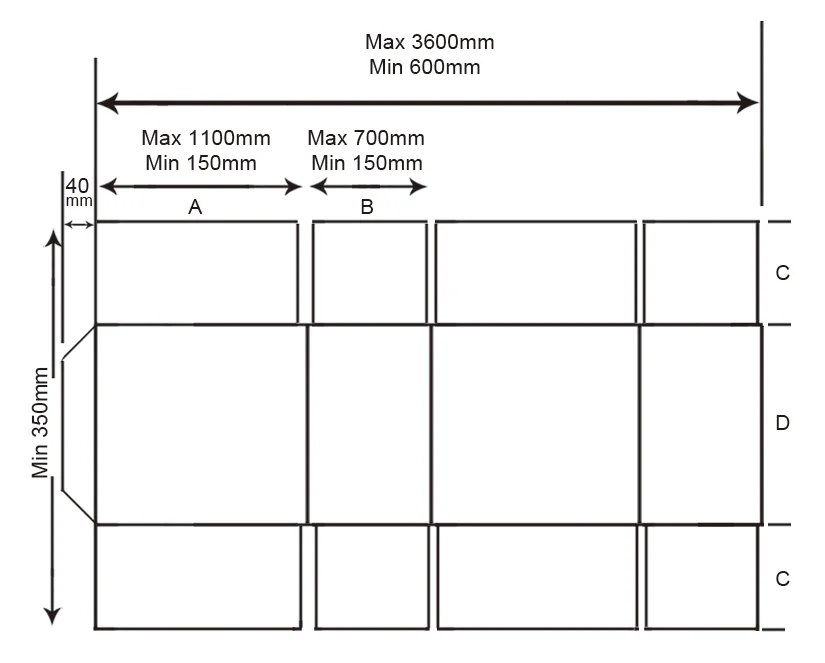

Model and parameters | SDJ-2000 | SDJ-2400 | SDJ-3000 | ||
Max paper size(A+B)*2(mm) | 4000 | 4800 | 6000 | ||
Min paper size (A+B)*2(mm) | 1060 | 1060 | 1060 | ||
Max carton length | 2850 | 2850 | 2850 | ||
Mix carton length | 350 | 350 | 350 | ||
Max carton width B | 1000 | 1200 | 1500 | ||
Min carton width B | 120 | 120 | 120 | ||
Max paper heigth(C+D+C) | 2500 | 2500 | 2500 | ||
Min paper heigth(C+D+C) | 400 | 400 | 400 | ||
Max swing cover C（mm) | 560 | 560 | 560 | ||
Min swing cover C（mm) | 50 | 50 | 50 | ||
Max height D (mm) | 2000 | 2000 | 2000 | ||
Min height D (mm) | 150 | 150 | 150 | ||
Max tongue width (mm) | 45 | 45 | 45 | ||
Stitch distance (mm) | 30-120 | 30-120 | 30-120 | ||
Stitch NO. | 1-99 | 1-99 | 1-99 | ||
Stitching speed (nails / minute) | 500 | 500 | 500 | ||
Machine weight (T) | 2.5 | 3 | 3.5 | ||
Product Details

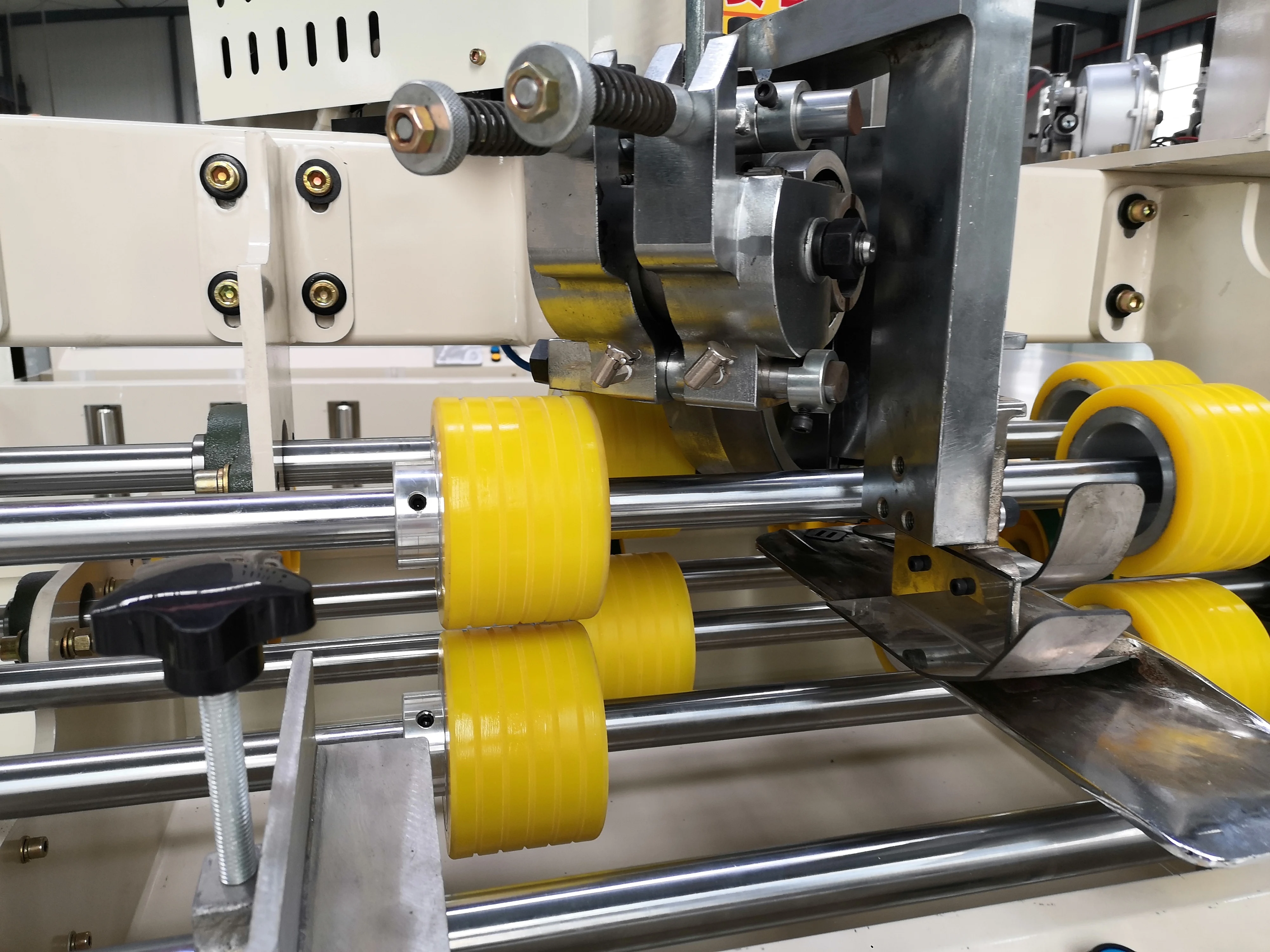

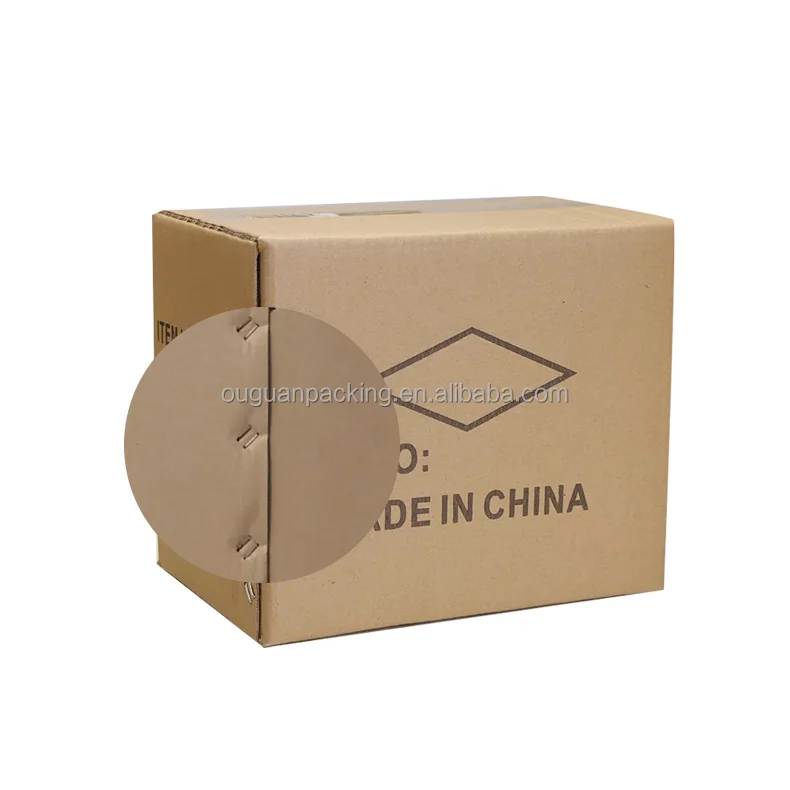

1.Can be stitched by single stitching/, double stitching //, reinforced stitching. It can be completed at one time, which can meet the different requirements of different customers for stitching types.
2.This transformation and adjustment of carton carton size from the nail it takes only a minute to be completed, greatly saves time and is convenient to operate.
3.The front feeding part automatically counting, the feeding table is provided with a photoelectric sensing device, automatic rising feeder.

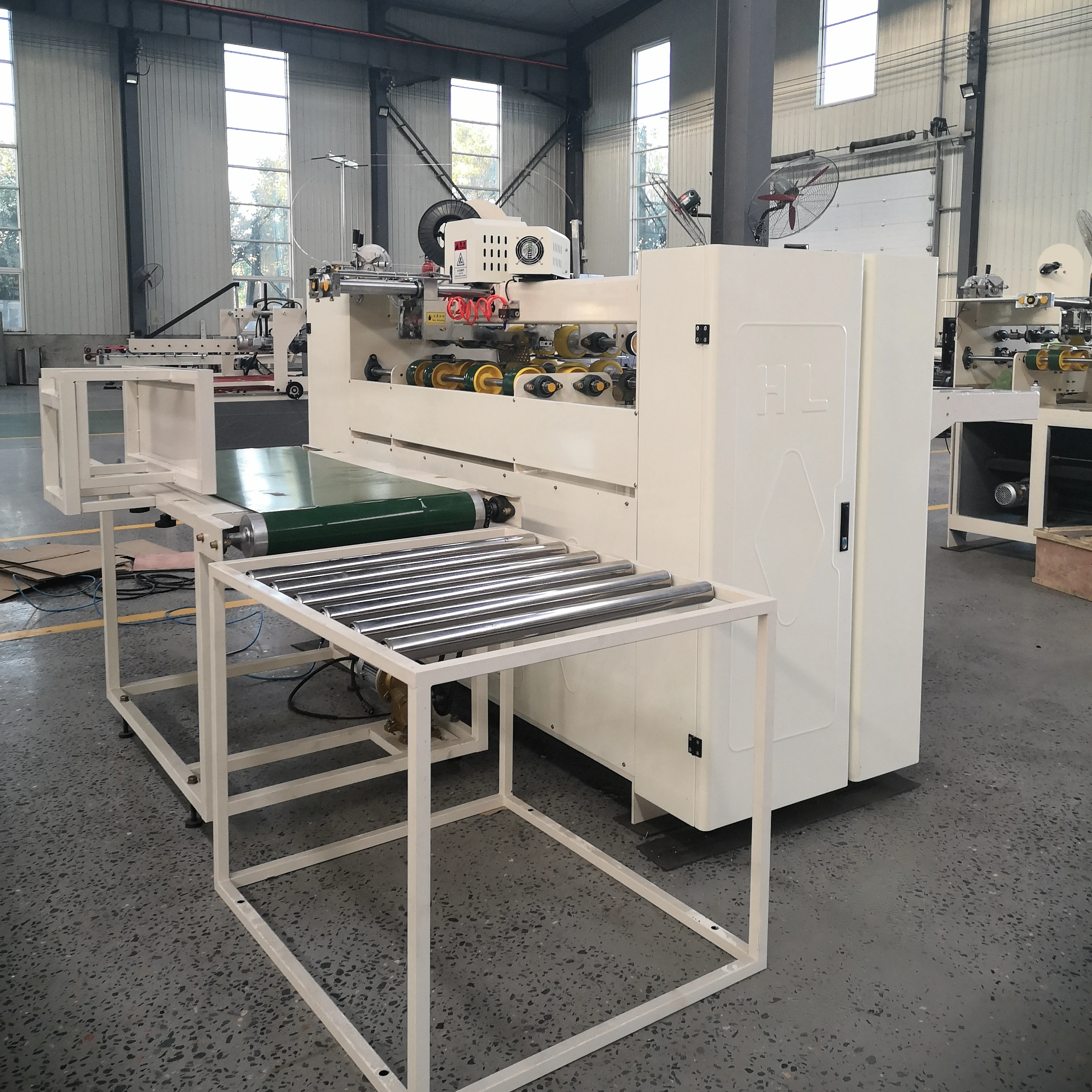

4.This back part with automatic counting function, finished cartons can be set according to the number (1-99) sub stack sent to machine end, easy to strapping
5.The gap of the pressure paper rubber wheel adopts electric adjustment
Customer Feedback
Company Profile
Why Choose Us
FAQ
1. Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export
license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Lisiwei industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about
2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up
if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary
printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our
sole purpose providing the products with excellent quality, professional technology OUGUAN packing machinery CO., LTD always
attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country.
Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
We accept LC at sight
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export
license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Lisiwei industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about
2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up
if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary
printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our
sole purpose providing the products with excellent quality, professional technology OUGUAN packing machinery CO., LTD always
attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country.
Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
We accept LC at sight
