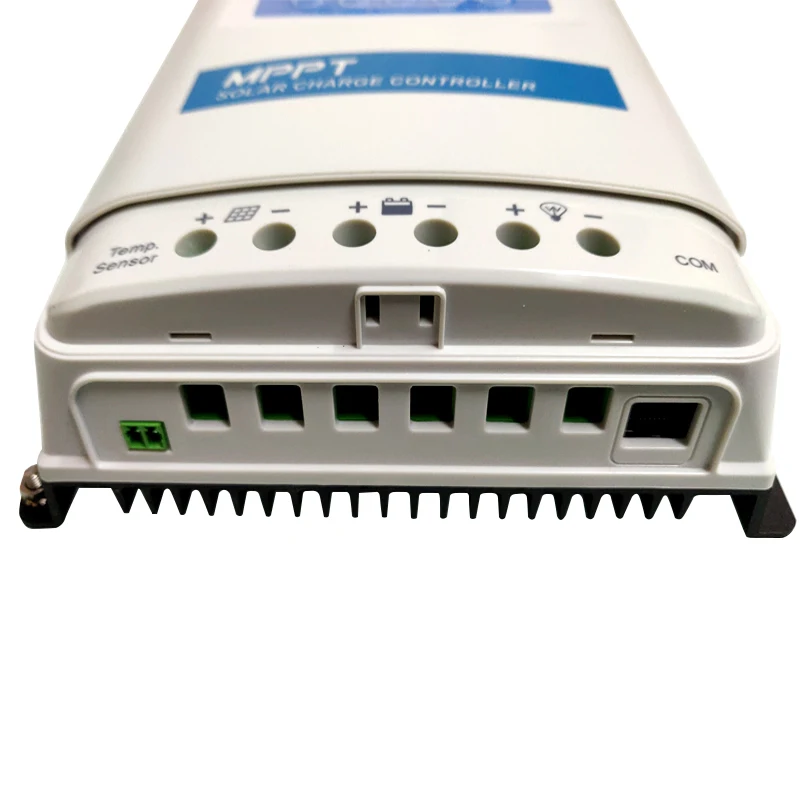

XTRA3415N XDS2 12/24/36/48V MPPT Solar Charge Controller with optional LCD display
- Category: >>>
- Supplier: Hangzhou Maixi Electronics Co. Ltd.
Share on (1600897093919):
Product Overview
Description
XTRA3415N-XDS2 12/24/36/48V MPPT Solar Charge Controller with optional LCD display
Product Description
XTRA series MPPT charge controller is not only capable of up to 99.5% tracking efficiency but also provides up to 98.50% conversion efficiency.
This crucial device automatically detects the 12V/24V/36V/48V system and supports multiple battery types like sealed and lithium, the LCD(XDB1/XDS1/XDS2) with different features is optional to select, thie controller can be easily performed in many areas such as RV, household system, field monitoring etc.
Highlights:
MPPT tracking efficiency above 99.5%
Maximum charge conversion efficiency as high as 97.4%
Support lead-acid and lithium-ion batteries
Multiple load work modes
High–temperature charging power derating function
Optional LCD display units (XDB1/XDS1/XDS2) and accessories
Isolated RS485 communication port with standard Modbus protocol
Real-time energy statistics function
IP33 protection class design
CE certification(LVD IEC62109,EMC EN3/1-6-61000)
Maximum charge conversion efficiency as high as 97.4%
Support lead-acid and lithium-ion batteries
Multiple load work modes
High–temperature charging power derating function
Optional LCD display units (XDB1/XDS1/XDS2) and accessories
Isolated RS485 communication port with standard Modbus protocol
Real-time energy statistics function
IP33 protection class design
CE certification(LVD IEC62109,EMC EN3/1-6-61000)
Paramenters
Series | XTRA-N SERIES | ||||||
Model | XTRA1210N | XTRA2210N | XTRA3210N | XTRA4210N | |||
Norminal system voltage | 12/24VDC Auto Work | ||||||
Rated charge current | 10A | 20A | 30A | 40A | |||
Rated charge power | 130W/12V 260W/24V | 260W/12V 520W/24V | 390W/12V 780W/24V | 520W/12V 1040W/24V | |||
Battery type | Lead-acid(Sealed)/Gel/Lithium(LiFO4) | ||||||
Max. conversion efficiency | ≤98.60% | ||||||
MPPT tracking efficiency | ≥99.50% | ||||||
Max. PV open circuit voltage | 100V①; 96V② | ||||||
MPP voltage range | (Battery voltage +2V)～72V | ||||||
Equalization voltage | Sealed:14.6V, Flooded: 14.8V, User-defined: 9-17V | ||||||
Boost voltage | Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V, User-defined: 9-17V | ||||||
Float voltage | Gel/Sealed/Flooded: 13.8V, User-defined: 9-17V | ||||||
Self Consumption | ≤30mA(12V); ≤16mA(24V) | ||||||
Temperature compensation | -3mV/℃/2V(Default) | ||||||
Relative humidity | ≤95%, N.C. | ||||||
Enclosure | IP33 | ||||||
RS485 interface | 5VDC/200mA(RJ45) | ||||||
Operating Temp. range | -25℃～+50℃(100% input and output) | ||||||
Dimensions(L*W*H)mm | 172*139*44 | 220*154*52 | 228*164*55 | 252*180*63 | |||
Net weight | 0.57KG | 0.94KG | 1.26KG | 1.65KG | |||
Gross weight | 0.8KG | 1.3KG | 1.6KG | 2.05KG | |||
①At minimum operating environment temperature.
②At 25℃ environment temperature.

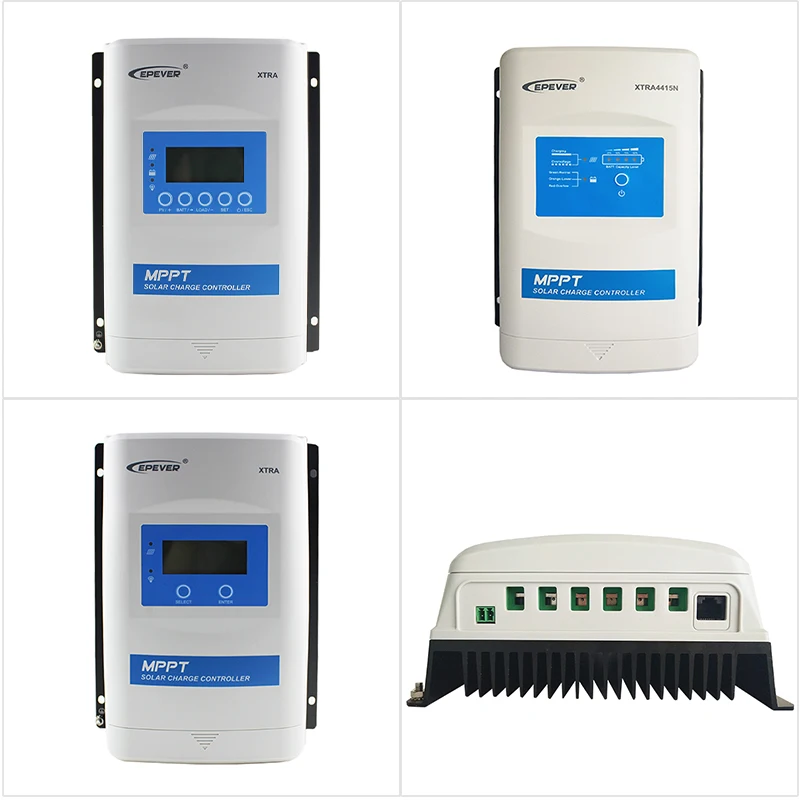

Basics XTRA-N2-XDB1
LED Indicators: PV & battery working status
Button:
*In manual work mode, it switch ON/OFF the load by press the button.
*Clear the error information.
Button:
*In manual work mode, it switch ON/OFF the load by press the button.
*Clear the error information.
Standard XTRA-N2-XDS1
LED Indicators: PV & load working status
Buttons: View or set the parameters
or clear the error information.
LCD: PV display: voltage/current /generated energy
Battery display: voltage/current/temperature
Load display:
current/consumed energy/load working mode
Buttons: View or set the parameters
or clear the error information.
LCD: PV display: voltage/current /generated energy
Battery display: voltage/current/temperature
Load display:
current/consumed energy/load working mode

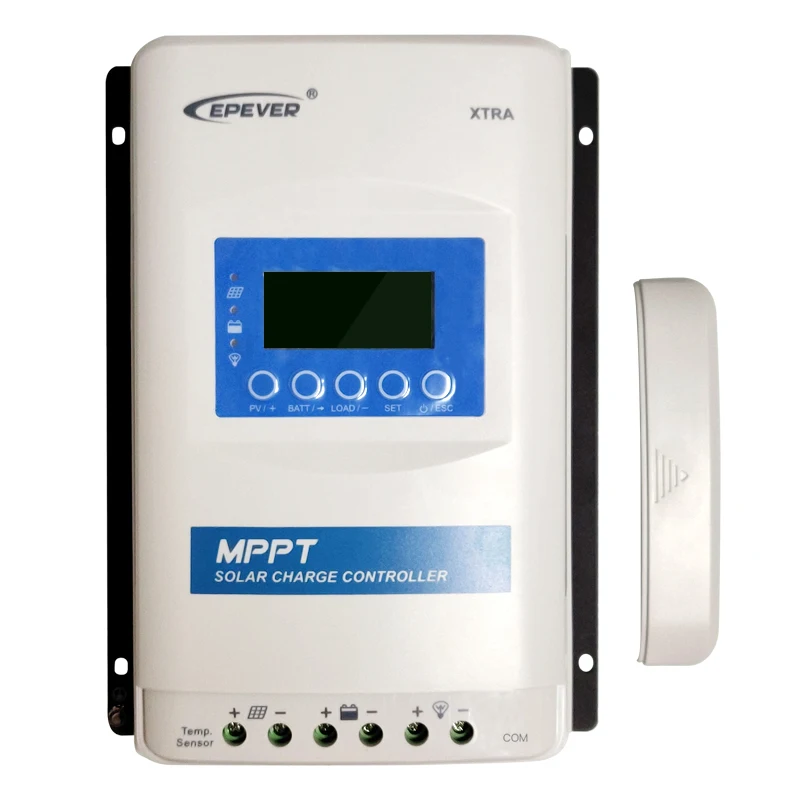

Advanced XTRA-N2-XDS2
LED Indicators: PV & battery & load working status
Buttons: View or set the parameters
or clear the error information.
LCD: PV display: voltage/current /generated energy/power
Battery display: voltage/current/
temperature/capacity
Load display: voltage/current/power
/consumed energy/ load working mode
Buttons: View or set the parameters
or clear the error information.
LCD: PV display: voltage/current /generated energy/power
Battery display: voltage/current/
temperature/capacity
Load display: voltage/current/power
/consumed energy/ load working mode
OPTIONAL ACCESSORIES
MT50 Remote Meter
Connector Type: RJ45
Dimension: 114*114mm
2m communication cable
Working temp.: -20℃-+70℃
EPEVER WiFi 2.4G RJ45 D Adapter
Input voltage: 5VDC
Standby power consump.: 0.20W
Interface type: RJ45
Dimension: 51*67*24.5mm
eLOG01 Logger
Input voltage: 4-10VDC
Interface: 2 RJ45 1 Micro USB
Dimension: 71*67.62*25.8mm
Working temp.: -25℃-+75℃
EPEVER BLE RJ45 A Adapter
Input voltage: 5VDC
Standby power consump.: 0.04W
Interface type: RJ45
Dimension: 51*67*24.5mm
Standby power consump.: 0.04W
Interface type: RJ45
Dimension: 51*67*24.5mm
Remote Temperature Sensor
RTS300R47K3.81A
Line length: 3m
Rated resistance: 47K
Connector: 3.81mm/2P

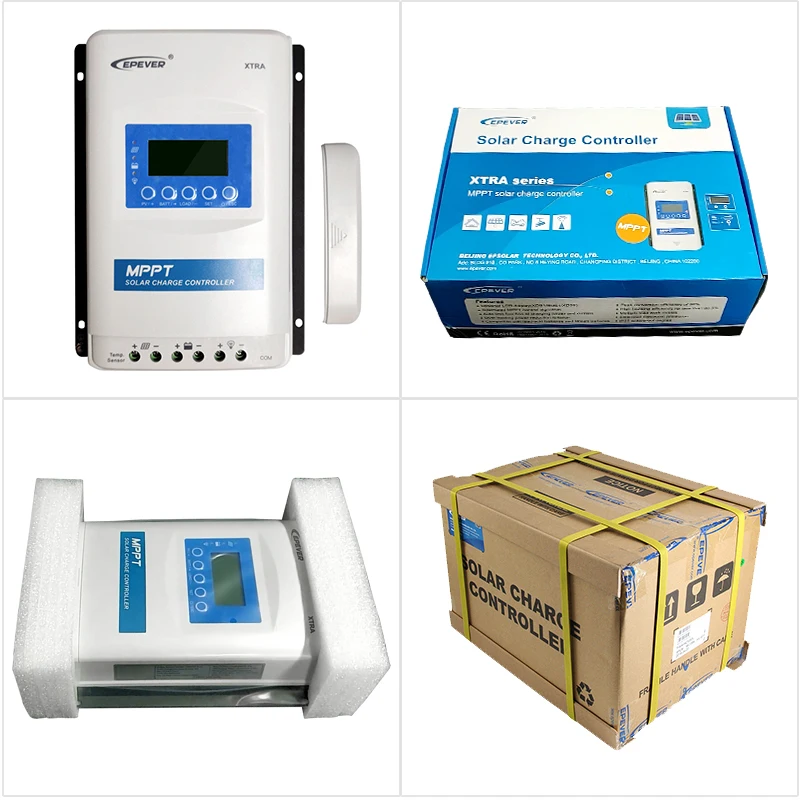

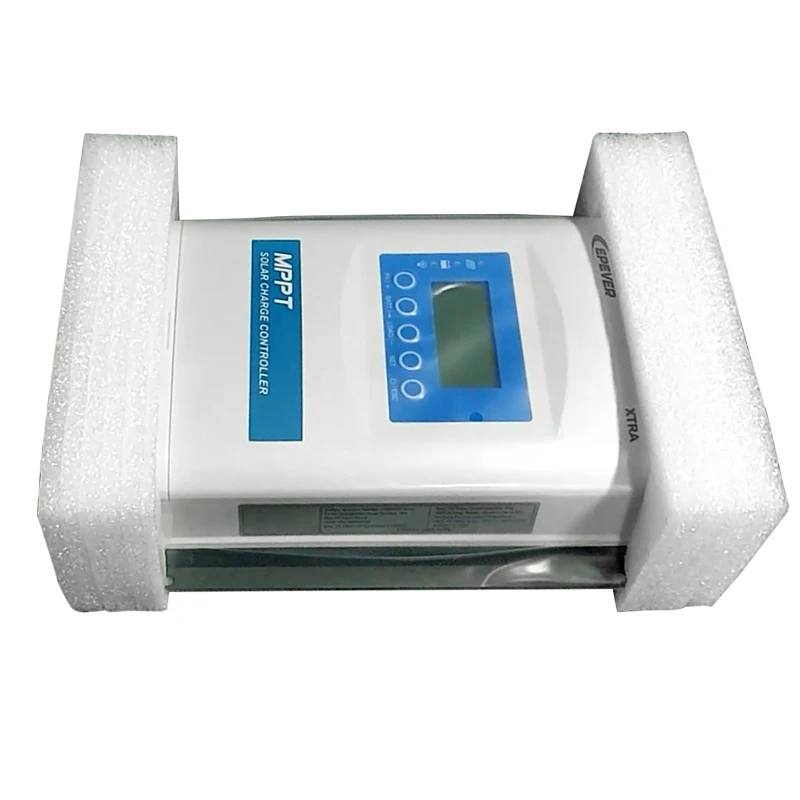

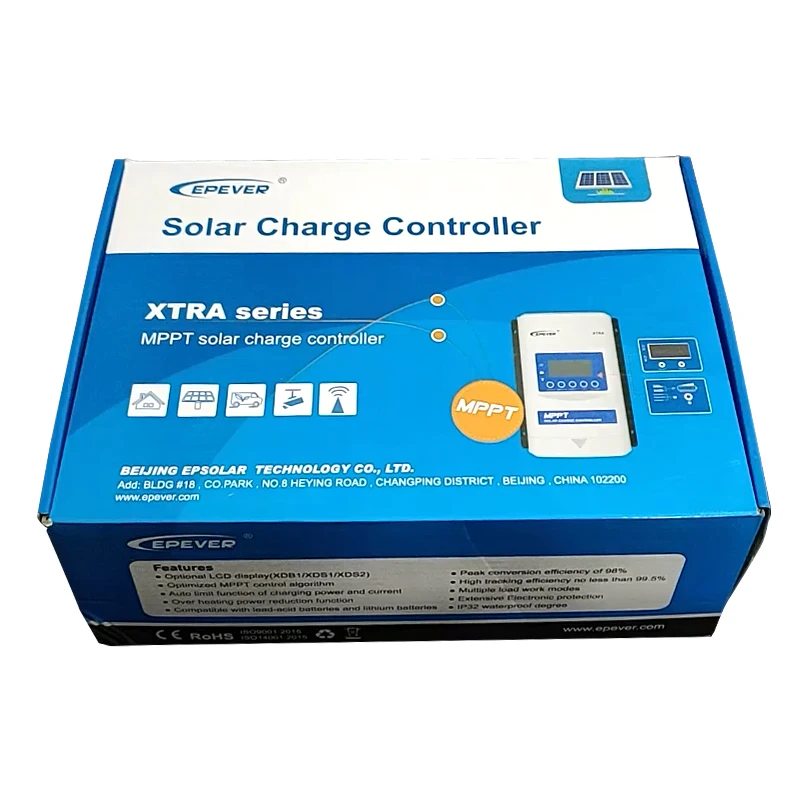

Packing & Delivery
The MPPT solar charge controllers packed by customized Inner&Outer cartons+wooden pallets available for sea shipment to protect the goods arrived in good conditions.
Package can be customized according to customer's demands(LOGO design)
Package can be customized according to customer's demands(LOGO design)
We chose most economical shipment according to customer demands(By international EXPRESS(DHL, FedEx, UPS, TNT), By Air, By Train, By Sea all available).
We support DDP solution(Delivered Duty Paid), which helps you import the products easily.
We support DDP solution(Delivered Duty Paid), which helps you import the products easily.
Workshop
5 production line for regularly capacity
More than 200 workers
Imported SMT and production machine
Proffesional R&D department

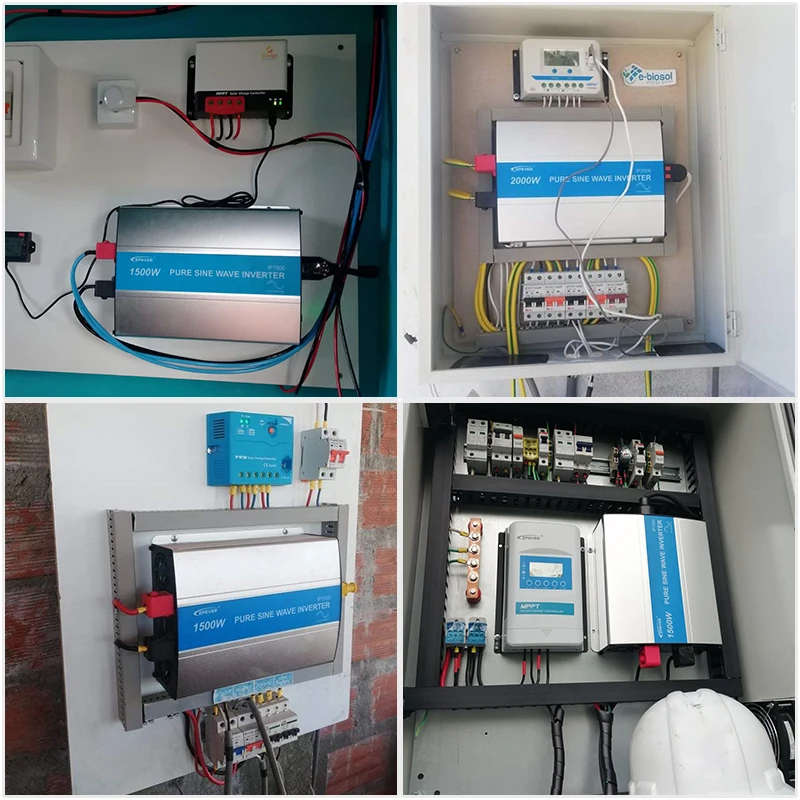

Application

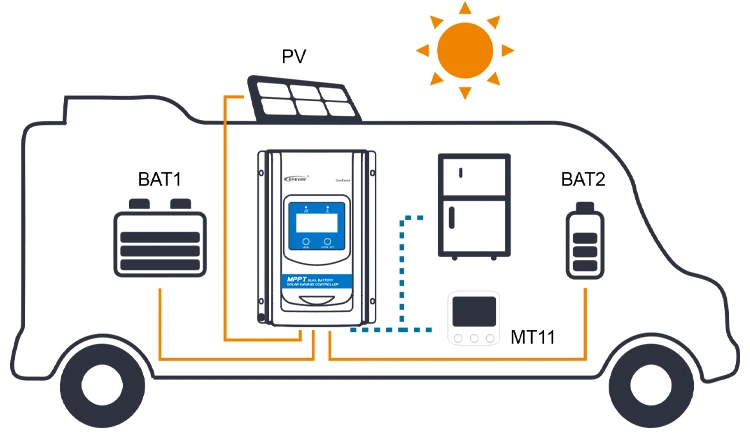

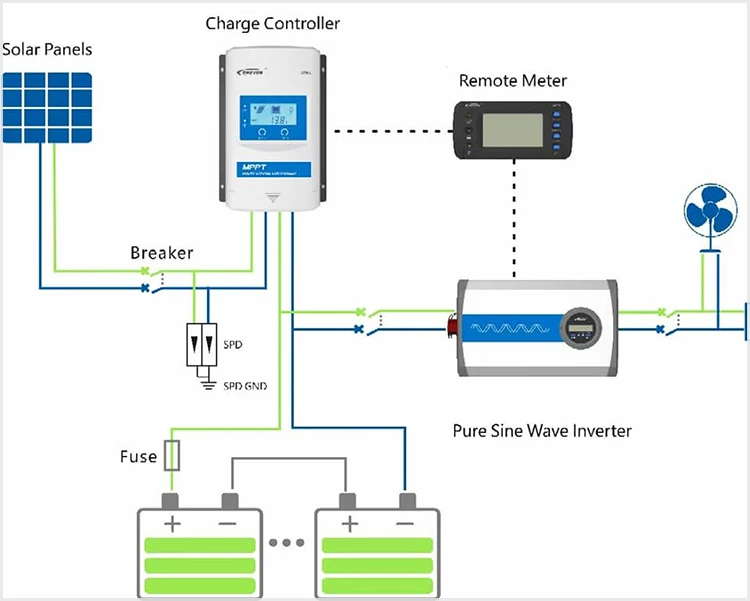

The MPPT solar charge controllers can be used for various applications, e.g. solar RV, household system, solar boat and field monitoring, etc, pleasured to discuss your solar system details.
