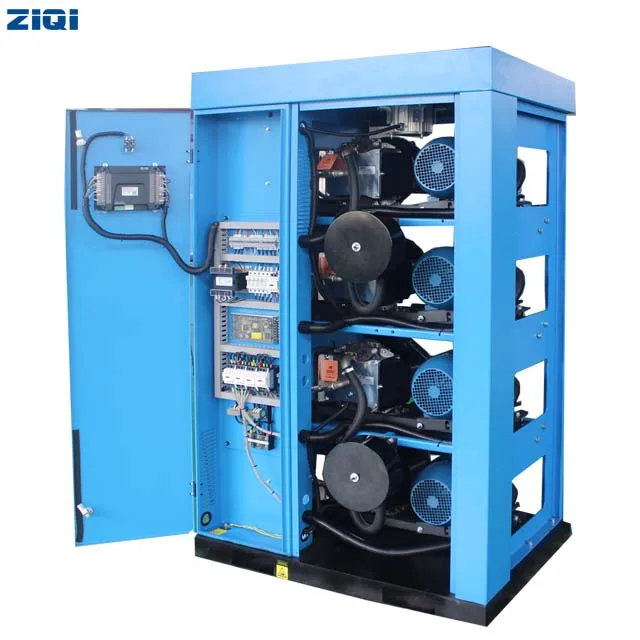

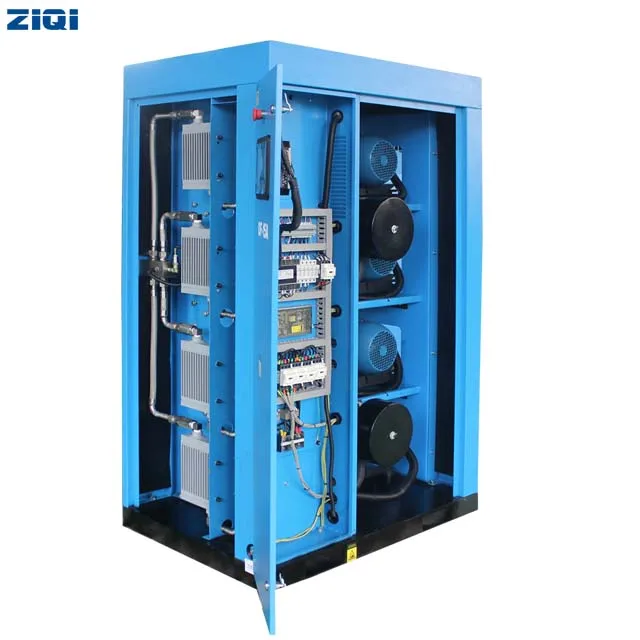

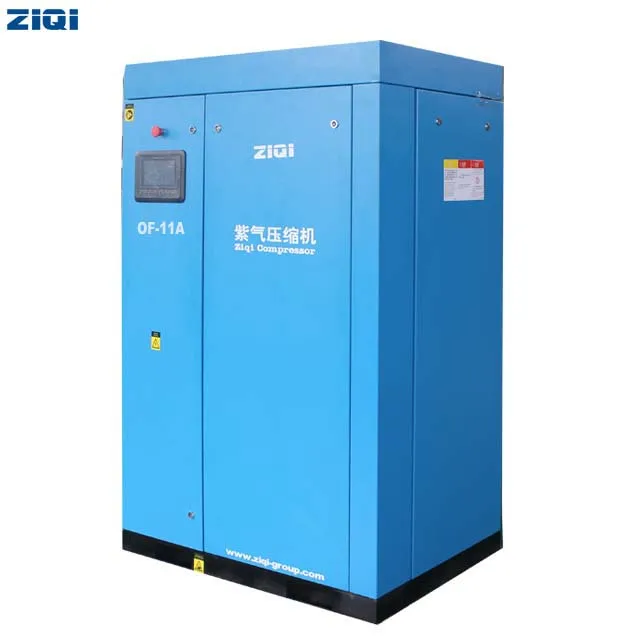

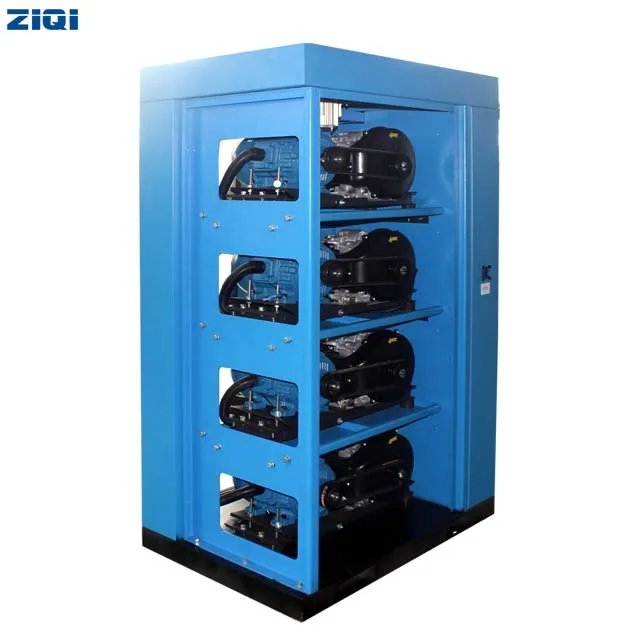

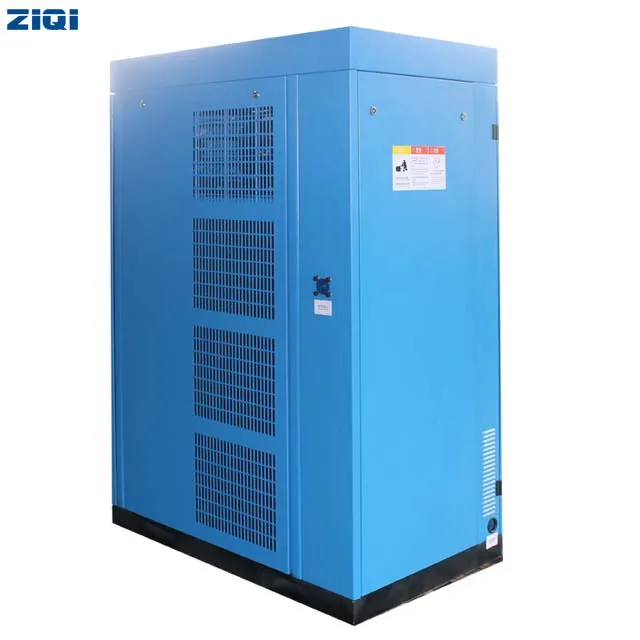

Hot selling Japan Anest iwata 11KW 380V single stage belt driven oilfree Air scroll compressor for offer
- Category: >>>
- Supplier: Shanghai Donglai Air Motive Equipment Co. Ltd.
Share on (1600897097074):
Product Overview
Description
PRODUCT INTRODUCTION
OVER ADVANTAGES
PRODUCT SPECIFICATIONS
Oil - free Scroll Air Compressor Definition
Air is drawn in through an inlet on the outside of the solid vortex. The air enclosed in the compressed space is reduced by thecompression movement of the compression chamber, facing the center of the compression. The compressed space is minimized at the
center, and the compressed air is squeezed out from the center of the exhaust. (Inspiratory → compression → exhaust) the movement
is repeated.
center, and the compressed air is squeezed out from the center of the exhaust. (Inspiratory → compression → exhaust) the movement
is repeated.
ZIQI Oil -Free Scroll Air Compressor Advantages:
1.Adopt Japanese Anest Iwata Oil Free Scroll Air End,the air end made in Japan,original quality;
2.Adopt Brazil WEG three phase asynchronous motor,IP55 protection,class F insulation;
3.Novel structure, precision,with a small size, low noise,light weight, small vibration,low energy consumption, long
life,continuous smooth gastransmission,reliable operation,clean air and so on;
4.Applicable to high temperature environment of the fan Integrated design Patented design Simple and beautiful
2.Adopt Brazil WEG three phase asynchronous motor,IP55 protection,class F insulation;
3.Novel structure, precision,with a small size, low noise,light weight, small vibration,low energy consumption, long
life,continuous smooth gastransmission,reliable operation,clean air and so on;
4.Applicable to high temperature environment of the fan Integrated design Patented design Simple and beautiful
Air pressure | Air flowing | Motor power | Dimension | Weight | |||||||
mpa | bar | psi | L/min | hp | kw | L(mm)*W(mm)*H(mm) | kgs | ||||
OF-2.2A | 0.8 | 8 | 116 | 240 | 3 | 2.2 | 540mm*680mm*920mm | 135 | |||
1 | 10 | 145 | 205 | ||||||||
OF-3.7A | 0.8 | 8 | 116 | 405 | 20 | 15 | 1130mm*900mm*1024mm | 550 | |||
1 | 10 | 145 | 350 | ||||||||
OF-7.5A | 0.8 | 8 | 116 | 820 | 10 | 7.5 | 1100mm*740mm*1680mm | 395 | |||
1 | 10 | 145 | 700 | ||||||||
OF-11A | 0.8 | 8 | 116 | 1230 | 15 | 11 | 1100mm*740mm*1680mm | 465 | |||
1 | 10 | 145 | 1060 | ||||||||
OF-15A | 0.8 | 8 | 116 | 1645 | 20 | 15 | 1100mm*740mm*1680mm | 550 | |||
1 | 10 | 145 | 1415 | ||||||||
OF-22A | 0.8 | 8 | 116 | 2540 | 30 | 22 | 1100mm*1140mm*1680mm | 915 | |||
1 | 10 | 145 | 2080 | ||||||||
OF-30A | 0.8 | 8 | 116 | 3400 | 40 | 30 | 1100mm*1140mm*1680mm | 1065 | |||
1 | 10 | 145 | 2800 | ||||||||
PRODUCT FLOW
COMPANY PROFILE
CERTIFICATIONS
Are you manufacturer?
ZIQI: Yes, we are professional air compressor manufacturer over 15 years and our factory is located in Shanghai.
How long is your air compressor warranty?
ZIQI: Air end for 2 years,other for 1 year.
Do you provide After- sales service parts?
ZIQI: Of course, We could provide easy- consumable spares.
How long could your air compressor be used?
ZIQI: Generally, more than 20 years.
How about your price?
ZIQI: Based on high quality, Our price is very competitive in this market all over the world.
How about your customer service?
ZIQI: For email, we could reply our customers' emails within 2 hours.
Do you support OEM?
ZIQI: YES, and we also provide multiple models to select. How to get quicker quotation?When you send us inquiry, please confirm
below information at the same time:
* What is the air displacement (m3/min,cfm/min)?
* What is the air pressure (mpa,bar,psi)?
* What is the voltage in your factory (v/p/Hz)?
* It is ok if you need air tank, air dryer and filters.
This information is helpful for us to check suitable equipment solution and quotation quickly.
ZIQI: Yes, we are professional air compressor manufacturer over 15 years and our factory is located in Shanghai.
How long is your air compressor warranty?
ZIQI: Air end for 2 years,other for 1 year.
Do you provide After- sales service parts?
ZIQI: Of course, We could provide easy- consumable spares.
How long could your air compressor be used?
ZIQI: Generally, more than 20 years.
How about your price?
ZIQI: Based on high quality, Our price is very competitive in this market all over the world.
How about your customer service?
ZIQI: For email, we could reply our customers' emails within 2 hours.
Do you support OEM?
ZIQI: YES, and we also provide multiple models to select. How to get quicker quotation?When you send us inquiry, please confirm
below information at the same time:
* What is the air displacement (m3/min,cfm/min)?
* What is the air pressure (mpa,bar,psi)?
* What is the voltage in your factory (v/p/Hz)?
* It is ok if you need air tank, air dryer and filters.
This information is helpful for us to check suitable equipment solution and quotation quickly.
