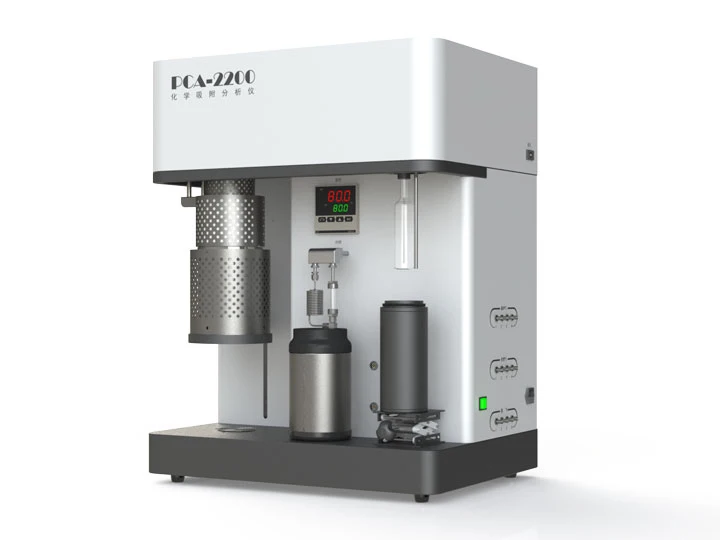

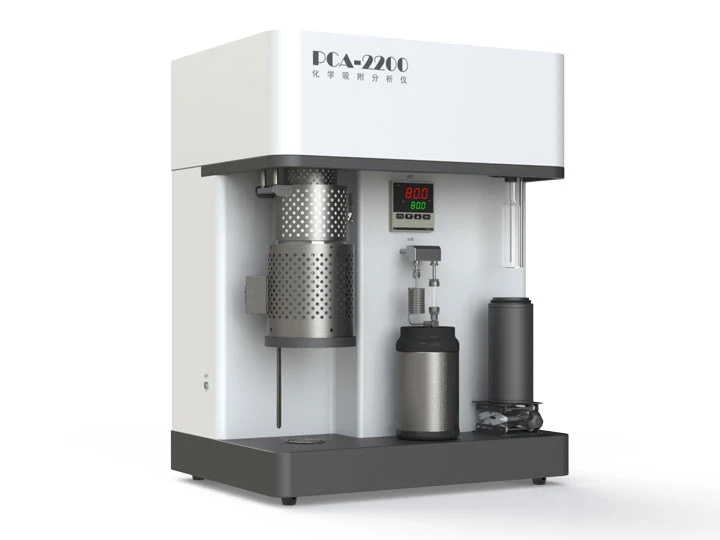

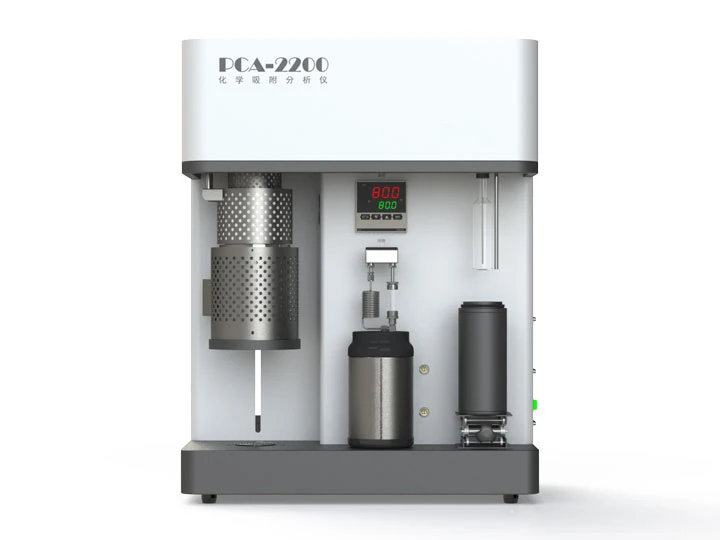

PCA 2200 chemical adsorption analyzer specific surface area analyzer

Product Introduction
PCA-2200 is a high-precision and highly stable fully automatic temperature programmed chemical adsorption analyzer for in-situ characterization of catalysts. By using the principle of continuous flow chromatography and programmed temperature rise technology, automatic programmed temperature rise, automatic pulse chemical adsorption, surface reaction, and specific surface area testing can be achieved.
Main functions: TPD, TPO, TPR, TPS, pulse titration, pulse reaction, specific surface area measurement
High quality hardware composition
1. Excellent gas circuit structure
2. Durable material constant temperature TCD detector
3. High performance programmed heating electric furnace
4. Multi structure cold trap design
5. Application temperature steam generator
6. Selection of digital mass flow meter
Powerful control analysis system
1. Practical operating software
2. Insert automated running programs
3. Safety performance
The instrument is equipped with a built-in combustible gas leakage alarm system to improve the safety level of the laboratory

Hardware system control:
1. Analysis pressure: atmospheric pressure
2. Programmed heating electric furnace: a closed heating furnace with a room temperature of -1200 ℃, and a safety insulation cover on the furnace wall to prevent burns (low-temperature reaction furnace can be selected at -120 ℃ -1200 ℃);
3. Reactor: High temperature resistant U-shaped quartz reactor with an upper temperature limit of 1200 ℃, which can fully preheat the reaction gas and accurately obtain the bed temperature and temperature inside the reaction furnace, improving temperature control accuracy; The reactor is designed with an overflow channel to block the gas path polluted by the removed substances
4. Signal detector: Original four-wall PT gold-plated TCD detector with strong antioxidant and ammonia corrosion resistance, stable current control ensures baseline stability and test reproducibility signal
5. Temperature detection: The thermocouple is embedded in a U-shaped bypass reactor, which can accurately capture the temperature of the catalyst bed layer
6. Steam generator: The operating temperature is -25 ℃~300 ℃ (the upper temperature limit can be set to prevent overheating)
7. Flow control: Multiple sets of high-precision digital mass flow controllers, parallel gas path structure (based on detectors), supporting customized use of different range flow controllers. In addition to high-purity gas, gas conversion coefficients can also be set for different concentrations of mixed gas, achieving precise control
8. Air circuit system:
Control: Electric six way valve and solenoid valve control module, equipped with visual software control interface, real-time display of gas circuit status
Structure: Set up multiple bypasses and intelligently switch according to experimental steps
9. Constant temperature system: adjustable electric furnace+through type strong air cooling system, which can quickly achieve high temperature to room temperature cooling, with a cooling time of less than 25 minutes

Intelligent software:
The software visually displays the operation process of each program experiment, and the interface can display time, temperature, and signal output, achieving real-time monitoring of the reaction
Provides peak selection, editing, integration, multispectral comparison, and data smoothing processing, as well as the ability to manually annotate TM and other data
Can generate TXT, EXCEL, WORD, PNG and other data files, and can be directly imported into drawing software
Automatic saving of work logs, one click query of experimental conditions
Other:
The host is 600mm long, 460mm wide, and 745mm high
Power: 950W
Working voltage: 220V
