4K HD 1080P 3x3 HDMI DVI TV Video Wall Controller Processor 1X2 1X4 1X3 2X1 3X1 4X1 multi video screen processor Switch Splicer
- Category: >>>
- Supplier: Dongguan Ouzheng Technology Co. Ltd
Share on (1600897196294):
Product Overview
Description
Product Description
| HDMI Version | HDMI1.4 HDCP1.4 |
| HDMI Resolution | up to 3840x2160P/30Hz |
| Support Video Format | 24 bit deep color |
| Power Adapter Format | Output: DC12V/2A |
| Material | Iron |
| Color | Black |
| Dimension(LxWxH) | 148X62X21mm |
| Weight | 730g |
| Package | Box (Remote+User Manual+Power Adapter) |

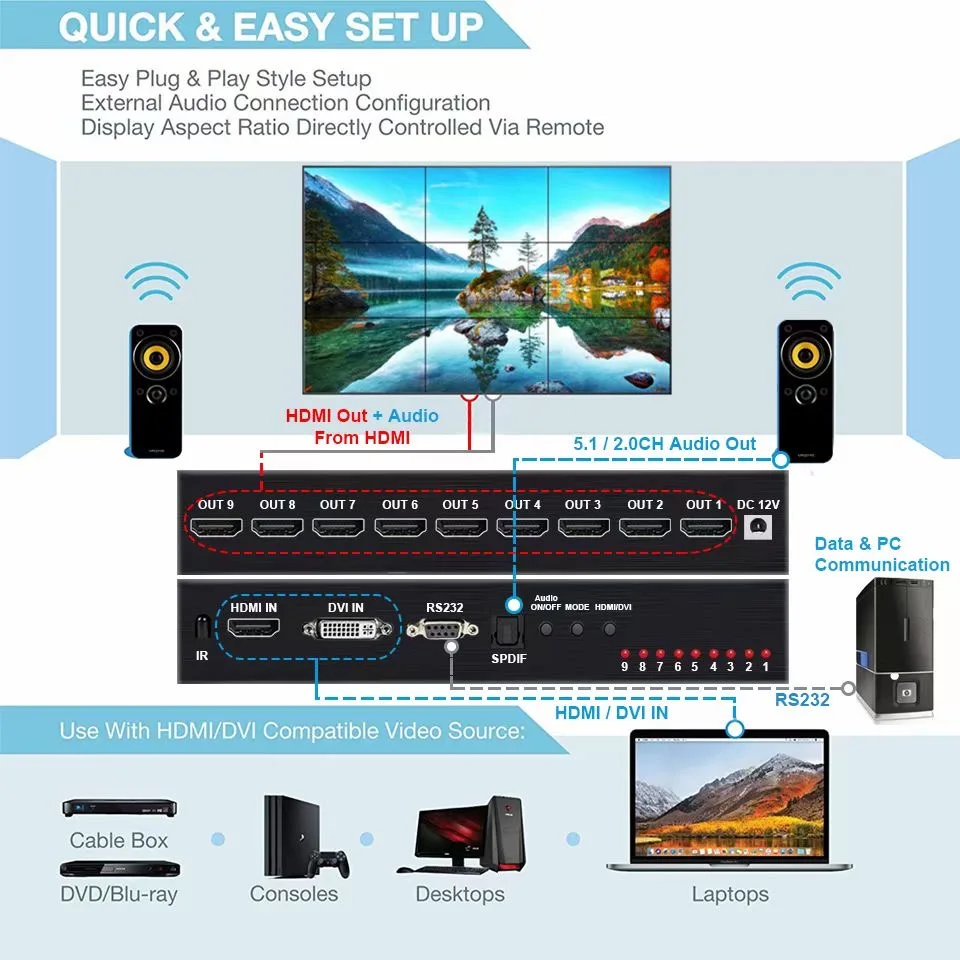

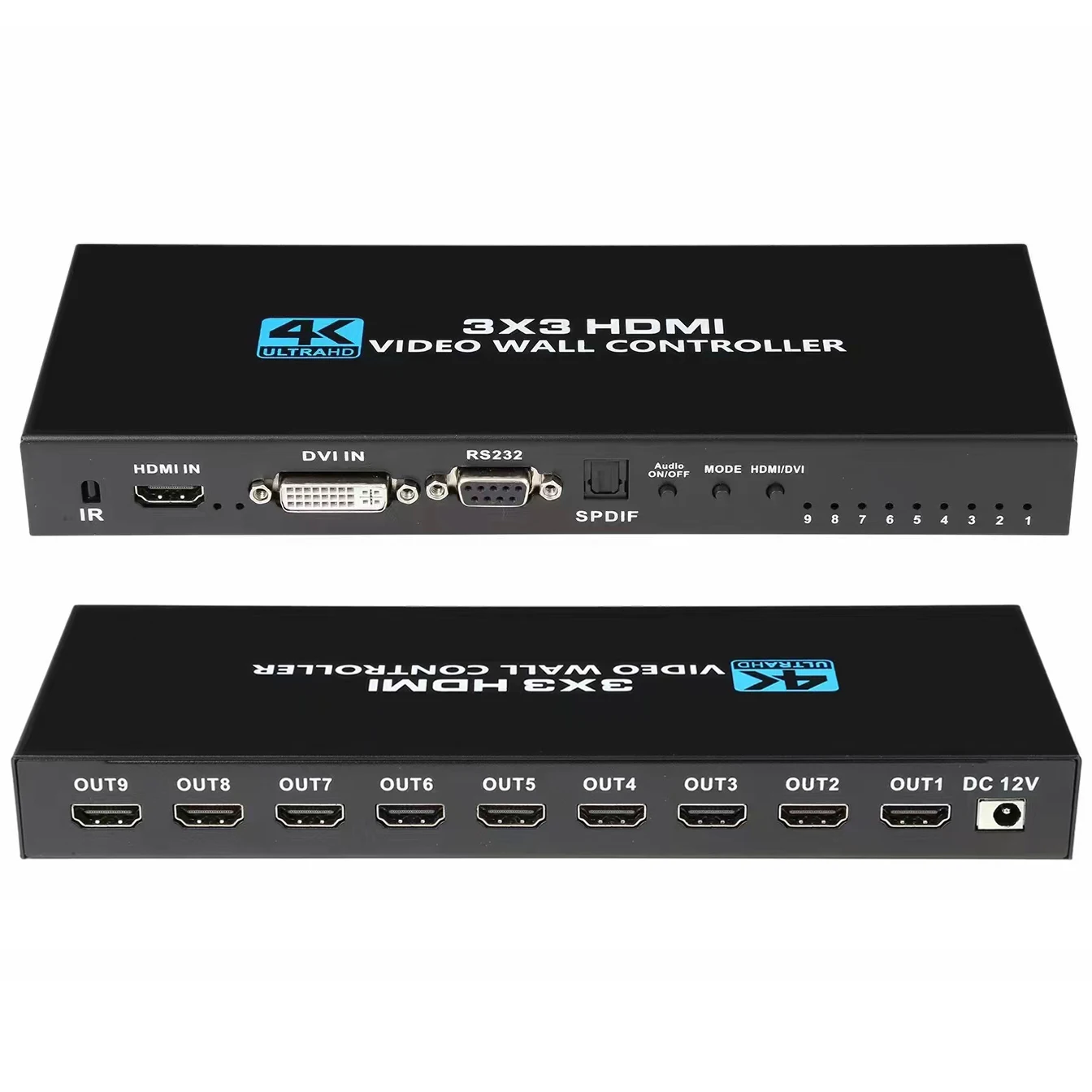

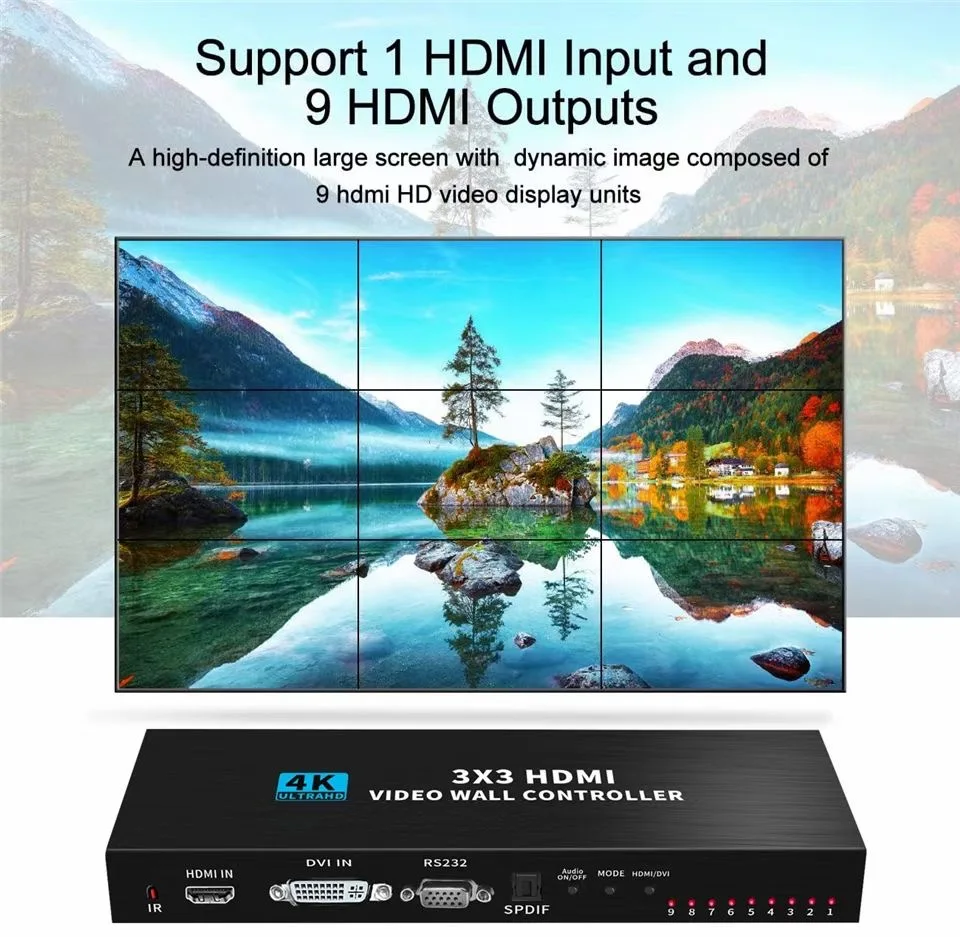

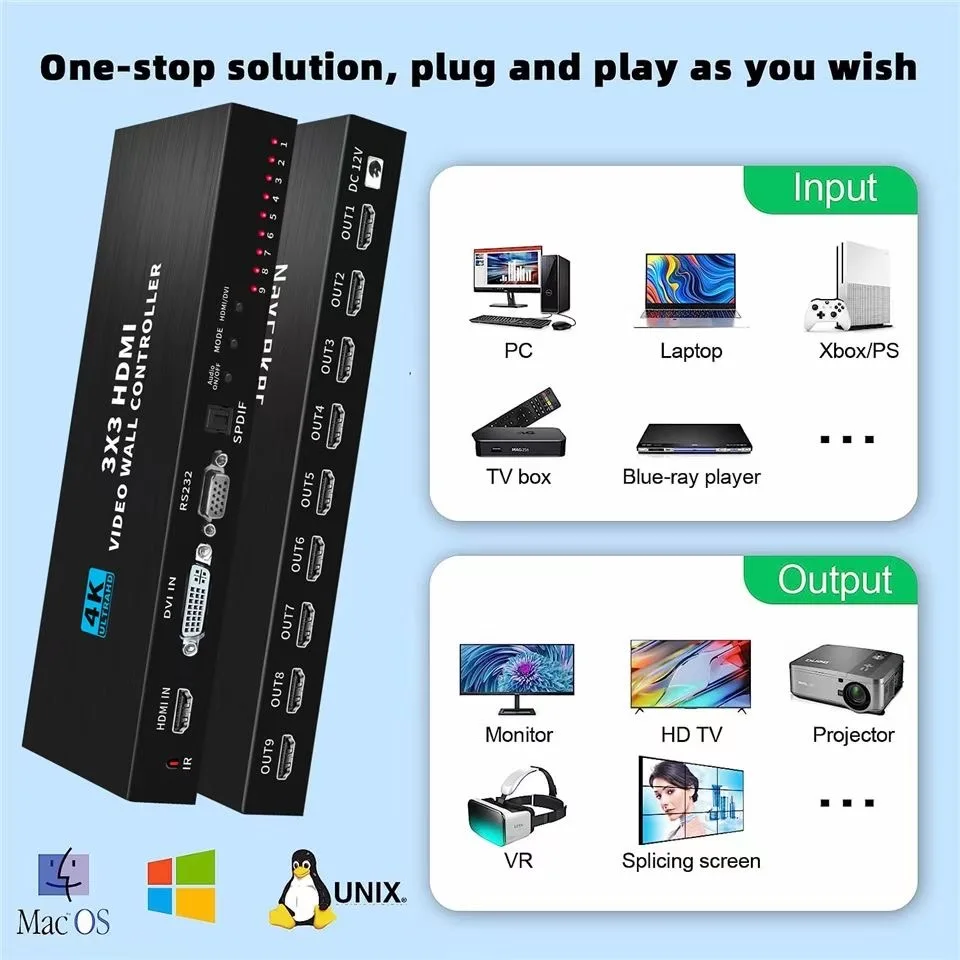

The 4K 3X3 video wall controller, support 1-way HDMl or DVI input and 9 HDMl output,function is to divide a complete HDMl, DVI HD image singal into 9 blocks and assign to 9 video display unit (such as rear projection unit, LCD TV etc.).

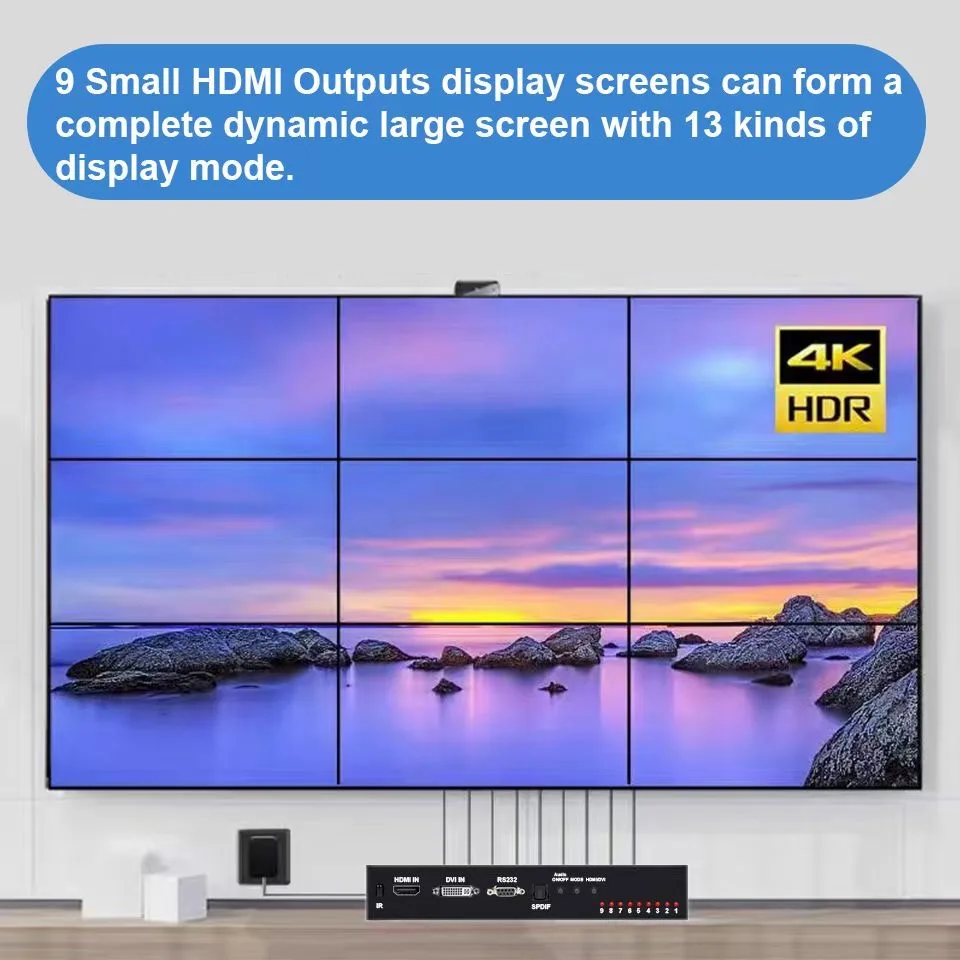

Complete with 9 HDMl high-definition video display units to form a large dynamic image screen.

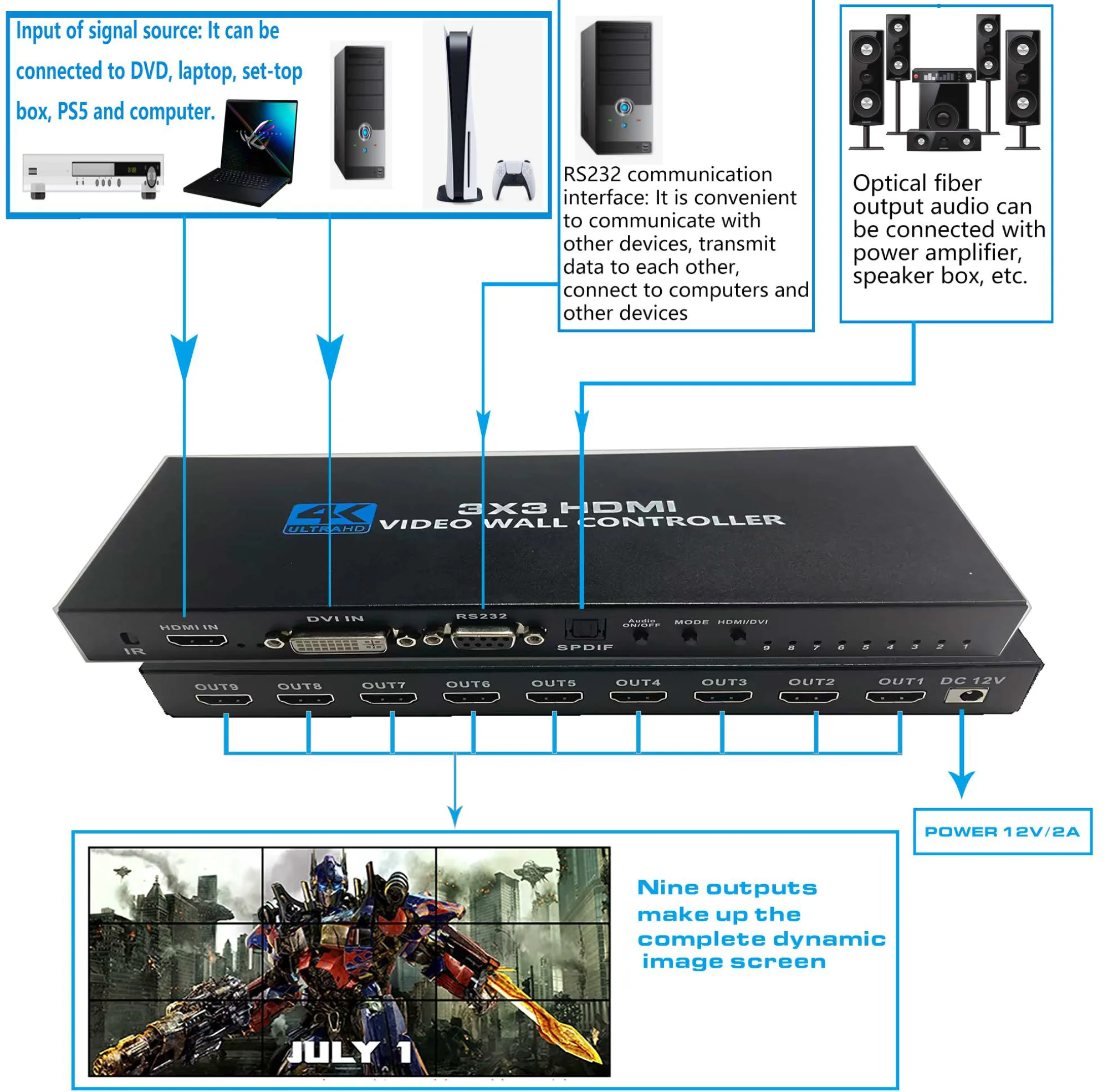

* Supports one DVI input or HDMI input.
* Input support HDMI1.4, HDCP1.4.
* Input format: RGB/YUV24bit;
* Output format: RGB444 24bit.
* Support 3X3 stitching, easy operation, plug and play;
* Input support 1920x1080P
25/30/50/60Hz,3840x2160P 24/30HZ.
* Support 9 HDMI output, one 3.5mm stereo output.
* Supports 5.1CH audio output over optical fibers.
* Output support 1920x1080P 60HZ;
* Supports RS232
* Supports remote control
* DC12V / 2A power supply

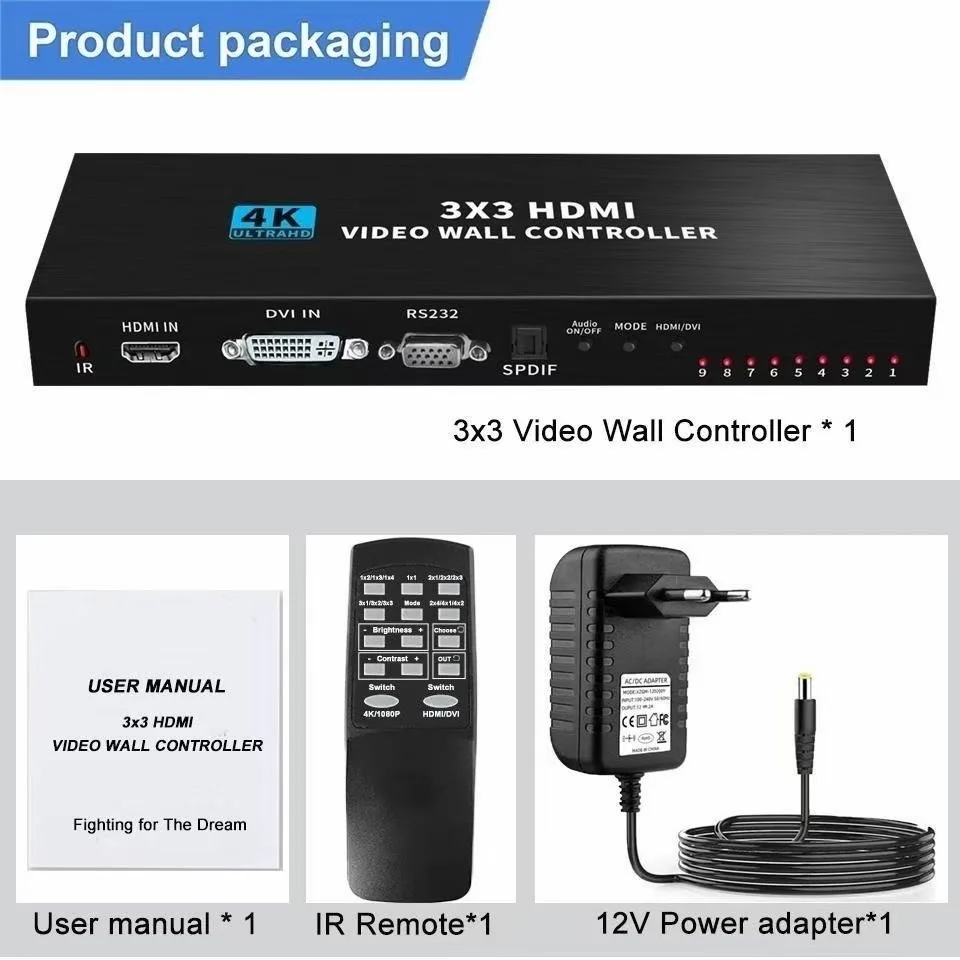

Box Package contents
1x 4K HDMI Video Wall Controller
1x Type-c Power Adaper
1x Remote Control
1x User Manual
Product Pictures
