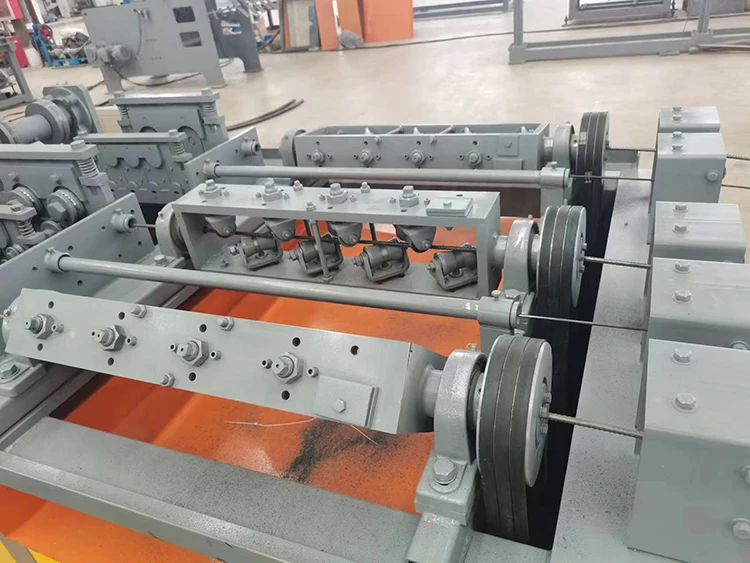

Fully automatic CNC lattice girder welding machine with high performance

Product Overview

Description

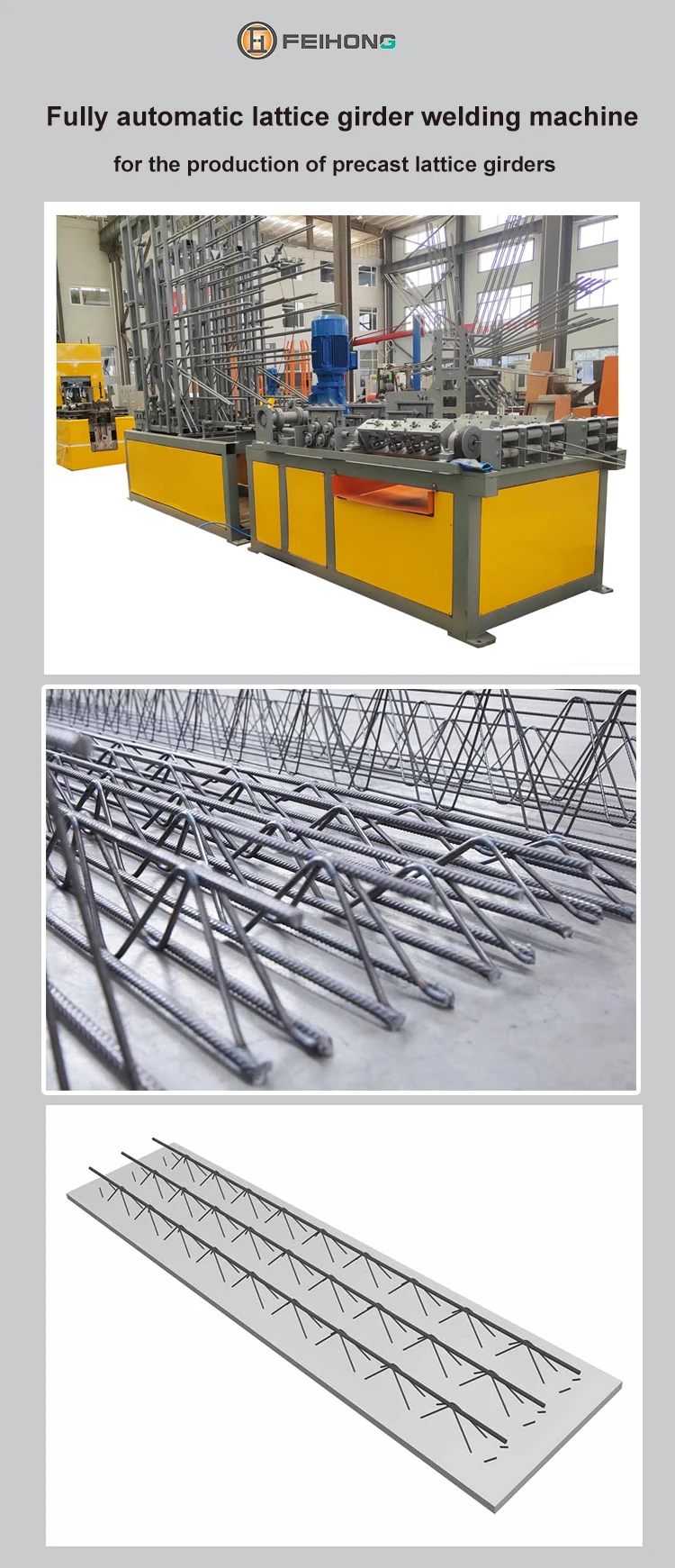

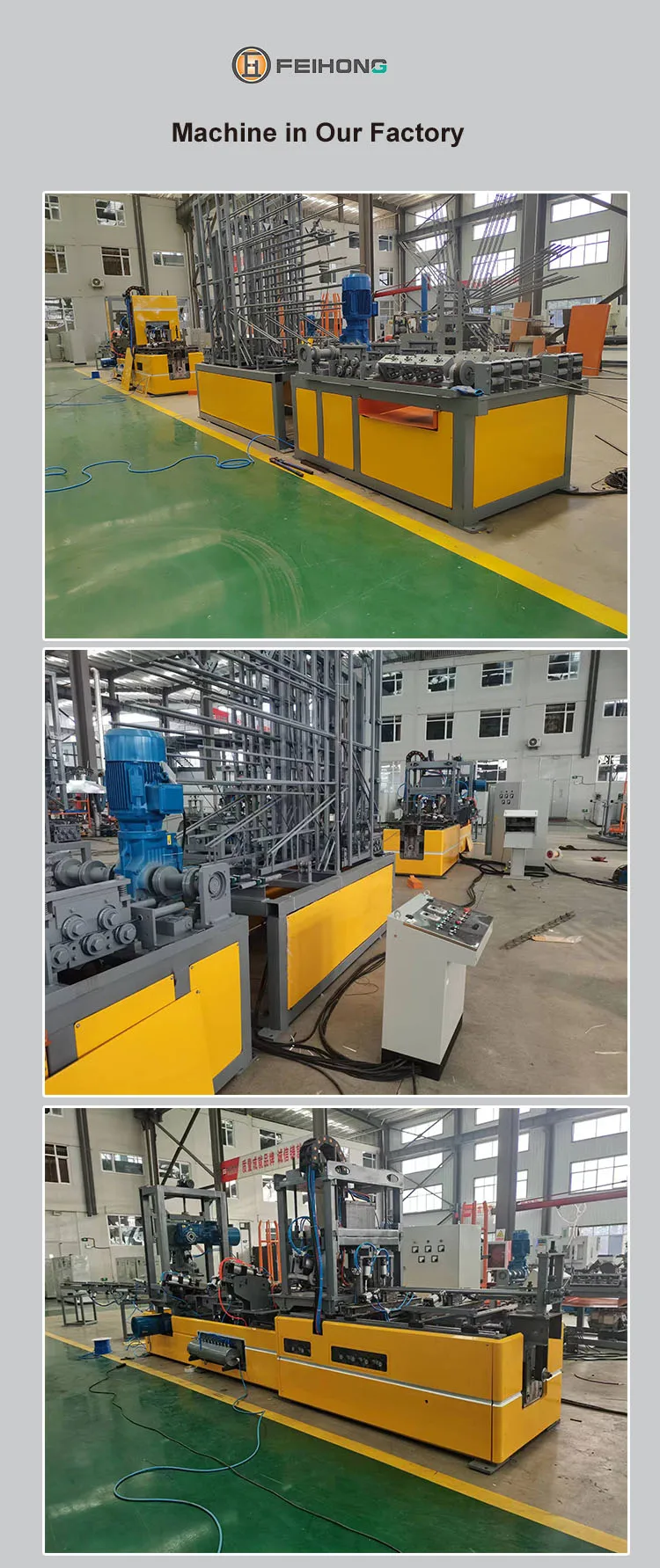

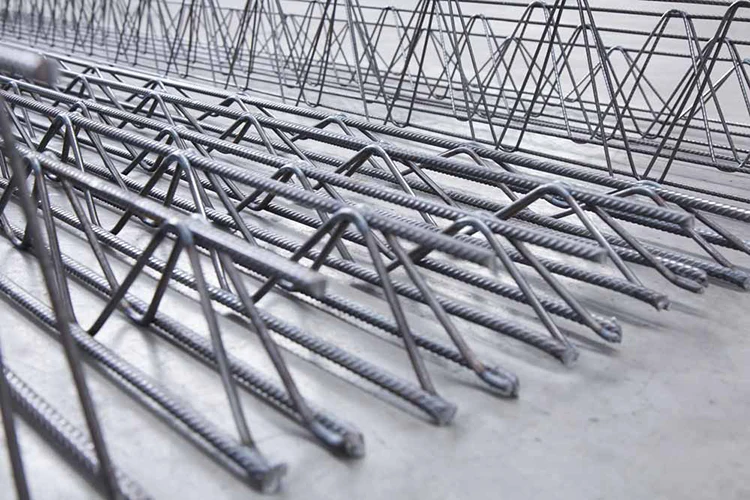

Lattice Girder production line is a fully automated production line that sets the wire of raw material, straightening

steel bar, bending forming, automatic welding, fixed length cutting and numerical control delivery of finished

products.Lattice Girder production line is widely used in the production of double block sleeper truss and the

production of floor slab truss on high speed railway. triangular beam truss, sleeper truss, double block sleeper truss,

steel bar truss, composite floor board, composite floor, truss, truss, truss welding, truss welding machine, automatic

truss welding machine, truss forming, truss processing, steel truss, steel truss processing equipment, steel truss

welding equipment. Steel truss forming equipment and truss welding machine

 Technical Data



Model	FHLG350
voltage	380V 50HZ
electricity demand	250KVA
Welding transformer	2*160KVA(Intermittent work)
Shearing motor power	11KW+11KW(Intermittent work)
Side rib motor forming power	11KW+11KW
Other power	30KW
Girder Height	70-300mm
Girder width	60-100mm
Upper thread	6-12mm
Lower thread	6-12mm
Bending side stirrup diameter	4-8mm
Max.working speed	9-12m/min(Under stable production, the actual stable production speed of 10m/min is determined by the truss specifications)
Step spacing	190-210mm(Adjustable)
Girder length	0.4-99M





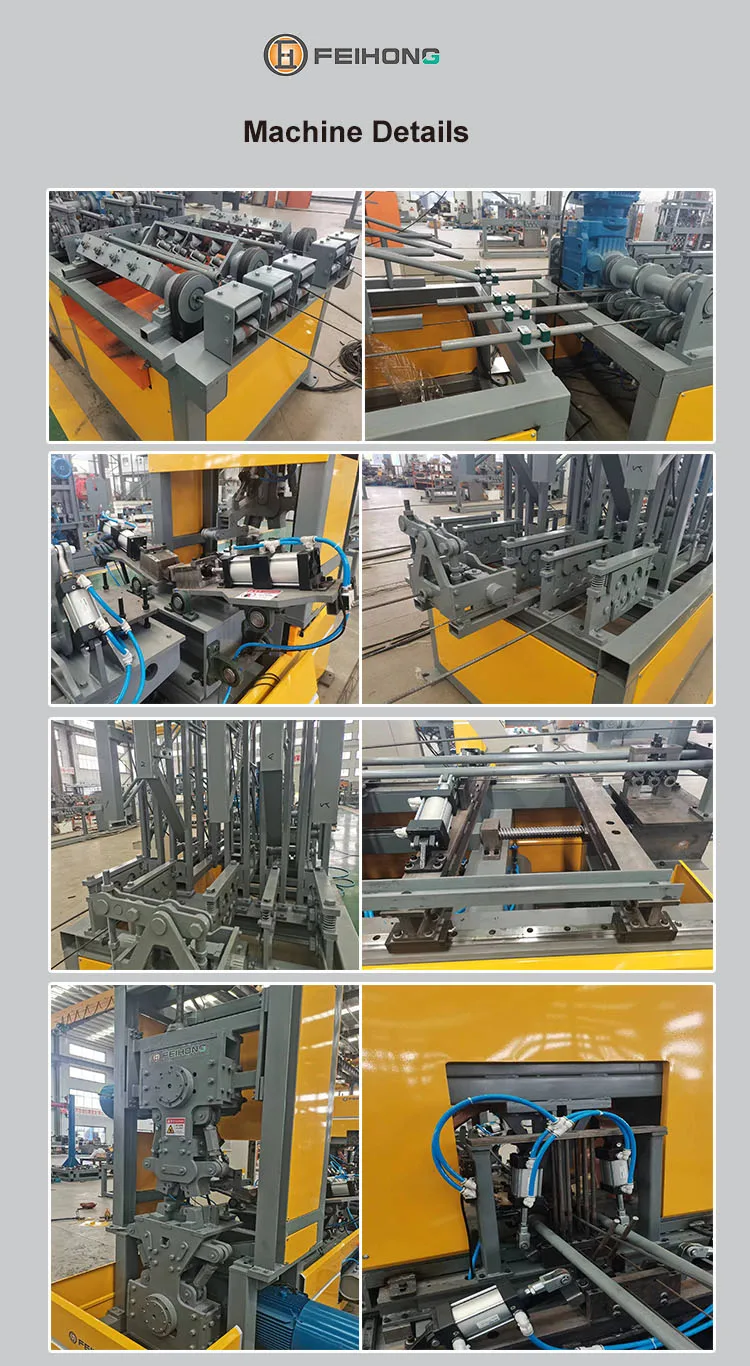

Characteristics

lIt can produce steel trusses for floor decks and PC steel trusses for prefabricated buildings.

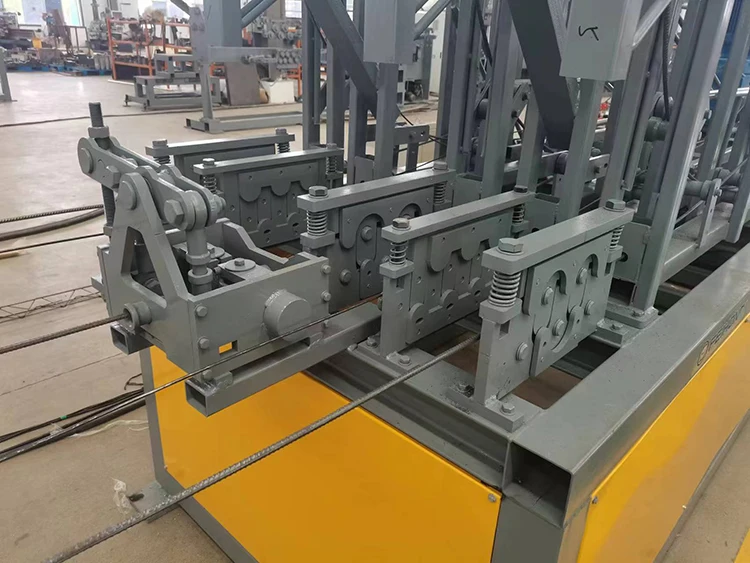

lThe web bars are bent by cylinders, so it is convenient and time-saving to adjust the truss specifications.

lThe total welding power is 300KVA, and the required external transformer power is small.

lThe pitch of the web rods after bending is adjustable from 190-210mm, and can be cut to any length, avoiding the waste of steel bars.

lWelding transformers are produced by Japanese technology, with good welding performance and durability.

lThe welding host has a large space, which facilitates the adjustment of the truss when changing specifications and the maintenance of the equipment.

lThe cut-off part is mechanically driven. Compared with hydraulic cut-off, it has no noise and saves electricity.
