99.95% niobium wire metal niobium filament per kg prices
- Category: >>>
- Supplier: Shanghai Yila Stainless Steel Products Co. Ltd.
Share on (1600897205094):
Product Overview
Description

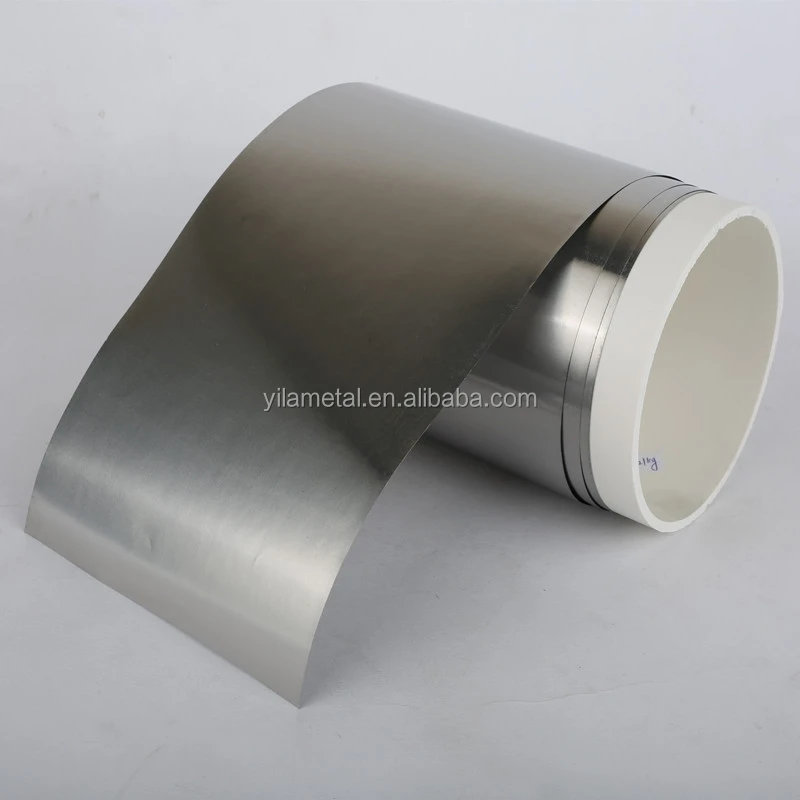

Product Show

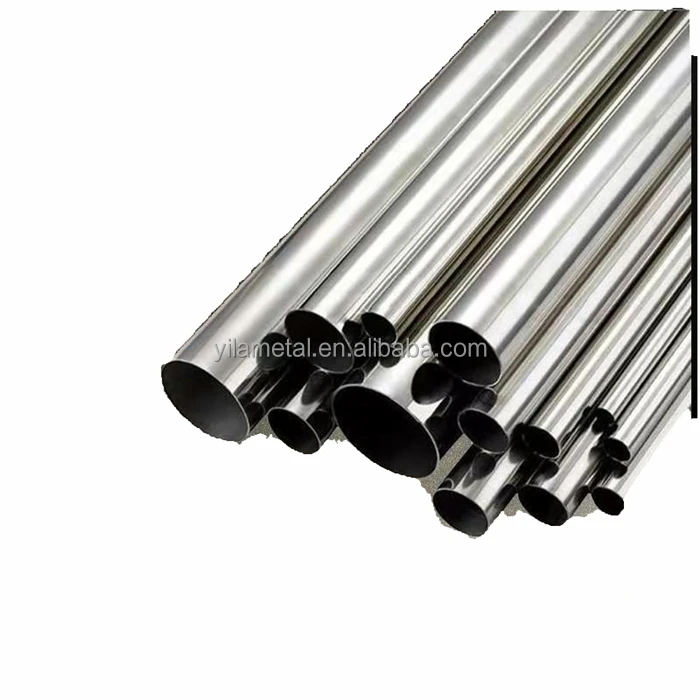

Factory customize niobium tube high quality pure niobium pipe for sale
Products Description
Pure Niobium
(1)Shape memory characteristics
(2) Super elastic
(3) sensitivity to temperature changes in the oral cavity
(4) Corrosion resistance
(5) Anti-toxicity
(6) Soft correction power
(7) Good shock absorption characteristics
(2) Super elastic
(3) sensitivity to temperature changes in the oral cavity
(4) Corrosion resistance
(5) Anti-toxicity
(6) Soft correction power
(7) Good shock absorption characteristics
Product name | Wholesale High Purity 99.95% Niobium |
Purity | Nb ≥99.95% |
Grade | R04200, R04210, Nb1Zr (R04251 R04261), Nb10Zr, Nb-50Ti etc |

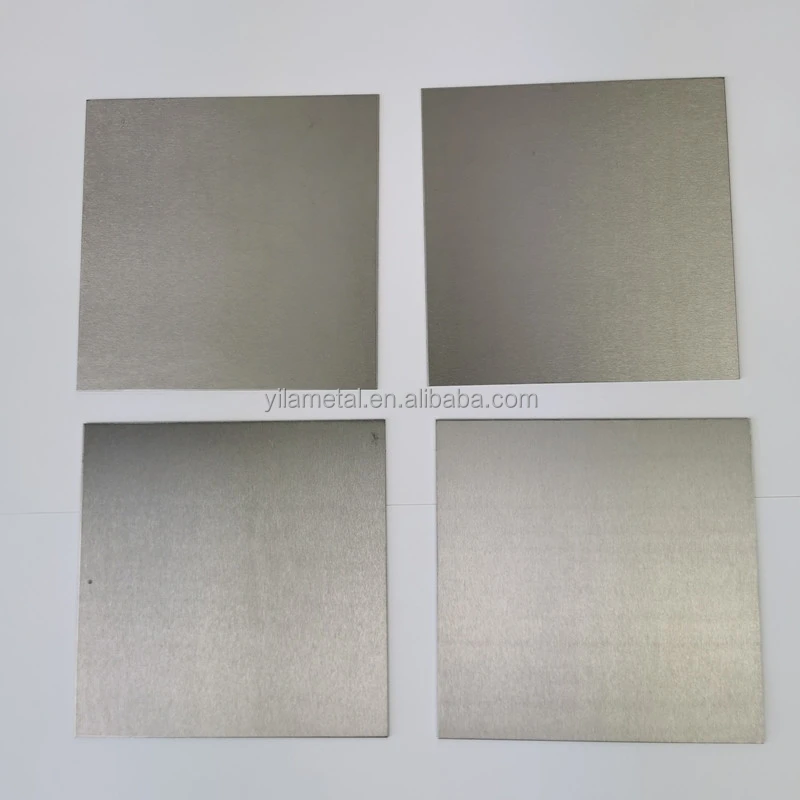

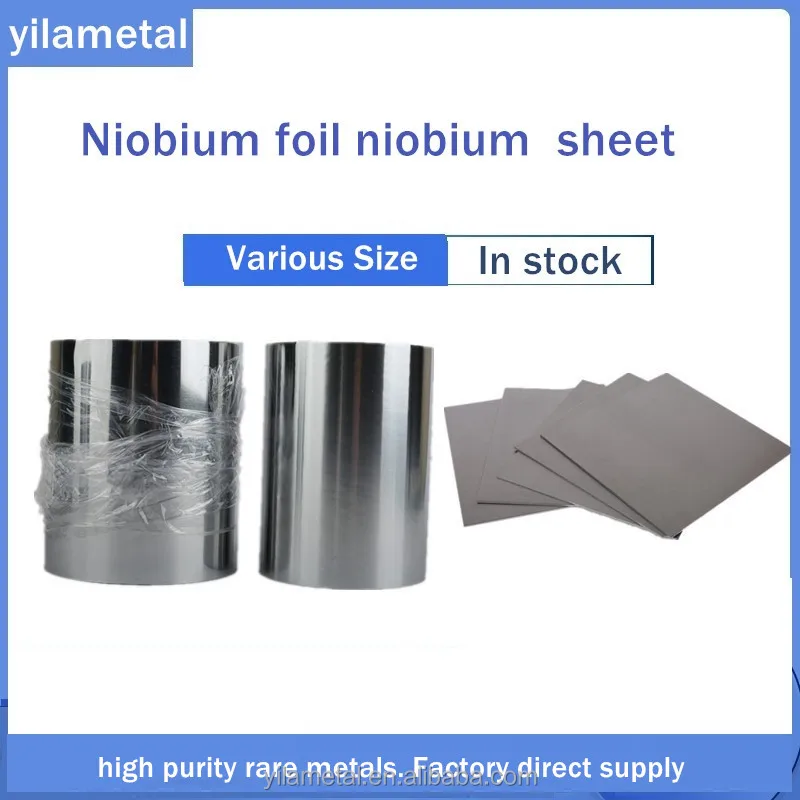

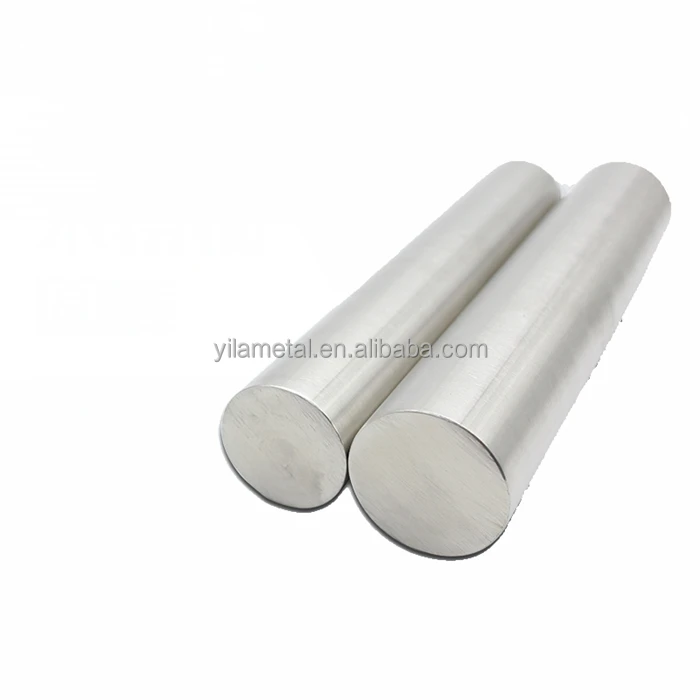

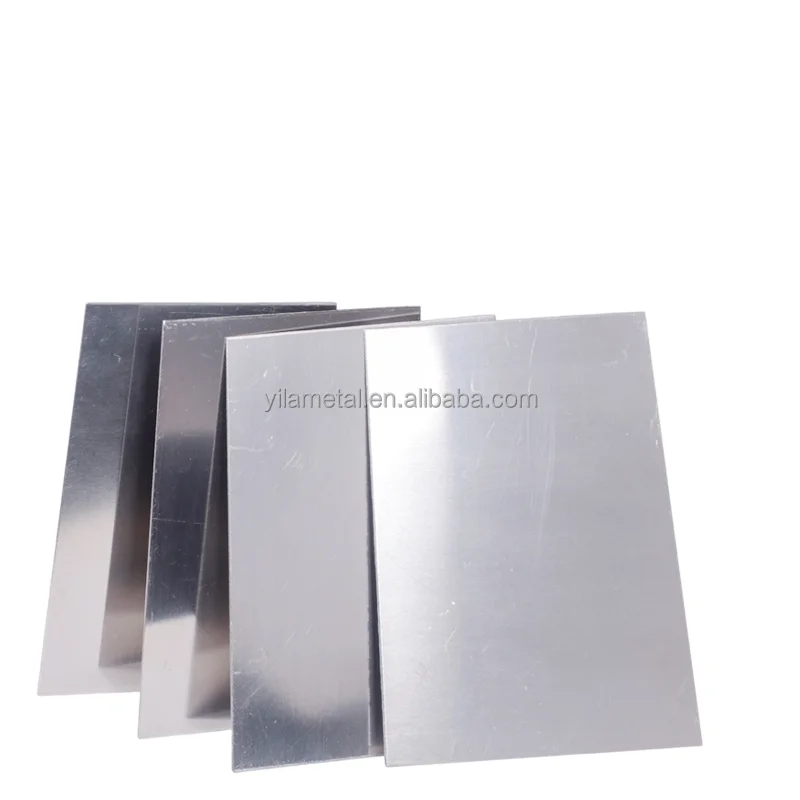

Shape | Plate/Sheet/Foil/Strip, round, block, cube, ingot etc. |
Size | Customized size |
Melting point | 2468℃ |
Boiling point | 4742℃ |
Advantage | ♦ Low Density and High Specificate Strength |
♦ Excellent Corrosion Resistance | |
♦ Good resistance to effect of heat | |
♦ Nonmagnetic and Non-toxic | |
♦ High melting point, good anti-corrosion, excellent super-conduction and other unique characteristics. | |
Application | ♦ Electronic industry, Chemistry, Electronical, Pharmaceutical industry. |
♦ Steel, Ceramics, Electronics, nuclear energy industries and superconductor technology. | |
♦ Super condouctous, metled cast ingots and alloying agents. | |
♦ Widely used in manufacturing various kinds of alloy steel, high temperature alloy, optical glass, cutting tool, superconducting materials and other industries. |
Chemcial Composition
Niobium and Niobium Alloys Sheet Chemical Composition | ||||||||
Element | Type1 (Reactor Grade Unalloyed Nb) R04200 | Type2 (Commercial Grade Unalloyed Nb) R04210 | Type3 (Reactor Grade Nb-1%Zr) R04251 | Type4 (Commercial Grade Nb-1%Zr) R04261 | ||||
Max Weight % (Except Where Otherwise Specified) | ||||||||
C | 0.01 | 0.01 | 0.01 | 0.01 | ||||
N | 0.01 | 0.01 | 0.01 | 0.01 | ||||
O | 0.015 | 0.025 | 0.015 | 0.025 | ||||
H | 0.0015 | 0.0015 | 0.0015 | 0.0015 | ||||
Zr | 0.02 | 0.02 | 0.8-1.2 | 0.8-1.2 | ||||
Ta | 0.1 | 0.3 | 0.1 | 0.5 | ||||
Fe | 0.005 | 0.01 | 0.005 | 0.01 | ||||
Si | 0.005 | 0.005 | 0.005 | 0.005 | ||||
W | 0.03 | 0.05 | 0.03 | 0.05 | ||||
Ni | 0.005 | 0.005 | 0.005 | 0.005 | ||||
Mo | 0.01 | 0.02 | 0.01 | 0.05 | ||||
Hf | 0.02 | 0.02 | 0.02 | 0.02 | ||||
Ti | 0.02 | 0.03 | 0.02 | 0.03 | ||||
Grade | Tensile strength δbpsi (MPa), ≥ | Yield strength δ0.2, psi (MPa),≥ | Elongation in 1"/2" gage length, %, ≥ |
RO4200-1 | 18000 (125) | 12000 (85) | 25 |
RO4210-2 |
Thickness | The allowable deviation thickness | Width | The allowable deviation Width | Length | ||
Width>120~300 | Width>300 | |||||
0.1~0.2 | ±0.015 | ±0.02 | >300~420 | ±2.0 | >100 | |
>0.2~0.3 | ±0.02 | ±0.03 | >200~420 | ±2.0 | >100 | |
>0.3~0.5 | ±0.03 | ±0.04 | >200~420 | ±2.0 | 50~3000 | |
>0.5~0.8 | ±0.04 | ±0.06 | >200~420 | ±2.0(±5.0) | 50~3000 | |
>0.8~1.0 | ±0.06 | ±0.08 | >200~420 | ±2.0(±5.0) | 50~3000 | |
>1.0~1.5 | ±0.08 | ±0.10 | >200~420 | ±3.0(±5.0) | 50~3000 | |
>1.5~2.0 | ±0.12 | ±0.14 | >200~420 | ±3.0(±5.0) | 50~3000 | |
>2.0~3.0 | ±0.16 | ±0.18 | >200~420 | ±5.0 | 50~3000 | |
>3.0~4.0 | ±0.18 | ±0.20 | >200~420 | ±5.0 | 50~3000 | |
>4.0~6.0 | ±0.20 | ±0.24 | >200~420 | ±5.0 | 50~3000 | |
Packaging & Delivery

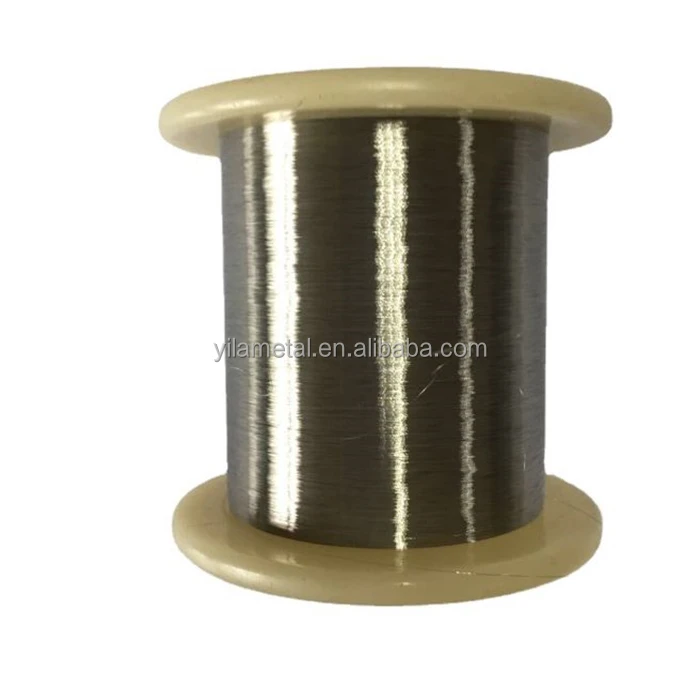

1. In spool and plywooden box
2. In coil and woven belt
2. In coil and woven belt
Company Profile

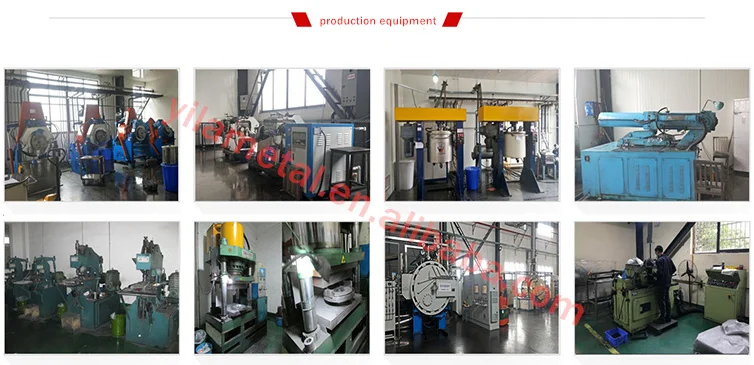

Shanghai Yila ,with high preciously equipment and rich experience, our company specilizes inmanufacturing all shapes of Niobium products..
If your company uses the above products, please give us the opportunity to quote. We can be very competitive.Smaller quantities are welcome. Please give us a call and see if we can become one of your valued suppliers.
If your company uses the above products, please give us the opportunity to quote. We can be very competitive.Smaller quantities are welcome. Please give us a call and see if we can become one of your valued suppliers.
Recommend Products
FAQ
Q: Are you trading company or manufacturer?
A: We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra
charges by the middle man or trader.
A: We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra
charges by the middle man or trader.
Q: What advantage do you have ?
A: * 1. Ability to customize;
* 2. Has items in stock;
* 3. Short lead time;
* 4. Exported to many counrises before;
* 5. Has a factory.
Q: Which countries do you export to?
A: Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and so on.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your minimum order quantity?
A: Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
Q: How about the delivery time?
A: It is based on the order,normally within 15-30 days after receiving your advance payment.
A: * 1. Ability to customize;
* 2. Has items in stock;
* 3. Short lead time;
* 4. Exported to many counrises before;
* 5. Has a factory.
Q: Which countries do you export to?
A: Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and so on.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your minimum order quantity?
A: Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
Q: How about the delivery time?
A: It is based on the order,normally within 15-30 days after receiving your advance payment.
