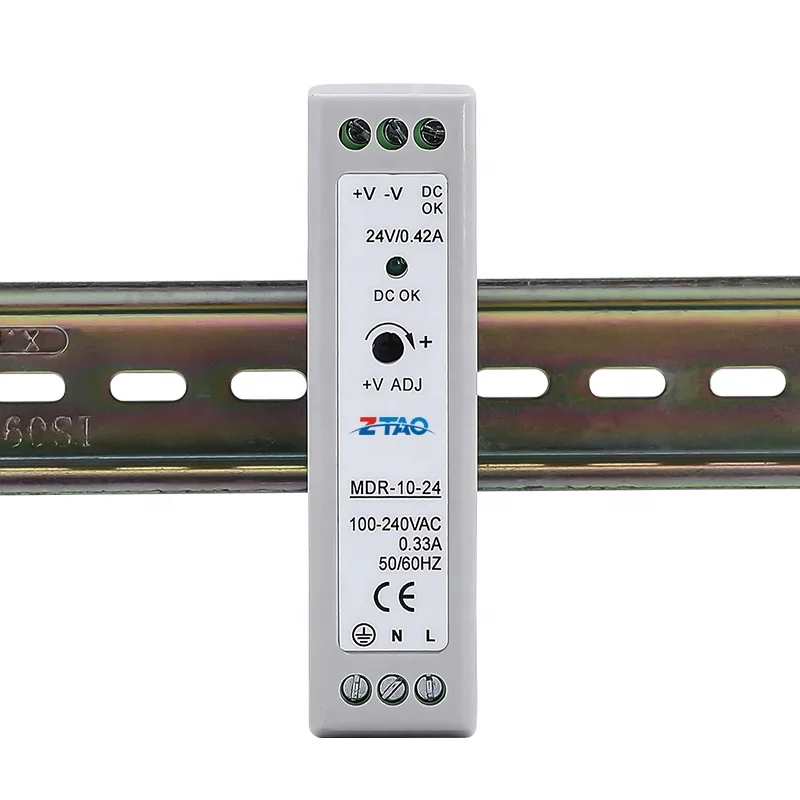

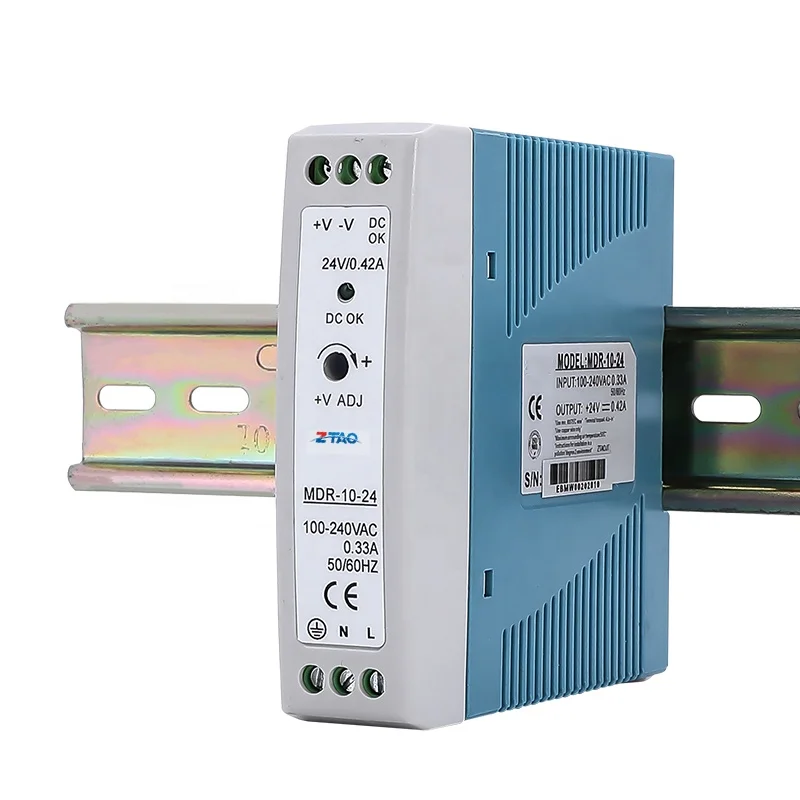

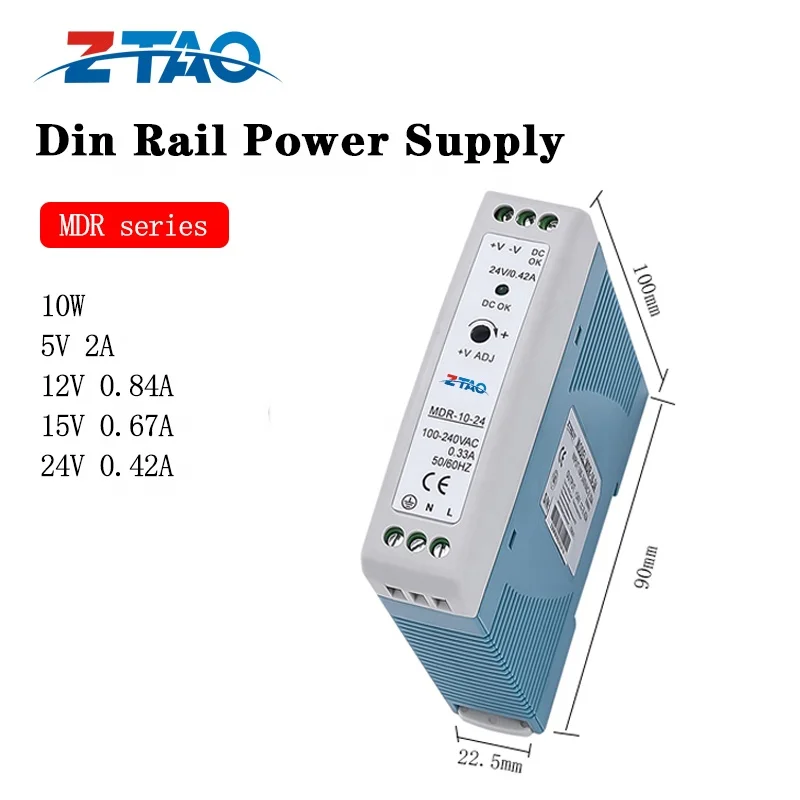

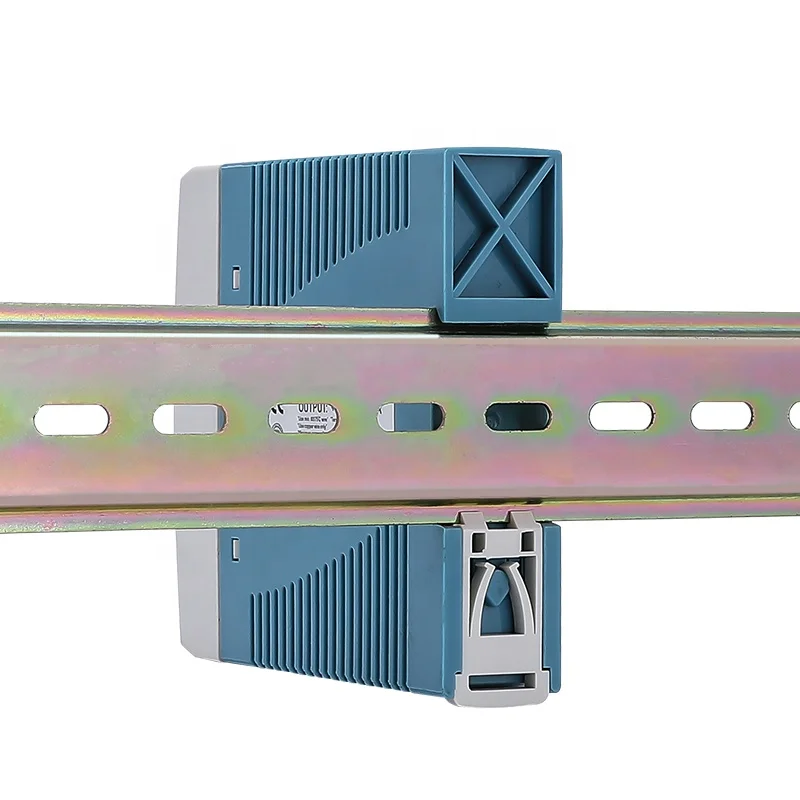

MDR 10 24 Power Supply 24V Din Rail Plastic Case MDR 10 24 10W Switching power Supply dc switching power adapters with led 24vdc
- Category: >>>
- Supplier: Zhitao Electric Group Co. Ltd.
Share on (1600897300928):
Product Overview
Description
AC to DC 24V 0.42A 10w Switching Power Supply
Features
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise

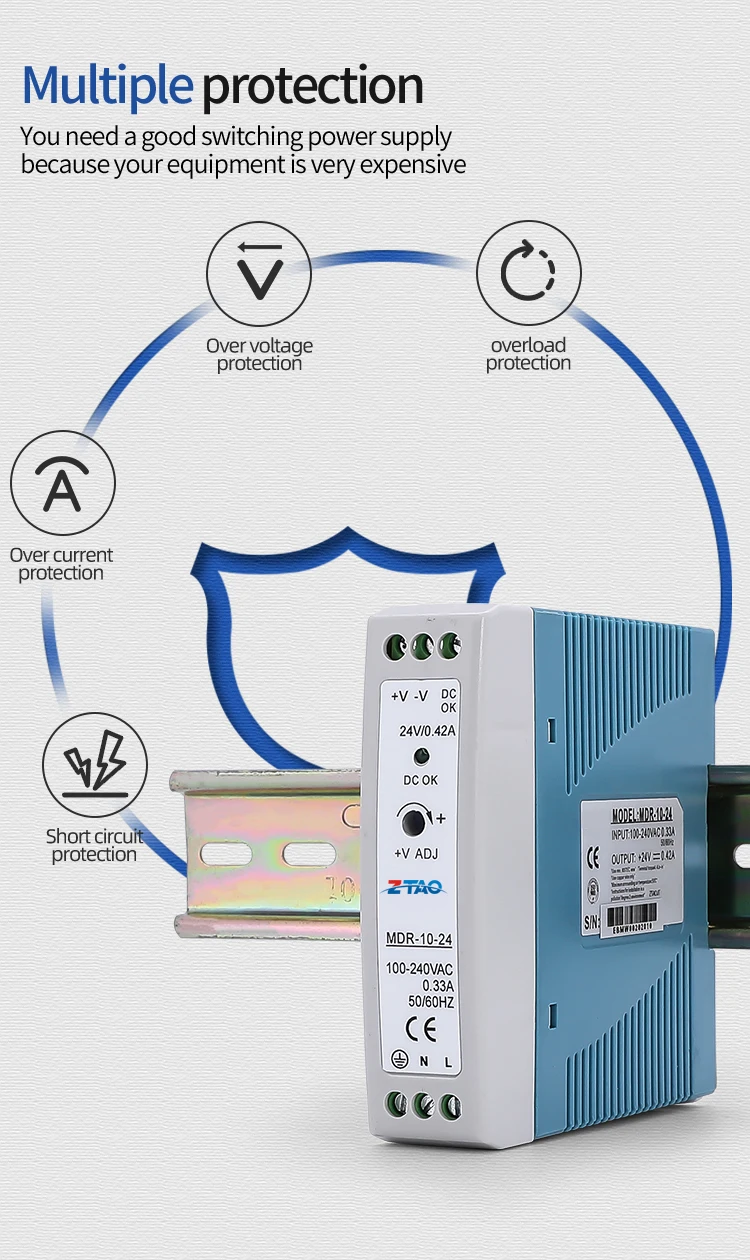

5.Protection:Over load/Over voltage/Short circuit
6.THREE YEARS WARRANTY!
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.THREE YEARS WARRANTY!
7.Plastic case, ultra slim
8.Built-in active PFC function
9.DC OK signal output (MDR-10/20)
10.DC OK relay contact (MDR-40/60/100)
11.Class I, Div 2 Hazardous Locations T4 (MDR-40/60)
9.DC OK signal output (MDR-10/20)
10.DC OK relay contact (MDR-40/60/100)
11.Class I, Div 2 Hazardous Locations T4 (MDR-40/60)
12.No load power consumption<0.75W~1W
13.Direct Manufacturer

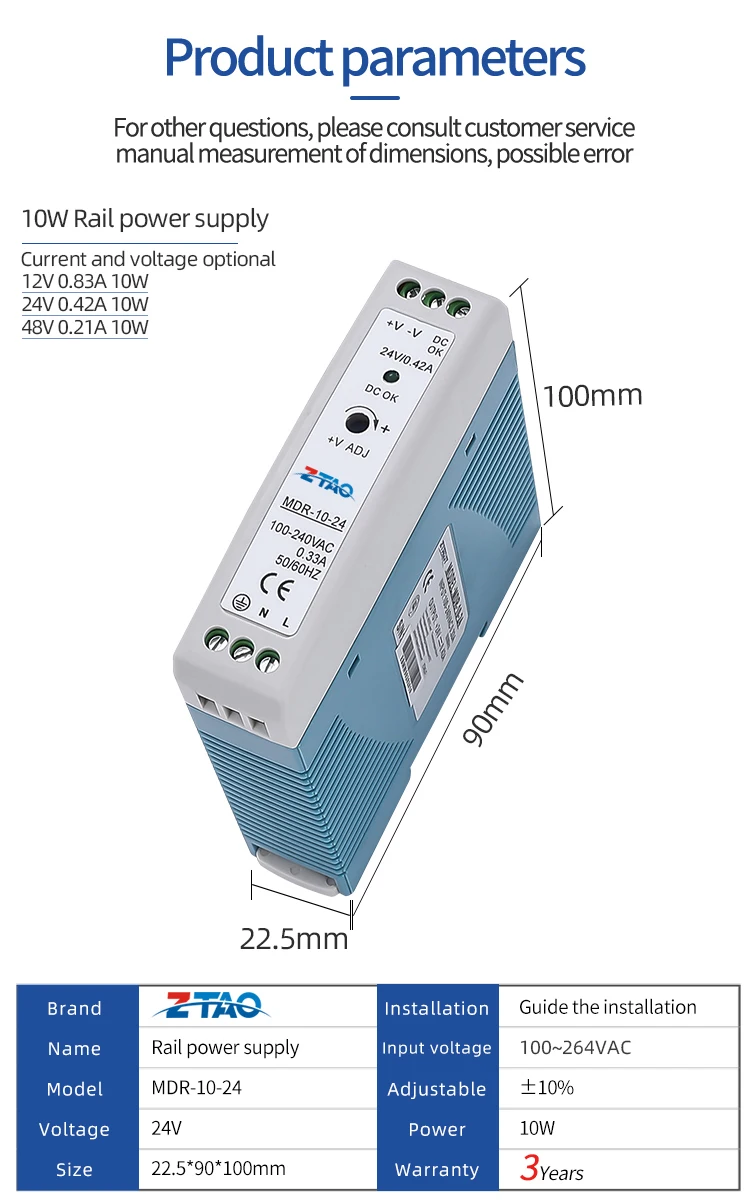

Product Description
Model | MDR-10-5 | MDR-10-12 | MDR-10-15 | MDR-10-24 | |||
DC Voltage | 5V | 12V | 15V | 24V | |||
Rated Current | 2A | 0.84A | 0.67A | 0.42A | |||
Current range | 0~2A | 0~84A | 0~67A | 0~0.42A | |||
Rated power | 10W | 10W | 10W | 10W | |||
Ripple&noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | |||
Efficiency | 77% | 81% | 81% | 84% | |||
Above 105% of rated output power | |||||||
Protected mode: burp mode, automatic recovery after removal of abnormal load conditions | |||||||
5.75~6.75V | 13.8~16.2V | 17.25~20.25V | 27.6~32.4V | ||||
Protected mode: turn off the output and restore the normal output after the power is restarted | |||||||

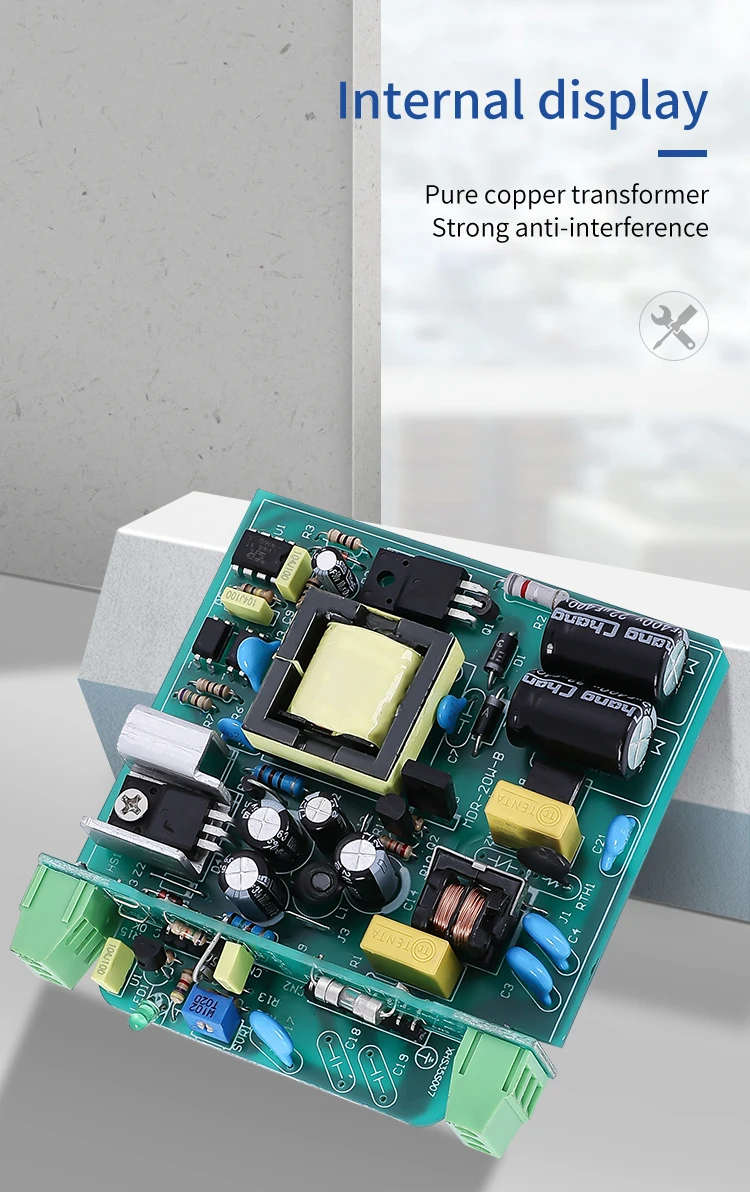

Details Images
01.
PURE COPPERTRANSFORMER
High temperature resistance of enameled wire with excellent magnetic core
02.
FILTER CAPACITOR
High voltage withstand,low loss and large capacity
03.
DUST PROTECTION COVER Prevent accidental touch and improve safety performance
