Acid Resistant 50mm Ceramic Intalox Saddle Price For Drying Tower Packing Ceramic Intalox Saddle Rings
- Category: Non-Metallic Products >>>
- Supplier: Jiangxi,Kelley,Chemical,Packing,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Products description:
Ceramic Intalox Saddle Ring is improved from the ceramic arc saddle,Ceramic intalox saddle changes the both arched surface and makes the interior radius of curvature different, this construction overcomes the problem of nesting basically, Ceramic intalox saddle makes porosity distributed even and improves the distribution of the fluid, greater capacity and lower pressure drop than ceramic raschig ring.
Application：
Ceramic Intalox Saddle with excellent acid resistance and heat resistance. They can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently their application ranges are very wide.Ceramic Intalox Saddle can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc. Ceramic Saddles are used in two main fields but have different properties depending on the application. One field is the chemical and petrochemical industries and another is in environmental areas such as RTO equipment.
Ceramic Intalox Saddle Ring is improved from the ceramic arc saddle,Ceramic intalox saddle changes the both arched surface and makes the interior radius of curvature different, this construction overcomes the problem of nesting basically, Ceramic intalox saddle makes porosity distributed even and improves the distribution of the fluid, greater capacity and lower pressure drop than ceramic raschig ring.
Application：
Ceramic Intalox Saddle with excellent acid resistance and heat resistance. They can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently their application ranges are very wide.Ceramic Intalox Saddle can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc. Ceramic Saddles are used in two main fields but have different properties depending on the application. One field is the chemical and petrochemical industries and another is in environmental areas such as RTO equipment.
Size | Thickness (mm) | Specific Surface (m2/m3) | Void Volume (%) | Dry Packing (m-1) | Package Density (kg/m3) |
3/4’’(19mm) | 2-3 | 243 | 70 | 313 | 750 |
1” (25mm) | 3-4 | 250 | 74 | 320 | 700 |
3/2’’(38mm) | 4-5 | 164 | 78 | 170 | 650 |
2” (50mm) | 5-6 | 120 | 77 | 130 | 600 |
3” (76mm) | 8-10 | 95 | 77 | 127 | 550 |
Packing & Shipping

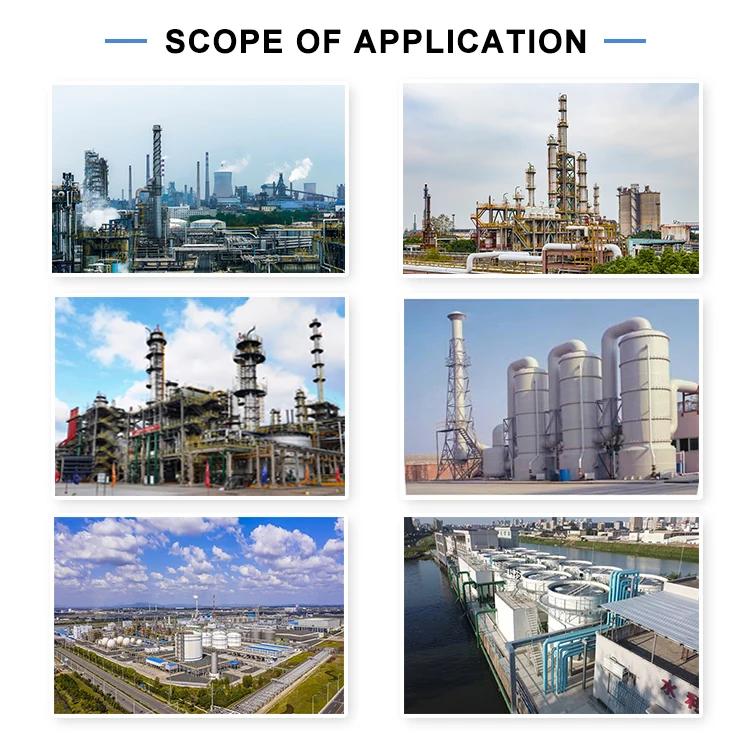

Scope of application
Our Factory
Ceramic packing workshop
ceramic intalox saddle at sintering
ceramic intalox saddle in stock
Certifications
Contact us
FAQ
Q: How do I pay for my purchase order? A: T/T, Irrevocable L/C at sight, Paypal,Western Union, etc... Q:What’s your company Production Capacity? A:More than 2000cubic meter/Month. Q: What's the MOQ? A: Our MOQ is 1cubic meter. If the quantity less than 1cubic meter,the price will be higher. Q: What's the delivery time for MOQ? A: It will takes about 3 days. But the exact time is according to actual situation. Q: Can I have my own customized product? A: Yes, your customized requirements are welcome. Q: Do you have quality control? A: Yes, we have ISO, SGS, some other third party certificate and our company’s QC depart can do the regular test . Q:Which countries and the main Clients your company export the goods to? A: UK, USA, France, Kazakhstan, Japan, Korea, Singapore, Belgium, Russia, Netherlands , Middle East etc. | ||||||||
