Laboratory Plasma Magnetron Sputtering Coater with Three Sputtering Sources and RF/DC Power Supply Customizable
- Category: >>>
- Supplier: Henan Mingguan Scientific Instruments Co. Ltd.
Share on (1600897400964):
Product Overview
Description

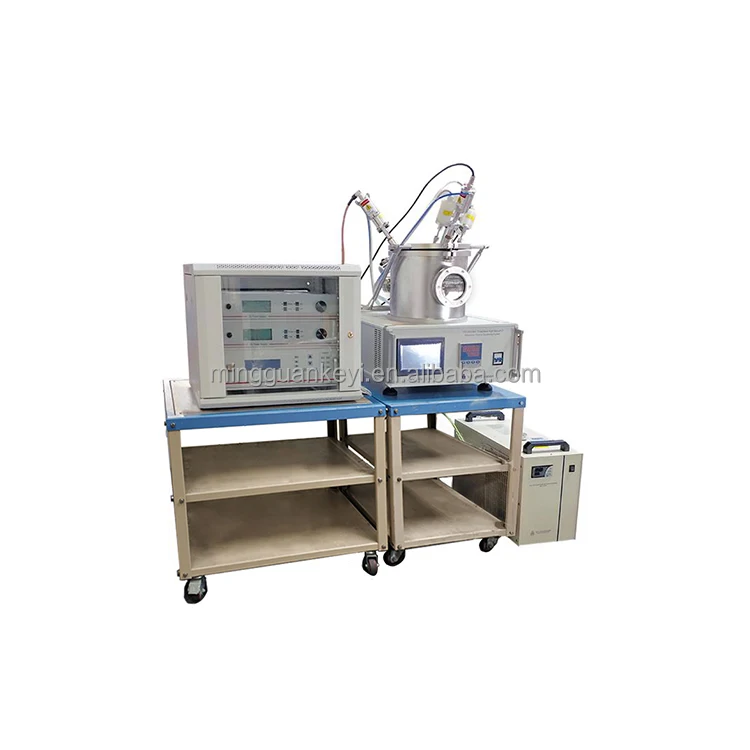

Plasma Magnetron Sputtering Coater with Three Sputtering Sources and RF/DC Power Supplies - VTC-600-3HD-LD
Product Description
VTC-600-3HD-LD is a combinatorial plasma sputtering system with three 2“ magnetron sputtering sources and three RF/DC power supplies. Such a sputtering system is capable of co-sputtering up to three different target materials and creates various composition profiles across the substrate (e.g. ternary materials for Li-ion rechargeable battery). This system is also suitable for sequential coating of multiple layer films such as ferroelectric, alloy, semiconductor, ceramic, dielectric, optical, oxide, hard, PTFE, etc.
SPECIFICATIONS
| · Single-phase 220 VAC 50 / 60 Hz · 2000 W (including a vacuum pump and water chiller) |

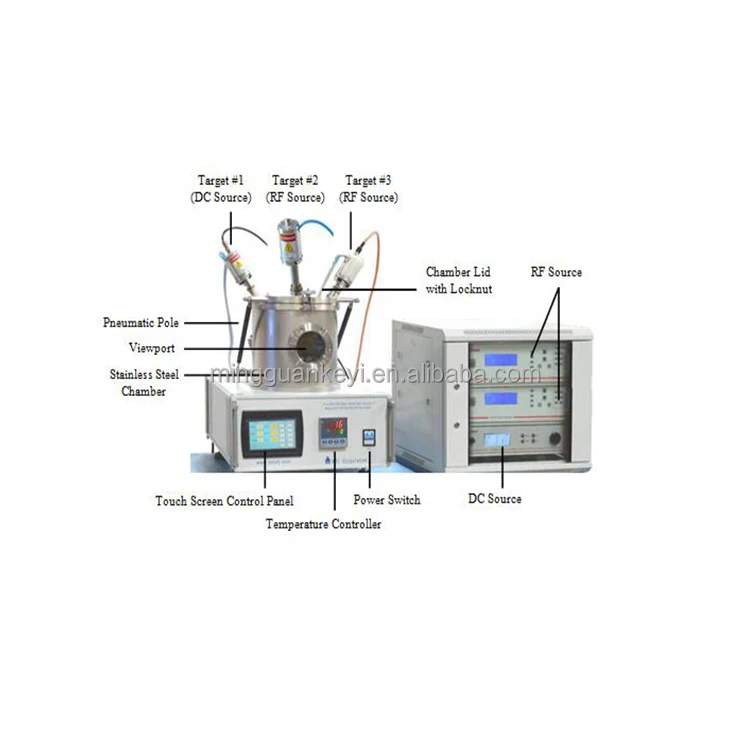

· Three sputtering power sources are integrated into one control box o DC source: 500 W power for coating metallic materials o RF source: 300 W power, 13.56 MHz frequency for coating non-conductive materials | |

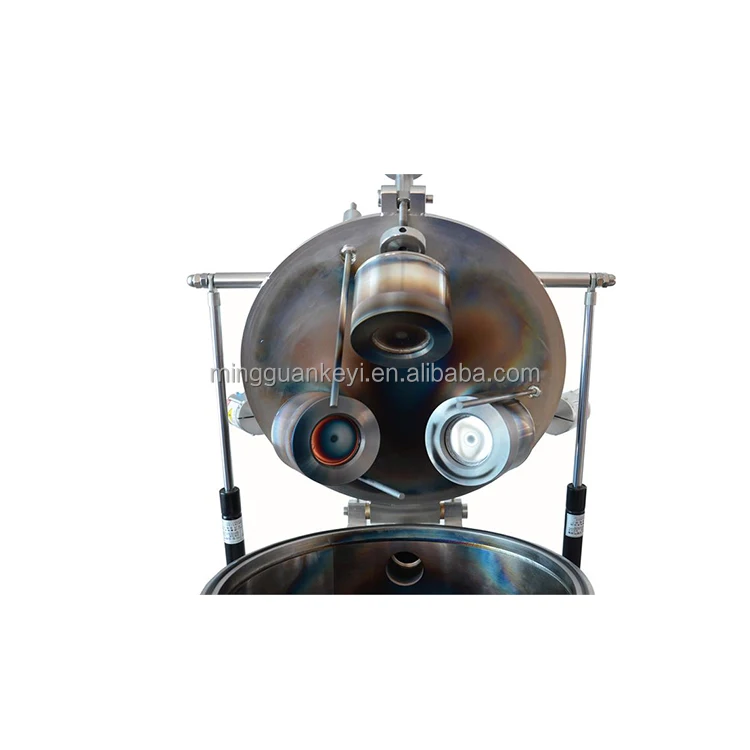

| · Three 2 inches sputtering heads with water cooling jackets and shutters are included (Click 1st pic from left) o Target size requirement: 2" diameter o Thickness range: 0.1 - 5 mm for both metallic and non-conductive targets (including the backing plate) · Customized coater: Two DC - One RF; Two RF - One DC; Three DC; Three RF. · Optional: 148 cm RF cable can be ordered at extra cost for the replacement |

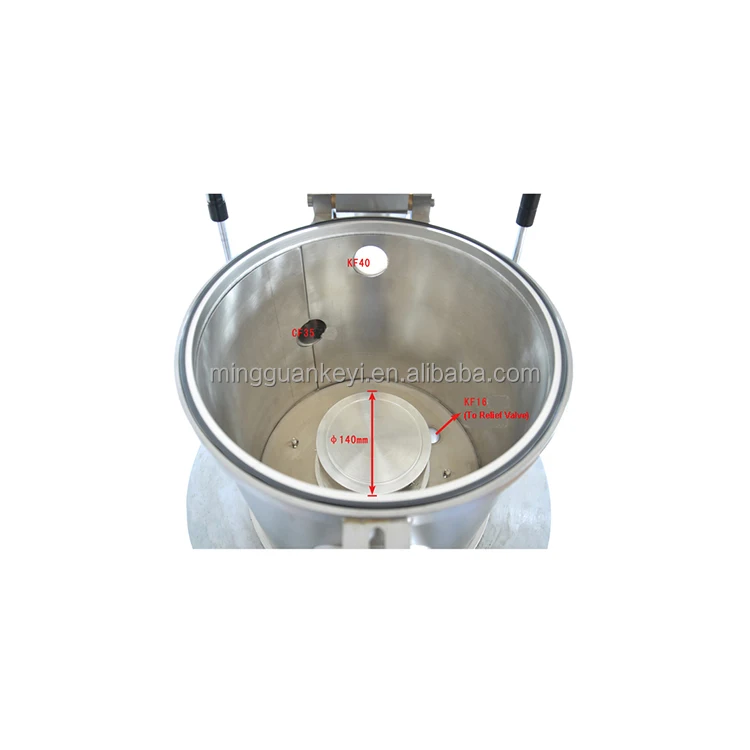

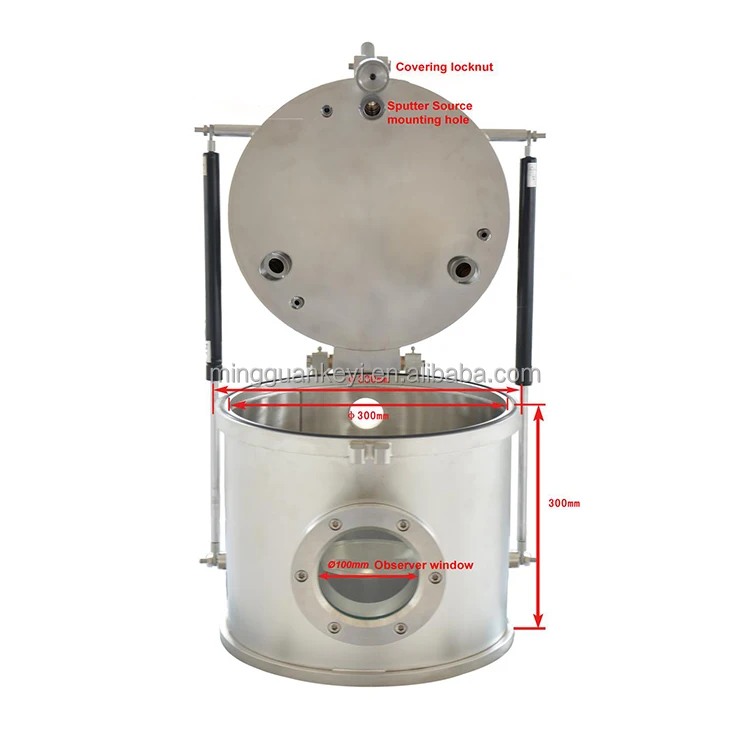

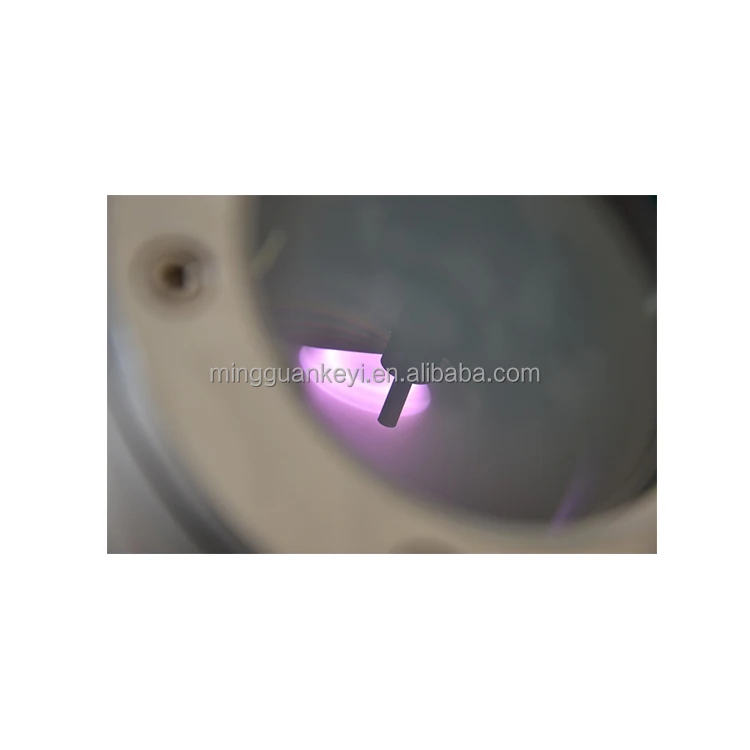

| · Vacuum chamber: 300 mm Dia. x 300 mm Height, made of stainless steel · Viewport: Two pieces of 100 mm Dia. glass. One fixed; one detachable for cleaning and replacement · Hinged type lid with pneumatic power pole allows easy target change |
| · The sample holder is a rotatable and heatable stage made of the ceramic heater with copper cover · Sample holder size: 140 mm Dia. for. 4" wafer max · Rotation speed: 1 - 20 rpm adjustable for uniform coating · The holder temperature is adjustable from RT to 500 °C max (2 hr max) with accuracy +/- 1.0 °C via a digital temperature controller |
Gas Flow Control | · Two precision mass flow controllers (MFC) are installed to allow inlet of two types of gases o Flow rate: 0 – 200 mL/min & 0 - 100ml/min adjustable on the touch screen control panel · Air inlet valve is installed for vacuum release |
Vacuum Pump Station | · High-speed turbopump at speed 80L/S is combined with a two-stage mechanical pump (220 L/min) for max vacuum level and faster pumping speed · Standard vacuum level connected with chamber: < 4.0E-5 Torr. · Optional at extra cost · If choose a 150L/S high-speed turbopump, the vacuum can reach 10-6 torr with the chamber. · For the ultra-high vacuum up to 10^-7 torr, 700S/L turbopump is needed · 150L/S high-speed turbopump |
Water Chiller | · One digital temperature-controlled recirculating water chiller is included. o Refrigeration range: 5~35 °C o Flow rate: 16 L/min o Pump pressure: 14 psi |
Optional | · Precise quartz Film Thickness Monitor is optional, which can be into the chamber to monitor coating thickness with an accuracy of 0.10 Å |

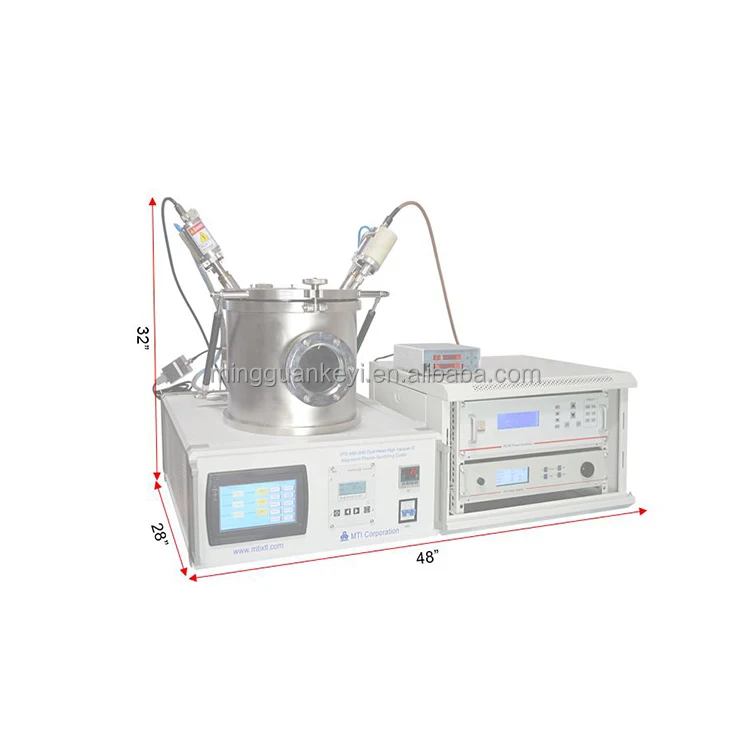

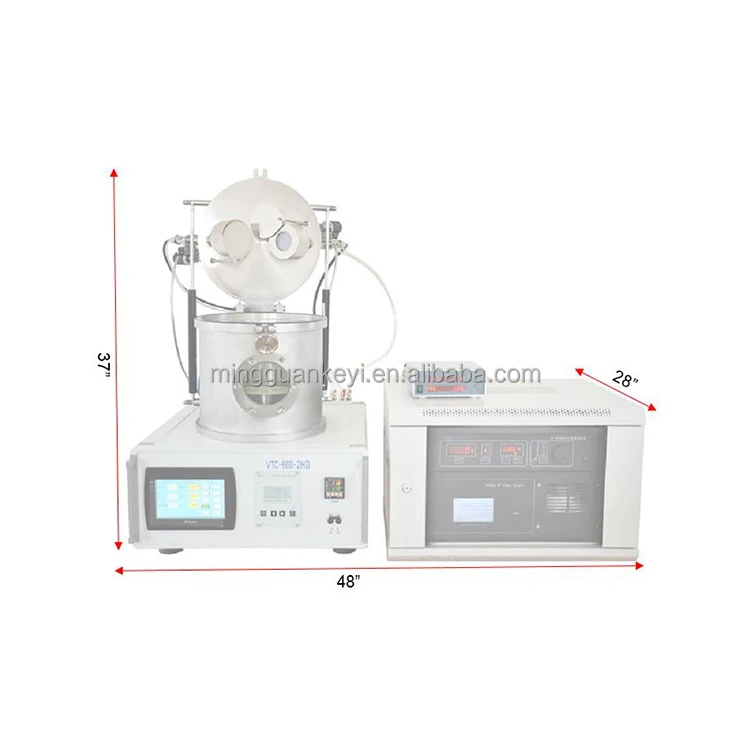

Overall Dimensions | Lid closed: 48" × 28" × 32" Lid open: 48" × 28" × 37" |
Net Weight of Coater | · 160 kg |
Shipping Weight & Dimensions | · Total 3 Pallets o 365 lbs, 48" x 40" x 45" o 390 lbs, 48"x 40" x 49" o 210 lbs, 48" x 40"x 30" |
Compliance | · CE approval |
Warranty | · One year's limited warranty with lifetime support |
Application Note | This coater may be placed into a standard glovebox with modification for thin-film battery research |
