price full spectrum led grow light 150w full spectrum with 660nm & 730nm &UVA
- Category: >>>
- Supplier: Shenzhen R2T Electronic Limited
Share on (1600897566628):
Product Overview
Description

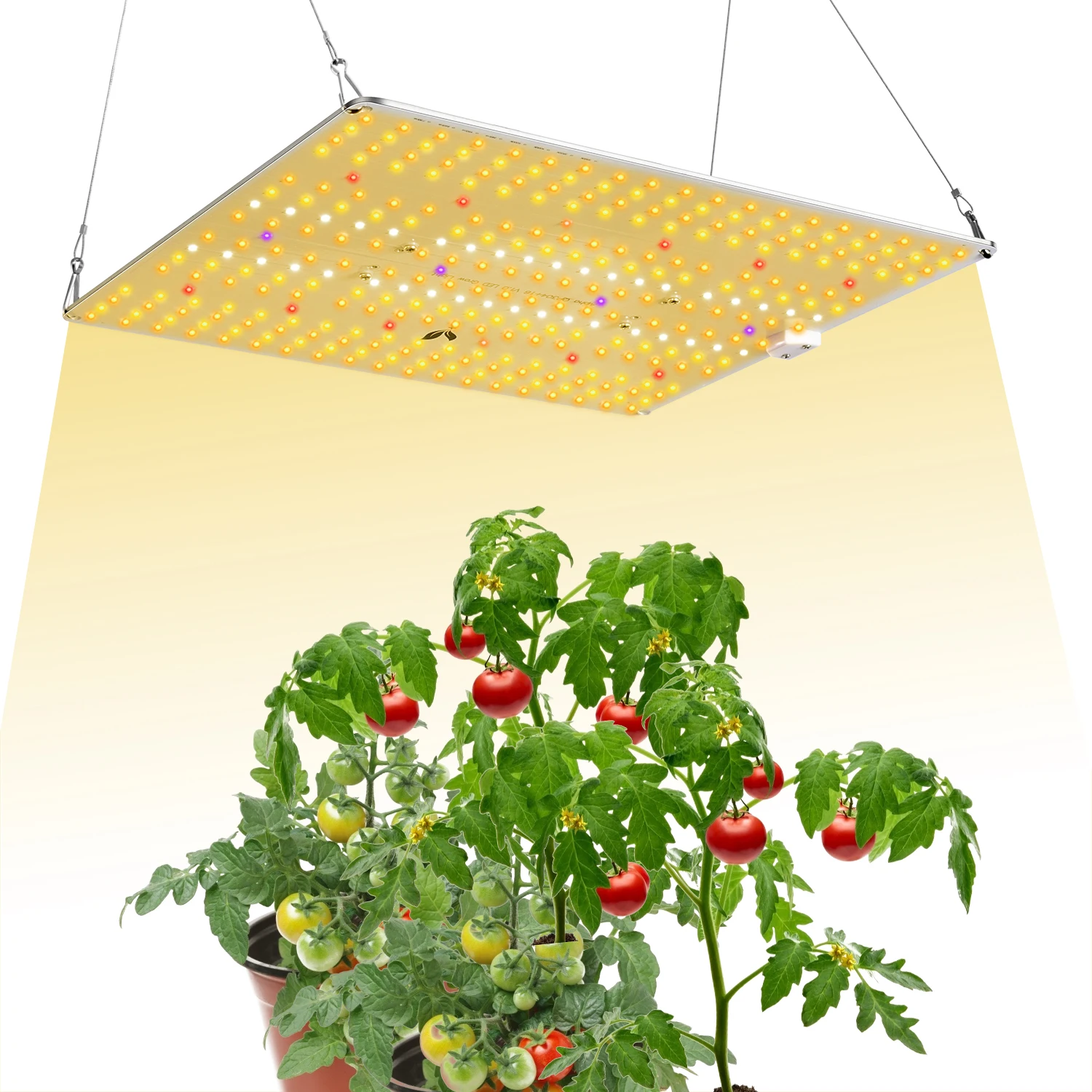

led grow light led with UV IR for medical plants growing

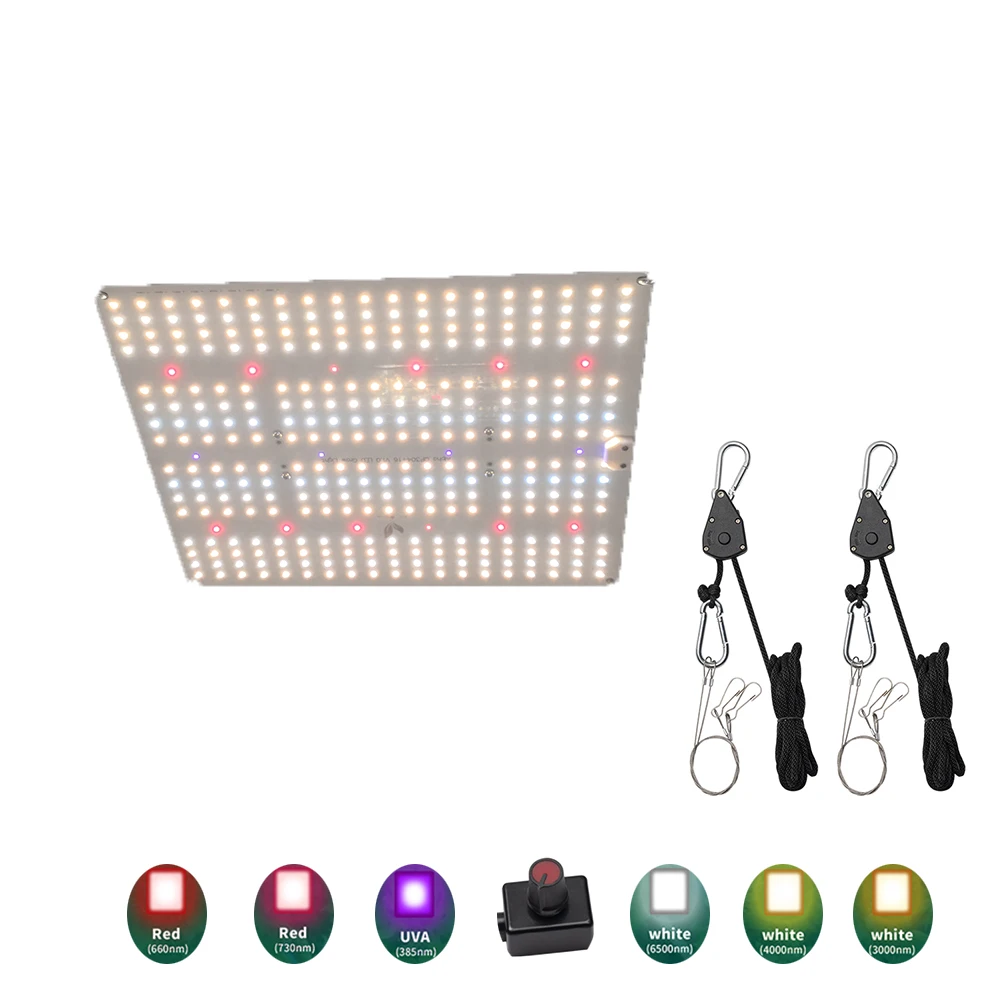

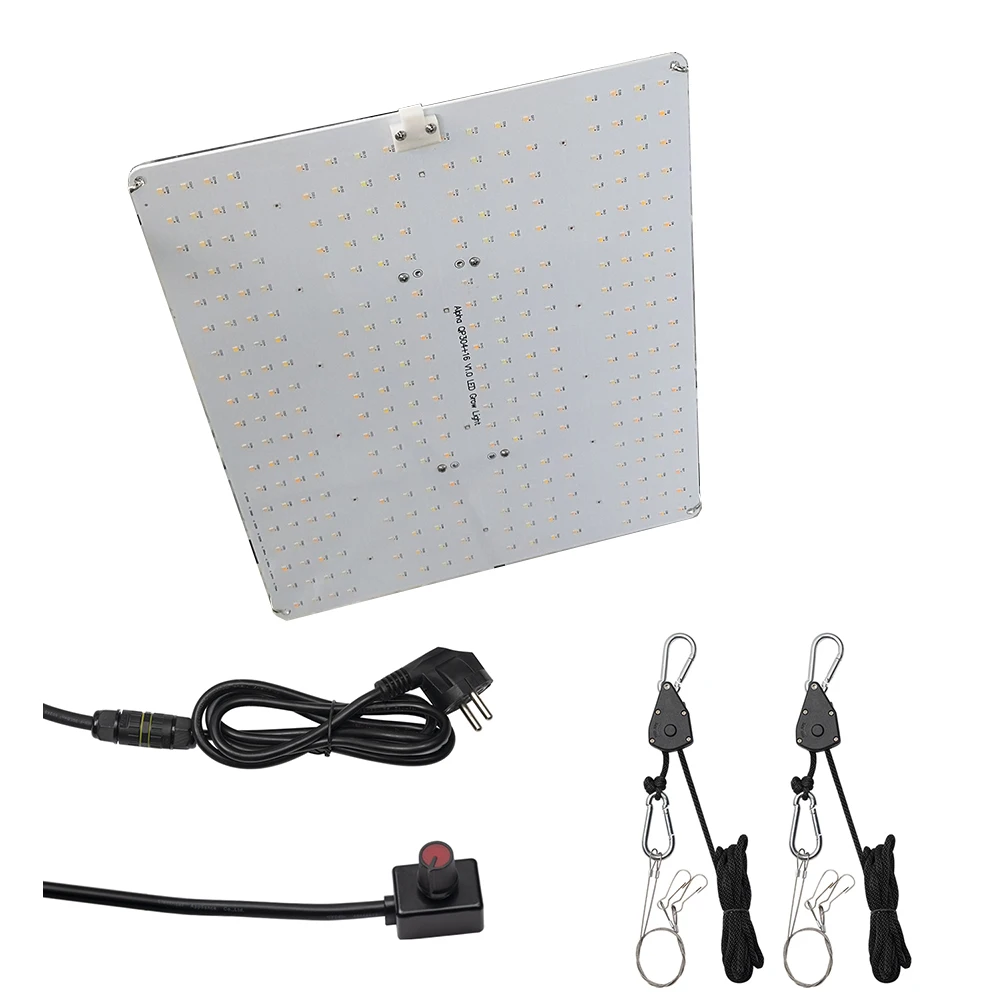

Components list as below:
314 pcs Equal samsung LM301H SL bin LEDStar chips
16pcs High power LED
CCT: 3000+4000+6500K RA:80
color chips wavelenght: 660nm+730nm+385nm
Lighting Dimension: 395*330*13mm
Hinger:1pcs

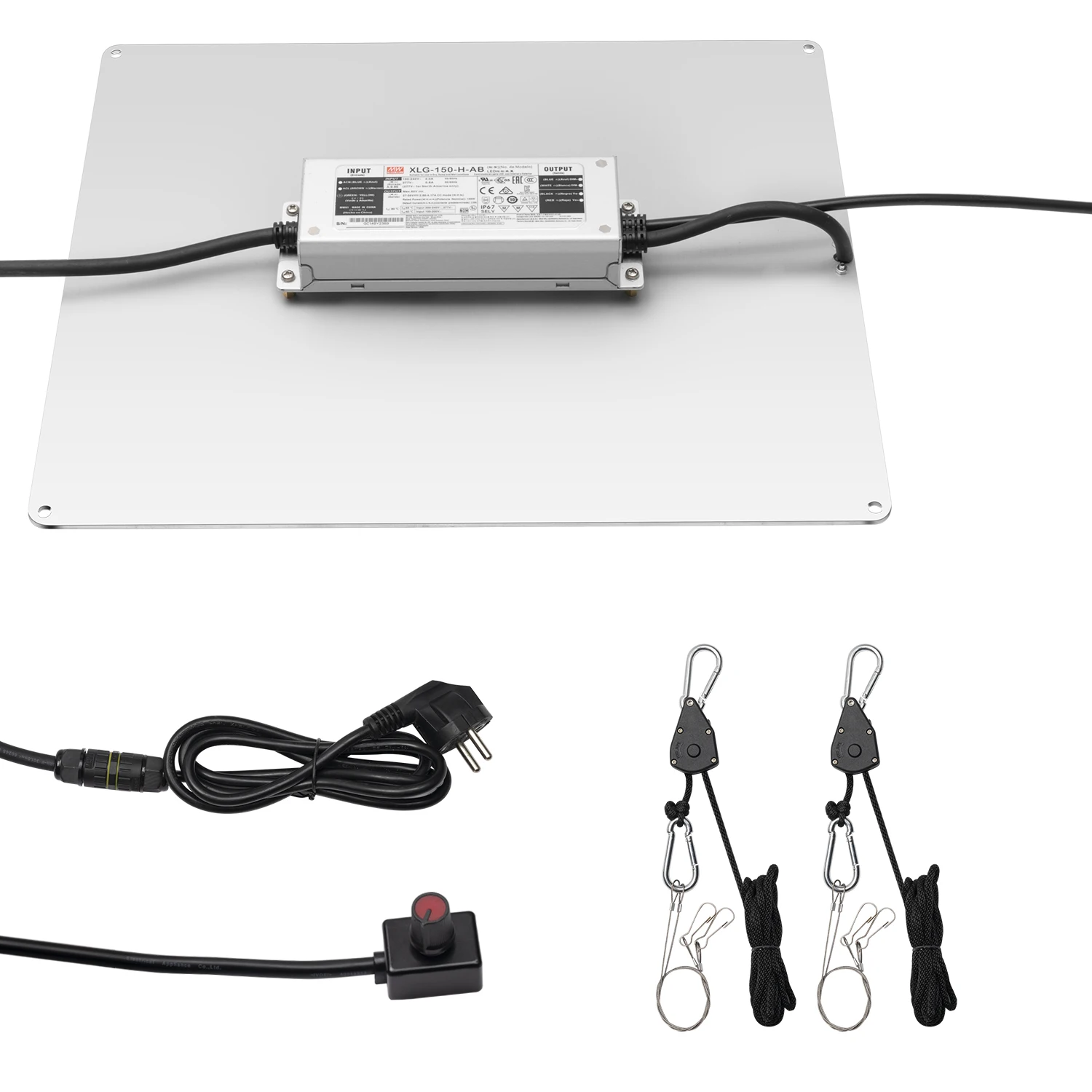

Meanwell Driver: XLG-150-H-A-B(or Inventronic EUM-150S420DG ): 1pcs

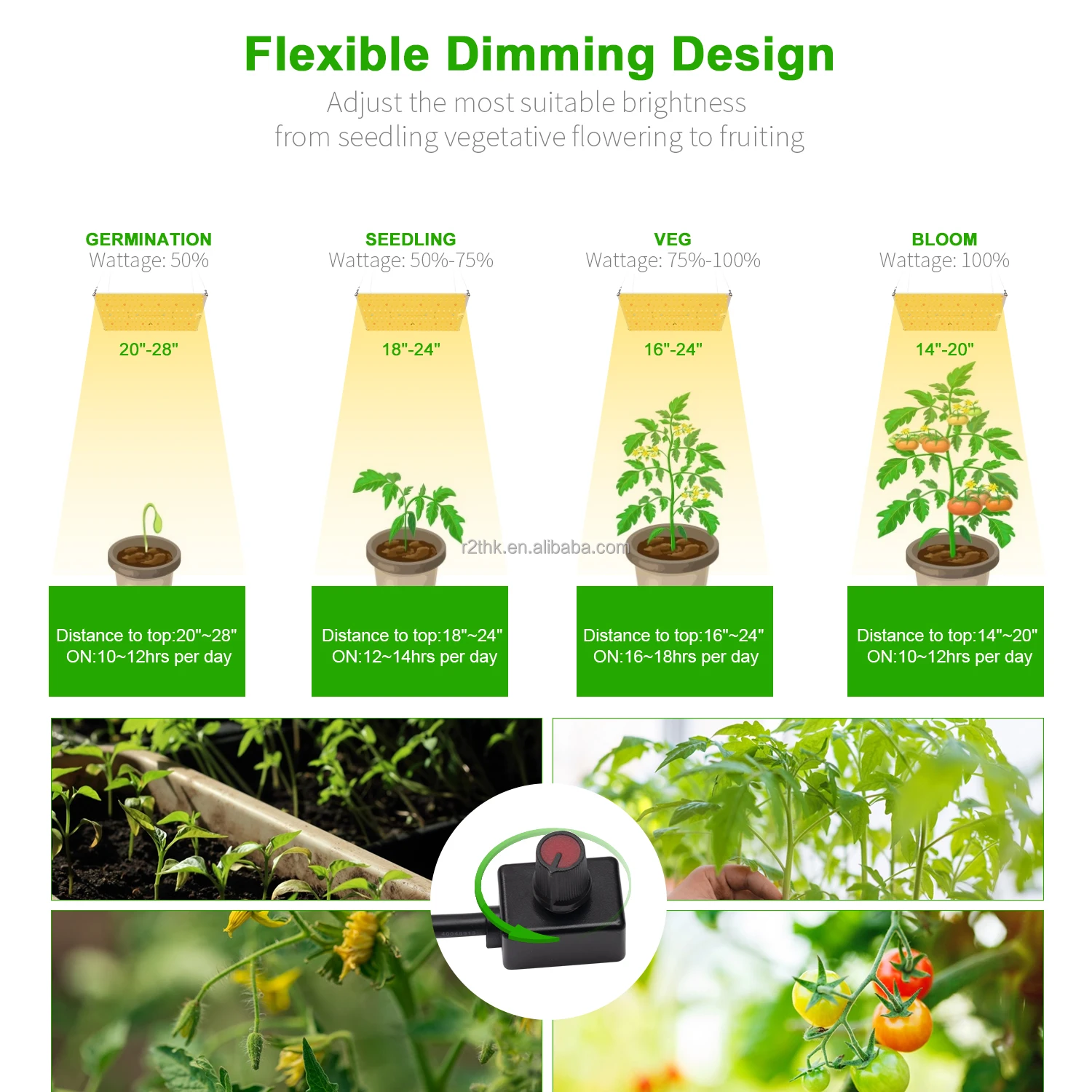

Dimmer: 1pcs
DC cable: 1set
Dimmer cable: 1pairs
Plug:1pcs
if you just need the board, please check below link:
https://www.alibaba.com/product-detail/Newest-2020-Full-Spectrum-150W-Quantum_1600109627298.html?spm=a2747.manage.0.0.628e71d2vQiHzL
Specifications of products
1.Isolated standards isolated driver which is safety for everyone;
2.Full spectrum distribute most nutrient lights from vegetative growth ,flowering and fruit-bearing;
3.Samsung LM301B RA:80, CCT option: 3000k/4000k/5000k/5500k/6000K/6500k
4.Customize wattages,chips ratio,logo,package available.
120W Full Spectrum LED grow light:
Initiator: | Russell | Date: | 2017-4-17 |
Project Name: | 150W LED Panel light PCBA | New Project Code: | R2T-QP304+16 |
Function Request | |||
Electronic Requirement: | Aluminum Board Sepc | ||
Optic Requirement: | 304pcs Equal Samsung301H SL ,RA:80 ,18in parallel 16 in series, ,4pcs single Pin Wago 2060-401/998-404 connectors(2in +,2in -) | ||
Mechanical & Outline Request | |||
Circuit Board Requirement: | N.Layer: | Single side LAYER | |
substrate: | Aluminum | ||
Board thickness: | 3.0mm | ||
Copper thickness | 1oz | ||
Finishing: | HASL | ||
Solder Mask: | White | ||
silkscreen: | Black | ||
Panel | No request | ||
pecial Requirement | 2.0w/m.K thermal conductivity | ||
Silkscreen Design: | Black words | ||
Location hole: | Size | M3*8 | |
location | N/A | ||
Testing Data---Temperature:30Degree Celsious,Humidity: 65%

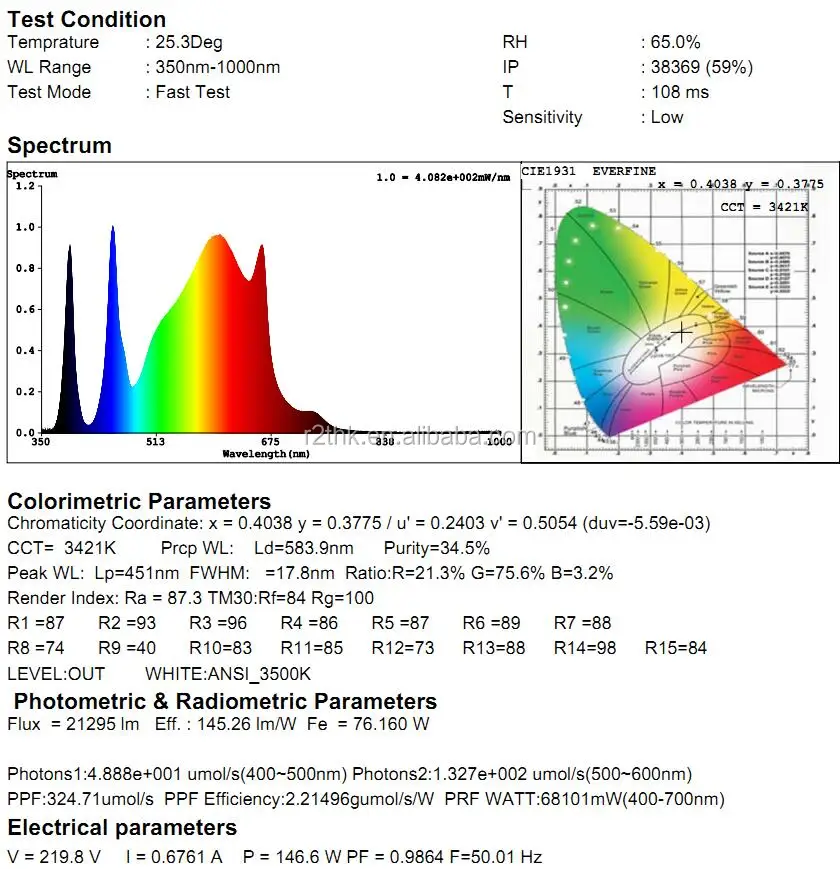

Testing report from Sphere
Tested by Hand equipment

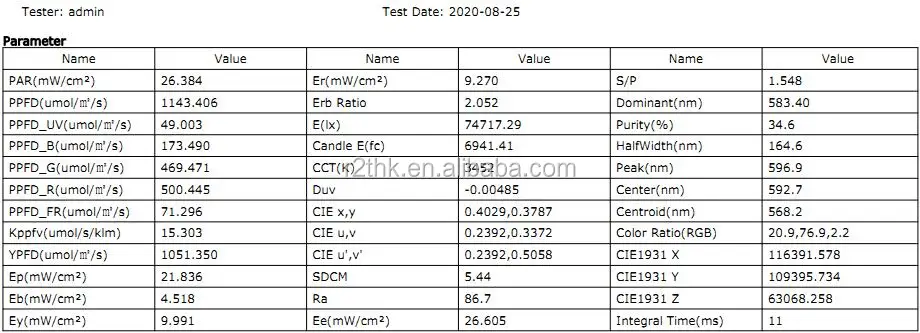

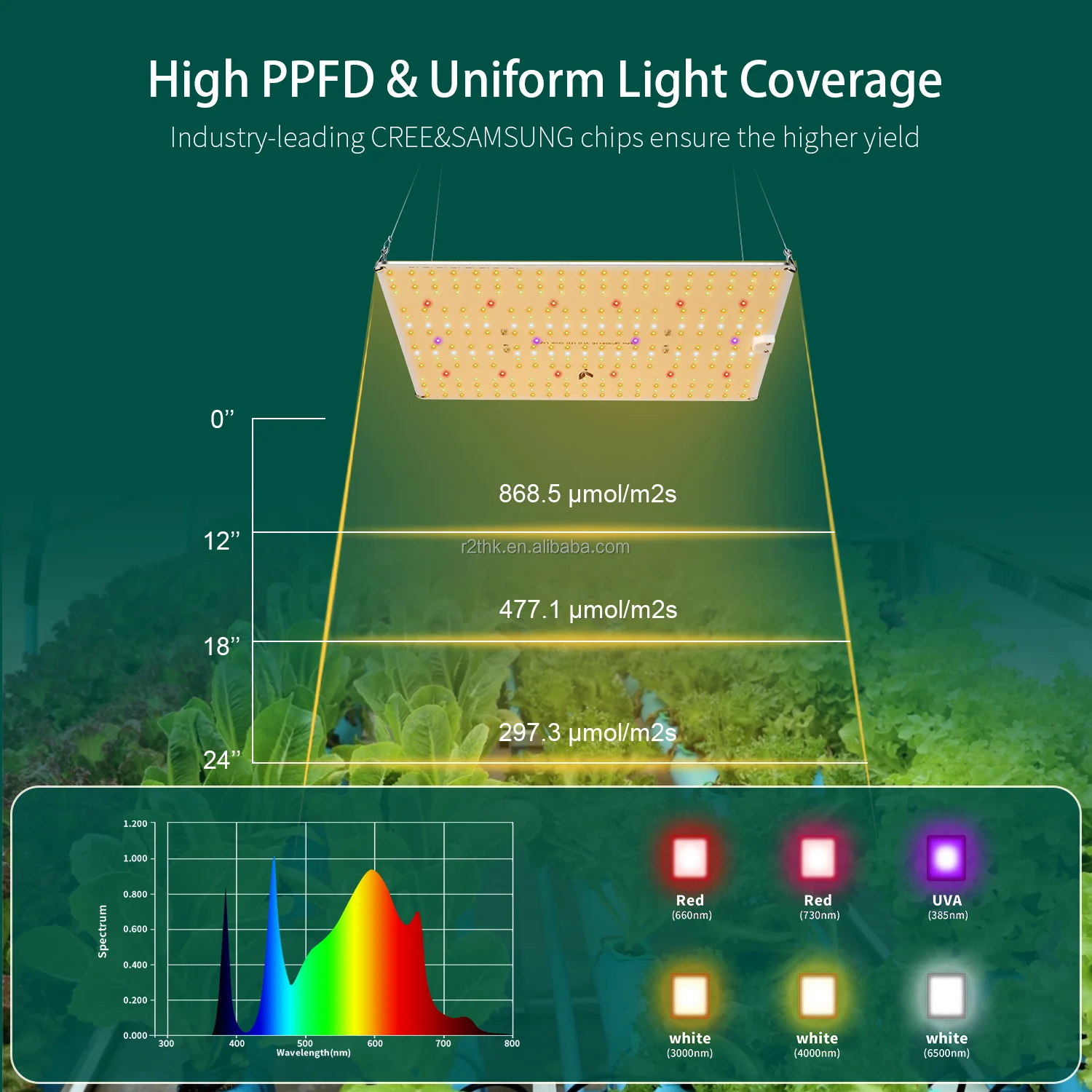

1.Power: 140Watt Height: 12inch

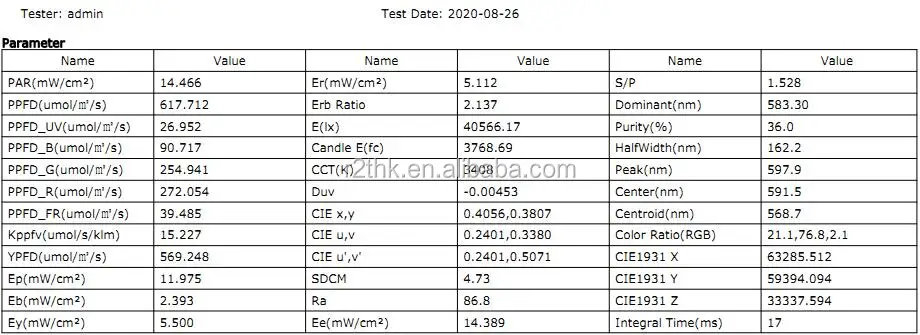

2.Power: 140watt Height: 16inch

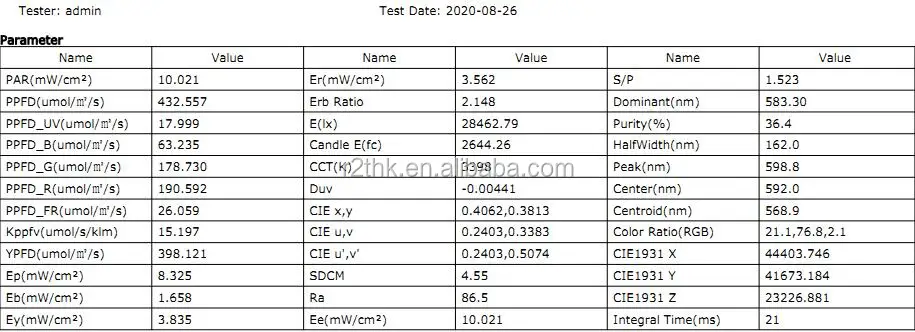

3: Power: 140watt Height:20inch

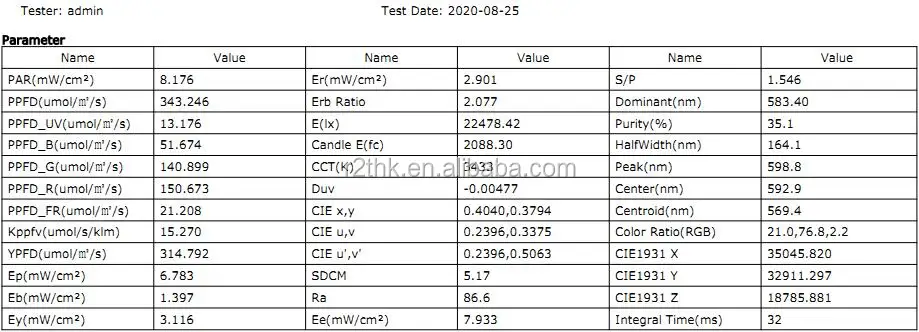

4: Power: 140watt Height: 24inch
Effectivity of Special Wavelength
Why and when need grow light
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

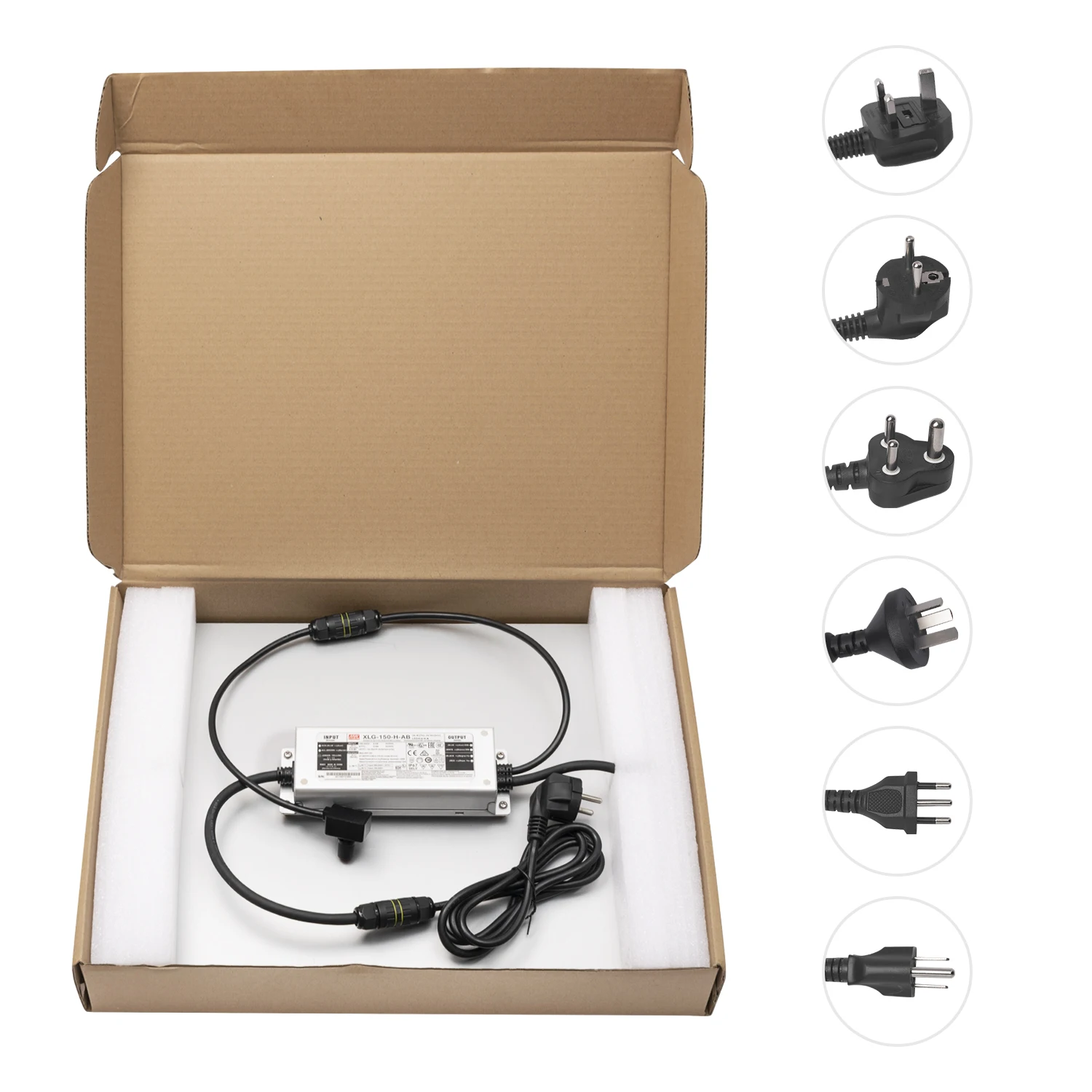

Packing and Shipping:
