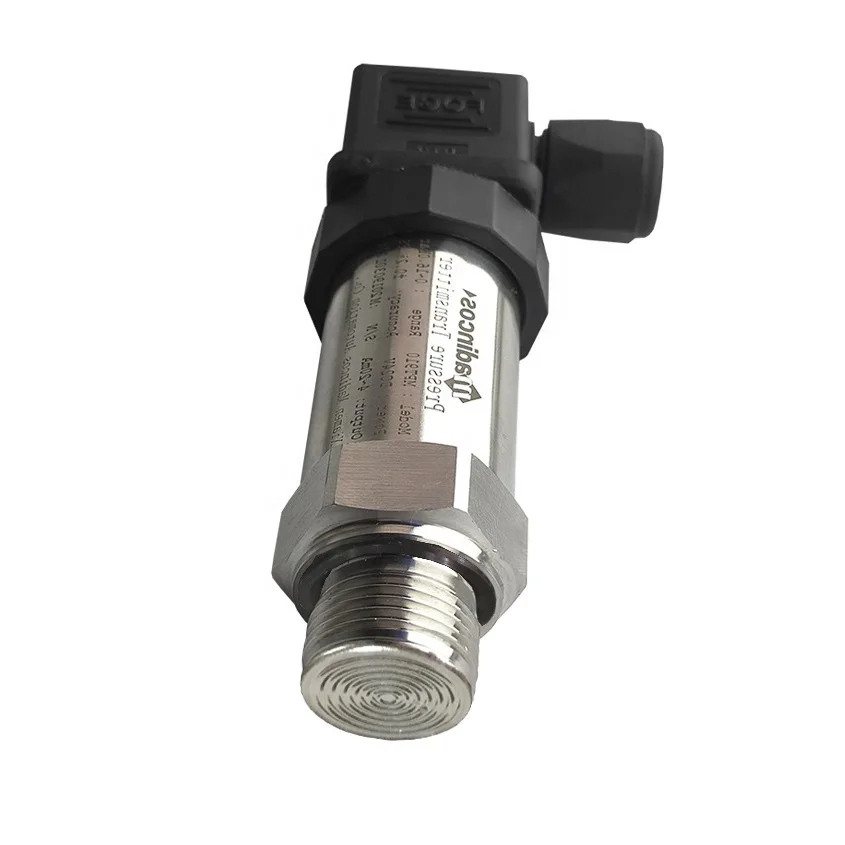

MPT910S: 0.2% Industrial High Temperature 0 10VDC 4 20ma Flush Pressure Transmitter for Mud pump, Coal Slurry, Paper pulp, Crude
- Category: >>>
- Supplier: Xiamen Madincos Automation Co. Ltd.
Share on (1600897667154):
Product Overview
Description

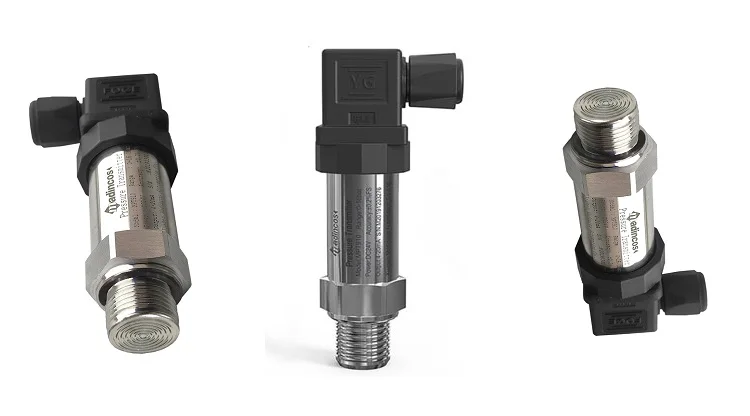

Product Show

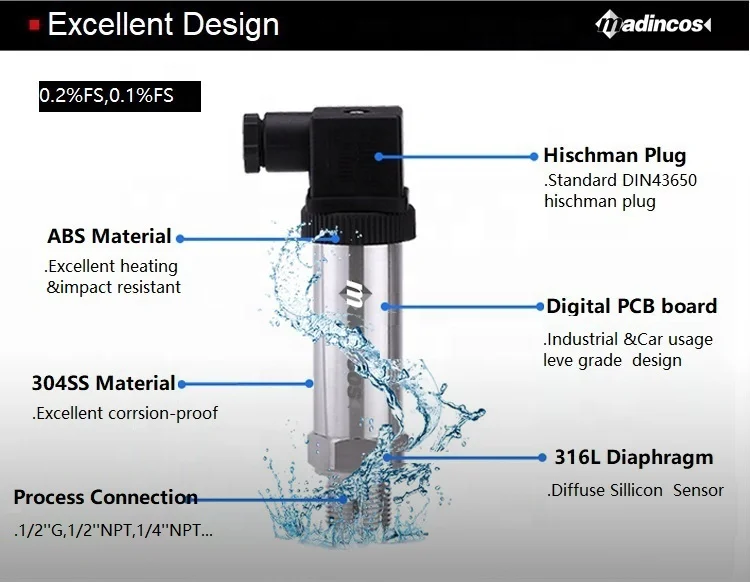

0.2% High Quality Flush Diaphragm 4-20ma Gauge Pressure Transmitter for High Temperature ,High Viscosity Fluid MPT910S

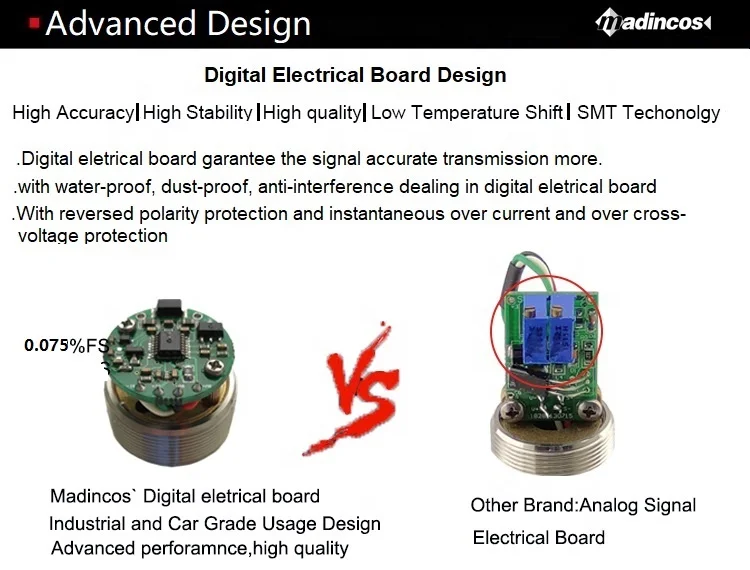

High Accuracy, High Stability, Digital Electrical Board, Diffusion Silicon Sensor with Low Temperature Shift | ||||||
Accuracy | 0.2%FS, 0.1%F. S | |||||
Stability | 0.1% %F. S/year (standard); 0.2% %F. S/year (Max.) | |||||
Zero temperature Shift | ±0.03%FS/℃(≤100Kpa); ±0.02%FS/℃(>100Kpa) | |||||
Full range temperature Shift | ±0.03%FS/℃(≤100Kpa); ±0.02%FS/℃(>100Kpa) | |||||
Compensation temperature | 20℃; -10 to 70℃ | |||||
Overload pressures | 200%F.S | |||||
Specification for Variour Process Pressure Measurement | ||||||
Measured Pressure | Gauge, Absolute, negative | |||||
Measuring range | -100kpa to 40MPa | |||||
Measured medium | Gas, liquid, oil compatible with 316 stainless steel | |||||
Fluid Process Temperature | -20 to 80℃; optional 0 to 120℃;, 0 to 150℃; | |||||
Diaphragm material | 316SS | |||||
Process Connection material | 304SS, optional 316SS | |||||
Housing Material | 304SS, optional 316SS | |||||
Process Connection: | 1/2''G , G1''M flush etc | |||||
Electrical Connection type | Hirschman plug; Air Plug, Cable | |||||

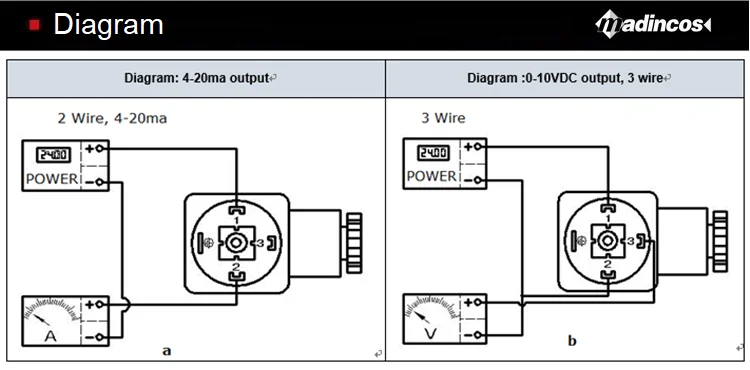

Output signal | 4-20mA, 0-10VDC | |||||
Power supply | 12-24VDC, standard: 24VDC±5%, ripple less than 1% | |||||
IP protection | IP 65 | |||||

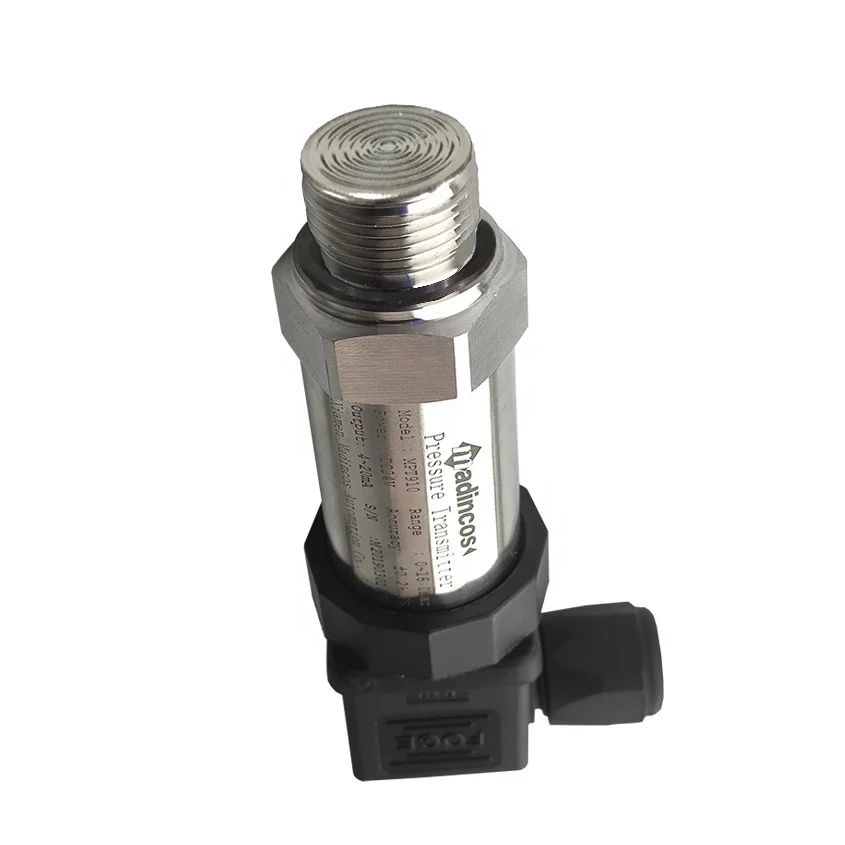

Details Image
Package &Shipment
Package &Shipment | ||
Size | D=26.5mm; Box size:18.5x16.5x5.5cm | |
G.W. | 0.3kg per pc with 5 layer hard box | |
Package: The normal package is paper box(Size: 120L*120W*150HMM). PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great. Delivery: by DHL, TNT, UPS, FEDEX; by air, by sea | ||
