Rocker Arm Assembly of Vertical Grinding Mill Equipment
- Category: >>>
- Supplier: Xuzhou Boshitong Heavy Industry Equipment Co. Ltd.Xuzhou Ltd.
Share on (1600897744482):
Product Overview
Description
Product Description

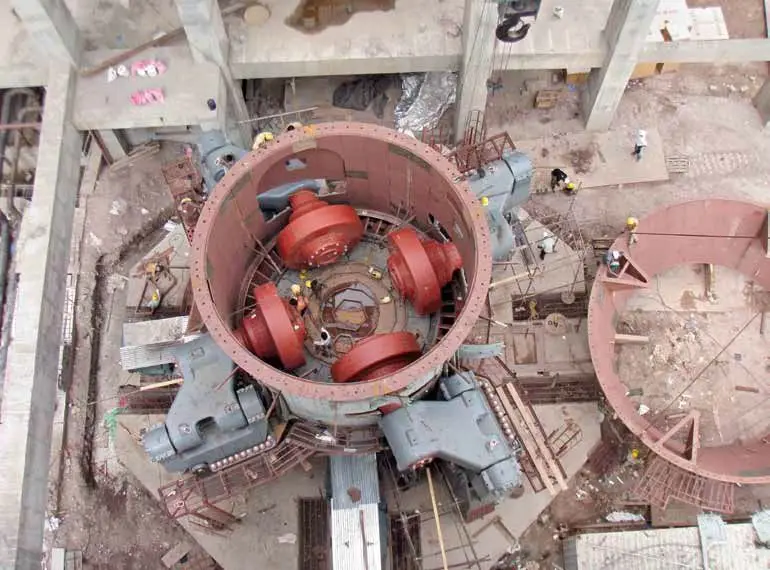

Vertical roller mill is a type of grinder used to grind materials into extremely fine powder for use in mineral dressing processes, paints, pyrotechnics, cements and ceramics. It is an energy efficient alternative for a ball mill.
Working principle of vertical roller mill: The motor drives the grinding disc through thespeed reducer, and the material through the lock air feeder falls in the middle of thegrinding disc, while the hot air enters the mill from the air inlet.
It can crush all kinds of materials under middle hardness, such as ore, rock, coke, coal, clinker, ceramic raw materials, slag,refractory materials, chemical materialsand so on. Roller Crusher is widely used for fine or superfine crushing in the industries of mining, construction materials, metallurgy, chemical industries and so on.
333
Name

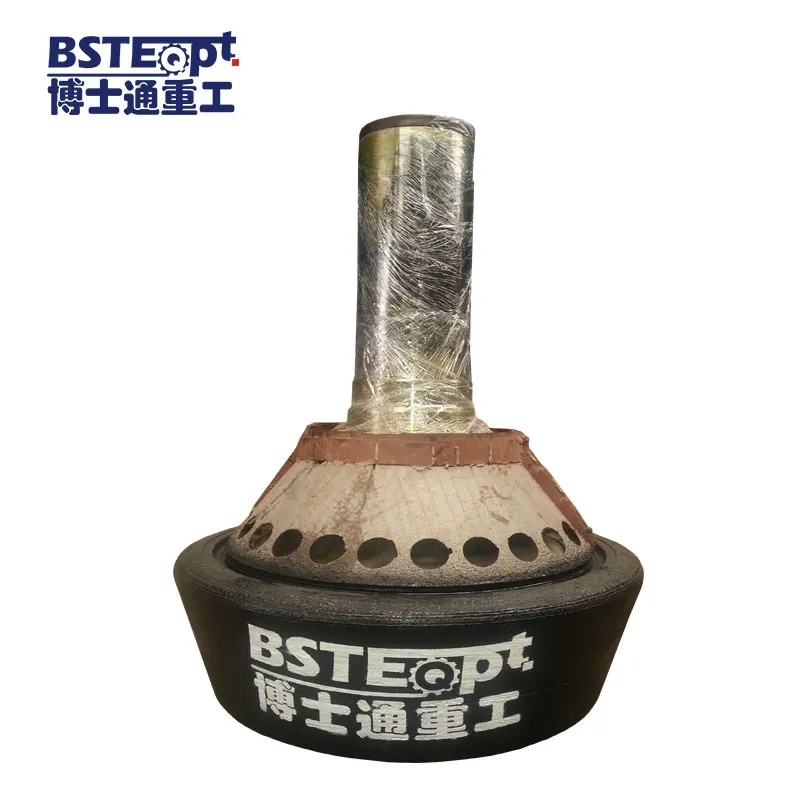

Grinding Roller assembly
Grinding Roller assembly
Application:Grinding Material
Component:
a.Hub Assembly
b.Protecting Jacket
c.Roller Shell

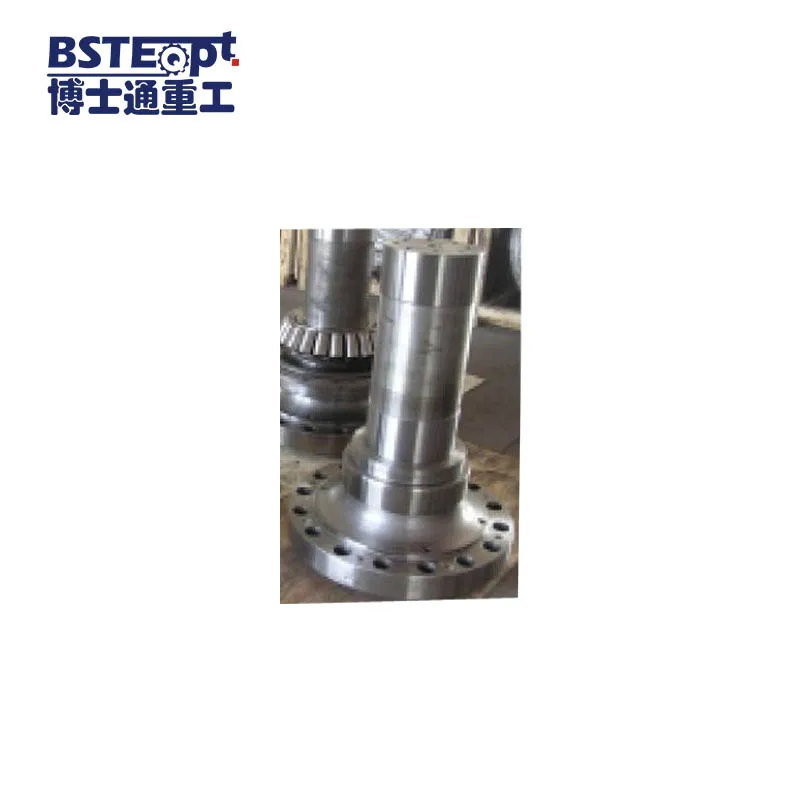

d.Roller Shaft
Vertical mill grinding roller is the main component for rolling and grinding machine.The number of grinding rollers in vertical grinding is mainly 3-6 because of different production capacity. Each grinding roller is mounted on the same shaft and rotates at different speeds to achieve a good grinding effect.
Advantage:
High hardness and toughness，good anti-cracking,high wear-resistant,long using life.
Name:

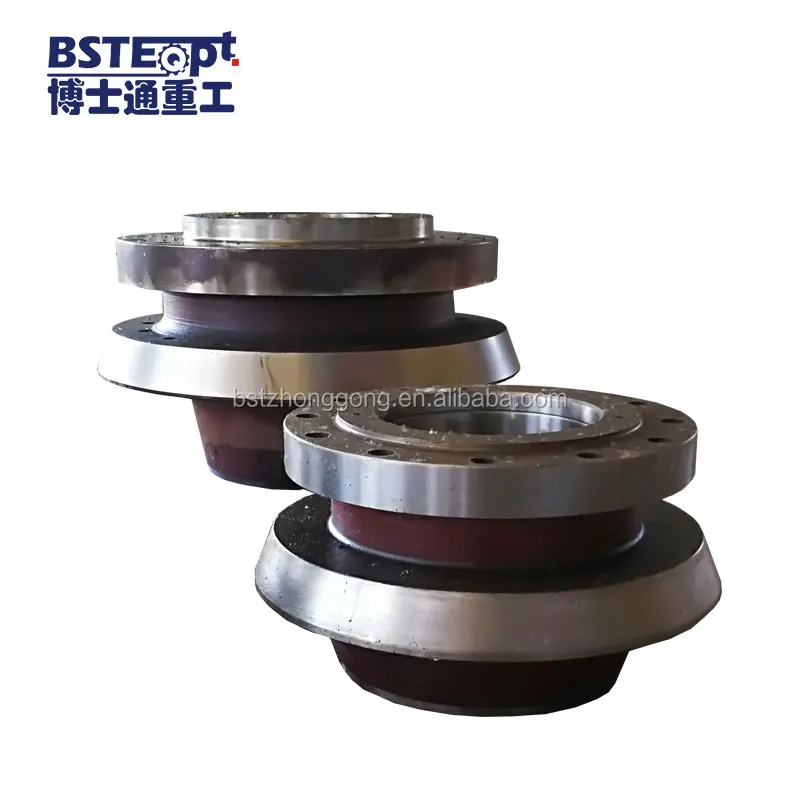

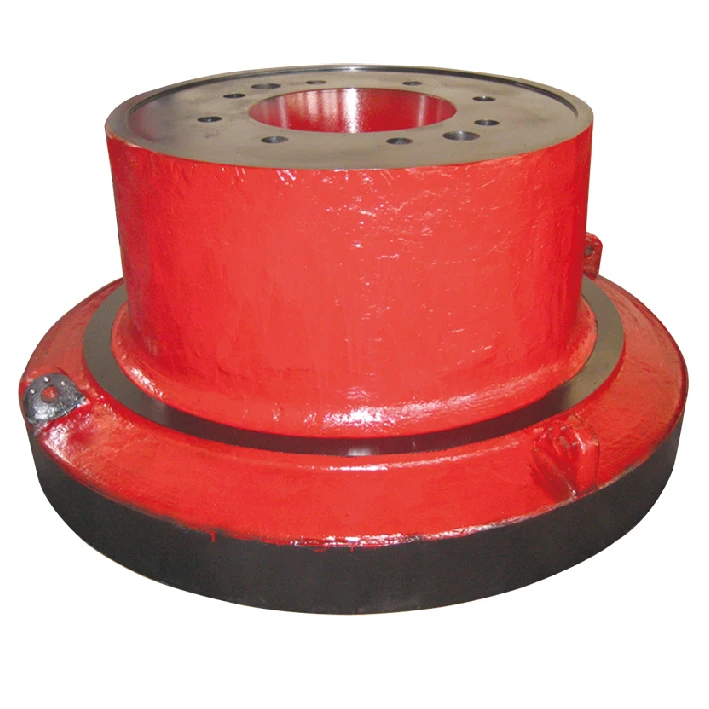

Vetical Mill Hub
Vetical Mill Hub
The hub is a component on the grinding roller. The roller sleeve is fixed on the hub, and the hub is installed on the roller shaft as a component of the grinding roller. Generally, the tapered surface structure is adopted between the roller sleeve and the hub,which is convenient for maintenance and disassembly.
Material:
ZG270-500,ZG30SiMnMo or as requested.
Advatange:
High wear resistant and fracture resistant.
Name:

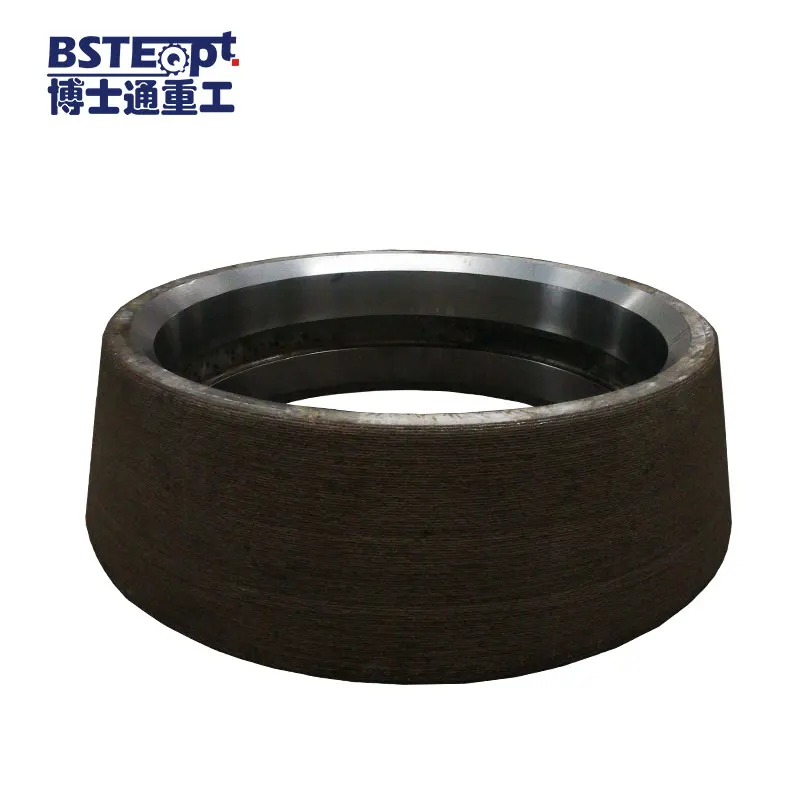

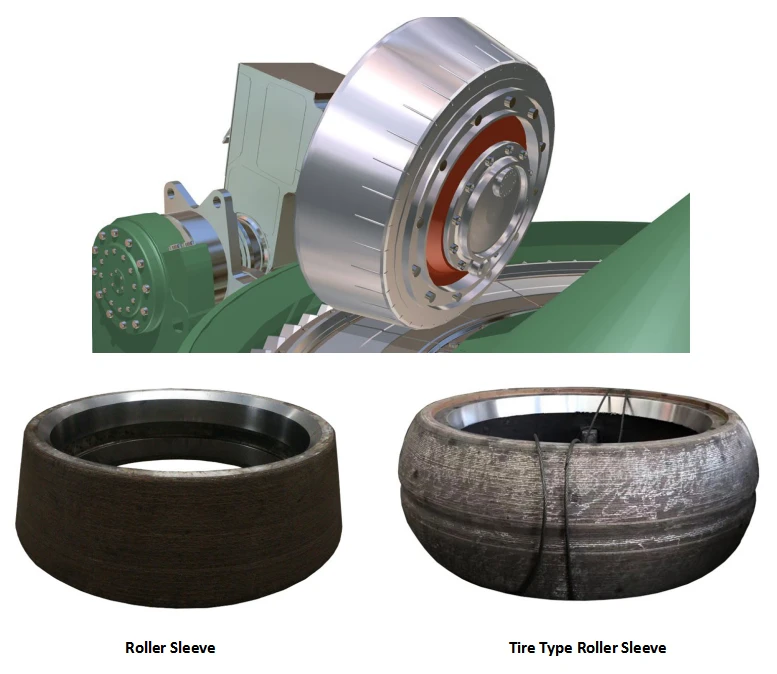

Vetical Mill Roller Sleeve/Tire Type Roller Sleeve
Vetical Mill Roller Sleeve/Tire Type Roller Sleeve
Roller Sleeve is the main part of roller assembly.Surface of roller sleeve is in direct contact with material for grinding,so it should be high wear-resistant.Generally,roller sleeve made by high iron chrome and surface hardfacing technical or as requested.
Material and composition:
High iron chrome:
C:2.8-3.2%;Mn:0.8-1.2%;Cr:18-22%;Cu:0.8-1.2%;
Mo:0.8-1.2%
HRC:58-62

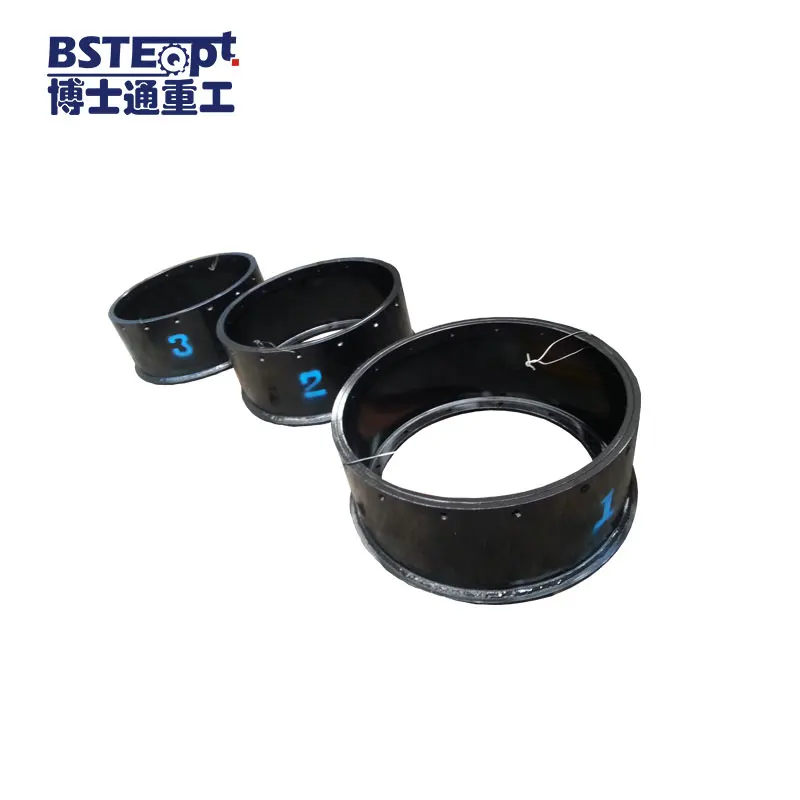

Vertical mill sealing set assembly

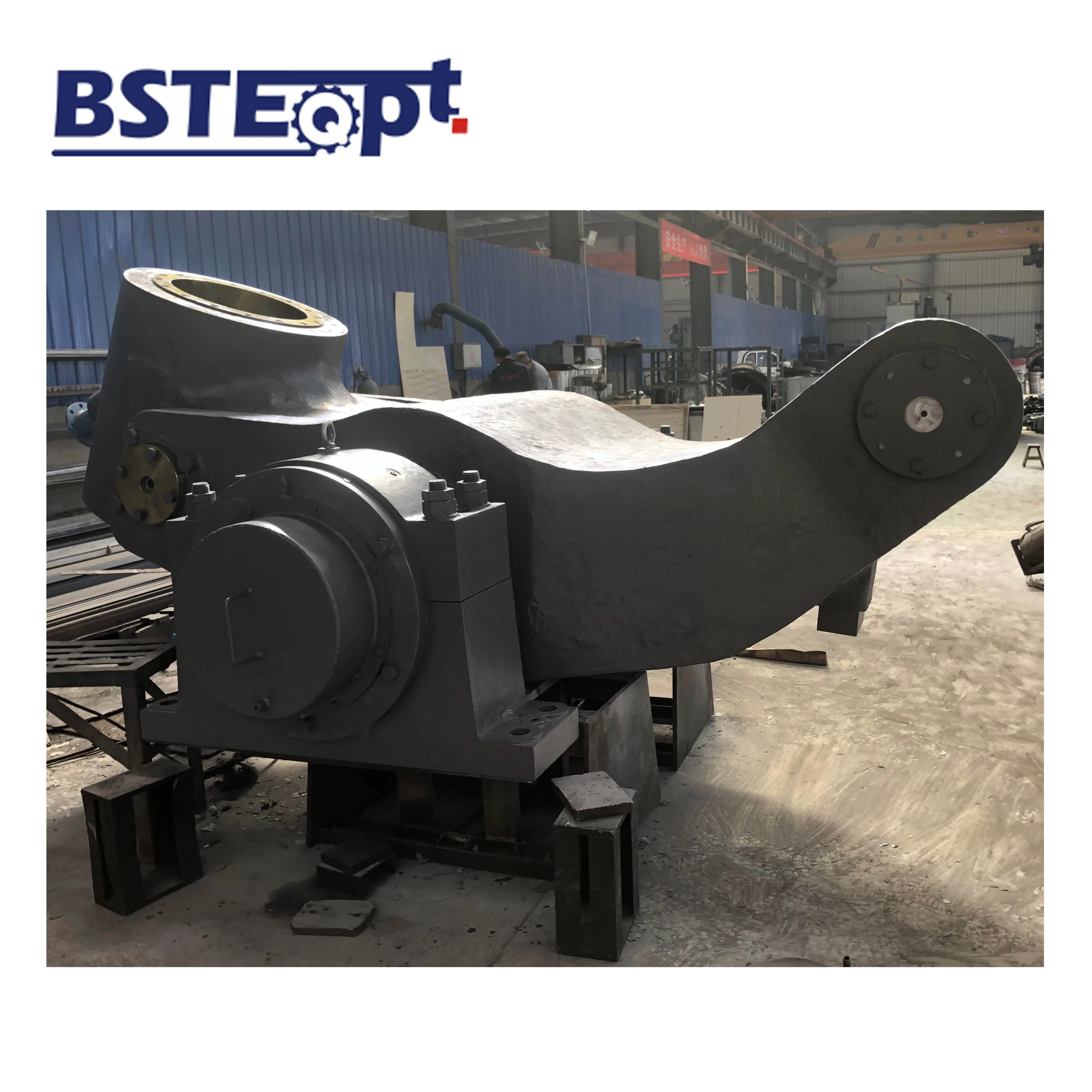

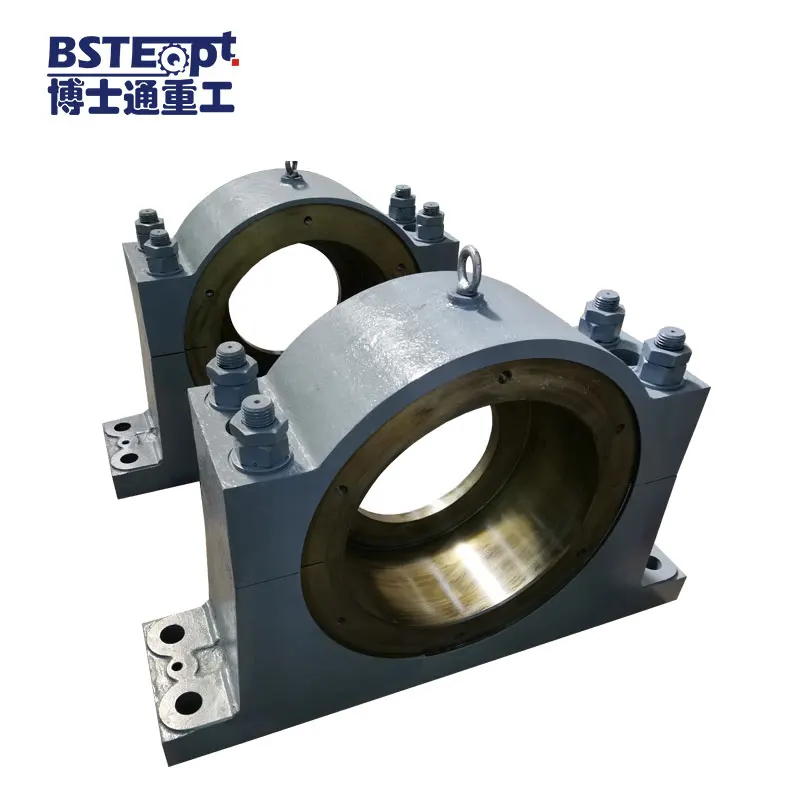

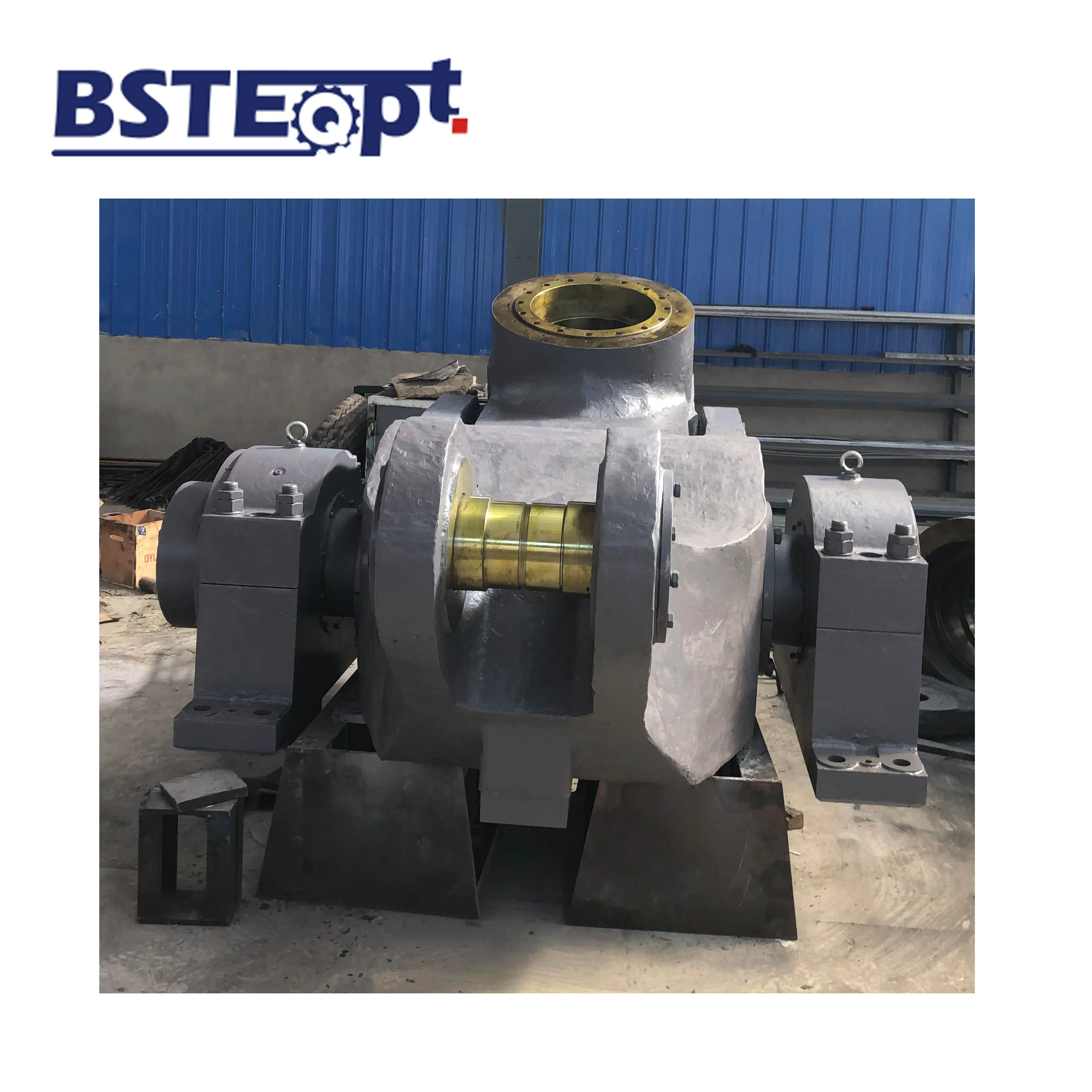

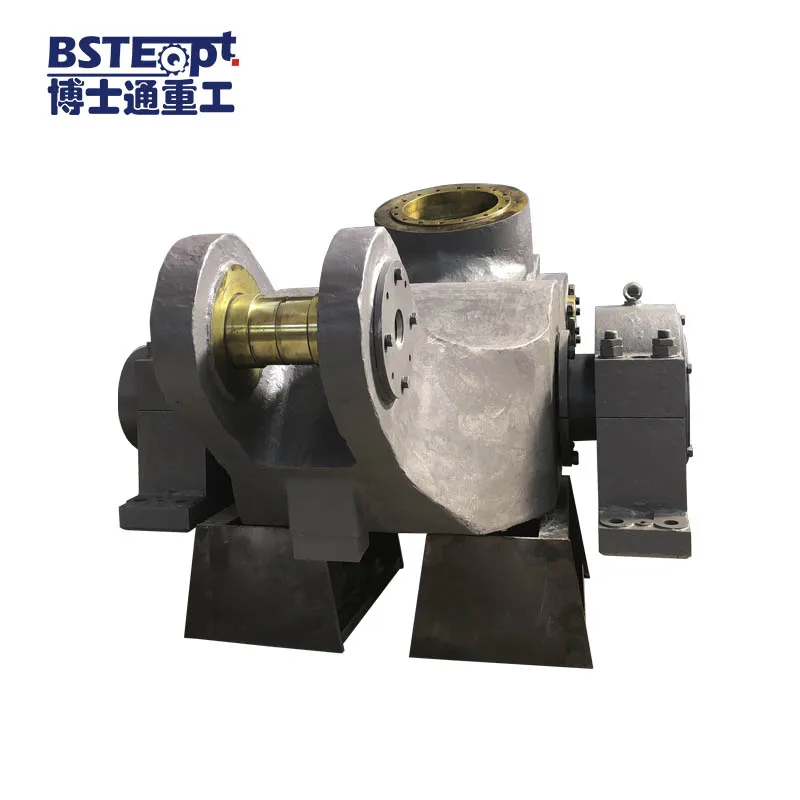

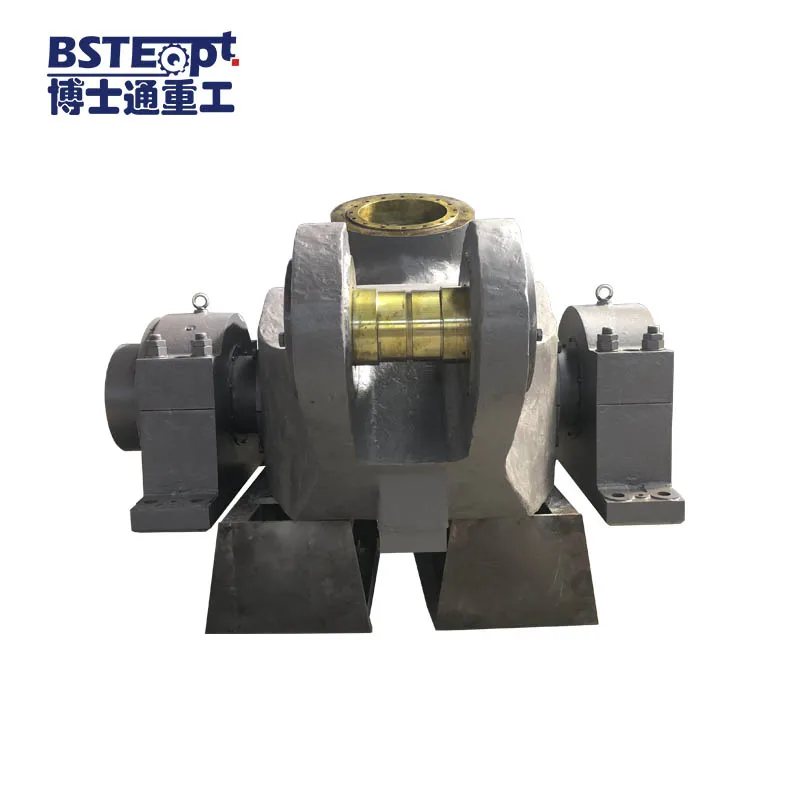

Vertical Mill Rocker Arm Assembly
Material:ZG270-500,ZG30SiMnMo or as requested.

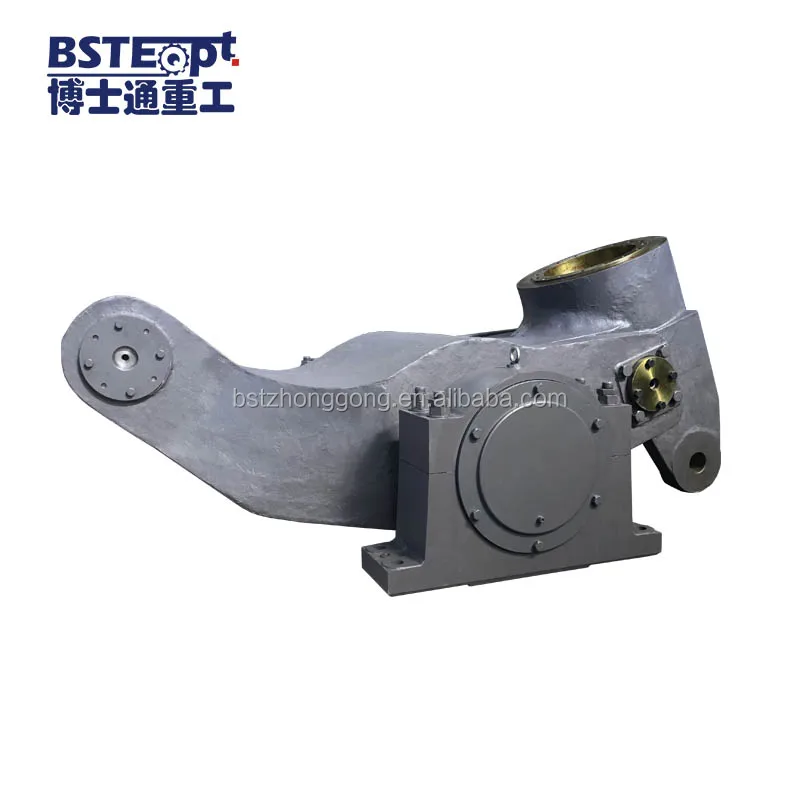

What is rocker arm assembly?
Rocker arm assembly mainly made up by upper rocker arm,down rocker arm,rocker arm shaft,bearing and bearing set etc.Upper rocker arm used to install roller,Down rocker arm used to connect with hydraulic system.These two rocker arm combined with shaft,taper sleeve and taper pin for a whole set.

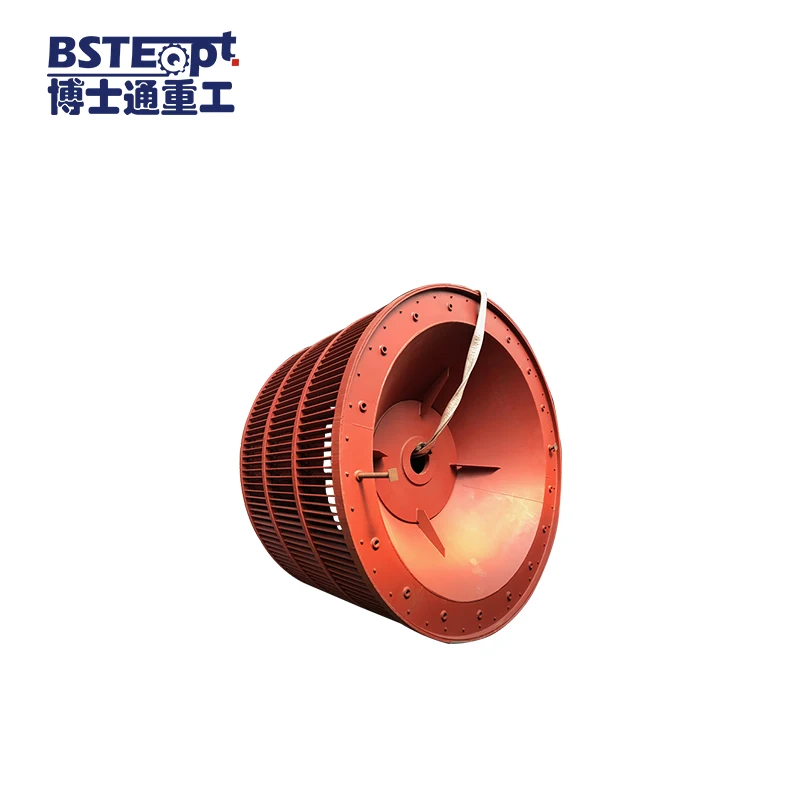

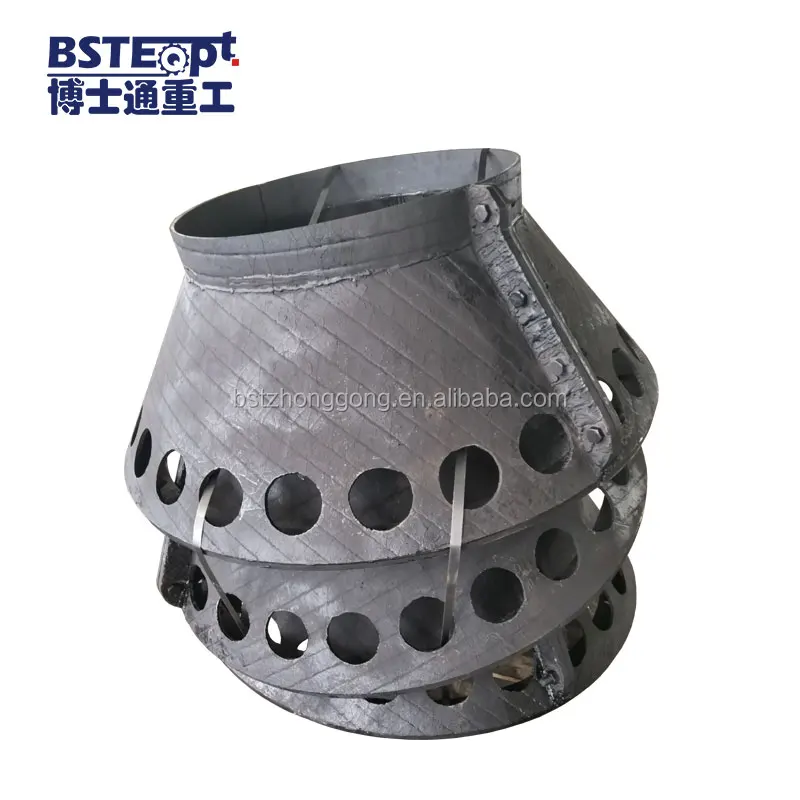

cement industry vertical mill powder concentrator rotor assembly

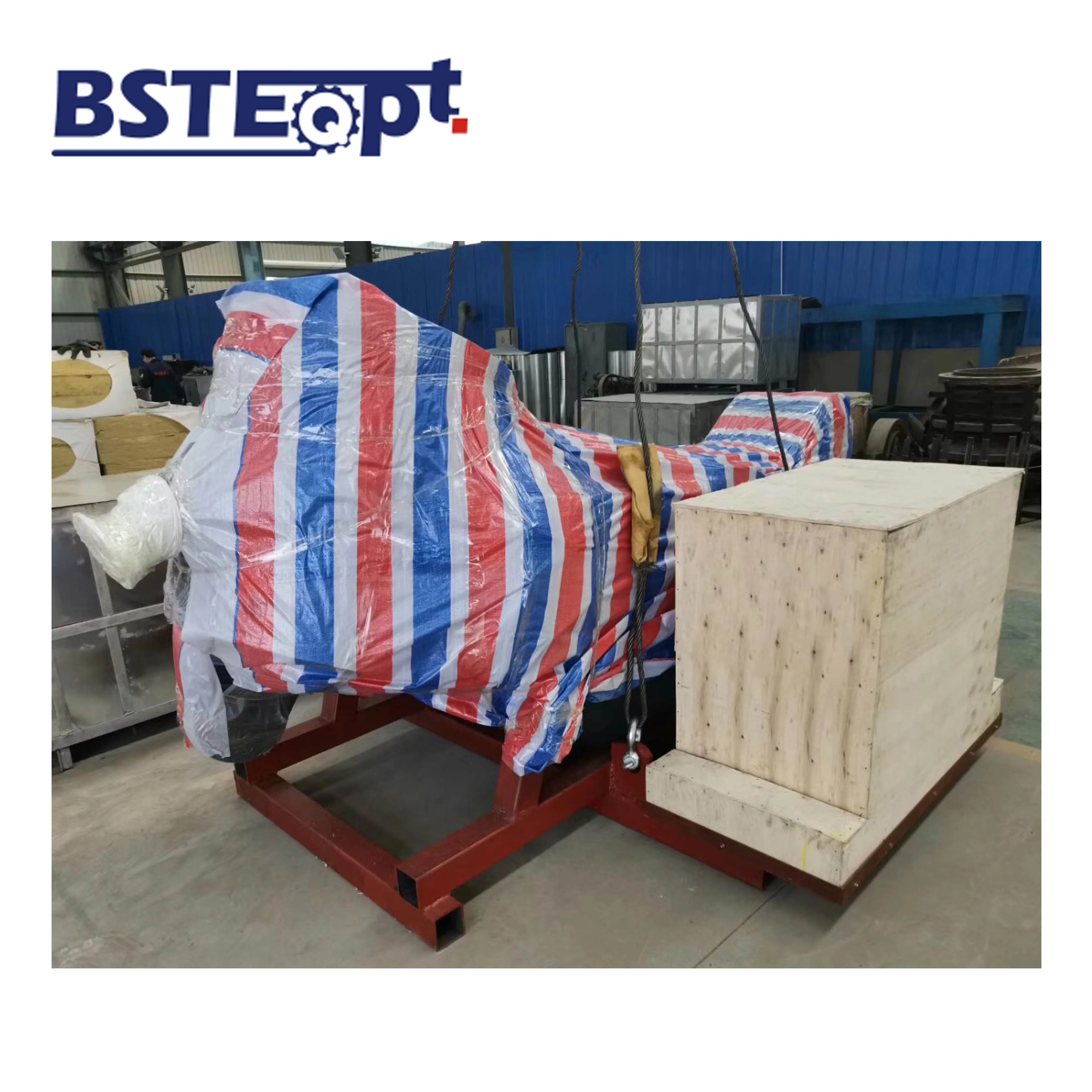

Seaworthy Package for rotor
Name:

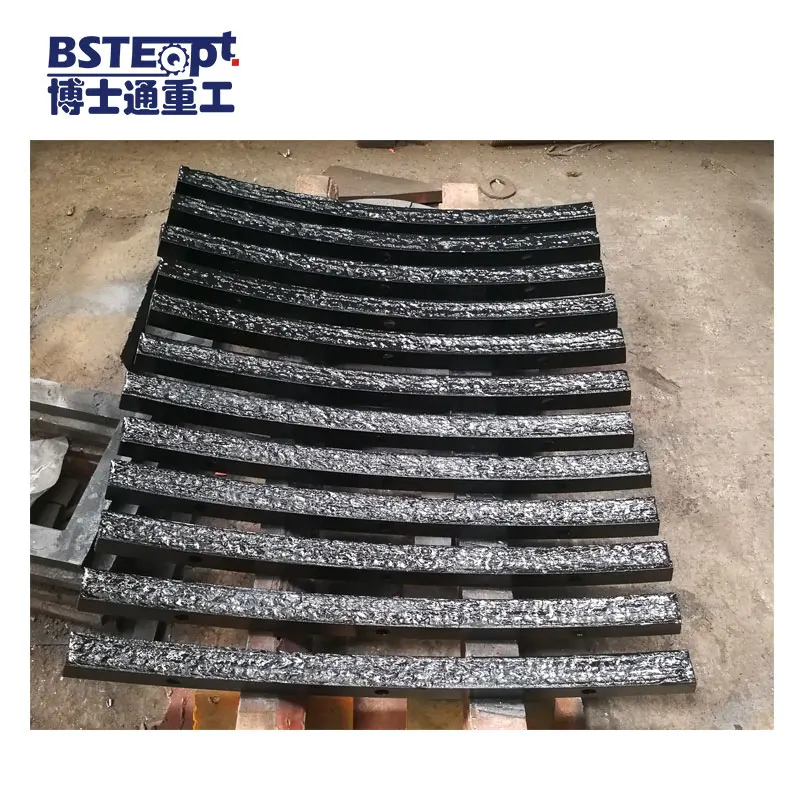

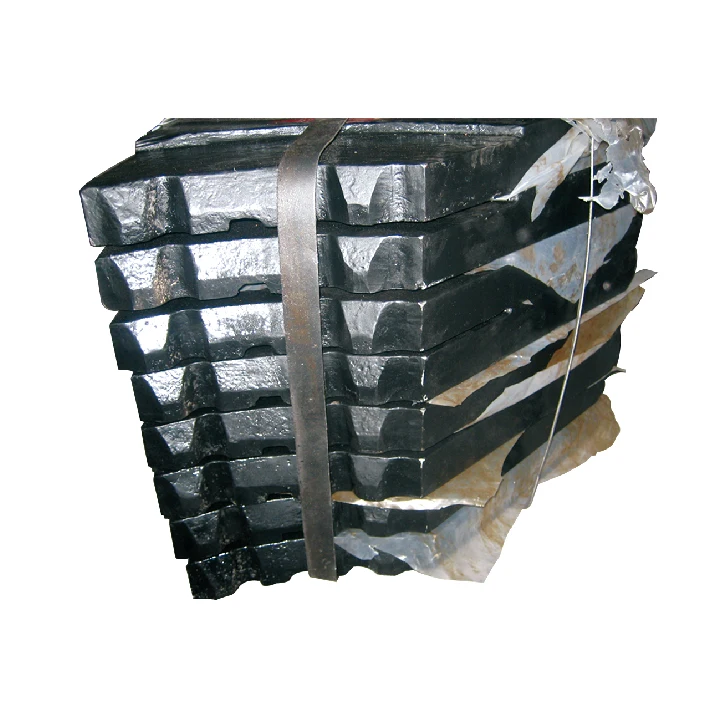

Vetical Mill Millstone
Vetical Mill Millstone
Millstone is one of the key parts of vertical mill, which is mainly composed of resistance ring, liner and base.Optimize the design of the grinding disc casting process to overcome the deficiencies of the previous structure, make the grinding disc base uniformly stressed, increase the bite angle between the grinding disc grinding rollers, and avoid brush erosion of the non-wear-resistant surface of the grinding disc.
Technical process:
Wooden mode-Modeling-Casting-Cleaning treatment-Heat treatment-Finish machining-Package and delivery.

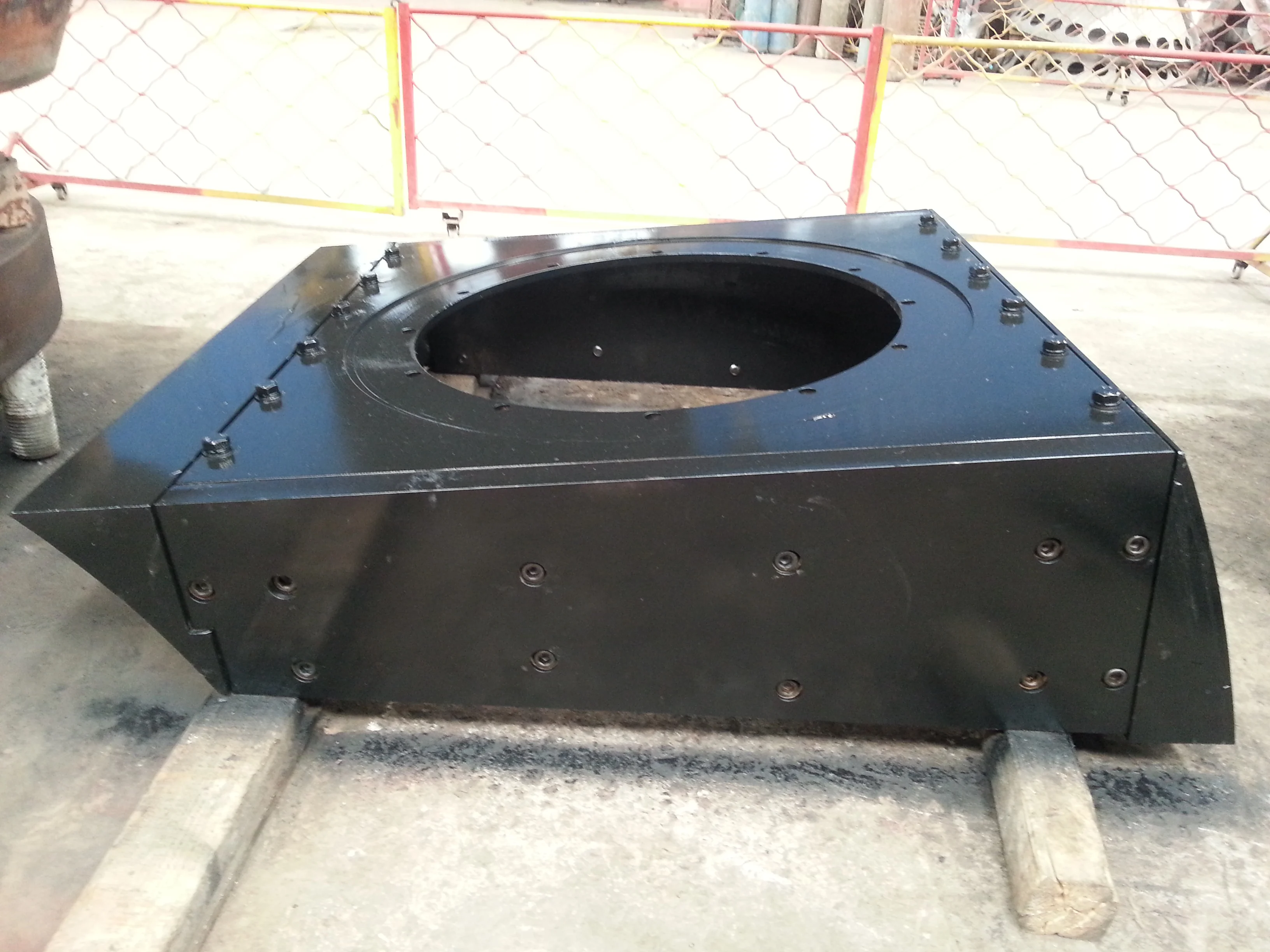

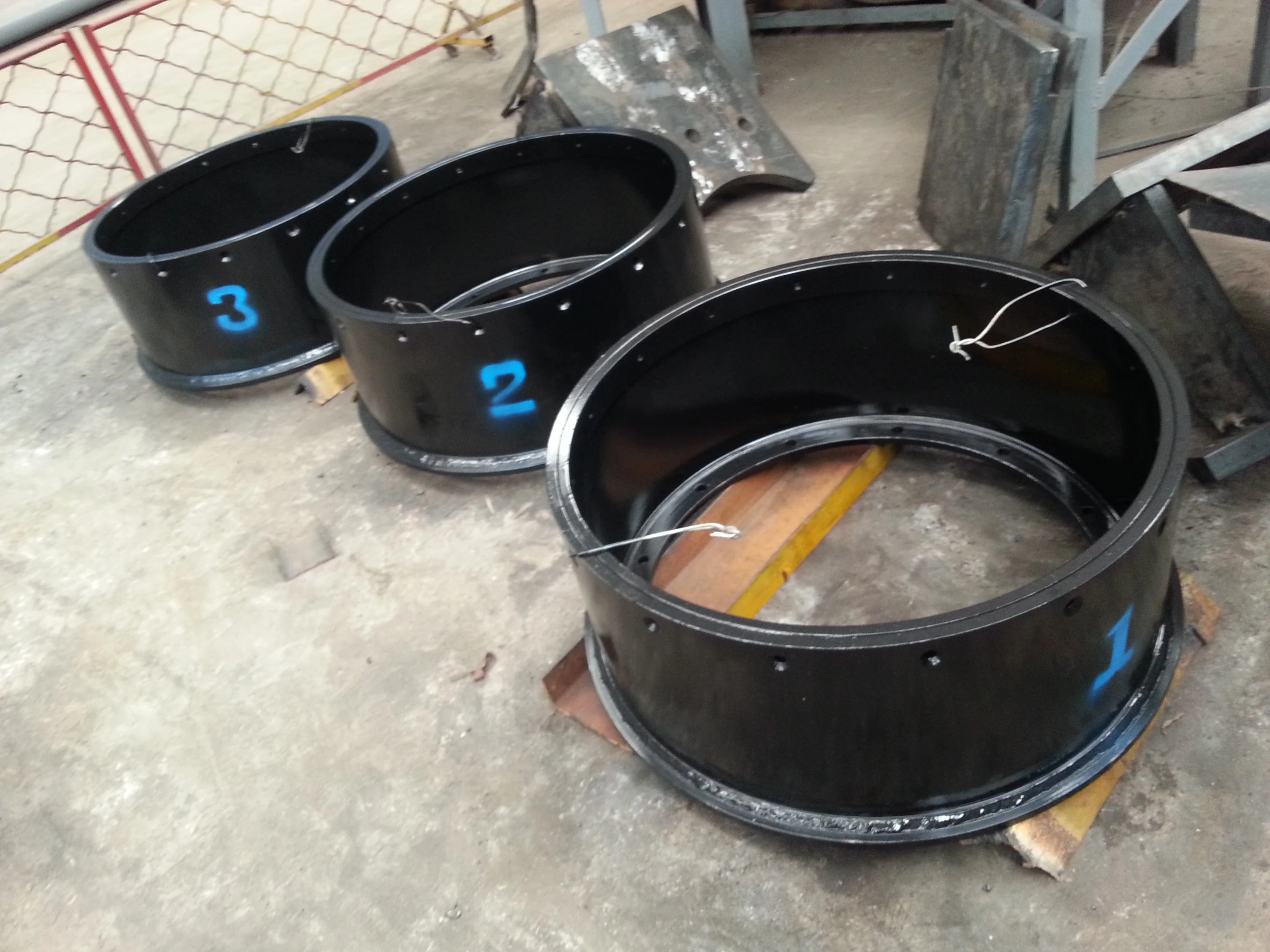

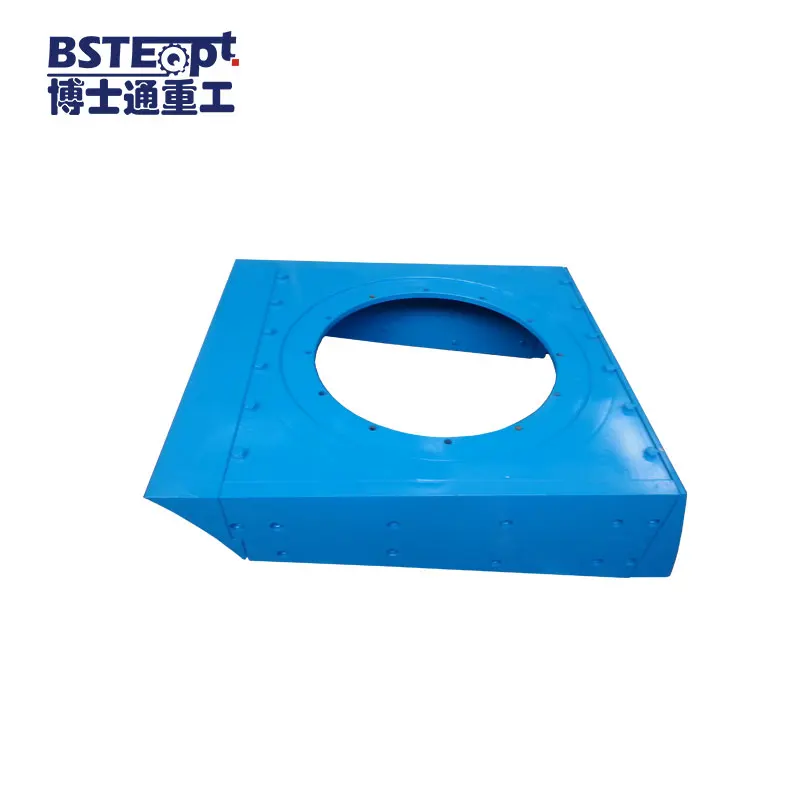

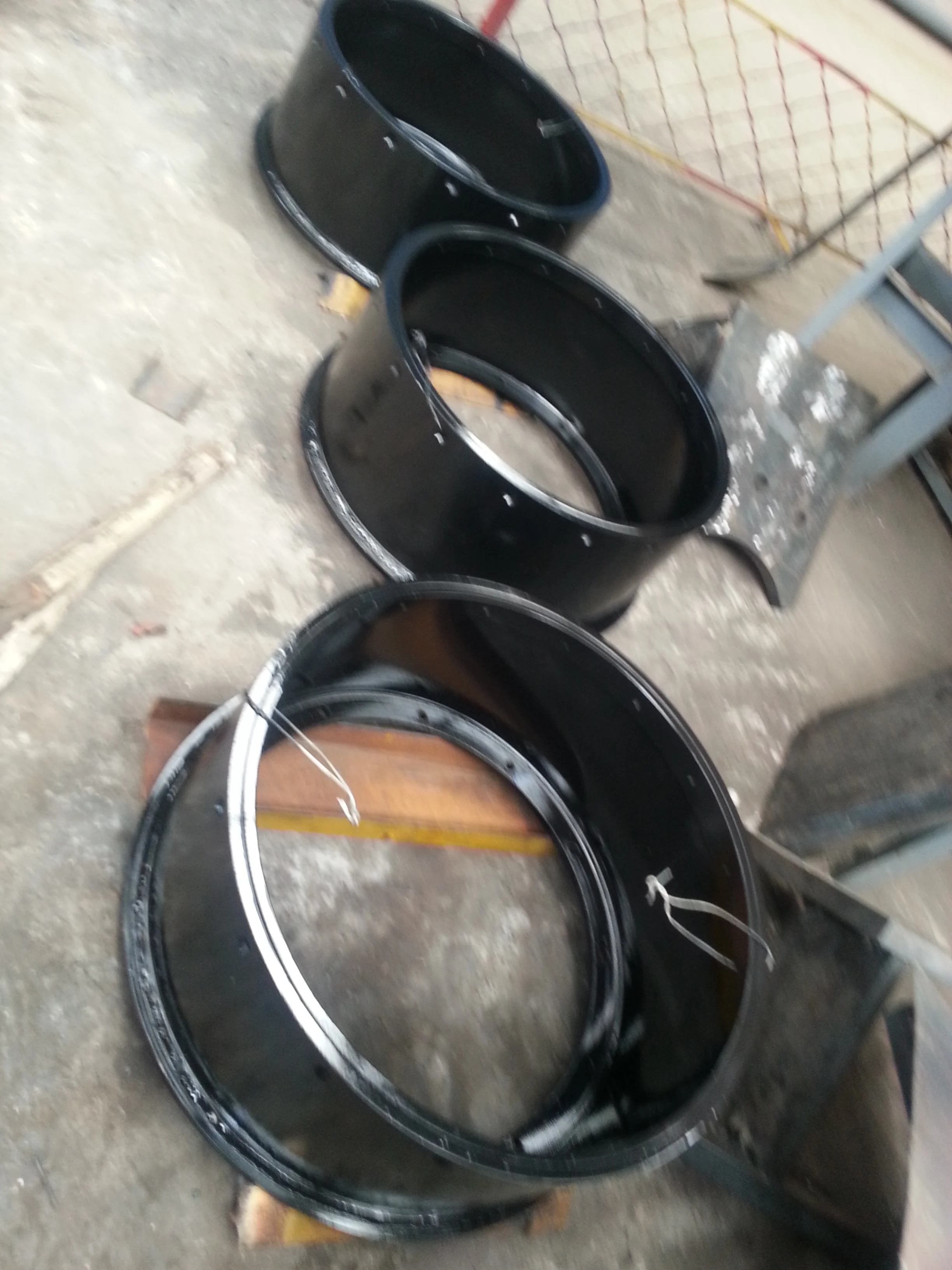

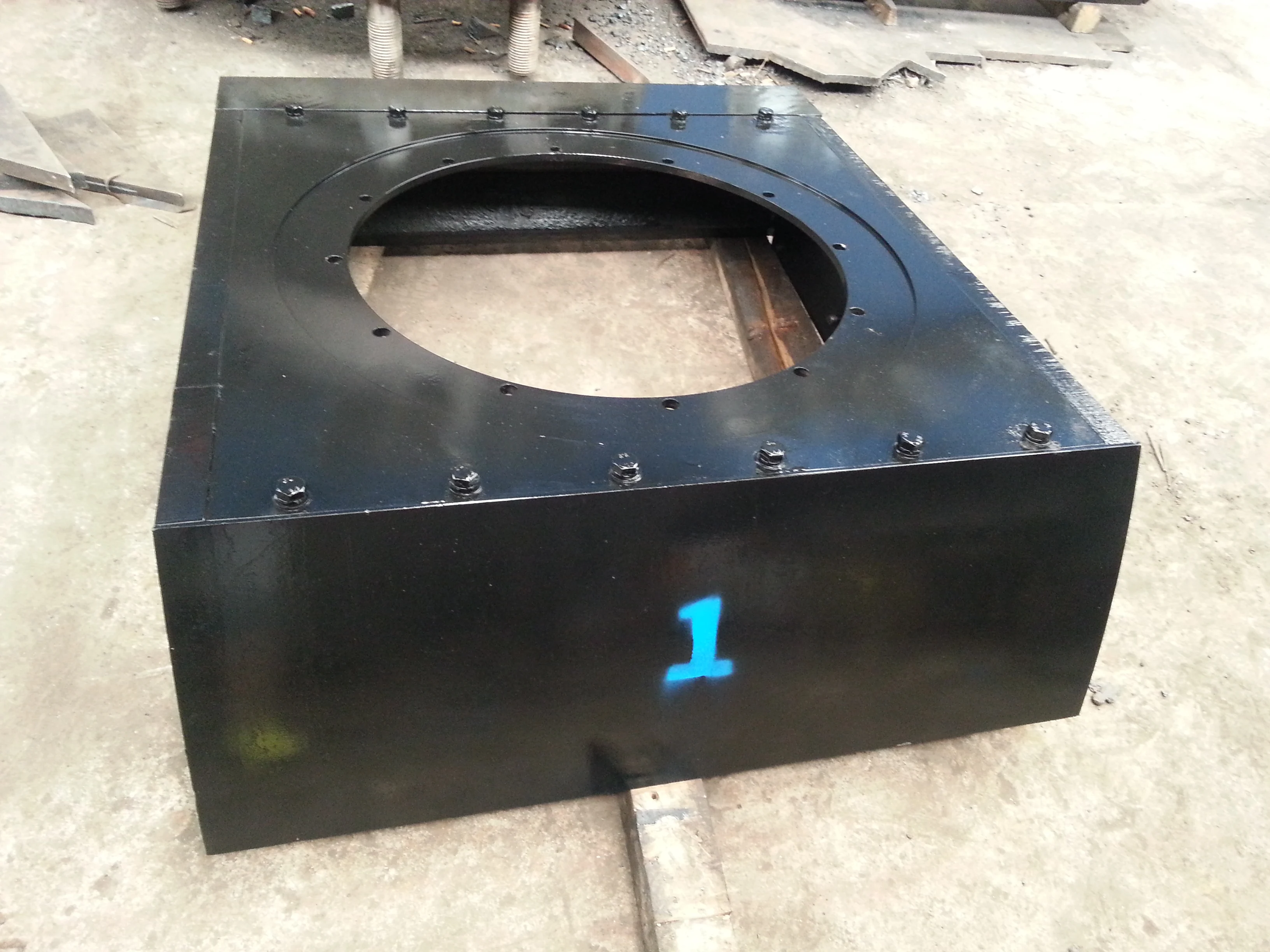

Vertical mill shell sealing device
What is sealing device used for?
Vertical mill shell sealing device is connected with the vertical grinding shell and the grinding roller, and is connected with the vertical grinding shell and the vertical grinding roller by bolting or welding.
Related Products
Company Introduction
Xuzhou Boshitong Heavy Industry Equipment Company Limited is a professional manufacturer and sales company in field of cement and mine production line for equipment and spare parts of designing and developing.Boshitong productions exported to many countries all over the world and established a complete set of sales network channels.
Main production:Equipment and spare parts for rotary kiln,roller press,grate cooler,ball mill,vertical mill,preheater,crusher,dryer etc.
Sophisticated products, thoughtful after-sales, first-class equipment, reasonable prices, and strive to build global sales network channels at home and abroad, currently foreign sales have covered India, Vietnam, Laos, the Philippines, Pakistan, Saudi Arabia,Indonesia, Syria and other countries.
Boshitong company replies on TCDRI,NCDRI,HeFei Cement Research&Design Institute Corporation Ltd,Sinoma,CITIC etc institutes support,mainly provide spare parts and maintenance service for cement production line.
Boshitong can supply equipment spare parts of various specification cement production line like rotary kiln,vertical mill,roller press,ball mill,grate cooler,preheater,crusher,conveyor,dryer etc.Meanwhile in field of Overflow mill,Semi-grinding mill for mine production line.Also provide drawings processing services.
Main production:Equipment and spare parts for rotary kiln,roller press,grate cooler,ball mill,vertical mill,preheater,crusher,dryer etc.
Sophisticated products, thoughtful after-sales, first-class equipment, reasonable prices, and strive to build global sales network channels at home and abroad, currently foreign sales have covered India, Vietnam, Laos, the Philippines, Pakistan, Saudi Arabia,Indonesia, Syria and other countries.
Boshitong company replies on TCDRI,NCDRI,HeFei Cement Research&Design Institute Corporation Ltd,Sinoma,CITIC etc institutes support,mainly provide spare parts and maintenance service for cement production line.
Boshitong can supply equipment spare parts of various specification cement production line like rotary kiln,vertical mill,roller press,ball mill,grate cooler,preheater,crusher,conveyor,dryer etc.Meanwhile in field of Overflow mill,Semi-grinding mill for mine production line.Also provide drawings processing services.
Packing&Shipping
Xuzhou BOSHITONG Heavy Industry Equipment Company Limited have more than 10 years experence in exporting,will prepare seaworthy package for different kind goods.
FAQ
1. Why choose us?
Professional supplier on cement equipment and spare parts with 10 years experience in producing.Factory direct,quality
guarantee-once production finish,will arrange inspection and provide test report.
2. What are the materials?
Well know domestic and international standard and produce as requested.
3. What kinds of technic?
Casting,forging,hardfacing.
4. How to ship?
By sea.
5. How to place the order?
Place the order with saler;
Make payment for deposit or irrecable L/C at sight or CAD through bank;
Confirming the drawings and all sizes;
Begin to production;
Saler will send all photos and test report to buyer before loading;
Make the balance before bill of loading;
6. What is the term of payment?
T/T-30% payment in advance for deposit and the balance must be paid before bill of loading;
Irrevocable LC at sight;
CAD through bank.
Professional supplier on cement equipment and spare parts with 10 years experience in producing.Factory direct,quality
guarantee-once production finish,will arrange inspection and provide test report.
2. What are the materials?
Well know domestic and international standard and produce as requested.
3. What kinds of technic?
Casting,forging,hardfacing.
4. How to ship?
By sea.
5. How to place the order?
Place the order with saler;
Make payment for deposit or irrecable L/C at sight or CAD through bank;
Confirming the drawings and all sizes;
Begin to production;
Saler will send all photos and test report to buyer before loading;
Make the balance before bill of loading;
6. What is the term of payment?
T/T-30% payment in advance for deposit and the balance must be paid before bill of loading;
Irrevocable LC at sight;
CAD through bank.
