IIoT RS485 to 4G/Ethernet Modbus RTU to Modbus TCP/MQTT/OPC UA Gateway
- Category: >>>
- Supplier: Shenzhen Beilai Technology Co. Ltd.
Share on (1600897783151):
Product Overview
Description
Details Images
Product Description
Model List

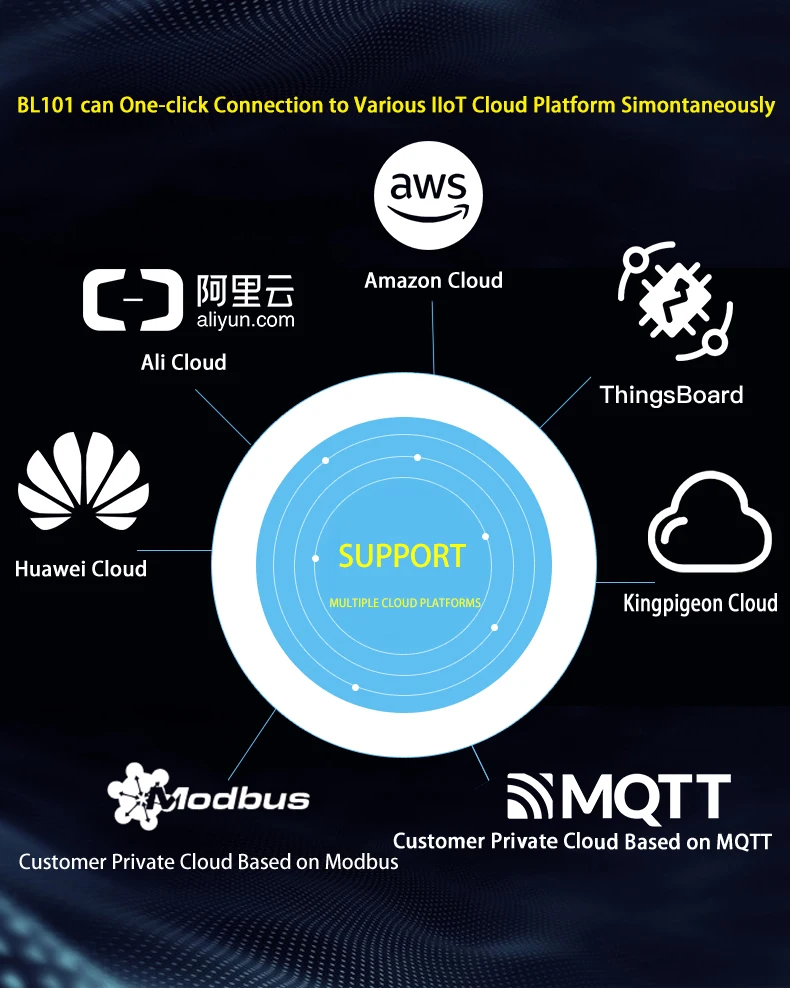

Modbus Gateway BL101 downstream supports: Modbus RTU Master, Modbus TCP Master, upstream supports: Modbus TCP, MQTT, Sparkplug B, OPC UA, Huawei Cloud IoT, AWS Cloud, Inductive Automation Ignition SCADA, ThingsBoard Cloud, Alibaba Cloud, KPIIOT Cloud and other protocols.

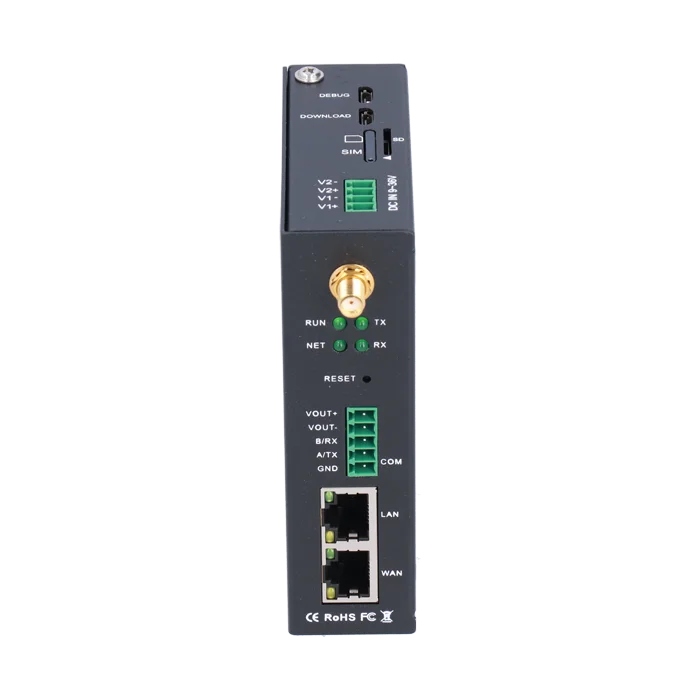

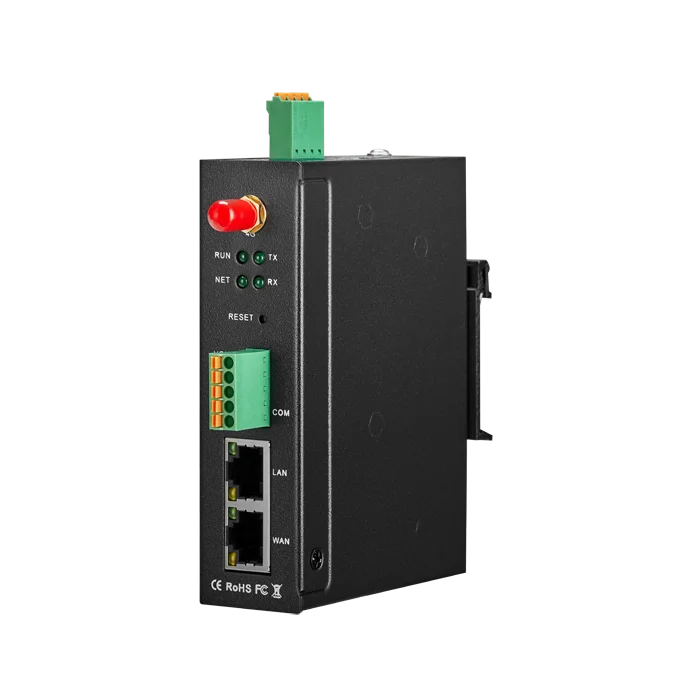

Modbus Gateway BL101 adopts embedded Linux system, supports TSL, SSL encryption, provides 1 RS232/RS485 optional serial input, 1 power output, 2 Ethernet ports and 2 USB ports, and supports SIM card and SD card. The built-in 4G network or Ethernet access to the Internet has the characteristics of fast speed and low latency. It supports OpenVPN for secure data transmission.
Modbus Gateway BL101 supports routing function and cascaded switch data collection, which is convenient to collect more industrial equipment data. The software has complete software functions and covers most of the conventional application scenarios. Users only need to go through simple settings.
BL110 Series

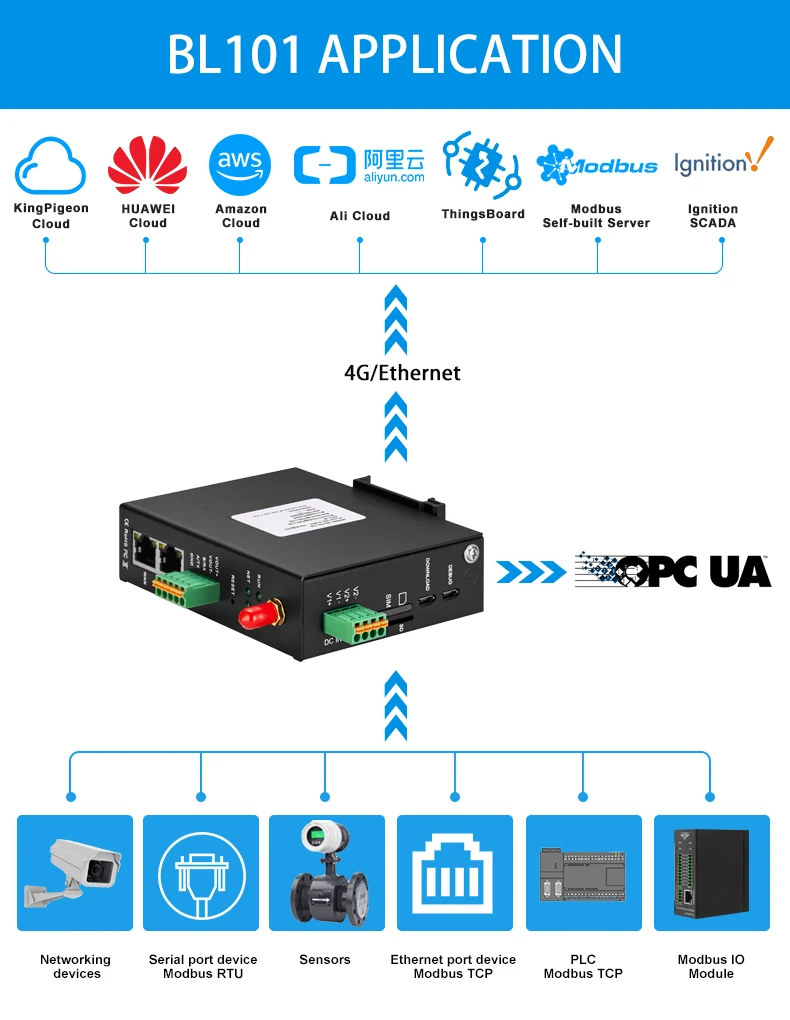

Modbus Gateway BL101 is an industrial IoT gateway that converts Modbus RTU and Modbus TCP into Modbus TCP, OPC UA, MQTT, Huawei Cloud IoT, AWS Cloud, Aliyun, KPIIOT Cloud and other protocols.
Modbus Gateway BL101 downstream supports: Modbus RTU Master, Modbus TCP Master, upstream supports: Modbus TCP, MQTT, Sparkplug B, OPC UA, Huawei Cloud IoT, AWS Cloud, Inductive Automation Ignition SCADA, ThingsBoard Cloud, Alibaba Cloud, KPIIOT Cloud and other protocols.
Modbus Gateway BL101 adopts embedded Linux system, supports TSL, SSL encryption, provides 1 RS232/RS485 optional serial input, 1 power output, 2 Ethernet ports and 2 USB ports, and supports SIM card and SD card. The built-in 4G network or Ethernet access to the Internet has the characteristics of fast speed and low latency. It supports OpenVPN for secure data transmission.
Modbus Gateway BL101 supports routing function and cascaded switch data collection, which is convenient to collect more industrial equipment data. The software has complete software functions and covers most of the conventional application scenarios. Users only need to go through simple settings.
Model | WAN | LAN | COM（Default RS485） (RS232 is an option) | OPC-UA | 4G | OpenVPN | POE PD |
BL101 (Basic version) | √ | √ | √ | × | √ | × | Optional |
BL101E | √ | √ | √ | × | × | × | Optional |
BL101UA | √ | √ | √ | √ | × | × | Optional |
BL101Pro | √ | √ | √ | √ | √ | √ | Optional |
Company Profile
Shenzhen Beilai Technology Co., Ltd. specialized in Industrial Ethernet I/O Modules, IoT Gateways, 4G RTU, 4G Industrial VPN Routers, Industrial Computer. OEM ODM services offered.
Real manufacturer
√Since 2005, rich experience in IoT and automation industry
√Strong R&D team and reliable quality management system
√Strict customer information confidentiality system, OEM / ODM service offered
√Guarantee fast delivery
Real manufacturer
√Since 2005, rich experience in IoT and automation industry
√Strong R&D team and reliable quality management system
√Strict customer information confidentiality system, OEM / ODM service offered
√Guarantee fast delivery
