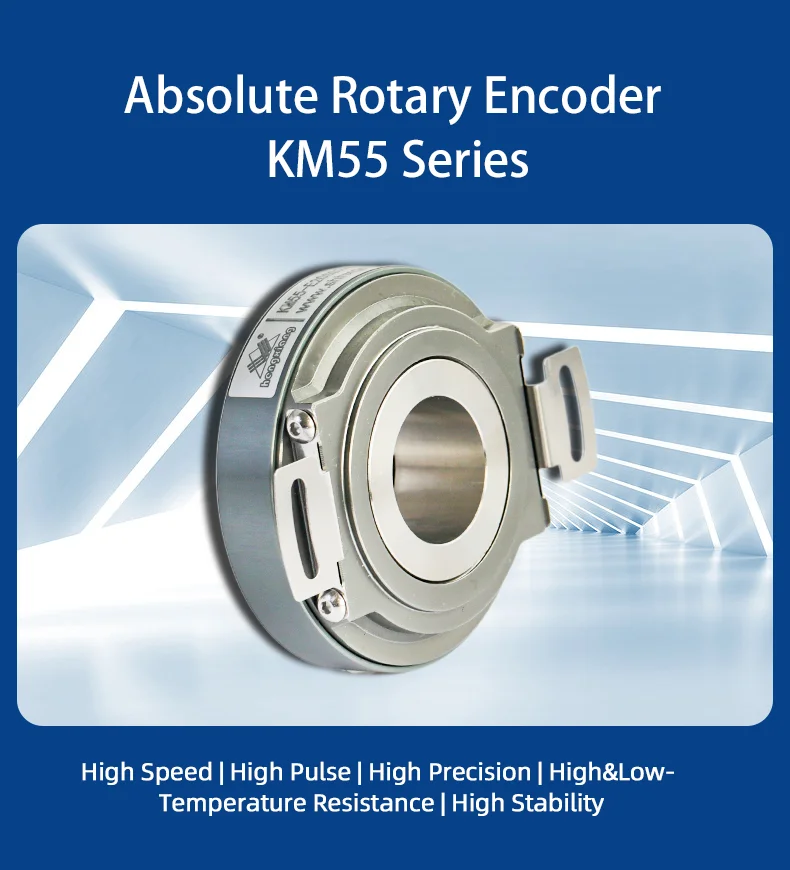

Multi turn encoder KM55 accuracy 80' 24 bit absolute encoder on servo motor absolute ssi encoder hollow shaft
- Category: >>>
- Supplier: Shanghai Hengxiang Optical Electronics Co. Ltd.
Share on (1600897866470):
Product Overview
Description
Products Description

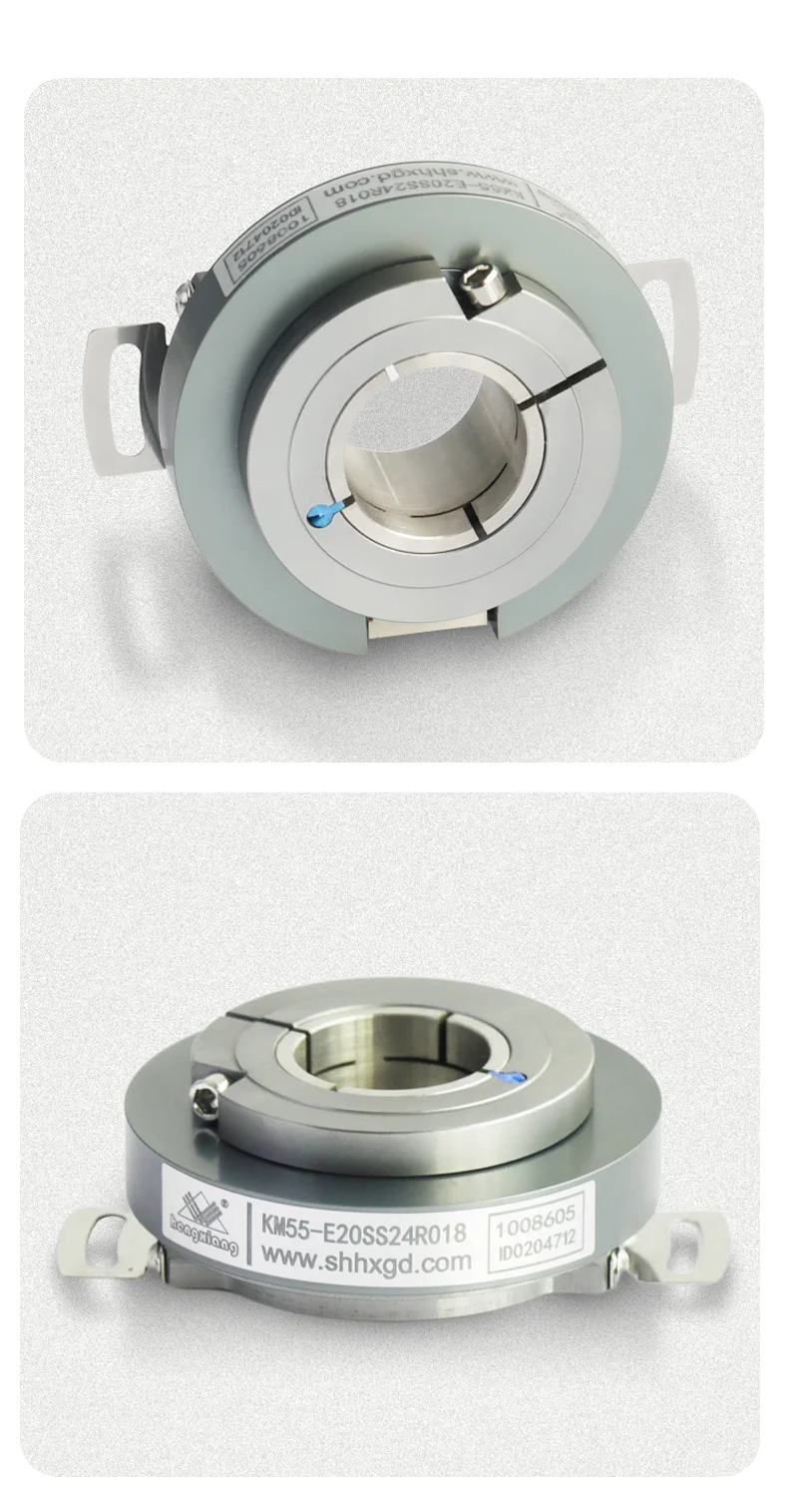

Details Images

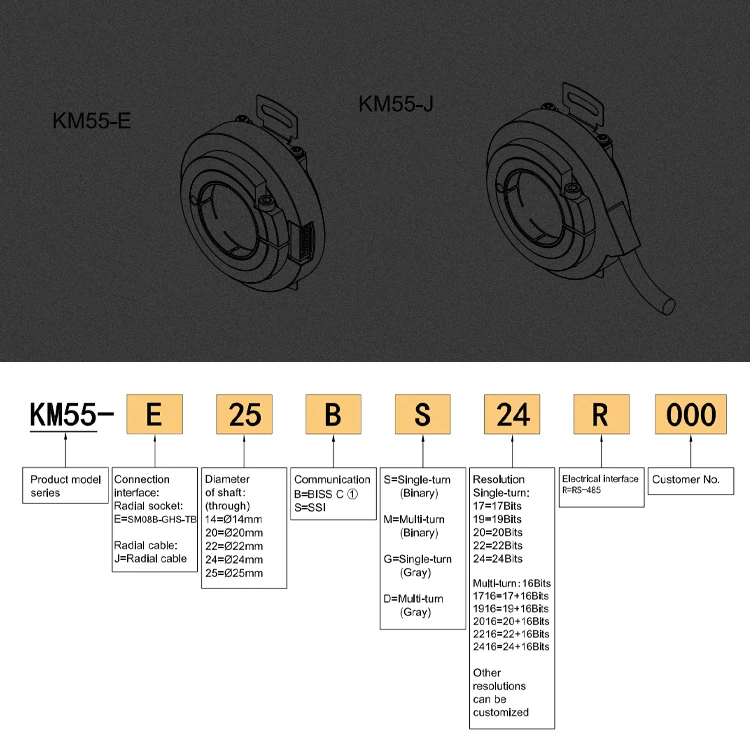

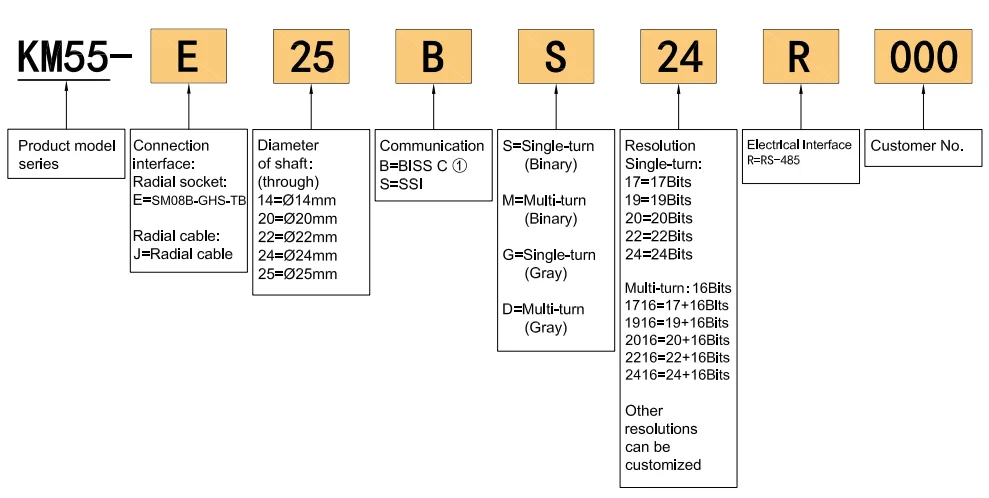

Model Selection Guide
Product Paramenters
Brand | HENGXIANG |
Encoder type | Absolute encoder |

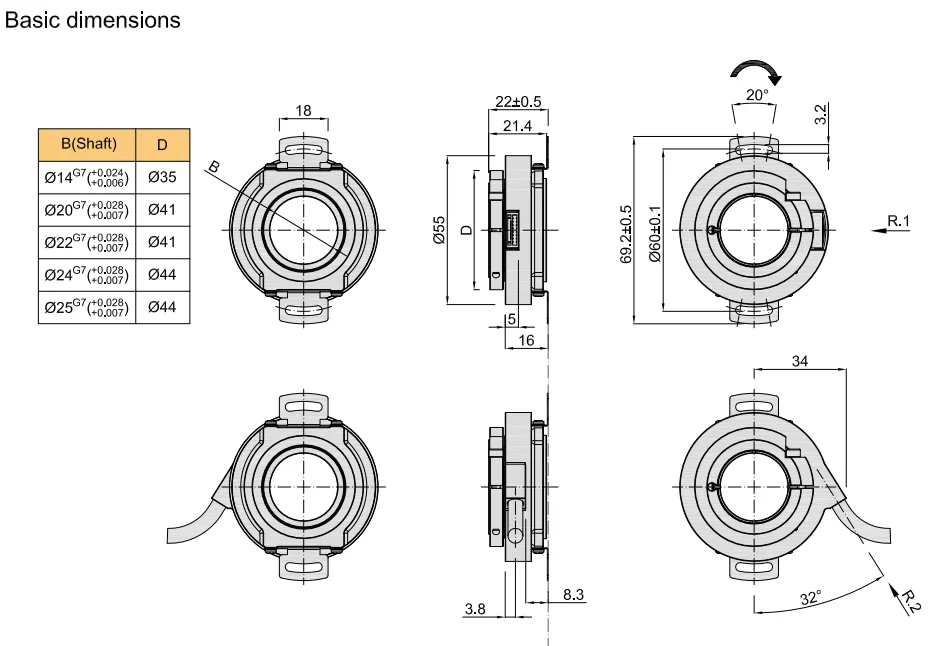

External diameter | 55mm |
Thickness | 22mm |
Shaft type | Through shaft |
Shaft diameter | 14mm;20mm;22mm;24mm;25mm |
Bit(steps) | Single-turn 17bits; 19bits; 20bits; 22bits; 24bits;Up to 32bits; |
Multi-turn: 16bits+(17-24bits) | |
Outlet type | Cable connection; Radial socket |

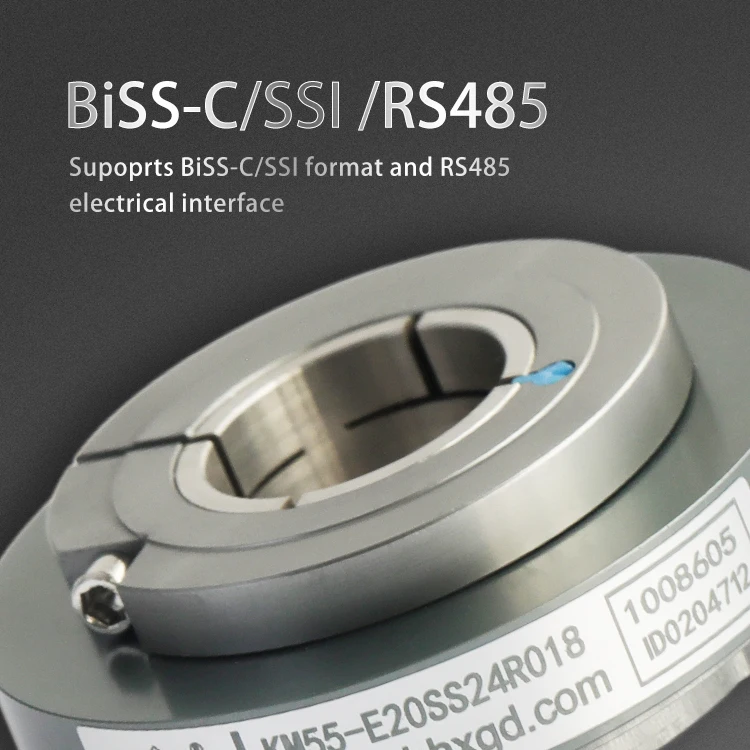

Electrical interface | RS-485 |
Communication | BISS C Binary/Gray) |
SSI (Binary/Gray) | |
Protection grade | IP55 |
Cable length | 1M (cable length could be added appropriately by |
require, but it need payment individually) | |
Response speed | Normal action: 6000min-1 |
RMS position signal noise | ±2 @18 Bits/r |
Communication clock frequency | ≤10 MHz (BiSS) or ≤5 MHz (SSI) |
Starting time | Typical value: 13ms |
Absolute position sampling priod | ≤75 ns |

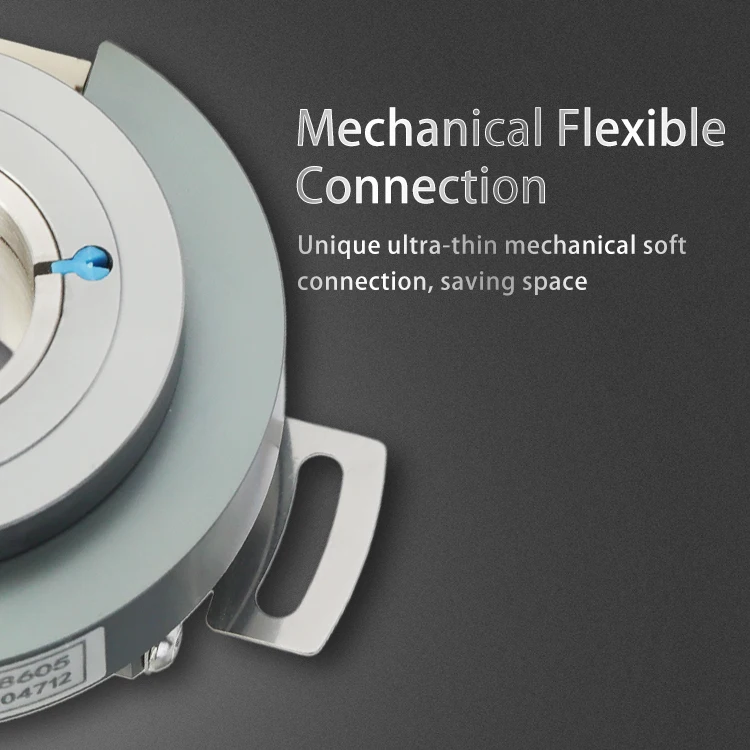

Mechanical connection | Ring locking with shaft, flexible spring plate fixed connection |
starting torque | less than 9.8x 10-3N.m |
Intertia moment | less than 6.5x 10-6kg.m2 |
Shaft load | Radial 30N; Axial 20N |
Allowed speed | ≤6000r rpm |
Environmental temperature | Operating:-20 ～+95°C；storage:-25 ～+95°C |
Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) |
Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually |
Shock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually |

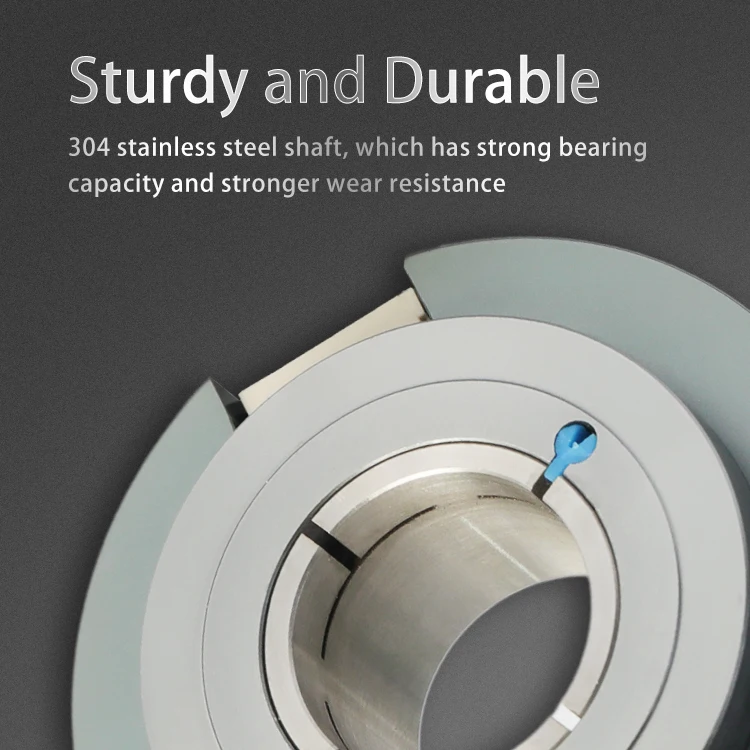

Shaft Material | Stainless steel |
Shell Material | Aluminum alloy |
Certification | CE |
package | Carton box |
Net weight | About 150g (with package) |
