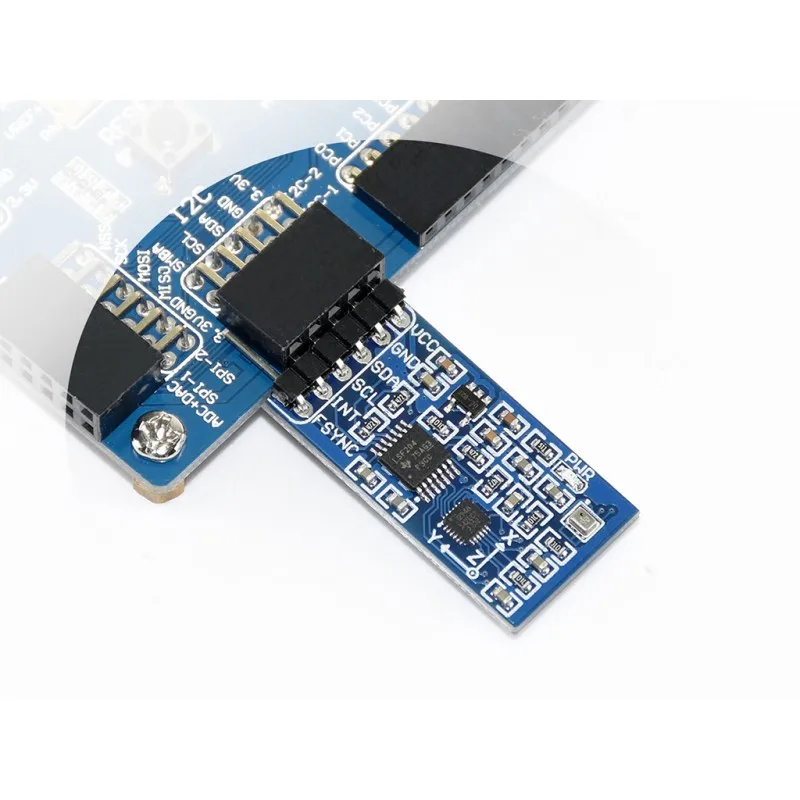

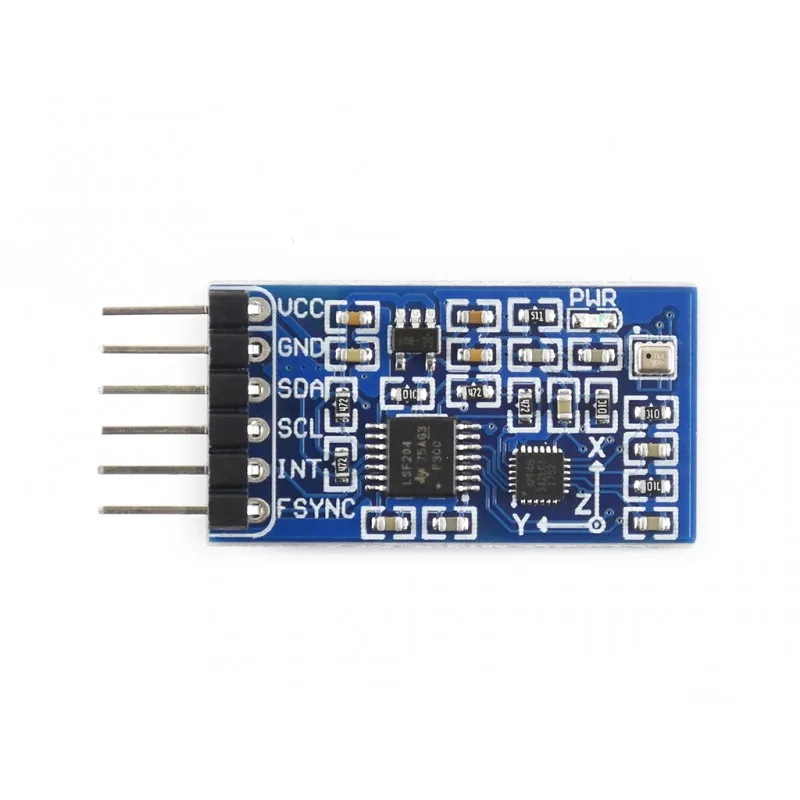

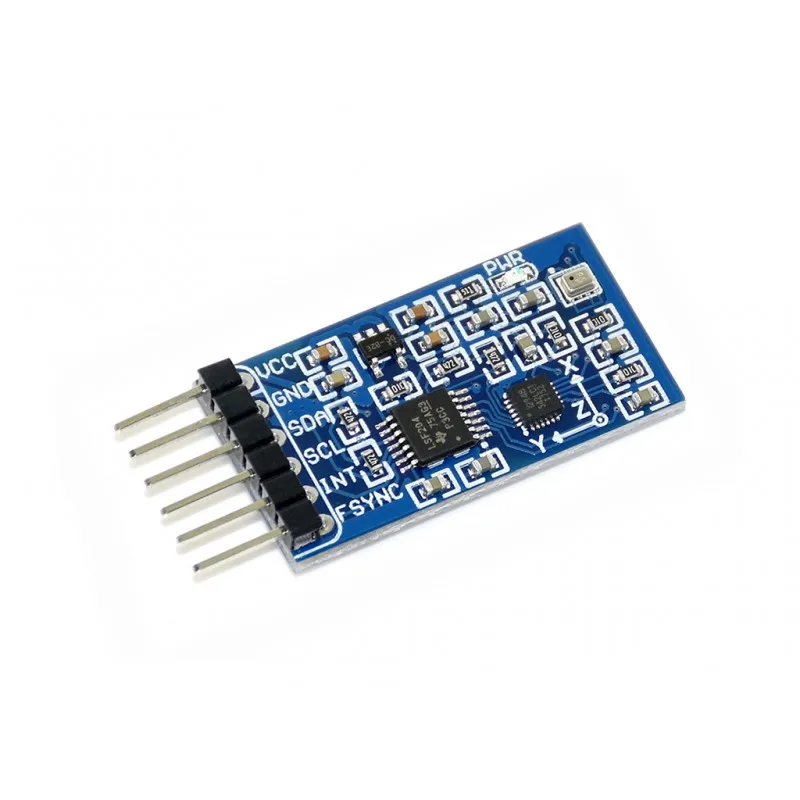

10 DOF IMU Sensor, ICM20948 Onboard, Low Power, High Precision
- Category: >>>
- Supplier: Shenzhen Sunhokey Electronics Co. Ltd.
Share on (1600897952049):
Product Overview
Description
Product Description
Specification
* Power: 3.3V~5V (internal voltage regulation with low dropout)
* Accelerometer * Resolution: 16 bit
* Measurement range (configurable): ±2, ±4, ±8, ±16g
* Operating current: 68.9uA
* Gyroscope * Resolution: 16 bit
* Measurement range (configurable): ±250, ±500, ±1000, ±2000°/sec
* Operating current: 1.23mA
* Compass/Magnetometer * Resolution: 16 bit
* Measurement range: ±4900µT
* Operating current: 90uA
* Barometric pressure sensor * Barometric resolution: 0.0016hPa
* Temperature resolution: 0.01°C
* Measurement range: 300~1100hPa (altitude: +9000m ~ -500m)
* Barometric relative accuracy (700hPa~900hPa, 25°C~40°C): ±0.12hPa (±1m)
* Operating current (1Hz update rate, ultra-low power mode): 2.8uA
* Accelerometer * Resolution: 16 bit
* Measurement range (configurable): ±2, ±4, ±8, ±16g
* Operating current: 68.9uA
* Gyroscope * Resolution: 16 bit
* Measurement range (configurable): ±250, ±500, ±1000, ±2000°/sec
* Operating current: 1.23mA
* Compass/Magnetometer * Resolution: 16 bit
* Measurement range: ±4900µT
* Operating current: 90uA
* Barometric pressure sensor * Barometric resolution: 0.0016hPa
* Temperature resolution: 0.01°C
* Measurement range: 300~1100hPa (altitude: +9000m ~ -500m)
* Barometric relative accuracy (700hPa~900hPa, 25°C~40°C): ±0.12hPa (±1m)
* Operating current (1Hz update rate, ultra-low power mode): 2.8uA
