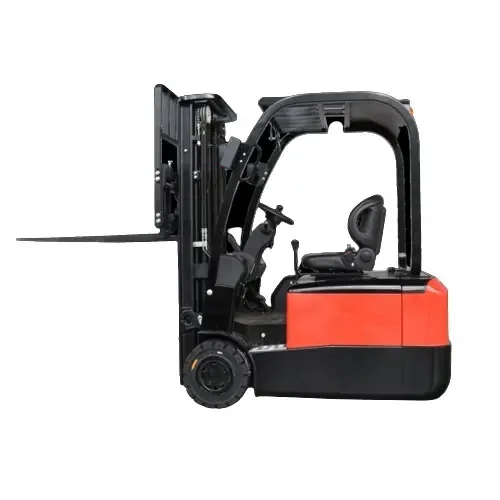

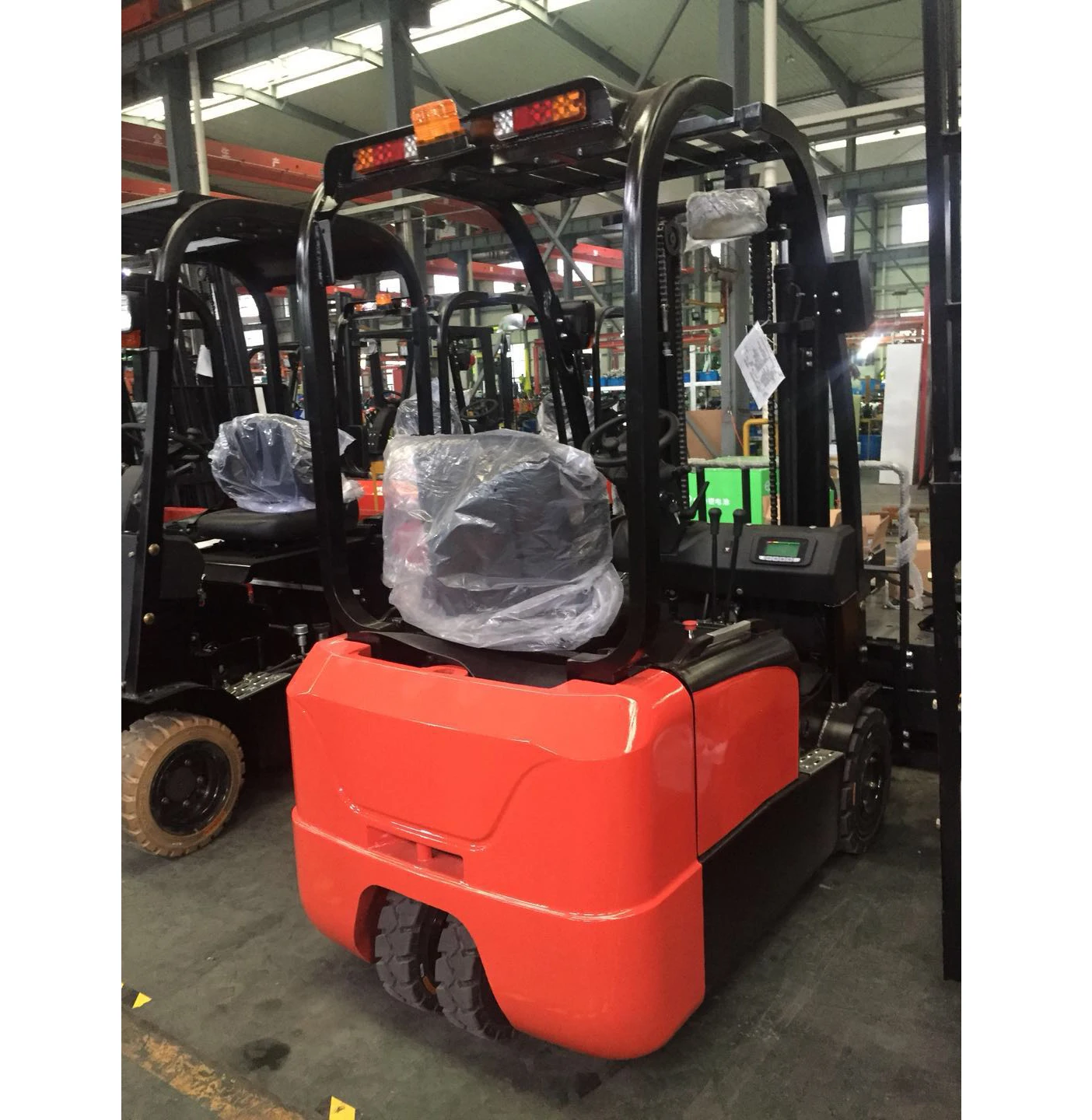

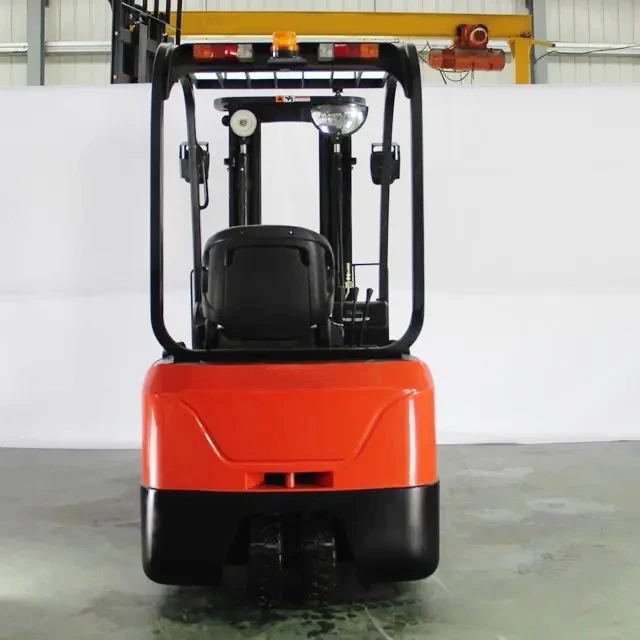

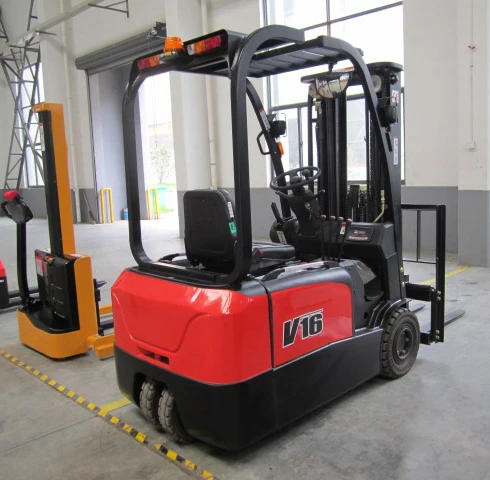

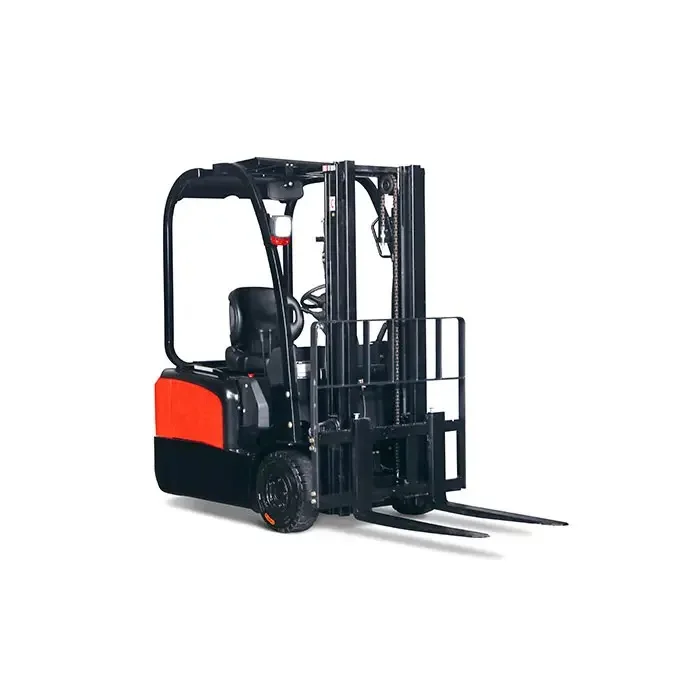

1.5ton 3 wheels electric forklift with 3m to 5.5m lift heights
- Category: >>>
- Supplier: Hangzhou Xinli Machinery Co. Ltd.
Share on (1600898147267):
Product Overview
Description
Product Description

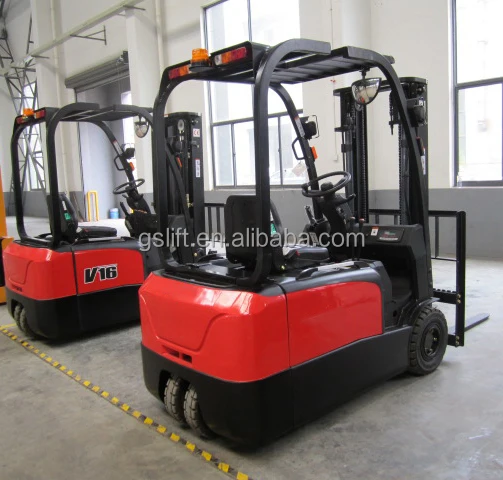

3-WHEELS ELECTRIC FORKLIFT WITH SMALL TURNING RADIUS
CPD-TV8 series three pivot counterbalanced forklift is an AC front double-drive counterbalanced forklift with more powerful power
Higher work efficiency, suitable for: horizontal handling, block stacking, loading/unloading goods
Features of electric forklift：
1.Advanced Curtis controller, more stable and safer
2.Multifunctional digital instrument, convenient for the operator to know the status of the forklift in time.
3.The wide view door frame design improves the work efficiency.
4.The maintenance-free dual AC front drive system enables the vehicle to respond more quickly and accurately, and has stronger power.
Operation panel
Lithium battery for option
Comfortable seat with belt
Specification
No. | Model | CPD15TV8 | CPD18TV8 | CPD20TV8 | |||
3 | Rated Capacity | Q(kg) | 1600 | 2000 | 2000 | ||
4 | Load center | C(mm) | 500 | 500 | 500 | ||
5 | Wheel Type-Front/Rear | solid Rubber | |||||
6 | Front Wheel | 18×7-8 | 18×7-8 | 200x50-10 | |||
7 | Rear Wheel | 15×4.5-8 | 15×4.5-8 | 15x4.5-8 | |||
8 | Tyres No. -front/rear (X=Drive wheel) | 2X / 2 | 2X / 2 | 2X / 2 | |||
9 | Fork Tilt Angle----Upward/Backward--deg. | α/β(º) | 6/6 | ||||
10 | Height---Mast Lowered | h1(mm) | 1990 | 1990 | 1990 | ||
11 | Lifting height | h3(mm) | 3000 | 3000 | 3000 | ||
12 | Hegith-Mast Extended | h4(mm) | 4058 | 4058 | 4058 | ||
14 | Overall Length | L1(mm) | 2765 | 2865 | 2895 | ||
15 | Length-to Fork Face | L2(mm) | 1845 | 1945 | 1975 | ||
18 | Overall Width | b1(mm) | 1090 | 1090 | 1150 | ||
19 | Fork Dimensions | i/e/s(mm) | 920*100*40 | 920*100*40 | 920*100*40 | ||
22 | Trurning radius | Wa(mm) | 1475 | 1575 | 1605 | ||
23 | Travel Speed -laden/unladen | km/h | 13/14 | 13/14 | 13/14 | ||
24 | Lift speed-laden/unladen | mm/s | 270290/430 | 270/430 | 260/430 | ||
26 | Battery | V/AH | 48/400 | 48/500 | 48V/600 | ||
28 | Service Weight | kg | 3050 | 3160 | 3430 | ||

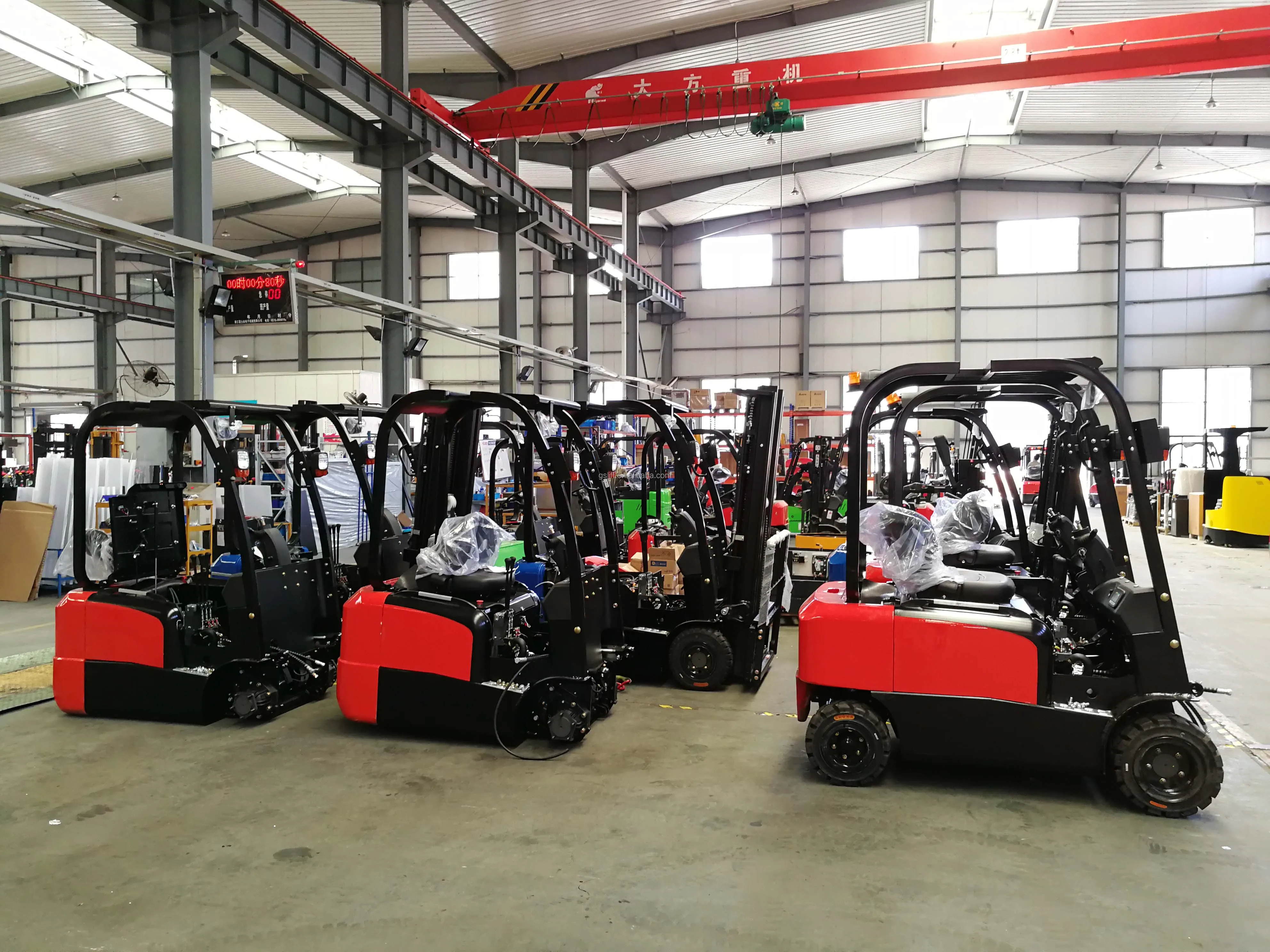

Factory Overview

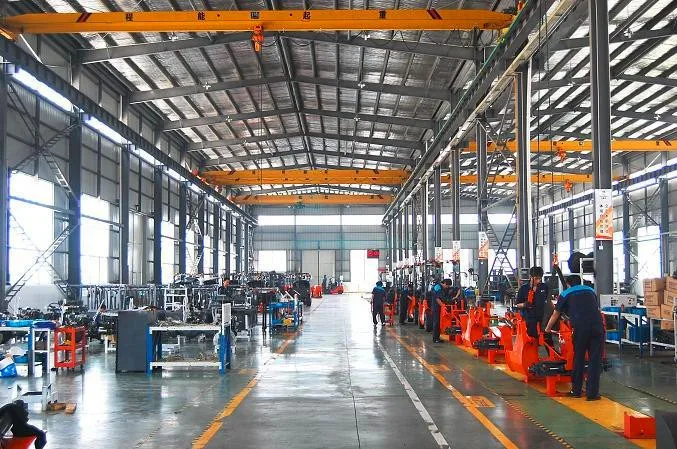

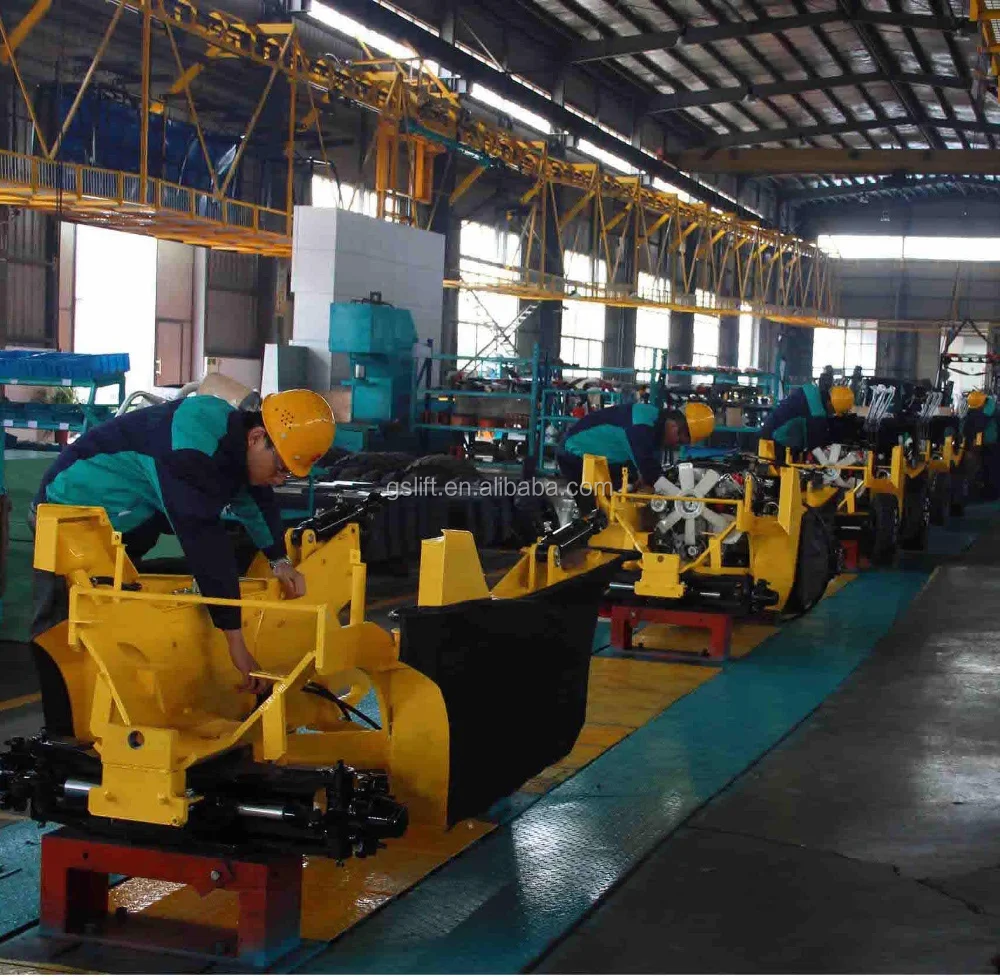

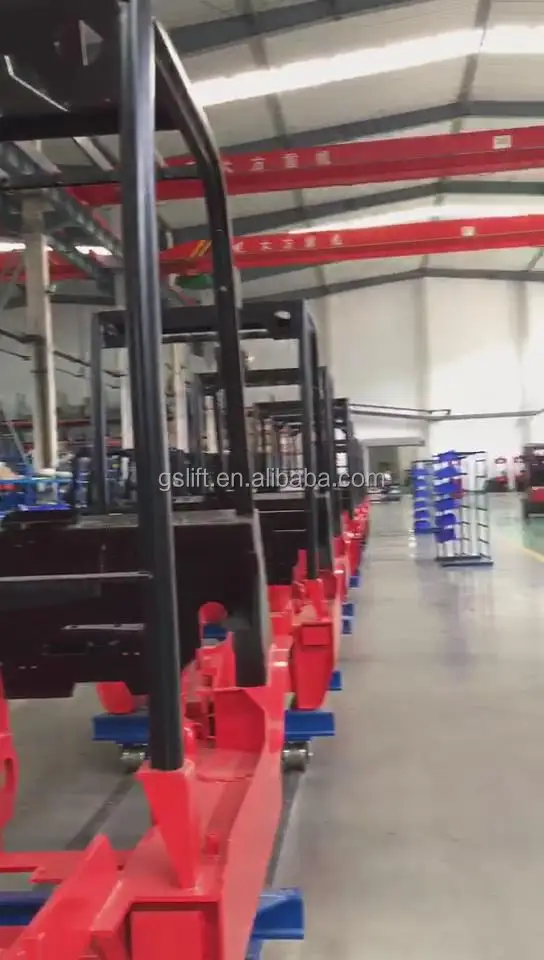

Production Line

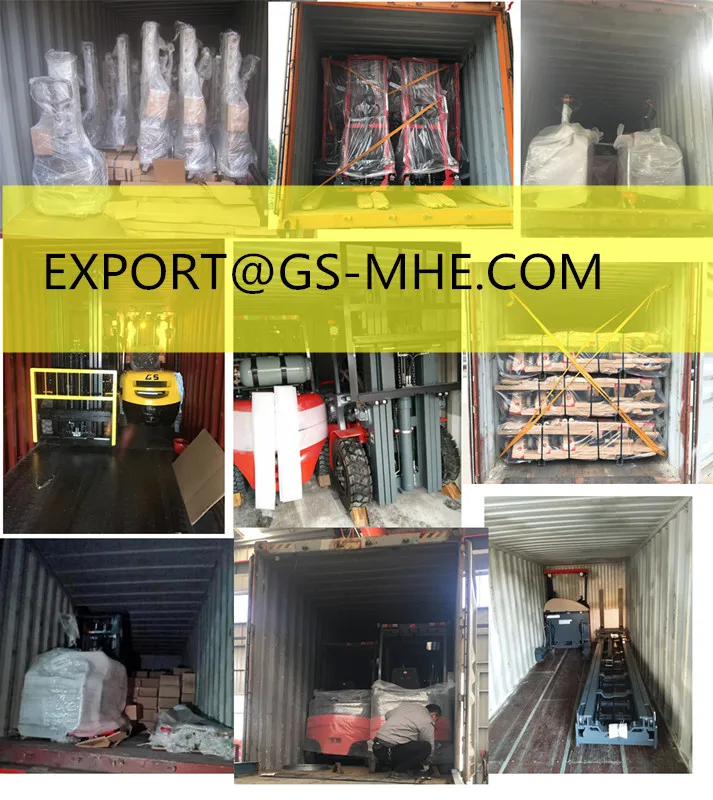

Export to all over the world
