Price:$1,000.00

Quantity:


Product Overview

Description

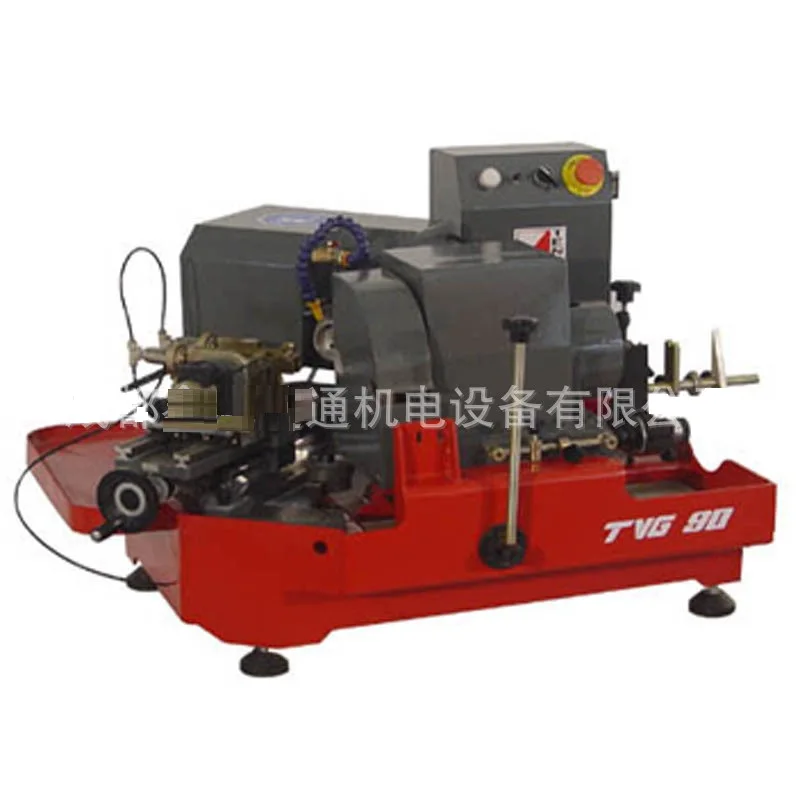

Parameter TVG90
Valve stem dia.(min-max) mm/inch 3.5 to 20/0.16 to 0.55
Valve head dia.(min-max) mm/inch 12 to 100/0.47t0
Valve length (min-max) mm/inch 70 to 290/2.76 to 11.42
Angle grinding range degree mm/inch 10 to 57
Main wheel diameter mm/inch 200/7.87
Cup wheel diameter mm/inch 100/3.94
Main wheel width mm/inch 15/0.59
Grinding wheel travel mm/inch 90/3.54
Valve feed travel mm/inch 90/3.54
Spindle motor
Power W 550
Speed rpm 2900
Valve driving motor
Power W 180
Speed rpm 120 to 750
Coolant motor:
Power w 100
Power supply KVA -V-Hz 180 V/50Hz 3 hp or 220 V/60Hz/ 3 hp
Air supply max bar/psi max 6/87
Coolant tank L./US gal 4/1
Space requirements mm/inch
Length mm/inch 1050/41.3
Width mm/inch 1000/39.4
Height mm/inch 680/26.8
Net weight approx. kg/Lbs 180/396.8










1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believeyou?
A : We consider honest as the life of our company, Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 35-45 days after we confirm you requirement.
