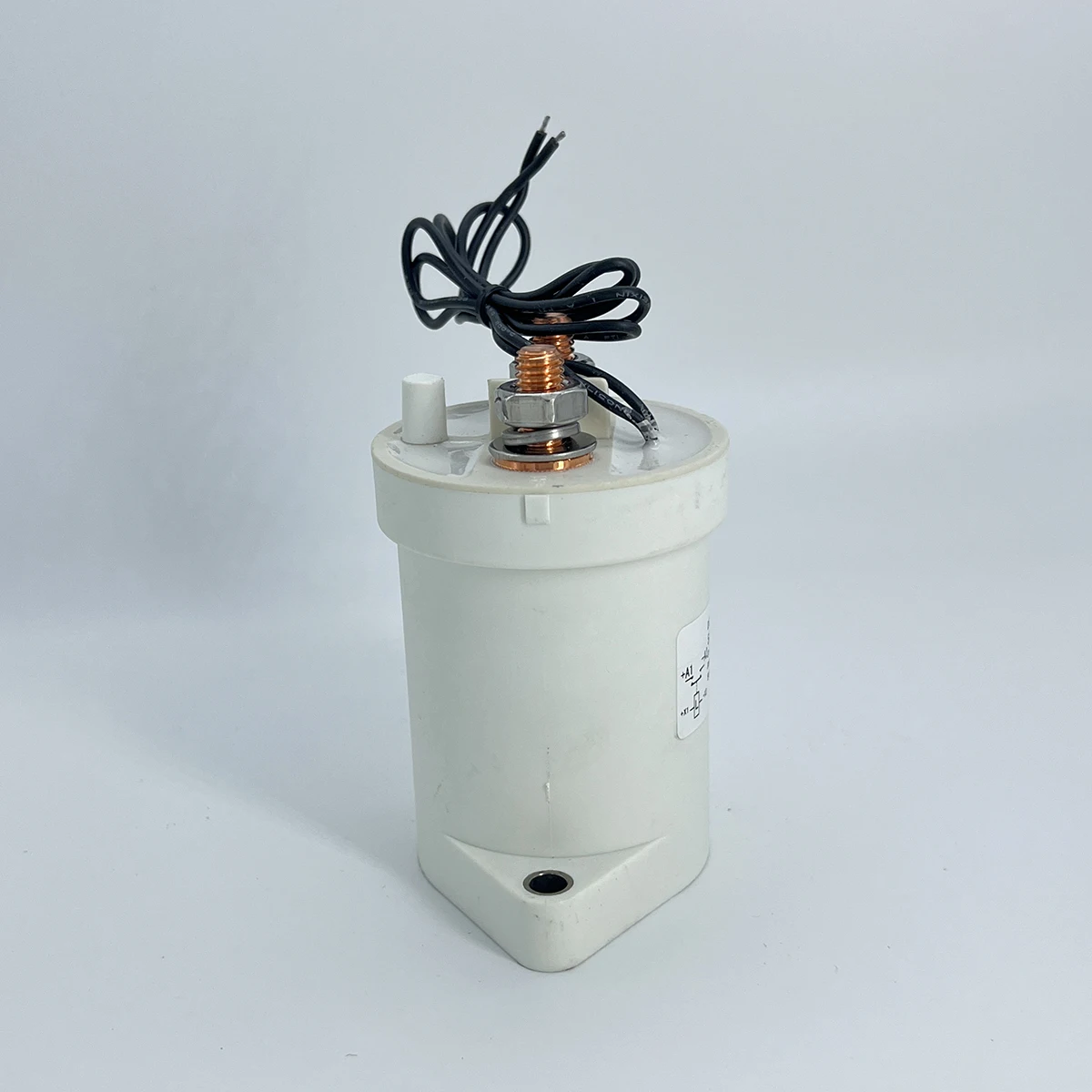

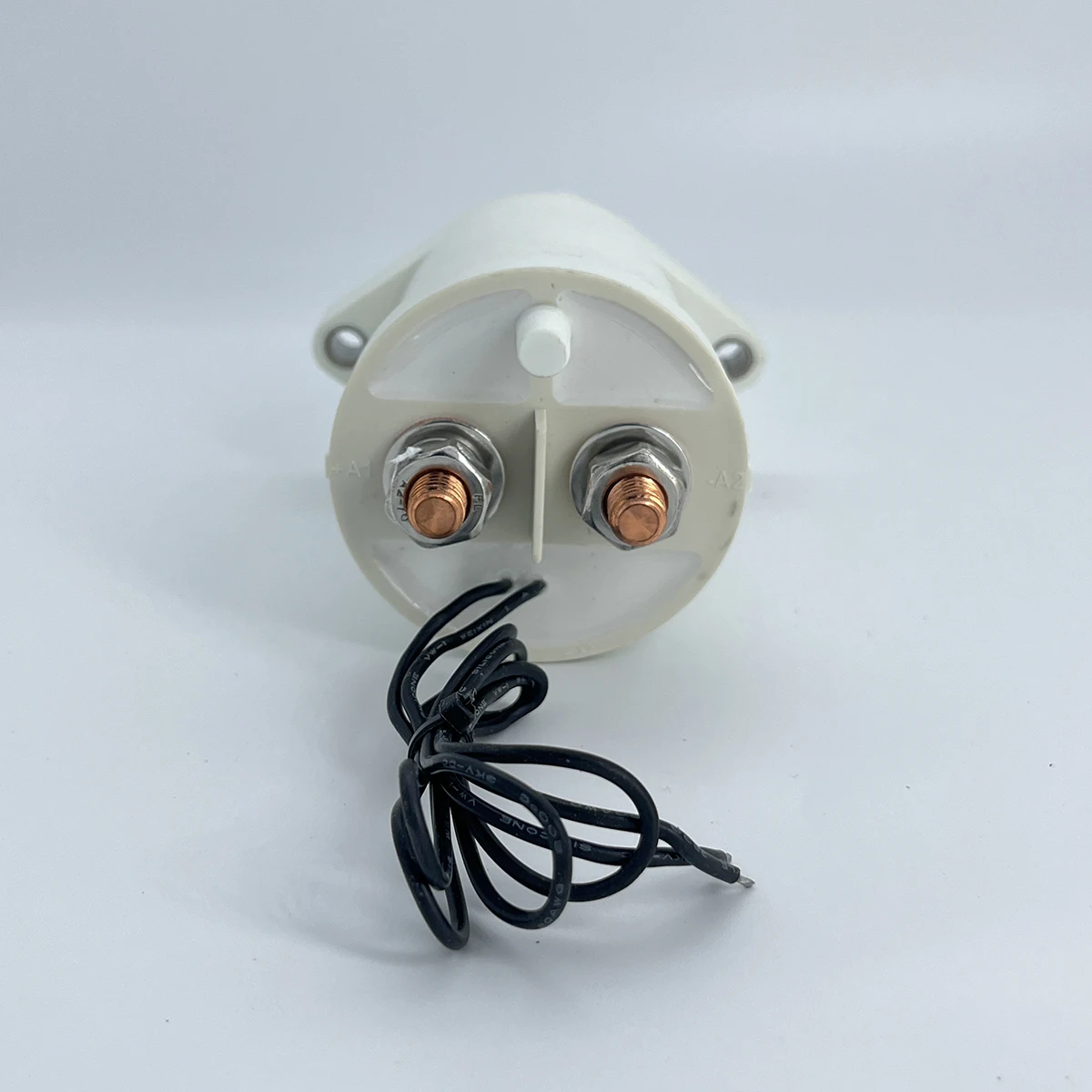

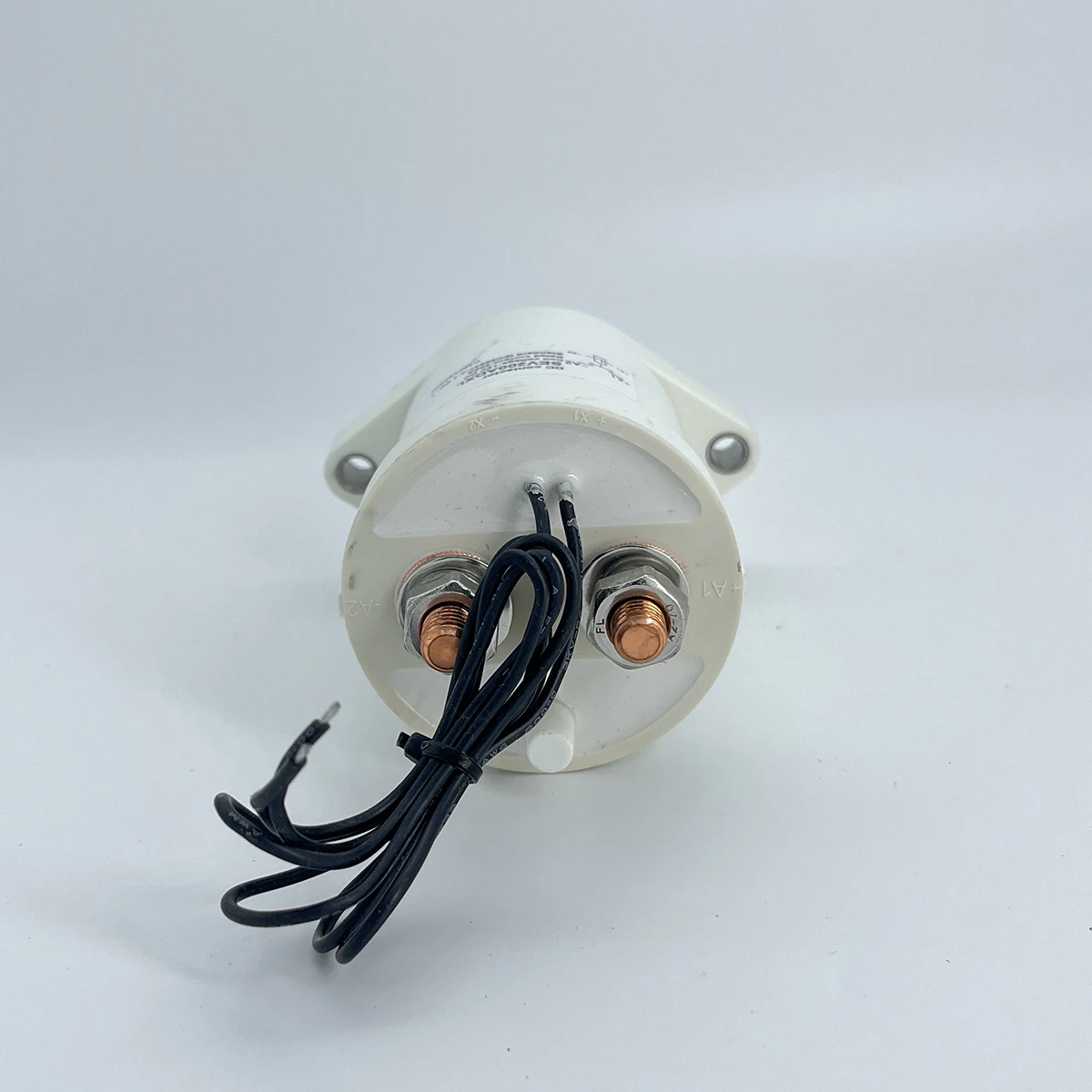

12v 24v 36v 48v high voltage DC Contactor Direct current electric relay for charging station forklift electric car train ship
- Category: >>>
- Supplier: Zhejiang Yongyang Technology Co. Ltd.
Share on (1600898155124):
Product Overview
Description
Product Description
FEATURES:
Suitable for new energy electric vehicles, charging facilities, photovoltaic, wind power generation systems, automotive air
conditioning, communication power, UPS, power and other electrical control circuit of the switch control
Suitable for new energy electric vehicles, charging facilities, photovoltaic, wind power generation systems, automotive air
conditioning, communication power, UPS, power and other electrical control circuit of the switch control
The utility model has the advantages that the utility model is provided with one normally open contact, which is suitable for charging piles, electric four wheeled vehicles, new energy vehicles, energy saving and environmental protection systems
Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | |
Model Number | |
Electricity Type | DC |
Main Circuit Rating Voltage | 1000V |
Main Circuit Rating Current | 100A |
Product Name | DC Magnetic Contactor |
Rated Current | 200A |
Type | DC Contractor |
Certificate | CCC CE |
Coil Voltage | 12V,24V136V,48V,72V |
Contact | 1NO+1NC |
Model | SEV200AD |
COLOR | White |
Contact form | 1 NO(SPST-NO) or 1NC(SPST-NC) |
Coil Rated voltage(DC V) | DC6V,12V,24V,36V,48V,60V,72V,84V,120V,150V,DC220V,AC220V etc. |
Contact voltage(DC V) | 5-1000V |
Contact circuit rated load current (DC-1) | 100A |
Typical voltage drop across contacts per 100A | ≯80mV |
the cooling pull-in voltage at (20±5)℃ (V) | ≯70% |
the cooling drop-out voltage at (20±5)℃(V) | ≯35%,≮5% |
Working voltage range of 40 degrees celsius coil | 0.8-1.2Us |
Drop-out time(n/o contacts to open) | 30ms |
Pull-in time (n/o contacts to close) | 5ms |
connect the maximum contact bounce time | 10ms |
Disconnect the maximum contact bounce time | 7ms |
Insulation Resistance | 100MΩ |
Electric strength to resist | 50Hz/60Hz 2200VAC 1minute |
Typical fault currents which can be ruptured | 1000A/5ms at 48V DC |
Coil power (W) | 8-20 |
Temperature rise of coil (K) | ≤35 |
Temperature rise on outgoing terminal (K) | ≤65 |
Electric life | 20000 times |
Mechanical life | 300 thousand times |
Work specification | Continuous |
Contact material | Alloy |
Inrush time(Max) | 130ms |
Maximum switching current | 2000A 320VDC（More than 1 times） |
Maximum switching power | 640kW |
Load terminal type | M8 Rose |
Coil terminal type | 0.3 square silicone wire, 390mm long |
Auxiliary contact rated load (choose) | 3A/30VDC |
Testing organization certification | CCC,CE,FCC,RoHS |
Packing & Delivery
carton or OEM
