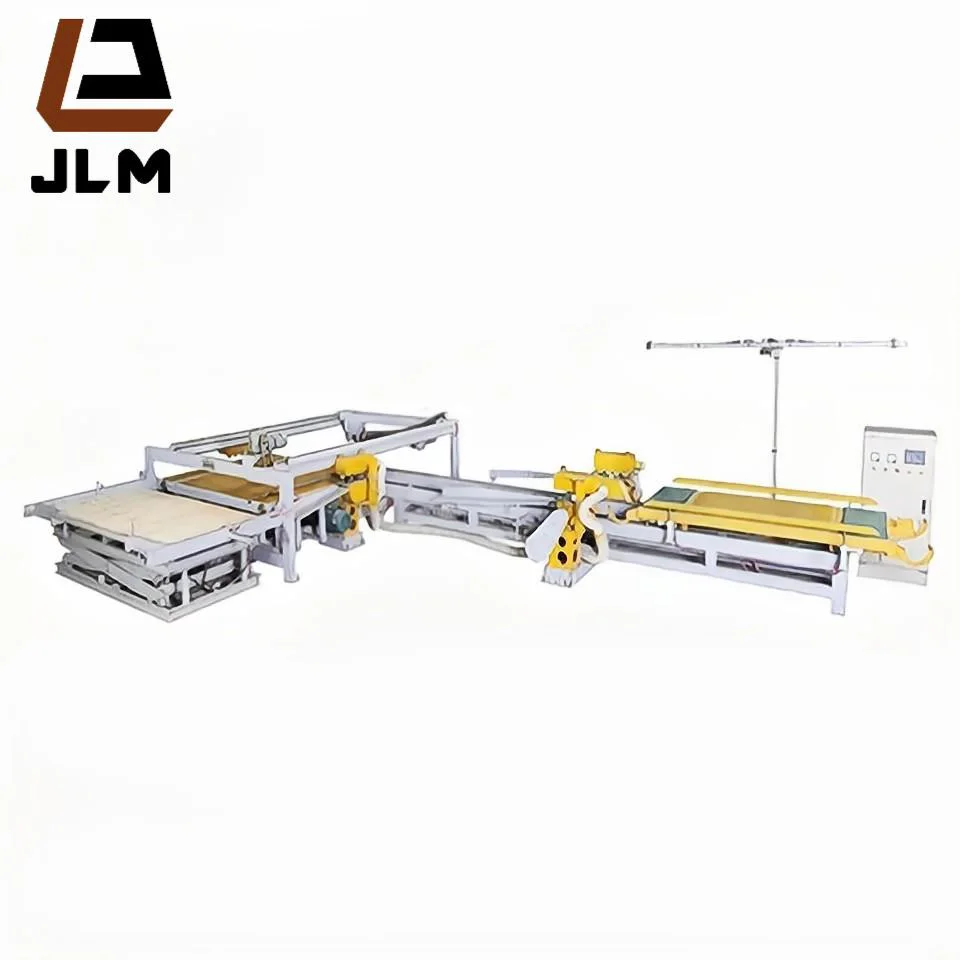

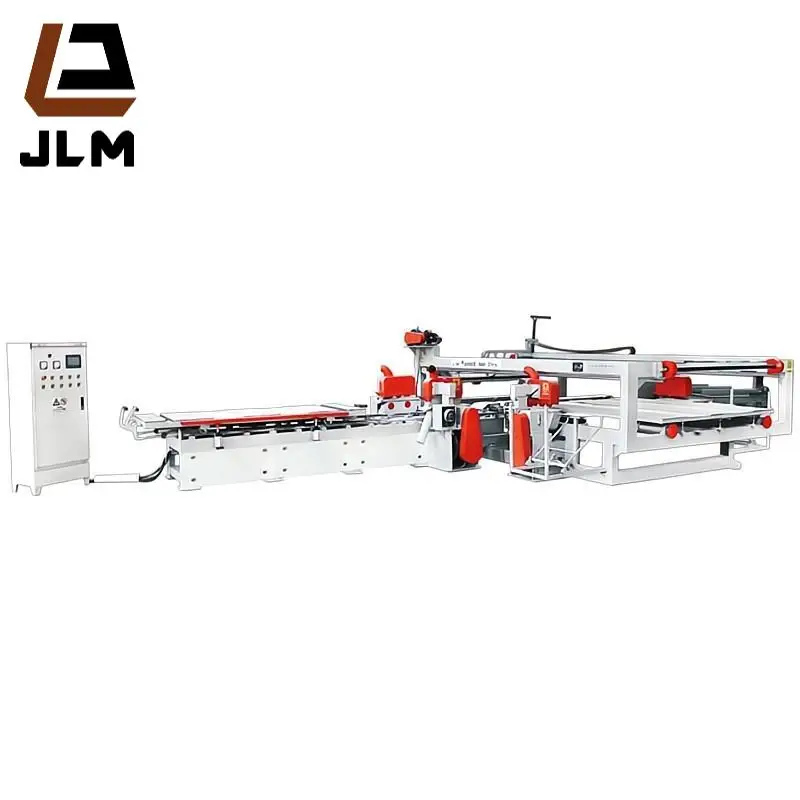

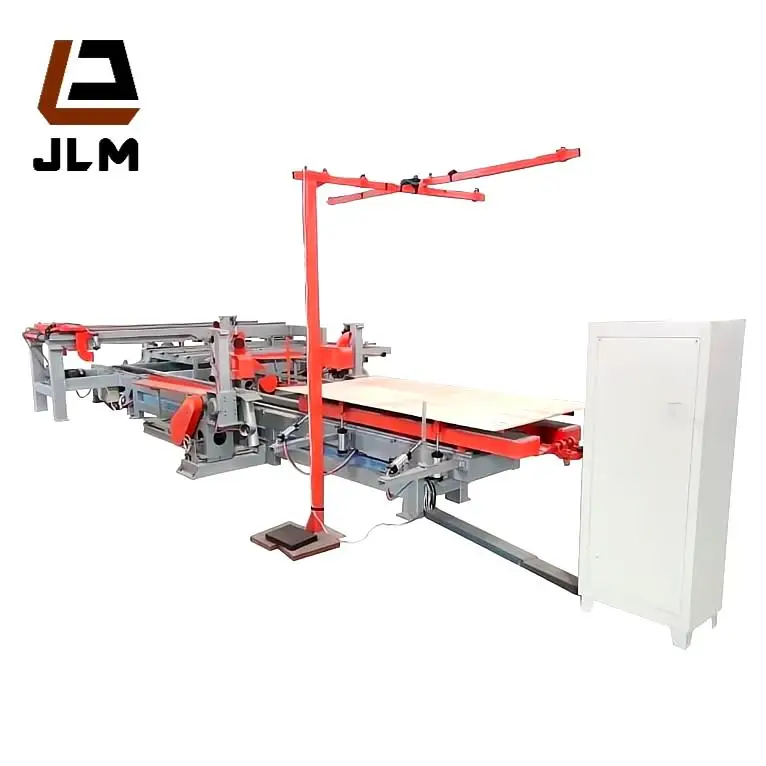

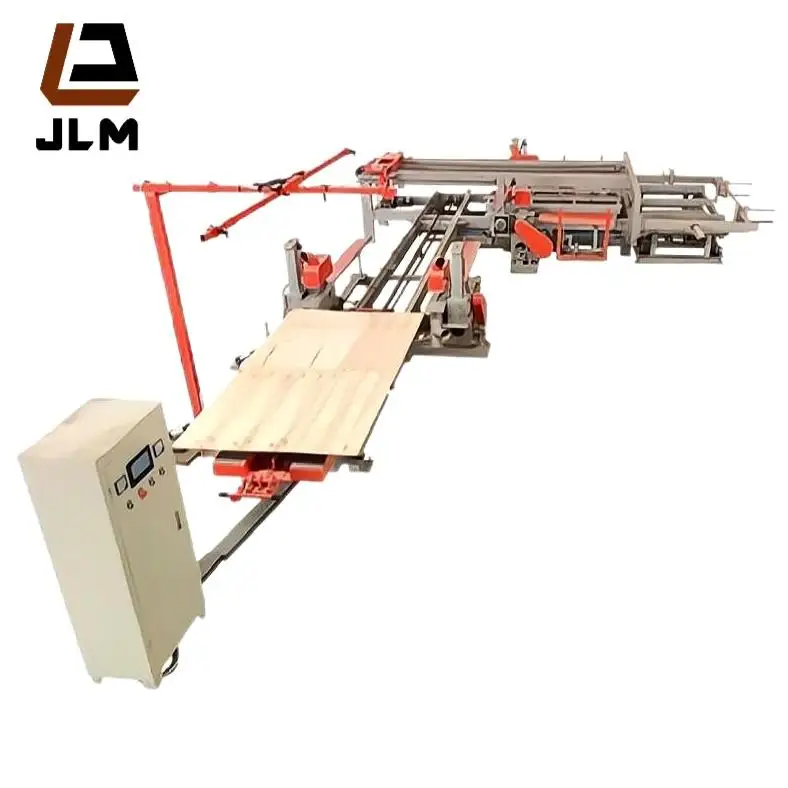

Jinlun CNC Automatic adjustable plywood cutting saw/ veneer edges trimming machine
- Category: >>>
- Supplier: Shandong Jinlun Machinery Co. Ltd.
Share on (1600898226791):
Product Overview
Description
Product Paramenters
Model | TS48/36H |
Cutting length | 1830-2600mm |
Cutting width | 900-1300mm |
Saw blade diameter | 180/305mm |
Cut size | 4*8/3*6 feet |
Sewing speed | 40m-70m/min |
Total power | 34.8kw |
Rotational Speed of main saw | 5000-6500r/pm |
Overall Size | 8000*5000*1200mm |
Weight | 6000kg |
Product Superiority

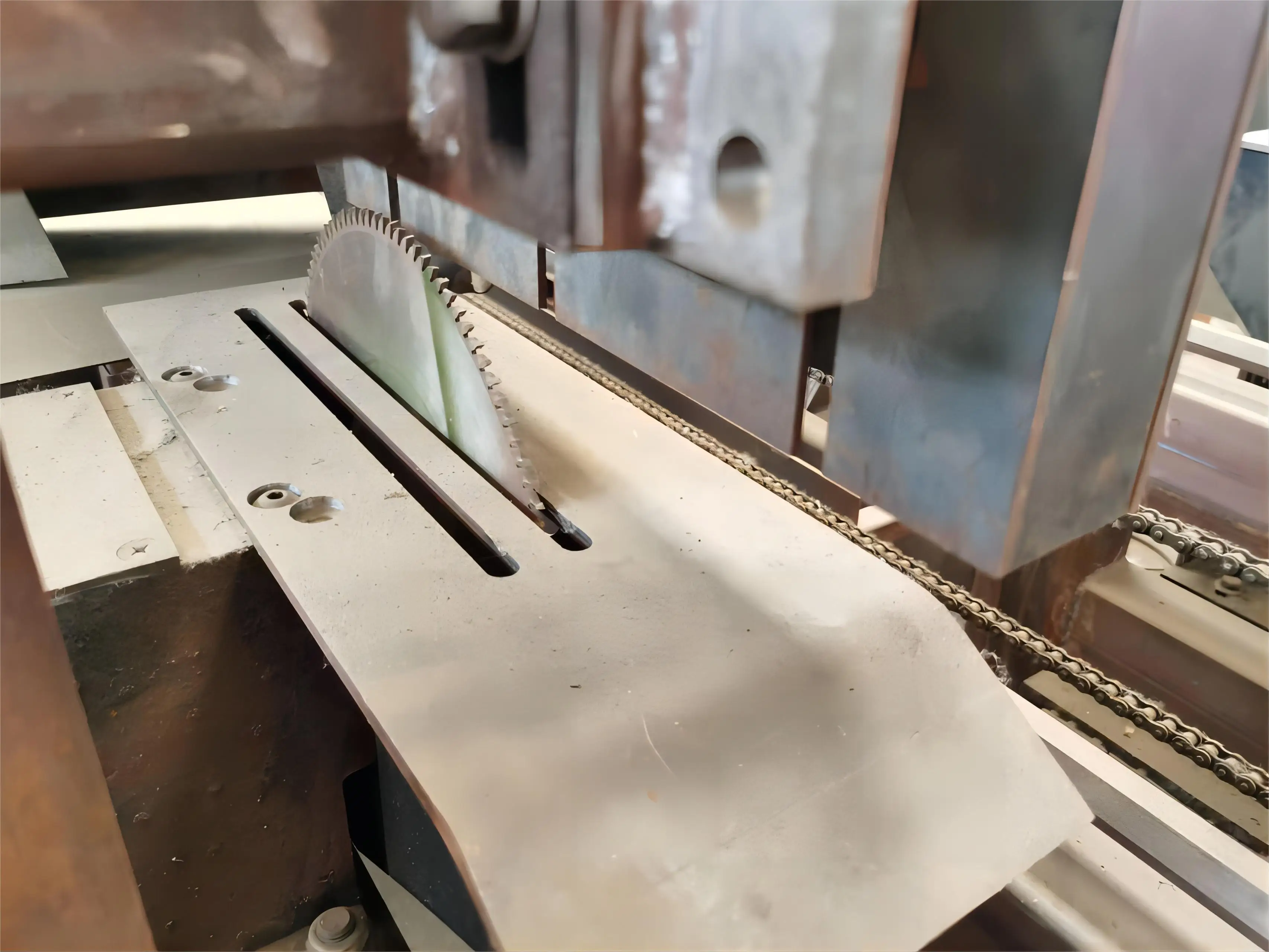

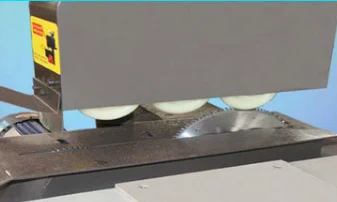

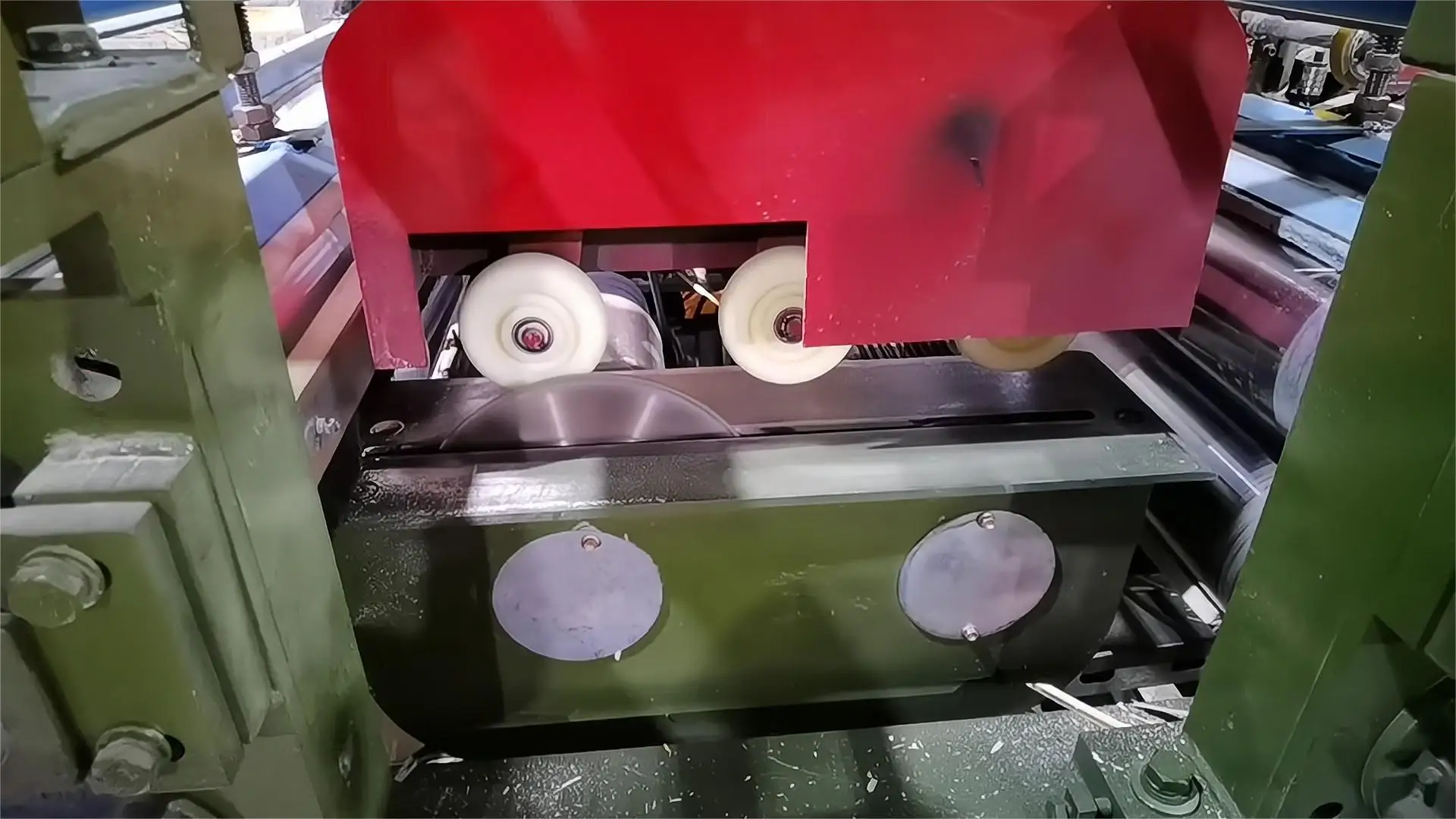

1.Double saw edge design to prevent the edge of the plate from falling off, the edge of the plate is smooth after cutting, no burrs.
2.The machine frame is produced by precision planer.that reducing vibration during sawcutting,and that improve saw cutting accuracy.
3.Guide rail of Plywood width side sawis installed under the frame,that increase using life of the guide rail.and protect the guide rail from dust damage,then guarantee saw cutting accuracy.
4.Automaic stacking system improve production efficiency and save labor.
Product description

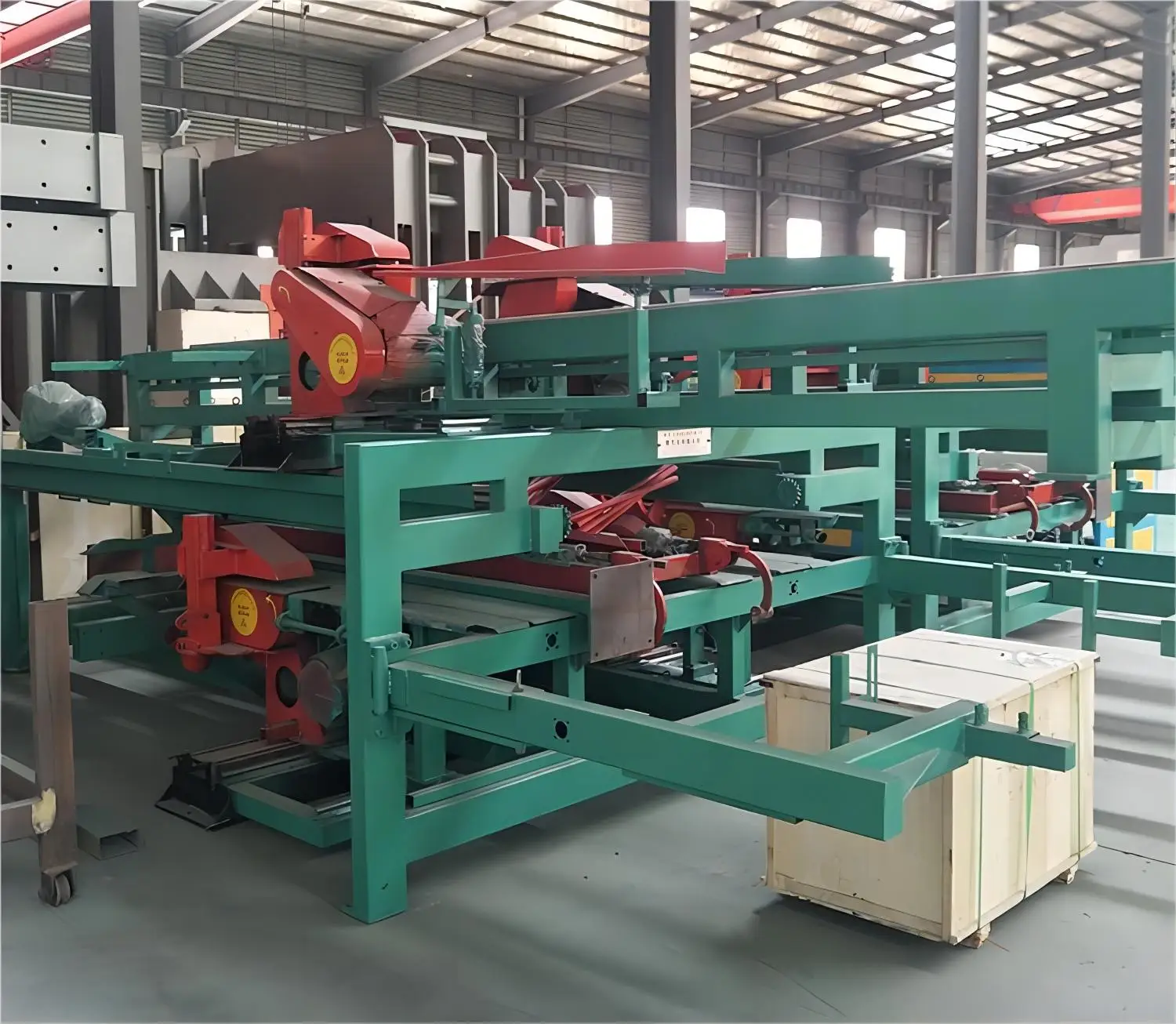

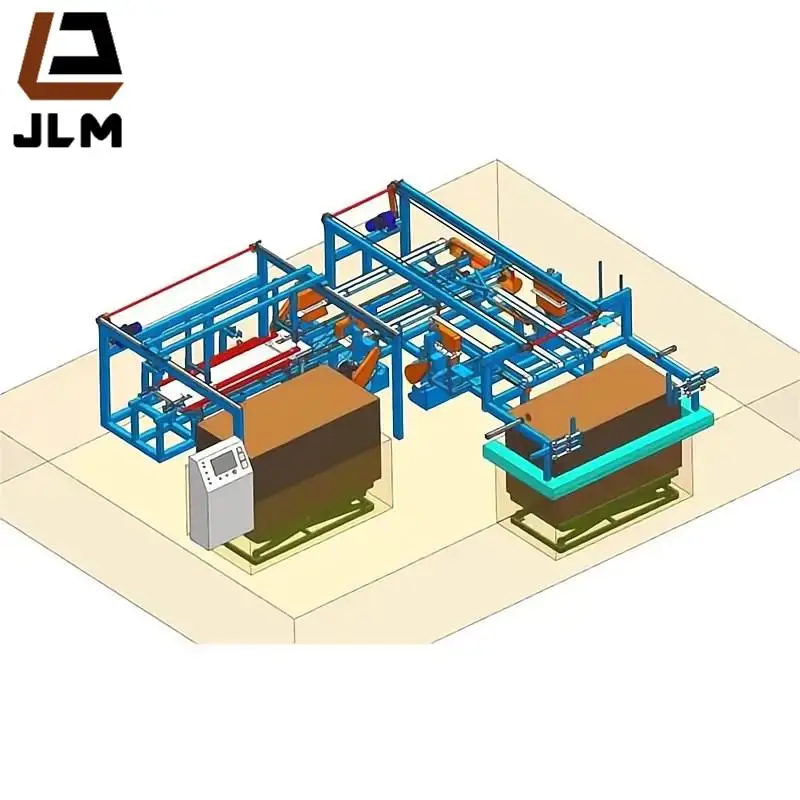

The CNC automatic sawing machine consists of infrared positioning part, pre-loading plate device, elongitudinal saw trolley, elongitudinal saw trolley pressing mechanism,elongitudinal saw trolley chain transfer part, elongitudinal saw head, cross-saw frame chainsaw trolley, cross-cutting saw head, cross-cutting saw trolley chain transfer part, automatic stacking device, etc.

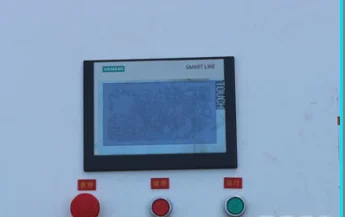

The whole action is controlled by PLC to realize the automation of sawing and stacking. Divided into 3X6 feet, 4X8 feet two specifications, power 5.5KW, 7.5KW, 11KW three specifications.
In addition, there are adjustable longitudinal crosscut saw, pushing longitudinal crosscut saw , roller trimming saw.etc

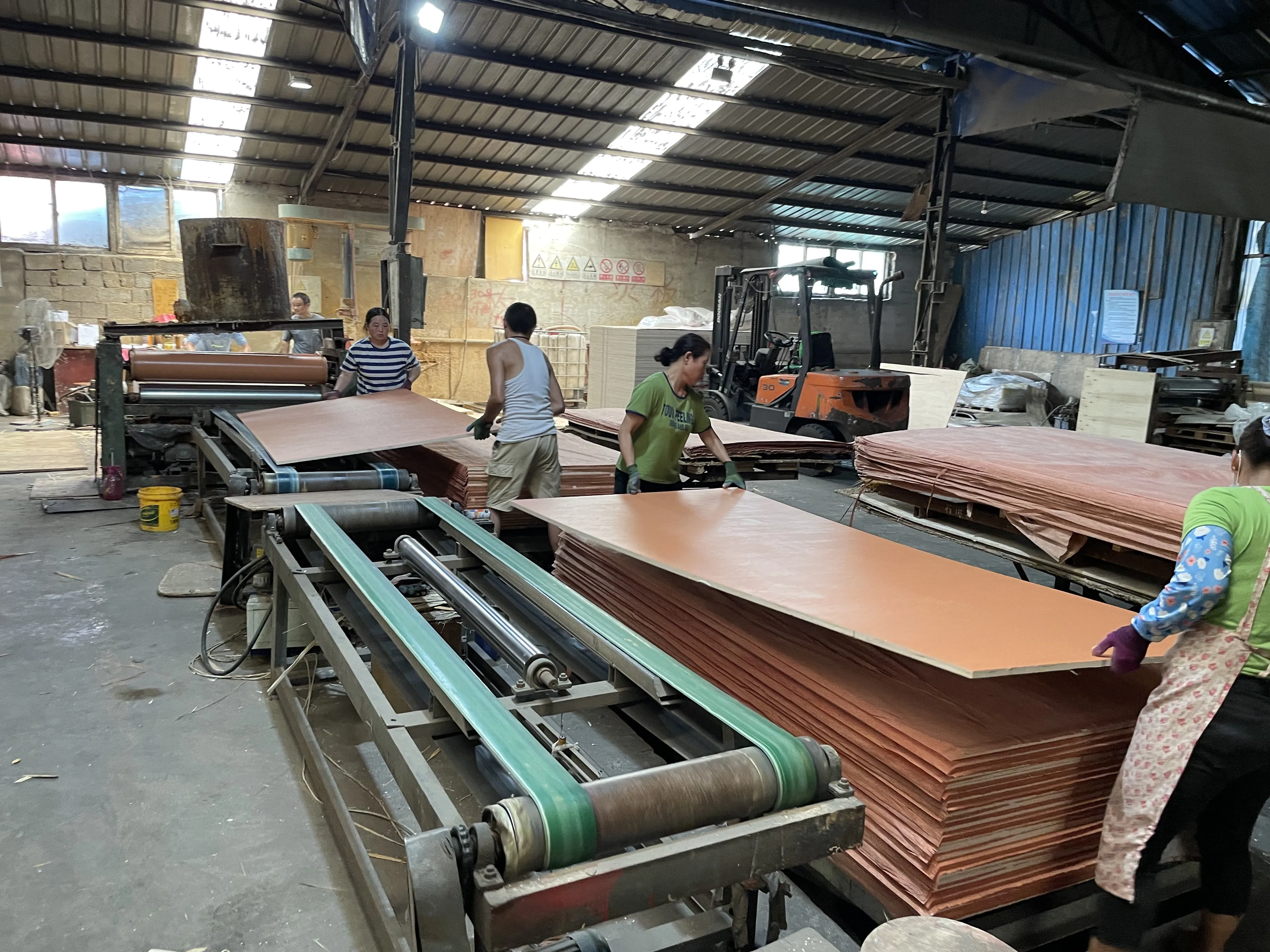

Company Strength
The factory innovates and develops large machinery for the production of plywood, which is CE certified and can be customized in size. Founded in 1998, the company has a history of more than 20 years.Welcome to consult or visit the factory!!!
Shandong Jinlun Machinery Manufacturing Co.,Ltd is located in the beautiful Chinese logistics city,small commodity city- Linyi
city. Located in the state-level economic zone, our company covers an area of 60,000 square meters.Enjoying the convenient
transportation, it is just about 8 km away from Linyi Airport and 260km away from Qingdao seaport.
city. Located in the state-level economic zone, our company covers an area of 60,000 square meters.Enjoying the convenient
transportation, it is just about 8 km away from Linyi Airport and 260km away from Qingdao seaport.
