Hot DC24V 12mm pcb 5050 SMD RGBCW 60leds/m RGB CCT light dimmer ip20 led strip light//Smart Strip Light
- Category: >>>
- Supplier: Shenzhen Huijingda Lighting Co. Ltd.
Share on (1600898268645):
Product Overview
Description
Specification
Model number | HJD-24-12F-5050-60RGBCW |
Step length (mm/x LED) | 100mm/6LEDs |
Number LED/m | 120 |
CRI | Ra>80(CW) |
Beam Angle (°) | 120 |
Voltage (v) | 24V |
Power (W/m) | 24w/m |
Light efficiency | 90-100lm/W(CW) |
FPC width (mm) | 12mm |
Max. length per circuit (m) | 5m |
IP rate | IP20/65/66/67/68 |
Installation | 3M Tape/ Mounting Clips/ Aliminum Profiles |

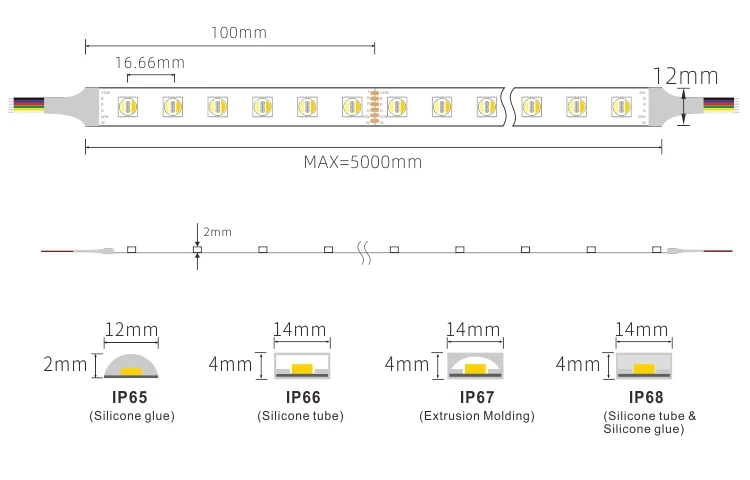

Demensions
Products Description

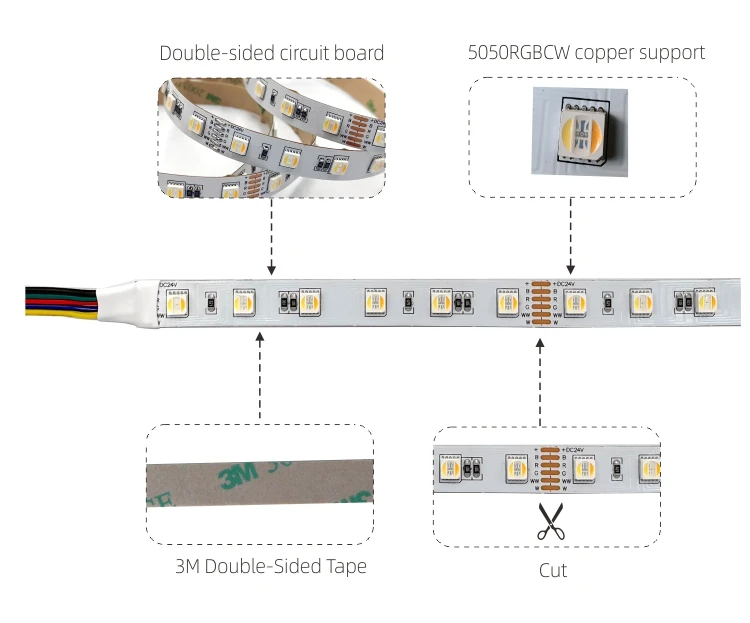

1.Provide gold wire and alloy wire copper support, super bright LED,stable and reliable.
2.Classic Led SMD5050,classic 12mm FPC,stable and reliable.
3.With famous brand 3M back-tape,more flexible installation,also with better heat-dissipation. 4.Longer life span with 3 years warranty
5.IP grade : IP20 / IP65 / IP66 / IP67 / IP68

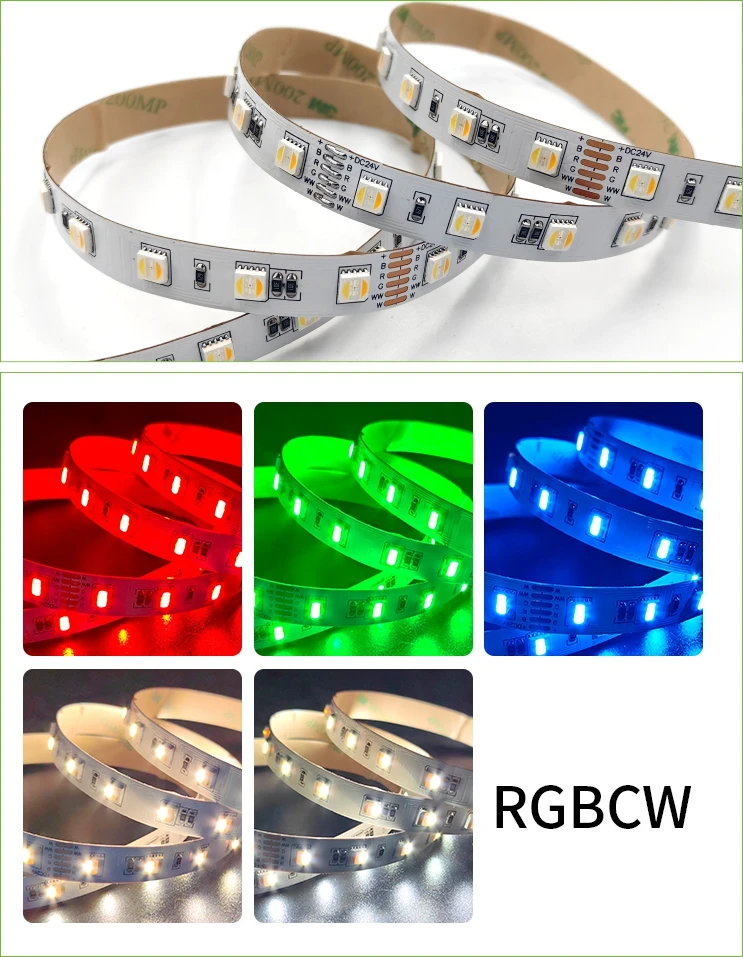

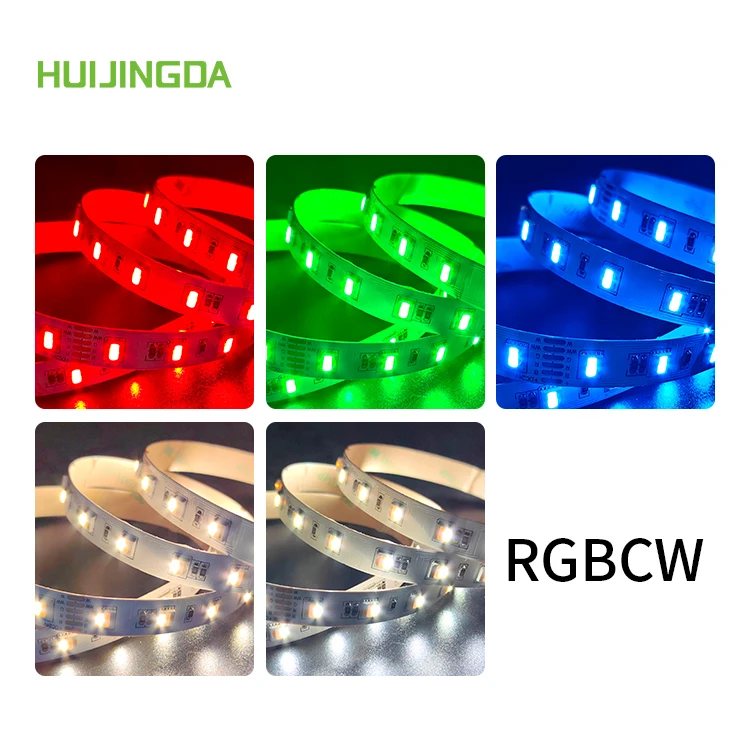

6.Beautiful RGBCW Led,create atmosphere of happiness.Match with all kinds of RGBCW controllers,convenient and interesting.
Data detection is as follows:
3.With famous brand 3M back-tape,more flexible installation,also with better heat-dissipation. 4.Longer life span with 3 years warranty
5.IP grade : IP20 / IP65 / IP66 / IP67 / IP68
6.Beautiful RGBCW Led,create atmosphere of happiness.Match with all kinds of RGBCW controllers,convenient and interesting.
Data detection is as follows:
Thermal shock:-45℃~80℃ for 30minutes each,shock for 5 minute,lastig 120h.
Constant temperature and humidity chamer:high temperature 85℃， humidity 85RH,sealed storage for 168h
Title goes here.
Torsion test:Rotate postive side and reverse side 900-1200 degrees,cycle 1000 times

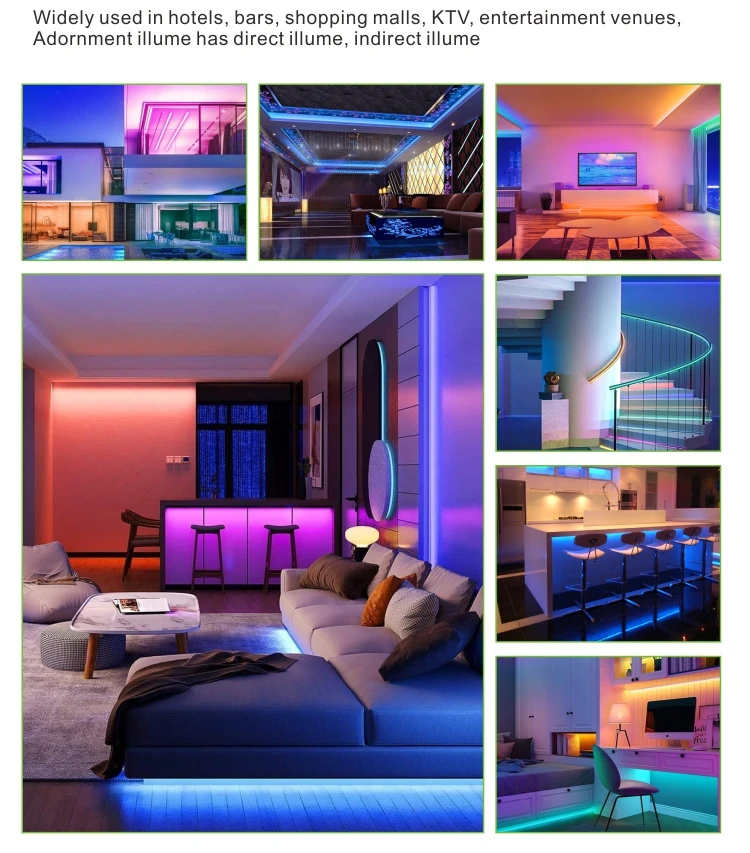

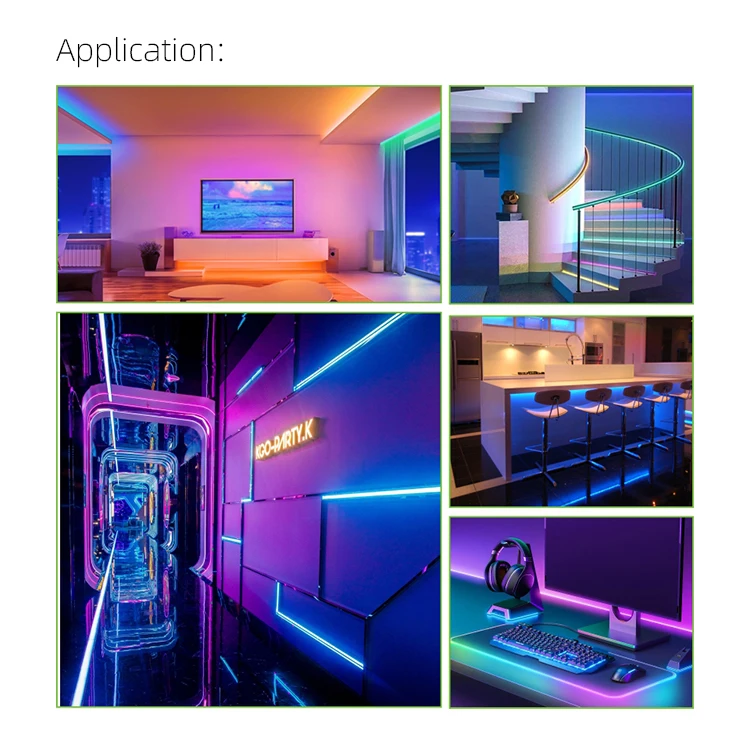

Application Scenarios
FAQ
1. Are you a manufacturer or a trading company?
We are a professional Led light strip manufacturer, with 2000 square meter and located in ShenZhen GD province China.
2.Do you offer free sample ?
Yes, we can offer free sample. Just send us an inquiry and our sales engineer will reply you within 12 hours.
3. Do you have MOQ ?
Some types have moq but 1 piece sample is always welcome.
4. What is the main market for Huijingda?
We are selling more to Europe, Southwest Asia,Australia and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 60-70%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other regions.
5. What LED do you usually use for your LED products?
We have two kind of LED chip. One is brand LED like SAMSUNG, Epistar and Sanan with LM-80 report; the other is customization orchips clients provide.
6. What is Huijingda lead time?
Usually in 8-10 days for non-waterproof order, 2 weeks for waterproof order. Sample lead-time is always 3-5 days. For OEM/ODM products, delivery time depends on the request of product.
7. Can Huijingda do custom assembly or offer OEM product?

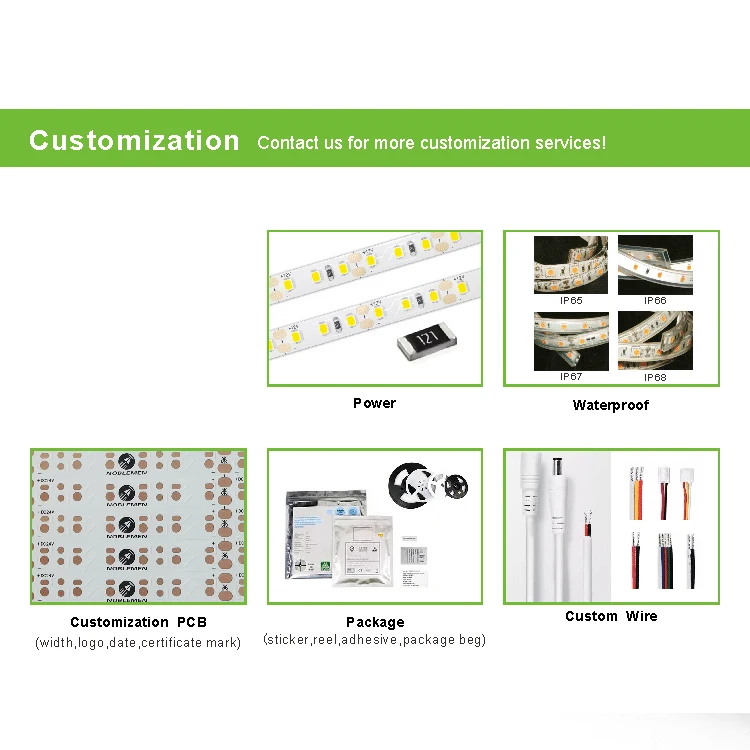

Huijingda are experienced in OEM/ ODM/ OBM service and finished many new items with clients. We welcome good and unique design,willing to develop products with customers together.
8. Do you have warranty for products?
Yes, we mainly provide 3 years warranty for most items and 5 year warranty also available. During the period, if customers have the approval showing product quality issues and if certified by Huijingda engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
9. Does Huijingda design its products?
Yes, Huijingda design and assemble many products. Our engineers have rich knowledge of optics, electronics, mechanical, structural and thermal management, as well as light control technology.
10. How to buy Hujingda products?
You can directly click " Contact Supplier " to send us inquiry, our sales team will get it and respond immediately.
We are a professional Led light strip manufacturer, with 2000 square meter and located in ShenZhen GD province China.
2.Do you offer free sample ?
Yes, we can offer free sample. Just send us an inquiry and our sales engineer will reply you within 12 hours.
3. Do you have MOQ ?
Some types have moq but 1 piece sample is always welcome.
4. What is the main market for Huijingda?
We are selling more to Europe, Southwest Asia,Australia and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 60-70%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other regions.
5. What LED do you usually use for your LED products?
We have two kind of LED chip. One is brand LED like SAMSUNG, Epistar and Sanan with LM-80 report; the other is customization orchips clients provide.
6. What is Huijingda lead time?
Usually in 8-10 days for non-waterproof order, 2 weeks for waterproof order. Sample lead-time is always 3-5 days. For OEM/ODM products, delivery time depends on the request of product.
7. Can Huijingda do custom assembly or offer OEM product?
Huijingda are experienced in OEM/ ODM/ OBM service and finished many new items with clients. We welcome good and unique design,willing to develop products with customers together.
8. Do you have warranty for products?
Yes, we mainly provide 3 years warranty for most items and 5 year warranty also available. During the period, if customers have the approval showing product quality issues and if certified by Huijingda engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
9. Does Huijingda design its products?
Yes, Huijingda design and assemble many products. Our engineers have rich knowledge of optics, electronics, mechanical, structural and thermal management, as well as light control technology.
10. How to buy Hujingda products?
You can directly click " Contact Supplier " to send us inquiry, our sales team will get it and respond immediately.
